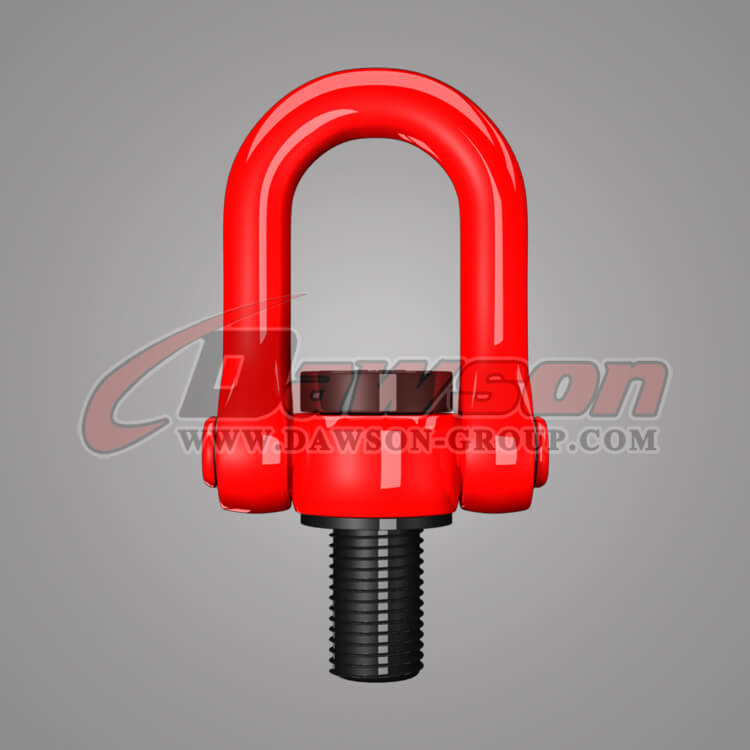

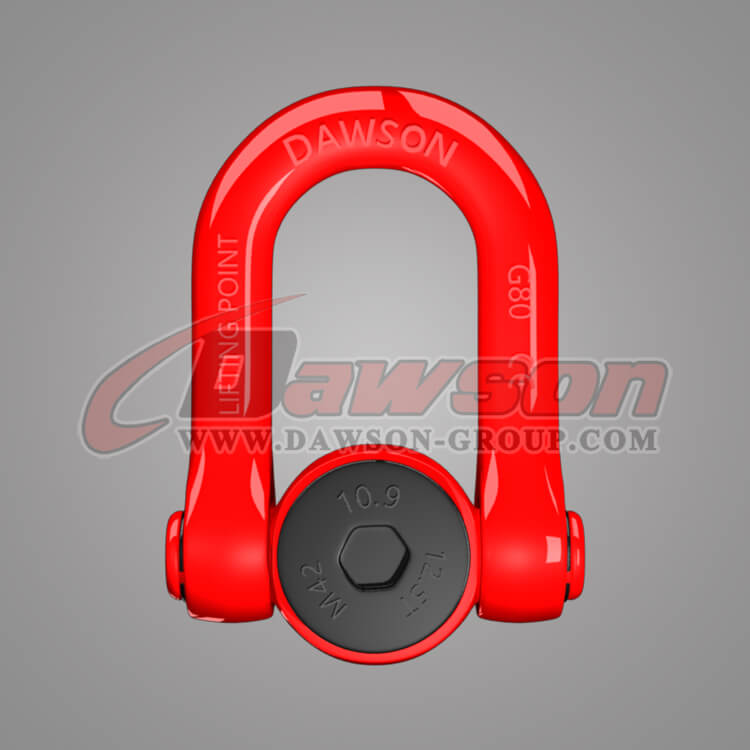

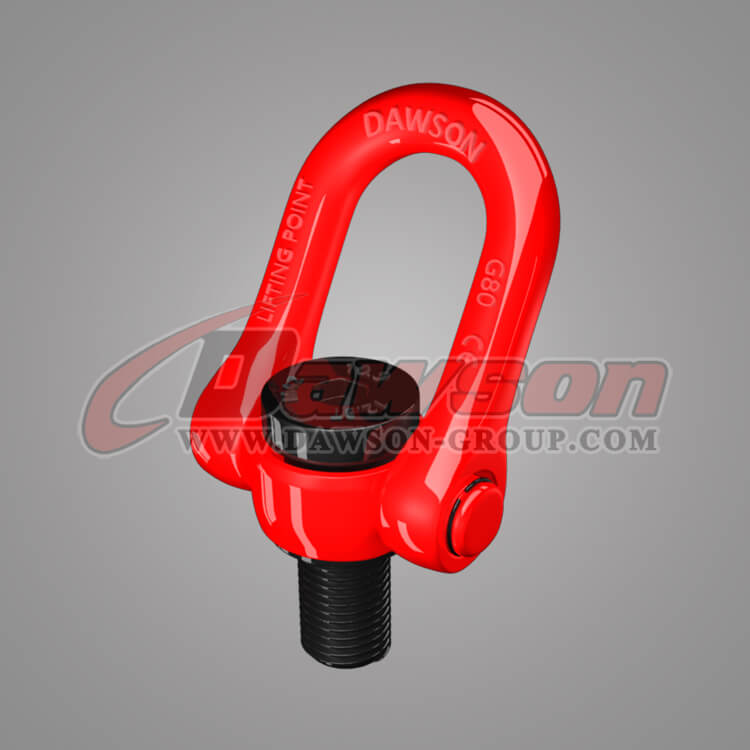

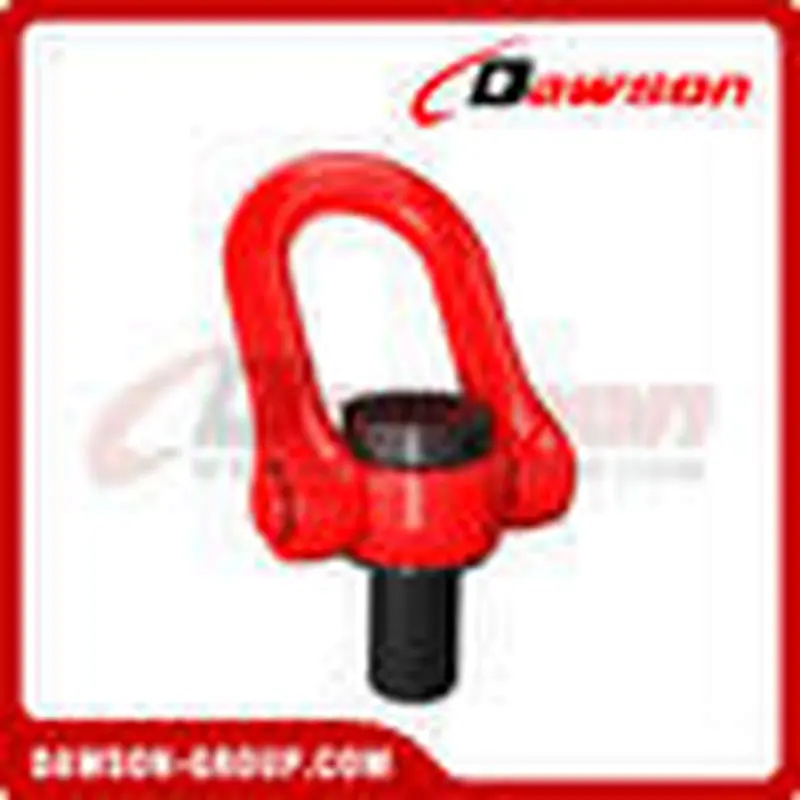

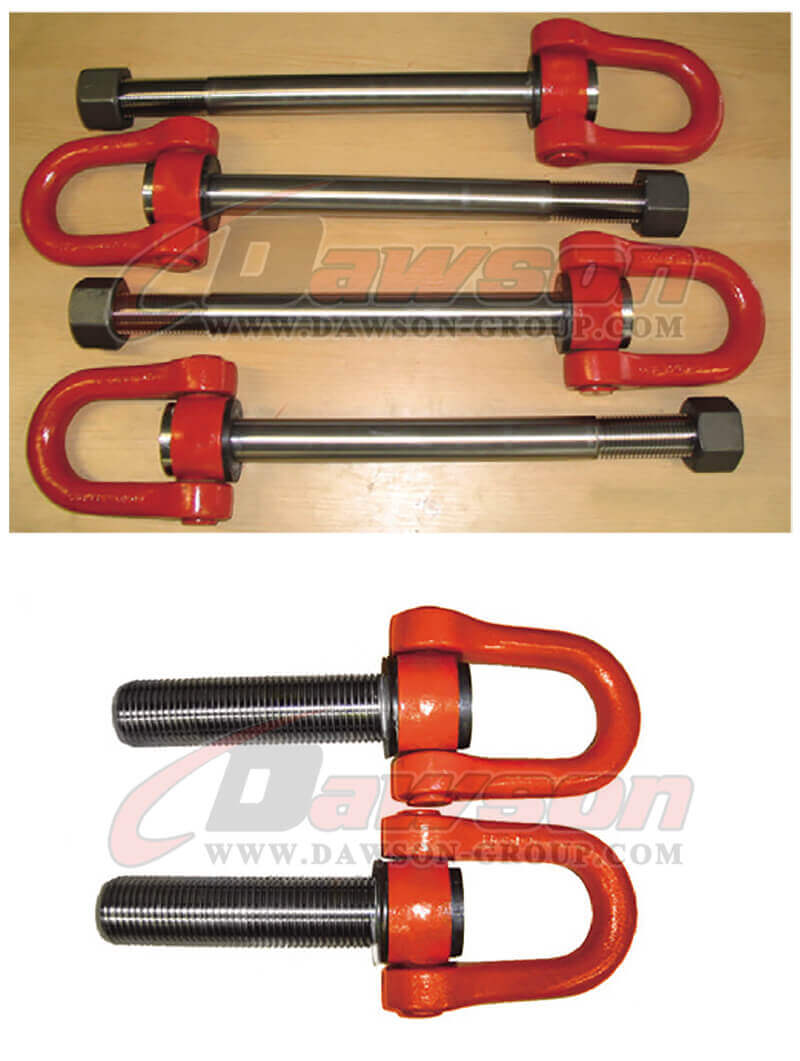

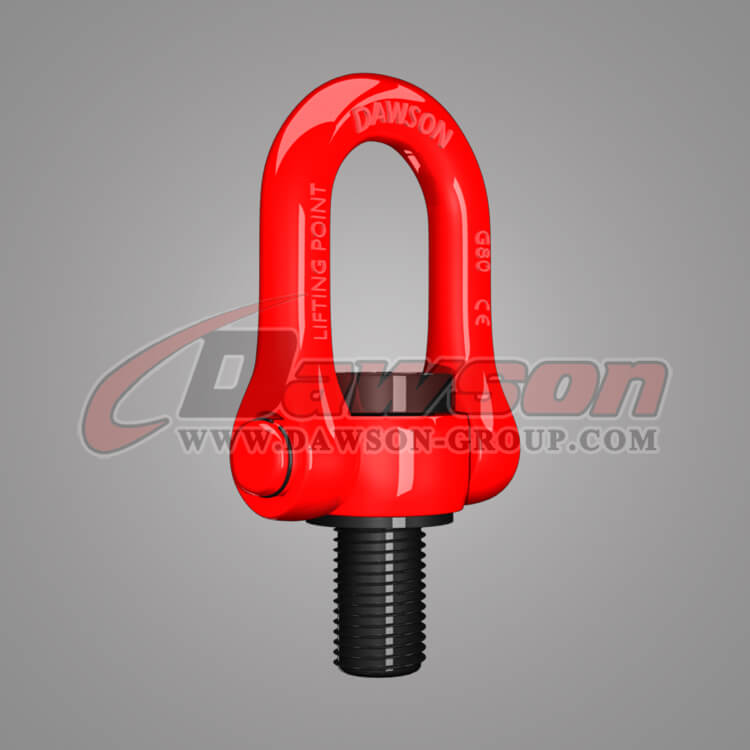

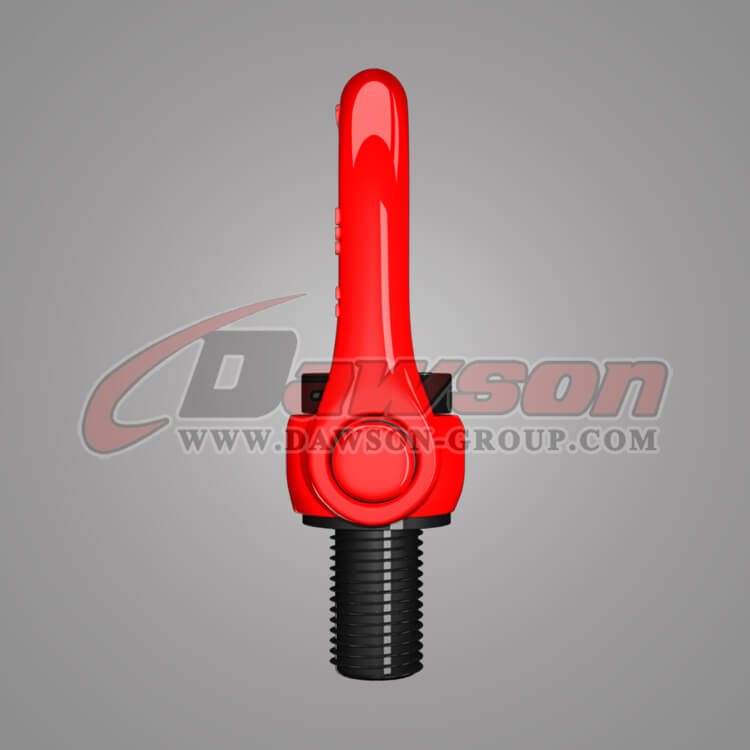

DAWSON Metric Thread G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Metric Thread:
| Item No. | Size | WLL/T | Technical parameter/mm | Tightening Torque/Nm | Weight/kg | |||||||||
| L | A | B | C | D | F | K | M | H | S | |||||
| DS888-M8-NAL12 | M8×1.25-6g | 0.5 | 12 | 48.5 | 37 | 76 | 14 | 103.5 | 49.5 | 8 | 40 | 10.5 | 30 | 0.8 |
| DS888-M10-NAL16 | M10×1.5-6g | 0.7 | 16 | 48.5 | 37 | 76 | 14 | 103.5 | 49.5 | 10 | 40 | 10.5 | 60 | 0.8 |
| DS888-M12-NAL18 | M12×1.75-6g | 1 | 18 | 48.5 | 37 | 76 | 14 | 103.5 | 49.5 | 12 | 40 | 10.5 | 100 | 0.8 |
| DS888-M14-NAL21 | M14×2.0-6g | 1.5 | 21 | 48.5 | 37 | 76 | 14 | 103.5 | 49.5 | 14 | 40 | 10.5 | 120 | 0.8 |
| DS888-M16-NAL24 | M16×2.0-6g | 2 | 24 | 48.5 | 37 | 76 | 14 | 103.5 | 49.5 | 16 | 40 | 10.5 | 150 | 0.8 |
| DS888-M20-NAL40 | M20×2.5-6g | 3 | 40 | 73 | 54 | 106 | 20 | 151 | 77 | 20 | 54 | 14.5 | 250 | 2 |
| DS888-M24-NAL40 | M24×3.0-6g | 4.5 | 40 | 73 | 54 | 106 | 20 | 151 | 77 | 24 | 54 | 14.5 | 400 | 2.5 |
| DS888-M30-NAL45 | M30×3.5-6g | 7.3 | 45 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 30 | 73 | 22.5 | 500 | 5.5 |
| DS888-M33-NAL50 | M33×3.5-6g | 8 | 50 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 33 | 73 | 22.5 | 800 | 5.5 |
| DS888-M36-NAL54 | M36×4.0-6g | 10 | 54 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 36 | 73 | 22.5 | 1000 | 5.5 |
| DS888-M39-NAL58 | M39×4.0-6g | 10 | 58 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 39 | 73 | 22.5 | 1200 | 6 |
| DS888-M42-NAL63 | M42×4.5-6g | 12.5 | 63 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 42 | 73 | 22.5 | 1500 | 6 |
| DS888-M45-NAL63 | M45×4.5-6g | 15 | 63 | 98.5 | 74 | 149 | 30 | 206.5 | 103.5 | 45 | 73 | 22.5 | 1800 | 6 |
| DS888-M48-NAL68 | M48×5.0-6g | 20 | 68 | 117.5 | 93 | 183 | 36 | 255 | 122 | 48 | 93 | 27.5 | 2000 | 11.5 |
| DS888-M52-NAL68 | M52×5.0-6g | 20 | 68 | 117.5 | 93 | 183 | 36 | 255 | 122 | 52 | 93 | 27.5 | 2000 | 12 |
| DS888-M56-NAL78 | M56×5.5-6g | 25 | 78 | 117.5 | 93 | 183 | 36 | 255 | 122 | 56 | 93 | 27.5 | 2100 | 12 |
| DS888-M64-NAL90 | M64×6.0-6g | 32 | 90 | 117.5 | 93 | 183 | 36 | 255 | 122 | 64 | 93 | 27.5 | 2200 | 13 |
| DS888-M64-BAL100 | M64×6.0-6g | 33 | 100 | 186 | 148 | 279 | 58.5 | 401 | 192 | 64 | 144 | 36.5 | 2720 | 42 |
| DS888-M72-BAL110 | M72×6.0-6g | 35 | 110 | 186 | 148 | 279 | 58.5 | 401 | 192 | 72 | 144 | 36.5 | 3200 | 43 |
| DS888-M80-BAL120 | M80×6.0-6g | 40 | 120 | 186 | 148 | 279 | 58.5 | 401 | 192 | 80 | 144 | 36.5 | 3600 | 45 |
| DS888-M90-BAL135 | M90×6.0-6g | 45 | 135 | 186 | 148 | 279 | 58.5 | 401 | 192 | 90 | 144 | 36.5 | 4100 | 47 |
| DS888-M100-BAL150 | M100×6.0-6g | 50 | 150 | 186 | 148 | 279 | 58.5 | 401 | 192 | 100 | 144 | 36.5 | 4500 | 50 |
Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.

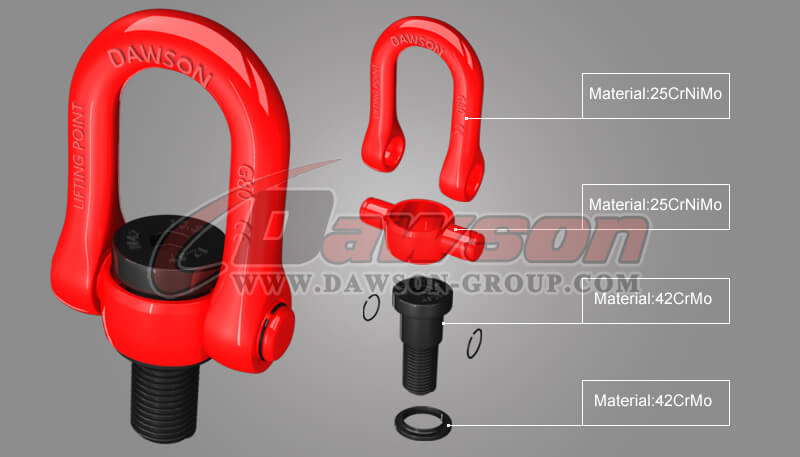

Brief Introduction:
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times working load limit.
Fatigue tested at 1.5 times working load limit for 20000 cycles.
Breaking test magnaflux crack detection.

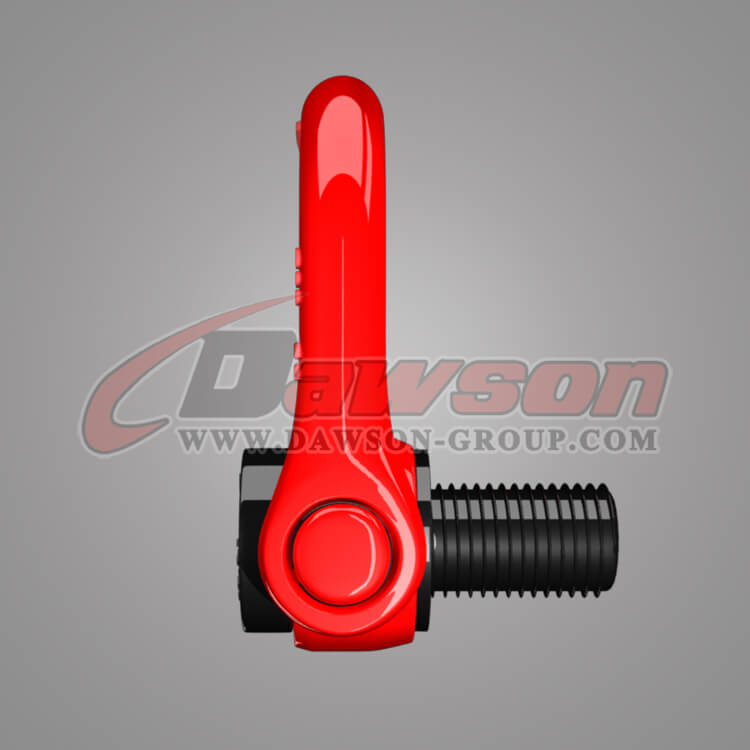

Grade 100 lifting point are 360°rotation with 90°pivot function.
Rated at 100% at 90°angle.

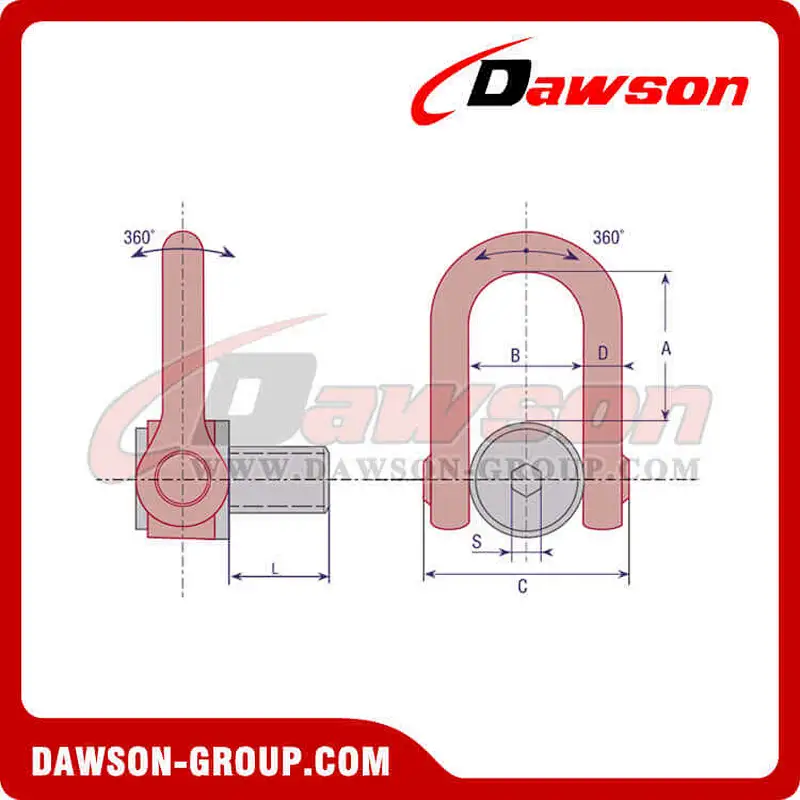

DS Swivel Hoist Ring Force Form:

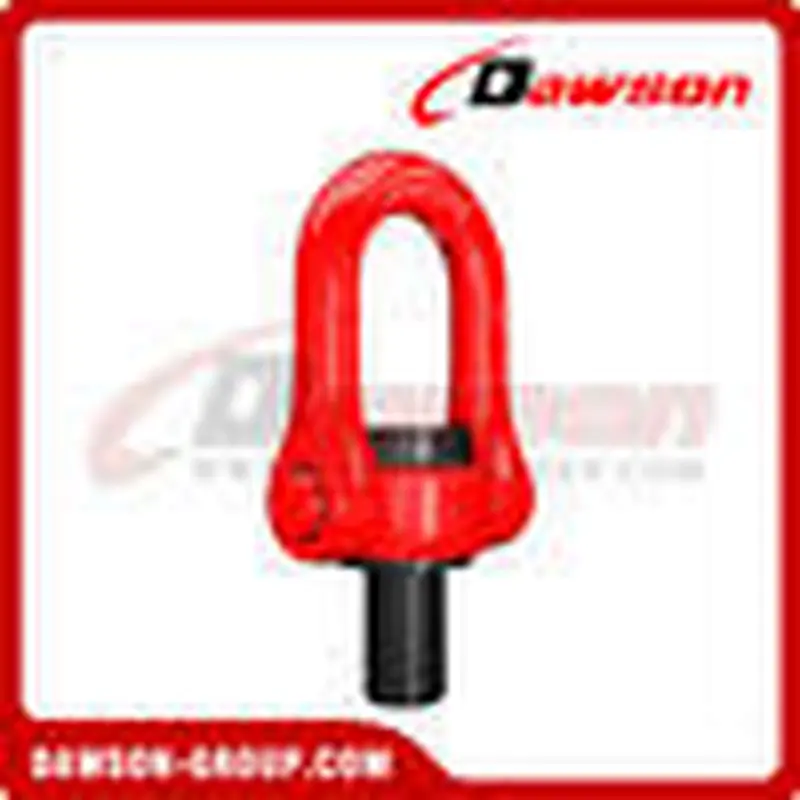

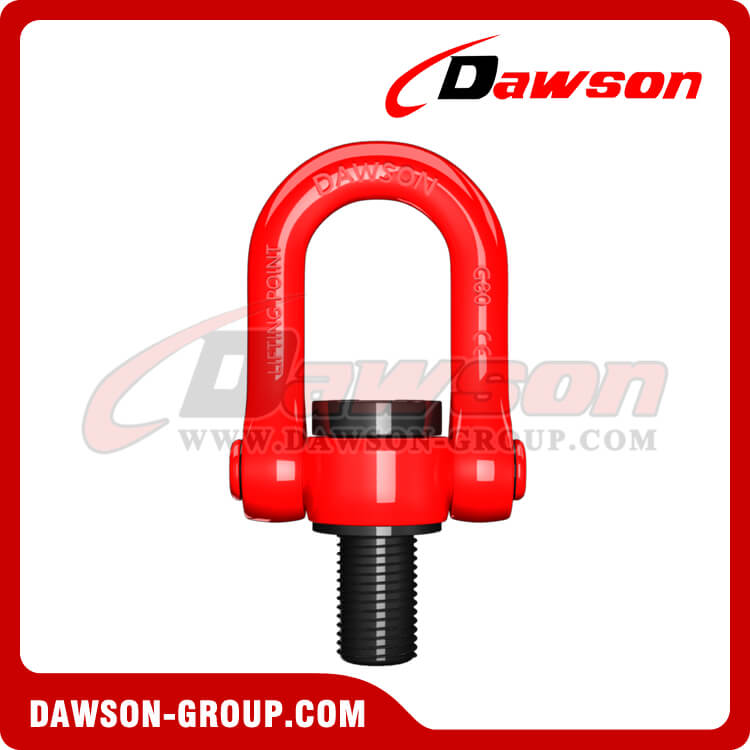

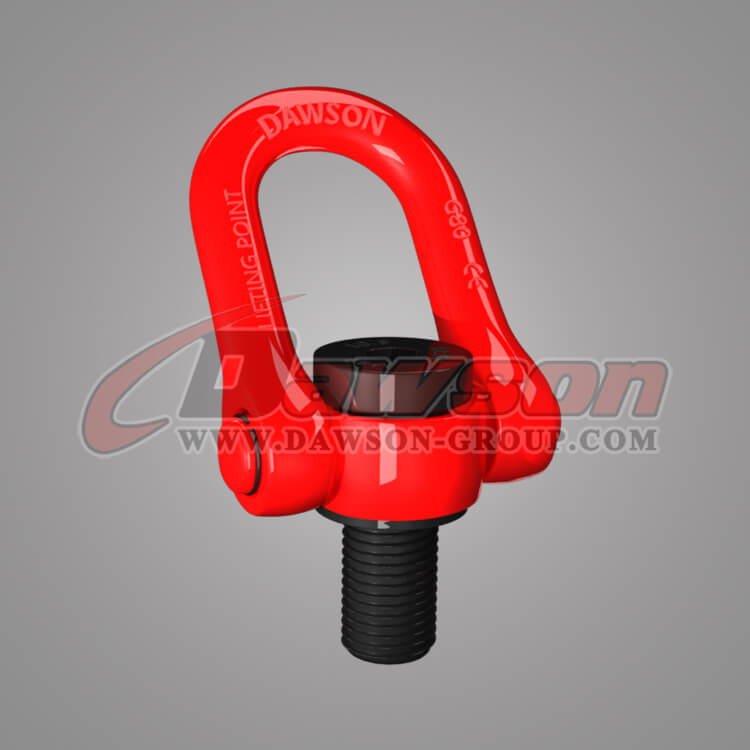

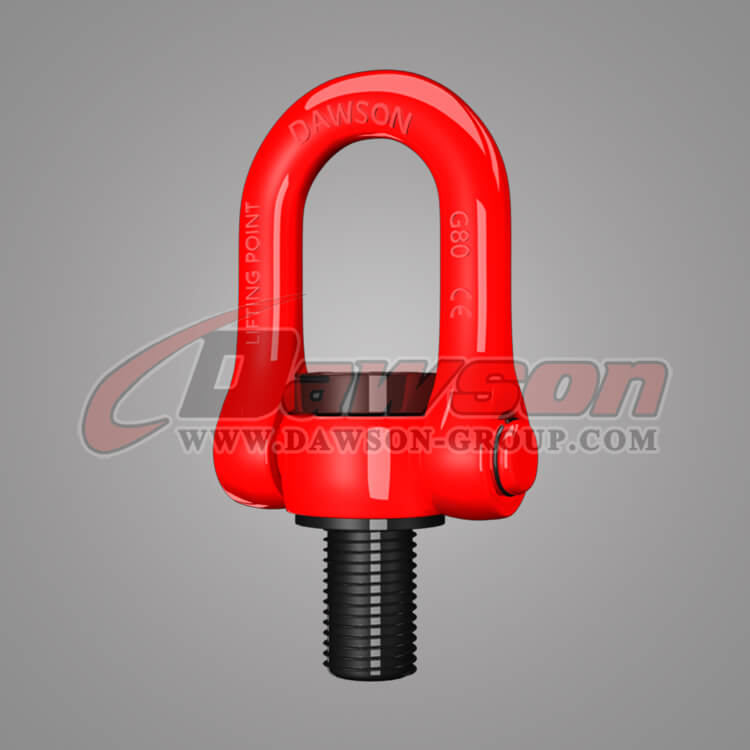

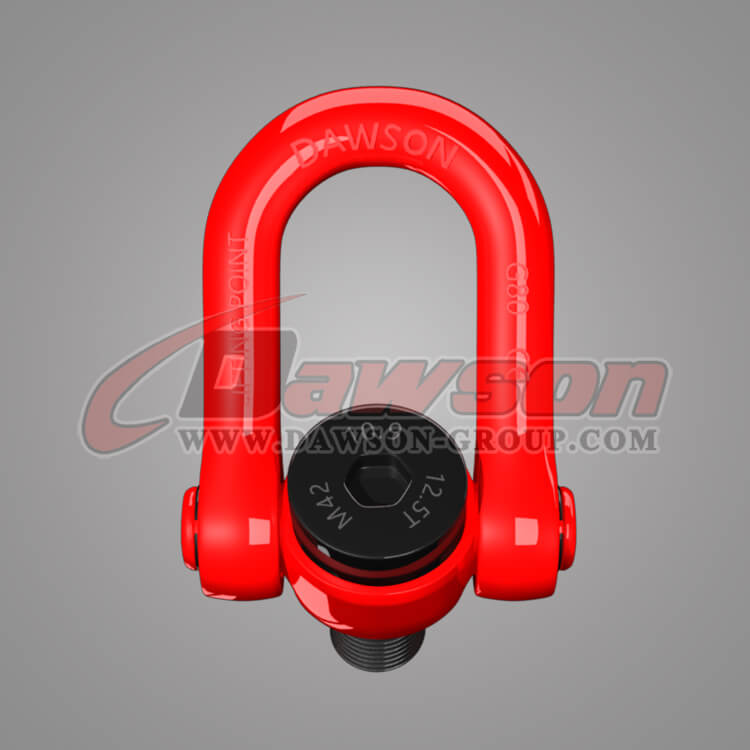

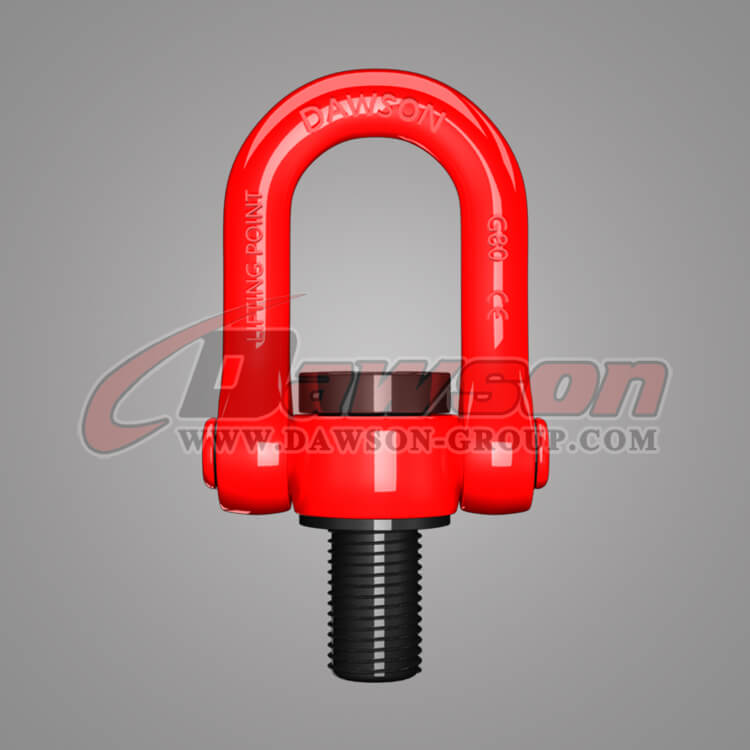

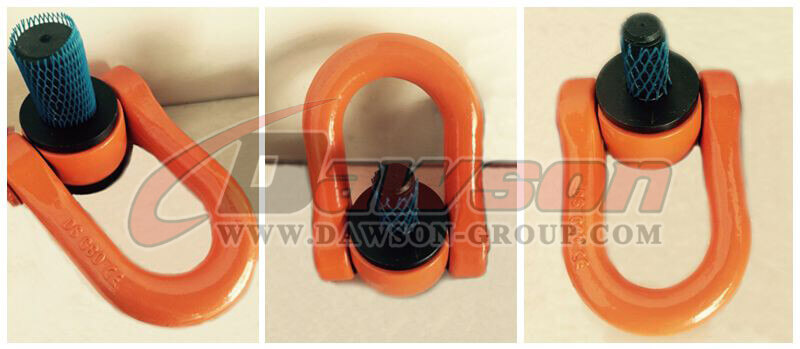

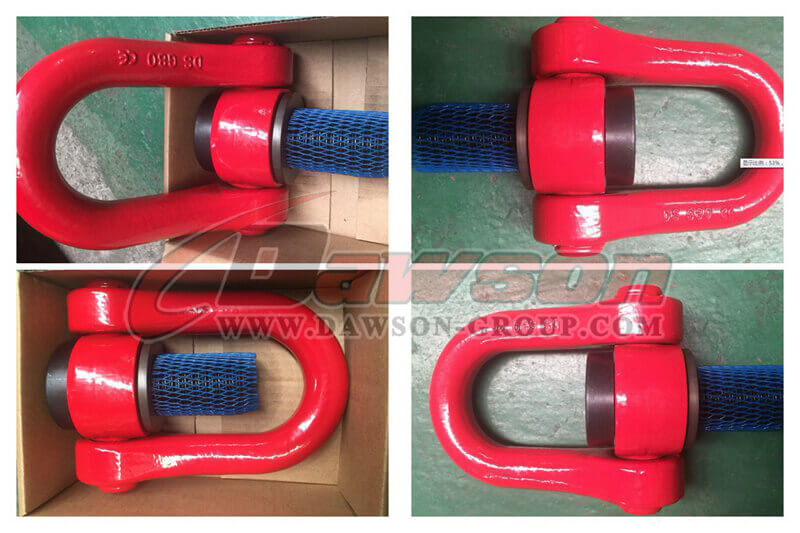

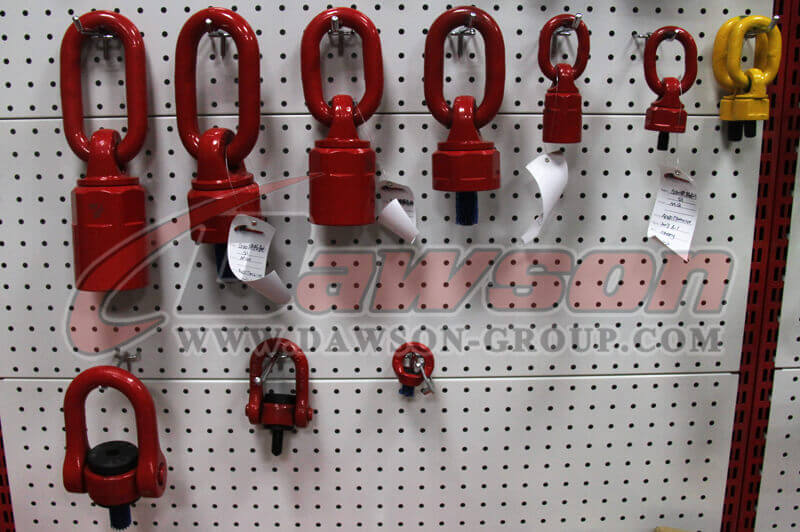

Products Show:

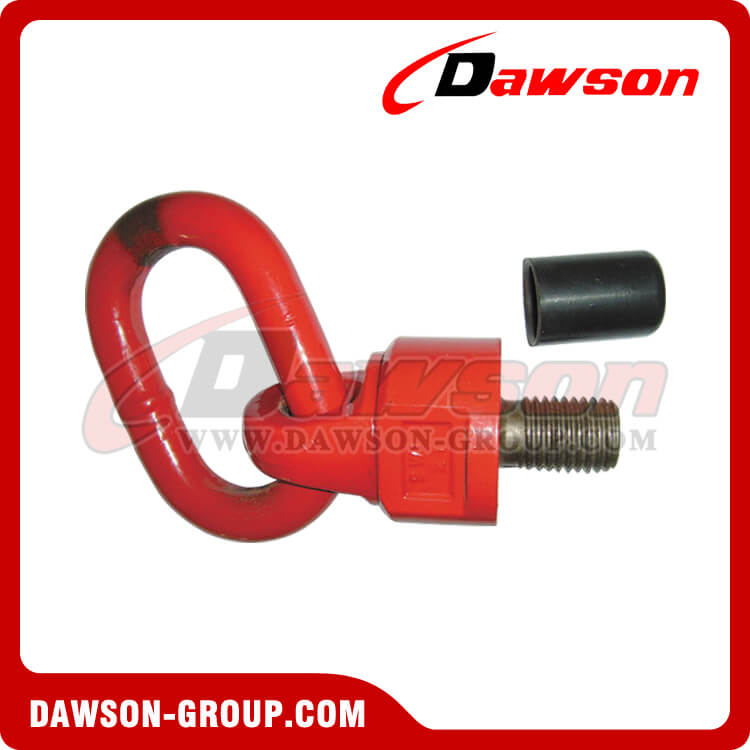

Other Related Products Show:

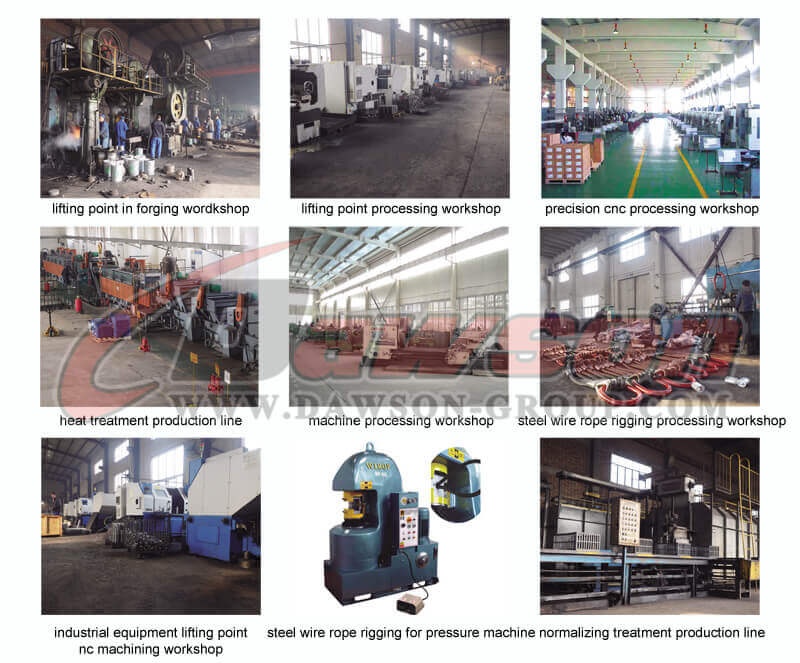

Production Equipment:

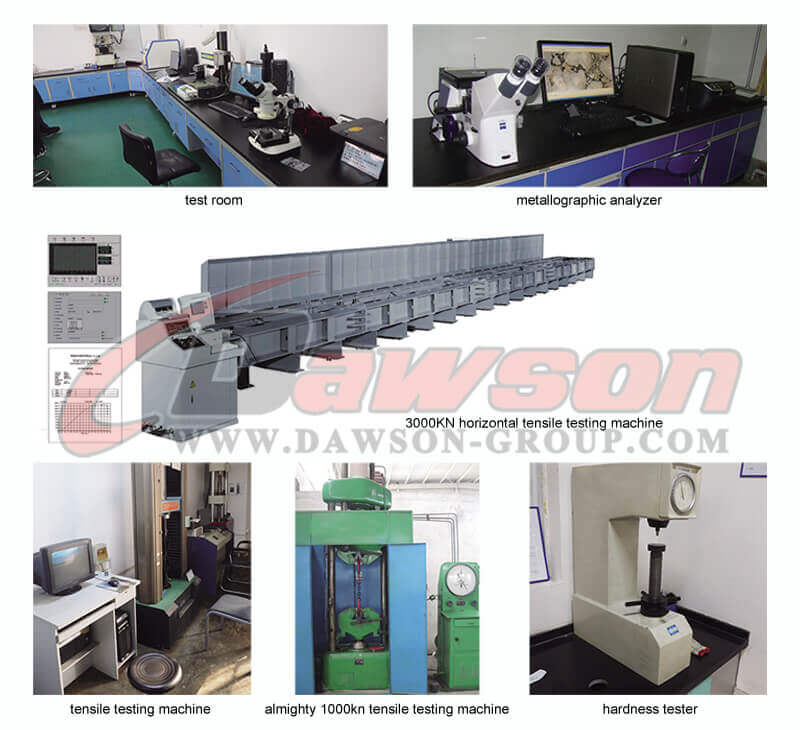

Test Equipment:

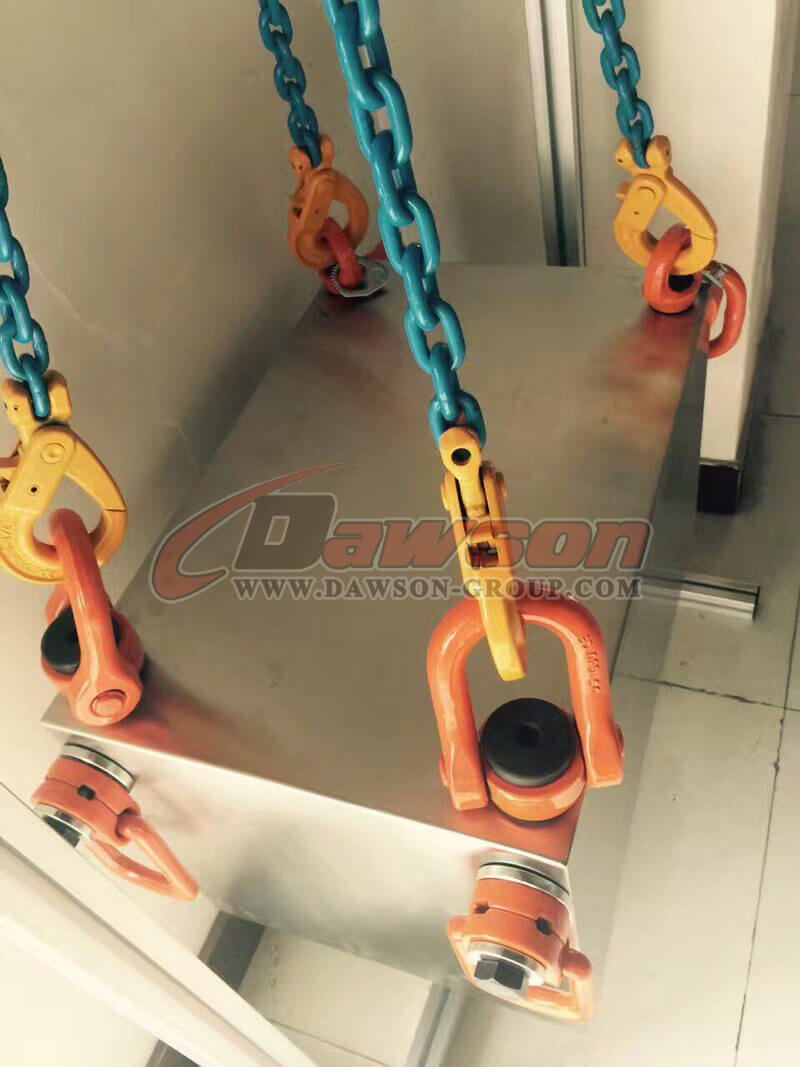

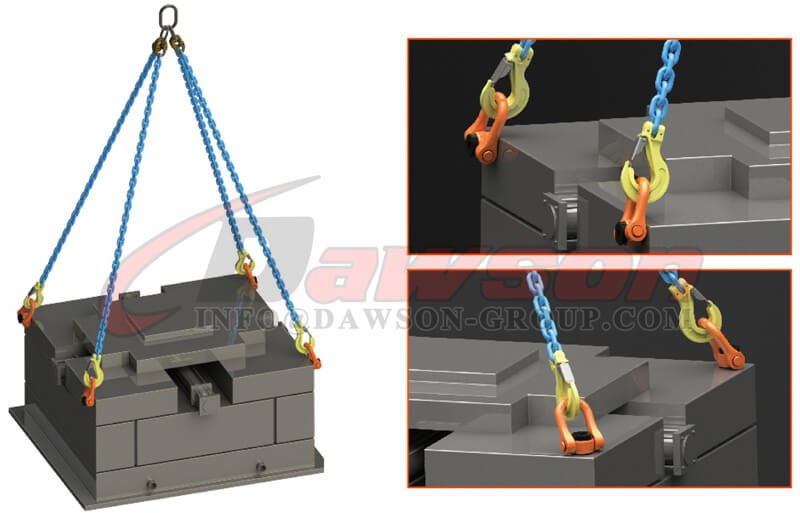

Application of DAWSON Metric Thread G80 Swivel Hoist Ring:

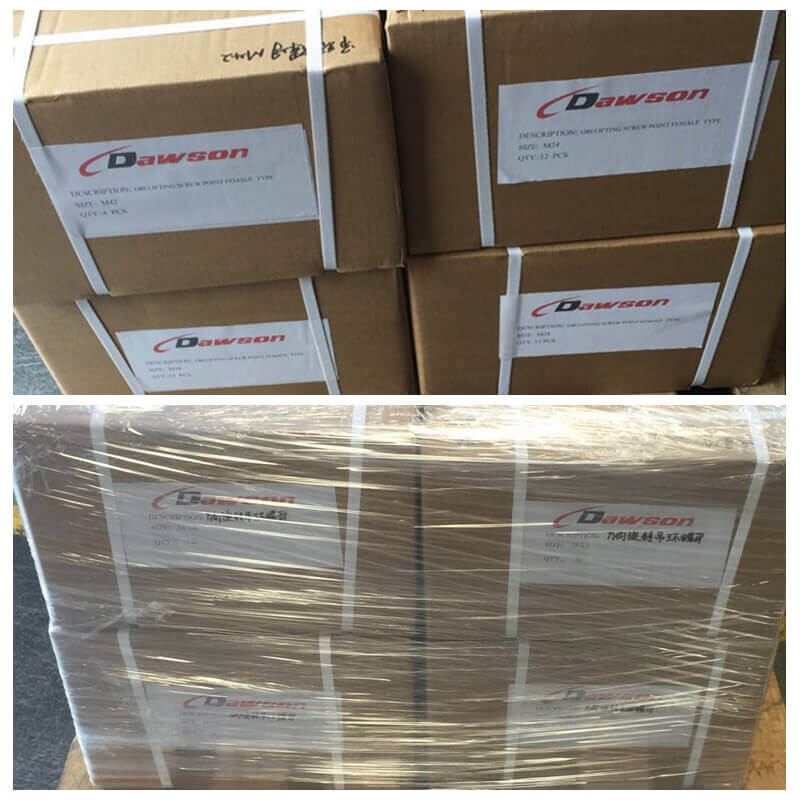

Package of G80 Swivel Lifting Screw Points:
We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!
