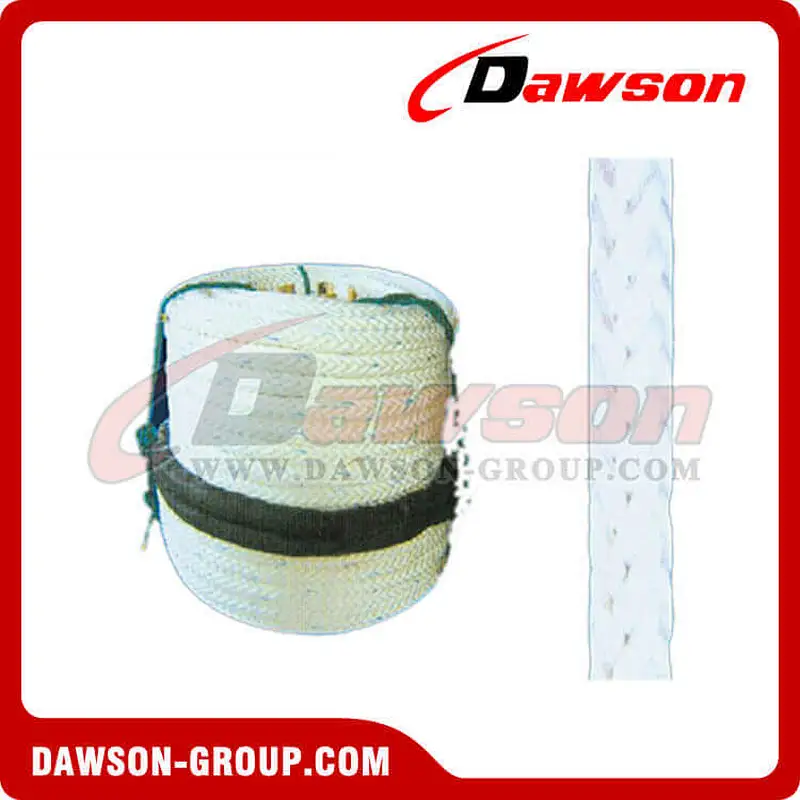

12 Strands Braided Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Nylon multifilament varieties (line), polyester, polypropylene filament, polypropylene, Polyethylene and other products, specifications ①28mm-152mm. The introduction of foreign technology developed by twelve braid production line equipment, the leading domestic technology, the structure of science, technology and reasonable, the rope markedly improved strength, enhanced wear resistance, lower elongation, smooth flexible, easy to operate, is the company's high-tech products.
Mainly used in shipbuilding companies, ocean transportation, offshore drilling, defense industry, ports, oil exploration and other fields.
| Specification | Nylon multifilament | Nylon | Polypropylene filament | Polypropylene | Polyester | |||||
| Diameter | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength |
| Millimeter mm | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN |
| 28 | 102 | 16300 | 98 | 12800 | 85 | 12000 | 81 | 10500 | 130 | 12600 |
| 32 | 136 | 20600 | 130 | 15400 | 110 | 13900 | 107 | 13300 | 170 | 16200 |
| 36 | 175 | 25600 | 168 | 19200 | 135 | 17500 | 132 | 16600 | 210 | 19900 |
| 40 | 215 | 30800 | 205 | 23100 | 168 | 21100 | 163 | 20100 | 260 | 24700 |
| 44 | 258 | 36900 | 250 | 27700 | 200 | 25400 | 195 | 24200 | 310 | 29300 |
| 48 | 305 | 43300 | 290 | 32500 | 240 | 29500 | 230 | 28000 | 370 | 34500 |
| 52 | 360 | 50300 | 345 | 37700 | 280 | 34000 | 270 | 32500 | 434 | 40300 |
| 56 | 420 | 56000 | 405 | 42000 | 325 | 38200 | 315 | 37100 | 505 | 46100 |
| 60 | 480 | 64000 | 460 | 48000 | 375 | 43700 | 365 | 42500 | 580 | 51300 |
| 64 | 545 | 72000 | 525 | 54000 | 425 | 49500 | 415 | 48000 | 660 | 59600 |
| 72 | 690 | 90000 | 660 | 68000 | 540 | 62000 | 520 | 60300 | 840 | 74200 |
| 80 | 850 | 110000 | 820 | 83000 | 660 | 76500 | 640 | 74200 | 1020 | 91000 |
| 88 | 1030 | 135000 | 990 | 101000 | 800 | 91600 | 776 | 88900 | 1240 | 109000 |
| 96 | 1220 | 158000 | 1170 | 118000 | 950 | 108000 | 920 | 105000 | 1480 | 129000 |
| 104 | 1440 | 187000 | 1380 | 140000 | 1120 | 124000 | 1090 | 120000 | 1740 | 149000 |
| 112 | 1670 | 216000 | 1600 | 162000 | 1300 | 143000 | 1260 | 139000 | 2020 | 170000 |
| 120 | 1930 | 247000 | 1850 | 185000 | 1490 | 164000 | 1440 | 160000 | 2310 | 196000 |
| 128 | 2200 | 280000 | 2100 | 210000 | 1680 | 185000 | 1630 | 180000 | 2600 | 222000 |
| 136 | 2480 | 315000 | 2380 | 236000 | 1900 | 210000 | 1840 | 203000 | 2945 | 252000 |
| 144 | 2780 | 352000 | 2670 | 264000 | 2120 | 238000 | 2050 | 226000 | 3286 | 278000 |
| 152 | 3100 | 395000 | 2970 | 296000 | 2370 | 264000 | 2300 | 251000 | 3673 | 310000 |

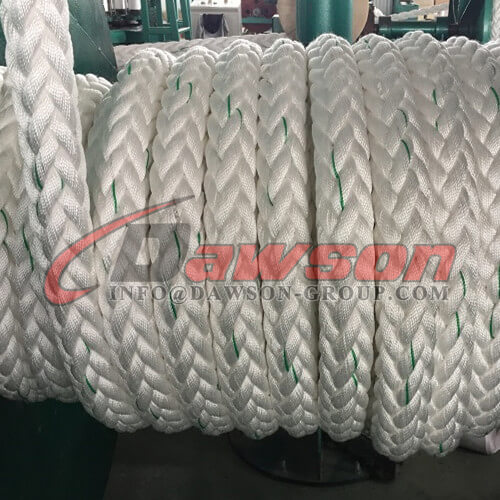

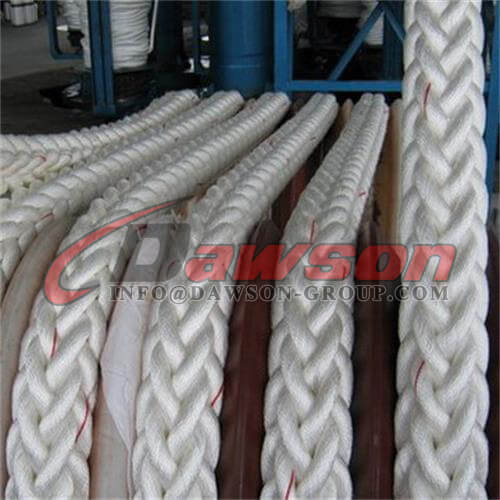

Products Show:

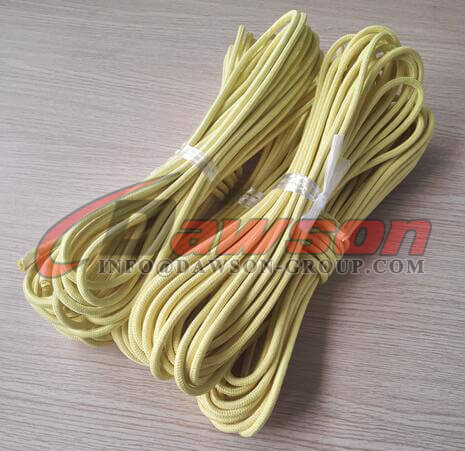

Other Related Products:

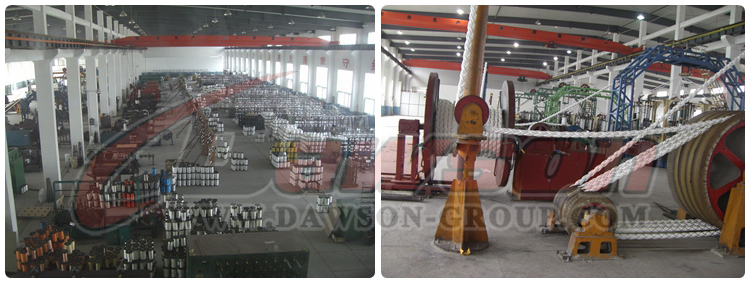

Factory about 12 Strands Braided Rope:

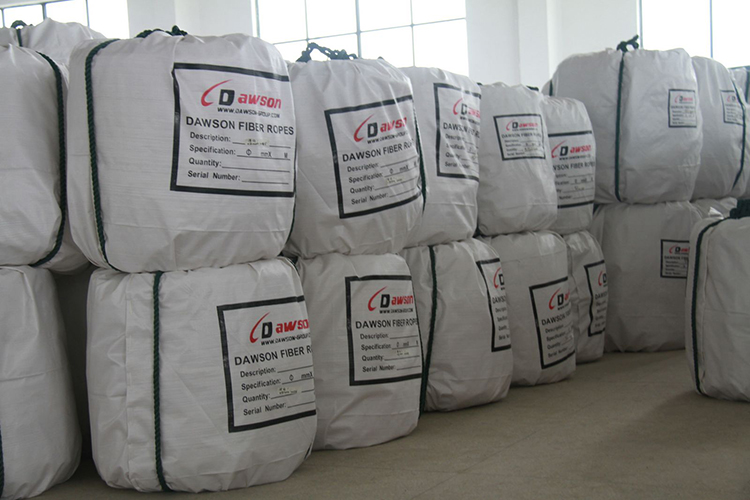

Package about 12 Strands Braided Rope:
