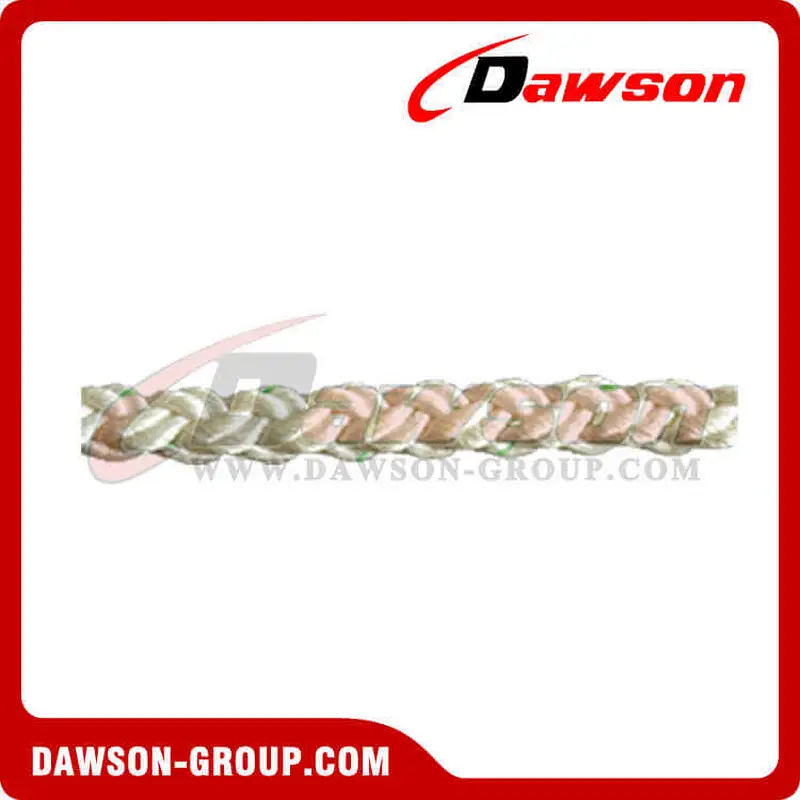

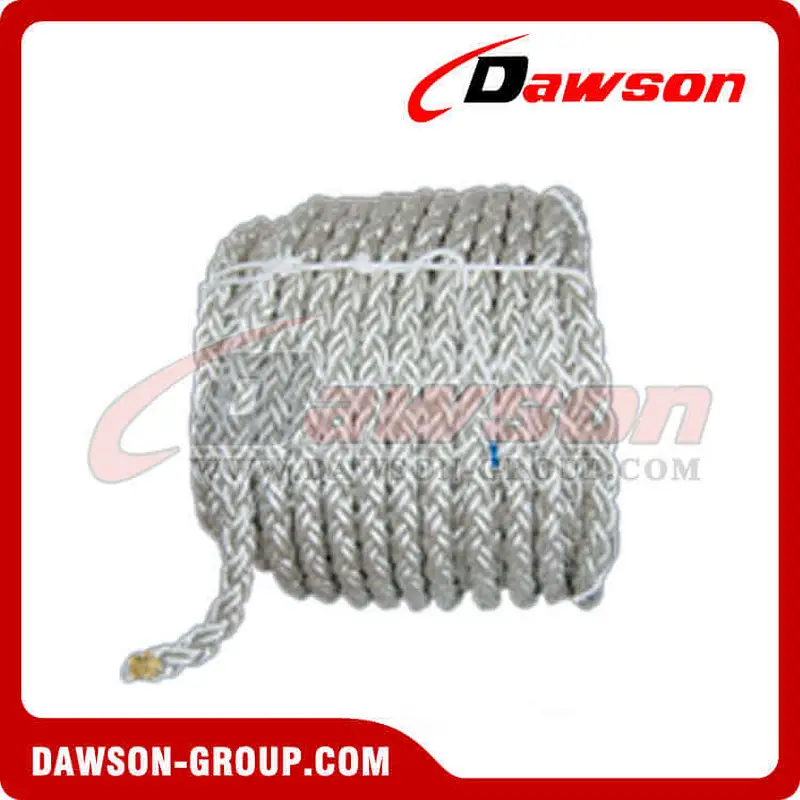

8 Strands Polyamide Multifilament Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Nylon multifilament varieties (line), polyester, polypropylene filament (thread), polypropylene, Polyethylene, high molecular weight polyethylene and other products, specifications (28mm a 130mm. Reasonable braided structure of their products, with high strength, low elongation long, wear resistance, and the advantages of easy buckle.
Mainly used for shipbuilding companies, ocean transportation, national defense, offshore oil, port operations and other。
| Specification | Nylon multifilament | Nylon | Polypropylene filament | Polypropylene | Polyester | |||||
| Diameter | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength |
| Millimeter mm | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN |
| 28 | 102 | 16300 | 98 | 12800 | 83 | 11700 | 81 | 10500 | 128 | 13200 |
| 32 | 136 | 30600 | 130 | 15400 | 110 | 13900 | 107 | 13300 | 170 | 16200 |
| 36 | 175 | 25600 | 168 | 19200 | 135 | 17500 | 132 | 16600 | 210 | 19900 |
| 40 | 215 | 30800 | 205 | 23100 | 168 | 21100 | 163 | 20100 | 260 | 24700 |
| 44 | 258 | 36900 | 250 | 27700 | 200 | 25400 | 19500 | 24200 | 310 | 29300 |
| 48 | 305 | 43300 | 290 | 32500 | 240 | 29500 | 230 | 28000 | 370 | 34500 |
| 52 | 360 | 50300 | 345 | 37700 | 280 | 34000 | 270 | 32500 | 434 | 40300 |
| 56 | 420 | 56000 | 405 | 42000 | 325 | 38200 | 315 | 37100 | 505 | 46100 |
| 60 | 480 | 64000 | 460 | 48000 | 375 | 43700 | 365 | 42500 | 580 | 51300 |
| 64 | 545 | 72000 | 525 | 54000 | 425 | 49500 | 415 | 48000 | 660 | 59600 |
| 72 | 690 | 90000 | 660 | 68000 | 540 | 62000 | 520 | 60300 | 840 | 74200 |
| 80 | 850 | 110000 | 820 | 83000 | 660 | 76500 | 640 | 74200 | 1020 | 91000 |
| 88 | 1030 | 135000 | 990 | 101000 | 800 | 91600 | 776 | 88900 | 1240 | 109000 |
| 96 | 1220 | 158000 | 1170 | 118000 | 950 | 108000 | 920 | 105000 | 1480 | 129000 |
| 104 | 1440 | 187000 | 1380 | 140000 | 1120 | 124000 | 1090 | 120000 | 1740 | 149000 |
| 112 | 1670 | 216000 | 1600 | 162000 | 1300 | 143000 | 1260 | 139000 | 2020 | 170000 |
| 120 | 1930 | 247000 | 1850 | 185000 | 1490 | 164000 | 1440 | 160000 | 2310 | 196000 |
| 128 | 2200 | 280000 | 2100 | 210000 | 1680 | 185000 | 1630 | 180000 | 2600 | 222000 |
Variety
Polypropylene, Polyethylene, Polypropylene filament, polyester, Polyamide multifilament etc. Specification: 28mm-128mm
Advantage
Weave structure is reasonable, High strength, Corrosion resistance, Low elongation, Convenient socket, Long service life.
Application
* General Vessel Mooring
* Barge and Dredge Working
* Towing
* Lifting Sling
* Other Fishing Line

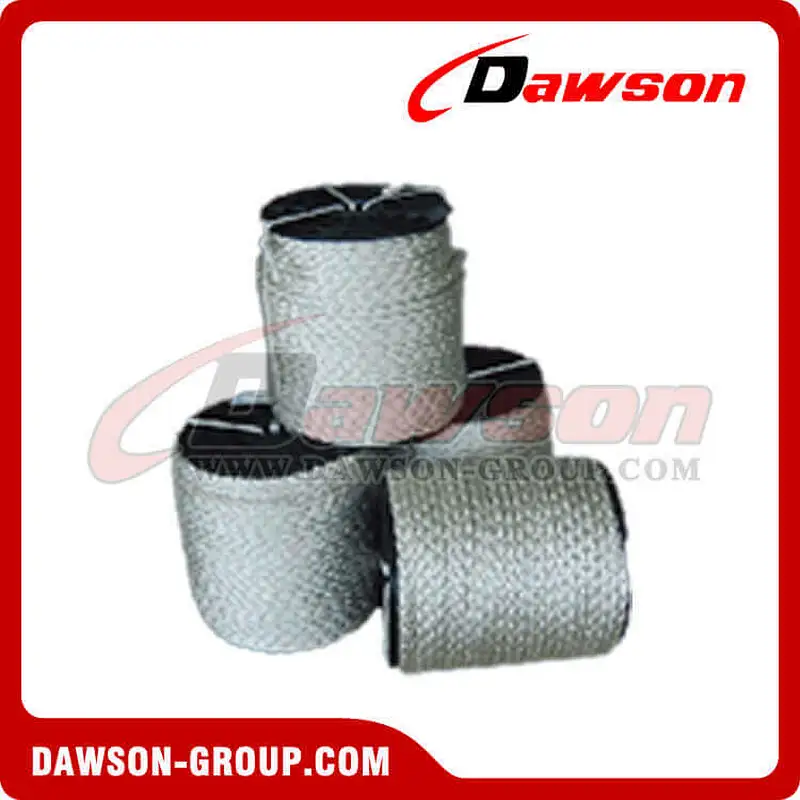

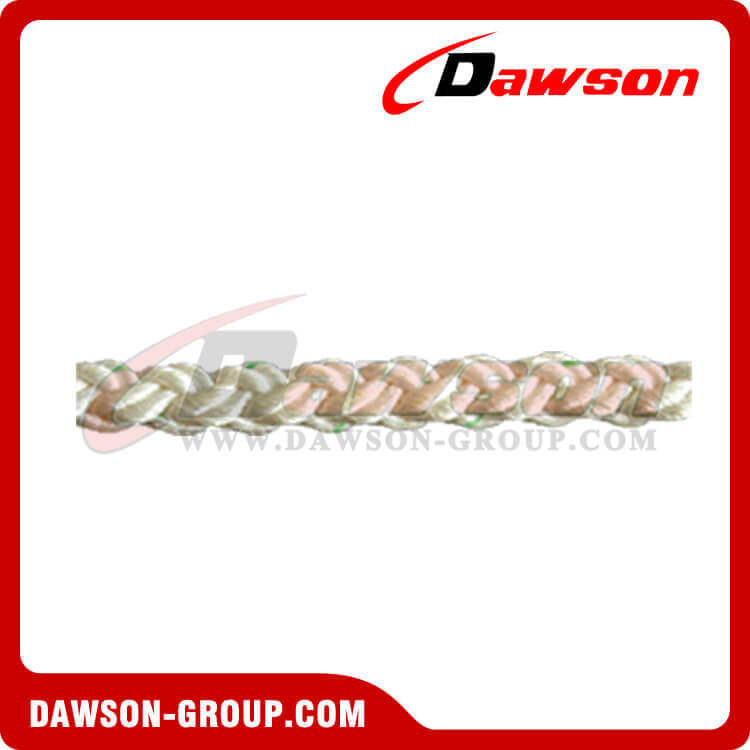

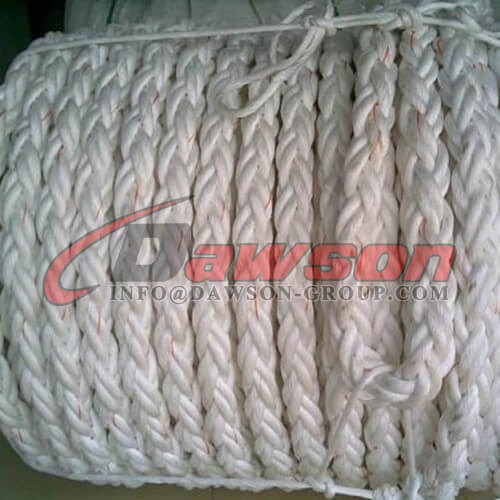

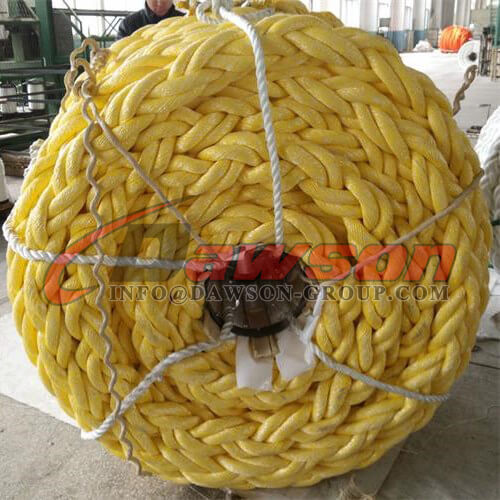

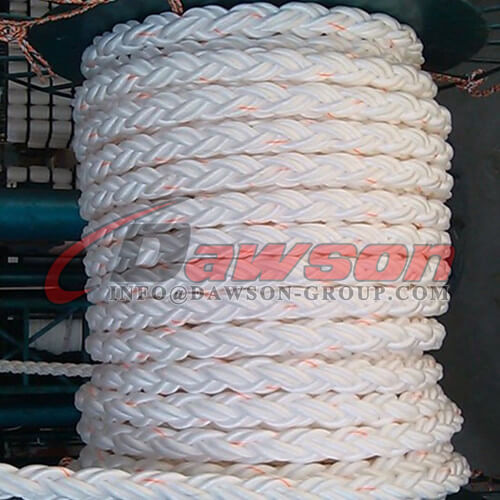

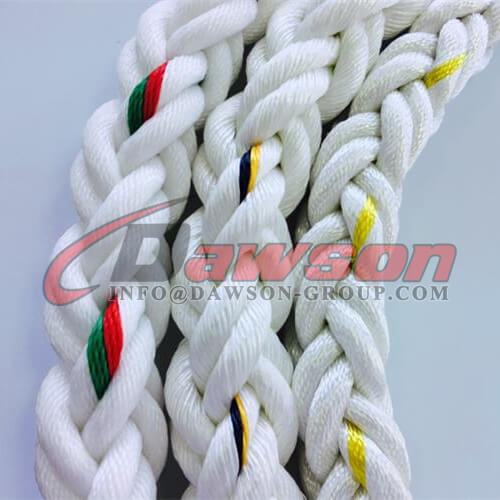

Products Show:

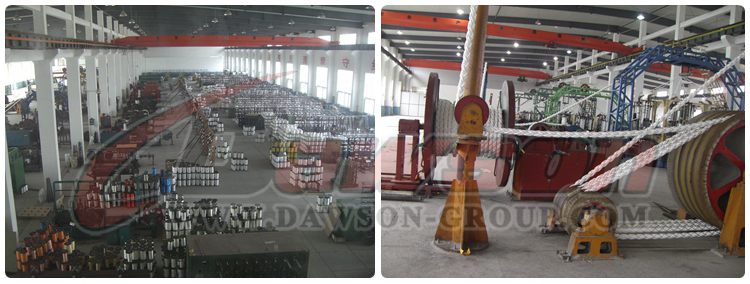

Factory about 8 Strands Polyamide Multifilament Rope:

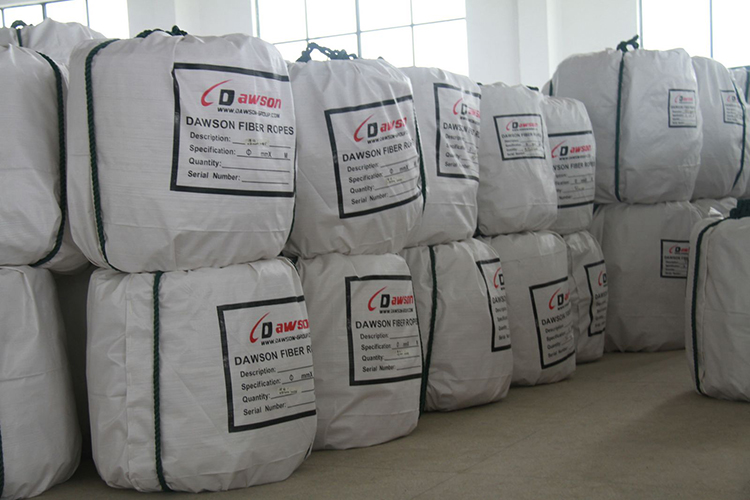

Package about 8 Strands Polyamide Multifilament Rope:
