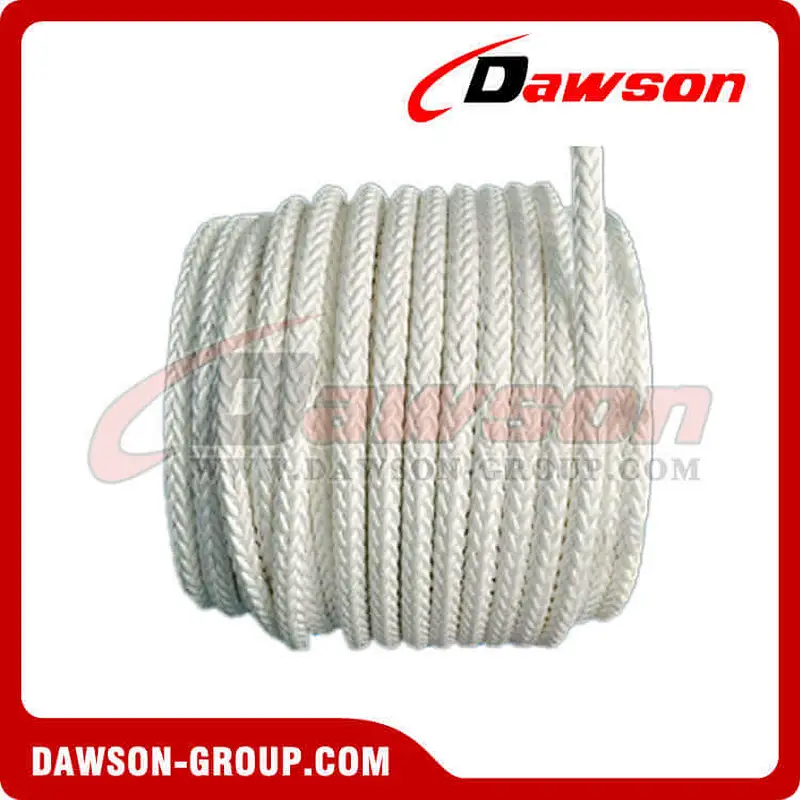

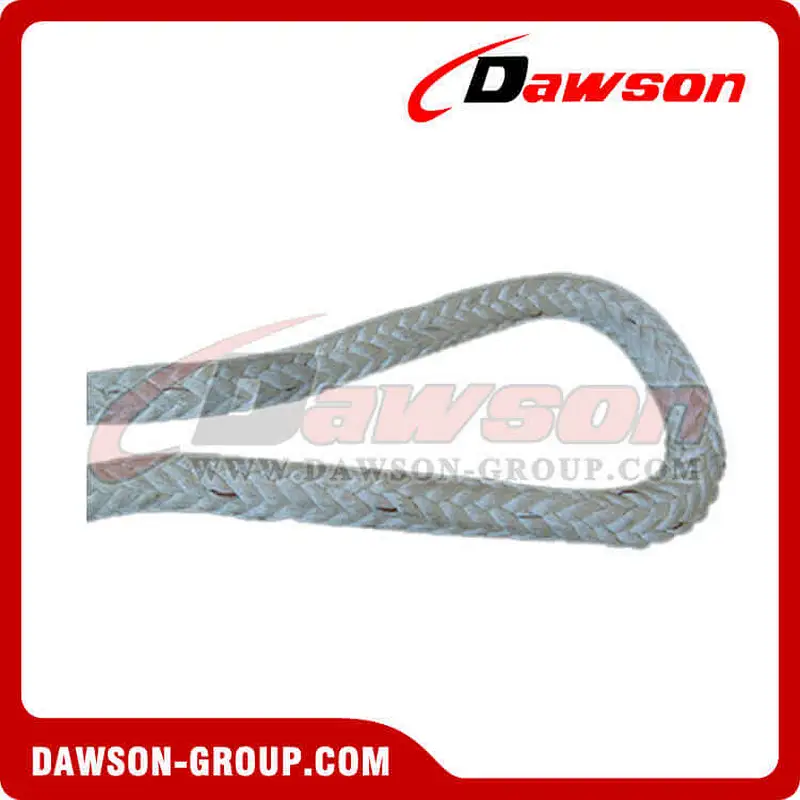

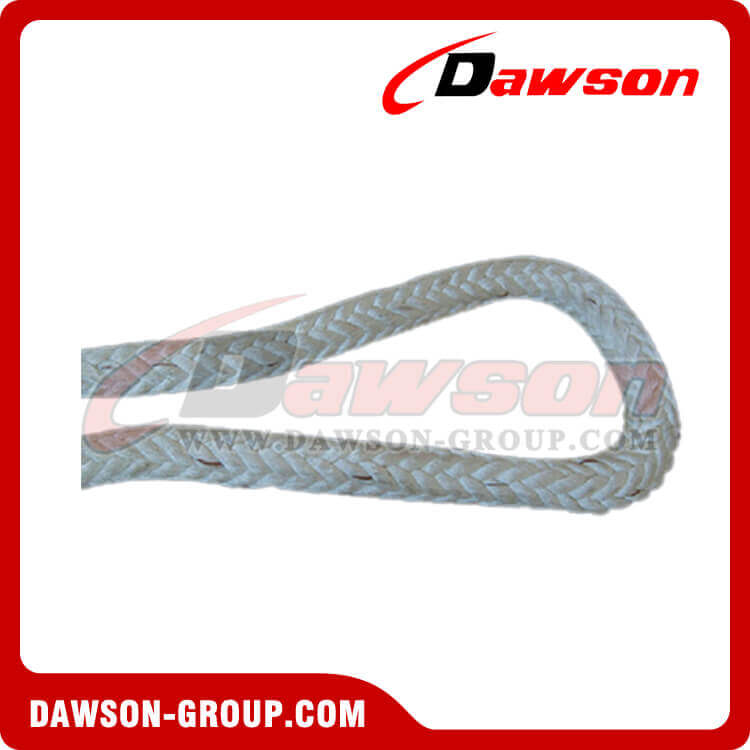

12 Strands Polypropylene Multifilament Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Variety
Nylon multifilament(line),nylon,polypropylene filament(line),polypropylene,polyester,polyurethane and other series.
Φ28mm--152mm specifications.
| Specification | Nylon multifilament | Nylon | Polypropylene filament | Polypropylene | Polyester | |||||
| Diameter | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength |
| Millimeter mm | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN |
| 28 | 102 | 16300 | 98 | 12800 | 85 | 12000 | 81 | 10500 | 130 | 12600 |
| 32 | 136 | 20600 | 130 | 15400 | 110 | 13900 | 107 | 13300 | 170 | 16200 |
| 36 | 175 | 25600 | 168 | 19200 | 135 | 17500 | 132 | 16600 | 210 | 19900 |
| 40 | 215 | 30800 | 205 | 23100 | 168 | 21100 | 163 | 20100 | 260 | 24700 |
| 44 | 258 | 36900 | 250 | 27700 | 200 | 25400 | 195 | 24200 | 310 | 29300 |
| 48 | 305 | 43300 | 290 | 32500 | 240 | 29500 | 230 | 28000 | 370 | 34500 |
| 52 | 360 | 50300 | 345 | 37700 | 280 | 34000 | 270 | 32500 | 434 | 40300 |
| 56 | 420 | 56000 | 405 | 42000 | 325 | 38200 | 315 | 37100 | 505 | 46100 |
| 60 | 480 | 64000 | 460 | 48000 | 375 | 43700 | 365 | 42500 | 580 | 51300 |
| 64 | 545 | 72000 | 525 | 54000 | 425 | 49500 | 415 | 48000 | 660 | 59600 |
| 72 | 690 | 90000 | 660 | 68000 | 540 | 62000 | 520 | 60300 | 840 | 74200 |
| 80 | 850 | 110000 | 820 | 83000 | 660 | 76500 | 640 | 74200 | 1020 | 91000 |
| 88 | 1030 | 135000 | 990 | 101000 | 800 | 91600 | 776 | 88900 | 1240 | 109000 |
| 96 | 1220 | 158000 | 1170 | 118000 | 950 | 108000 | 920 | 105000 | 1480 | 129000 |
| 104 | 1440 | 187000 | 1380 | 140000 | 1120 | 124000 | 1090 | 120000 | 1740 | 149000 |
| 112 | 1670 | 216000 | 1600 | 162000 | 1300 | 143000 | 1260 | 139000 | 2020 | 170000 |
| 120 | 1930 | 247000 | 1850 | 185000 | 1490 | 164000 | 1440 | 160000 | 2310 | 196000 |
| 128 | 2200 | 280000 | 2100 | 210000 | 1680 | 185000 | 1630 | 180000 | 2600 | 222000 |
| 136 | 2480 | 315000 | 2380 | 236000 | 1900 | 210000 | 1840 | 203000 | 2945 | 252000 |
| 144 | 2780 | 352000 | 2670 | 264000 | 2120 | 238000 | 2050 | 226000 | 3286 | 278000 |
| 152 | 3100 | 395000 | 2970 | 296000 | 2370 | 264000 | 2300 | 251000 | 3673 | 310000 |
Advantage
Rational,scientific structure,super strength,wear resistancestrong,low elongation,smooth and pliable and easy to operate.
Application
* Mooring Rope
* Winch Rope
* Towing Rope
* Military Defence
* Heavy Industry

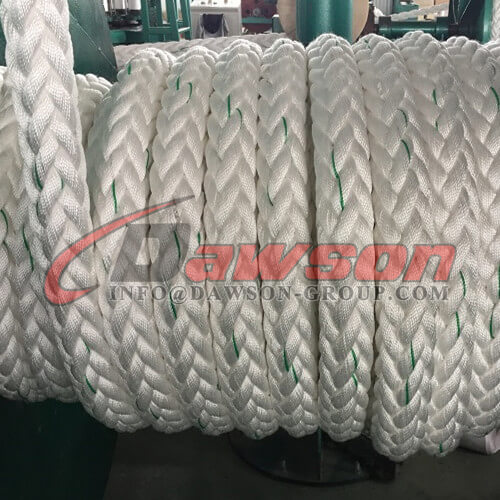

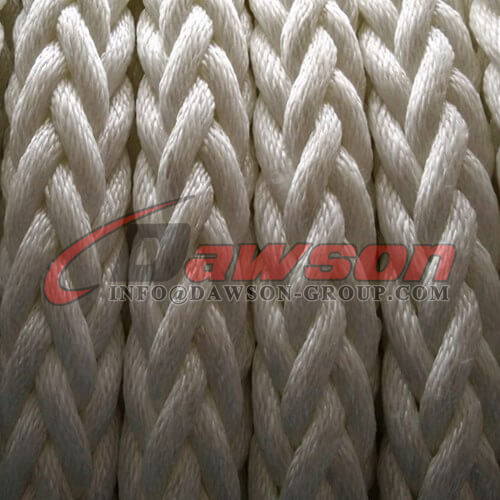

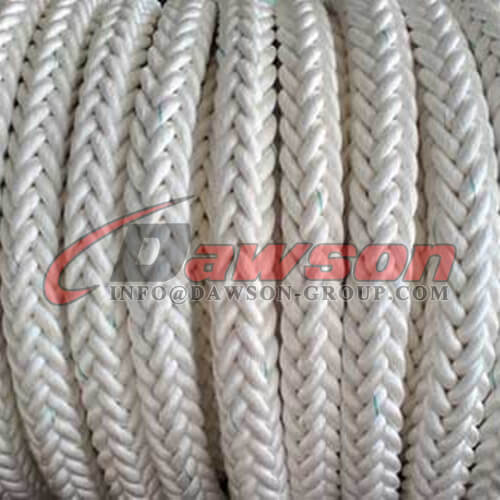

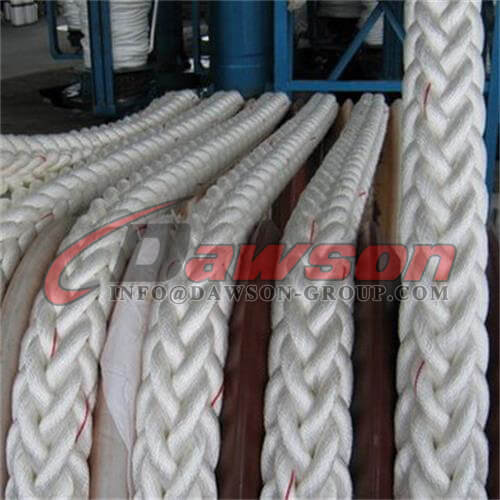

Products Show:

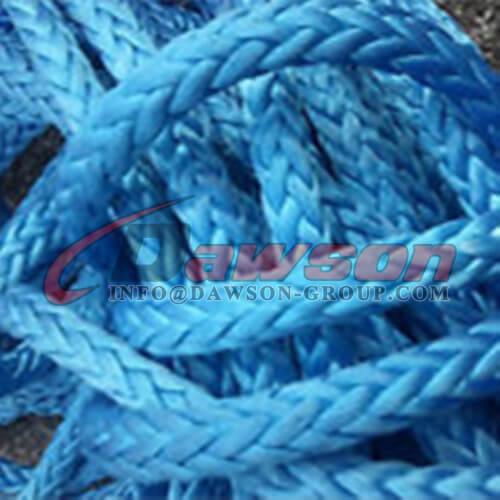

Other Related Products:

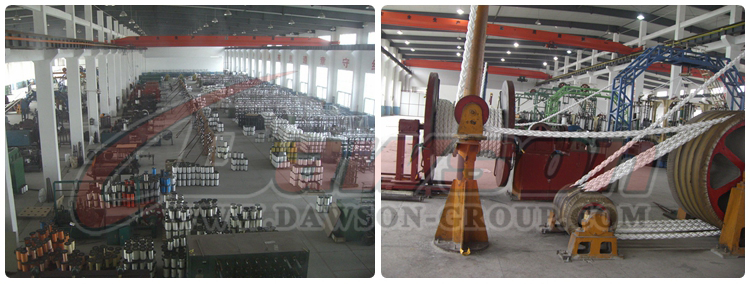

Factory about 12 Strands Polypropylene Multifilament Rope:

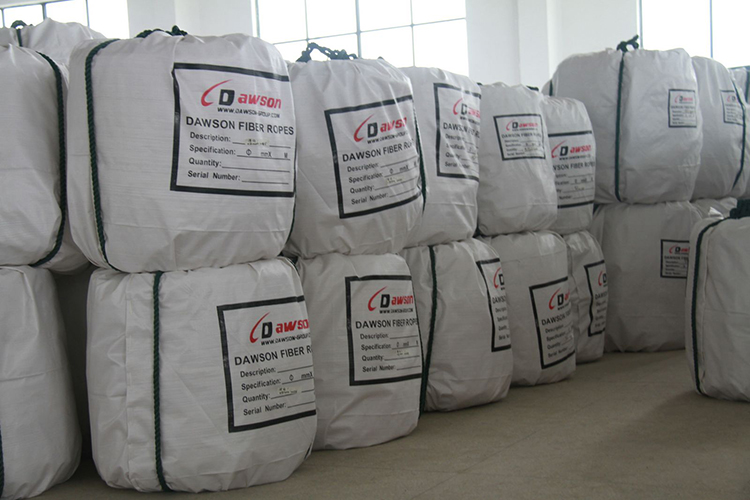

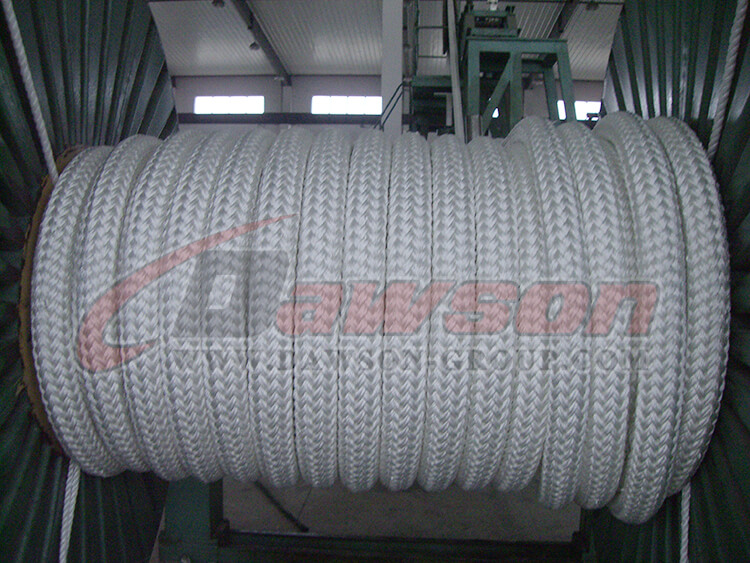

Package about 12 Strands Polypropylene Multifilament Rope:
