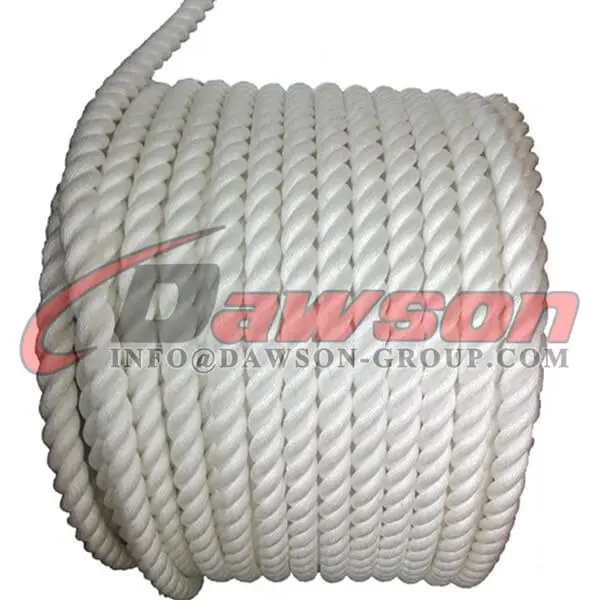

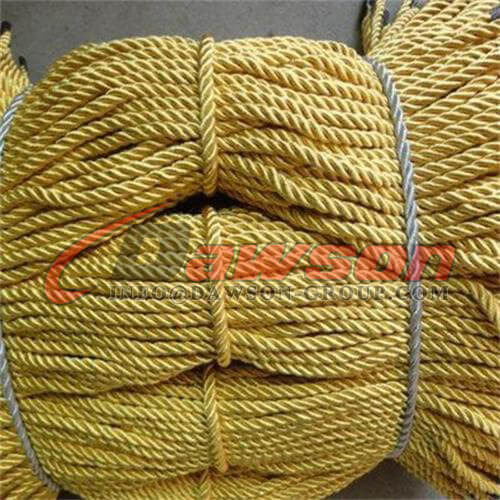

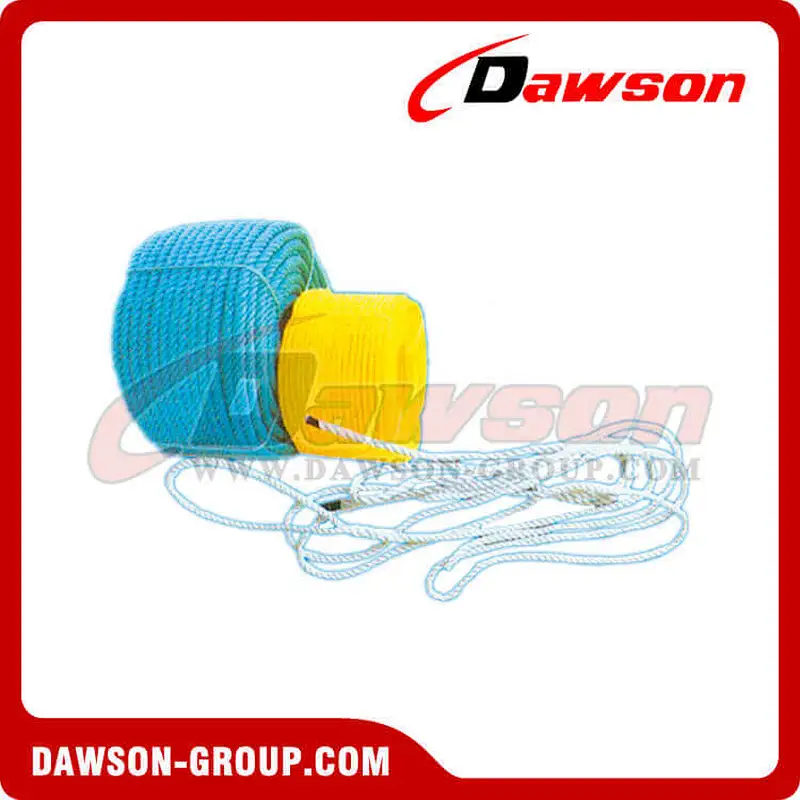

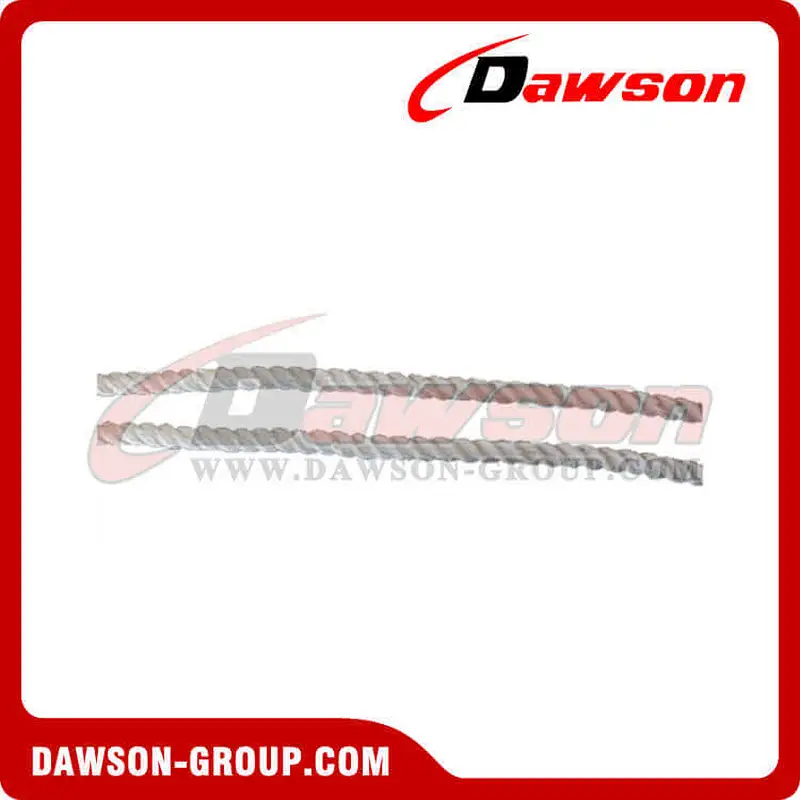

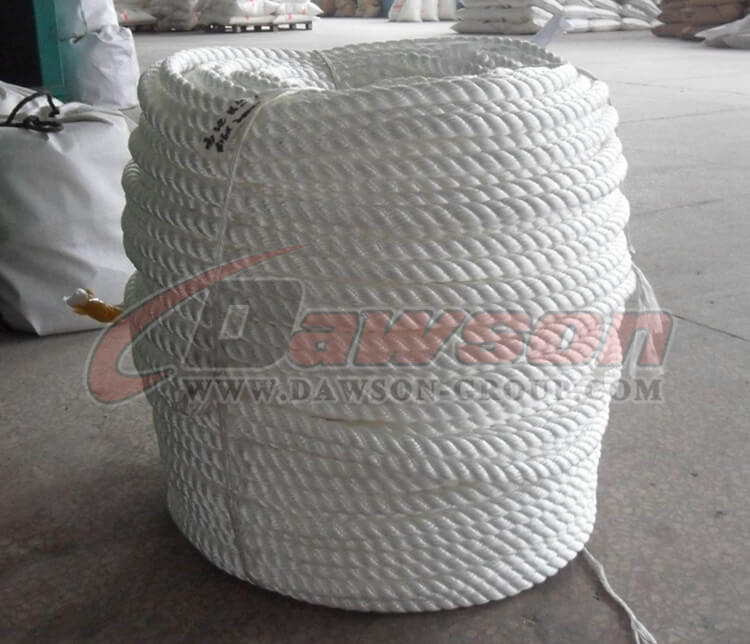

3 Strands Polypropylene Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Nylon multifilament varieties (line), polyester, polypropylene filament (thread), polypropylene, Polyethylene and special anti-static materials ropes. Specifications from Ф4mm a 55mm. Its wide range of products applicable, has high strength, low elongation, corrosion-resistant, smooth and soft, flexible and durable, easy operation.
Mainly used for fishing, maritime shipping, port operations, military research, oil exploration, stationery, and other fields.
| Specification | Nylon multifilament | Nylon | Polypropylene Filament | Polypropylene | Polyester | |||||
| Diameter | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength | Weight | Breaking strength |
| Millimeter mm | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN |
| 4 | 2.1 | 330 | 2.0 | 270 | 1.7 | 260 | 1.6 | 210 | 2.6 | 300 |
| 6 | 4.6 | 770 | 4.4 | 630 | 4.0 | 600 | 3.8 | 590 | 6.0 | 620 |
| 8 | 8.2 | 1380 | 7.9 | 1130 | 7.0 | 1100 | 6.8 | 1040 | 11.0 | 1130 |
| 10 | 12.8 | 2140 | 12.5 | 1850 | 11.0 | 1620 | 10.6 | 1530 | 17.0 | 1640 |
| 12 | 18.5 | 3080 | 18.0 | 2530 | 16.0 | 2320 | 15.4 | 2170 | 24.0 | 2360 |
| 14 | 25.0 | 4220 | 24.0 | 3460 | 22.0 | 3220 | 21.0 | 2990 | 33.0 | 3280 |
| 16 | 33.0 | 5460 | 32.0 | 4480 | 29.0 | 4140 | 28.0 | 3700 | 44.0 | 4200 |
| 18 | 42.0 | 6900 | 41.0 | 5650 | 36.0 | 5100 | 35.0 | 4270 | 54.0 | 5200 |
| 20 | 51.0 | 8550 | 49.0 | 6750 | 45.0 | 6350 | 43.0 | 5690 | 68.0 | 6500 |
| 22 | 62.0 | 10300 | 60.0 | 8140 | 54.0 | 7700 | 52.0 | 6820 | 81.0 | 7800 |
| 24 | 75.0 | 12400 | 72.0 | 9800 | 64.0 | 9000 | 62.0 | 7970 | 96.0 | 9400 |
| 28 | 105.0 | 16300 | 100.0 | 12800 | 87.0 | 11700 | 85.0 | 10500 | 130.0 | 13200 |
| 32 | 150.0 | 20600 | 135.0 | 15400 | 115.0 | 13900 | 110.0 | 13300 | 175.0 | 16200 |
| 36 | 180.0 | 25600 | 173.0 | 19200 | 145.0 | 17500 | 140.0 | 16600 | 220.0 | 19900 |
| 40 | 220.0 | 30800 | 212.0 | 23100 | 180.0 | 21100 | 175.0 | 20100 | 270.0 | 24700 |
| 44 | 165.0 | 36900 | 255.0 | 27700 | 215.0 | 25400 | 205.0 | 24200 | 325.0 | 29300 |
| 48 | 315.0 | 43300 | 305.0 | 32500 | 255.0 | 29500 | 245.0 | 28000 | 385.0 | 34500 |
| 52 | 370.0 | 50300 | 355.0 | 37700 | 295.0 | 34000 | 285.0 | 32500 | 445.0 | 40300 |

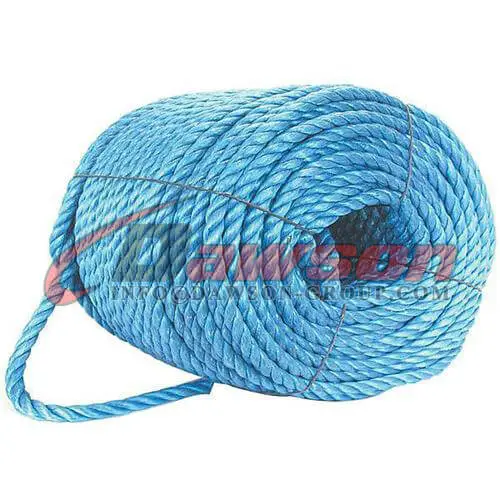

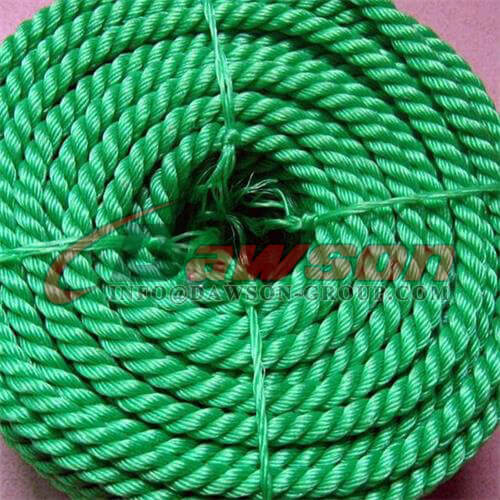

Polypropylene Rope
Polypropylene rope (or PP rope) has a density of 0.91 meaning this is a floating rope. This is generally manufactured using monofilament, splitfilm or multifilament fibres. Polypropylene rope is commonly used for fishing and other general marine applications. It comes in a 3 and 4 strand construction and as an 8 strand braided hawser rope. The melting point of polypropylene is 165°C.
Technical Specifications
– Comes in 200 metre and 220 metre coils. Other lengths available on request subject to quantity.
– All colors available (customization on request)
– Most common applications: bolt rope, nets, mooring, trawl net, furling line etc.
– Melting point: 165°C
– Relative density: 0.91
– Floating/Non-Floating: floating.
– Elongation at break: 20%
– Abrasion resistance: good
– Fatigue resistance: good
– UV resistance: good
– Water absorption: slow
– Contraction: low
– Splicing: easy depending on torsion of rope

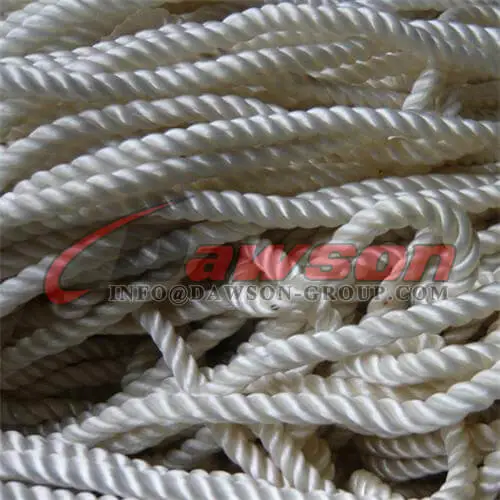

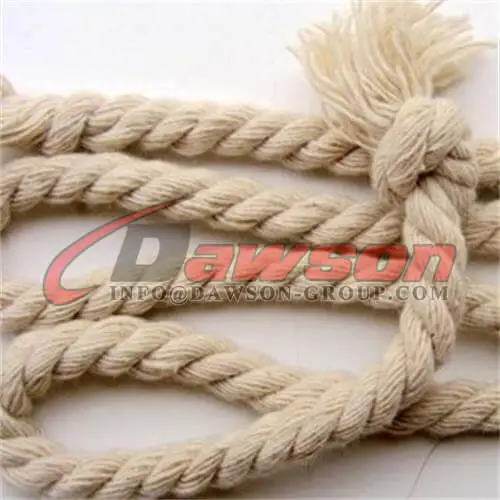

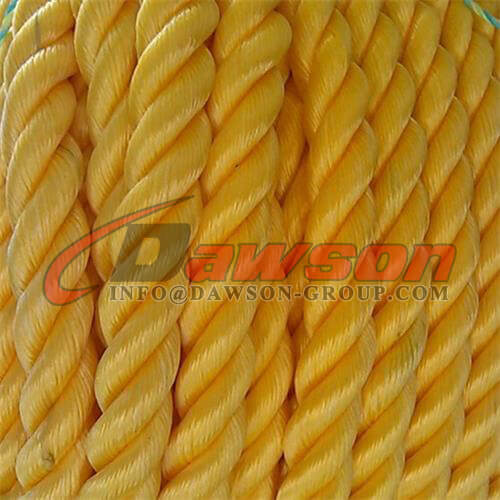

Products Show:

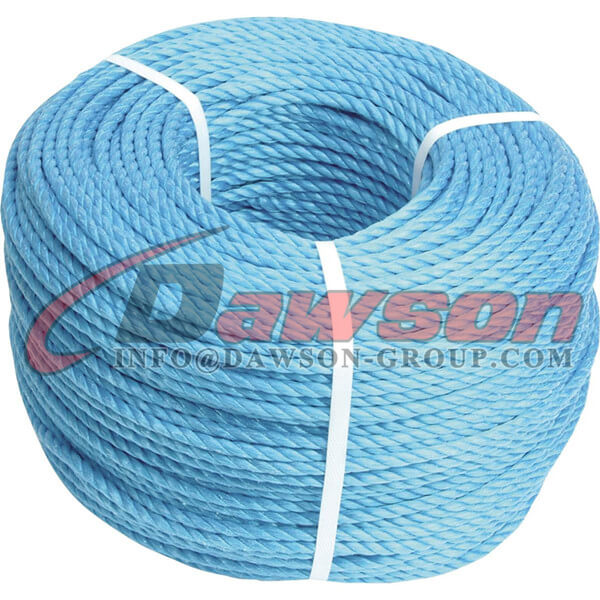

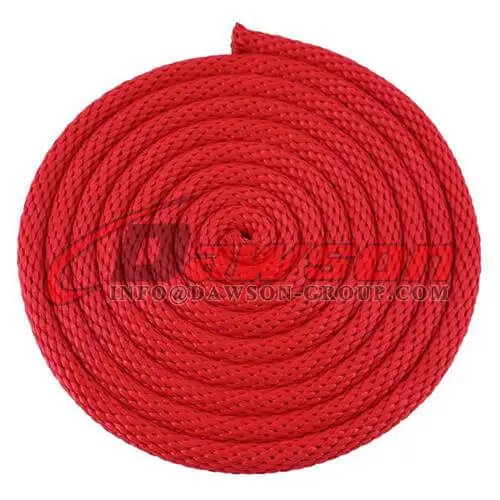

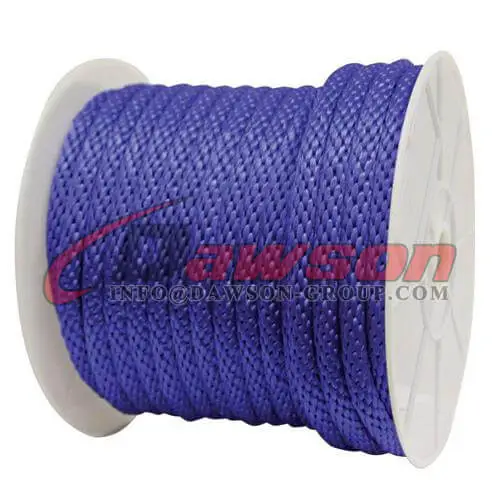

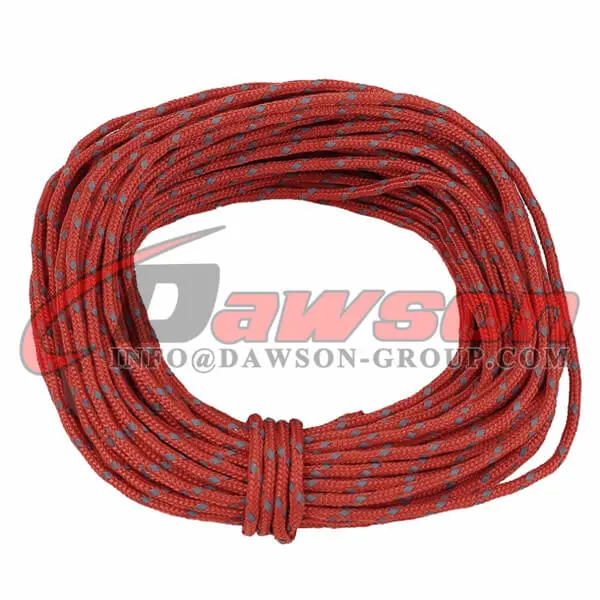

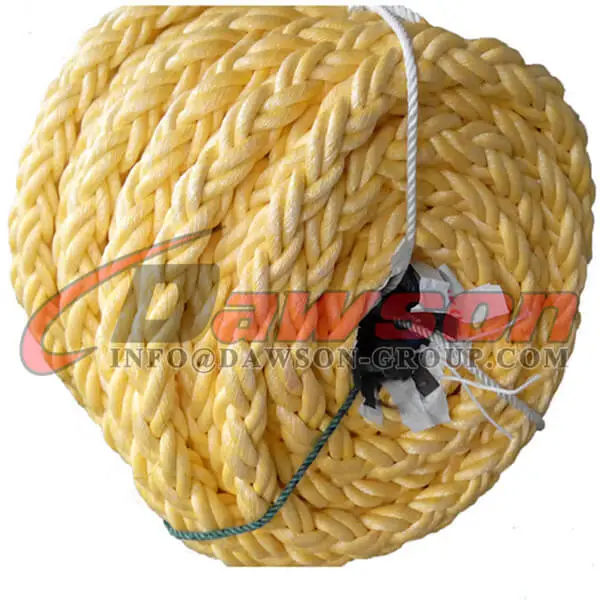

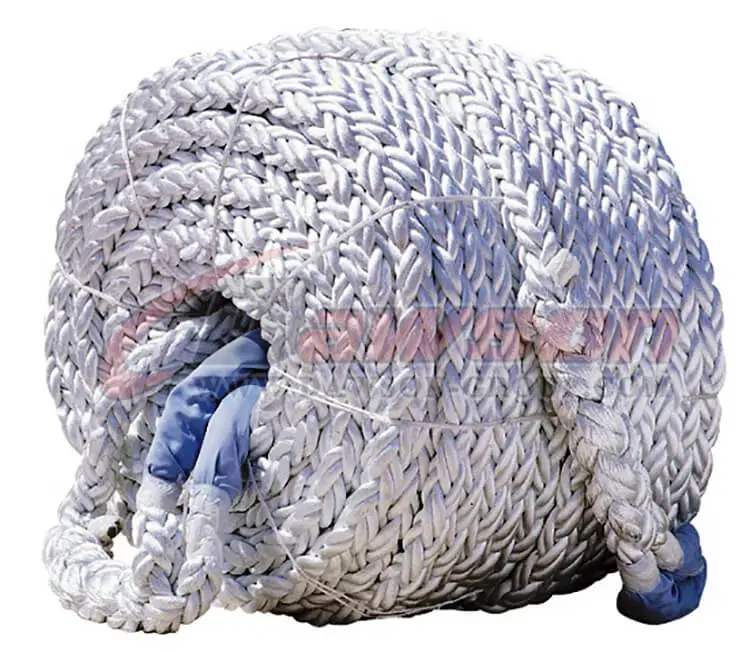

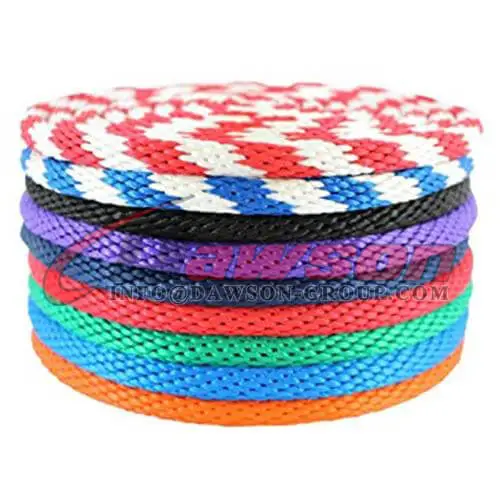

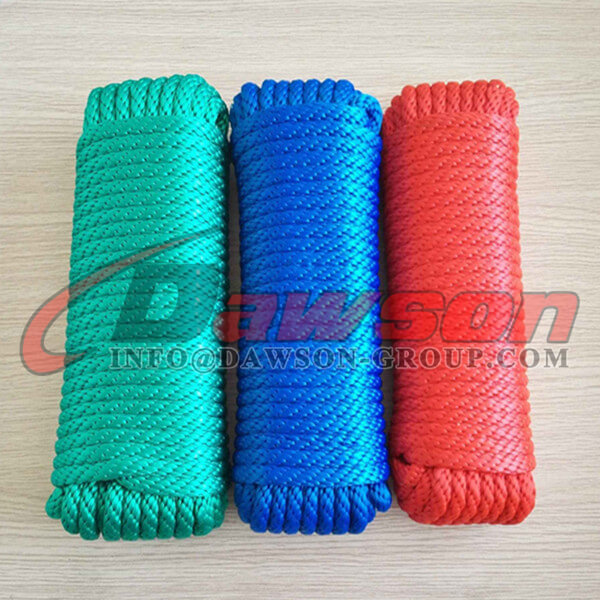

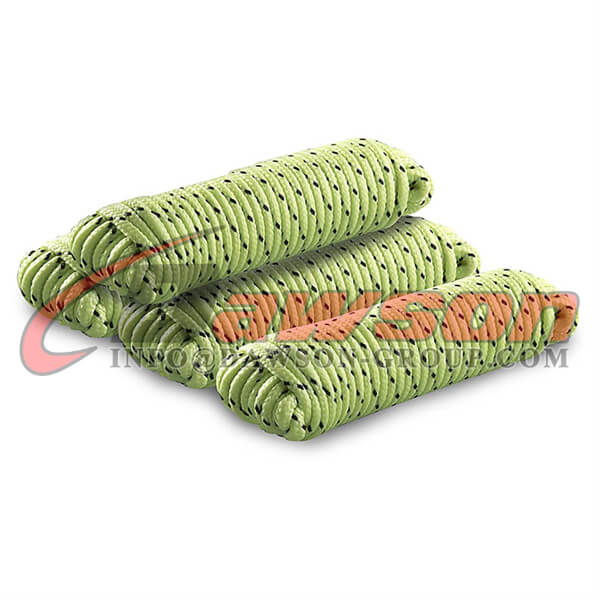

Other related products:

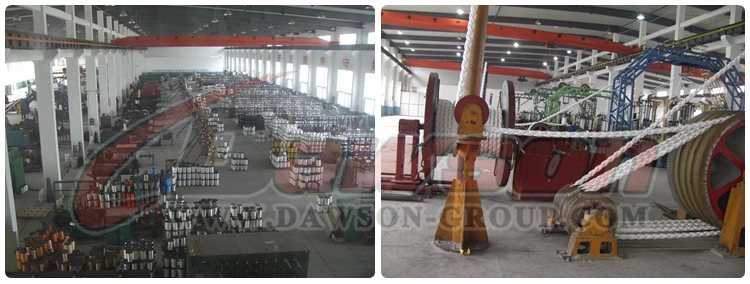

Factory Show:

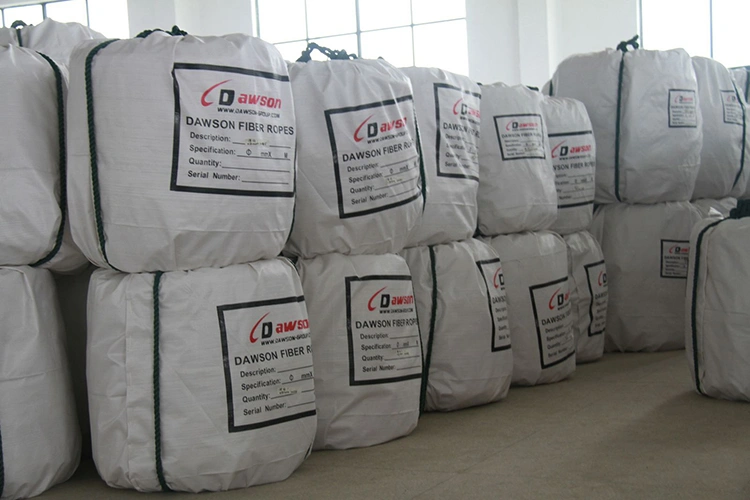

Package about Polypropylene Rope:
