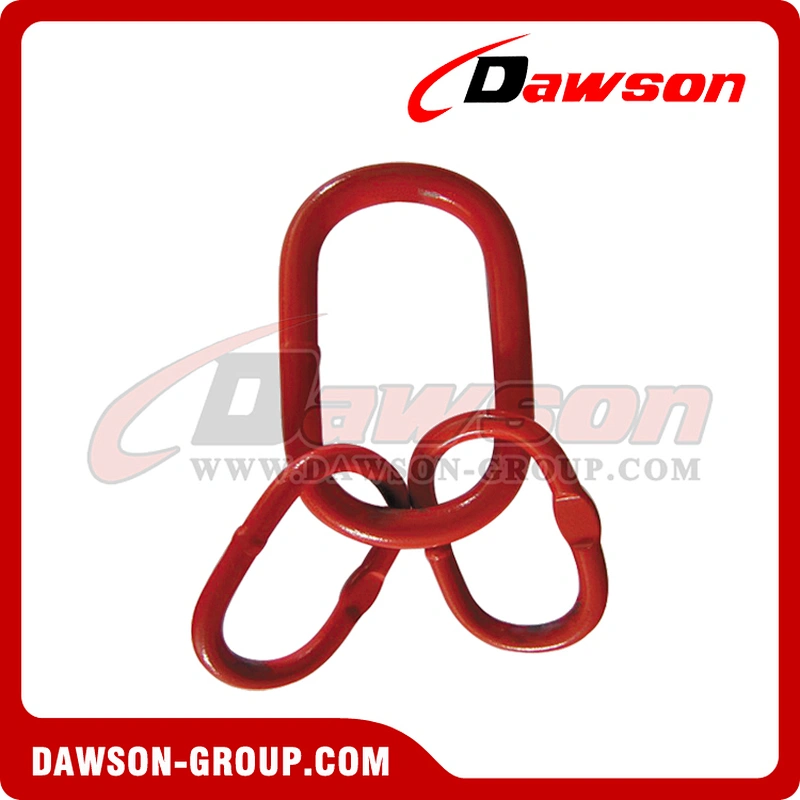

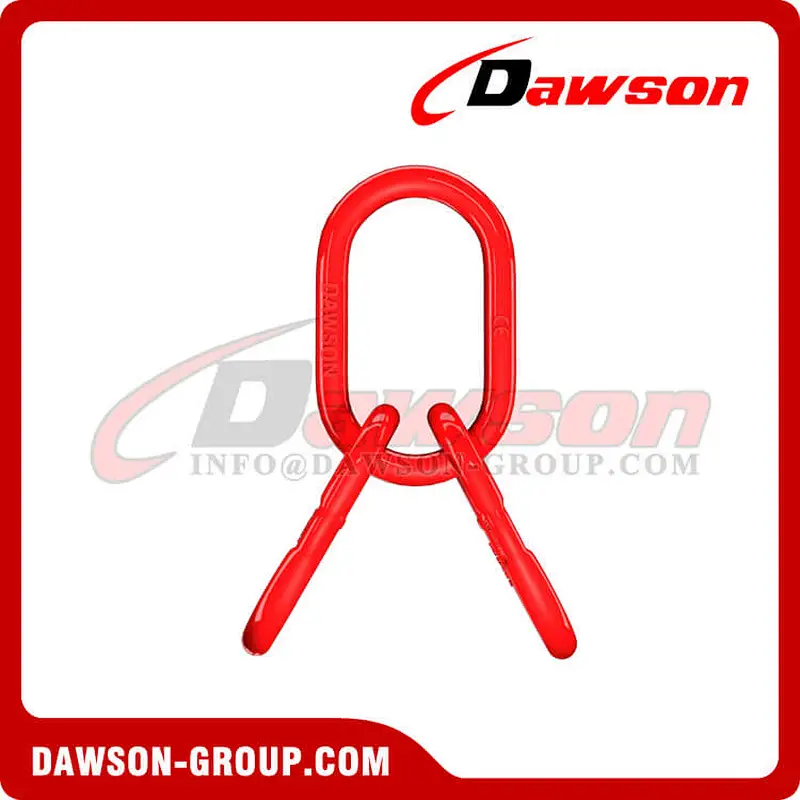

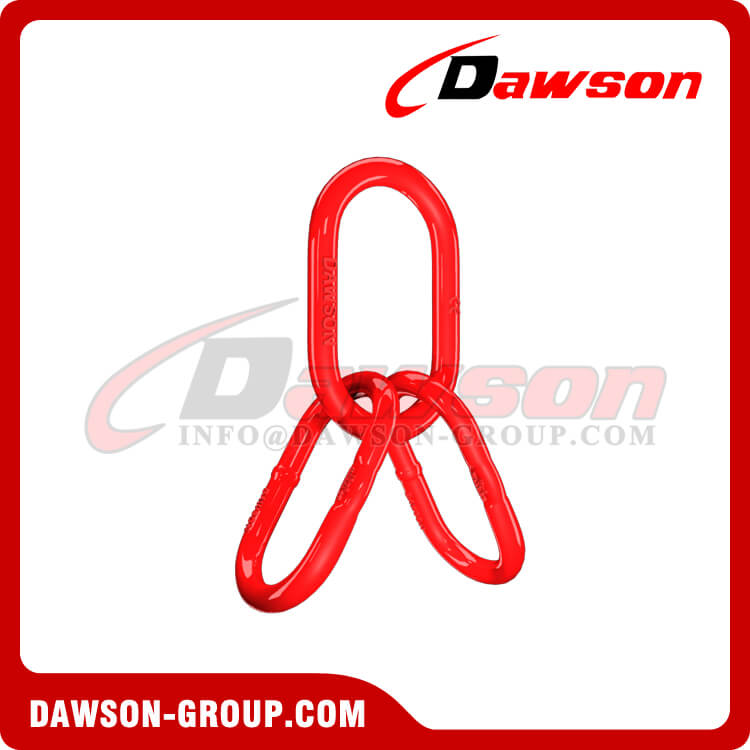

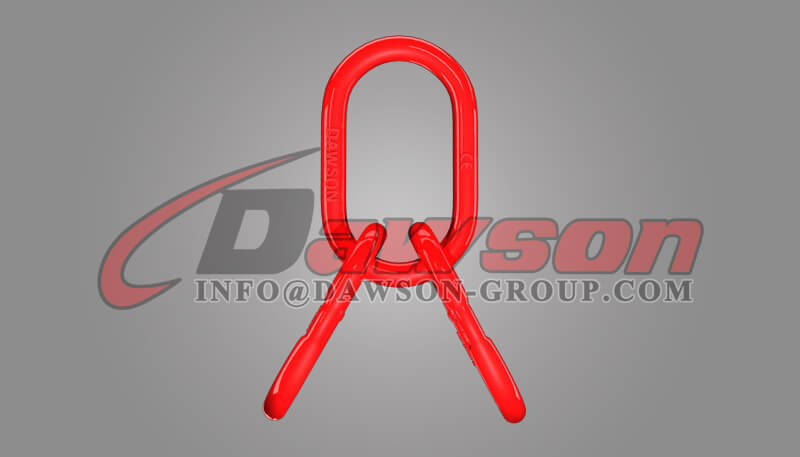

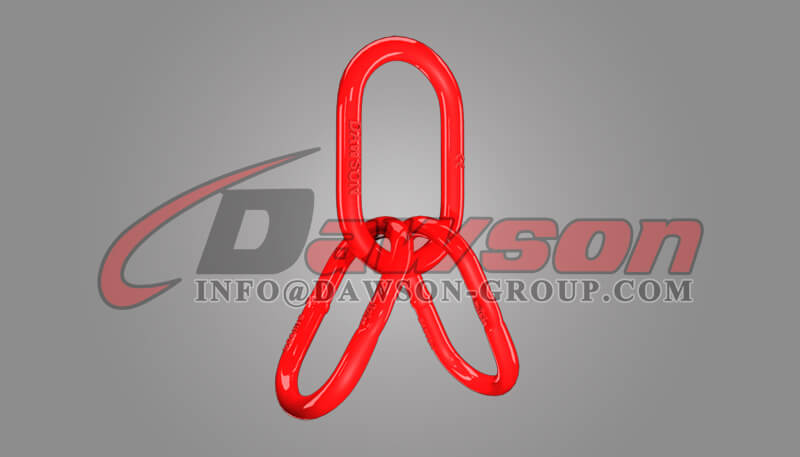

G80 / Grade 80 Power Plastified European Type Master Link Assembly for G80 Chains / Wire Rope Lifting Slings
DS488 Grade 80 / G80 European Type Master Link Assembly
- Dawson China
Super alloy steel - Quenched and tempered.
Individually proof tested at 2 times Working Load Limit.
Breaking test and fatigue test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Suitable for 3 or 4 legs G80 chain sling.

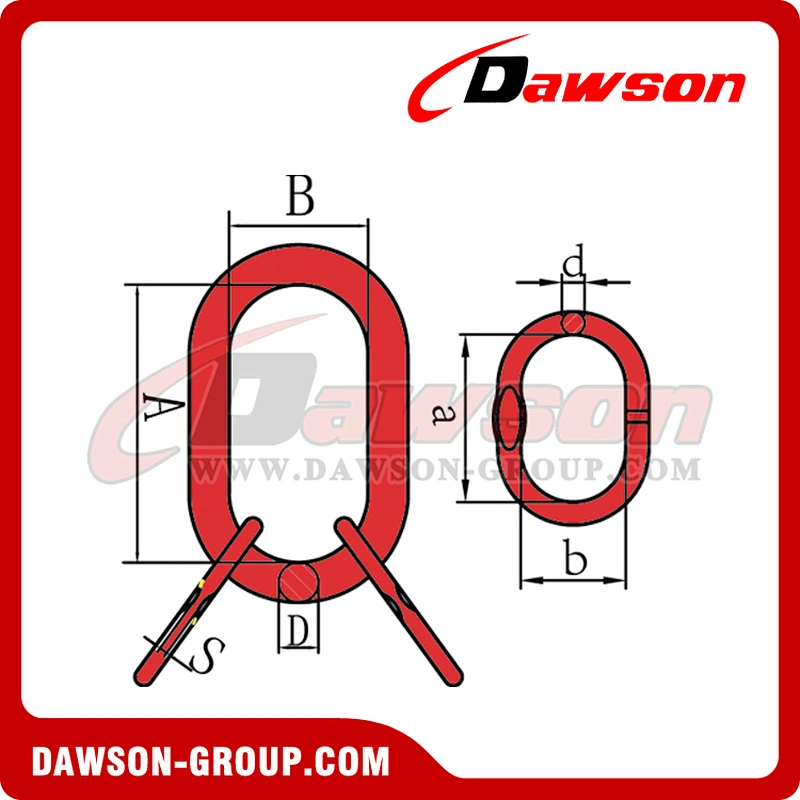

| Item No. | G80 EN818-2 Chain MM | Weight(KG) | WLL(T) | Dimension(MM) | ||||||
| For 3 or 4 Leg Sling | A | B | D | a | b | d | S×H | |||
| 8-DS488-7 | 7 | 1.90 | 5.5 | 160 | 95 | 20 | 110 | 60 | 13 | 7 |
| 8-DS488-8 | 8 | 2.82 | 6.65 | 160 | 95 | 22 | 140 | 80 | 16 | 7 |
| 8-DS488-10 | 10 | 4.87 | 9.4 | 190 | 110 | 26 | 160 | 95 | 20 | 11 |
| 8-DS488-13 | 13 | 9.38 | 14.2 | 230 | 130 | 32 | 190 | 110 | 26 | 13 |
| 8-DS488-16 | 16 | 15.28 | 22.3 | 275 | 150 | 38 | 230 | 130 | 30 | 16 |
| 8-DS488-20 | 20 | 21.78 | 33.5 | 340 | 180 | 45 | 230 | 130 | 32 | - |
| 8-DS488-22 | 22 | 31.52 | 40.8 | 350 | 190 | 50 | 275 | 150 | 38 | - |
| 8-DS488-26 | 26 | 48.92 | 56.8 | 400 | 200 | 56 | 340 | 180 | 45 | - |
Mininum Ultimate Load is 4 times the Working Load Limit.
BLACK WORD AREAS: MAIN LINK: WELDED SUB LINKS: WELDED
RED WORD AREAS: MAIN LINK: FORGED SUB LINKS: WELDED
Bigger sub links
ITEM 8-DS488-7 to 8-DS488-16: there will be pressing flat only on request.
ITEM 8-DS488-20 to 8-DS488-26: there is no pressing flat.
The pressing flat for use with DS002 G80 OMEGA LINK.
Welcome to buy the newest and cheap DAWSON G80 European Type Master Link Assembly from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Hot Tags: Master Link Assembly, G80 Master Link Assembly, Grade 80 Master Link Assembly, European Type Master Link Assembly, China Master Link for Wire Rope Slings, Grade 80 Forged Master Link Assembly, Welded Master Link Assembly China Supplier, Forged Master Link Assembly Factory China, Low Price Master Link, Buy Discount Welded Master Link, Cheap Price Forged Master Link Assembly, Hot Sale Welded Crane Master Link, Welded Master Link In Stock, Wholesale Forged Master Link Assembly, China Welded Master Link Assembly Manufacturer, Welded Master Link for Wire Rope Slings, Forged Alloy Steel Master Link Assembly
Products Show:

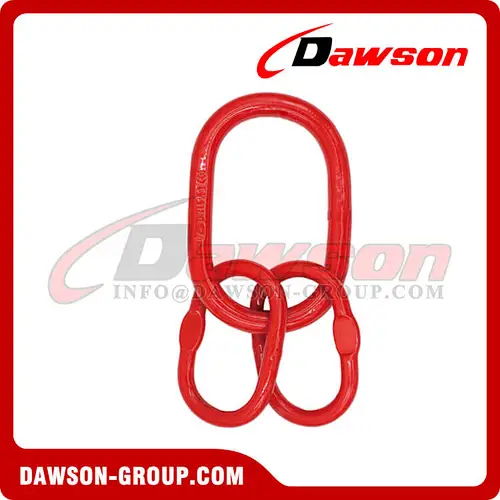

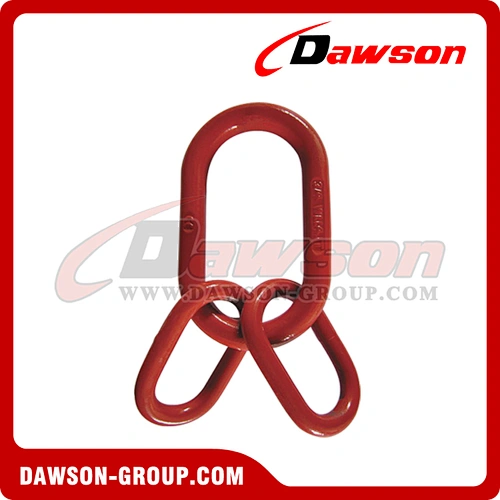

Other related products:

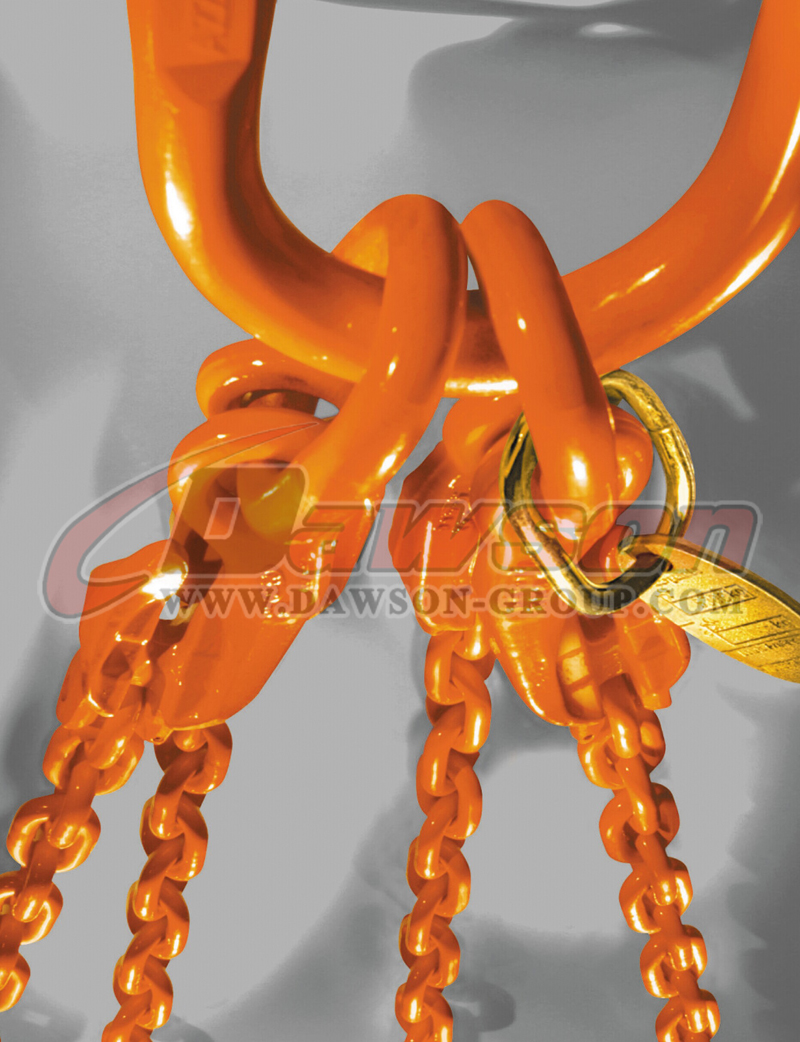

Application of Master Link:

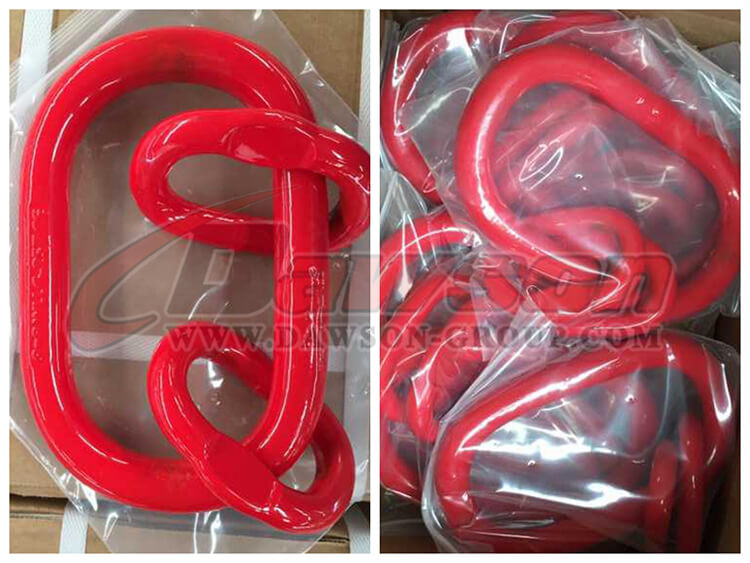

Factory & Package Show:
