G80 / Grade 80 A-346 European Type Master Link Assembly for Wire Roe Lifting Slings
Grade 80 / G80 A346 European Type Master Link Assembly
- Dawson China
Standard EN1677(Supersedes DIN5688-3).
Forged or welded super alloy steel.
Super alloy steel - Quenched and tempered.
Individually proof tested at 2.5 times Working Load Limit.
Breaking test and fatigue test.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.

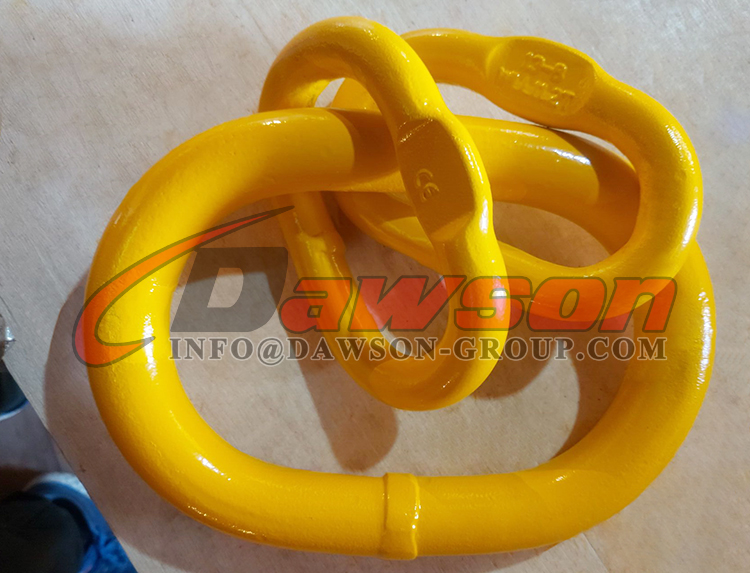

Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Suitable for 3 or 4 legs G80 chain sling as per EN818-4.

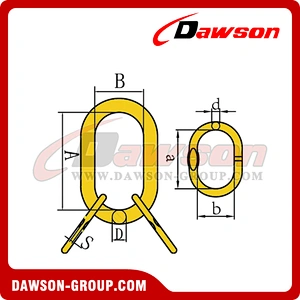

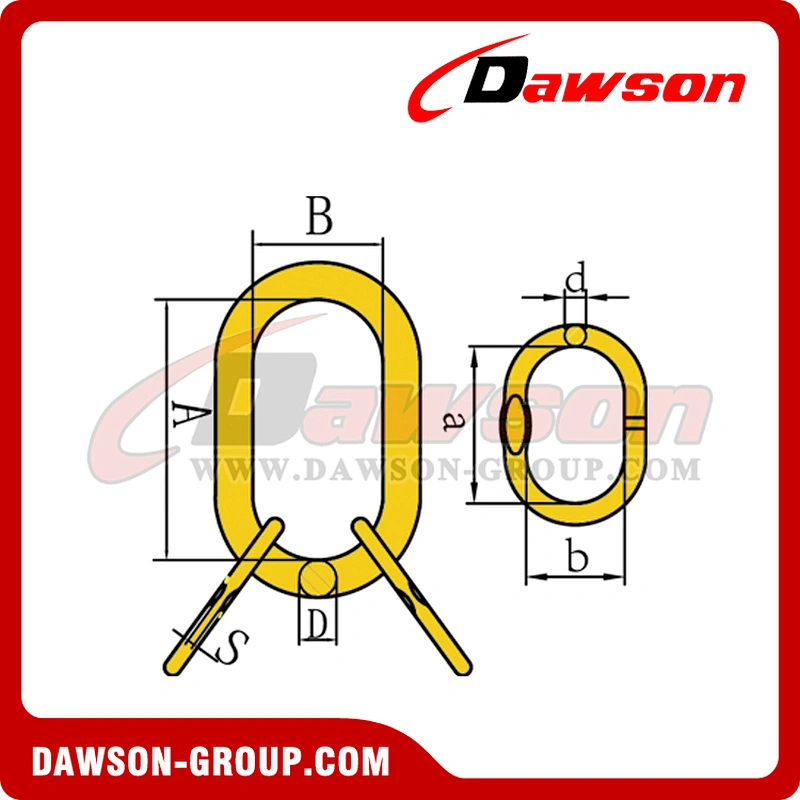

| Item No. | Weight(KG) | WLL(T) | A | B | D | a | b | d | S×H |
| 8-DS032-W-6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3×25 |
| 8-DS032-W-7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5×25 |
| 8-DS032-W-8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5×28 |
| 8-DS032-W-10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5×35 |
| 8-DS032-W-13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5×43 |
| 8-DS032-W-16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 |
| 8-DS032-W-18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 |
| 8-DS032-W-18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 |
| 8-DS032-W-18 | 18.9 | 21.2 | 340 | 190 | 45 | 180 | 100 | 32 | 18±0.5×59 |
| 8-DS032-W-20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 |
| 8-DS032-W-20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 |
| 8-DS032-W-22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | - |
| 8-DS032-W-26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | - |
| 8-DS032-W-28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | - |
| 8-DS032-W-32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | - |

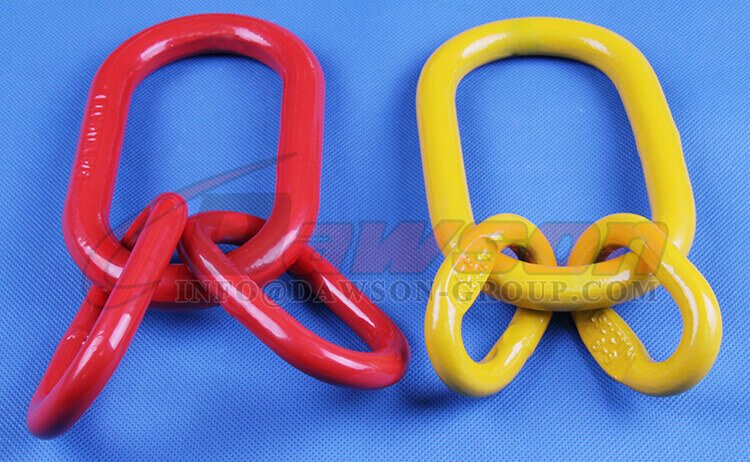

BLACK WORD AREAS: MAIN LINK: WELDED SUB LINKS: WELDED
RED WORD AREAS: MAIN LINK: FORGED SUB LINKS: WELDED
ITEM 8-DS032-6 to 8-DS032-20: there will be pressing flat only on request.
ITEM 8-DS032-22 to 8-DS032-32: there is no pressing flat.
The pressing flat for use with DS002 G80 OMEGA LINK.
For use with wire rope sling, refer to DIN3088 standard.
For use with synthetic sling, refer to EN1492-1 standard.
Welcome to buy the newest and cheap DAWSON g80 A-346 Master Link Assembly from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

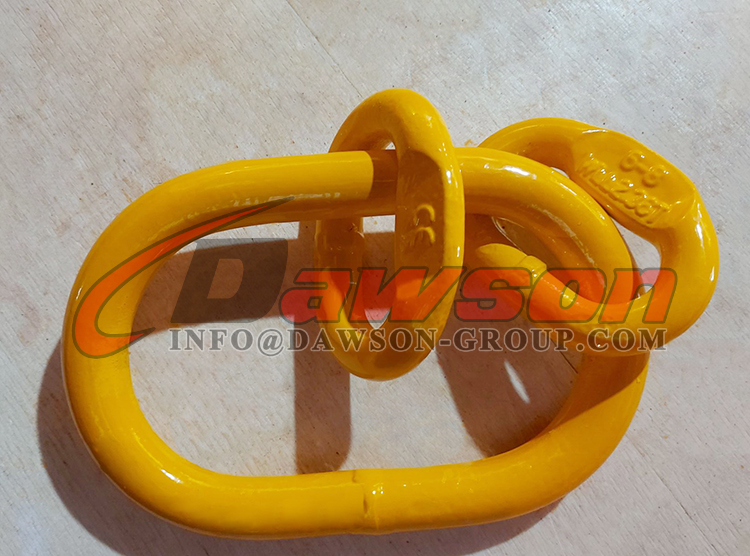

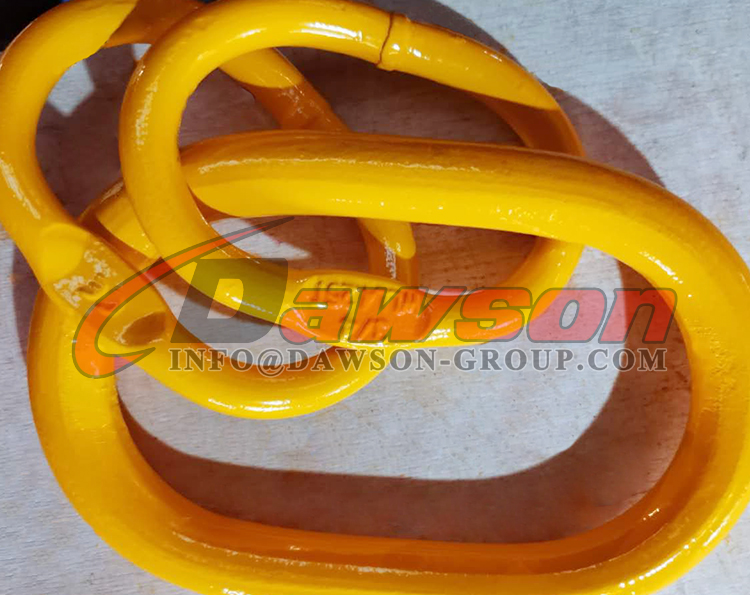

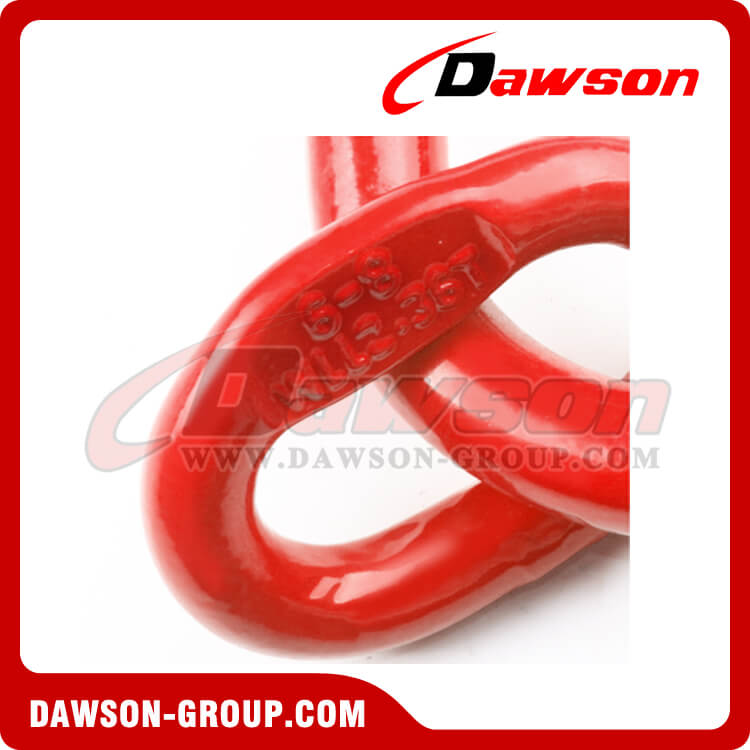

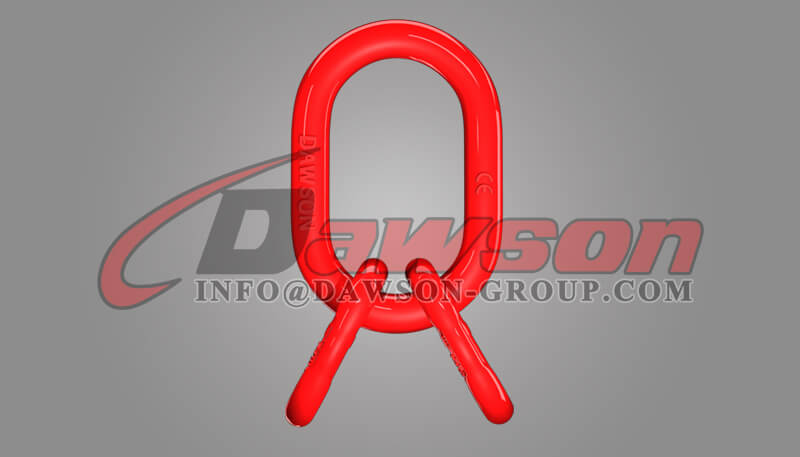

Products Show:
Hot Tags: Master Link Assembly, G80 A-346 Master Link Assembly, Grade 80 A-346 Master Link Assembly, European Type A-346 Master Link Assembly, Alloy Steel A346 Master Link Assembly Exporter China, China Master Link Assembly for Chain Slings, Grade 80 Forged Master Link Assembly, Forged Master Link Assembly China Supplier, Forged A-346 Master Link Assembly Factory China, Low Price A346 G80 Master Link Assembly, Buy Discount Forged Master Link Assembly, Cheap Price Forged Master Link Assembly, Hot Sale Forged Master Link Assembly, Forged Master Link Assembly In Stock, Wholesale Forged Master Link Assembly, Master Link Assembly for Chain Slings, China Forged Master Link Assembly Manufacturer, Forged Master Link Assembly for Crane Lifting Chains
Other related products:

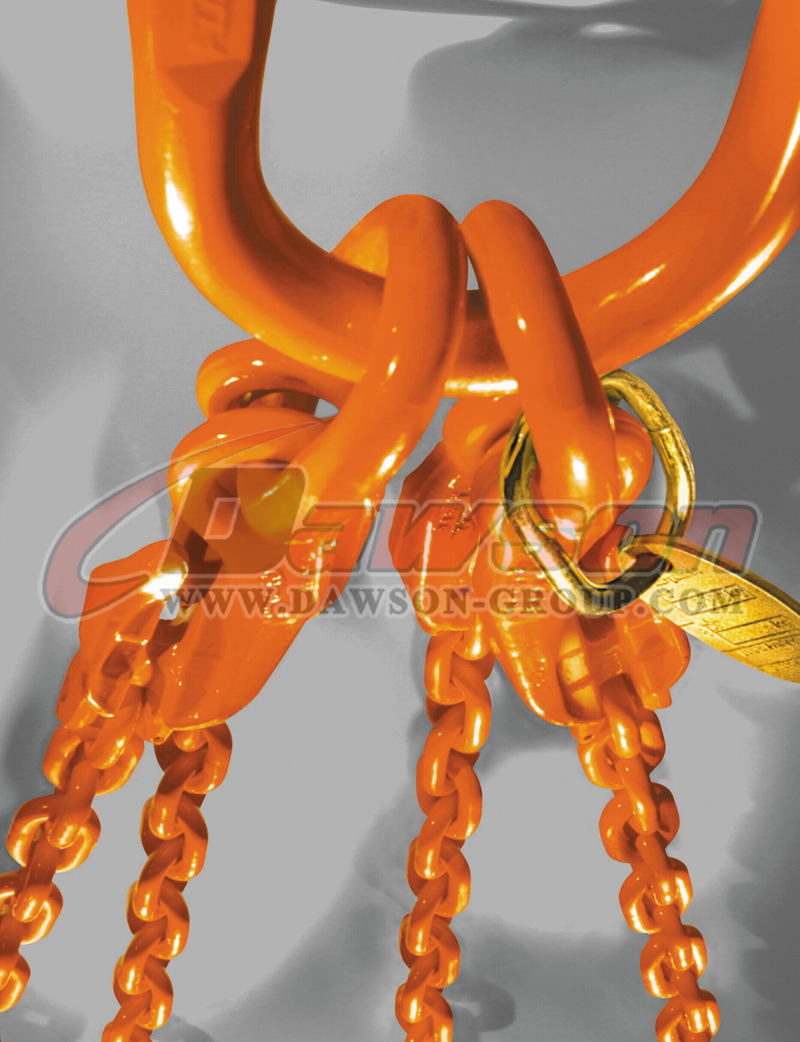

Application of Master Link:

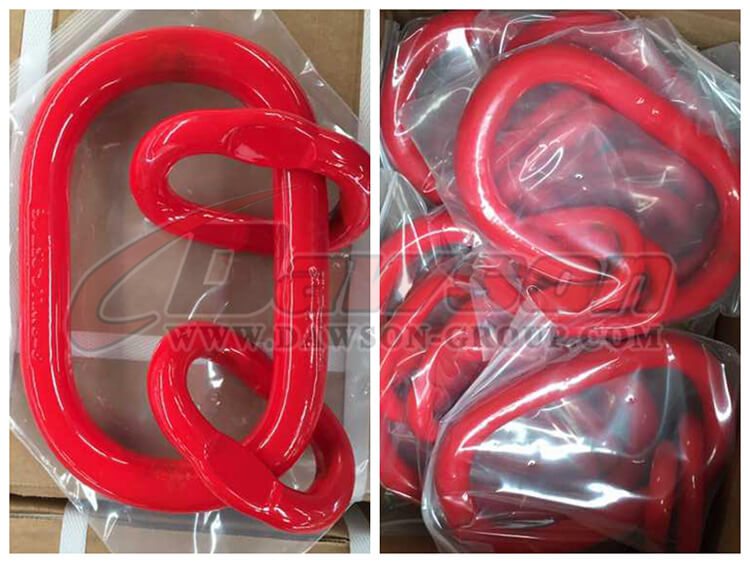

Factory & Package Show:
