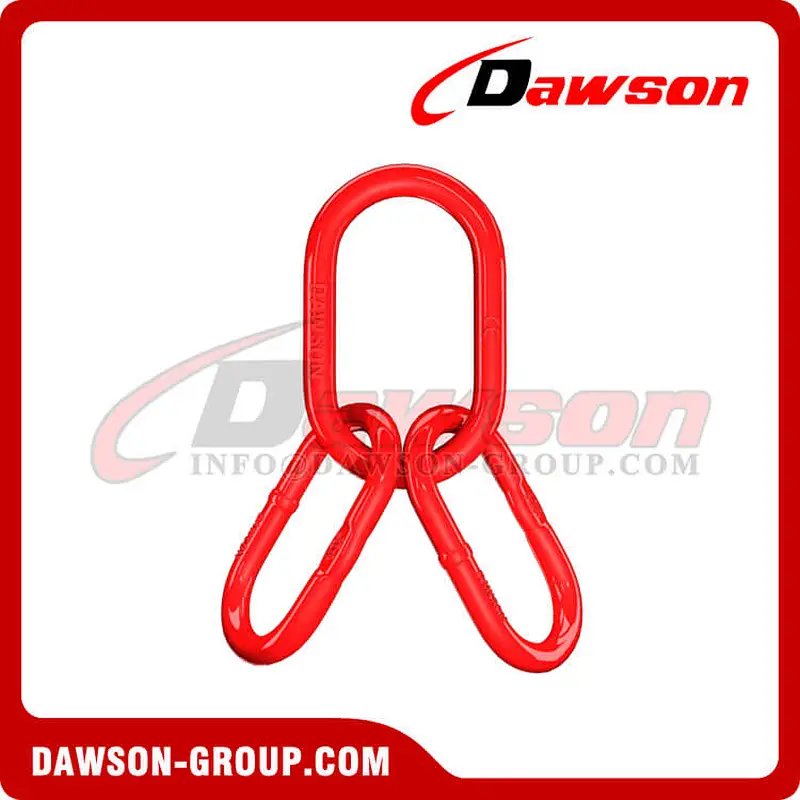

G80 / Grade 80 U.S. Type Super Alloy Steel Master Link Assembly for Wire Rope Lifting Slings / Chain Slings
G80 A347 U.S. Type Super Alloy Steel Master Link Assembly
- Dawson China
Forged super alloy steel-Quenched and Tempered.
Suitable for use with G80 chain.
Individually proof tested at 2 times Working Load Limit(4:1).
Breaking test.
100% Magnaflux Crack Detection.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

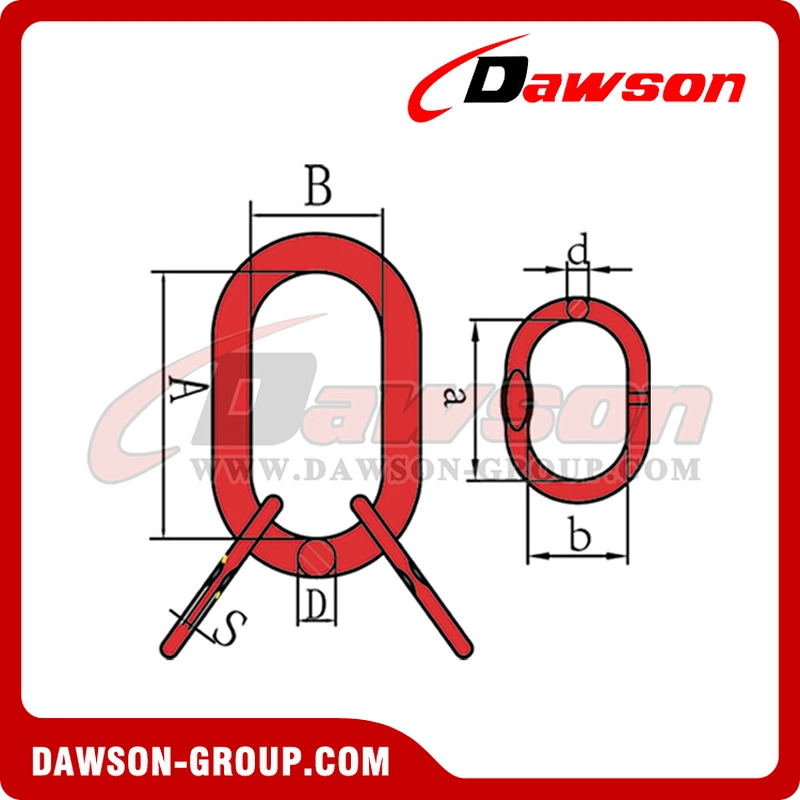

| Item No. | Weight kg | G80 Chain | WLL 3 or 4 leg 0-45°T | WLL Rope T | A | B | D | a | b | d | s |
| 8-DS094-1/2 | 0.82 | 7/32 | 2.36 | 2.4 | 100±4 | 60±4 | 14±0.5 | 85±4 | 40±3 | 12±0.5 | 6+0.5 |
| 8-DS094-11/16 | 1.6 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 8-DS094-5/8 | 1.6 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 8-DS094-3/4 | 1.95 | 5/16 | 4.25 | 4.2 | 160±5 | 90±4 | 20±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 8-DS094-7/8 | 3.16 | 3/8 | 6.7 | 8 | 180±5 | 100±4 | 22±1 | 150±5 | 70±4 | 18±0.5 | 8.4±0.5 |
| 8-DS094-1 B | 5.28 | 3/8 | 10 | 10 | 270±6 | 140±5 | 25±1 | 155±5 | 80±4 | 20±0.5 | 11±0.5 |
| 8-DS094-1-1/8 | 6.75 | 1/2 | 11.2 | 12 | 270±6 | 140±5 | 28±1 | 160±5 | 90±4 | 22±1 | 13.5±0.5 |
| 8-DS094-1-1/4 | 9.31 | 5/8 | 17 | 17 | 270±6 | 140±5 | 32±1 | 180±5 | 100±4 | 25±1 | 16.5±0.5 |
| 8-DS094-1-1/2 | 18.4 | 3/4 | 23.6 | 25 | 300±6 | 160±5 | 40±1 | 270±6 | 140±5 | 31±1 | 19±0.5 |
| 8-DS094-1-3/4 | 26.6 | 7/8 | 31.5 | 31.5 | 340±7 | 180±5 | 45±1 | 285±6 | 155±5 | 36±1 | 22±0.5 |
| 8-DS094-2 | 42.91 | 1 | 45 | 45 | 350±7 | 190±5 | 51±2 | 340±7 | 180±5 | 45±1 | 25±0.5 |
Red Area size: Main Link: Welded, Sub Links: Welded.
Black Area size: Main Link: Forged, Sub Links:Welded.
For chain sling: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.
The pressing flat is for use with DS002 G80 OMEGA LINK.
There will be pressing flat only on request.
Welcome to buy the newest and cheap DAWSON G80 A347 U.S. Type Master Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Hot Tags: Master Link Assembly, G80 A347 Master Link Assembly, Grade 80 A347 Master Link Assembly, U.S. Type A347 Master Link Assembly, China A347 Master Link for Wire Rope Slings, Grade 80 Forged Master Link Assembly, Welded Master Link Assembly China Supplier, Forged Master Link Assembly Factory China, Low Price Master Link, Buy Discount Welded Master Link, Cheap Price Forged Master Link Assembly, Hot Sale Welded Master Link, Welded Master Link In Stock, Wholesale A347 Forged Master Link Assembly, China A347 Welded Master Link Assembly Manufacturer, Welded Master Link for Wire Rope Lifting Slings, Forged Alloy Steel Master Link Assembly

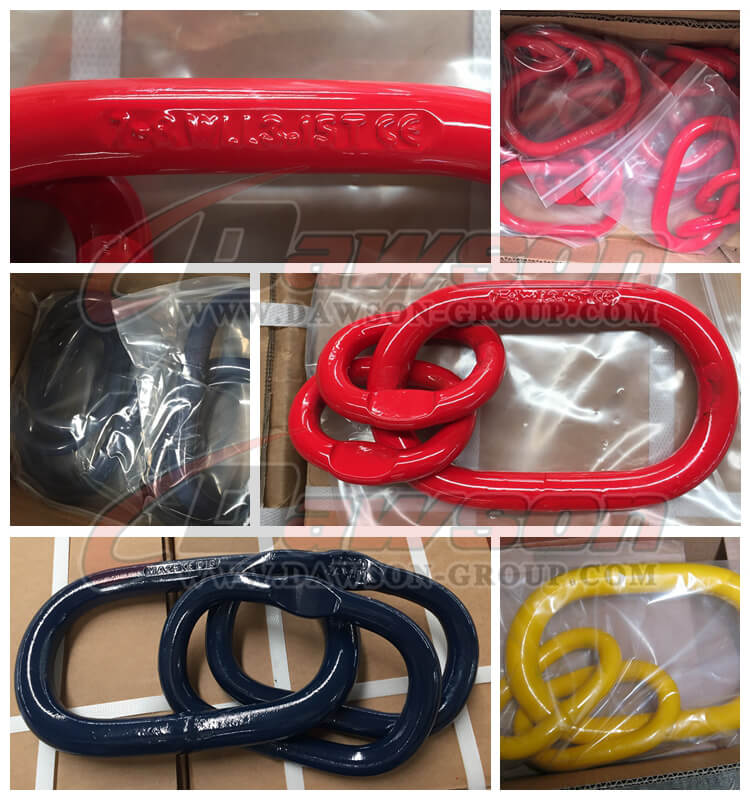

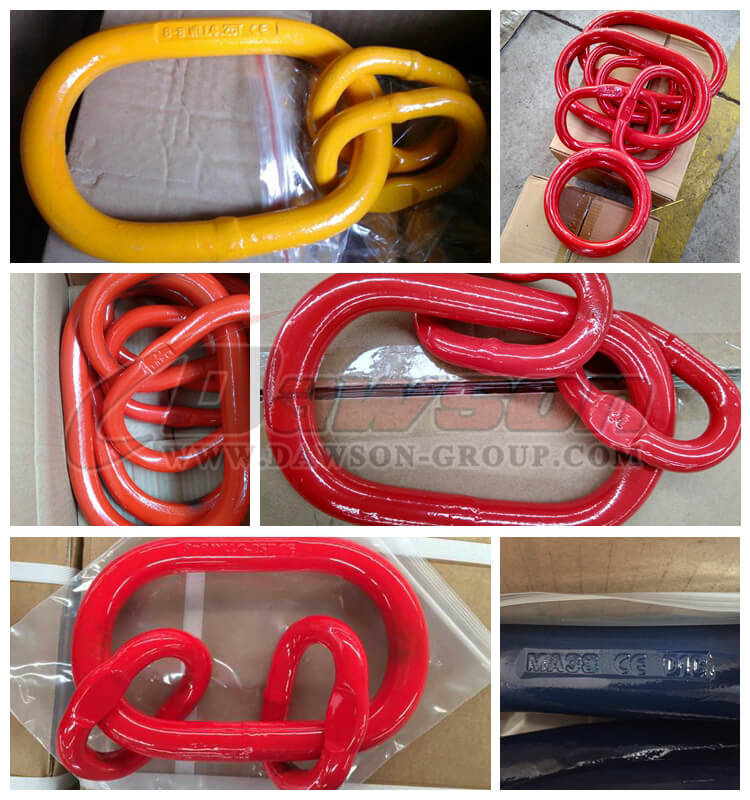

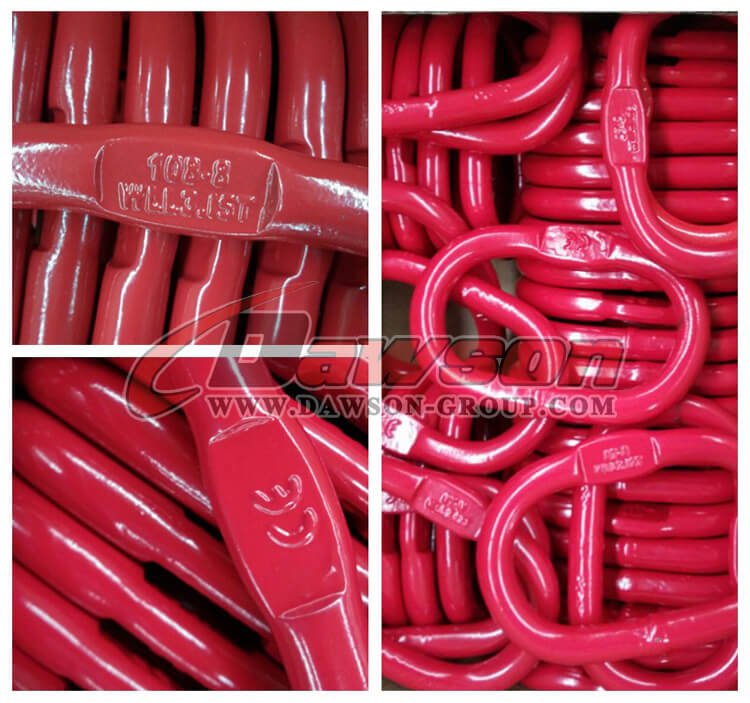

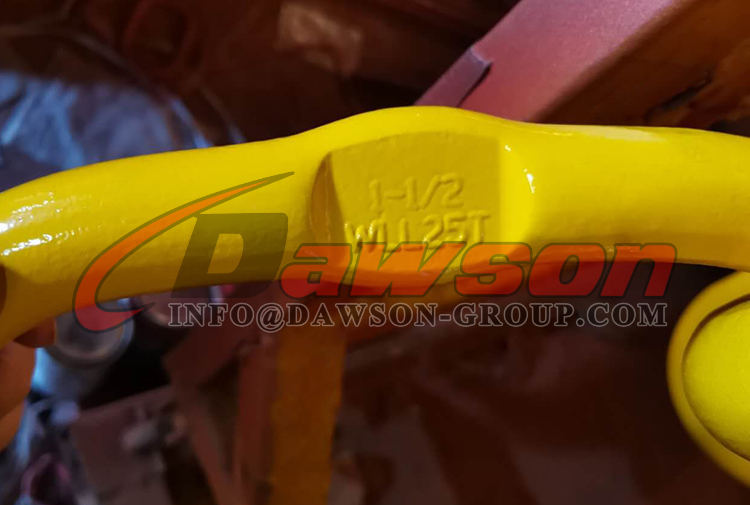

Products Show:
Other related products:
Application of Master Link Assembly:

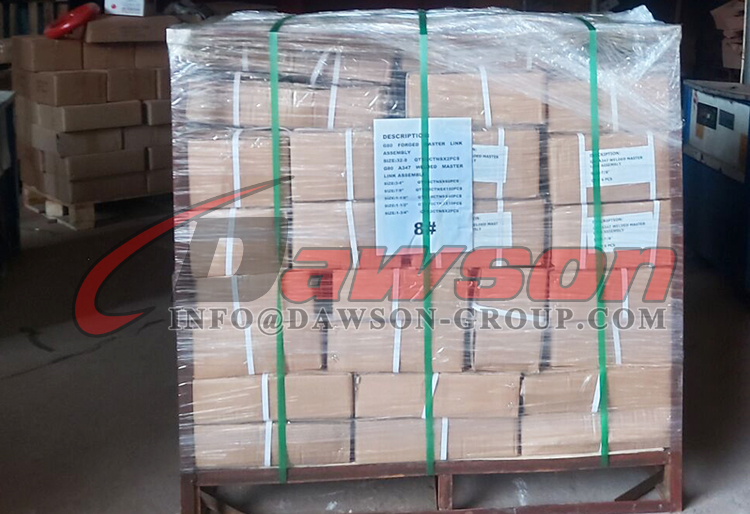

Factory & Package Show:
