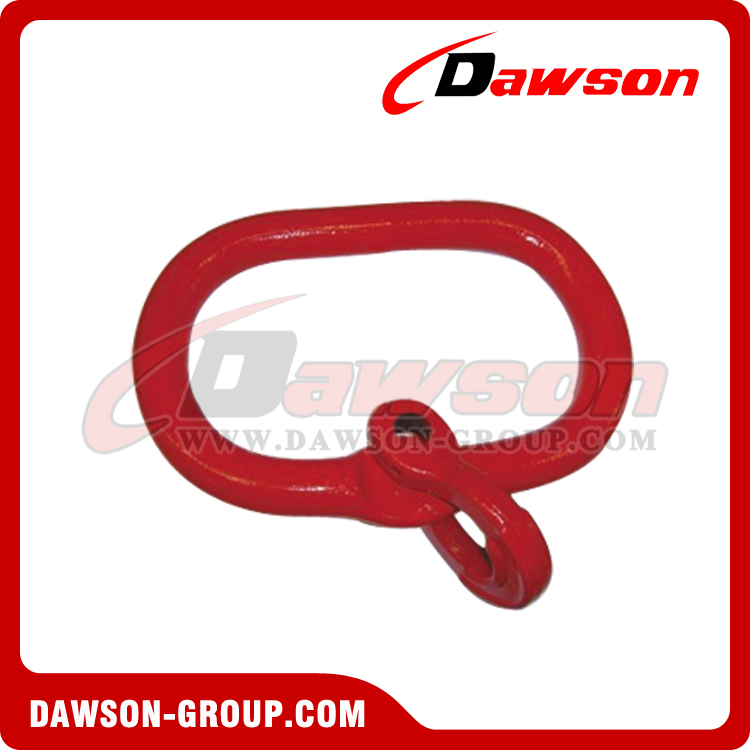

G80 / Grade 80 U.S. Type Welded Master Link with Flat for Chain Lifting Slings / Wire Rope Lifting Slings
DS093 A344 G80 U.S. Type Welded Master Link
- Dawson China
Forged super alloy steel-Quenched and Tempered.
Individually proof tested at MPF.
Breaking Test。
100% Magnaflux Crack Detection.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All sizes are welded.

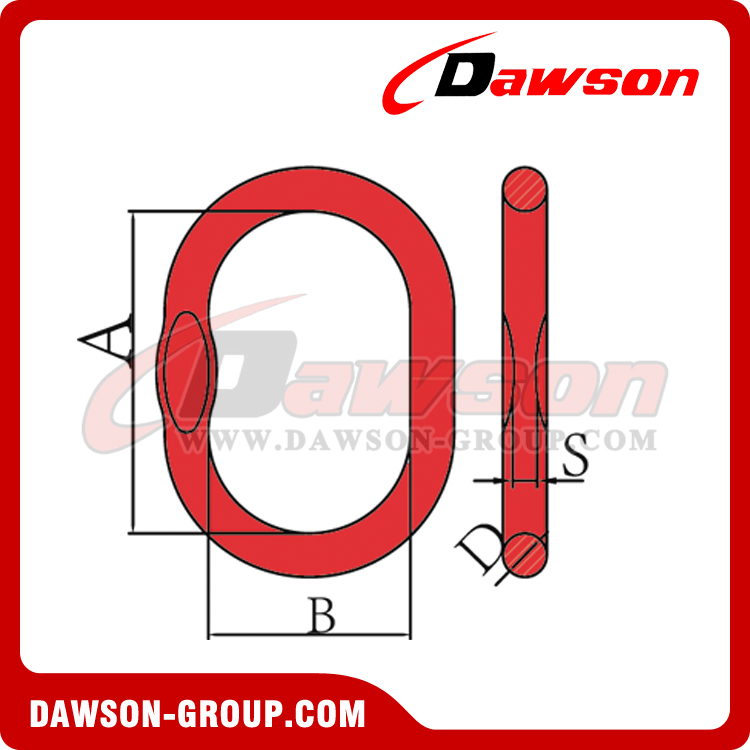

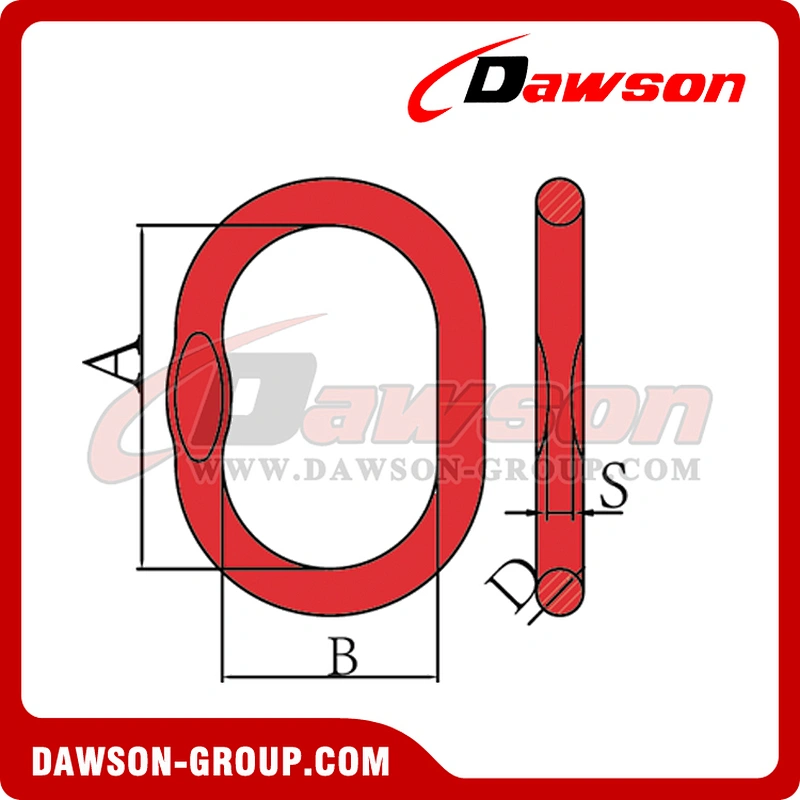

| Item No. | Weight kg | G80 Chain | WLL 1 Leg(T) | WLL 2 leg 0-45°(T) | WLL Rope(T) | A | B | D | S |
| 8-DS093-7/16 | 0.27 | 1/4 | 1.12 | 1.6 | 1.6 | 100±4 | 60±4 | 12±0.5 | 6+0.5 |
| 9/32 | 1.5 | -- | |||||||
| 8-DS093-1/2 | 0.38 | 9/32 | 1.5 | 2.12 | 2.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 5/16 | 2 | -- | |||||||
| 8-DS093-11/16 | 0.85 | 5/16 | 2 | 2.8 | 4 | 160±5 | 90±4 | 18±0.5 | 8.4±0.5 |
| 3/8 | 3.15 | -- | |||||||
| 8-DS093-3/4 | 1.2 | 3/8 | 3.15 | 4.25 | 6.5 | 160±5 | 90±4 | 20±0.5 | 10.5±0.5 |
| 1/2 | 5.3 | -- | |||||||
| 8-DS093-7/8 | 1.63 | 1/2 | 5.3 | 7.5 | 8 | 180±5 | 100±4 | 22±1 | 13.5±0.5 |
| 5/8 | 8 | -- | |||||||
| 8-DS093-1 | 2.13 | 5/8 | 8 | 11.2 | 11.5 | 180±5 | 100±4 | 25±1 | 16.5±0.5 |
| 19mm | 11.2 | -- | |||||||
| 8-DS093-1-1/8 | 3.81 | 3/4 | 12.5 | -- | 11.8 | 270±6 | 140±5 | 28±1 | 19±0.5 |
| 8-DS093-1-1/4 | 5.05 | 19mm | 11.2 | 16 | 16 | 270±6 | 140±5 | 32±1 | 19±0.5 |
| 7/8 | 15 | -- | |||||||
| 8-DS093-1-3/8 | 6.83 | 7/8 | 15 | 21.2 | 24 | 285±6 | 155±5 | 36±1 | 20±0.5 |
| 1 | 21.2 | -- | |||||||
| 8-DS093-1-1/2 | 8.9 | 28mm | 25 | -- | 25 | 300±6 | 160±5 | 40±1 | 26±0.5 |
| 8-DS093-1-3/4 | 12.8 | 1 | 21.2 | 30 | 31.5 | 340±7 | 180±5 | 45±1 | 26±0.5 |
| 1 1/4 | 31.5 | -- | |||||||
| 8-DS093-2 | 17.3 | 1 1/4 | 31.5 | 45 | 45 | 390±7 | 215±6 | 51±1 | 32±0.5 |
ALL SIZES: WELDED
For chain sling: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.

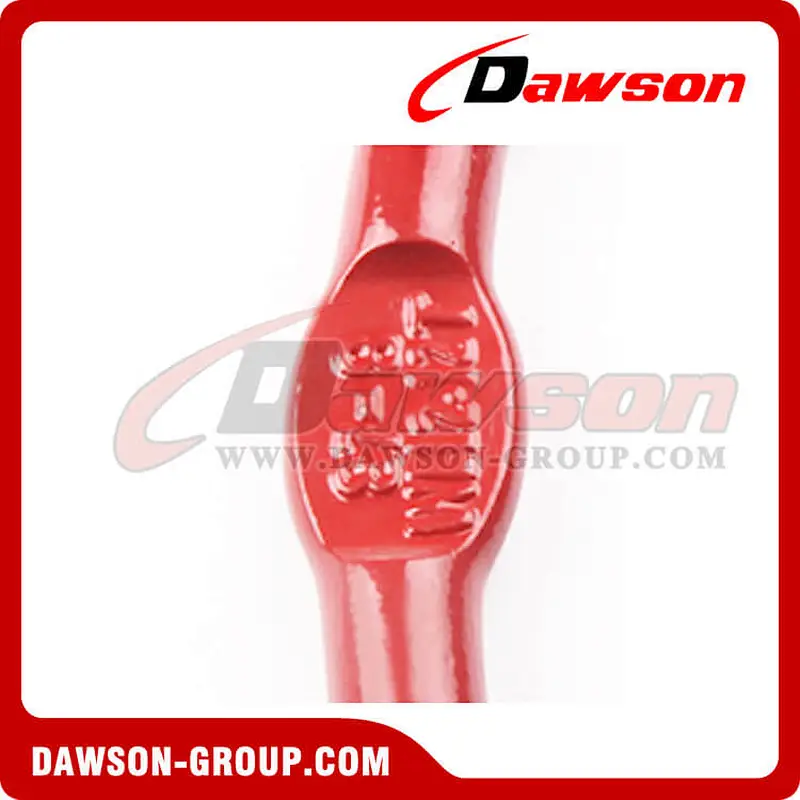

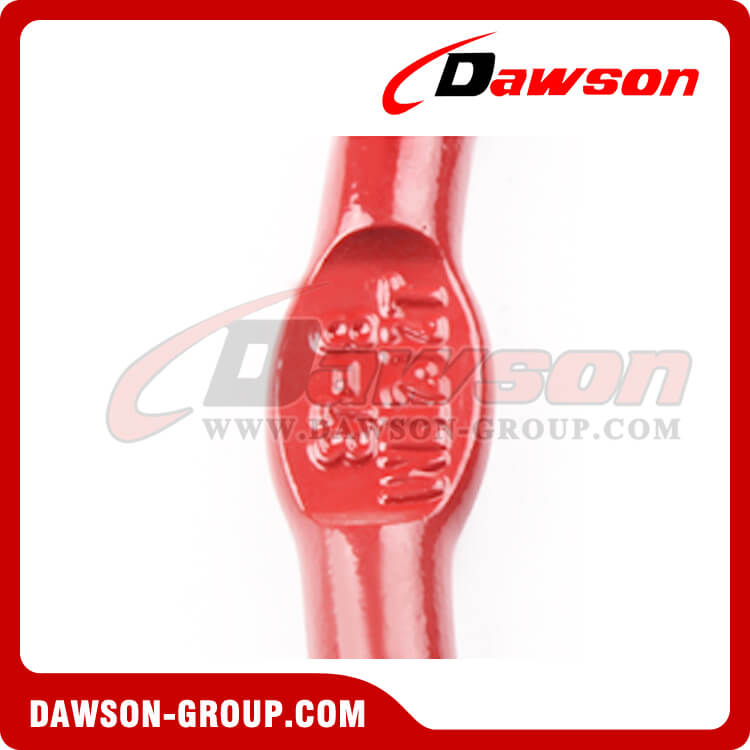

There will be pressing flat only on request.
The pressing flat is for use with DS002 G80 OMEGA LINK.
Welcome to buy the newest and cheap DAWSON g80 A344 U.S. Type Welded Master Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

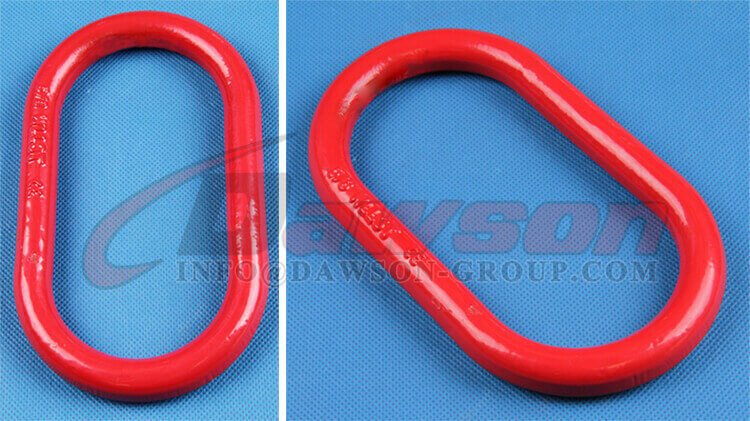

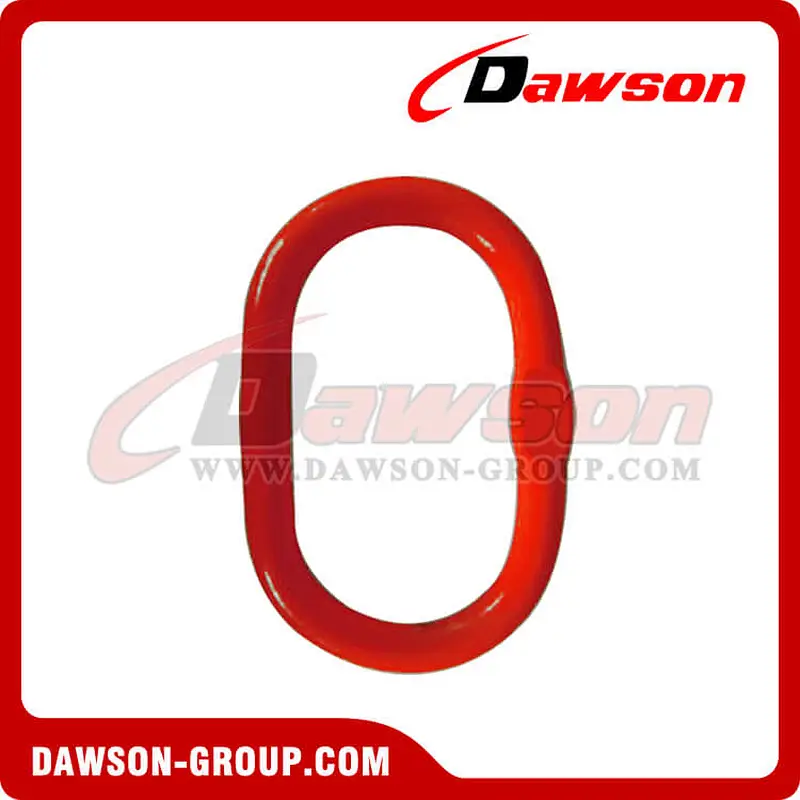

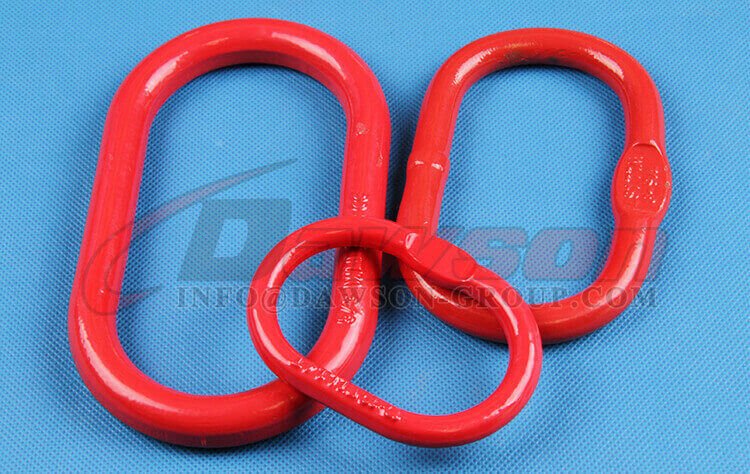

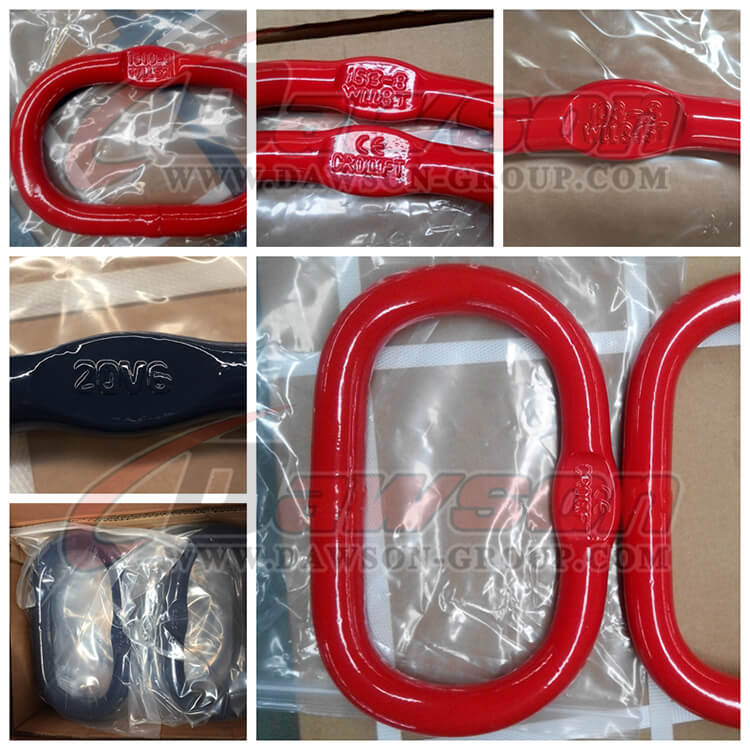

Products Show:
Hot Tags: Master Link, G80 Master Link, Grade 80 Master Link, US Type Master Link, G80 US Type Master Link, China Master Link for Wire Rope Slings, Grade 80 Welded Master Link, Welded Master Link China Supplier, Welded Master Link Factory China, Low Price A344 Master Link, Buy Discount A-344 Welded Master Link, Cheap Price Welded Master Link, Hot Sale Welded Master Link, Welded Master Link In Stock, Wholesale Welded Master Link, China A344 Welded Master Link Manufacturer, Welded Master Link for Wire Rope Lifting Slings, Welded Steel Master Link

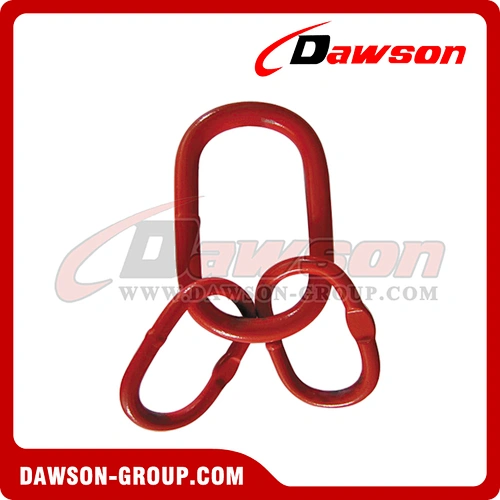

Other related products:

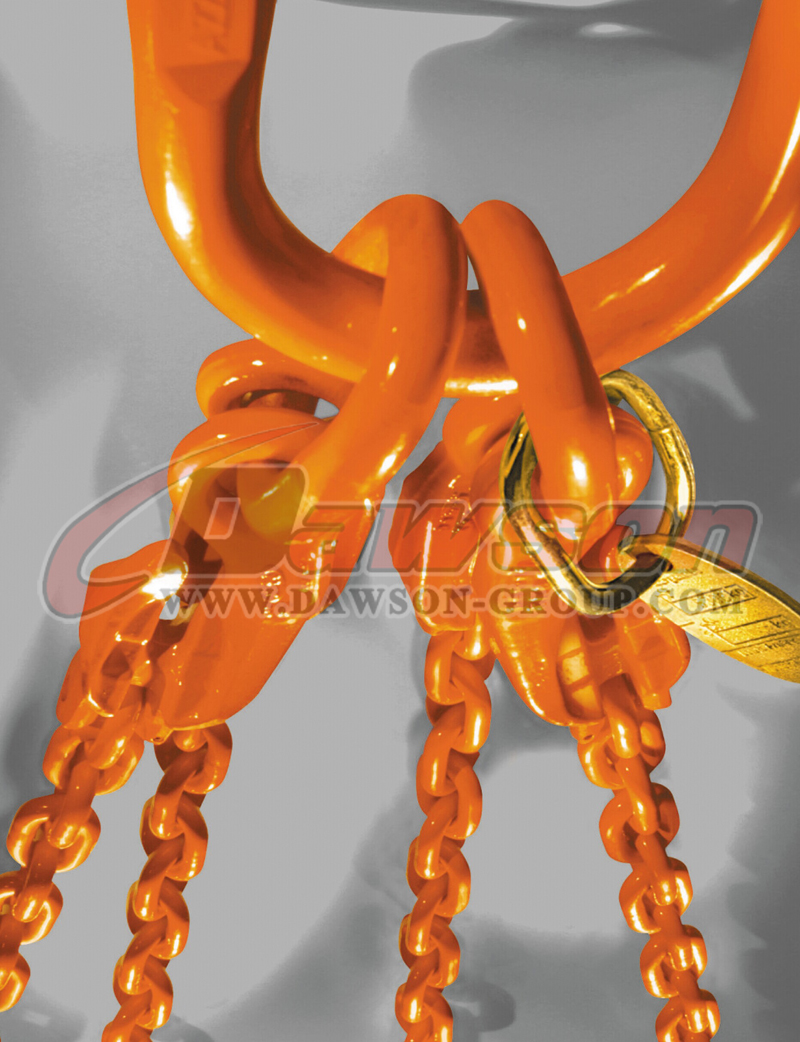

Application of Master Link:

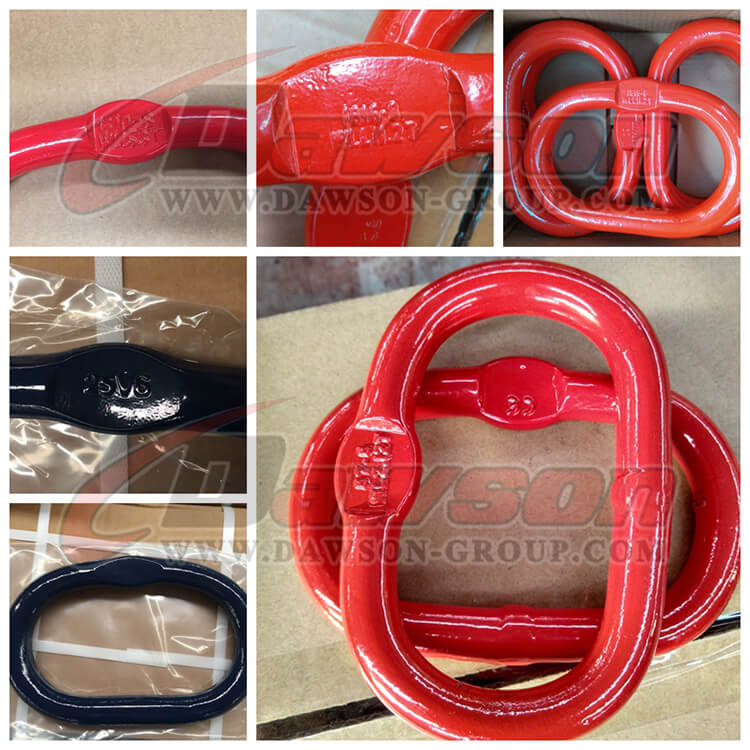

Factory & Package Show:
