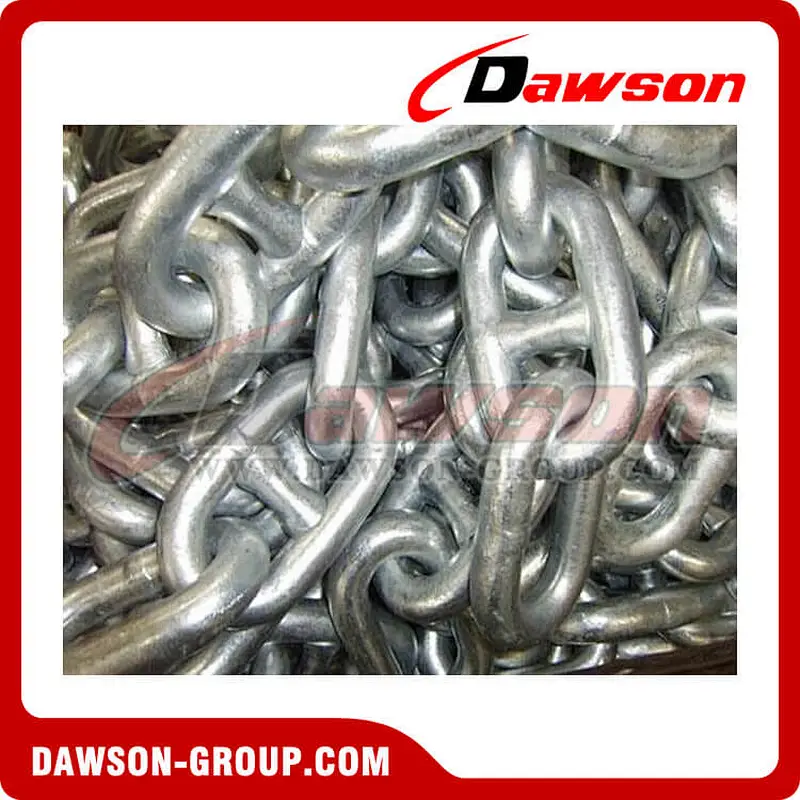

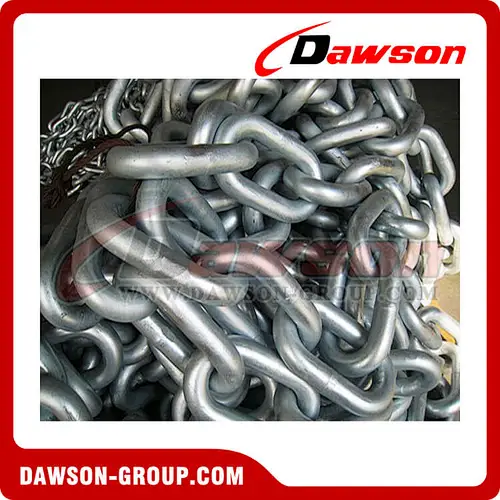

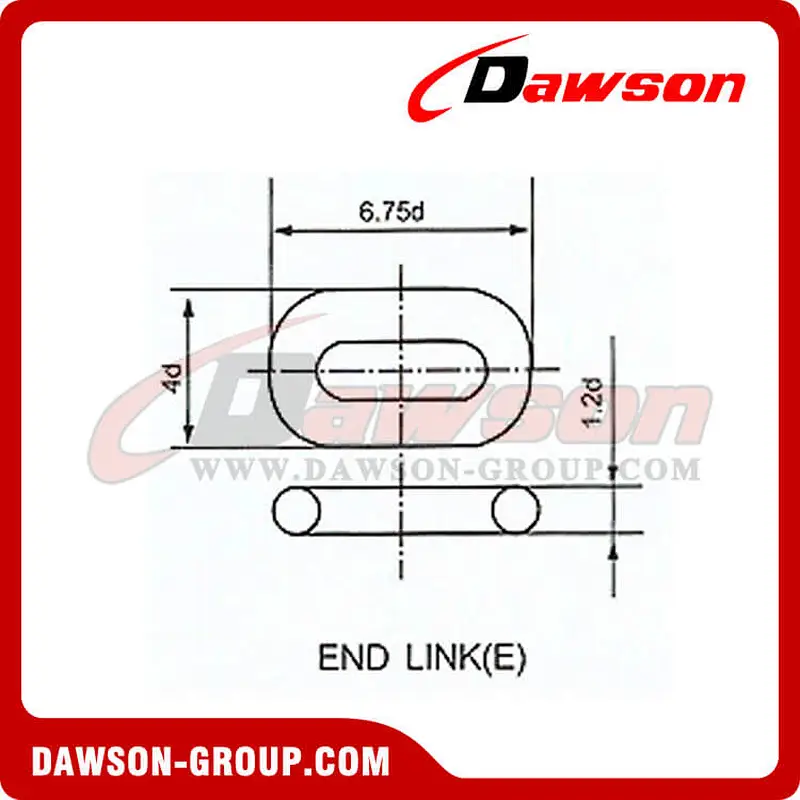

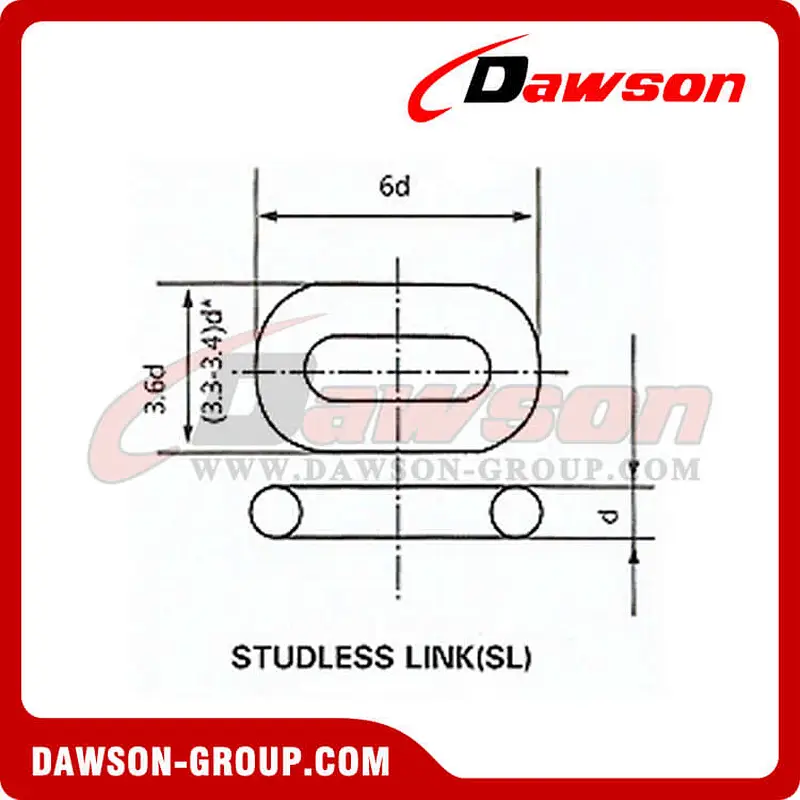

Anchor chain cable is joined by many links. Due to the presence of stud in the middle of a link, anchor chain cable is divided into stud link chain and studless link chain.

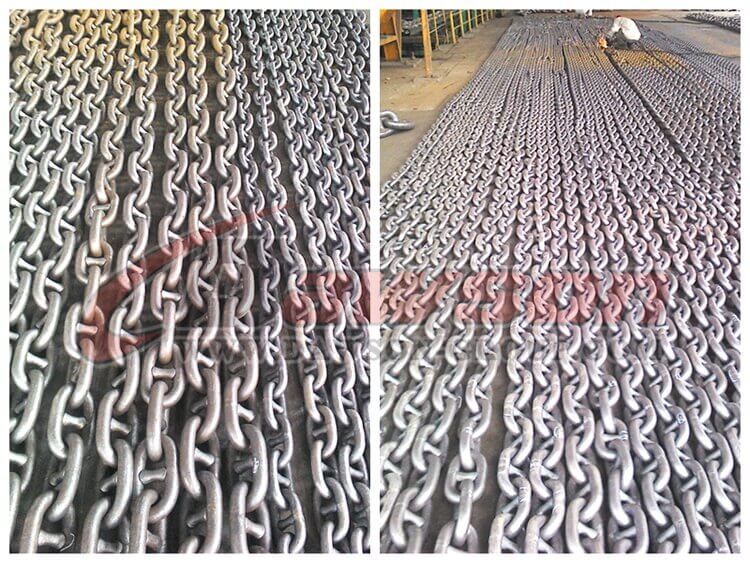

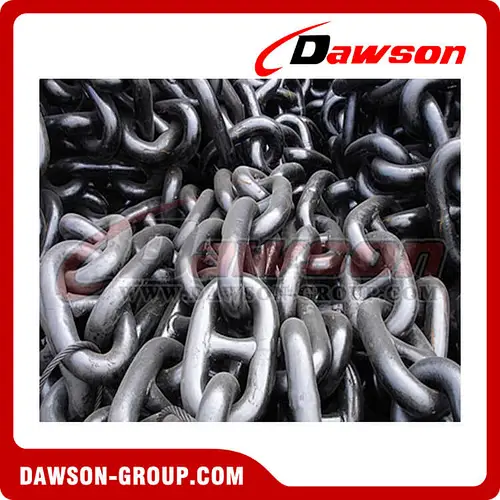

Anchor chains can be processed through the following methods: forging, casting and welding. Marine anchor chain consists of a number of “shackle” with the length of 25.0m to 27.5m. Every two shackles are connected by a link or shackle.
Main Difference of Stud and Studless Link Chain

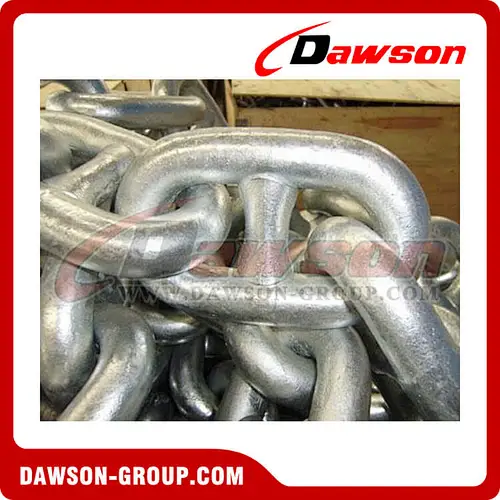

The tensile strength of stud link chain is larger so that it has smaller deformation and the stud link chain is not easy to be entangled when being piled up.

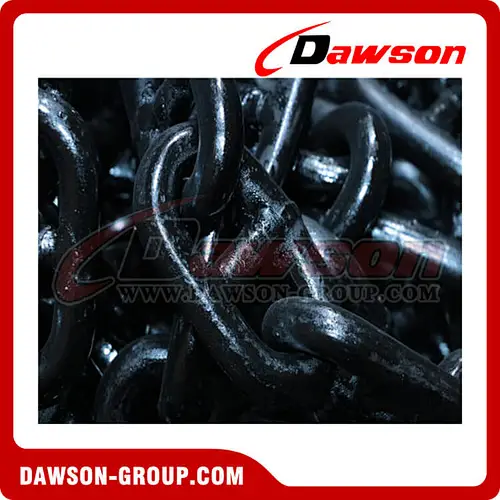

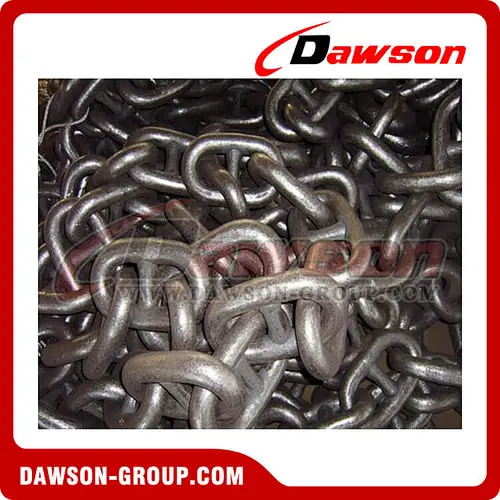

Product Detail

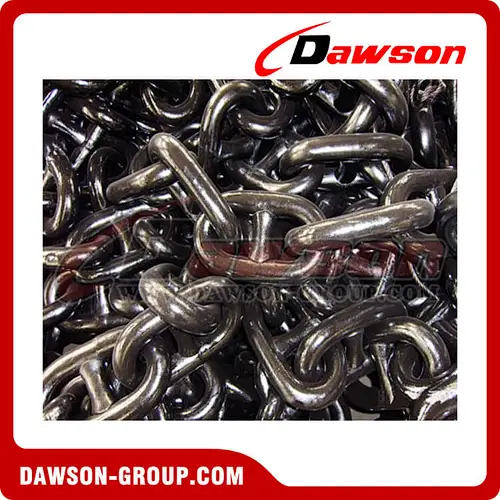

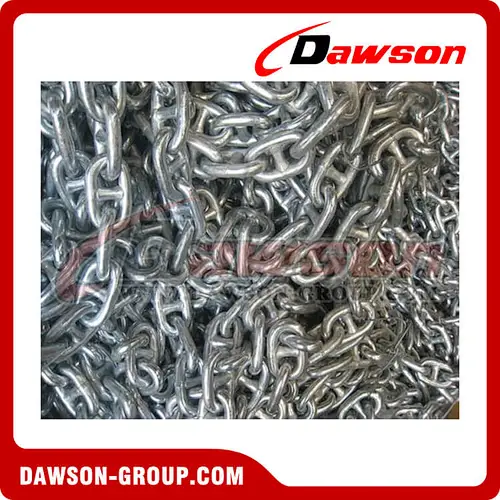

1. Type: Stud/Studless Link Anchor Chain
2. Diameter:11mm to 162mm
3. Grade: U2/U3
4. Material: CM490, CM690
5. Certificate: CCS, ABS, LR, BV, NK, GL, DNV,RS etc.

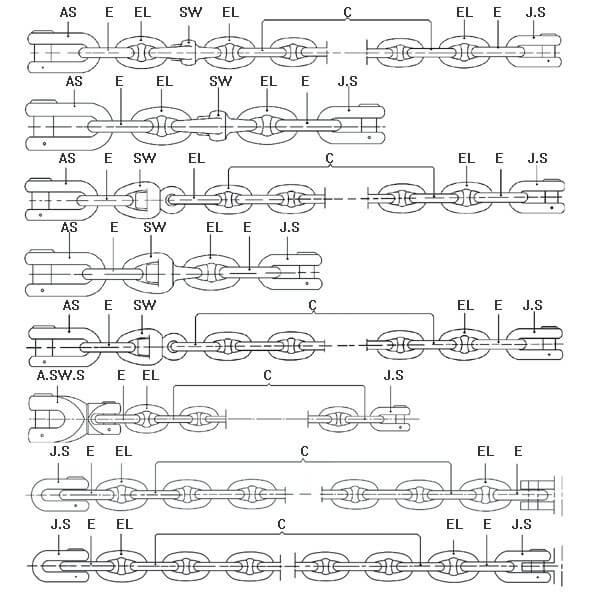

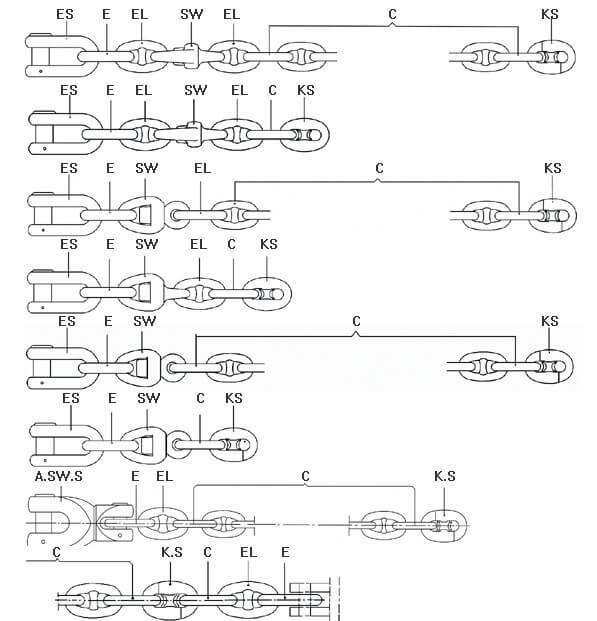

Joining Form of Anchor Chains

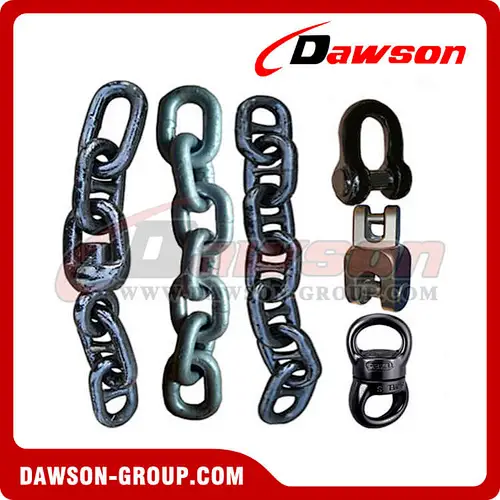

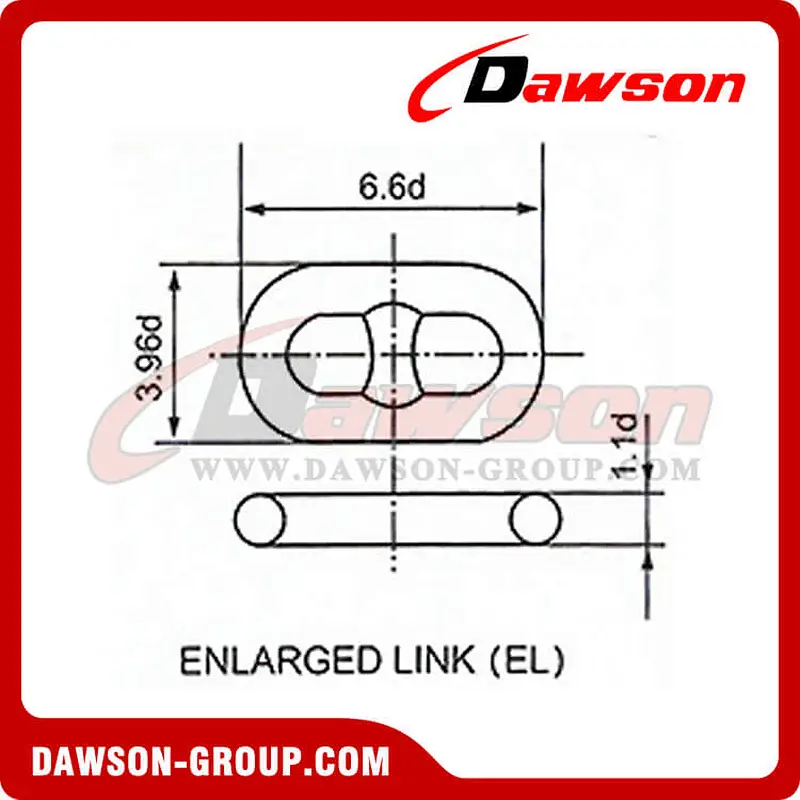

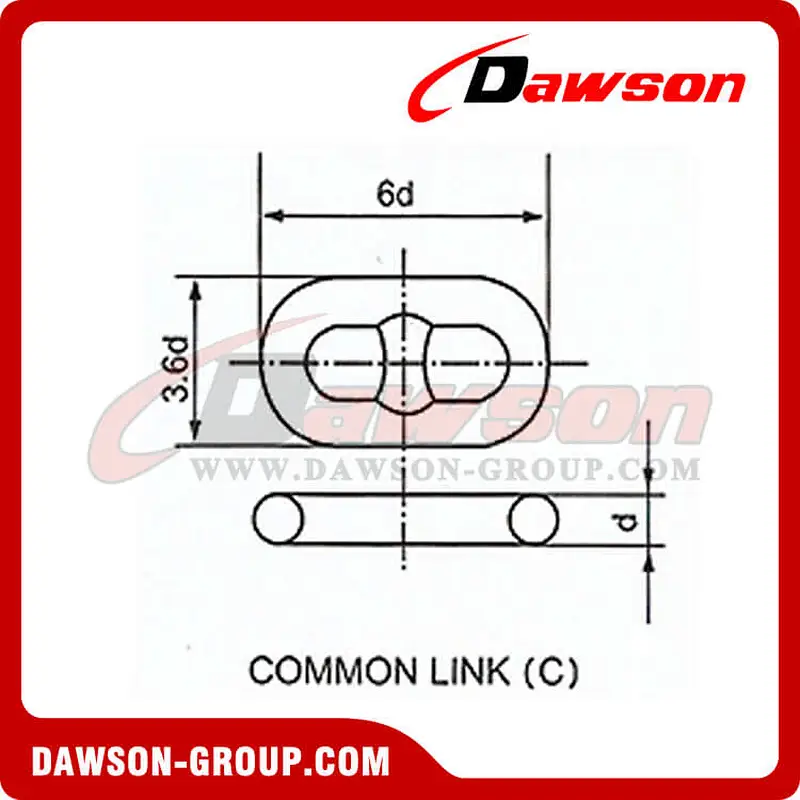

A. Kenter Shackle - Chain Connection
B: D Shackle Connection
3. Specifications
| Diameter | CHAIN LINK SIZE | AM2 | AM3 | APPROX. | |||
| U2 STUD LINK CHAIN | U3 STUD LINK CHAIN | WEIGHT | |||||
| OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | 27.5M | |
| LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
| MM | MM | MM | KN | KN | KN | KN | KG |
| 12.5 | 75 | 45 | 66 | 92 | 92 | 132 | 98 |
| 14 | 84 | 50.4 | 82 | 116 | 116 | 165 | 119 |
| 16 | 96 | 57.6 | 107 | 150 | 150 | 216 | 156 |
| 17.5 | 105 | 63 | 127 | 179 | 179 | 256 | 186 |
| 19 | 114 | 68.4 | 150 | 211 | 211 | 301 | 230 |
| 20.5 | 123 | 73.8 | 175 | 244 | 244 | 349 | 260 |
| 22 | 132 | 79.2 | 200 | 280 | 280 | 401 | 300 |
| 24 | 144 | 86.4 | 237 | 332 | 332 | 476 | 370 |
| 26 | 156 | 93.6 | 278 | 389 | 389 | 556 | 431 |
| 28 | 168 | 100.8 | 321 | 449 | 449 | 642 | 496 |
| 30 | 180 | 108 | 368 | 514 | 514 | 735 | 564 |
| 32 | 192 | 115.2 | 417 | 583 | 583 | 833 | 635 |
| 34 | 204 | 122.4 | 468 | 655 | 655 | 937 | 712 |
| 36 | 216 | 129.6 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 228 | 136.8 | 581 | 812 | 812 | 1160 | 887 |
| 40 | 240 | 144 | 640 | 896 | 896 | 1280 | 1032 |
| 42 | 252 | 151.2 | 703 | 981 | 981 | 1400 | 1084 |
| 44 | 264 | 158.4 | 769 | 1080 | 1080 | 1540 | 1197 |
| 46 | 276 | 165.6 | 837 | 1170 | 1170 | 1680 | 1310 |
| 48 | 288 | 172.8 | 908 | 1270 | 1270 | 1810 | 1438 |
| 50 | 300 | 180 | 981 | 1370 | 1370 | 1960 | 1546 |
| 52 | 312 | 187.2 | 1060 | 1480 | 1480 | 2110 | 1661 |
| 54 | 324 | 194.4 | 1140 | 1590 | 1590 | 2270 | 1791 |
| 56 | 336 | 201.6 | 1220 | 1710 | 1710 | 2430 | 1926 |
| 58 | 348 | 208.8 | 1290 | 1810 | 1810 | 2600 | 2086 |
| 60 | 360 | 216 | 1380 | 1940 | 1940 | 2770 | 2249 |
| 62 | 372 | 223.2 | 1470 | 2060 | 2060 | 2940 | 2361 |
| 64 | 384 | 230.4 | 1560 | 2190 | 2190 | 3130 | 2516 |
| 66 | 396 | 237.6 | 1660 | 2310 | 2310 | 3300 | 2676 |
| 68 | 408 | 244.8 | 1750 | 2450 | 2450 | 3500 | 2885 |
| 70 | 420 | 252 | 1840 | 2580 | 2580 | 3690 | 3010 |
If you need other anchor chains or mooring chains, please contact us!!!
Other related products:

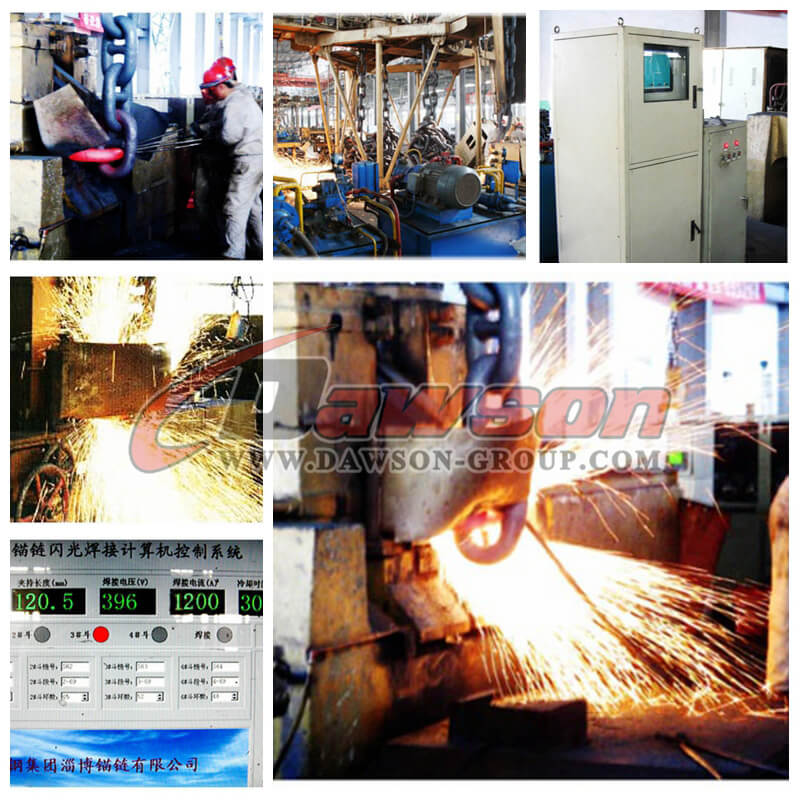

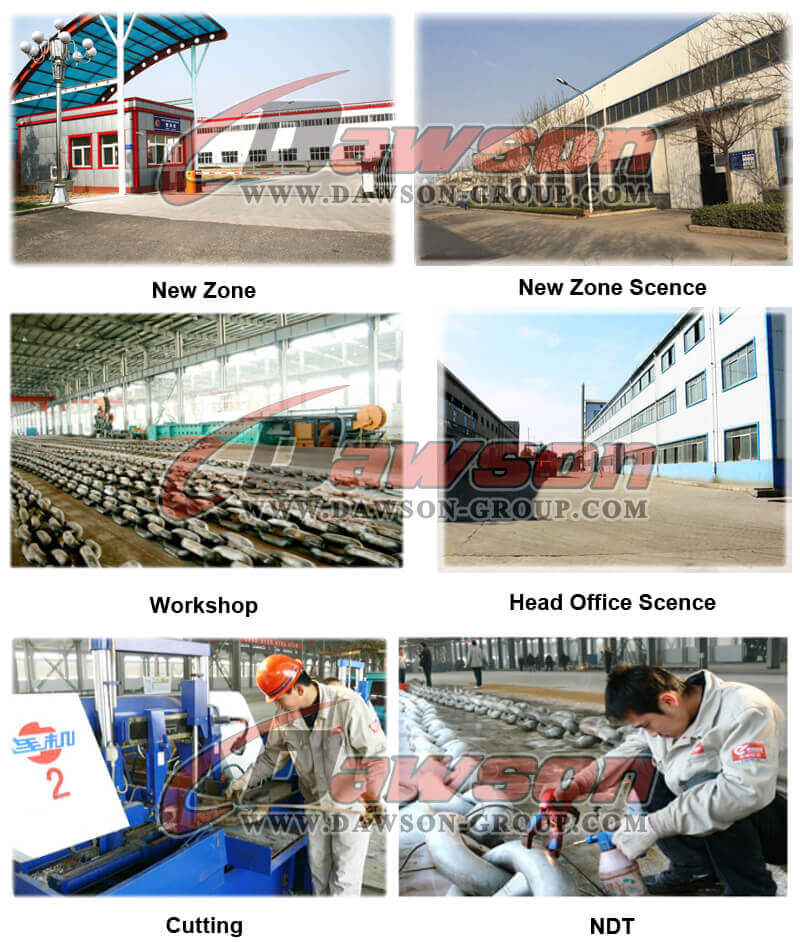

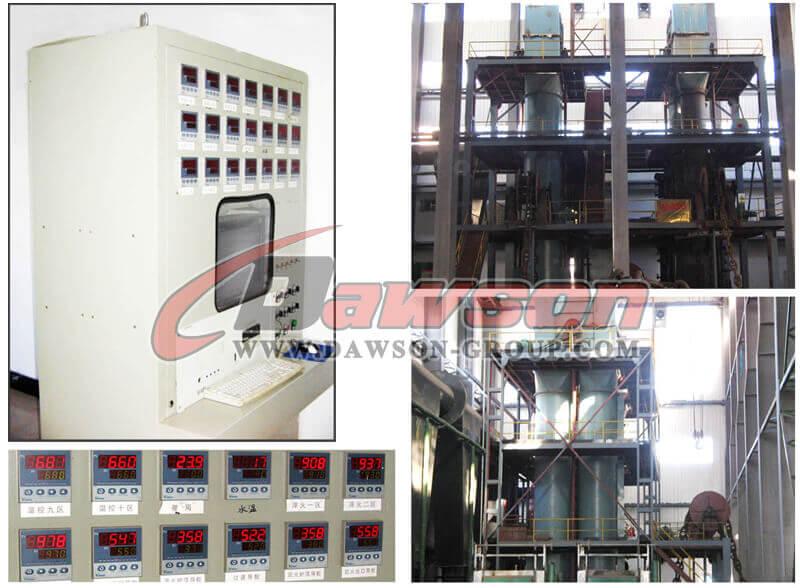

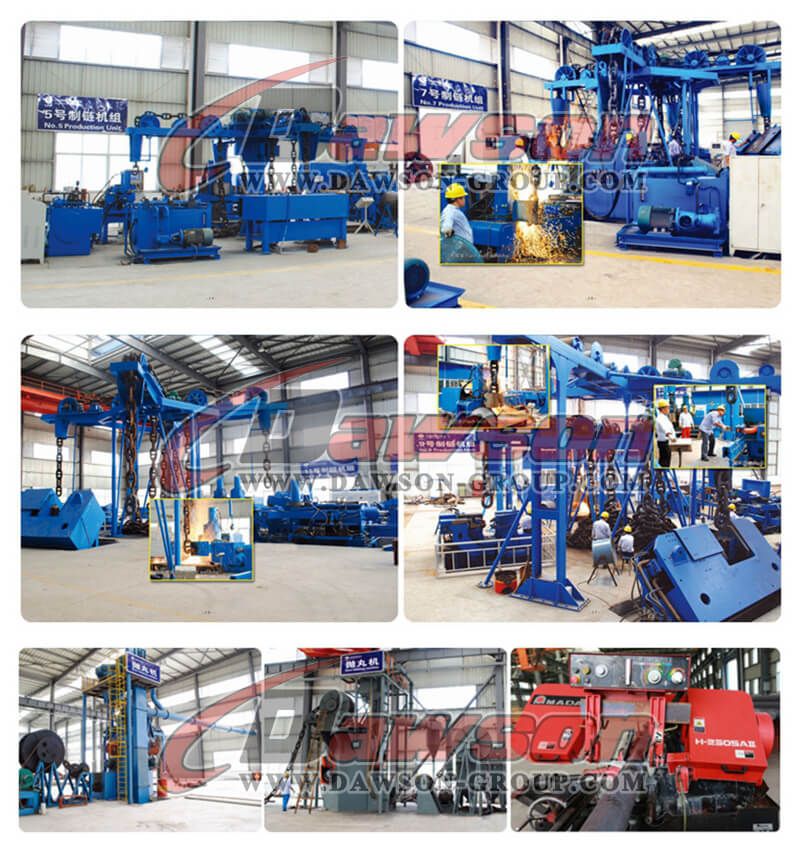

Factory & Test Show:

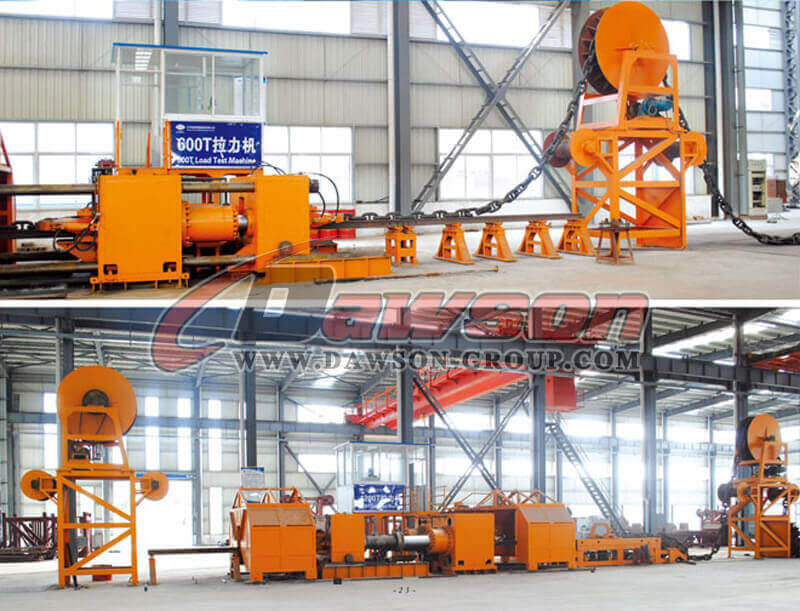

Load Test Machine:

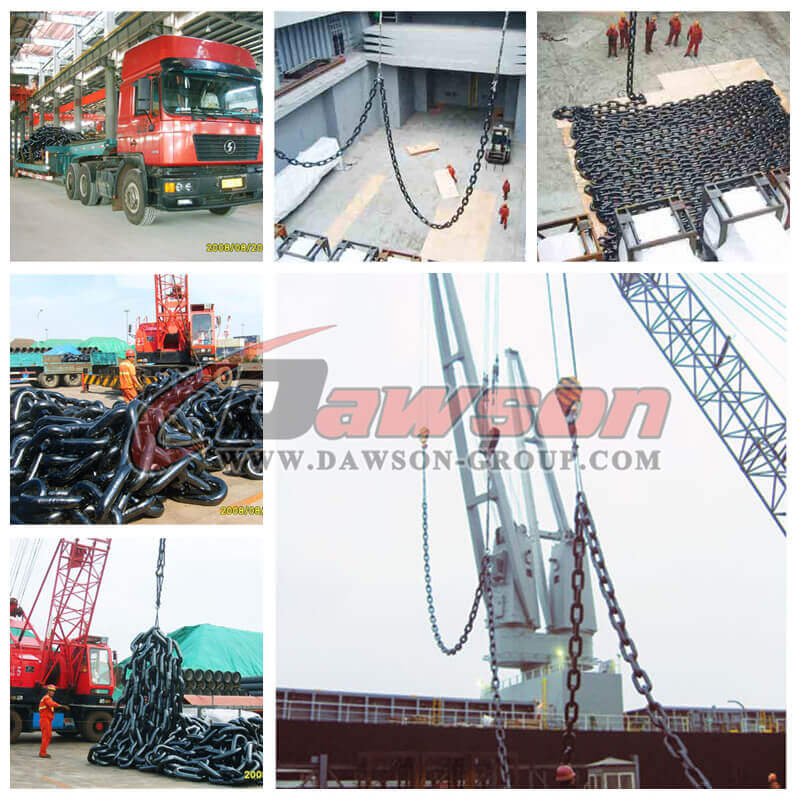

Transport：
