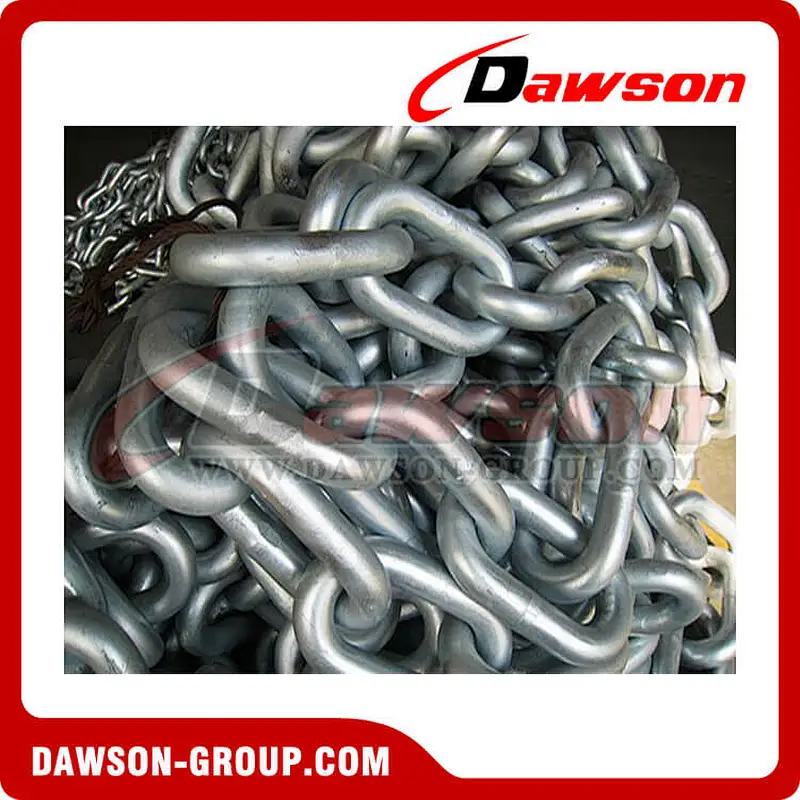

Studless Link Anchor Chain
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

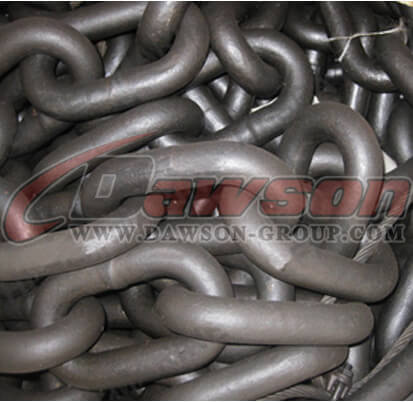

Studless link anchor chains, also called open link anchor chain, are often used for offshore moorings. Compared with stud link anchor chains, the studless link anchor chains have the features of less weight, being suitable for larger shackles without end links and the avoidance of stud loosing problems.
Product Detail
1. Chain Diameter: 12.5mm to 70mm
2. Grade&Material: U2-CM490; U3-CM690
3. Surface: Self-colored, hot dip galvanized, painted black or as required
4. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
5. Application: for permanent moorings
Specifications

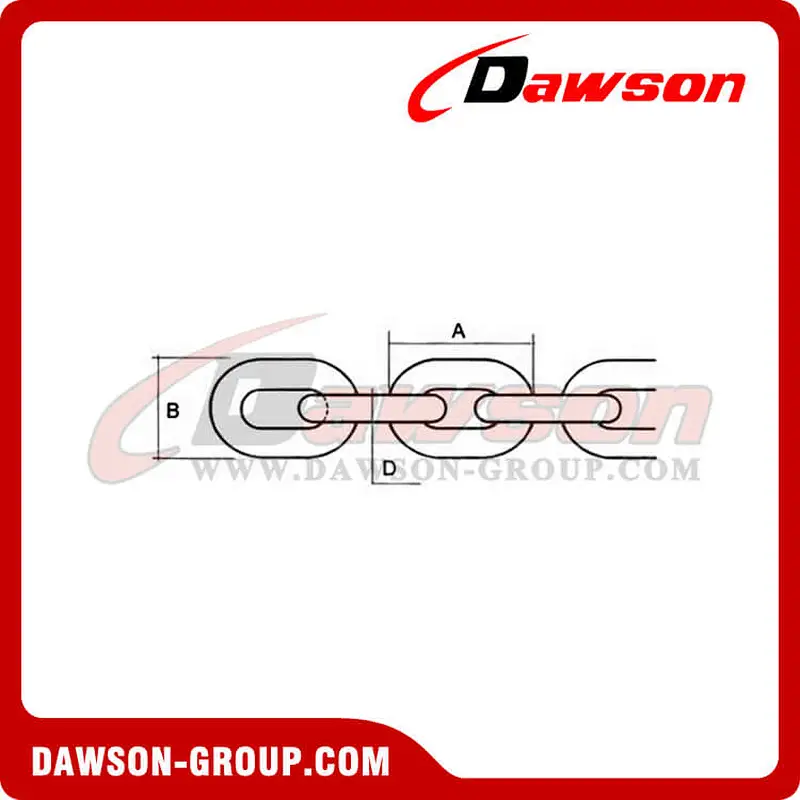

Diameter | CHAIN LINK SIZE | BM2 | BM3 | APPROX. | |||
U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | WEIGHT | |||||
27.5M | |||||||
OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | KG | |
LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
MM | MM | MM | KN | KN | KN | KN | |
12.5 | 75 | 45 | 41.2 | 82.6 | 56.4 | 112.8 | 85.41 |
14 | 84 | 50.4 | 51 | 101.9 | 70.76 | 141.51 | 106.55 |
16 | 96 | 57.6 | 66.2 | 132.3 | 92.42 | 184.83 | 139.43 |
17.5 | 105 | 63 | 78.89 | 157.78 | 110.55 | 221.1 | 178.35 |
19 | 114 | 68.4 | 93.6 | 187.2 | 130.32 | 260.64 | 217.68 |
20.5 | 123 | 73.8 | 108.64 | 217.27 | 151.7 | 303.42 | 229.14 |
22 | 132 | 79.2 | 125.4 | 250.9 | 174.4 | 349.4 | 264.49 |
24 | 144 | 86.4 | 149.9 | 298.9 | 207.9 | 415.8 | 341.82 |
26 | 156 | 93.6 | 175.4 | 350.8 | 244 | 488 | 369.94 |
28 | 168 | 100.8 | 203.8 | 406.7 | 283 | 566 | 427.04 |
30 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 490.98 |
32 | 192 | 115.2 | 265.6 | 531.2 | 369.6 | 739.3 | 559.65 |
34 | 204 | 122.4 | 299.9 | 599.8 | 417.3 | 834.6 | 671.52 |
36 | 216 | 129.6 | 336.1 | 672.3 | 467.8 | 935.7 | 707.85 |
38 | 228 | 136.8 | 374.4 | 748.7 | 521.3 | 1042.5 | 788.98 |
40 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 869.36 |
42 | 252 | 151.2 | 457.7 | 915.3 | 636.8 | 1273.6 | 959.3 |
44 | 264 | 158.4 | 502.7 | 999.6 | 698.9 | 1398 | 1111.25 |
46 | 276 | 165.6 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1152.07 |
48 | 288 | 172.8 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1256.26 |
50 | 300 | 180 | 648.8 | 1239.6 | 902.5 | 1805 | 1360.41 |
52 | 312 | 187.2 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
54 | 324 | 194.4 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
56 | 336 | 201.6 | 809.09 | 1618.18 | 1132.1 | 2264.2 | 1715.97 |
58 | 348 | 208.8 | 867.91 | 1735.82 | 1214.4 | 2428.8 | 1844.5 |
60 | 360 | 216 | 928.8 | 1857.6 | 1299.6 | 2599.2 | 1973.29 |
62 | 372 | 223.2 | 991.75 | 1983.5 | 1387.68 | 2775.36 | 2101.56 |
64 | 384 | 230.4 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.47 |
66 | 396 | 237.6 | 1123.85 | 2247.7 | 1572.52 | 3145.04 | 2398.1 |
68 | 408 | 244.8 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
70 | 420 | 252 | 1264.2 | 2528.4 | 1768.9 | 3537.8 | 2697.65 |
If you need other anchor chains or mooring chains, please contact us!!!

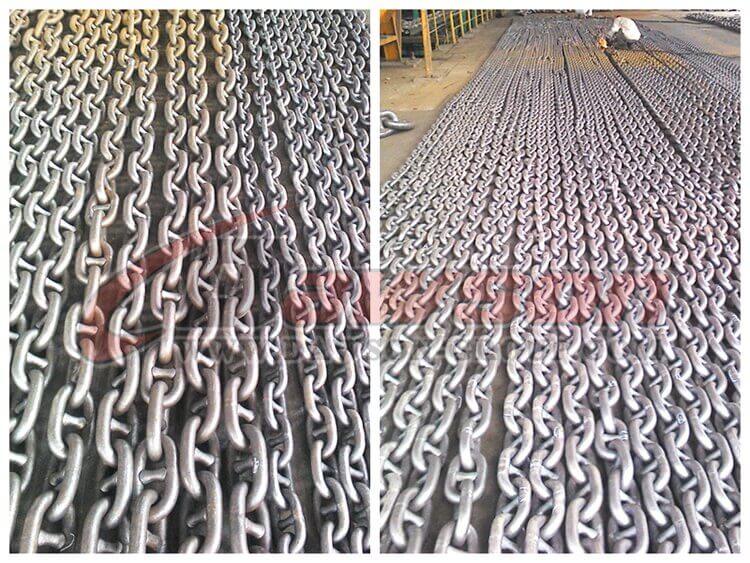

Other related products:

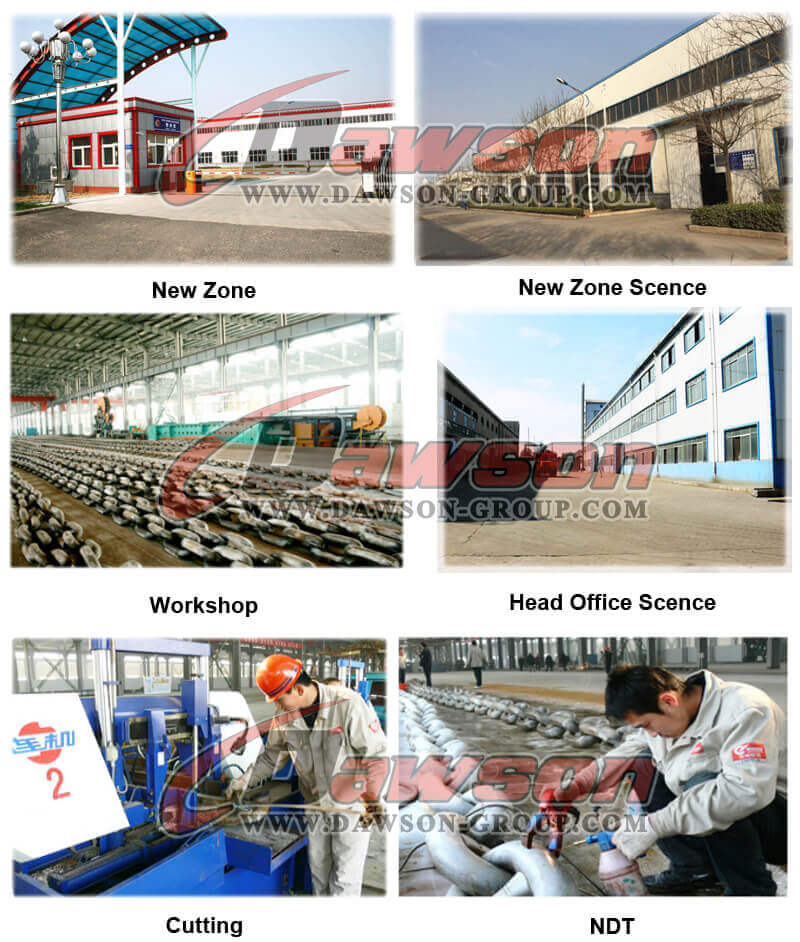

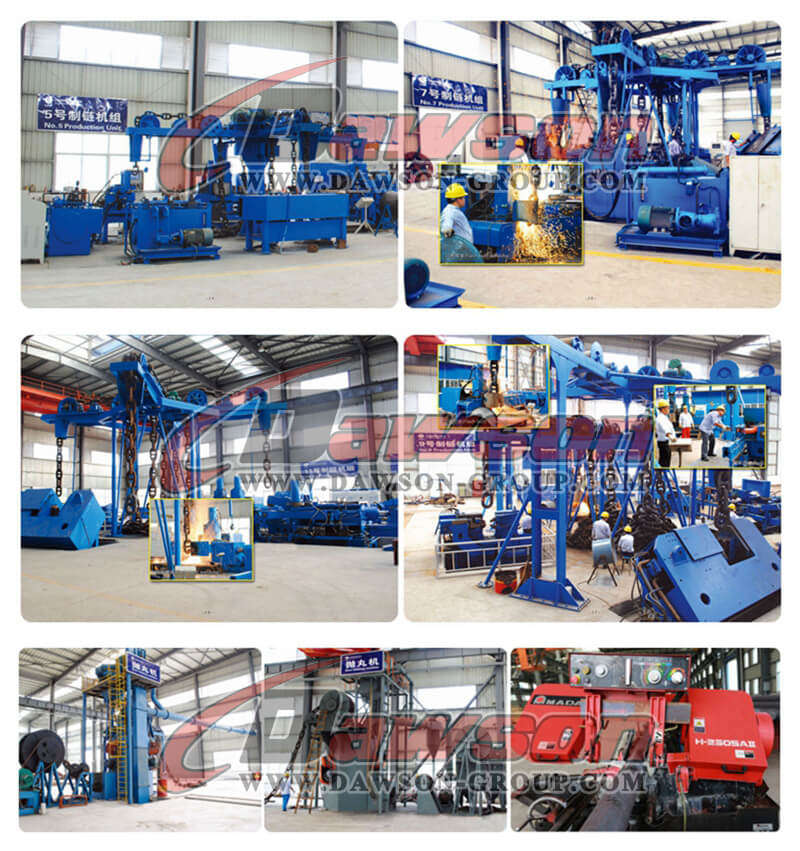

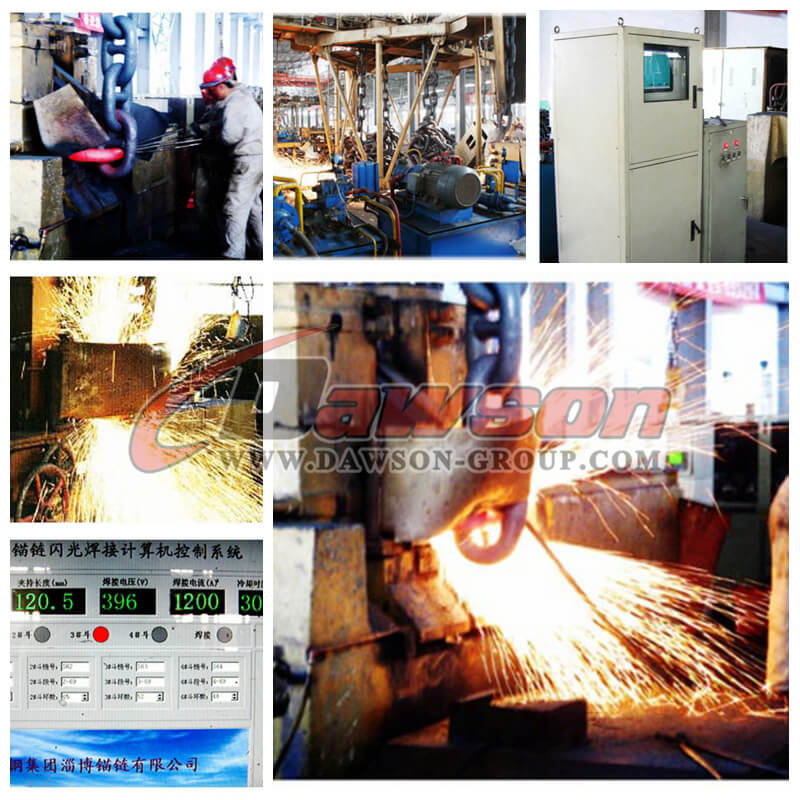

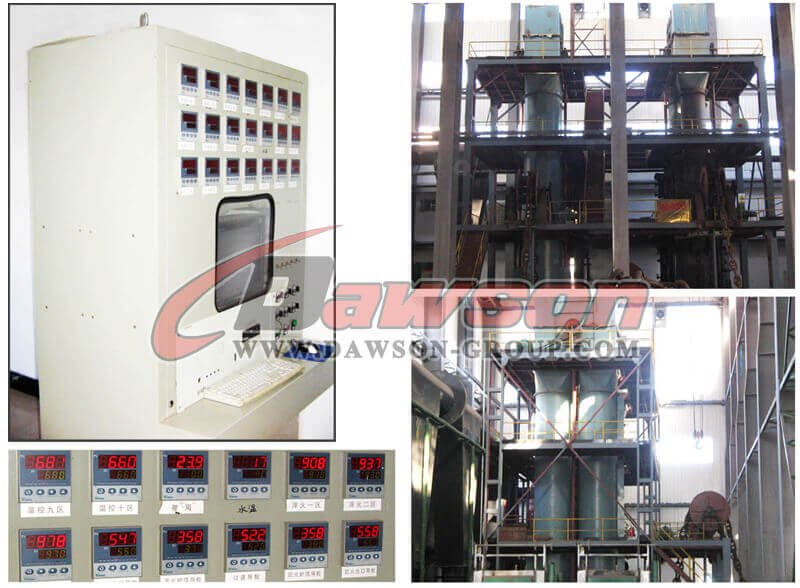

Factory & Test Show:

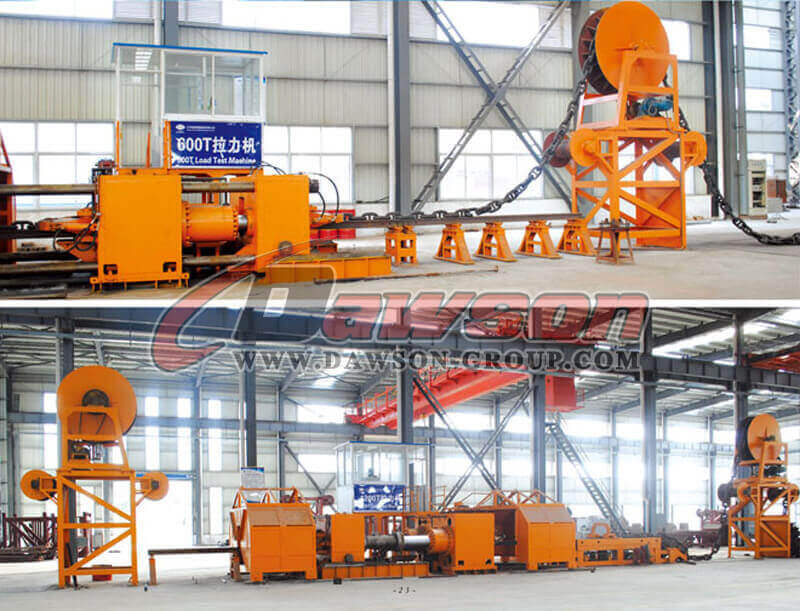

Load Test Machine:

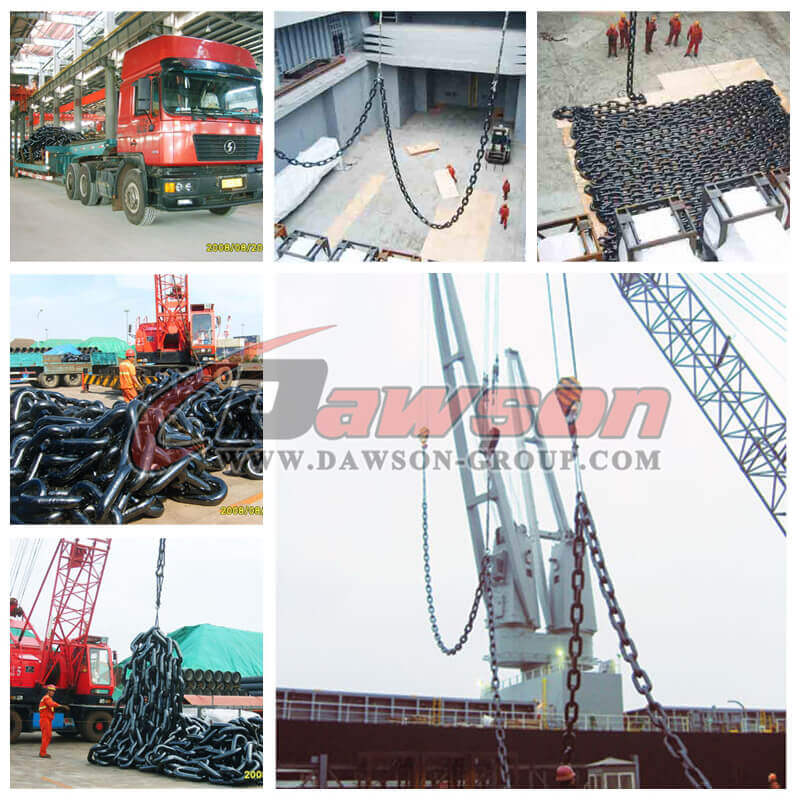

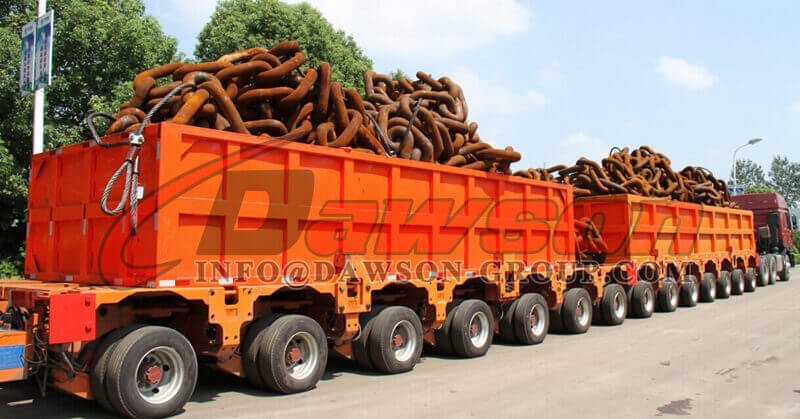

Transport：
