We have produced Anchor chains since 1996, including stud link anchor chain, studless link anchor chain, mooring chain(R3,R3S,R4,R4S). Classification certificates of ABS, LR, BV, NK, DNV, KR, BV, CCS are available for our anchor chains and mooring chains. Meanwhile, mooring chains have been approved by API. With the spirit of supplying good quality products, punctual shipment and good service, we would be your reliable partner in China.

Product Detail

1. Type: Stud/Studless Link Anchor Chain

2. Specification: Φ11mm~Φ162mm

3. Grade: AM1~AM3

4. Material: CM370, CM490,CM690

5. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.

6. Application: for various ships

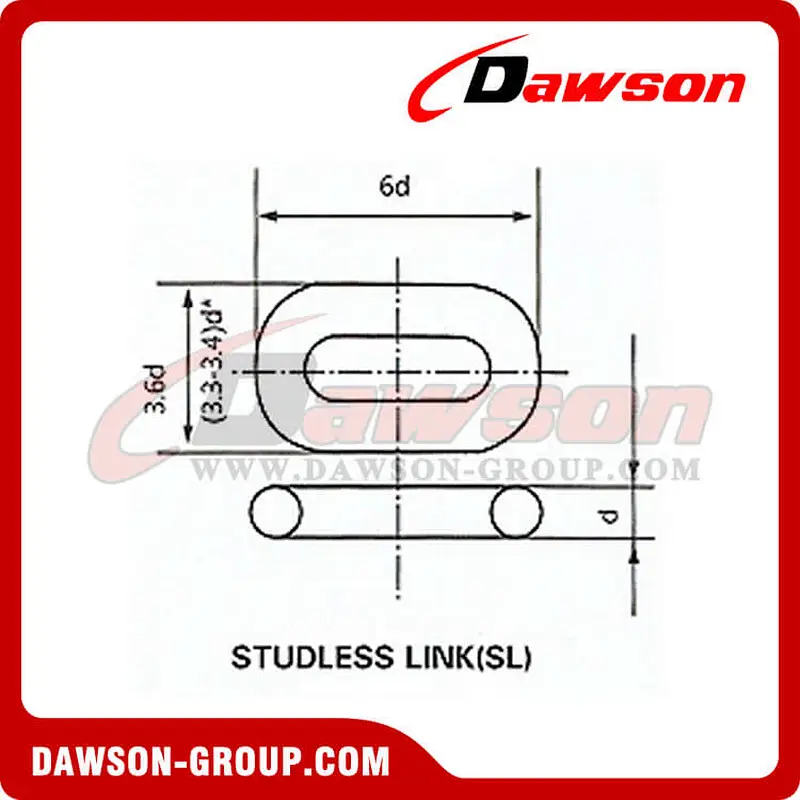

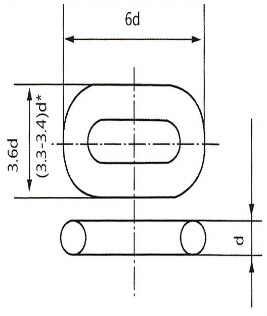

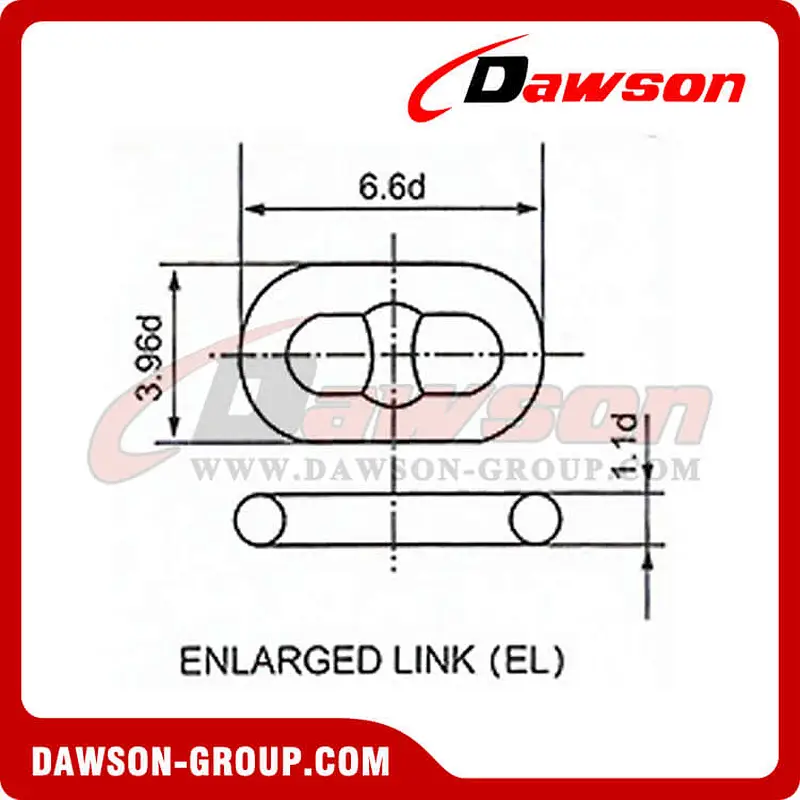

Drawings of Stud Link&Studless Link

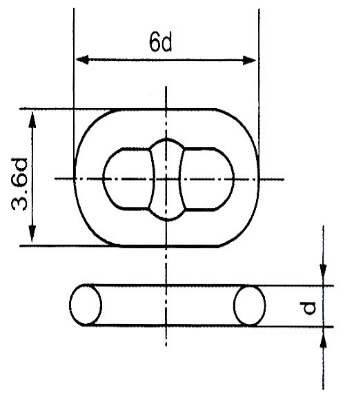

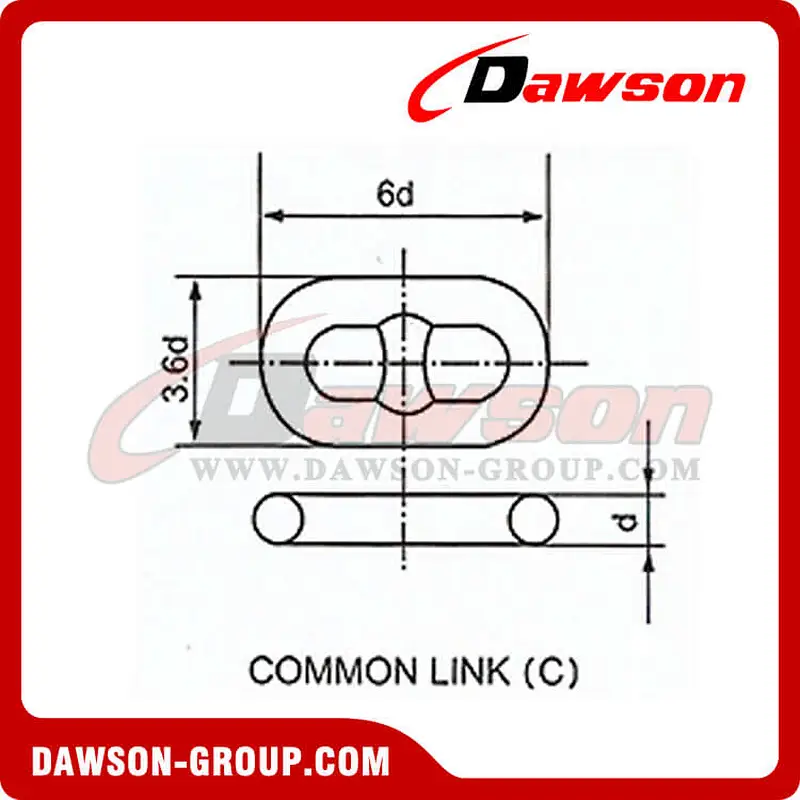

Common Link (C)

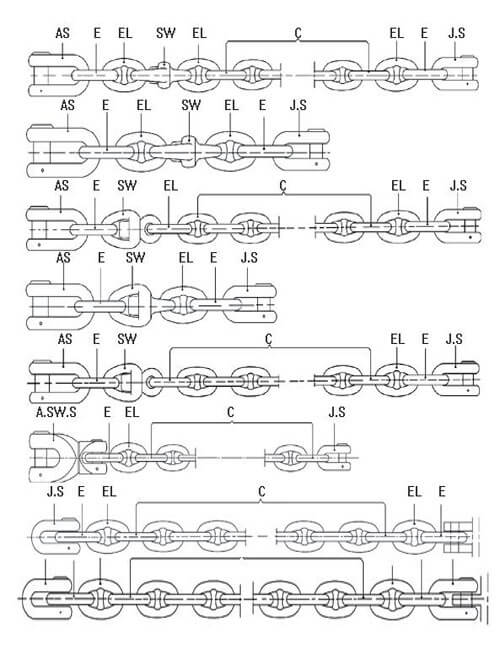

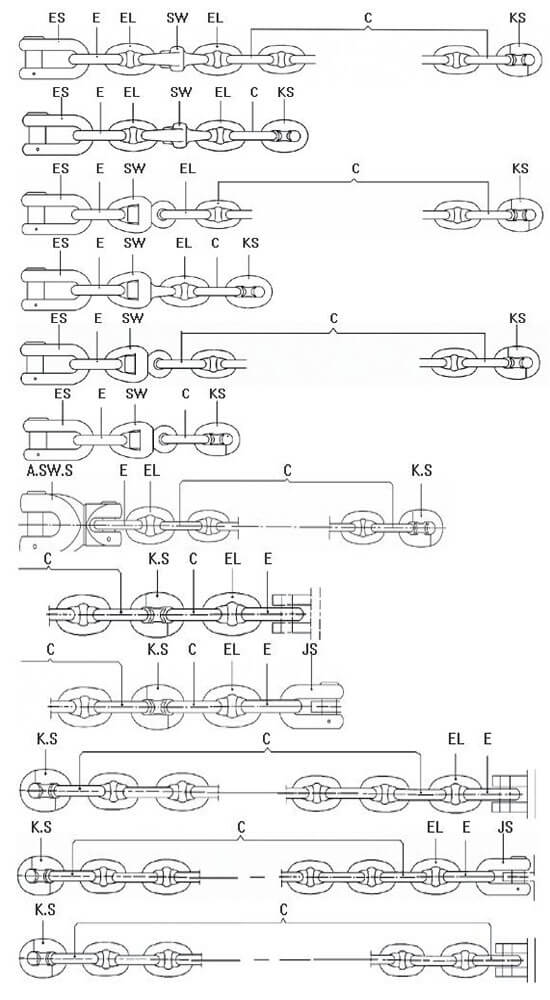

B. Joining Forms for ‘D’ Joining Shackle

Marine Chain Load Meter- Studless Metric System

Chain Diameter (mm)	M2		M3
Chain Diameter (mm)	Tension Load (KN)	Tensile Load (KN)	Tension Load (KN)	Tensile Load (KN)
50	584	1294	844	1960
48	583	1196	771	1810
46	494	1098	698	1680
44	452	1000	630	1540
42	412	915	597	1400
40	373	829	563	1280
38	337	749	501	1160
36	302	672	442	1050
34	270	600	386	937
32	239	531	335	833
30	211	468	311	735
28	183	407	286	642
26	158	351	241	556
24	135	299	210	476

Marine Chain Load Meter-Stud Metric System(11mm~162mm)

Chain Diameter	Breaking Load			Proof Load			Weight
Chain Diameter	AM1	AM2	AM3	AM1	AM2	AM3	Weight
mm	KN	KN	KN	KN	KN	KN	Kg/m
81	2410	3380	4820	1690	2410	3380	143.69
84	2580	3610	5160	1800	2580	3610	154.53
87	2750	3850	5500	1920	2750	3850	165.76
90	2920	4090	5840	2050	2920	4090	177.39
92	3040	4260	6080	2130	3040	4260	185.36
95	3230	4510	6440	2260	3230	4510	197.56
97	3340	4680	6690	2340	3340	4680	206.06
100	3530	4940	7060	2470	3530	4940	219
102	3660	5120	7320	2560	3660	5120	227.85
105	3850	5390	7700	2700	3850	5390	241.45
107	3980	5570	7960	2790	3980	5570	250.73
111	4250	5940	8480	2970	4250	5940	269.83
114	4440	6230	8890	3110	4440	6230	284.61
117	4650	6510	9300	3260	4650	6510	299.79
120	4850	6810	9720	3400	4850	6810	315.36
122	5000	7000	9990	3500	5000	7000	325.96
124	5140	7200	10280	3600	5140	7200	336.73
127	5350	7490	10710	3750	5350	7490	353.23
130	5570	7800	11140	3900	5570	7800	370.11
132	5720	8000	11420	4000	5720	8000	381.59
137	6080	8510	12160	4260	6080	8510	411.04
142	6450	9030	12910	4520	6450	9030	441.59
147	6840	9560	13660	4790	6840	9560	473.24
152	7220	10100	14430	5050	7220	10100	505.98
157	7600	10640	15200	5320	7600	10640	539.81
162	7990	11180	15980	5590	7990	11180	574.74
