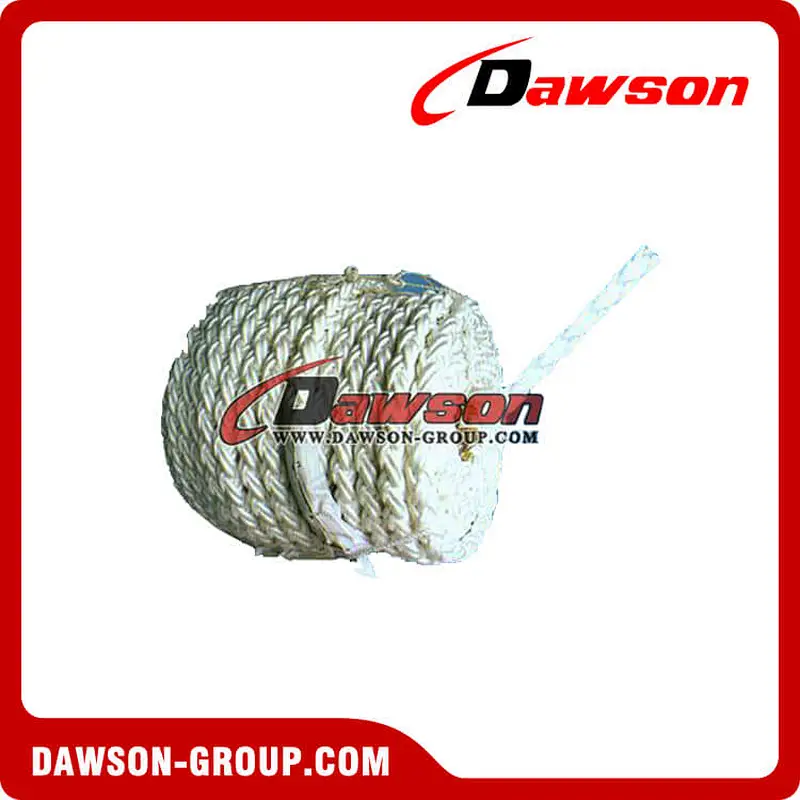

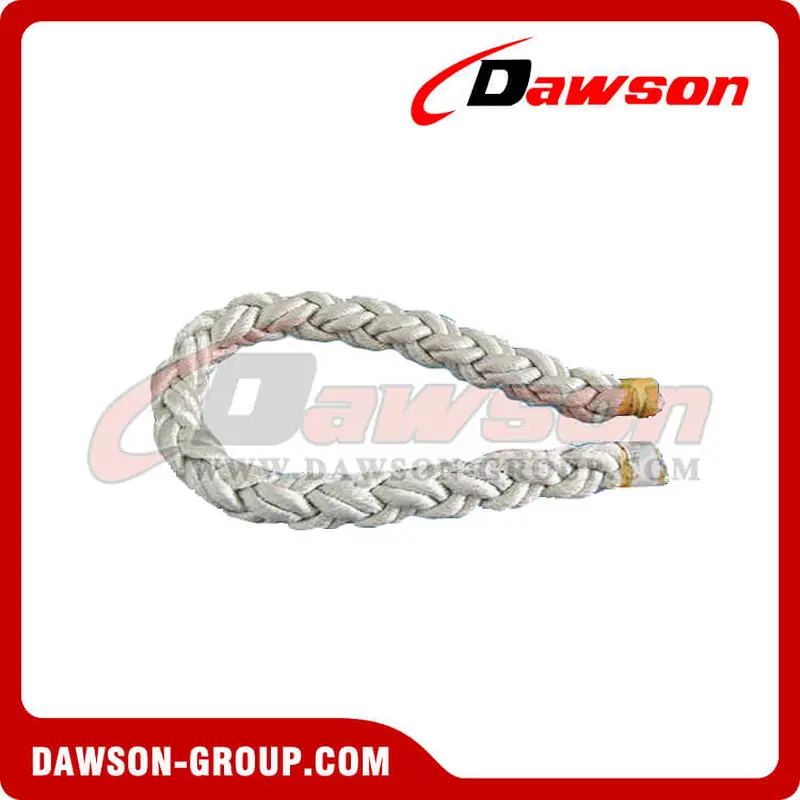

Eight strand rope, mooring rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The products are divided into many types, including polyamide composite filaments (lines), polypropylene filaments (lines), polypropylene ropes and polyester ropes, with available diameters range from 28 mm to 80 mm. It features high strength, low elongation, corrosion resistance, smoothness and softness, flexibility, durability and easy operation.

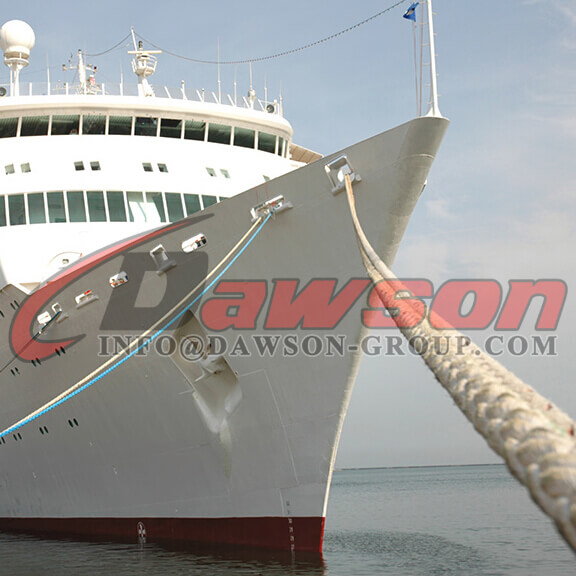

Mainly used in the ocean shipping, fishing, port handling, defense industry and oil exploration fields.
| Specifications | Polyamide Filament | Polyamide | Polypropylene Filament | PP | Polyester | |||||
| Diameter | Weight | Breaking Strength | Weight | Breaking Strength | Weight | Breaking Strength | Weight | Breaking Strength | Weight | Breaking Strength |
| mm | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN | Kg/220M | daN |
| 28 | 102 | 16300 | 98 | 12800 | 83 | 11700 | 81 | 10500 | 128 | 13200 |
| 32 | 136 | 30600 | 130 | 15400 | 110 | 13900 | 107 | 13300 | 170 | 16200 |
| 36 | 175 | 25600 | 168 | 19200 | 135 | 17500 | 132 | 16600 | 210 | 19900 |
| 40 | 215 | 30800 | 205 | 23100 | 168 | 21100 | 163 | 20100 | 260 | 24700 |
| 44 | 258 | 36900 | 250 | 27700 | 200 | 25400 | 19500 | 24200 | 310 | 29300 |
| 48 | 305 | 43300 | 290 | 32500 | 240 | 29500 | 230 | 28000 | 370 | 34500 |
| 52 | 360 | 50300 | 345 | 37700 | 280 | 34000 | 270 | 32500 | 434 | 40300 |
| 56 | 420 | 56000 | 405 | 42000 | 325 | 38200 | 315 | 37100 | 505 | 46100 |
| 60 | 480 | 64000 | 460 | 48000 | 375 | 43700 | 365 | 42500 | 580 | 51300 |
| 64 | 545 | 72000 | 525 | 54000 | 425 | 49500 | 415 | 48000 | 660 | 59600 |
| 72 | 690 | 90000 | 660 | 68000 | 540 | 62000 | 520 | 60300 | 840 | 74200 |
| 80 | 850 | 110000 | 820 | 83000 | 660 | 76500 | 640 | 74200 | 1020 | 91000 |
| 88 | 1030 | 135000 | 990 | 101000 | 800 | 91600 | 776 | 88900 | 1240 | 109000 |
| 96 | 1220 | 158000 | 1170 | 118000 | 950 | 108000 | 920 | 105000 | 1480 | 129000 |
| 104 | 1440 | 187000 | 1380 | 140000 | 1120 | 124000 | 1090 | 120000 | 1740 | 149000 |
| 112 | 1670 | 216000 | 1600 | 162000 | 1300 | 143000 | 1260 | 139000 | 2020 | 170000 |
| 120 | 1930 | 247000 | 1850 | 185000 | 1490 | 164000 | 1440 | 160000 | 2310 | 196000 |
| 128 | 2200 | 280000 | 2100 | 210000 | 1680 | 185000 | 1630 | 180000 | 2600 | 222000 |

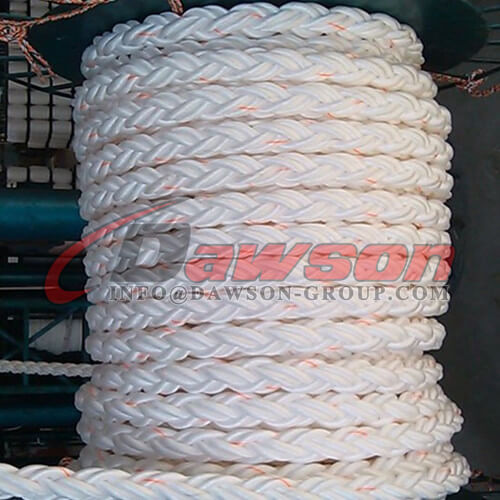

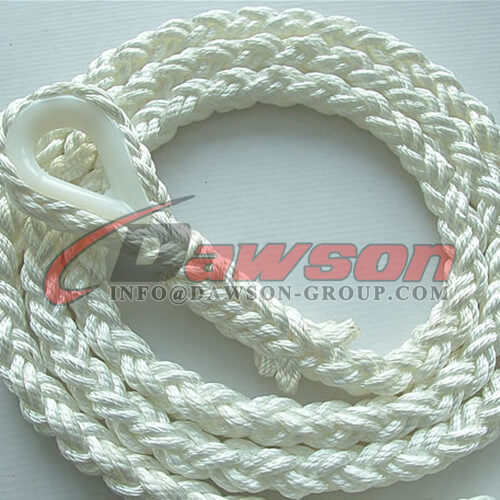

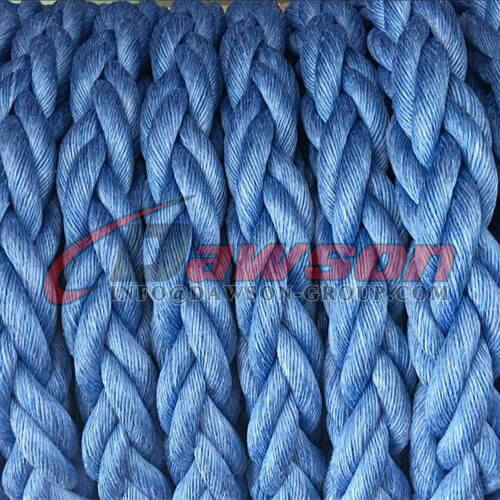

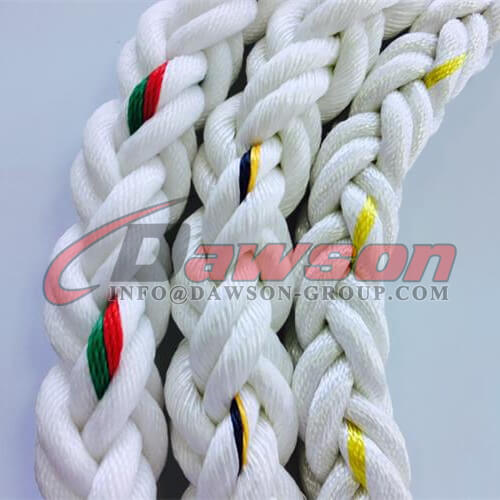

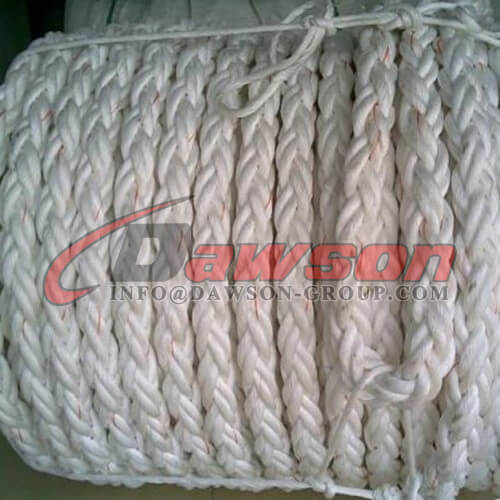

Products Show:

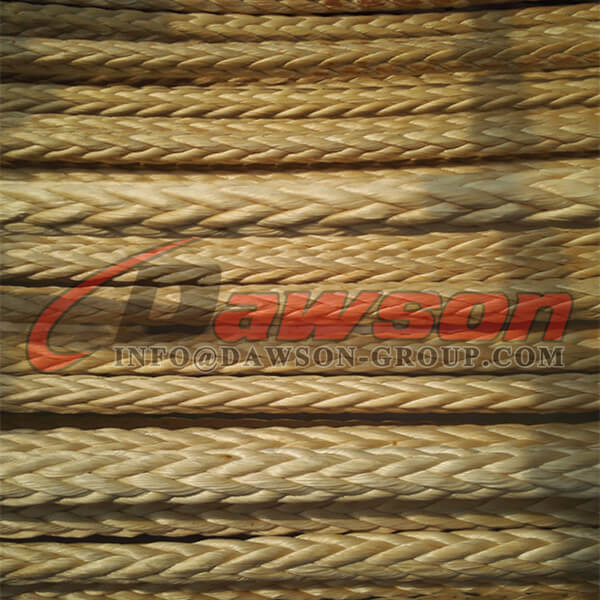

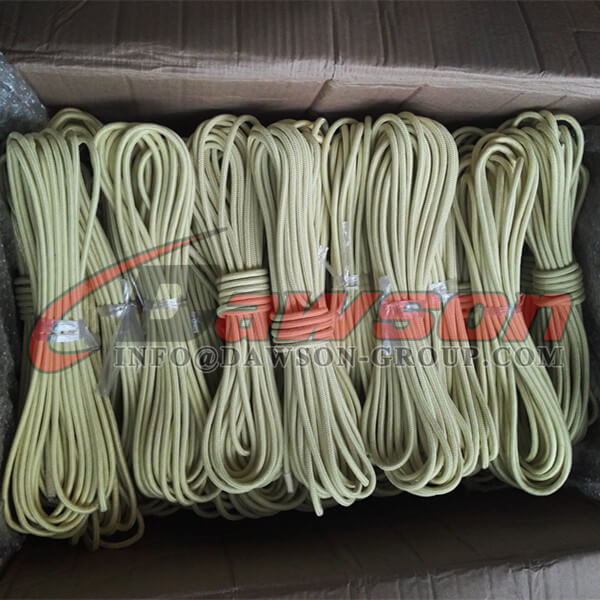

Other Related Products:

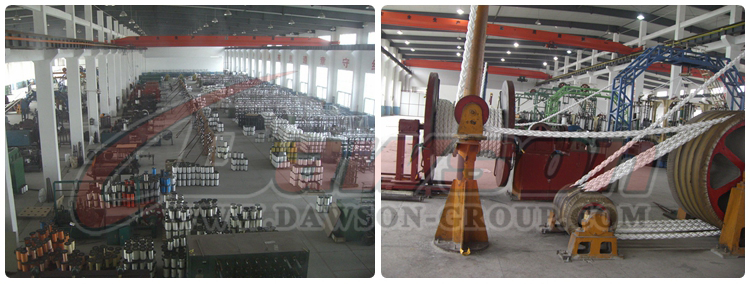

Factory about Eight strand rope, mooring rope:

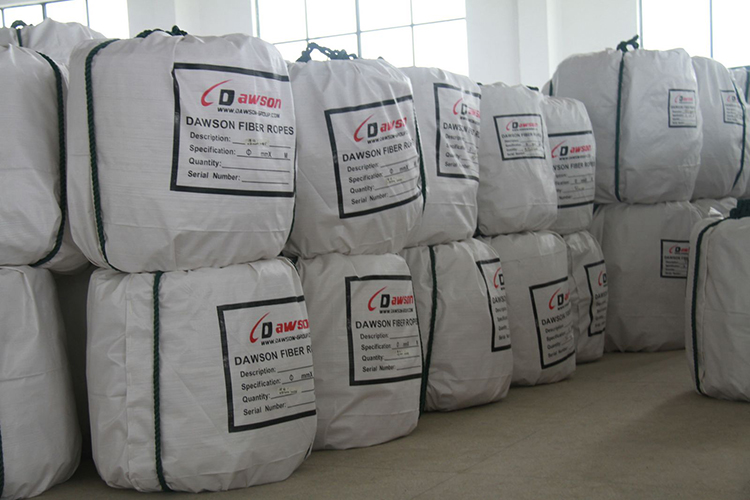

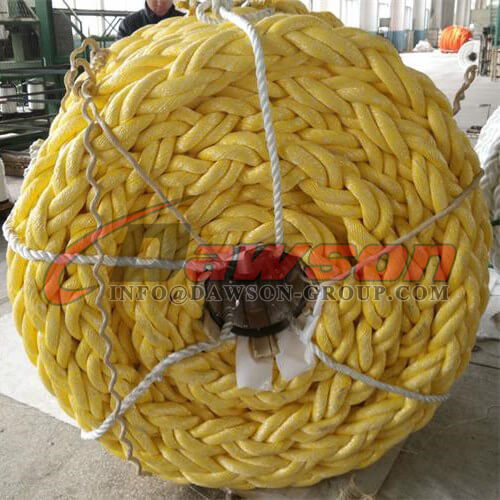

Package Factory about Eight strand rope, mooring rope:
