Kevlar Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Varieties are three strands, four stocks, stereotyped, twelve shares aramid fiber products. Kevlar is through a special process of polymerization, stretching, spinning a high temperature strength fiber, aramid in the ring and chain link strong compound, has a very stable heat resistance and high strength. Making rope has high strength, temperature difference (-40 ℃ -500 ℃) good insulation corrosion resistance, elongation bottom and so on.
Mainly used for high temperature operation, special ships, electrical engineering, offshore, all kinds of slings, cable, military research and other fields.
| 3,4-aramid fiber series | 8 Kevlar series | 12 Aramid Fiber Series | ||||||
| Millimeter (mm) | Linear density (Ktex) | Breaking strength(daN) | Millimeter (mm) | Linear Density(Ktex) | Breaking strength(daN) | Millimeter (mm) | Linear Density(Ktex) | Breaking strength(daN) |
| 6 | 29 | 1600 | 32 | 825 | 45730 | 24 | 463 | 26500 |
| 8 | 51 | 3069 | 36 | 1040 | 57880 | 28 | 630 | 37120 |
| 10 | 80 | 4470 | 40 | 1288 | 71480 | 32 | 825 | 47100 |
| 12 | 117 | 6400 | 44 | 1556 | 86200 | 36 | 1040 | 59600 |
| 16 | 207 | 11470 | 48 | 1855 | 102700 | 40 | 1288 | 73620 |
| 18 | 259 | 14420 | 56 | 2523 | 139900 | 44 | 1556 | 88780 |
| 20 | 321 | 17800 | 64 | 3295 | 182500 | 48 | 1855 | 105780 |
| 24 | 463 | 25700 | 72 | 4170 | 231000 | 56 | 2523 | 144000 |
| 28 | 630 | 35020 | 80 | 5140 | 282700 | 64 | 3295 | 187900 |
| 32 | 825 | 45730 | 88 | 6222 | 342200 | 72 | 4170 | 238000 |
| 36 | 1040 | 57880 | 96 | 7410 | 400000 | 80 | 5140 | 291000 |
| 40 | 1288 | 71480 | 110 | 9180 | 495700 | 88 | 6222 | 352400 |
Kevlar Rope is a very strong material, process after polymerization, stretching, spinning, with stable heat~resistance and high strength. As rope it has high strength , temperature difference(-40°C~500°C) insulation corrosion~resistant performance, low elongation advantages.
Application: It is mainly used for high temperature operation, special ship, electrical engineering, marine operations, various types of slings, suspension, military research and other fields.
Main performance
Material: high performance Aramid fiber yarns
Construction: 3,8,12,16 strand, double braided
Applications: Mooring lines,tug line, super sized commercial vessel, wire rope replacement
High tensile strength
Specific gravity: 1.44
Elongation: 5% at break
Melting point: 450℃
Good resistance to UV and chemicals
Superior abrasion resistance
No difference in tensile strength when wet or dry
In -40℃~ -350℃ scopes normal operation
Other sizes available upon request

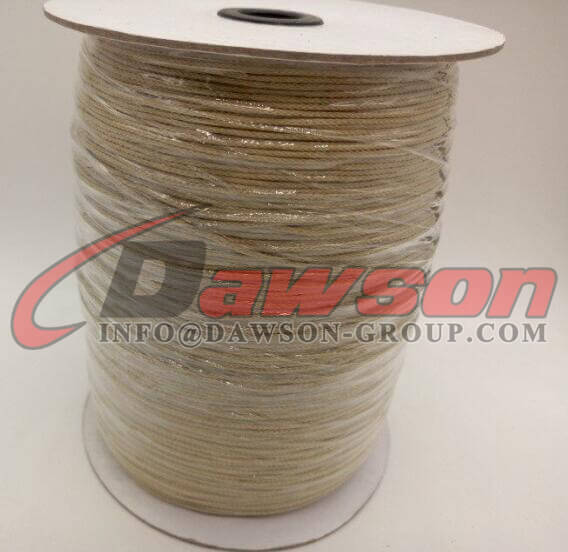

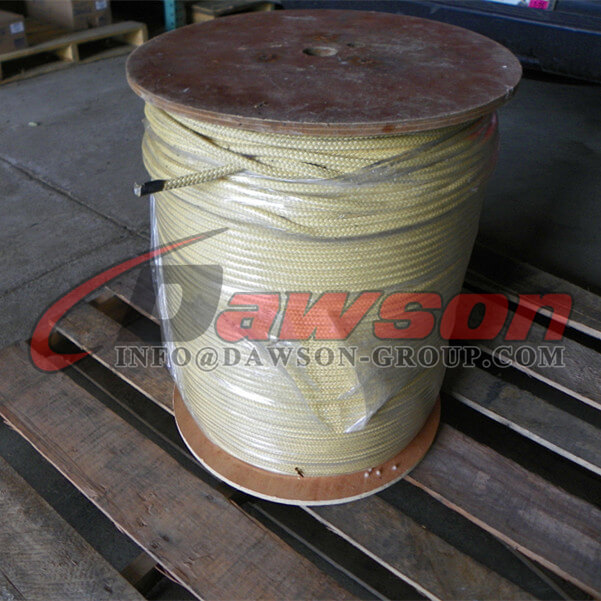

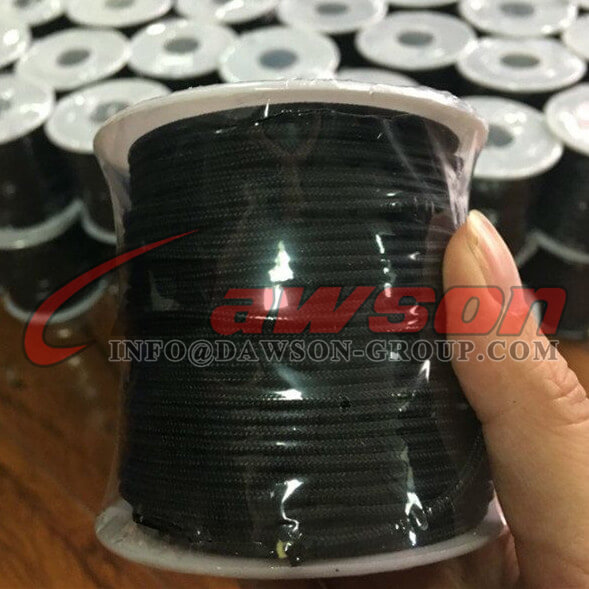

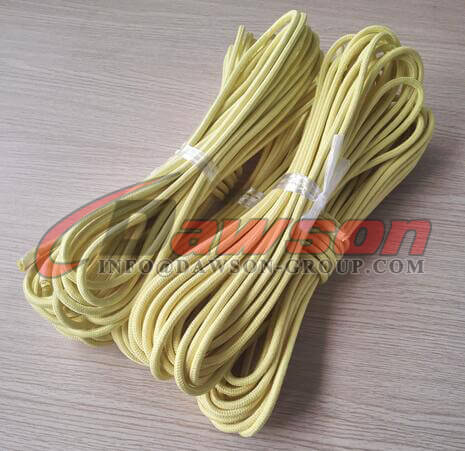

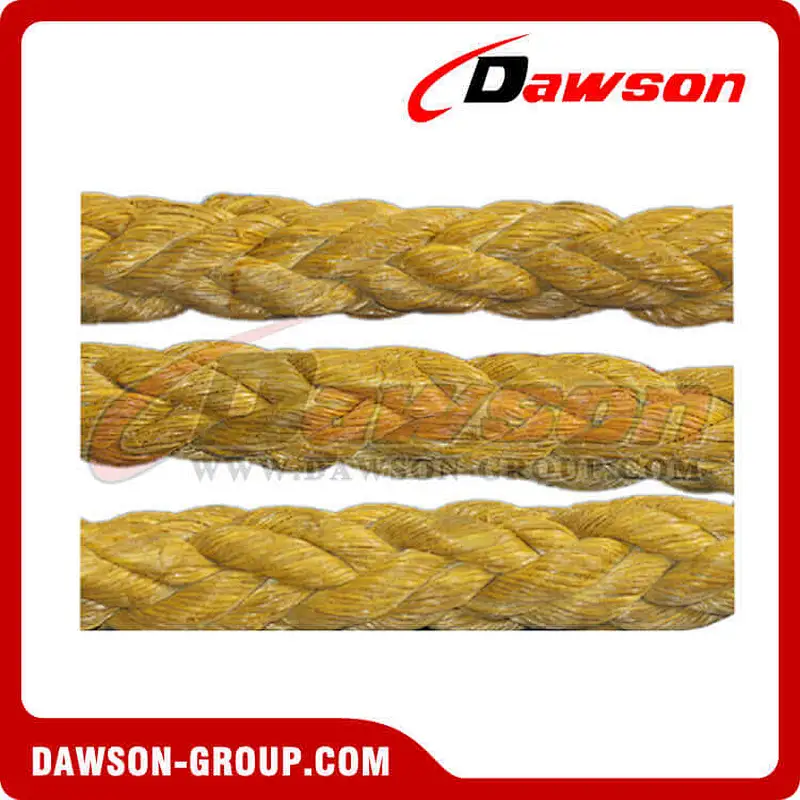

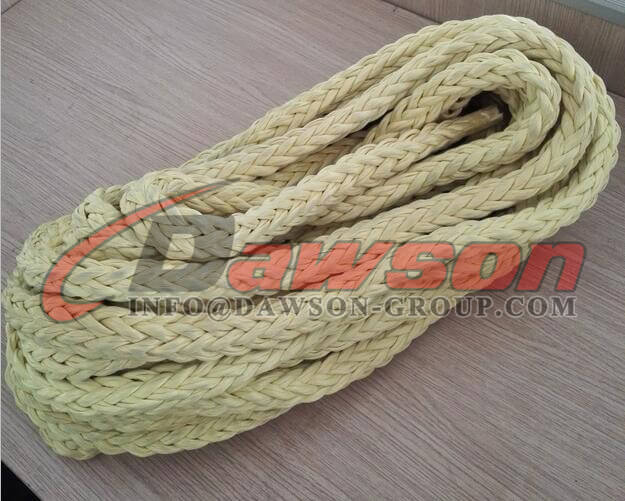

Products Show:

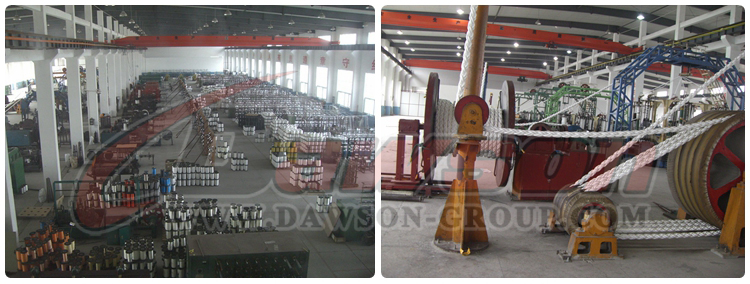

Kevlar Rope Factory Show:

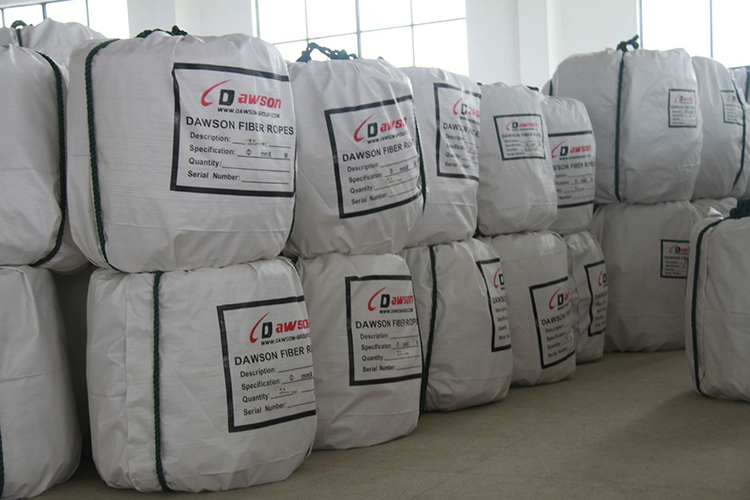

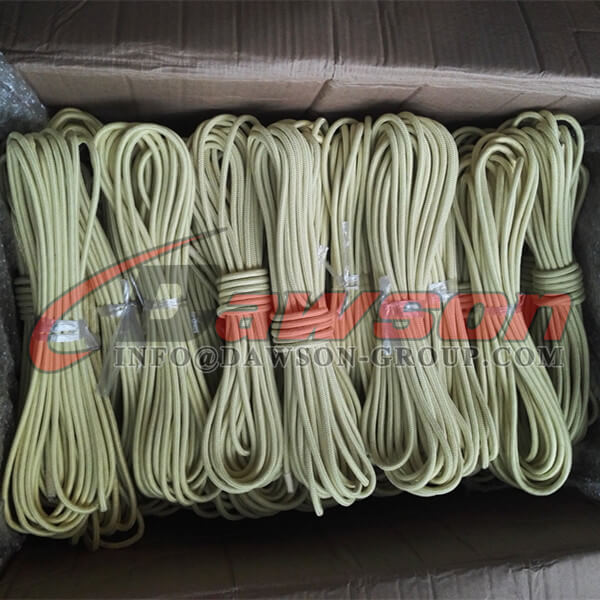

Package about Kevlar Rope:
