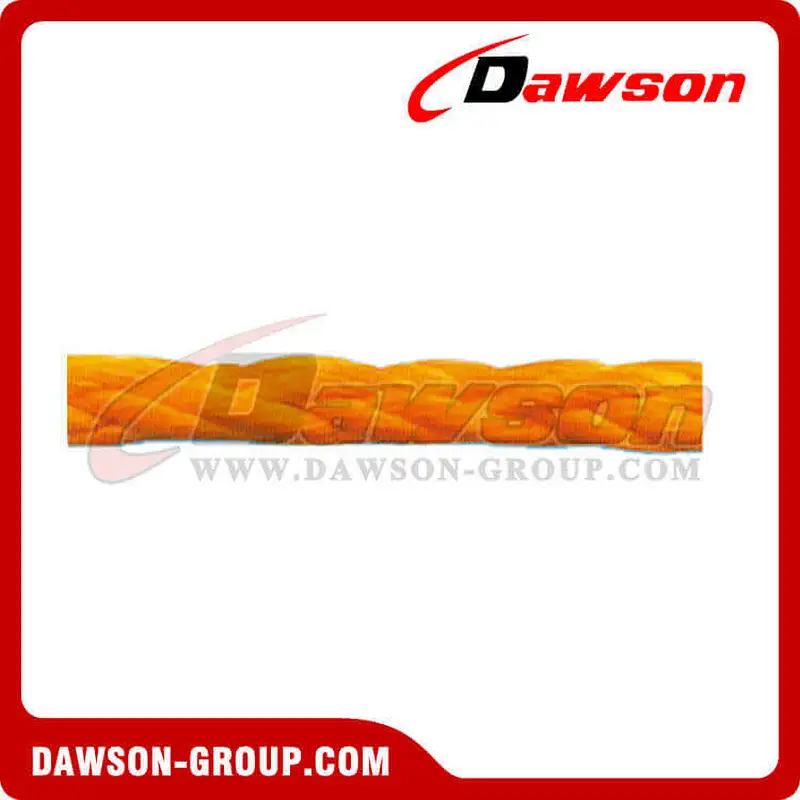

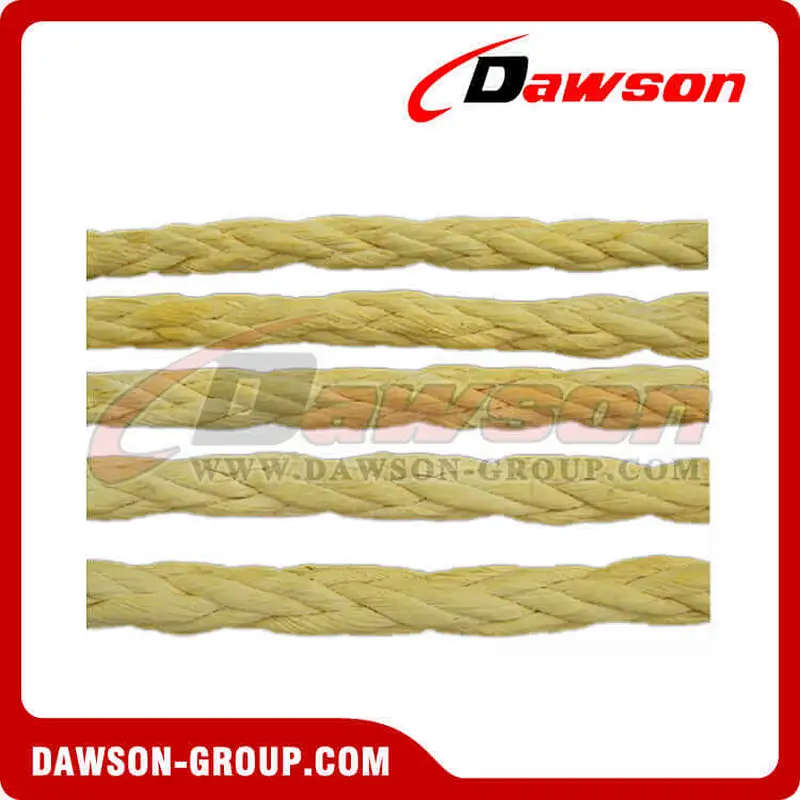

UHMWPE Rope
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polymer polyethylene fiber is currently the world's strongest fiber, making ropes up to 1.5 times the mass of steel, with high intensity, abrasion resistance, flexibility, light weight, easy operation, high security, anti-corrosion, anti-aging characteristics, has Select key industries home and abroad. Varieties are three strand twisted rope, four-stranded twisted rope, twisted rope six shares and stereotyped braided rope and other products.
The main drag for ships, salvage, heavy lifting, defense ships, offshore drilling, aerospace research and other fields.
| Specification | Line Density | Weight | Breaking strength | |
| Diameter | Circumference | RATINGS | Kg/220M | KN |
| 6 | 3/4 | 24.0 | 5.7 | 29.1 |
| 8 | 1 | 39.0 | 9.3 | 41.7 |
| 10 | 1-1/4 | 62.0 | 14.7 | 70.5 |
| 12 | 1-1/2 | 89.0 | 21.0 | 102.0 |
| 14 | 1-3/4 | 121.0 | 29.0 | 137.0 |
| 16 | 2 | 158.0 | 38.0 | 178.0 |
| 18 | 2-1/4 | 201.0 | 48.0 | 214.0 |
| 20 | 2-1/2 | 246.0 | 58.0 | 258.0 |
| 24 | 3 | 368.0 | 87.0 | 370.0 |
| 28 | 3-1/2 | 490.0 | 116.0 | 492.0 |
| 32 | 4 | 621.0 | 148.0 | 624.0 |
| 36 | 4-1/2 | 767.0 | 182.0 | 812.0 |
| 40 | 5 | 868.0 | 206.0 | 924.0 |
| 44 | 5-1/2 | 955.0 | 227.0 | 1021.0 |
| 48 | 6 | 1137.0 | 270.0 | 1246.0 |
| 56 | 7 | 1547.0 | 368.0 | 1760.0 |
| 64 | 8 | 2021.0 | 480.0 | 2358.0 |
| 72 | 9 | 2598.0 | 617.0 | 2875.0 |
| 80 | 10 | 3195.0 | 760.0 | 3425.0 |
| 88 | 11 | 4450.0 | 1060.0 | 4230.0 |
| 96 | 12 | 5700.0 | 1350.0 | 5035.0 |
| 110 | 13-3/4 | 7930.0 | 1880.0 | 7865.0 |
UHMWPE ROPE is made from ultra high molecular weight polyethylene and is an extremely high strength, low stretch rope. It is the world strongest fiber and is 15 times stronger than steel. The rope is the choice for every serious sailor worldwide
because it has very little stretch, it’s light weight, easy spliced and is UV resistant.
It is commonly used to replace steel cable when weight is an issue. It also makes an excellent material for winch cables.
UHMWPE rope core with Polyester jacket rope is a unique products.This kind of rope has high strength and high abrasion resistance features. Polyester jacket will protect the UHMWPE rope core, and prolong the service life of rope
Main performance
Materials:Ultra High Molecular Weight Polyethylene
Construction:8-strand ,12-strand, double braided
Application: Marine, Fishing,Offshore, Winch, Tow
Standard Color:Yellow(also available by special order in black, re,d green, blue, orange and so on)
Specific Gravity:0.975(floating)
Melting Point: 145℃
Abrasion Resistance:Excellent
U.V.Resistance: Good
Temperature resistance: Maximum 70℃
Chemical Resistance: Excellent
U.V.Resistance:Excellent
Dry&Wet conditions: wet strength equals dry strength
Range of Use: Fishing, offshore installation, Mooring
Coil Length: 220m(according to customers' request)
Spliced strength:±10%
Weight and Length Tolerance:±5%
MBL:conform ISO 2307
Other sizes available upon request

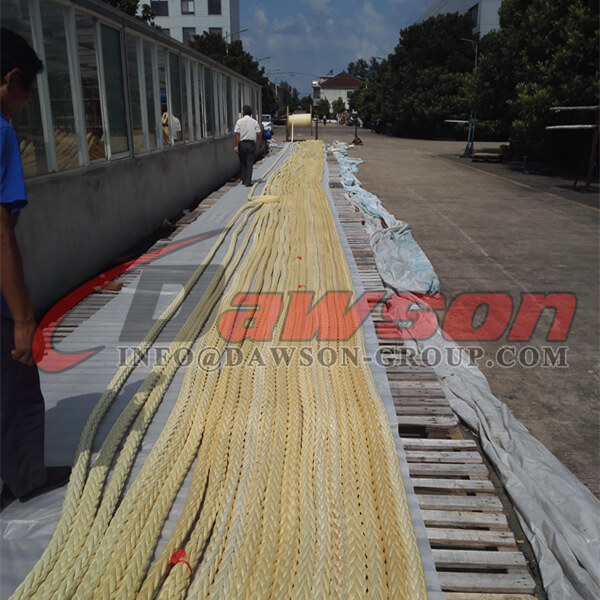

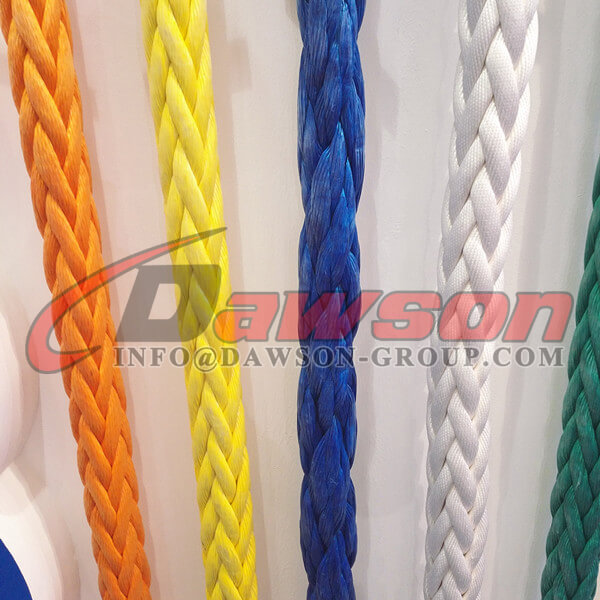

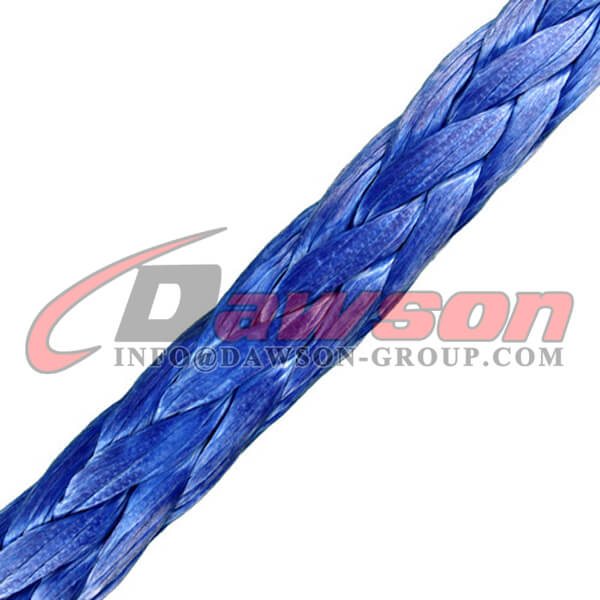

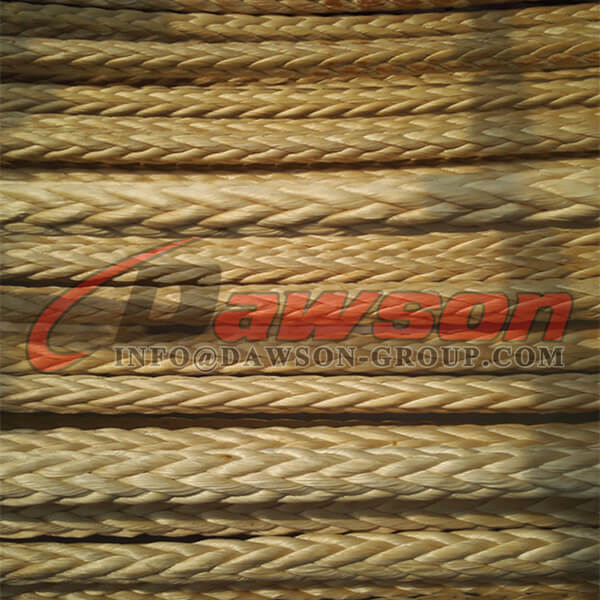

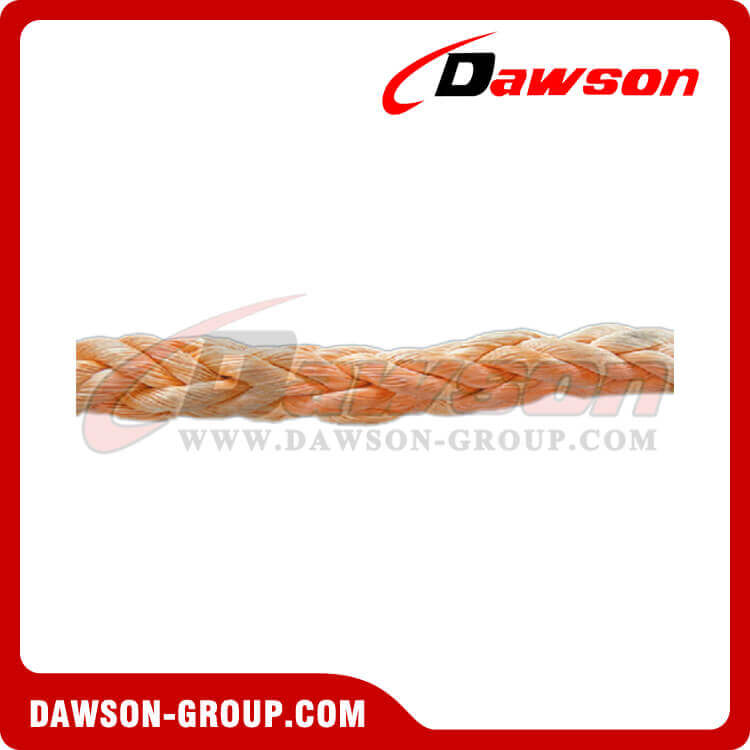

Products Show:

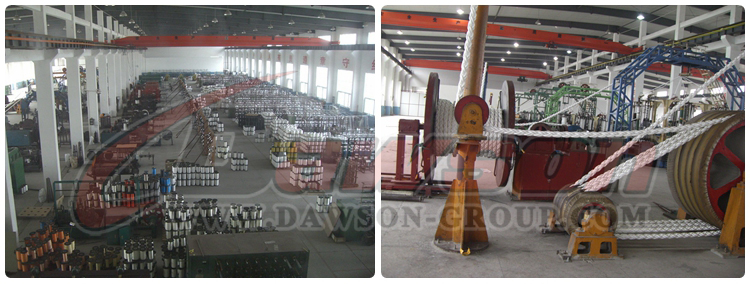

UHMWPE ROPE FACTORY SHOW:

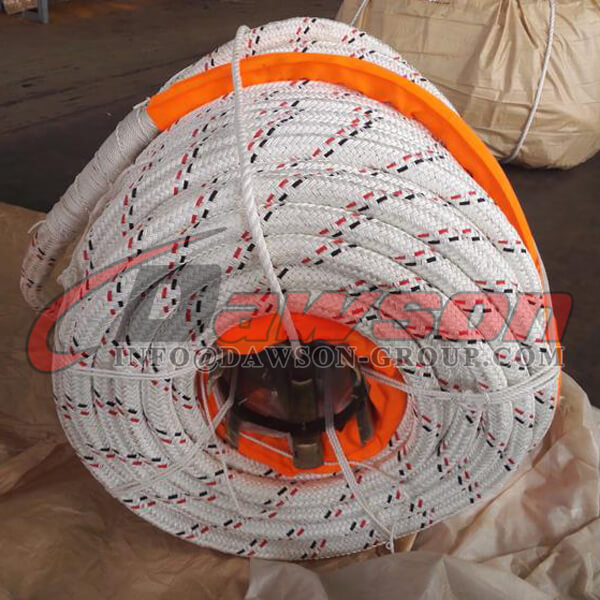

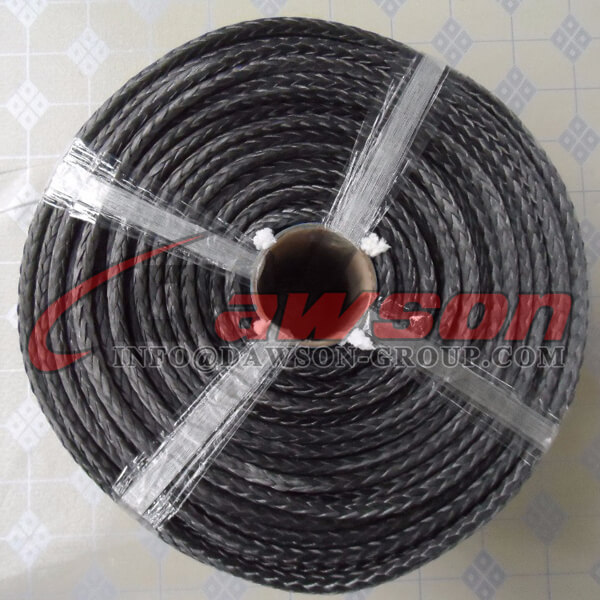

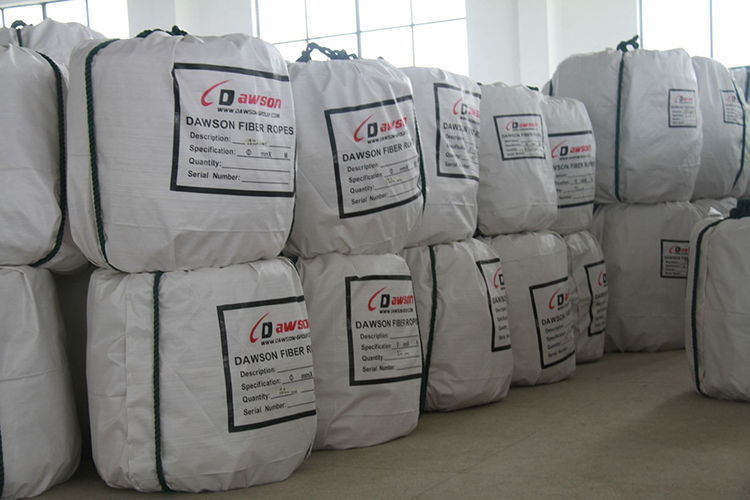

PACKAGE OF UHMWPE ROPE
