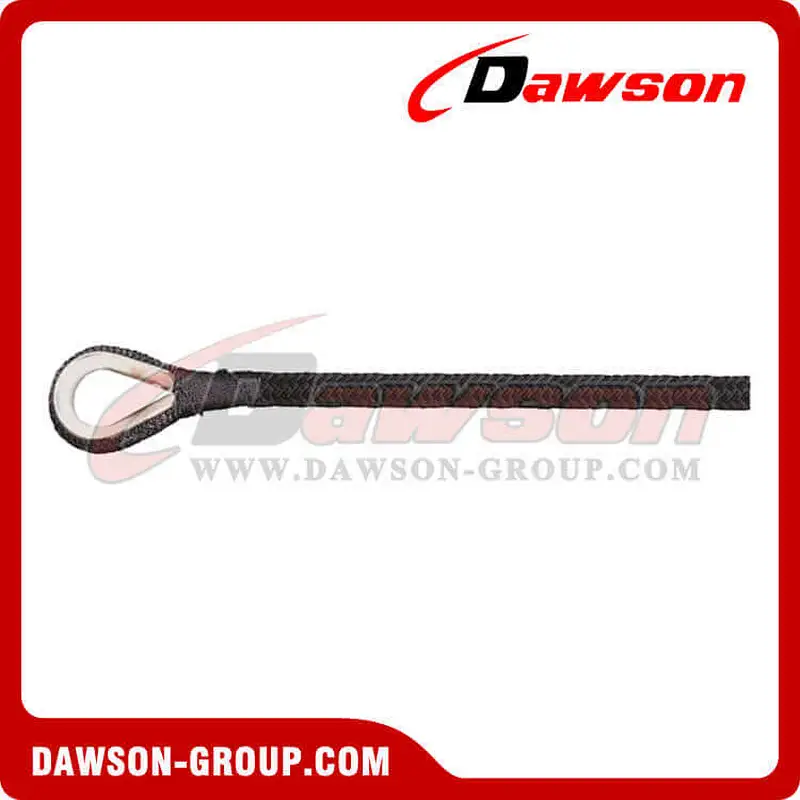

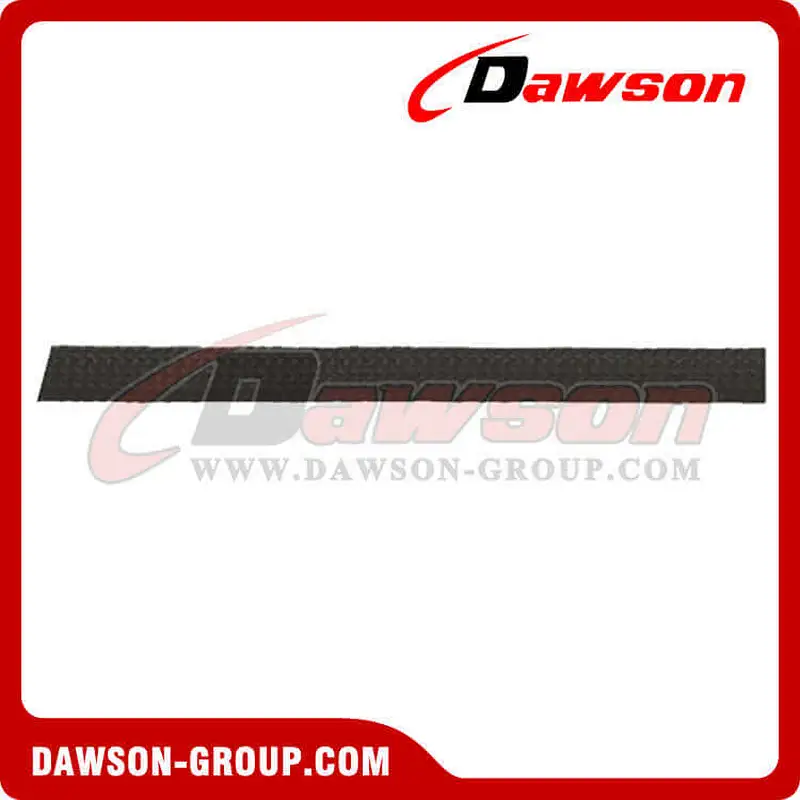

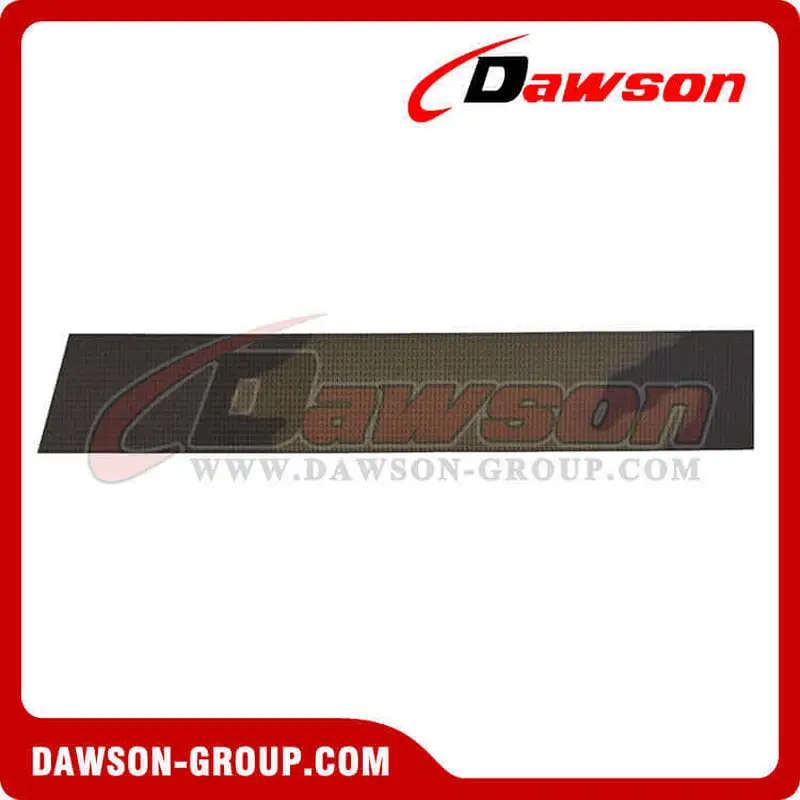

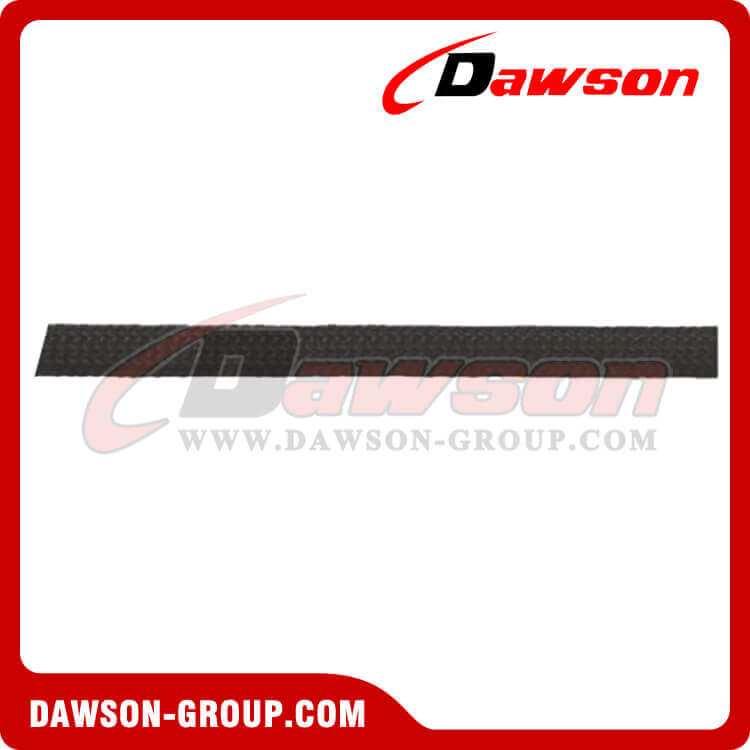

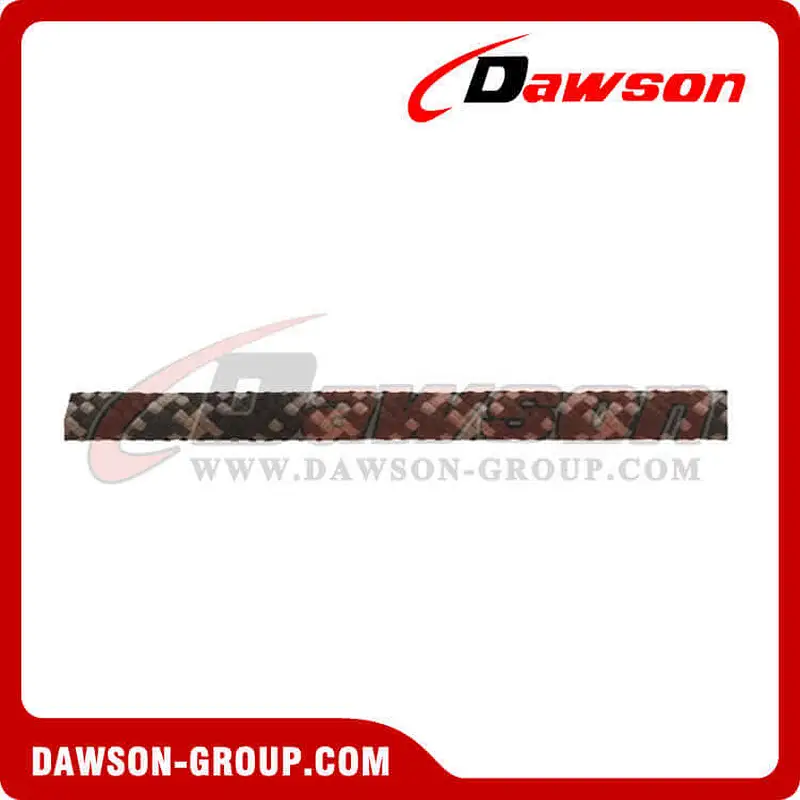

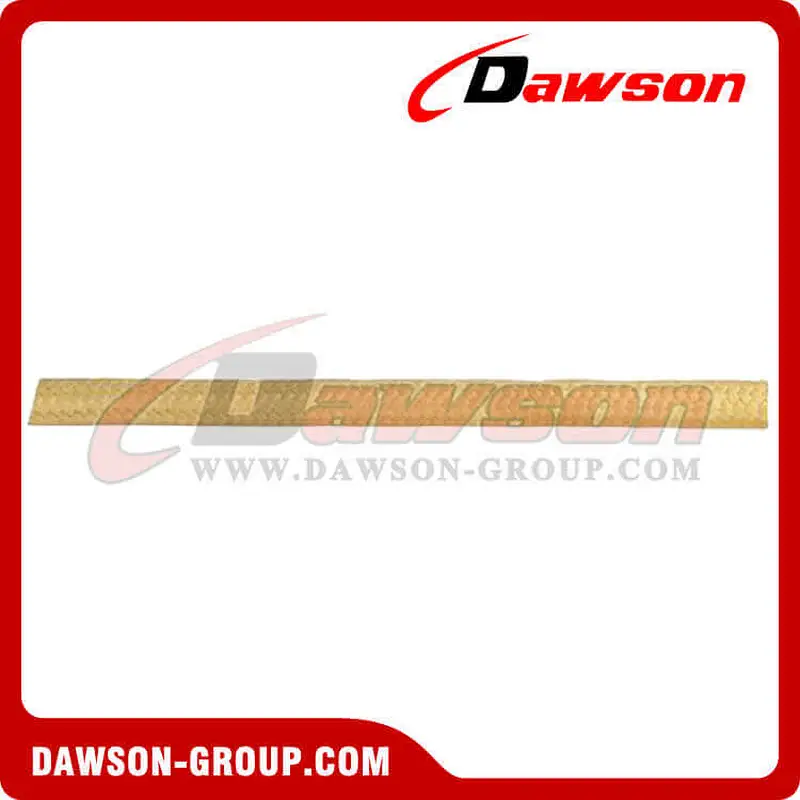

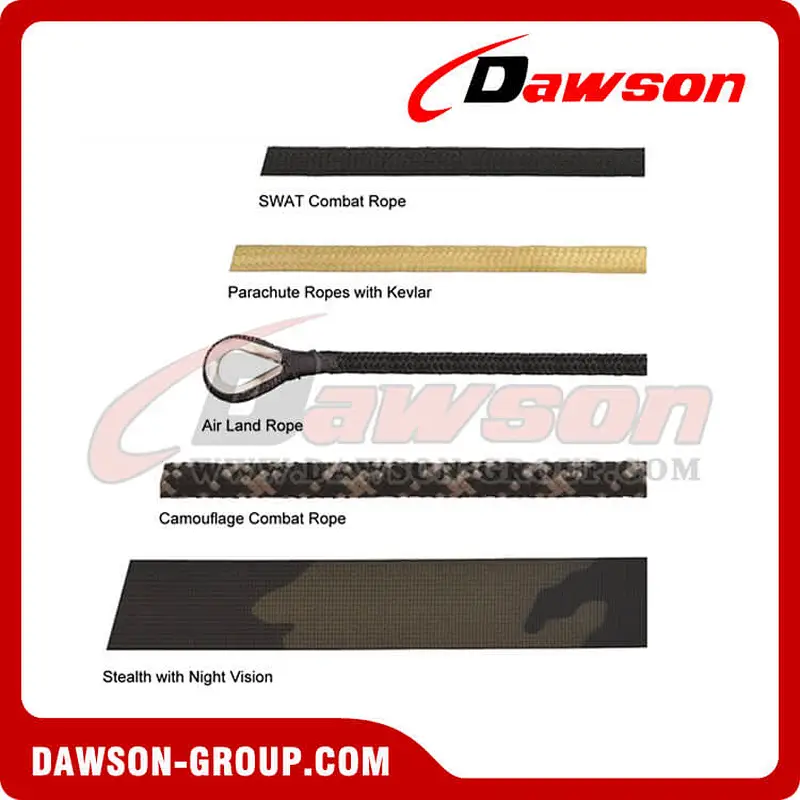

Combating, Training, Military Special Ropes
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The ropes made of advanced weaving and finishing technology, are soft, easy to operate with high strength, abrasion resistance, anti-aging performance, which can be used to a variety of training, combat and other complex environments, including downhill, rescue, pulling and other purposes.
Technology parameters of ordinary single braided Ropes
| Diameter (mm/inches) | Polyamide rope | Aramid rope | UHMWPE rope | |||
| Line density (g/m) | Breaking strength （KN） | Line density (g/m) | Breaking strength （KN） | Line density (g/m) | Breaking strength （KN） | |
| 6/0.24 | 27 | 8 | 34 | 32 | 23 | 30 |
| 8/0.31 | 40 | 14 | 53 | 60 | 36 | 57 |
| 10/0.39 | 62 | 21 | 88 | 96 | 60 | 91 |
| 12/0.47 | 89 | 30 | 128 | 134 | 88 | 128 |
| 16/0.63 | 159 | 53 | 216 | 242 | 148 | 230 |
| 18/0.71 | 200 | 67 | 279 | 297 | 191 | 280 |
| 24/0.94 | 355 | 120 | 489 | 483 | 335 | 460 |
| 28/1.10 | 486 | 158 | 654 | 634 | 448 | 604 |
| 32/1.26 | 632 | 200 | 854 | 762 | 585 | 726 |
| 36/1.42 | 800 | 249 | 1053 | 960 | 721 | 914 |
| 40/1.57 | 991 | 300 | 1296 | 1155 | 888 | 1100 |
| 44/1.73 | 1200 | 358 | 1574 | 1292 | 1078 | 1230 |
| 48/1.89 | 1418 | 420 | 1853 | 1575 | 1269 | 1500 |
| 56/2.20 | 2010 | 613 | 2497 | 2119 | 1710 | 2018 |
| 64/2.52 | 2520 | 785 | 3300 | 2607 | 2260 | 2483 |
| 72/2.83 | 3300 | 981 | 4103 | 3158 | 2810 | 3008 |
| 88/3.46 | 4780 | 1423 | 6132 | 4744 | 4200 | 4518 |
| 96/3.78 | 5690 | 1668 | 7285 | 5765 | 4990 | 5490 |
Application of the related products:

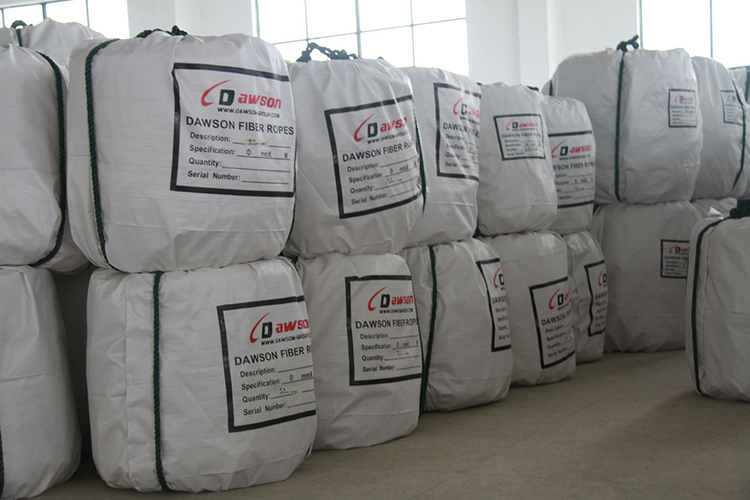

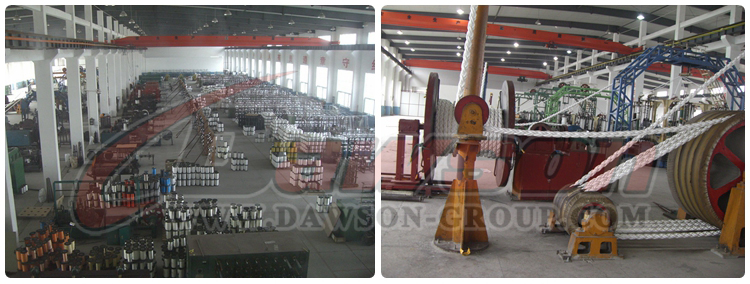

Factory Show & Package:
