DS-AB Cone Type Rubber Fender

Model NO.: DS-AB

Quantity:

Product Description

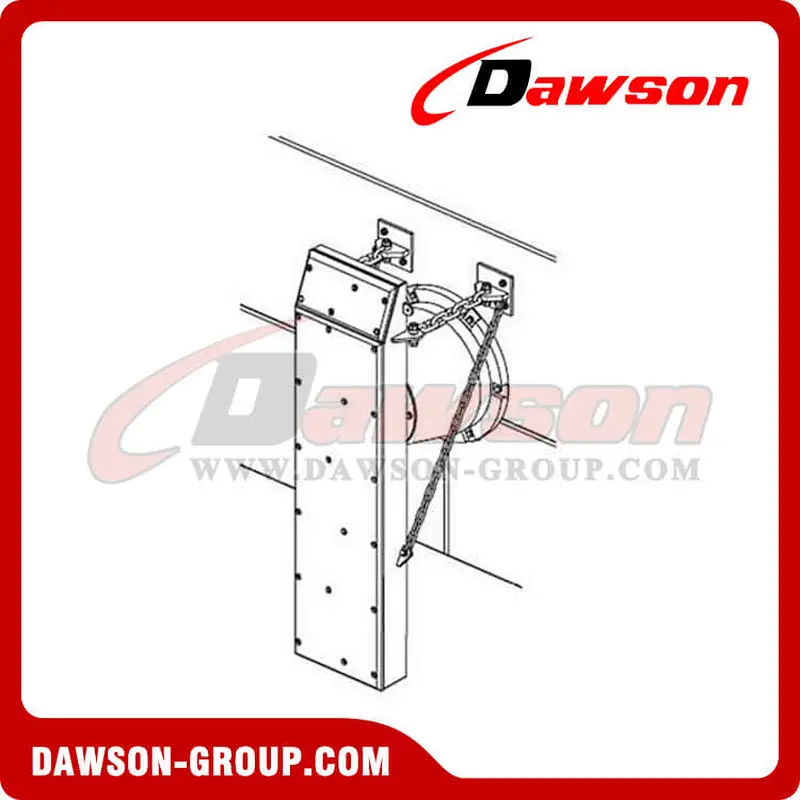

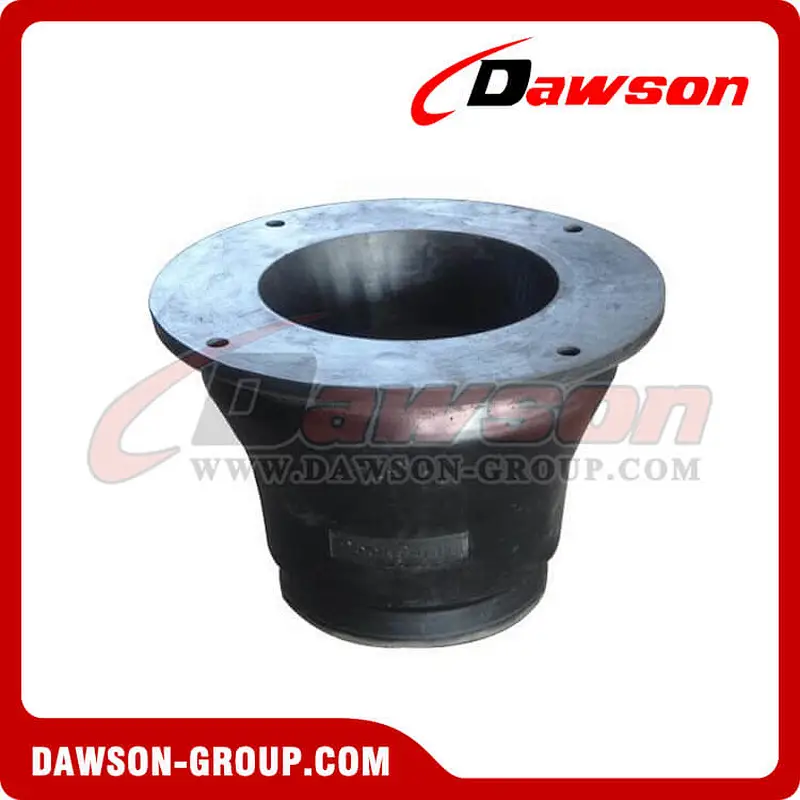

DS-AB Cone Type Rubber Fender

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Feature:

1、 Cone type rubber fender is the 3rd generation of cell type rubber fender,the structure more reasonable, deflection can reach 70% , the equal specification fender energy absorb raise one more times, long life using. It can reduce the cost of the dock project.

2、While vessel angular berthing, the performance basically unchanged.

3、Front panel set in the margin of fender, it can lower the surface pressure of the vessel side board, the surface pressure can be controlled at below 299KN/M2. It applies for large vessel berthing.

4、UHMW-PE installed in front of front panel, it can reduce the friction factor between vessel and fender, and lower the shear strength while vessel berthing, and raising the fender using life.

5、It applies for low reaction force, high energy absorption dock and that using supper cell rubber fender all dock. The style of installation variety. Easily be installed.

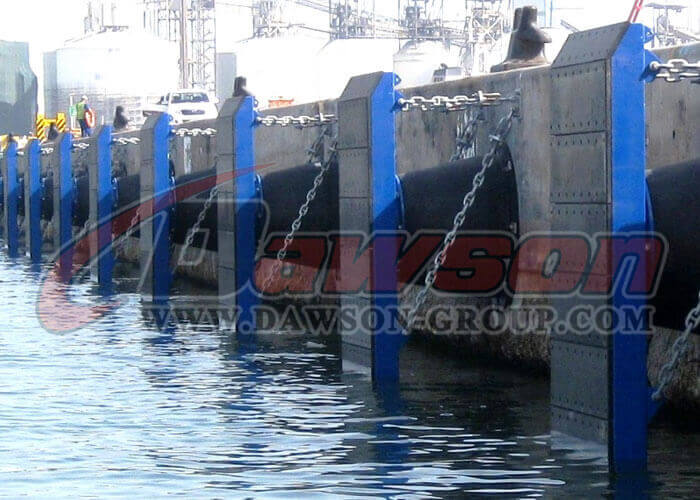

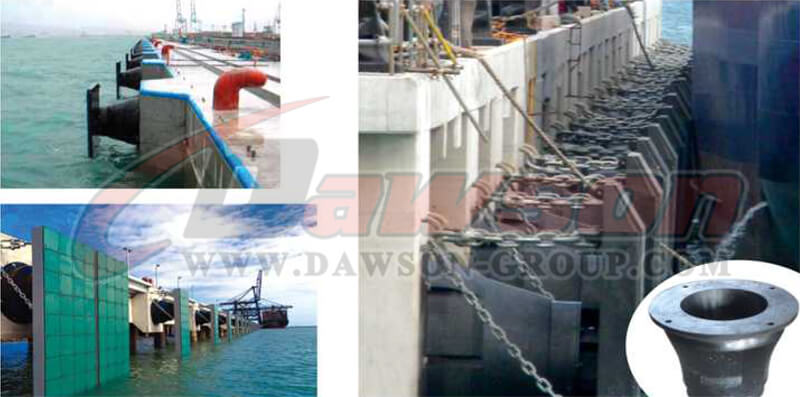

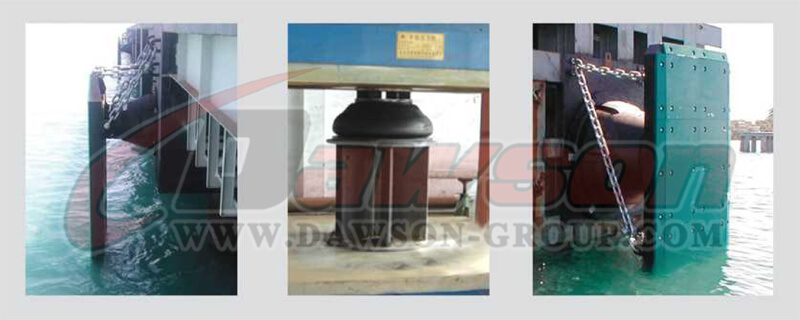

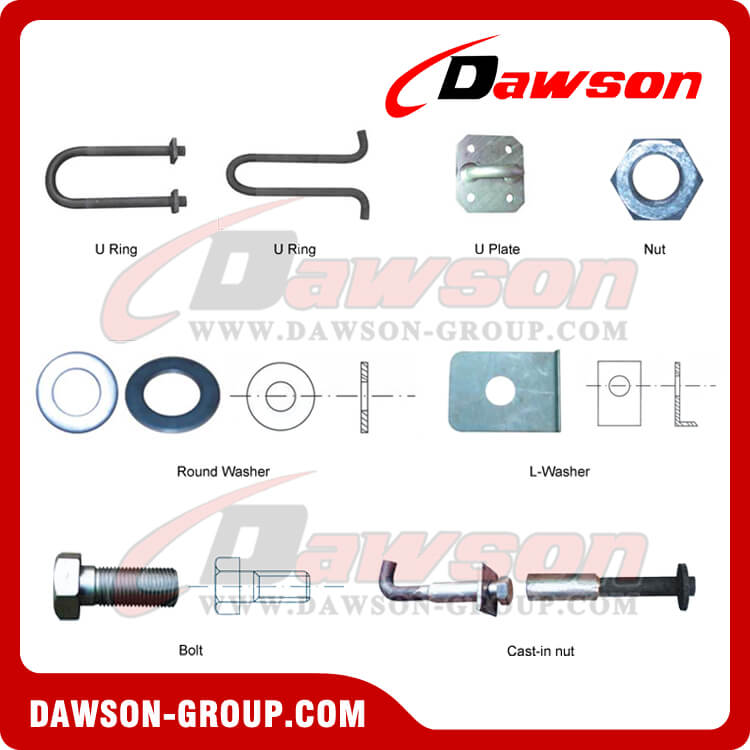

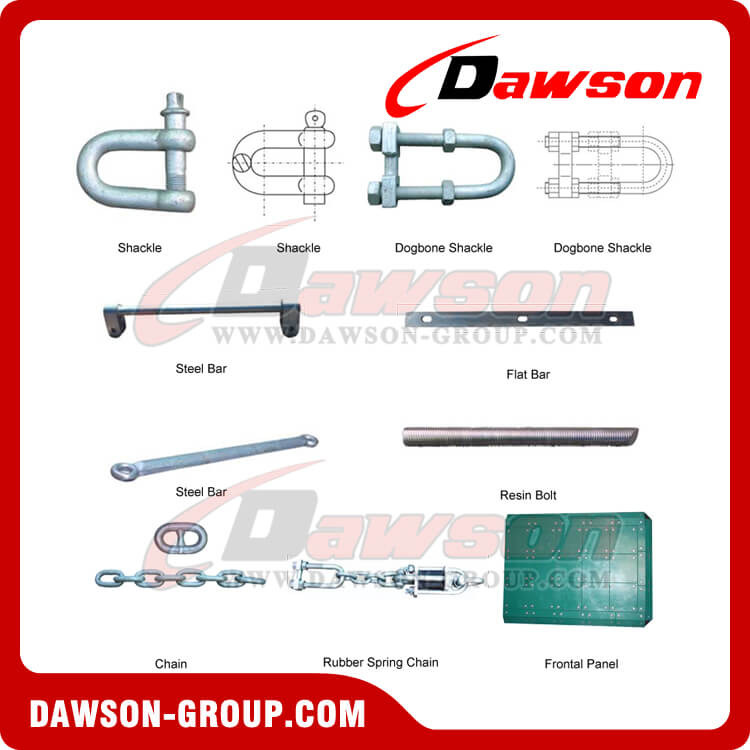

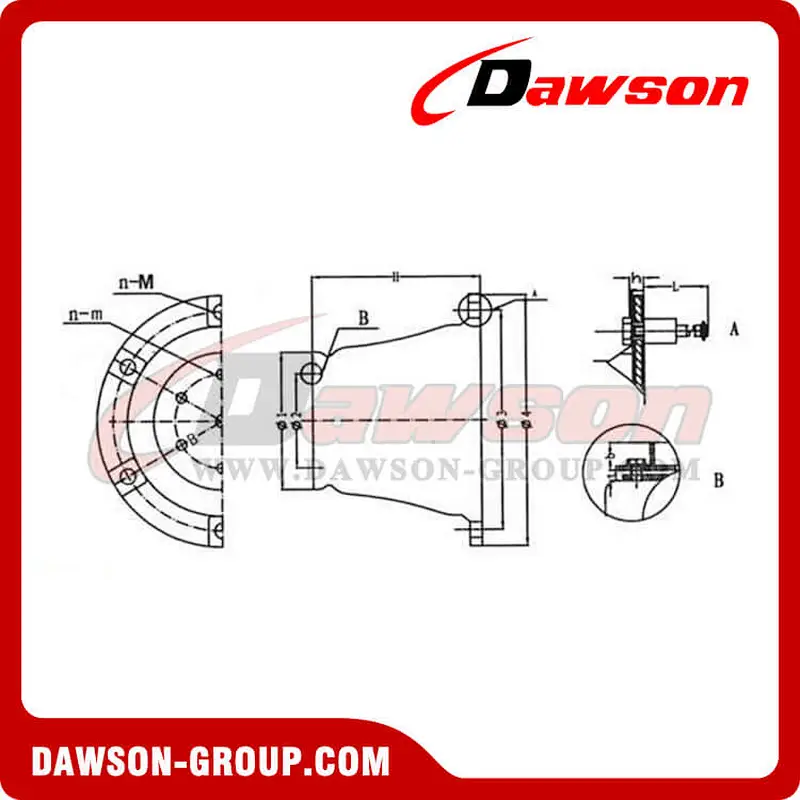

Specifications sizes:

Specification(mm)	H	Φ1	Φ2	Φ3	Φ4	n	M	m	h	Weight/kg
DS-AB500	500	425	325	675	750	4	M24	30	25	140
DS-AB600	600	510	390	810	900	6	M24	30	27	232
DS-AB700	700	595	455	945	1050	6	M30	38	32	395
DS-AB800	800	680	520	1080	1200	6	M36	44	36	540
DS-AB900	900	765	585	1215	1350	6	M36	44	41	760
DS-AB1000	1000	850	650	1350	1500	6	M42	56	45	1015
DS-AB1100	1100	935	715	1485	1650	6	M42	50	50	1505
DS-AB1150	1150	998	750	1550	1725	6	M42	56	52	1600
DS-AB1200	1200	1020	780	1620	1800	8	M42	50	54	1960
DS-AB1300	1300	1105	845	1755	1950	8	M48	60	59	2400
DS-AB1400	1400	1190	930	1890	2100	8	M48	60	66	3060
DS-AB1600	1600	1360	1060	2160	2400	8	M48	70	72	4600
DS-AB1800	1800	1630	1190	2430	2700	10	M56	76	78	6600

Dynamics performance:

type	performance
	Rated compression deflection 70%								Max. compression deflection 72.5%
	RS		RH		RO		RL		RS		RH		RO		RL
	R	E	R	E	R	E	R	E	R	E	R	E	R	E	R	E
DS-AB500	335	79	268	63	200	47	165	37	380	92	311	70	232	50	193	41
DS-AB600	480	157	382	127	283	94	225	75	542	161	429	129	319	104	258	85
DS-AB700	652	235	522	181	384	150	308	120	691	243	458	192	426	154	341	124
DS-AB800	862	368	706	294	502	224	402	179	930	380	833	316	576	252	428	208
DS-AB900	1078	494	862	399	635	306	508	255	1189	517	957	431	703	334	558	270
DS-AB1000	1339	669	1078	541	784	437	628	350	1507	735	1213	588	882	478	698	380
DS-AB1100	1430	830	1146	650	927	495	800	408	1570	865	1259	681	1019	527	833	432
DS-AB1150	1764	1028	1392	882	1038	666	830	532	1980	1103	1590	938	1150	717	919	588
DS-AB1200	1846	1093	1496	952	1106	705	890	560	2045	1149	1665	998	1227	739	985	587
DS-AB1300	2125	1585	1705	1310	1320	1045	1125	750	2312	1640	1900	1360	1537	1077	1200	800
DS-AB1400	2255	1686	1804	1349	1443	1079	1150	860	2506	1756	2005	1405	1604	1124	1278	896
DS-AB1600	3024	2419	2268	1935	1814	1548	1418	1234	3150	2520	2520	2016	2016	1613	1575	1285
DS-AB1800	3750	3538	3000	2830	2401	2264	1912	1804	4166	3686	3333	2948	2667	2359	2125	1880
