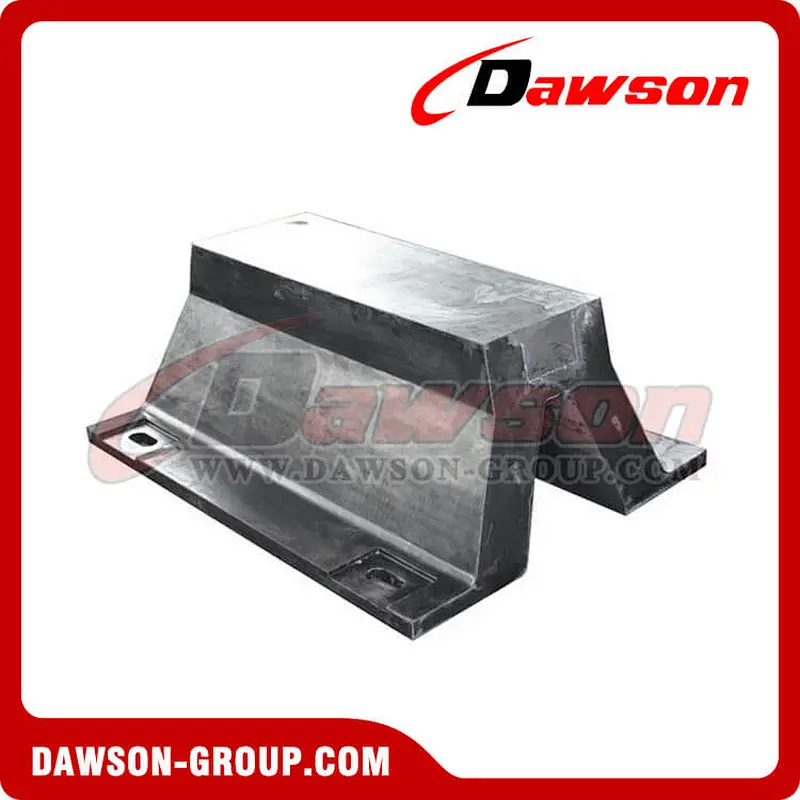

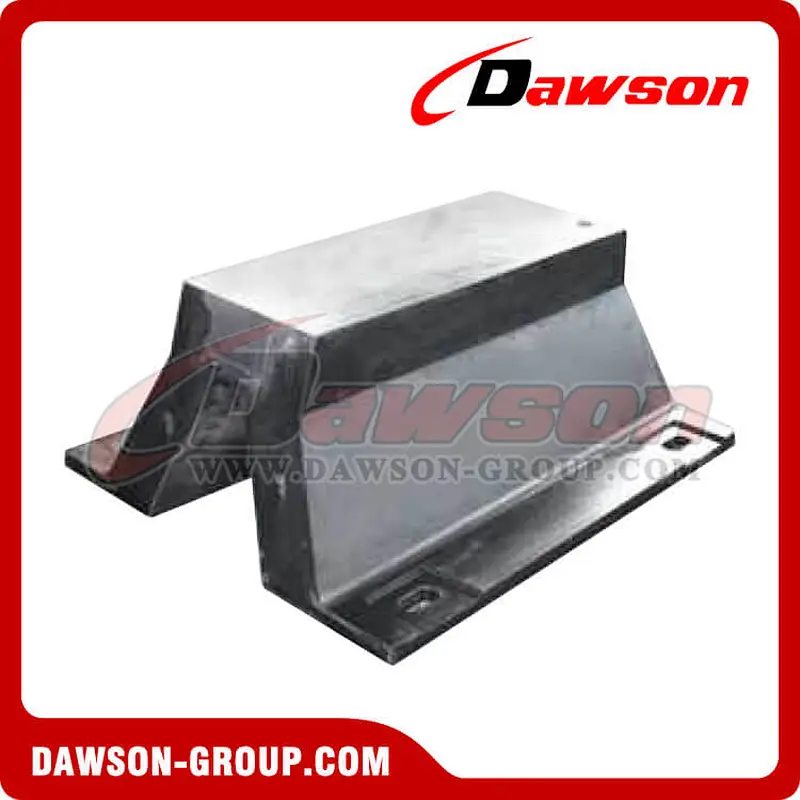

DS-BA Super Arch Type Rubber Fender

Model NO.: DS-BA

Quantity:

Product Description

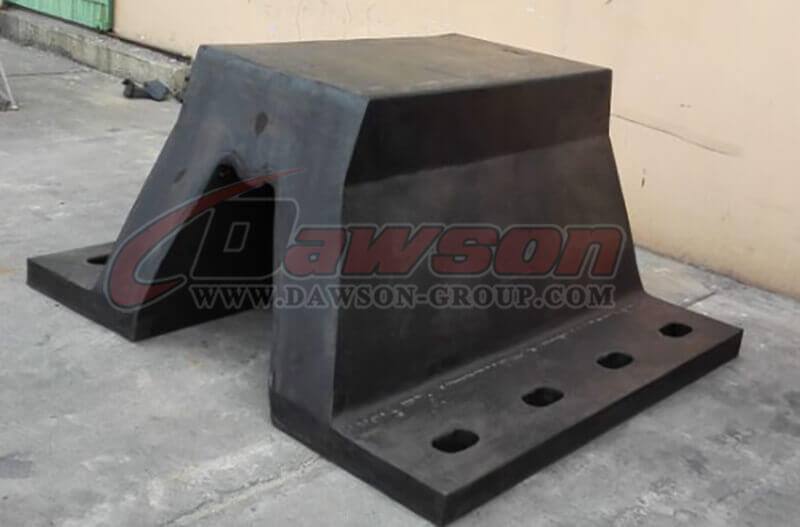

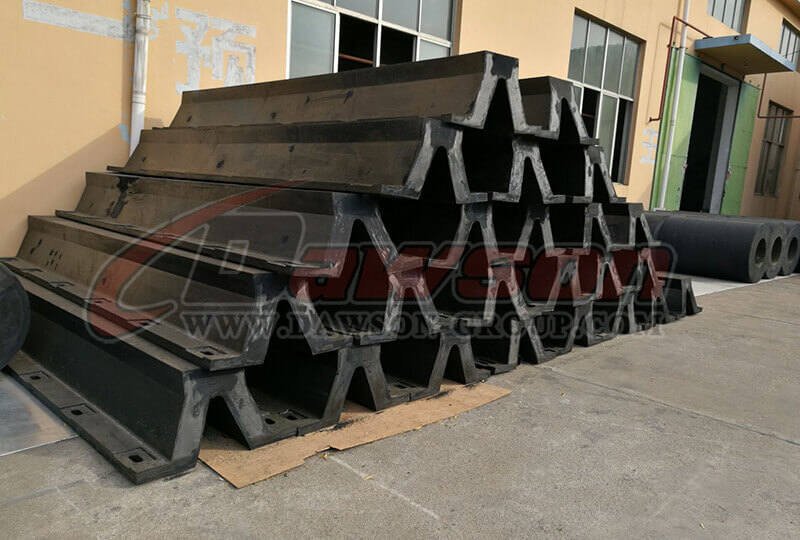

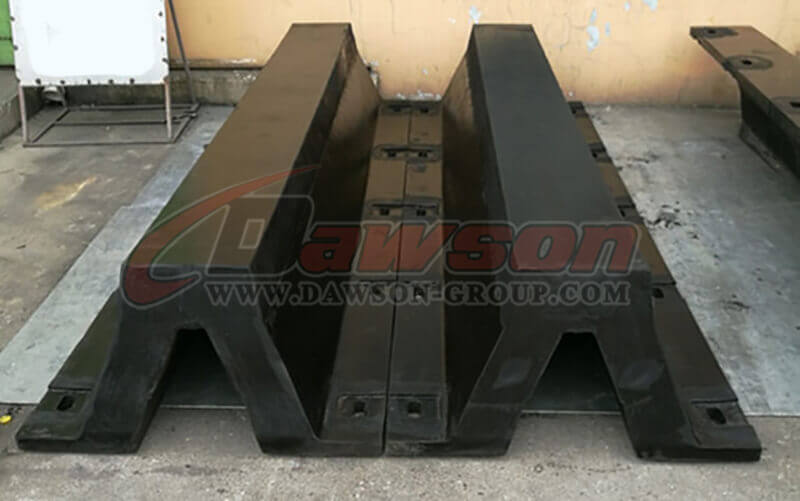

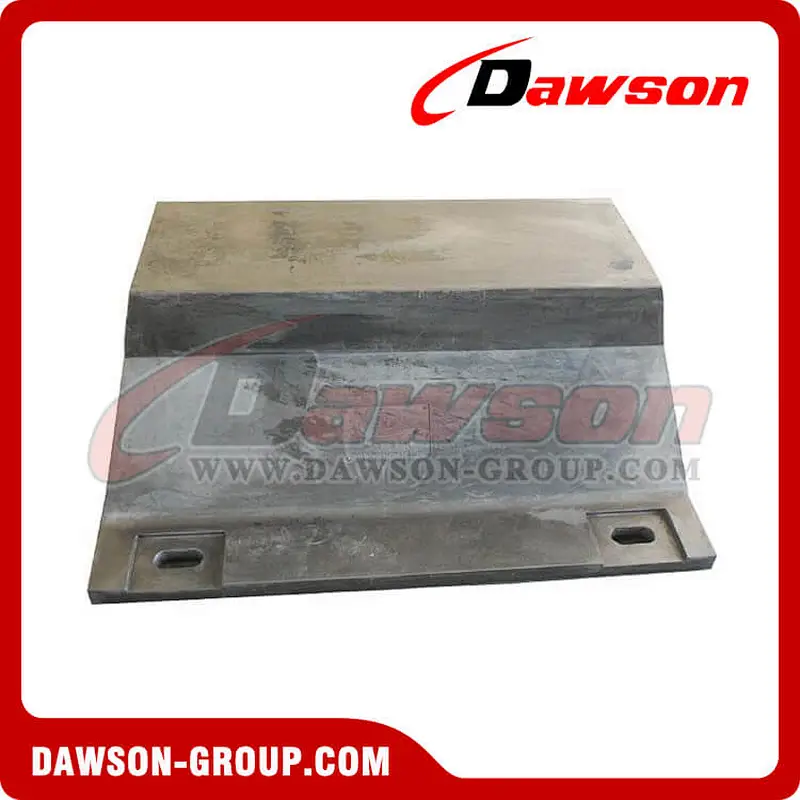

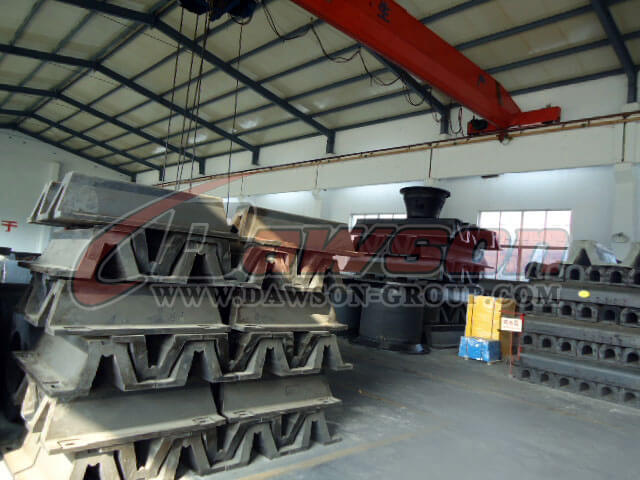

DS-BA Super Arch Type Rubber Fender

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Feature:

1、Compare DS-BA super arch rubber fender with v type rubber fender, it has big t rated compression, high energy absorb, low reaction force. It is substitute for v type rubber fender.

2、Its structure reasonable and utility long life.

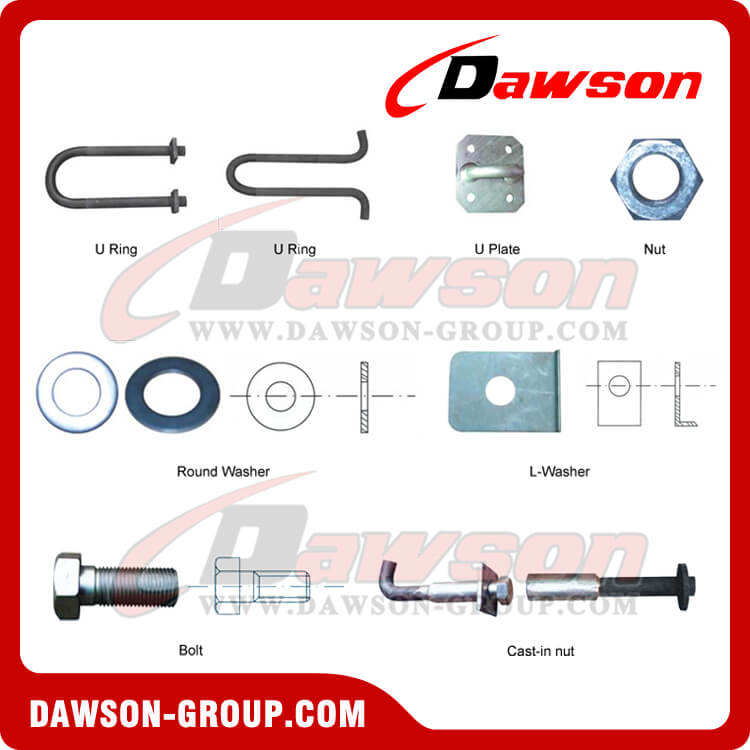

3、Easily install and change. Compare DS-BA super arch type rubber fender with v type rubber fender, they have the same bolt whole pitch.

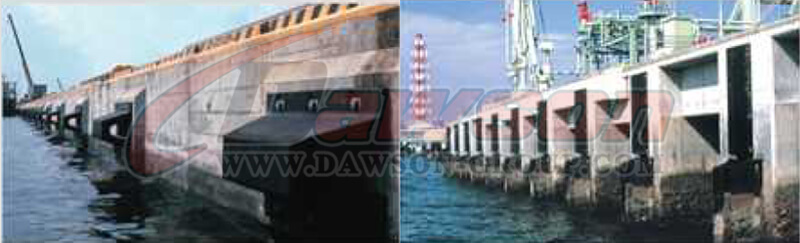

4、Front panel or UHMW-PE face pad was set on the top to reduce surface pressure and vessel friction factor, and lower the shear strength while vessel berthing.

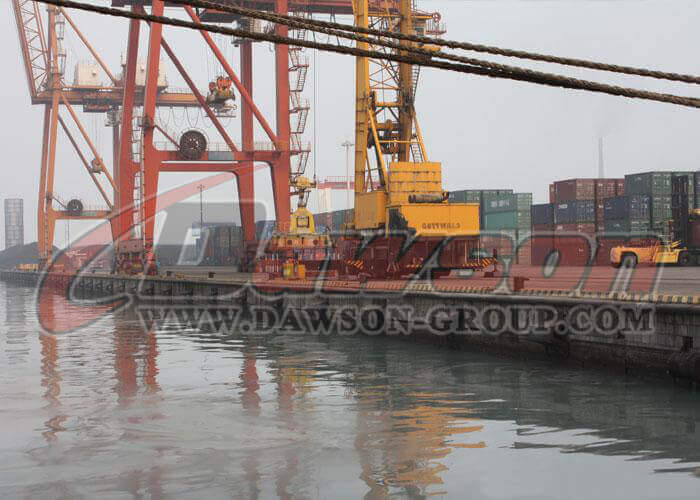

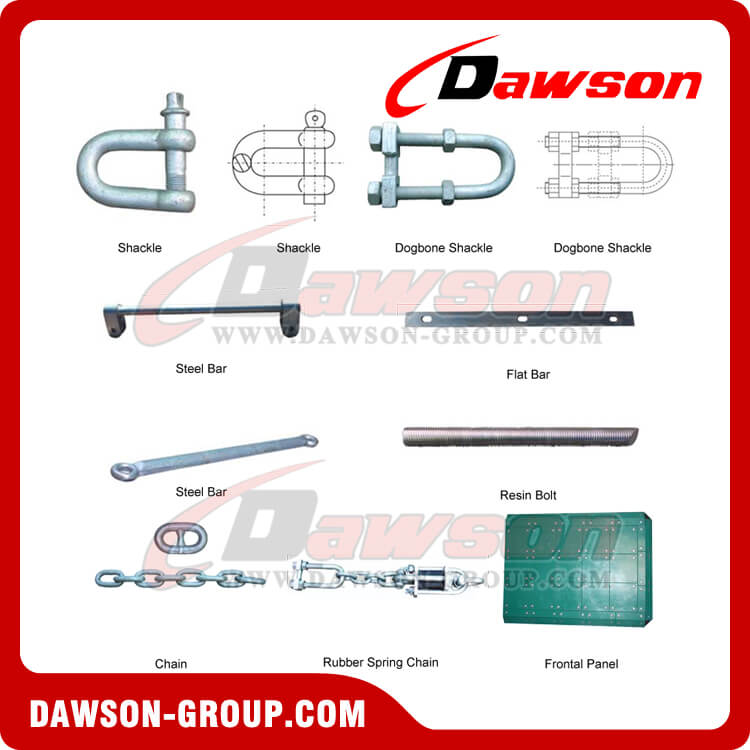

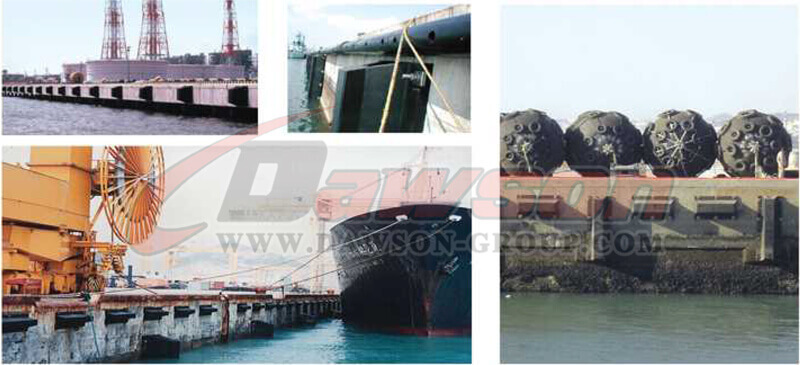

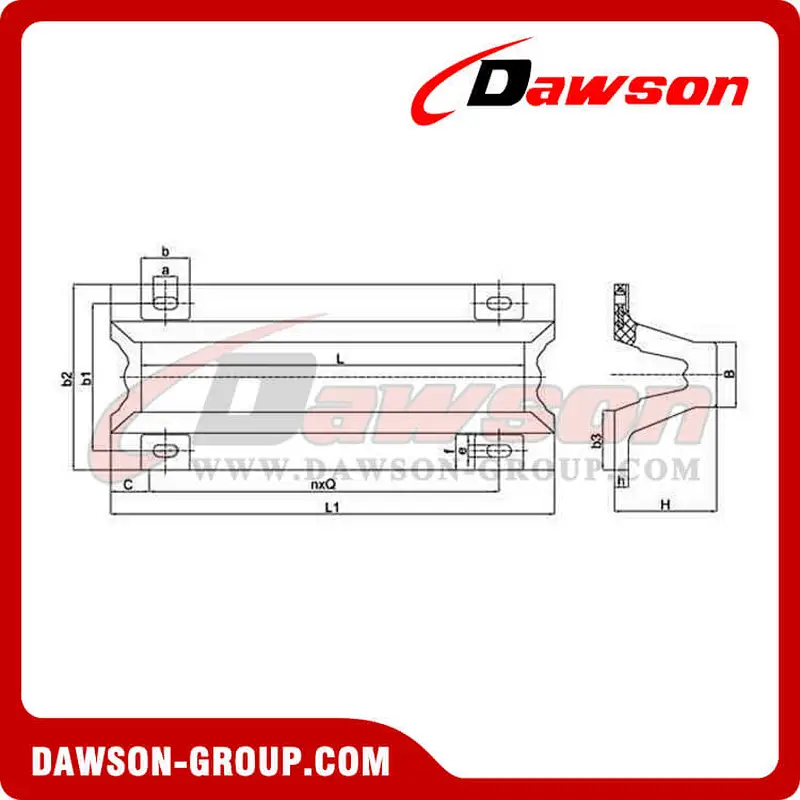

Specifications sizes:

type	Size
type	H	L	L1	C	Q	n	B	b1	B2	B3	H	a	b	e	f
DS-BA200x1000	200	1000	1100	120	860	1	145	320	400	128	30	58	105	29	75
DS-BA200x1500	200	1500	1600	120	680	2	145	320	400	128	30	58	105	29	75
DS-BA200x2000	200	2000	2100	120	620	3	145	320	400	128	30	58	105	29	75
DS-BA200x2500	200	2500	2600	122.5	785	3	145	320	400	128	30	58	105	29	75
DS-BA200x3000	200	3000	3100	120	715	4	145	320	400	128	30	58	105	29	75
DS-BA200x3500	200	3500	3600	120	672	5	145	320	400	128	30	58	105	29	75
DS-BA250x1000	250	1000	1125	130	865	1	164	410	500	160	30	64	125	32	90
DS-BA250x1500	250	1500	1625	132.5	680	2	164	410	500	160	30	64	125	32	90
DS-BA250x2000	250	2000	2126	132.5	620	3	164	410	500	160	30	64	125	32	90
DS-BA250x2500	250	2500	2625	127.5	790	3	164	410	500	160	30	64	125	32	90
DS-BA250x3000	250	3000	3125	132.5	715	4	164	410	500	160	30	64	125	32	90
DS-BA250x3500	250	3500	3625	130	673	5	164	410	500	160	30	64	125	32	90
DS-BA300x1000	300	1000	1150	140	870	1	225	490	600	195	33	70	140	35	105
DS-BA300x1500	300	1500	1650	140	685	2	225	490	600	195	33	70	140	35	105
DS-BA300x2000	300	2000	2150	137.5	625	3	225	490	600	195	33	70	140	35	105
DS-BA300x2500	300	2500	2650	140	790	3	225	490	600	195	33	70	140	35	105
DS-BA300x3000	300	3000	3150	145	715	4	225	490	600	195	33	70	140	35	105
DS-BA300x3500	300	3500	3650	140	674	5	225	490	600	195	33	70	140	35	105
DS-BA400x1000	400	1000	1200	150	900	1	300	670	800	260	40	82	165	41	120
DS-BA400x1500	400	1500	1700	150	700	2	300	670	800	260	40	82	165	41	120
DS-BA400x2000	400	2000	2200	147.5	635	3	300	670	800	260	40	82	165	41	120
DS-BA400x2500	400	2500	2700	150	800	3	300	670	800	260	40	82	165	41	120
DS-BA400x3000	400	3000	3200	150	725	4	300	670	800	260	40	82	165	41	120
DS-BA400x3500	400	3500	3700	150	680	5	300	670	800	260	40	82	165	41	120
DS-BA500x1000	500	1000	1250	160	930	1	375	840	1000	325	45	94	180	47	140
DS-BA500x1500	500	1500	1750	160	715	2	375	840	1000	325	45	94	180	47	140
DS-BA500x2000	500	2000	2250	157.5	645	3	375	840	1000	325	45	94	180	47	140
DS-BA500x2500	500	2500	2750	160	810	3	375	840	1000	325	45	94	180	47	140
DS-BA500x3000	500	3000	3250	165	730	4	375	840	1000	325	45	94	180	47	140
DS-BA500x3500	500	3500	3750	160	686	5	375	840	1000	325	45	94	180	47	140
DS-BA600x1000	600	1000	1300	170	960	1	450	1010	1200	390	54	100	195	50	160
DS-BA600x1500	600	1500	1800	170	730	2	450	1010	1200	390	54	100	195	50	160
DS-BA600x2000	600	2000	2300	167.5	655	3	450	1010	1200	390	54	100	195	50	160
DS-BA600x2500	600	2500	3800	170	820	3	450	1010	1200	390	54	100	195	50	160
DS-BA600x3000	600	3000	3300	170	740	4	450	1010	1200	390	54	100	195	50	160
DS-BA600x3500	600	3500	3800	170	692	5	450	1010	1200	390	54	100	195	50	160
DS-BA800x1000	800	1000	1400	180	1040	1	600	1340	1500	520	72	136	270	68	260
DS-BA800x1500	800	1500	1900	180	770	2	600	1340	1500	520	72	136	270	68	260
DS-BA800x2000	800	2000	2400	180	680	3	600	1340	1500	520	72	136	270	68	260
DS-BA800x2500	800	2500	2900	182.5	845	3	600	1340	1500	520	72	136	270	68	260
DS-BA800x3000	800	3000	3400	180	760	4	600	1340	1500	520	72	136	270	68	260
DS-BA1000x1000	1000	1000	1500	200	1100	1	750	1680	2000	650	90	136	290	68	300
DS-BA1000x1500	1000	1500	2000	200	800	2	750	1680	2000	650	90	136	290	68	300
DS-BA1000x2000	1000	2000	2400	200	700	3	750	1680	2000	650	90	136	290	68	300

Mechanical property:

Specification	Super reaction Force RS				High reaction Force RH				Standard reaction Force RO				Low reaction Force RL
	52.5%		55%		52.5%		55%		52.5%		55%		52.5%		55%
	R	E	R	E	R	E	R	E	R	E	R	E	R	E	R	E
DS-BA200x1000	170	11	230	14	150	10	200	12	110	8	150	9	75	5	100	6
DS-BA250x1000	270	28	375	30	208	22	288	23	172	18	239	19	148	16	205	17
DS-BA300x1000	317.5	40.2	441	43	244	30.4	339	32.34	201.1	24.5	288.1	26.4	173.5	21.56	241.1	23.5
DS-BA400x1000	423.4	71.5	588	76.4	325.4	54.9	451	58.8	270	45.1	347	48	231	39.2	321	42.1
DS-BA500x1000	529	110.7	735	118.6	406.7	86	564.5	91.1	337	70.6	468	75.5	289	60.8	402	64.7
DS-BA600x1000	634	160	881	171.5	488	123.5	678	132.3	403.8	102	560.6	108.8	347	87.2	482	93.1
DS-BA800x1000	847	284	1176	304.8	651	218.5	904	234	539	181.3	748.7	194	462.6	156	643	167
DS-BA1000x1000	1058	445	1470	476.3	813	342	1130	366.5	675	283	937	305	578	2430	803	261
