DS-BF Super Arch Marine Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature:
DS-BF super arch type rubber fender embedded steel mount and nut the top of fender, it connect front panel, UHMW-PE face pad installed outside of front panel, it lower friction factor between vessel and fender, in void of vessel damage, and raise the utility of fender life.
Specifications sizes:
| specification | Compression 50% | |||||||
| Super high Reaction RS | High reaction Force RH | Standard reaction Force RO | Low reaction Force RL | |||||
| Reaction Force | Energy Absorb | Reaction Force | Energy Absorb | Reaction Force | Energy Absorb | Reaction Force | Energy Absorb | |
| DS-BF200x1000 | 241 | 13 | 208 | 11 | 157 | 8 | 103 | 6 |
| DS-BF250x1000 | 257 | 24 | 196 | 19 | 165 | 15 | 144 | 12 |
| DS-BF300x1000 | 326 | 35 | 242 | 27 | 200 | 21 | 158 | 16 |
| DS-BF400x1000 | 413 | 64 | 316 | 49 | 261 | 41 | 229 | 31 |
| DS-BF500x1000 | 511 | 102 | 401 | 78 | 354 | 64 | 269 | 54 |
| DS-BF600x1000 | 613 | 133 | 462 | 108 | 286 | 83 | 299 | 71 |
| DS-BF800x1000 | 831 | 265 | 621 | 200 | 510 | 150 | 456 | 126 |
| DS-BF1000x1000 | 1015 | 417 | 788 | 312 | 259 | 262 | 539 | 221 |
Note
（1）、Performance tolerance:±10%
（2）、Other length fender dynamic performance multiple on the basis of 1000 length.
Related Products :

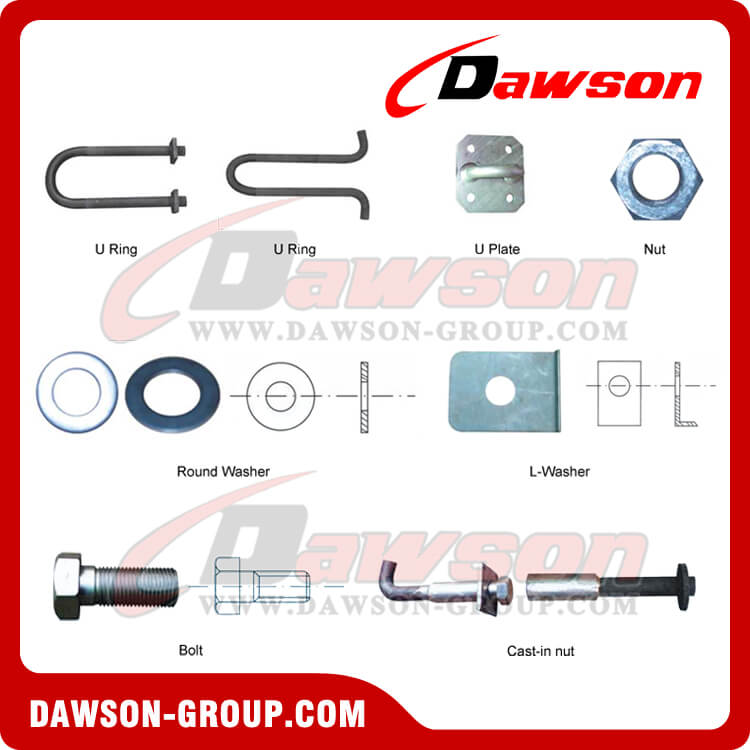

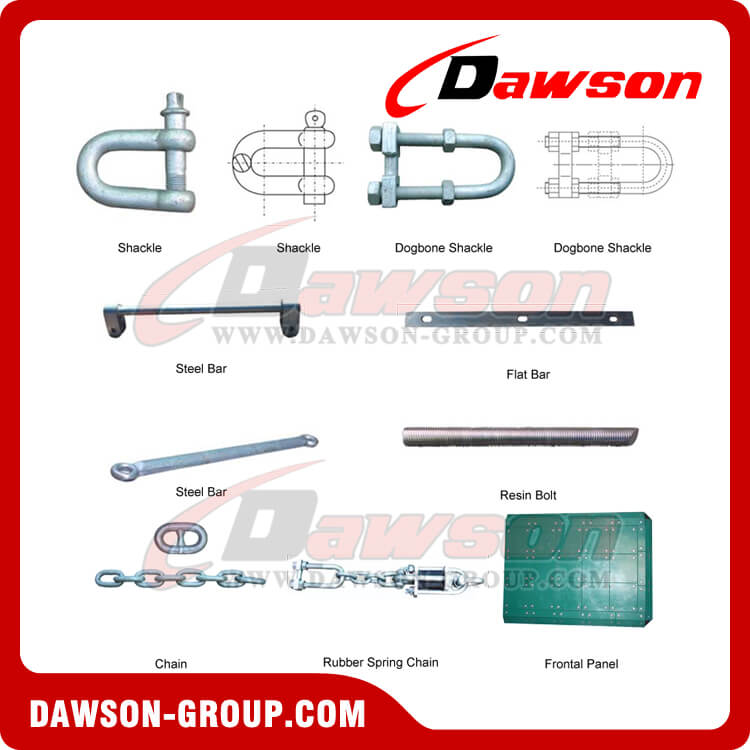

Accessories for Rubber Fenders:

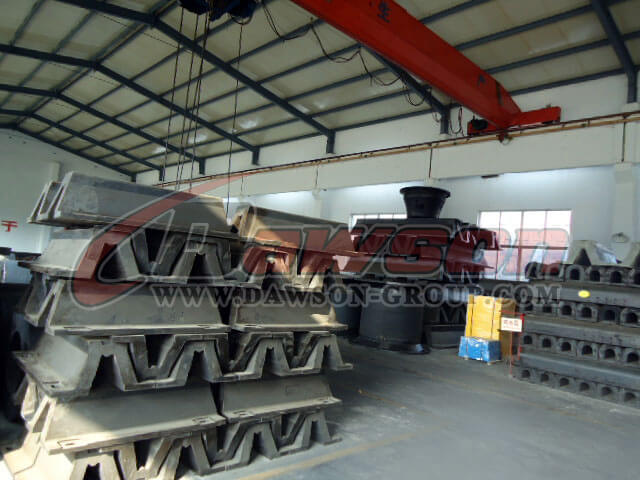

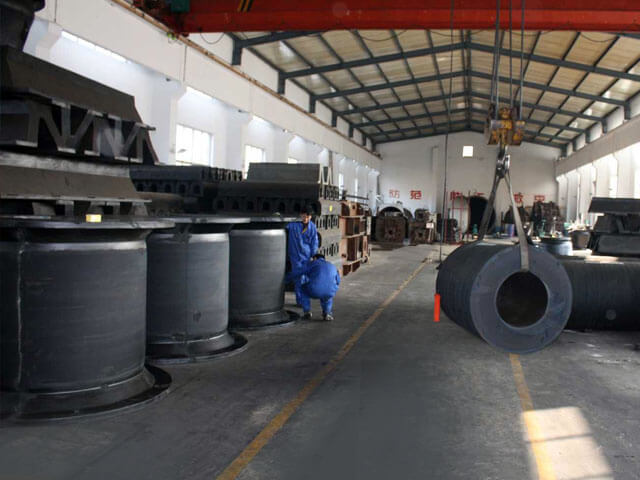

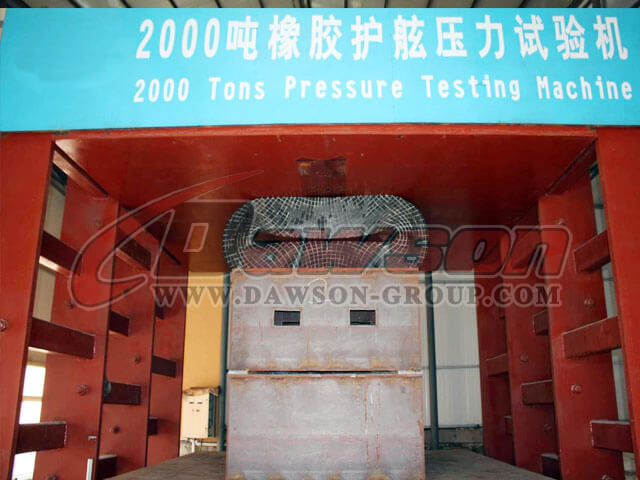

Equipments:

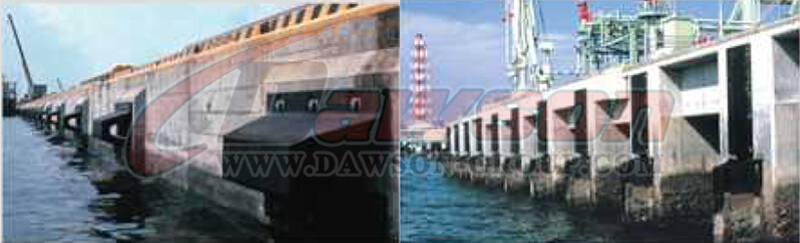

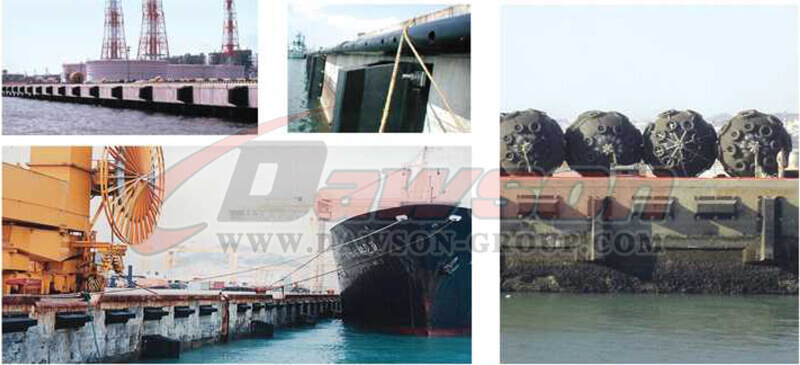

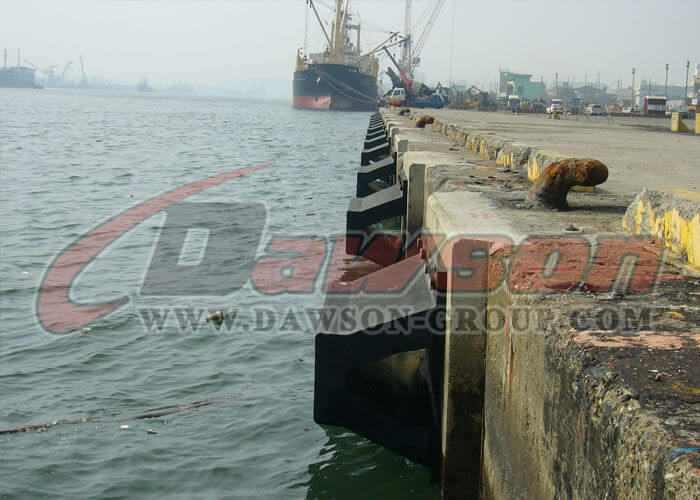

Application of Super Arch Marine Rubber Fender:
