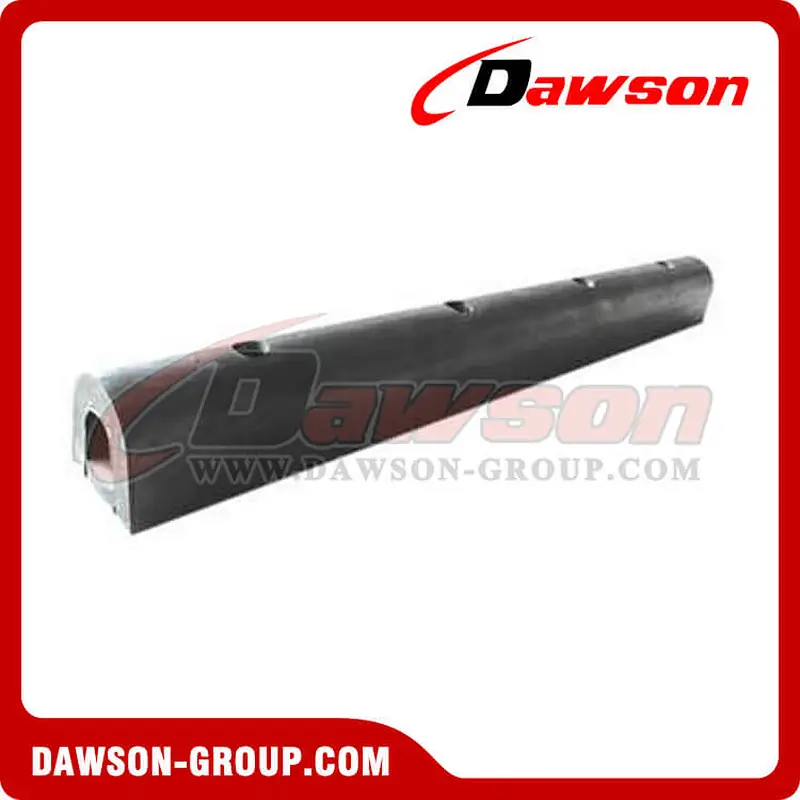

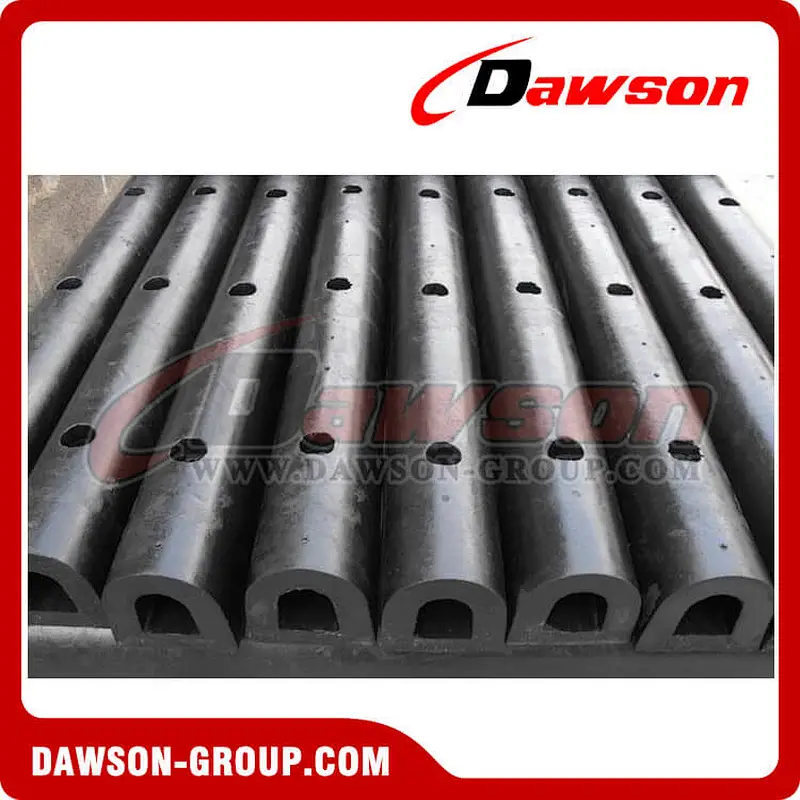

DS-D Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature:
1. Suitable reaction force, with higher energy absorption than cylindrical rubber fender.
2. Easily for installation.
3. Applicable for frame dock and ships due to the smaller bottom width.
Performance

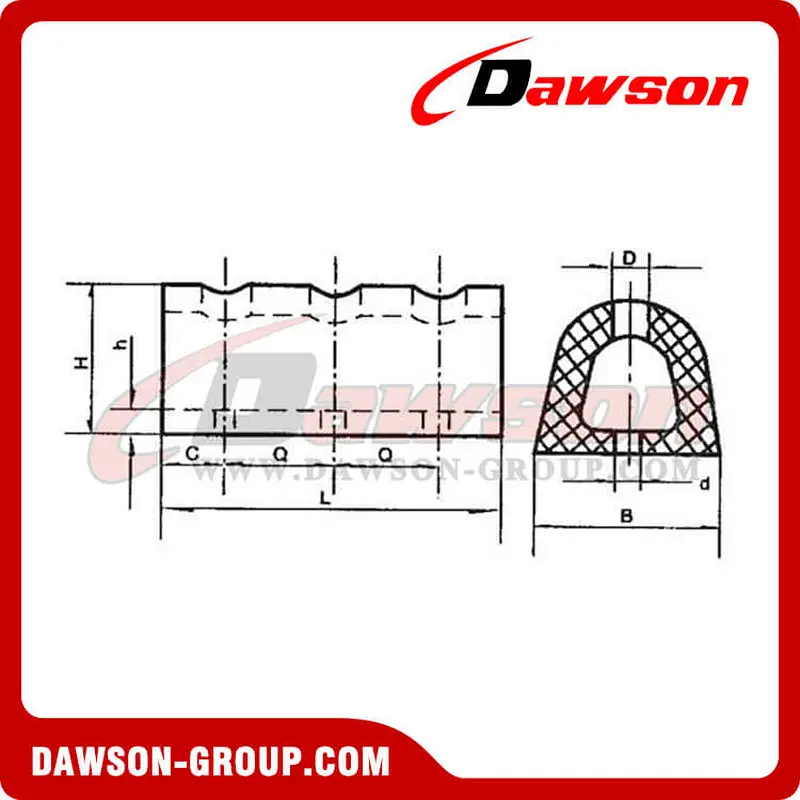

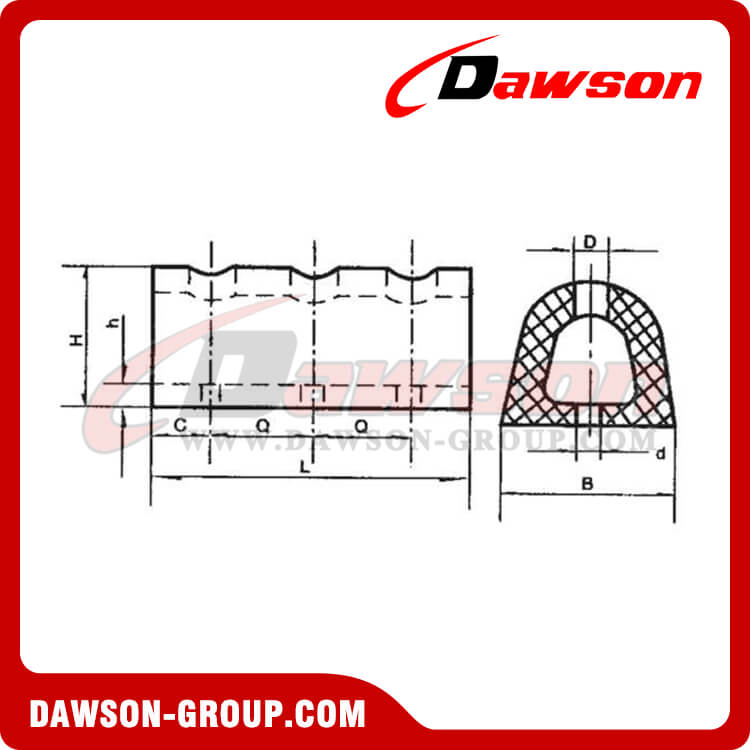

| specification | H | B | h | D | d | Note |
| D200x200xL D300x300xL D400x400xL | 200 300 400 | 200 300 400 | 35 40 55 | Φ60 Φ65 Φ80 | Φ27 Φ32 Φ40 | L=850--3000 C=100--150 Q=325--600 |
| D500x500xL | 500 | 500 | 90 | Φ97 | Φ45 | L=850--1500 C=100--150 Q=325--600 |
| Other specification can be manufactured upon users’ request | ||||||
Performance
| Type | Performance | |||
| Rated compression Deflection(％) | Reaction force(KN) | Energy absorb(KN-M) | tolerance(％) | |
| D200x200x850 | 50 | 176.2 | 7.1 | ±10 |
| D200x200x1000 | 207.3 | 8.4 | ||
| D200x200x1500 | 310.9 | 12.6 | ||
| D300x300x850 | 255 | 10 | ||
| D300x300x1000 | 294.3 | 11.8 | ||
| D300x300x1500 | 441.5 | 16.7 | ||
| D400x400x850 | 32.2 | 16.7 | ||
| D400x400x1000 | 382.6 | 19.6 | ||
| D400x400x1500 | 573.9 | 29.4 | ||
| D500x500x850 | 383.6 | 26.7 | ||
| D500x500x1000 | 451.3 | 31.4 | ||
| D500x500x1500 | 686.7 | 47.1 | ||
Related Products :

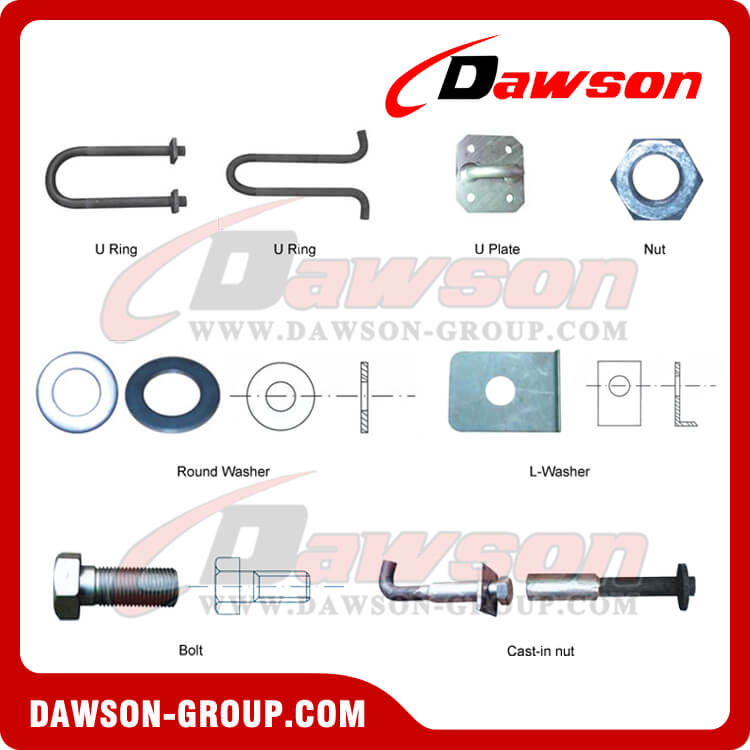

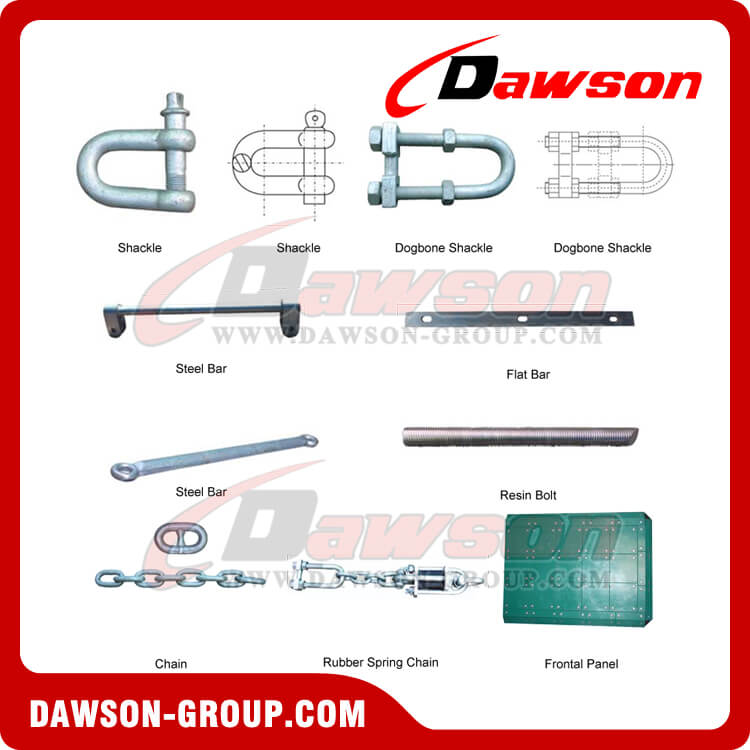

Accessories for Rubber Fenders:

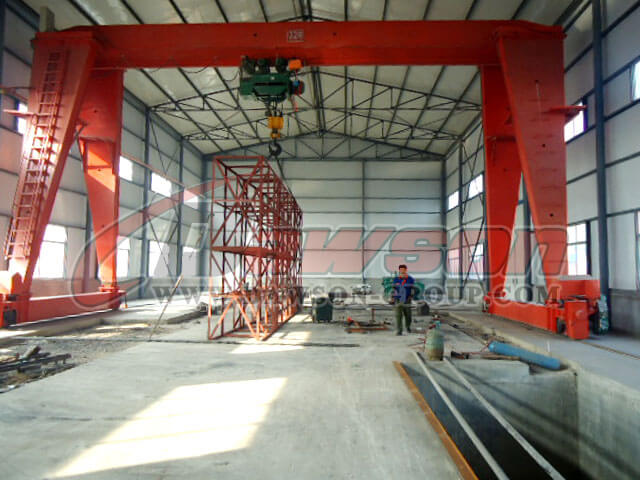

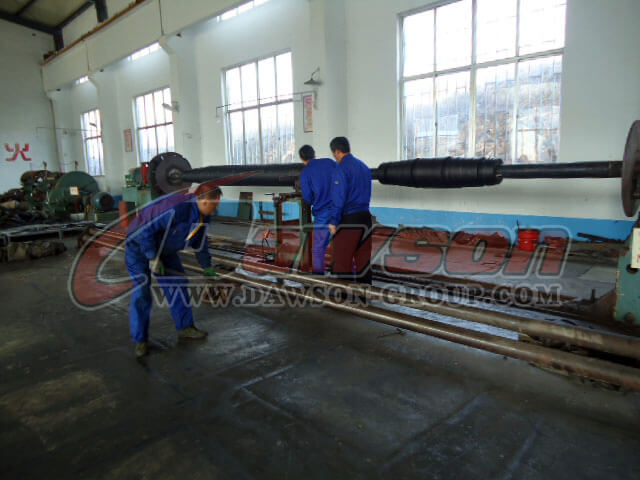

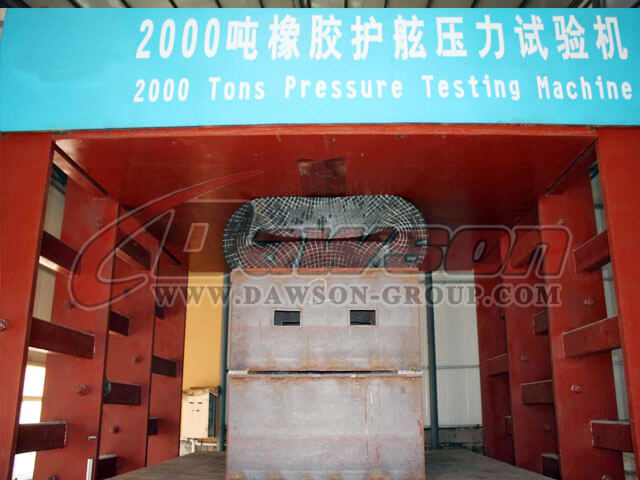

Equipments:

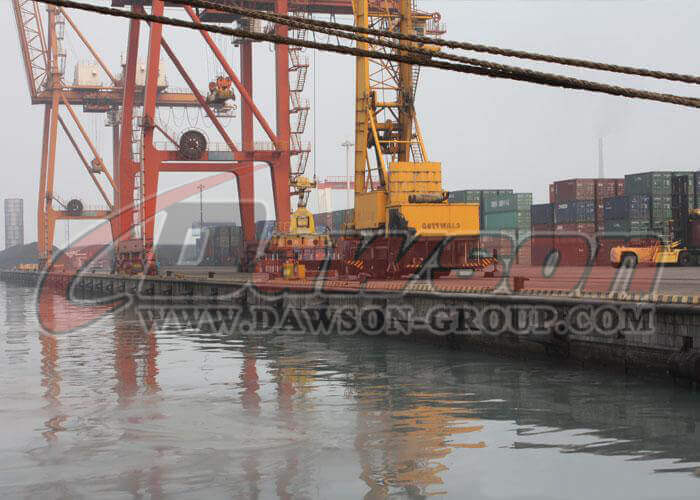

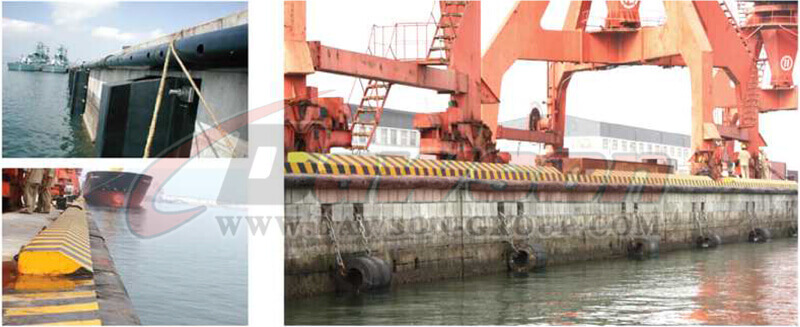

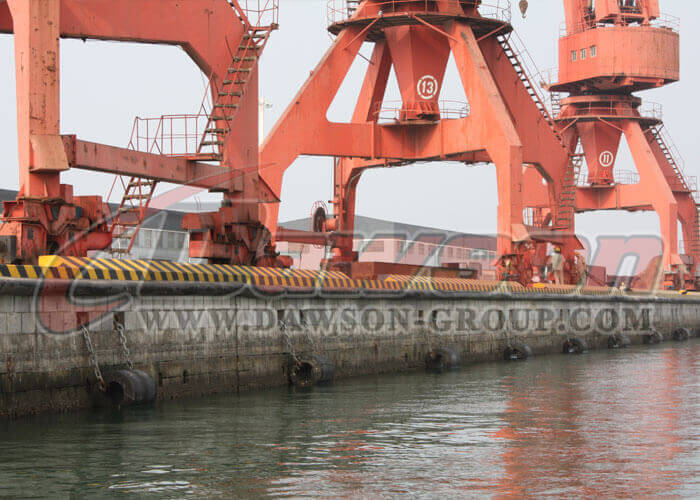

Application of D Type Rubber Fender:
