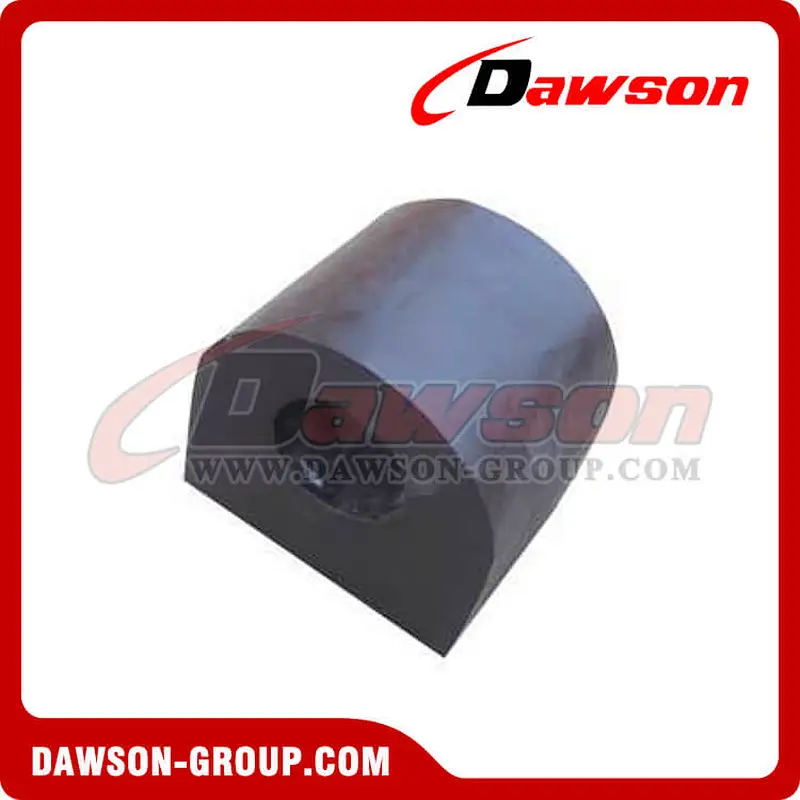

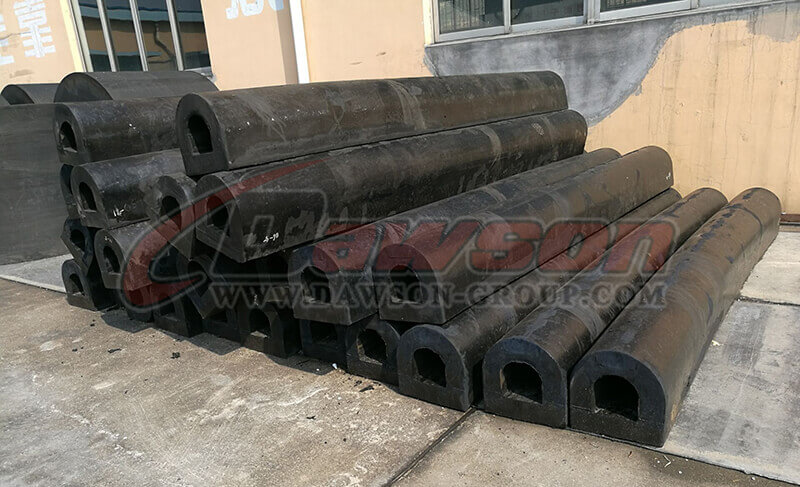

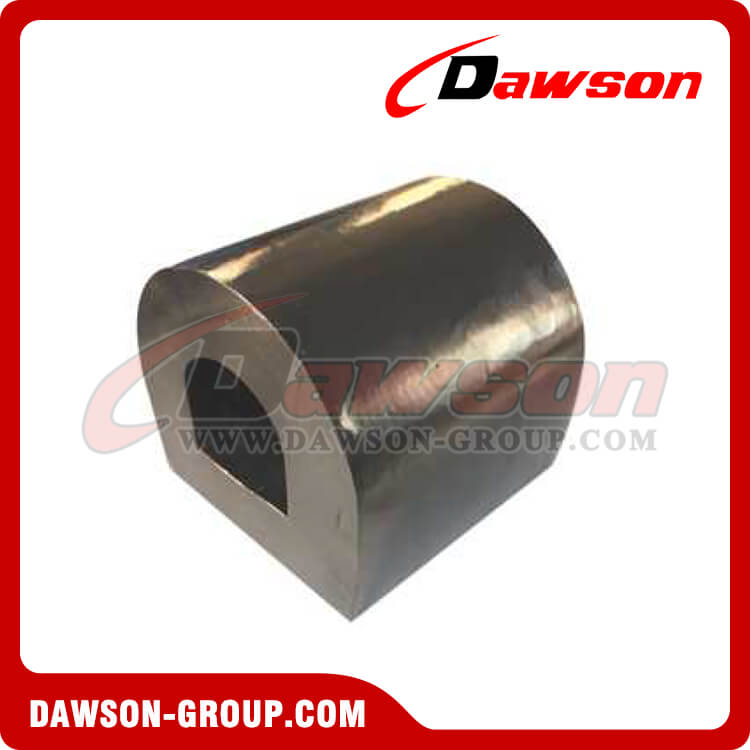

DS-DD Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

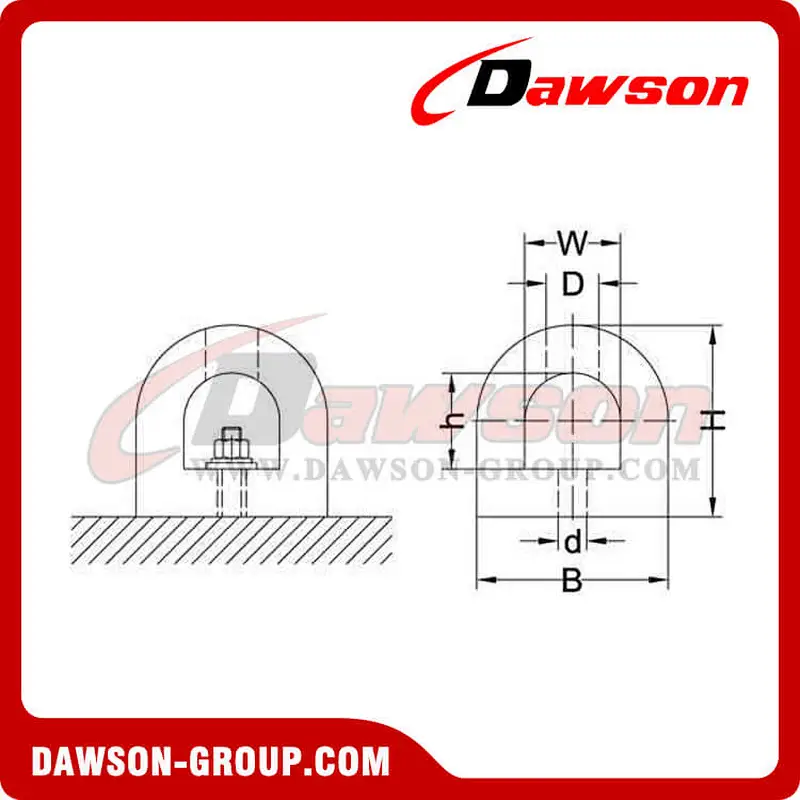

| Item | DD100 | DD150 | DD200 | DD250 | DD300 | DD350 | DD400 | DD500 | |||
| H | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |||
| B | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |||
| D(Φ) | 45 | 55 | 55 | 65 | 65 | 85 | 85 | 97 | |||
| d | 25 | 27 | 30 | 32 | 36 | 40 | 42 | 45 | |||
| h | 45 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | |||
| w | 50 | 75 | 100 | 125 | 150 | 172 | 200 | 250 | |||
| Bolt sizes | M22 | M24 | M26 | M27 | M30 | M36 | M38 | M42 | |||
| End distance | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | |||
| Bolt pitch | 350-440 | 350-440 | 325-600 | 325-450 | 325-600 | 325-600 | 350-600 | 400-620 | |||
| Max. length | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||
| KN/m reaction force | 54.91 | 83.2 | 105.7 | 132.2 | 158.4 | 184.8 | 211.2 | 316.8 | |||
| KN-M/m Energy absorption | 0.91 | 3.50 | 4.61 | 6.40 | 9.50 | 11.2 | 16.1 | 36.0 | |||
| Deflection | 40% | ||||||||||
| Reference weight(kg/m) | 10 | 22 | 38 | 59 | 84 | 115 | 150 | 234 | |||
Note

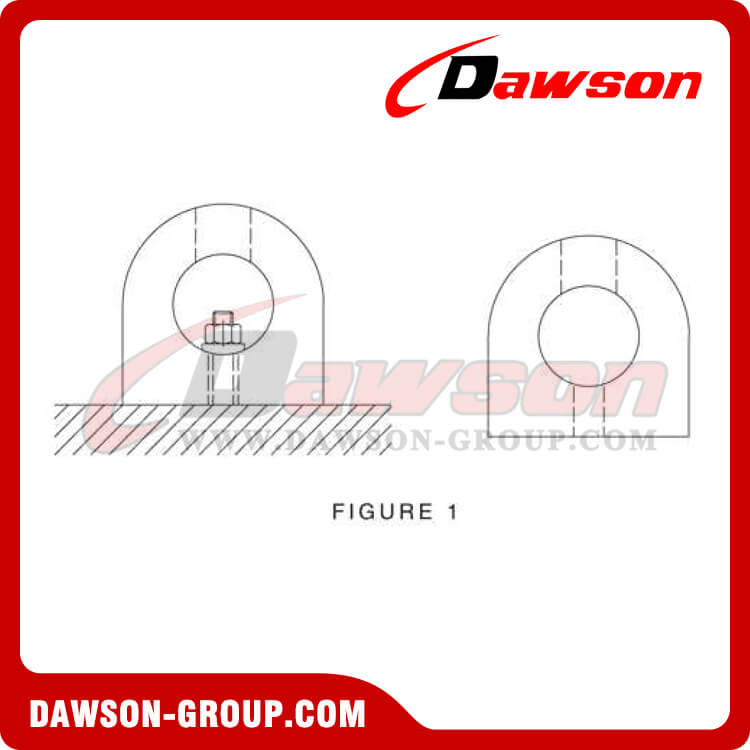

(1)This type of fender also can be installed as shown in figure 1.

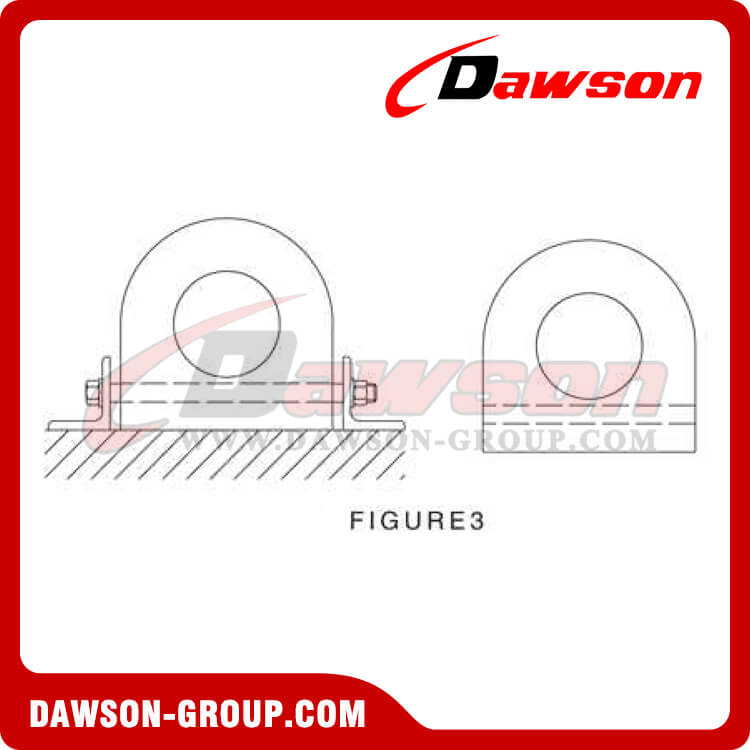

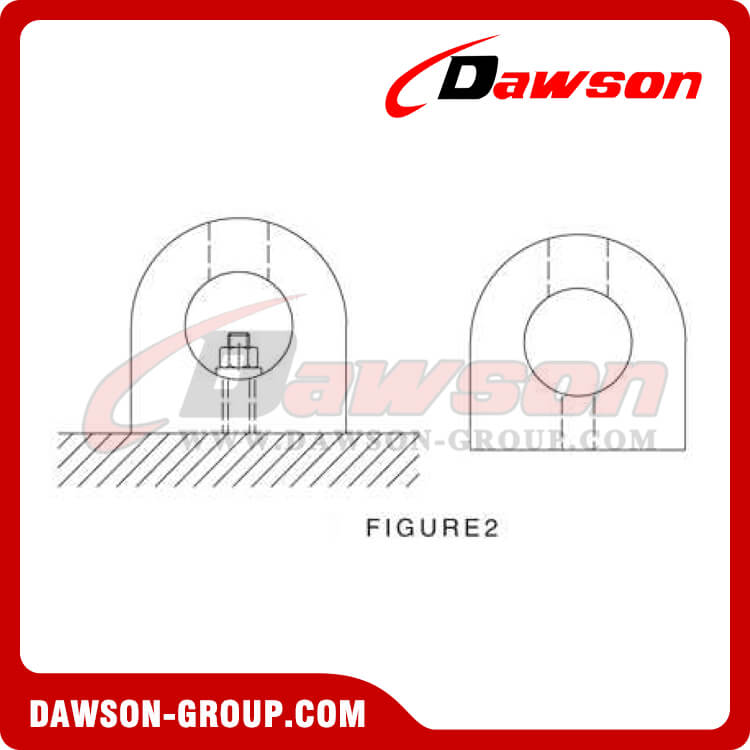

(2)The round holes is also available, as shown in figure 2&3.
(3)All the bolts in the same diameter.
(4)Production in accordance with standard performance and size tolerance.
Related Products :

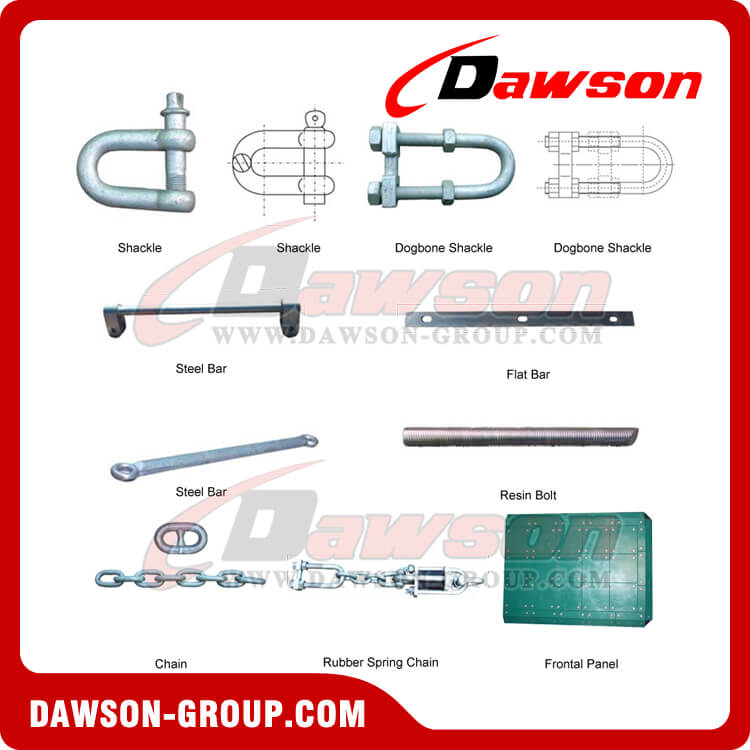

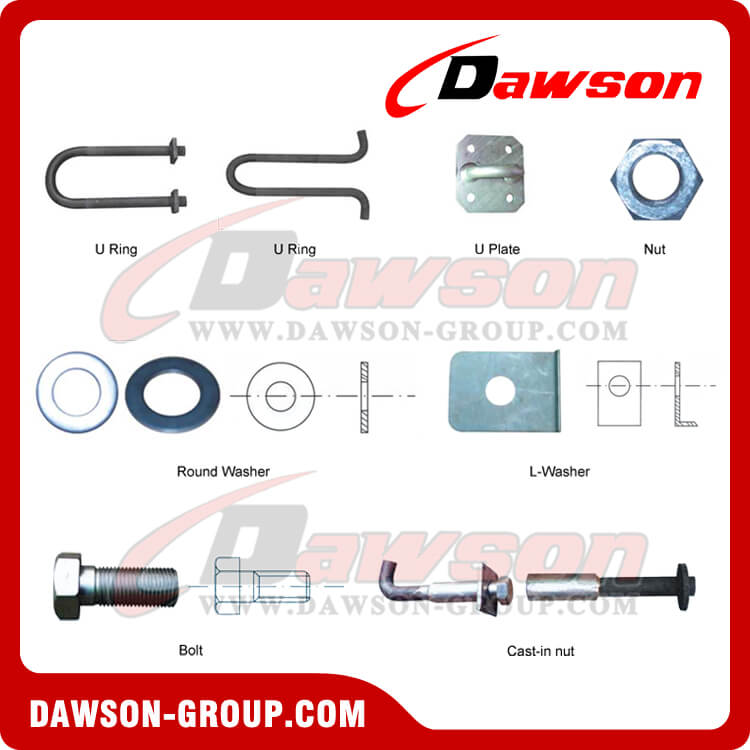

Accessories for Rubber Fenders:

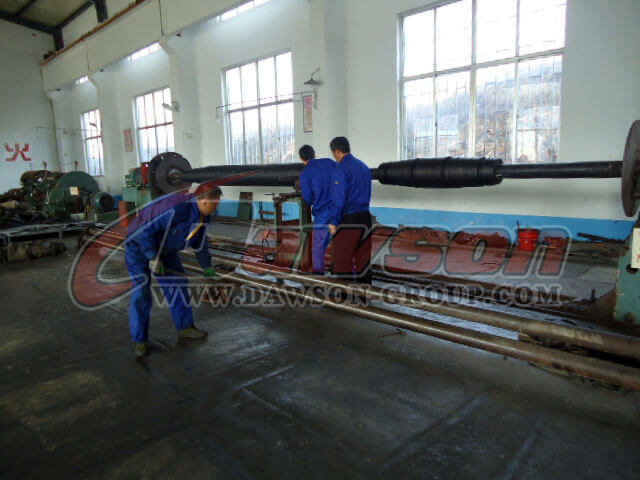

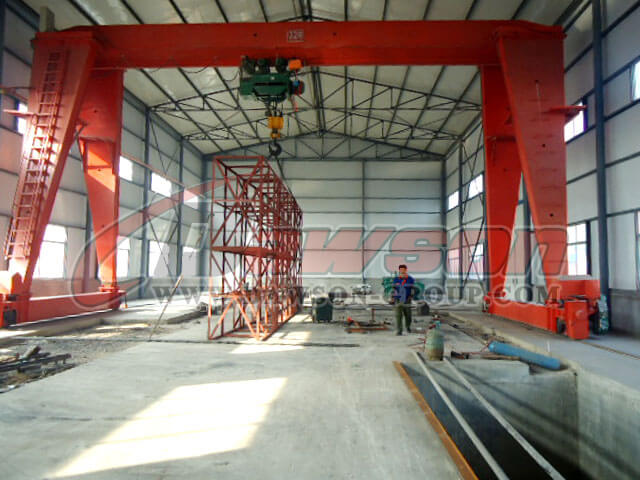

Equipments:

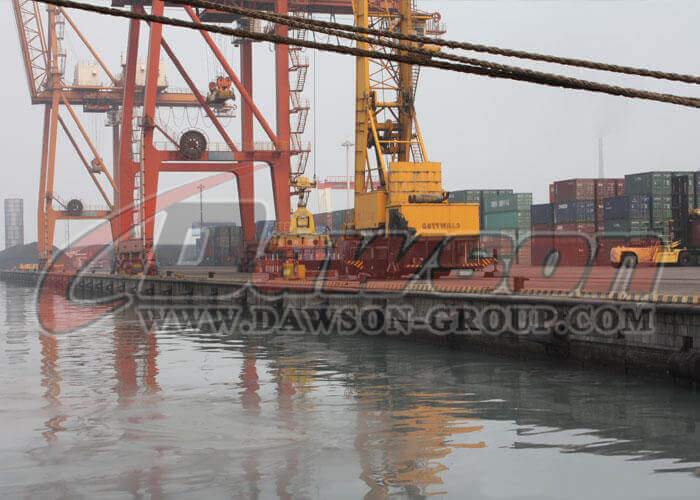

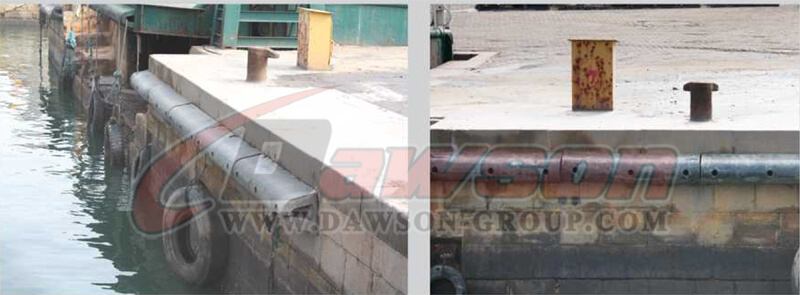

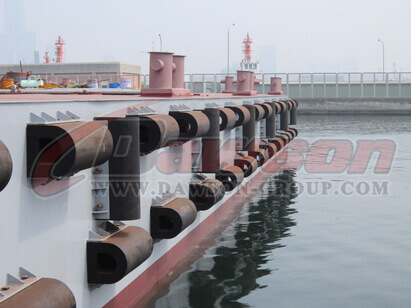

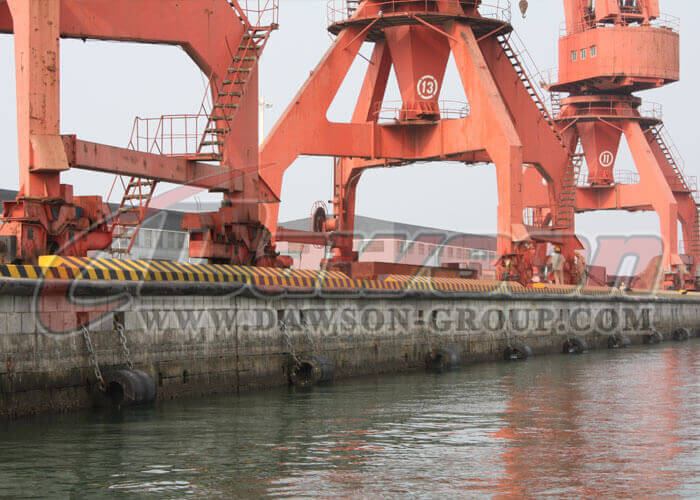

Application of DD Type Rubber Fender:
