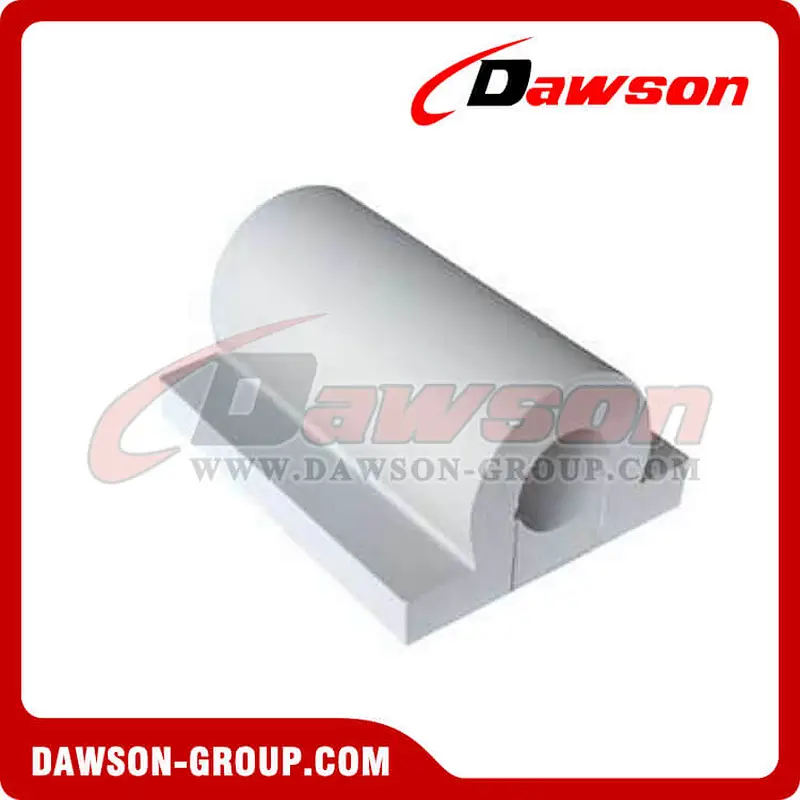

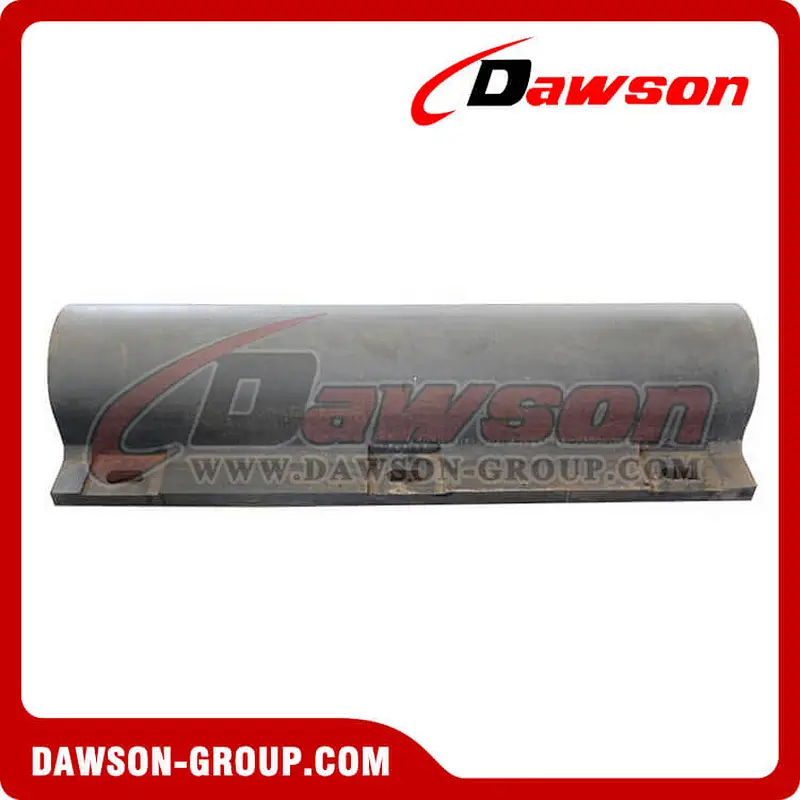

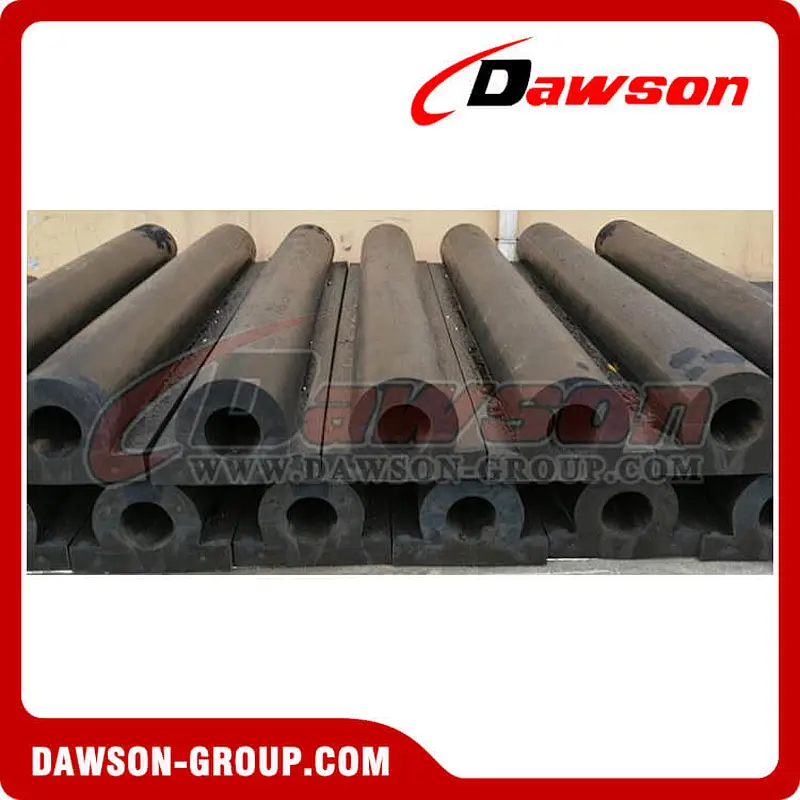

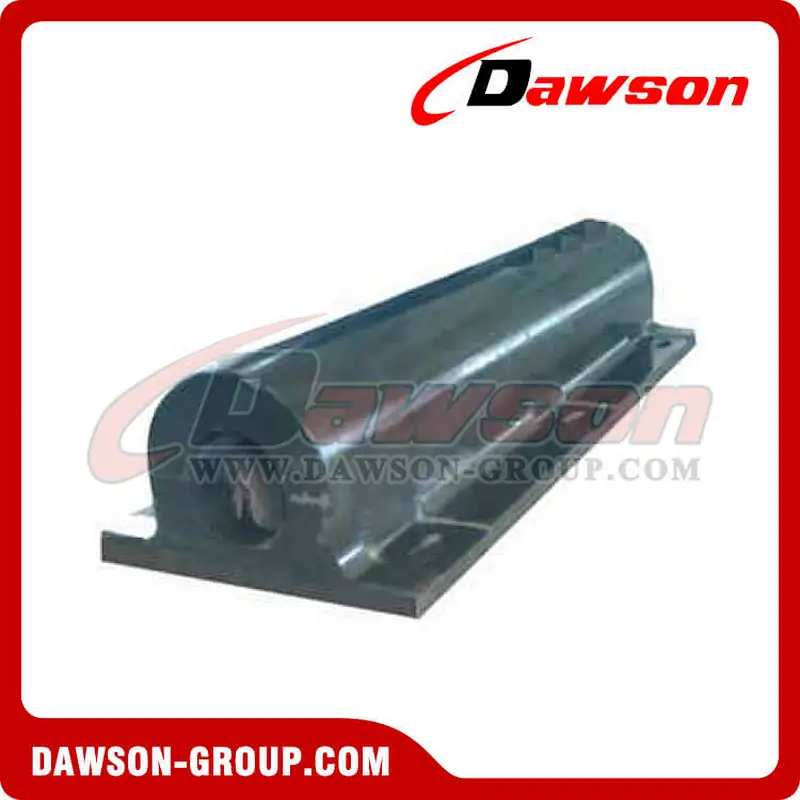

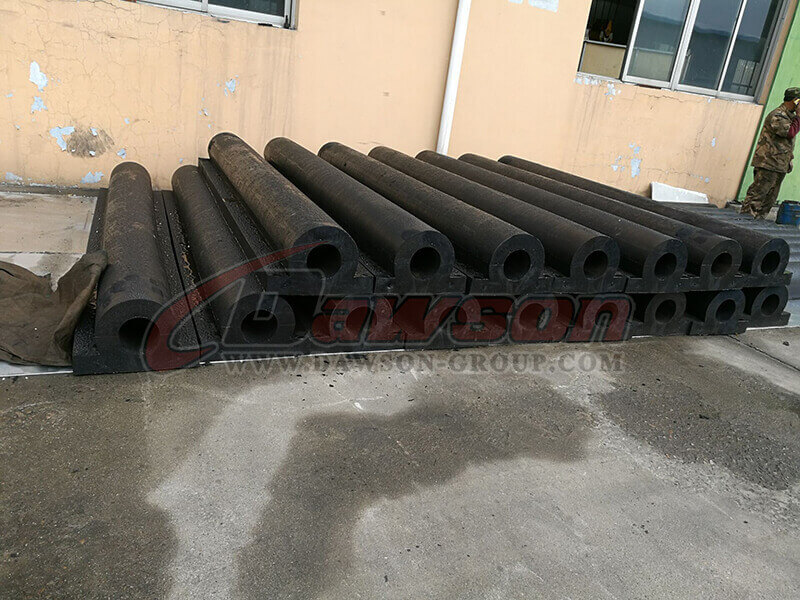

DS-GD Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature
1. GD type rubber fender is a new type fender on the basis of D type fender innovation, GD type fender enlarge fender bottom width and pre-built-in steel plate mount, it can be fixed with double bolts, the strength of installation and utility life is much more improved than D type fender.
2. Higher reaction force and energy absorption than D type fender.
3. It applies for frame style dock, and easily installation and repair.
Performance:

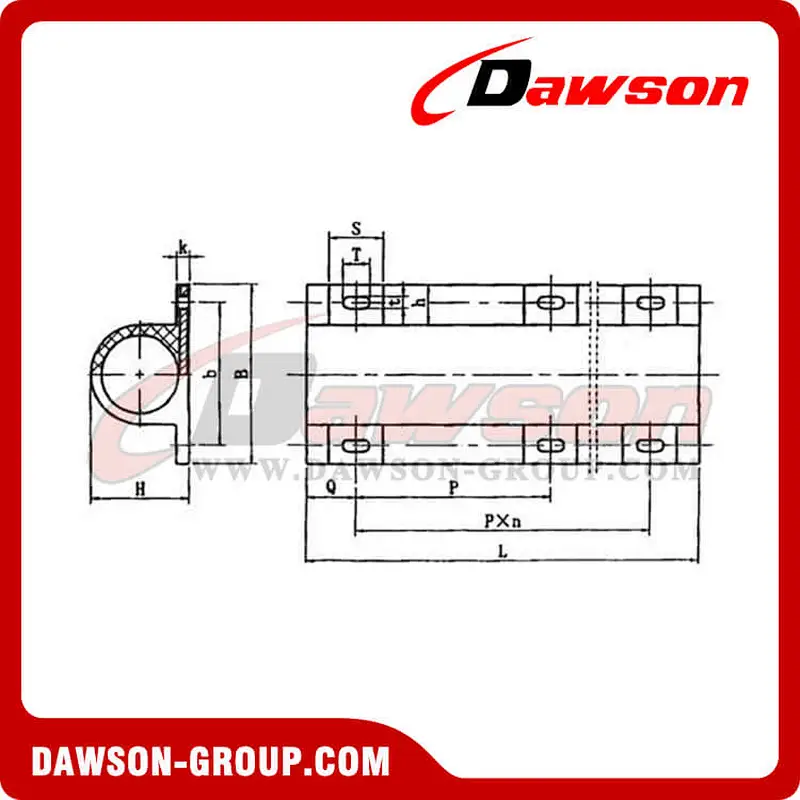

| specification | Sizes | |||||||||||
| H | B | b | L | Q | p | S | h | T | t | k | n | |
| GD300x540x1000 | 300 | 540 | 430 | 1000 | 150 | 700 | 165 | 120 | 82 | 41 | 40 | 2 |
| GD300x540x1500 | 300 | 540 | 430 | 1500 | 150 | 600 | 165 | 120 | 82 | 41 | 40 | 3 |
| GD300x540x2000 | 300 | 540 | 430 | 2000 | 145 | 570 | 165 | 120 | 82 | 41 | 40 | 4 |
| GD300x540x2500 | 300 | 540 | 430 | 2500 | 150 | 550 | 165 | 120 | 82 | 41 | 40 | 5 |
| GD300x540x3000 | 300 | 540 | 430 | 3000 | 150 | 540 | 165 | 120 | 82 | 41 | 40 | 6 |
| GD300x600x1000 | 300 | 600 | 490 | 1000 | 150 | 700 | 165 | 120 | 82 | 41 | 40 | 2 |
| GD300x600x1500 | 300 | 600 | 490 | 1500 | 150 | 600 | 165 | 120 | 82 | 41 | 40 | 3 |
| GD300x600x2000 | 300 | 600 | 490 | 2000 | 145 | 570 | 165 | 120 | 82 | 41 | 40 | 4 |
| GD300x600x2500 | 300 | 600 | 490 | 2500 | 150 | 550 | 165 | 120 | 82 | 41 | 40 | 5 |
| GD300x600x3000 | 300 | 600 | 490 | 3000 | 150 | 540 | 165 | 120 | 82 | 41 | 40 | 6 |
Note
Performance tolerance:±10%
Other length fender dynamic performance, multiple on the basis of 1000 length.
| specification | Dynamic performance | |||
| Rated compression deflection(%) | Reaction force(KN) | Energy absorb(KN-M) | tolerance(%) | |
| GD300x540x1000 | 50 | 475 | 17 | ±10% |
| GD300x600x1000 | 495 | 20 | ||
Related Products :

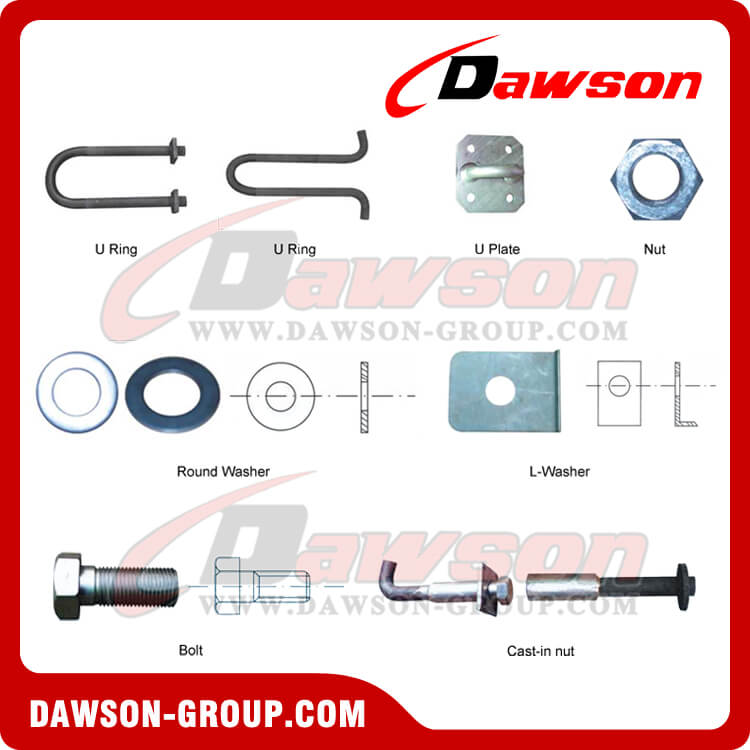

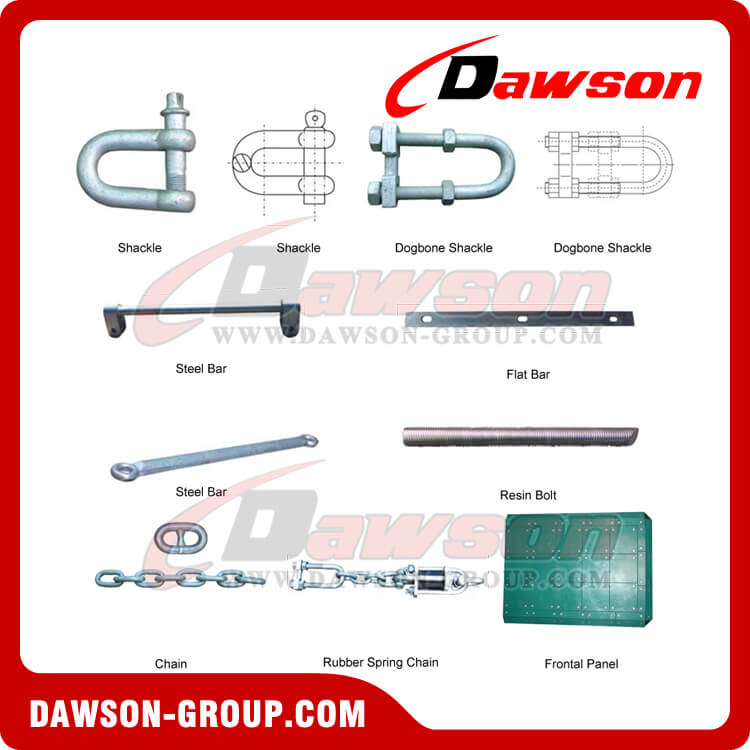

Accessories for Rubber Fenders:

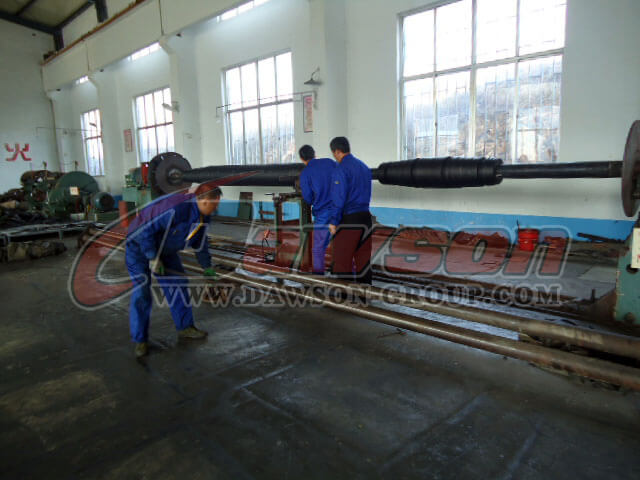

Equipments:

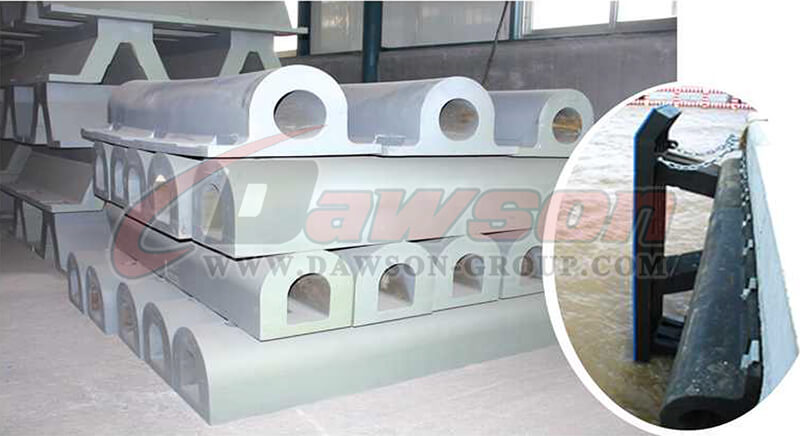

Application of GD Type Rubber Fender:
