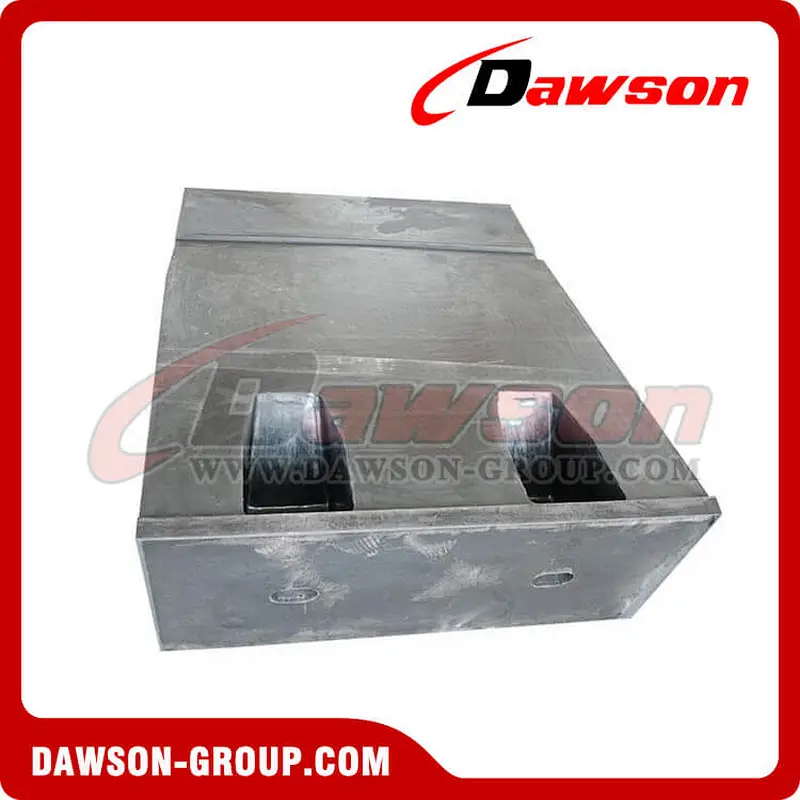

DS-ME Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature
1. ME type rubber fender has low reaction force and high energy absorption.
2. The fenders can be combined to different types and sizes of fender system for required performance.
3. Optimum performance can be achieved at perpendicular or angular compression.
Performance:

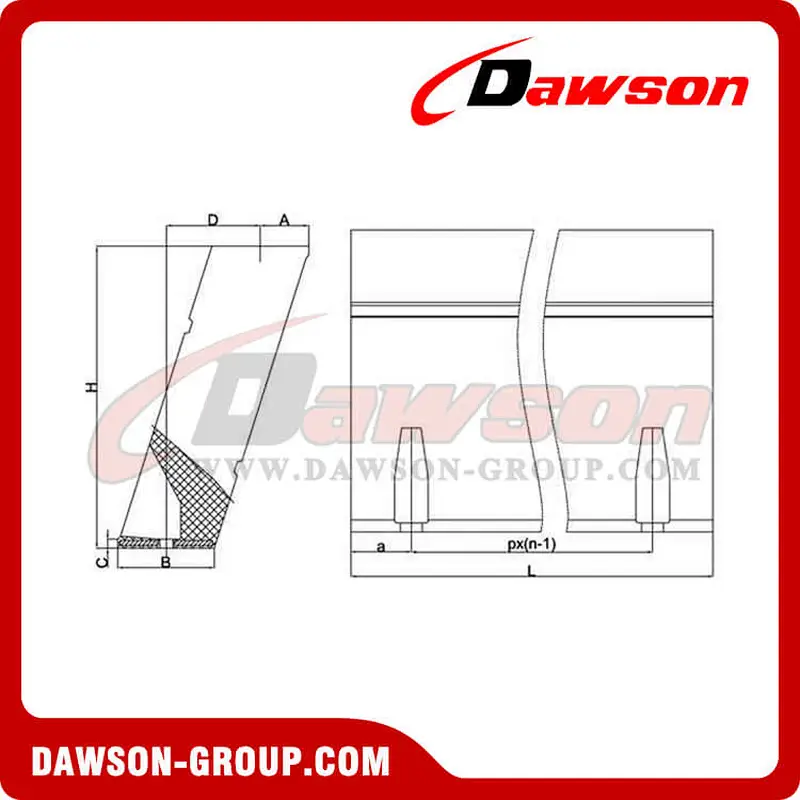

| Type | Main specification(mm) | |||||||||
| H | A | B | C | D | L | a | p | n | Md | |
| ME300 | 300 | 47 | 94 | 15 | 94 | 2000 | 250 | 500 | 4 | M20 |
| ME400 | 400 | 63 | 125 | 17 | 124 | 2000 | 250 | 500 | 4 | M24 |
| ME500 | 500 | 87 | 158 | 20 | 142 | 2000 | 250 | 500 | 4 | M30 |
| ME550 | 550 | 87 | 172 | 20 | 170 | 2000 | 250 | 500 | 4 | M30 |
| ME600 | 600 | 87 | 188 | 20 | 199 | 2000 | 250 | 500 | 4 | M30 |
| ME750 | 750 | 118 | 235 | 26 | 230 | 2000 | 250 | 500 | 4 | M36 |
| ME800 | 800 | 129 | 250 | 26 | 240 | 2000 | 250 | 500 | 4 | M36 |
| ME1000 | 1000 | 162 | 322 | 31 | 310 | 2000 | 250 | 500 | 4 | M42 |
| ME1250 | 1250 | 202 | 401 | 36 | 388 | 2000 | 250 | 500 | 4 | M48 |
| ME1450 | 1450 | 228 | 454 | 41 | 454 | 2000 | 250 | 500 | 4 | M48 |
| ME1600 | 1600 | 257 | 500 | 50 | 480 | 2000 | 250 | 500 | 4 | M56 |
Note
(1)Fender length is 900, 1000, 1500, 2000mm
(2)Other specification can be manufactured upon users’ request.
| specification | Dynamic performance | |||||
| Rated compression deflection(%) | Standard reaction force RO | Super high reaction force RH | tolerance(%) | |||
| Reaction force(KN) | Energy absorb(KN-M) | Reaction force(KN) | Energy absorb(KN-M) | |||
| ME300 | 57.5 | 110 | 15 | 161 | 22 | ±10 |
| ME400 | 150 | 27 | 214 | 39 | ||
| ME500 | 187 | 43 | 267 | 61 | ||
| ME550 | 206 | 52 | 294 | 75 | ||
| ME600 | 224 | 62 | 320 | 89 | ||
| ME750 | 282 | 96 | 402 | 127 | ||
| ME800 | 299 | 110 | 428 | 157 | ||
| ME1000 | 374 | 172 | 534 | 245 | ||
| ME1250 | 467 | 268 | 667 | 383 | ||
| ME1450 | 543 | 361 | 775 | 516 | ||
| ME1600 | 299 | 440 | 855 | 628 | ||
Note:Fender length is 1000mm.

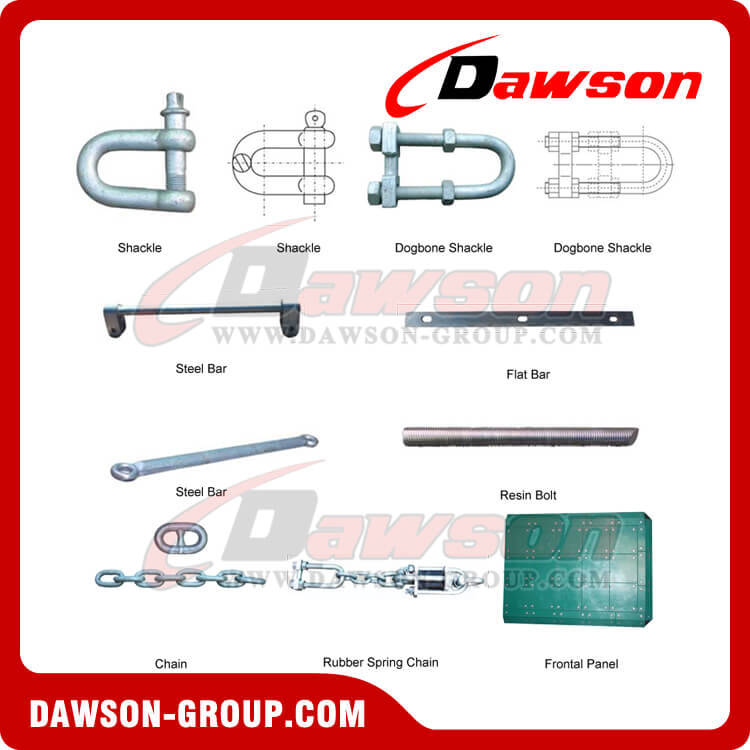

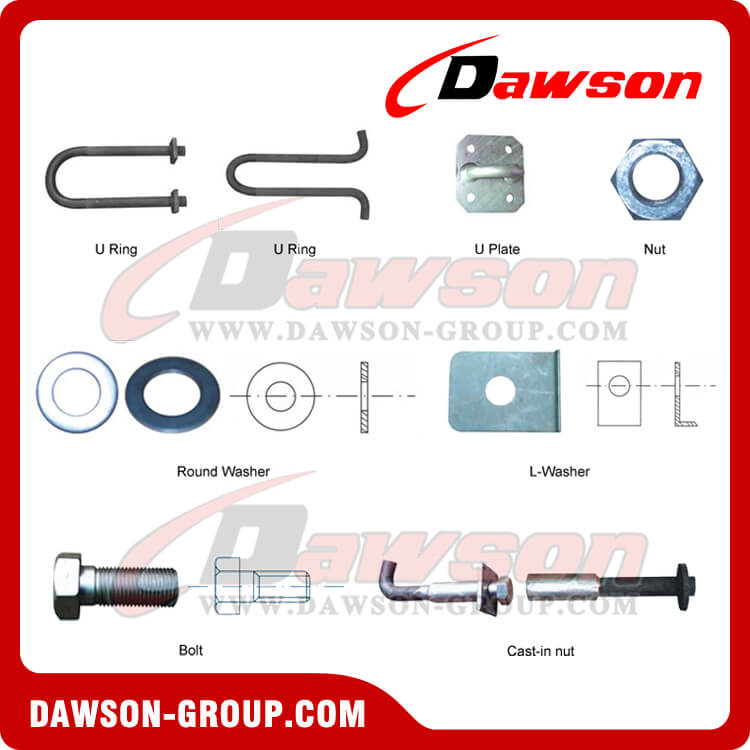

Accessories for Rubber Fenders:

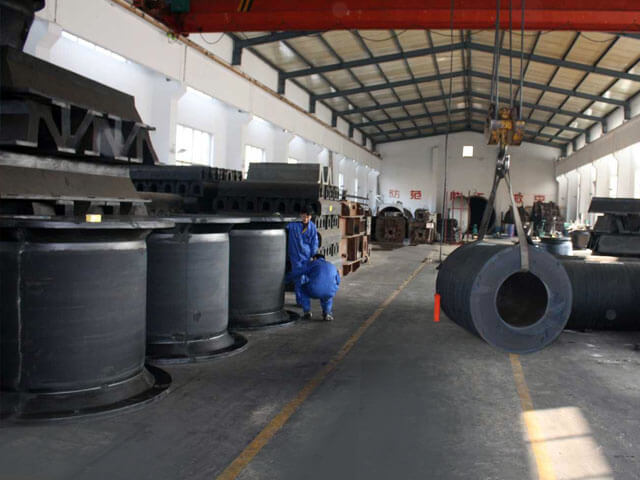

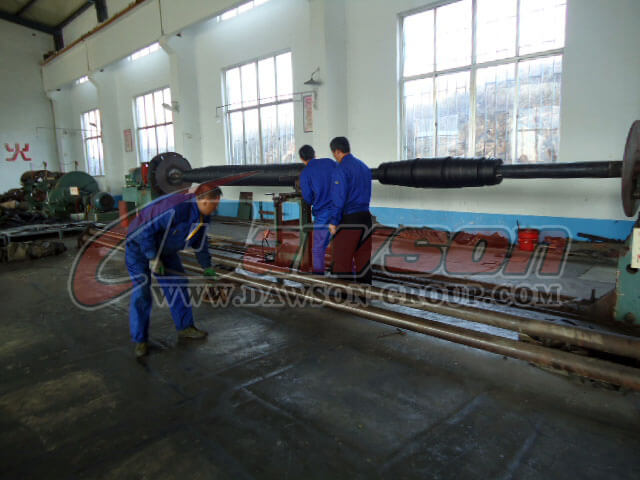

Equipments:

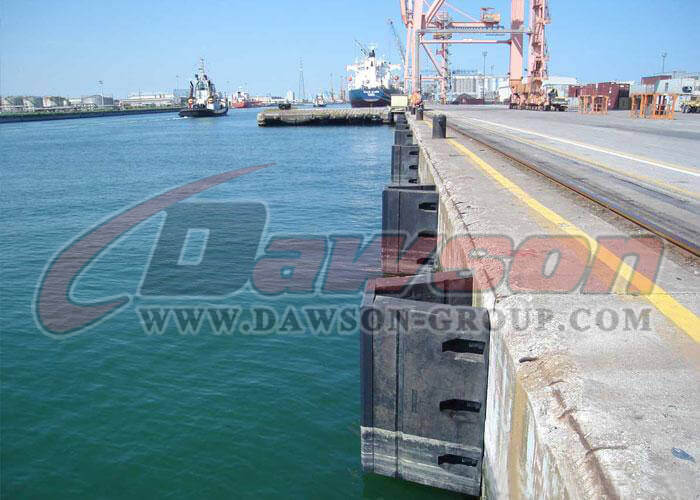

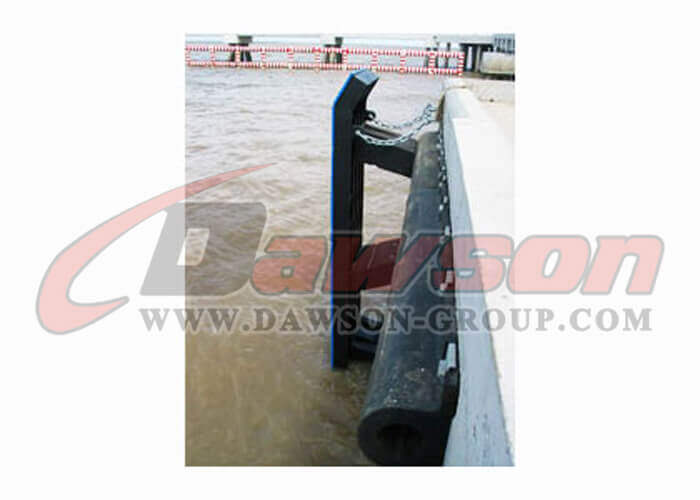

Application of ME Type Rubber Fender:
