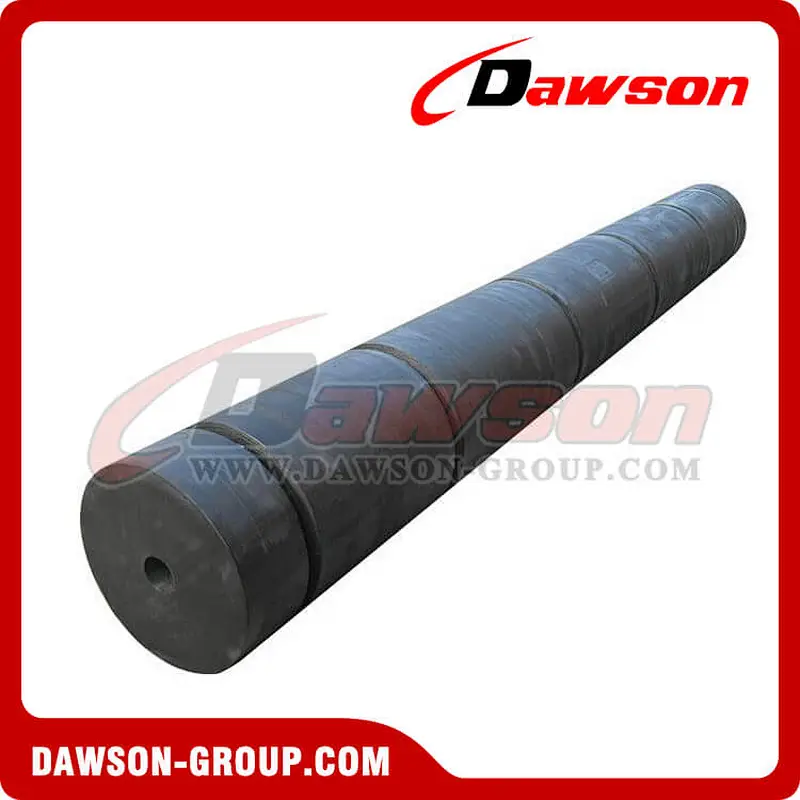

DS-Tug Rubber Fender for Ship
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature:
DS- TUG rubber fenders are used in all kinds of tug ship, go in for pushing, standing, stretching, and learning etc operation. Tug rubber fender adopt. Completely vulcanization technology, good performance, long life utility, easily installed.

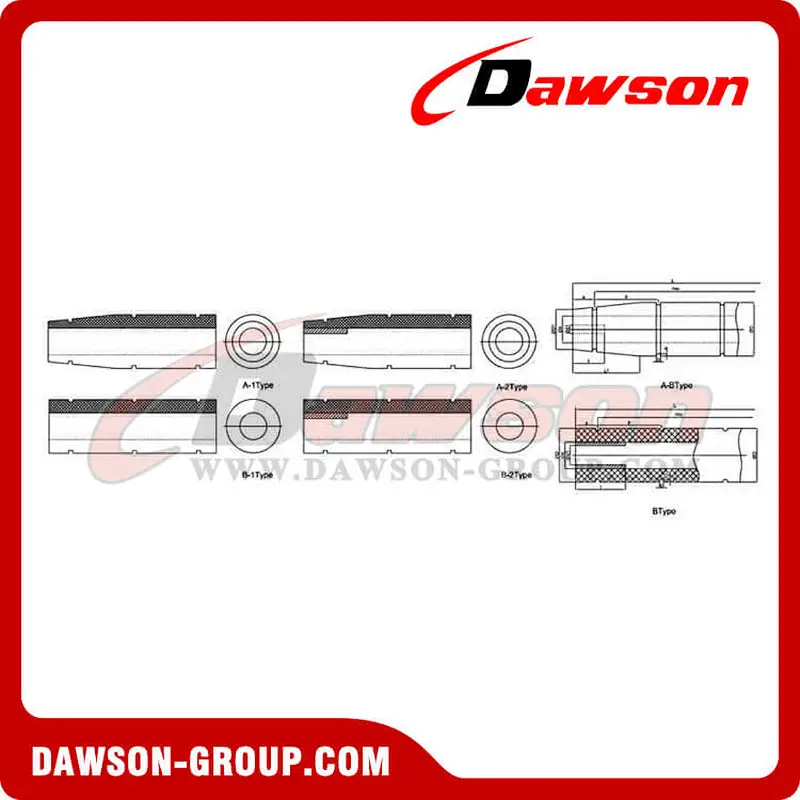

A-B type series norms and sizes
| A-B norms and sizes | a | p | n | b | C | D | D’ | d | d | L | l | l |
| ∮500x∮400x∮250x∮100x∮16000L | 500 | 1000 | 15 | 60 | 40 | 500 | 400 | 250 | 100 | 16000 | 450 | 1000 |
| ∮700x∮600x∮350x∮100x∮14000L | 370 | 780 | 17 | 60 | 40 | 700 | 600 | 350 | 100 | 14000 | 450 | 1000 |
B type series norms and sizes
| Norms and sizes | b | c | ∮D | ∮d | ∮d1 | l |
| ∮300x∮150xL | 50 | 25 | 300 | 150 | ||
| ∮300x∮100xL | 50 | 25 | 300 | 100 | ||
| ∮400x∮200xL | 50 | 35 | 400 | 200 | 300 | |
| ∮400x∮150xL | 50 | 35 | 400 | 150 | 100 | |
| ∮400x∮100xL | 50 | 35 | 400 | 100 | ||
| ∮500x∮250xL | 60 | 40 | 500 | 250 | 350 | |
| ∮500x∮220xL | 60 | 40 | 500 | 220 | 100 | 350 |
| ∮500x∮200xL | 60 | 40 | 500 | 100 | 100 | 350 |
| ∮500x∮150xL | 60 | 40 | 500 | 150 | 100 | |
| ∮500x∮100xL | 60 | 40 | 500 | 100 | ||
| ∮600x∮300xL | 60 | 35 | 600 | 300 | 400 | |
| ∮600x∮250xL | 60 | 50 | 600 | 250 | 100 | 400 |
| ∮600x∮220xL | 60 | 50 | 600 | 220 | 100 | 400 |
| ∮600x∮200xL | 60 | 50 | 600 | 200 | 100 | 400 |
| ∮600x∮150xL | 60 | 50 | 600 | 150 | 100 | |
| ∮600x∮100xL | 60 | 50 | 600 | 100 | ||
| ∮700x∮350xL | 60 | 50 | 700 | 350 | 450 | |
| ∮700x∮300xL | 60 | 50 | 700 | 300 | 100 | 400 |
| ∮700x∮250xL | 60 | 50 | 700 | 250 | 100 | 400 |
| ∮700x∮220xL | 60 | 50 | 700 | 220 | 100 | 400 |
| ∮700x∮200xL | 60 | 50 | 700 | 200 | 100 | 400 |
| ∮700x∮150xL | 60 | 50 | 700 | 150 | 100 | |
| ∮800x∮400xL | 70 | 50 | 800 | 400 | 450 | 450 |
| ∮800x∮350xL | 70 | 60 | 800 | 350 | 100 | 450 |
| ∮800x∮300xL | 70 | 60 | 800 | 300 | 100 | 450 |
| ∮800x∮250xL | 70 | 60 | 800 | 250 | 100 | 400 |
| ∮800x∮220xL | 70 | 60 | 800 | 220 | 100 | 400 |
| ∮800x∮200xL | 70 | 60 | 800 | 200 | 100 | |
| ∮800x∮150xL | 70 | 60 | 800 | 150 | 100 | |
| ∮900x∮450xL | 70 | 50 | 900 | 450 | 500 | 500 |
| ∮900x∮400xL | 70 | 50 | 900 | 400 | 100 | 500 |
| ∮900x∮350xL | 70 | 50 | 900 | 350 | 100 | |
| ∮900x∮220xL | 70 | 50 | 900 | 220 | 100 |
Note
Other specification can be manufactured upon Users’ request.

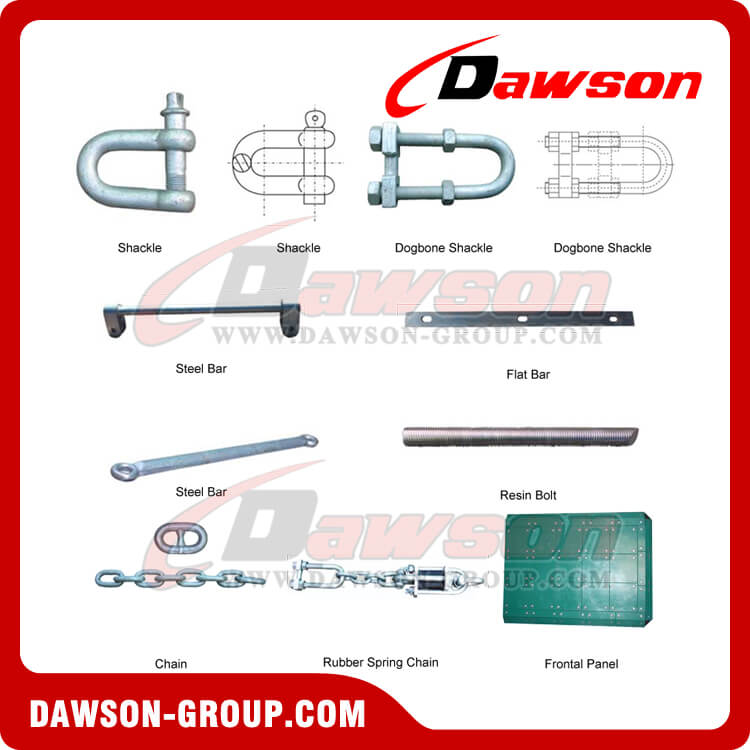

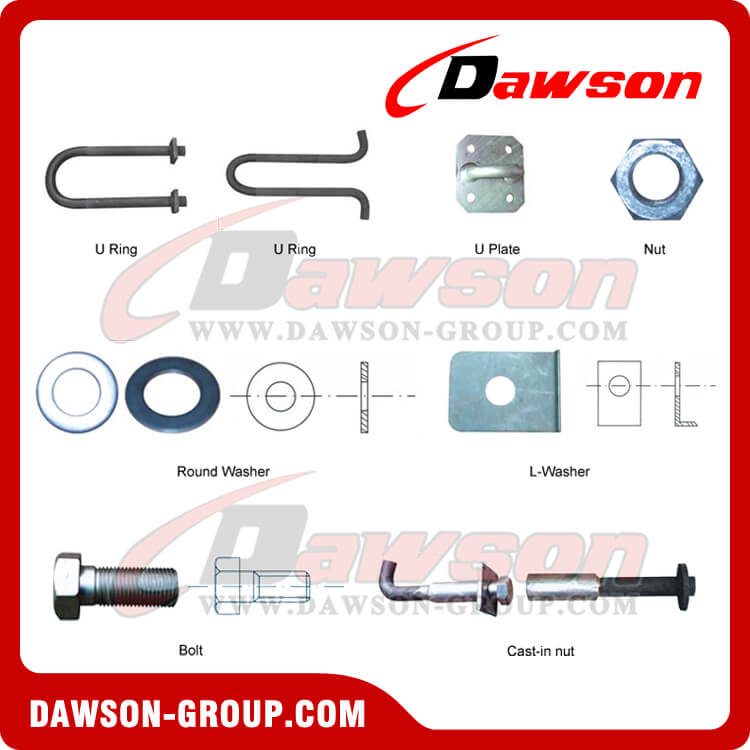

Accessories for Rubber Fenders:

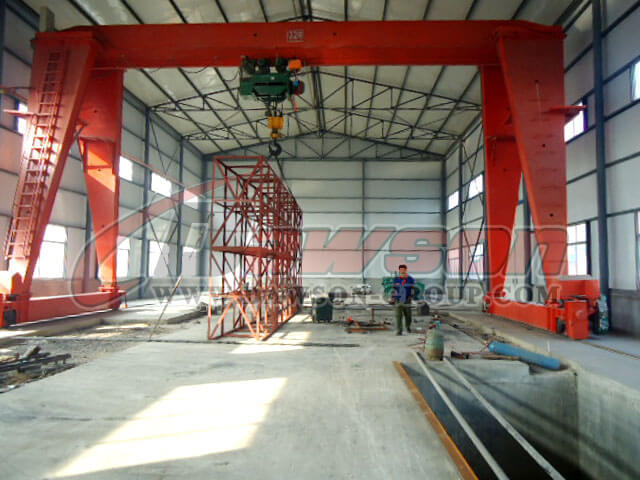

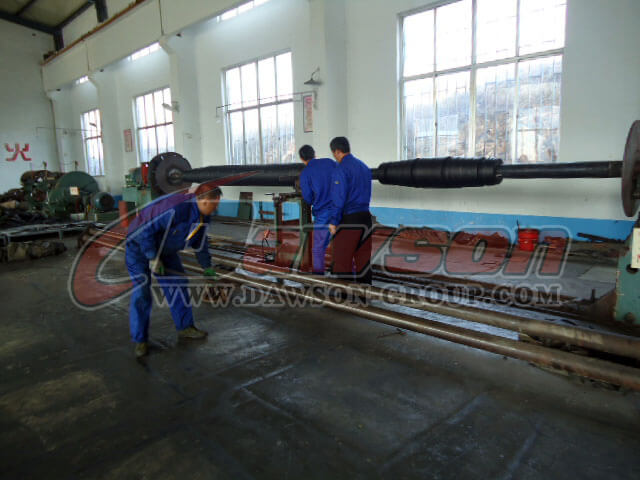

Equipments:

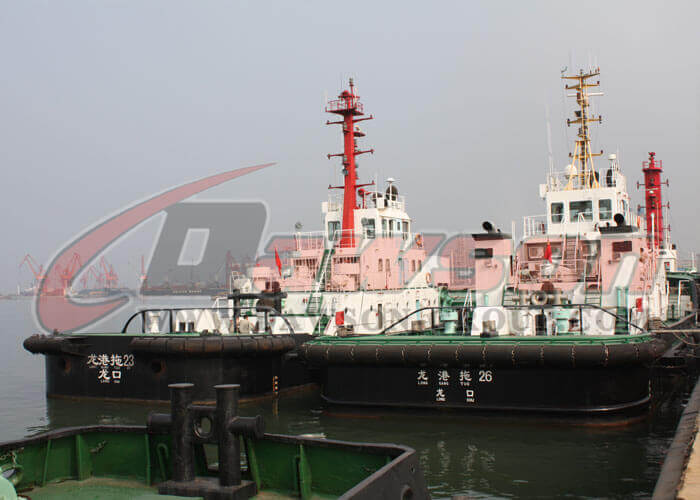

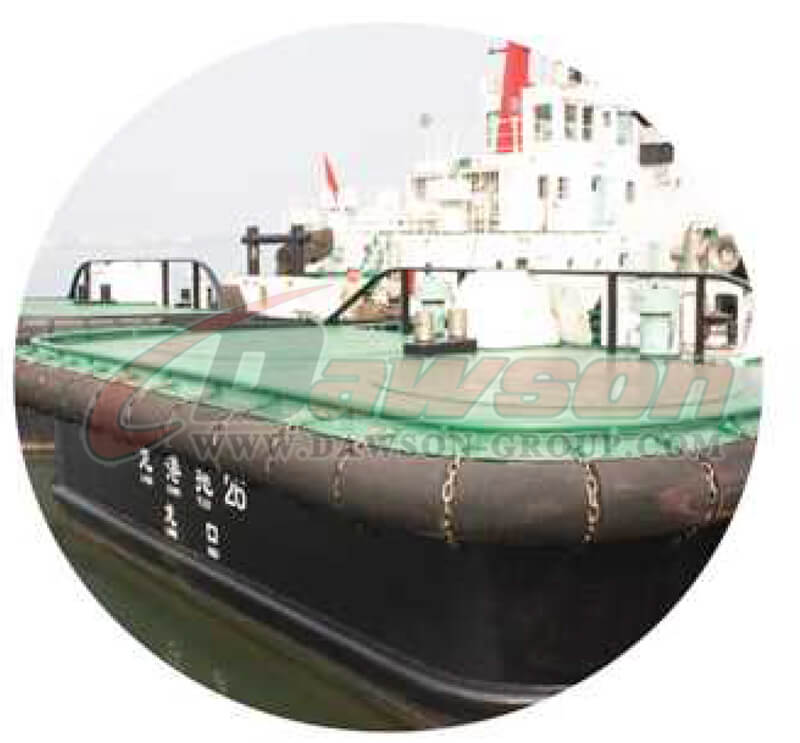

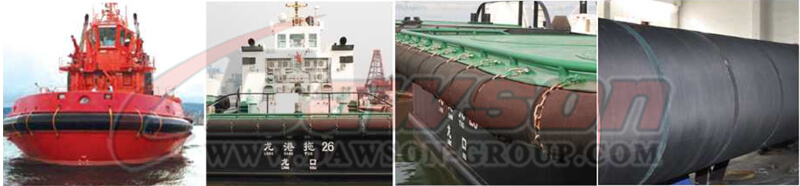

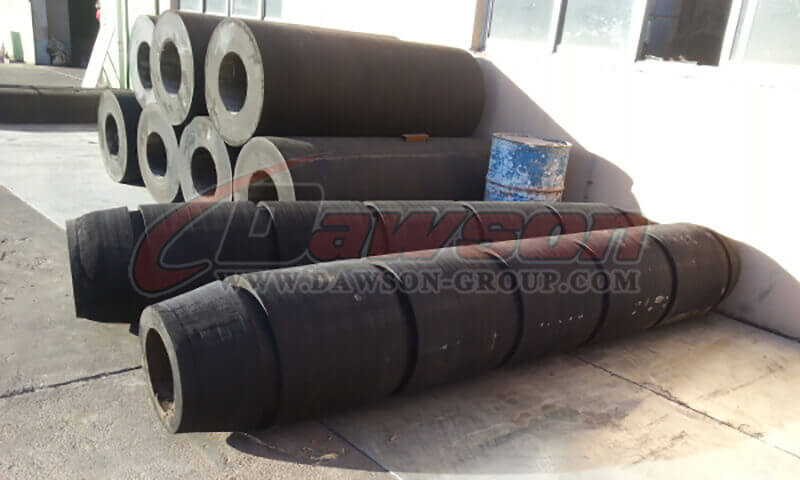

Application of Tug Rubber Fender:
