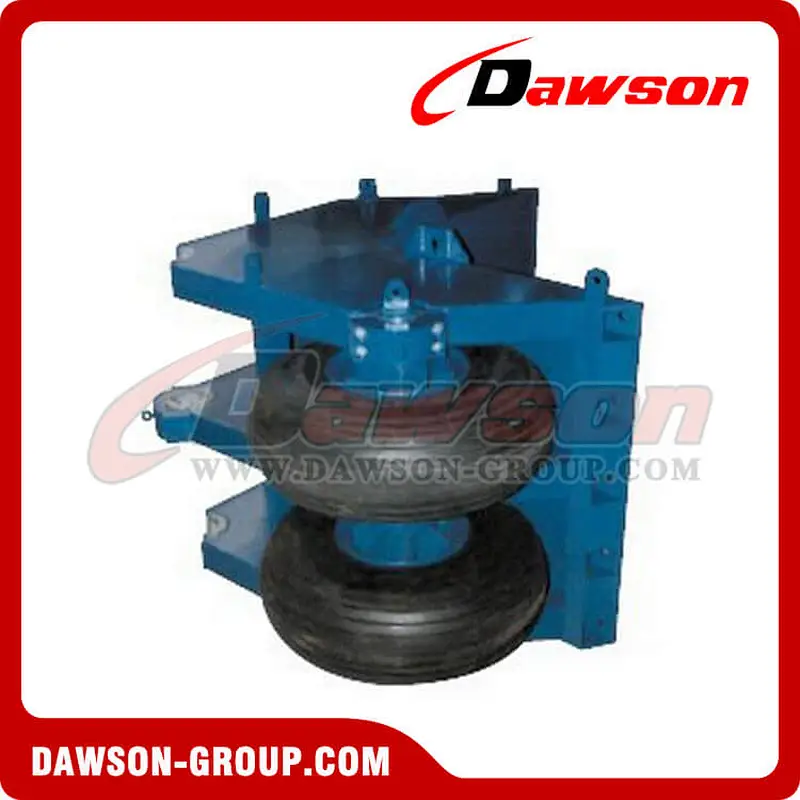

DS-ZD Roller Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature
1. Roller type rubber fender main character: fender can roll with fender remove, and generate a certain deformation.
2. Roller type fender mainly used in dock, water lock, different limitation water channel, and dock. Sticking out corner etc.

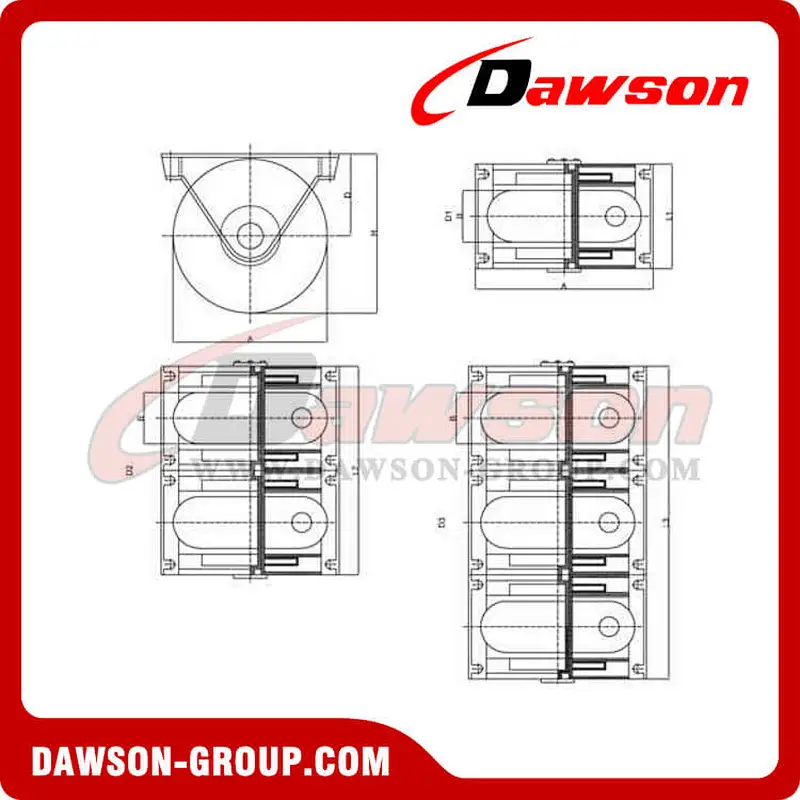

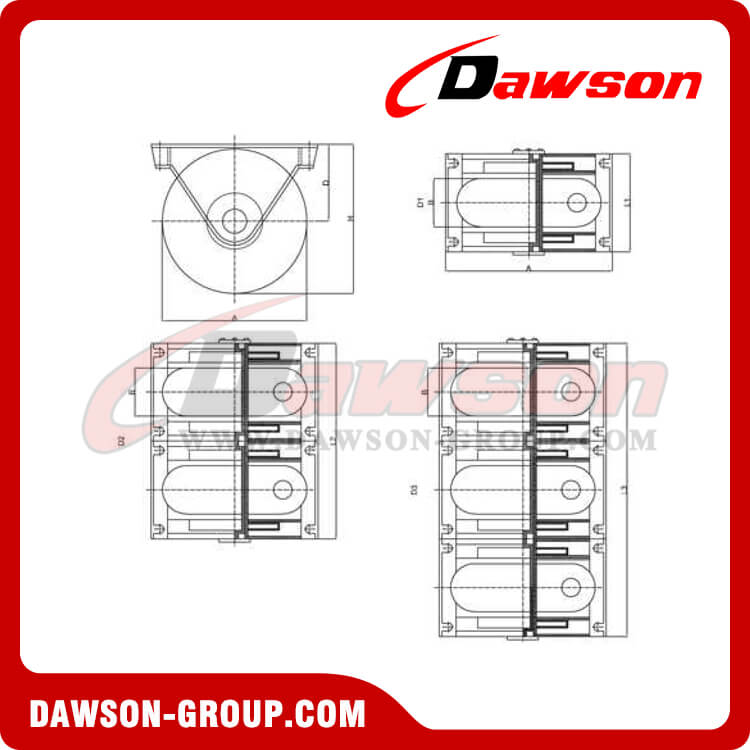

Specifaction
| Type | Z1 | Z2 | Z3 | note | ||||||||
| A | B | C | D | L1 | H | Weight | L2 | Weight | L3 | Weight | ||
| 600x200 | 600 | 200 | 695 | 320 | 420 | 620 | 127 | 770 | 245 | 1120 | 365 | Other non-series Specification Can be manufactured upon Users’ request. |
| 750x250 | 750 | 250 | 870 | 400 | 510 | 775 | 249 | 935 | 501 | 1360 | 735 | |
| 900x300 | 900 | 300 | 1040 | 480 | 610 | 930 | 465 | 1120 | 878 | 1630 | 1291 | |
| 1200x400 | 1200 | 400 | 1380 | 640 | 820 | 1240 | 1045 | 1500 | 2041 | 2180 | 3005 | |
| 1500x500 | 1500 | 500 | 1740 | 800 | 1010 | 1550 | 2011 | 1850 | 3915 | 2690 | 5784 | |
| 1800x600 | 1800 | 600 | 2080 | 960 | 1210 | 1860 | 3441 | 2215 | 6701 | 3220 | 9891 | |
| 2100x700 | 2100 | 700 | 2550 | 1155 | 1410 | 2205 | 5610 | 2590 | 10925 | 3770 | 15895 | |
| 2400x800 | 2400 | 800 | 2770 | 1280 | 1610 | 2480 | 8115 | 2950 | 15701 | 4290 | 23300 | |
Performance
| AxB (mm) Spec. | Max. Deform (mm) | Z1 | Z2 | Z3 | tolerance(%) | |||
| Reaction Force (KN) | Energy absorb (KN-M) | Reaction Force (KN) | Energy absorb (KN-M) | Reaction Force (KN) | Energy absorb (KN-M) | |||
| 600x200 | 125 | 67 | 2 | 134 | 5 | 202 | 7 | ±10 |
| 750x250 | 159 | 105 | 5 | 210 | 9 | 315 | 14 | |
| 930x300 | 185 | 151 | 8 | 302 | 16 | 453 | 24 | |
| 1200x400 | 260 | 269 | 19 | 539 | 39 | 814 | 58 | |
| 1500x500 | 325 | 419 | 38 | 843 | 76 | 1264 | 113 | |
| 1800x600 | 390 | 608 | 65 | 1215 | 130 | 1823 | 196 | |
| 2100x700 | 455 | 823 | 102 | 1647 | 20 | 2470 | 306 | |
| Spec. (mm) | A (mm) | B (mm) | Max. Deform (mm) | Z1 | Z2 | Z3 | tolerance(%) | |||
| Reaction Force (KN) | Energy absorb (KN-M) | Reaction Force (KN) | Energy absorb (KN-M) | Reaction Force (KN) | Energy absorb (KN-M) | |||||
| 1200x400 | 1200 | 400 | 431 | 248 | 48 | 496 | 96 | 744 | 144 | ±10 |
| 1500x500 | 1500 | 500 | 541 | 388 | 94 | 776 | 187 | 1166 | 281 | |
| 1800x600 | 1800 | 600 | 650 | 559 | 162 | 117 | 323 | 1676 | 485 | |
| 2100x700 | 2100 | 700 | 762 | 761 | 257 | 1519 | 514 | 2283 | 770 | |
| 2400x800 | 2400 | 800 | 851 | 990 | 383 | 1980 | 766 | 2969 | 1147 | |

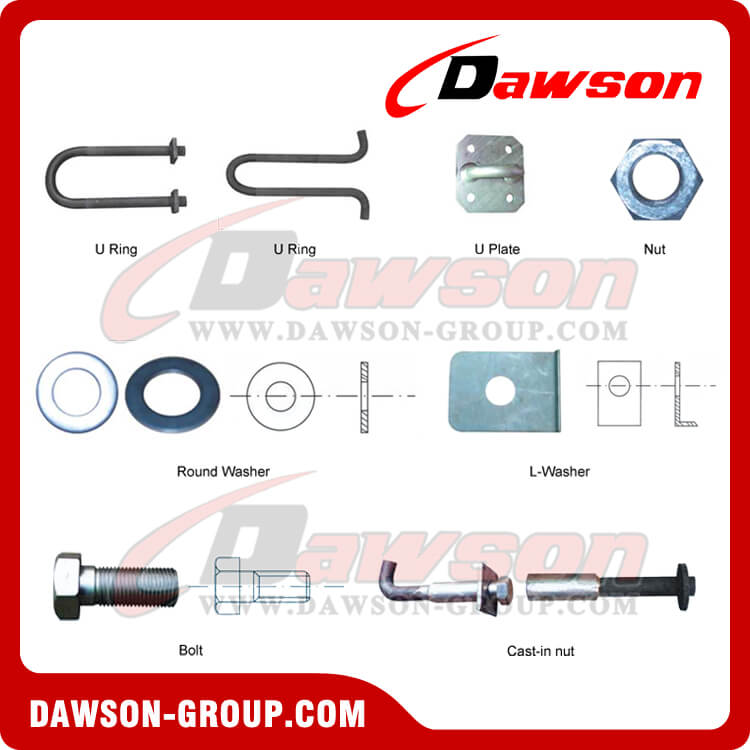

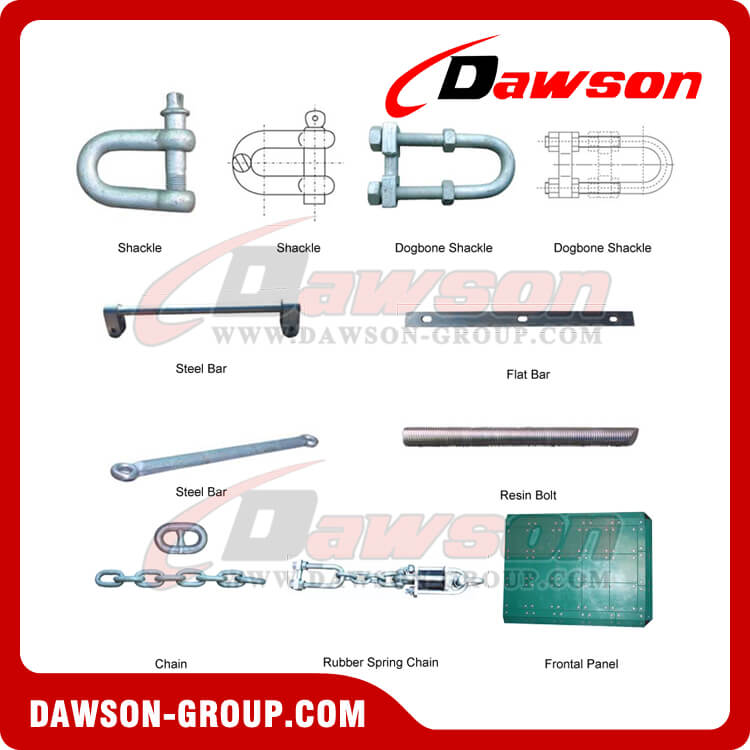

Accessories for Rubber Fenders:

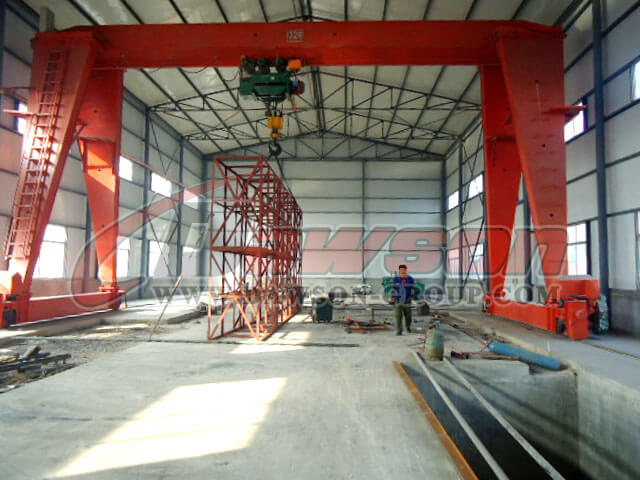

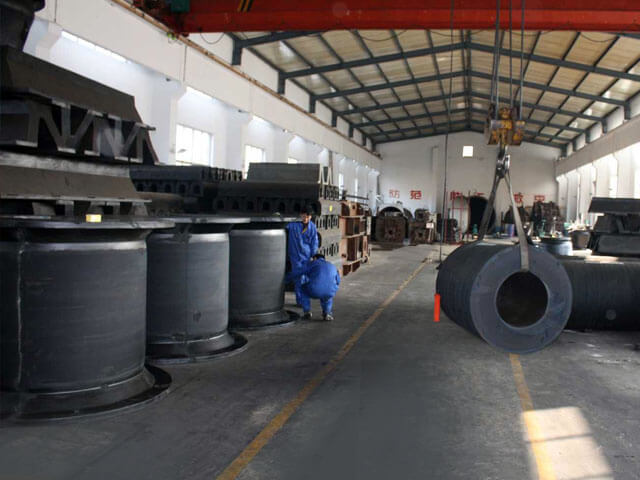

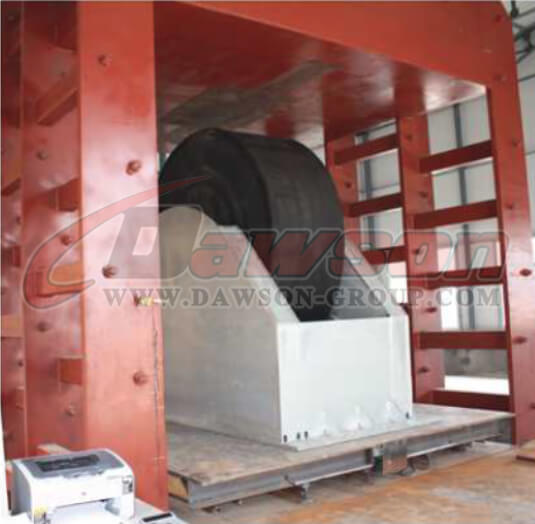

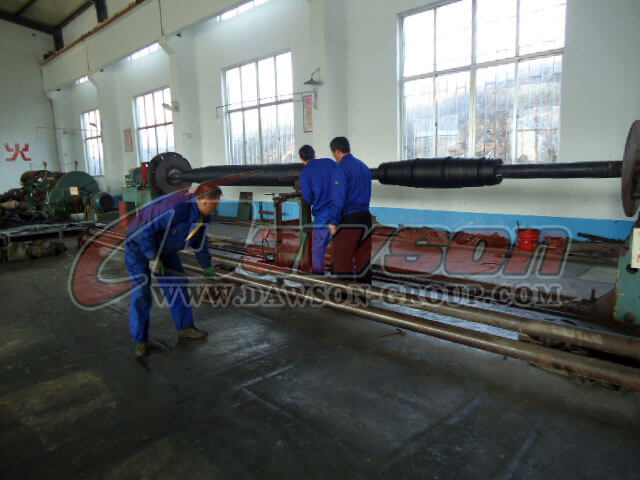

Equipments:
Application of Roller Type Rubber Fender:
