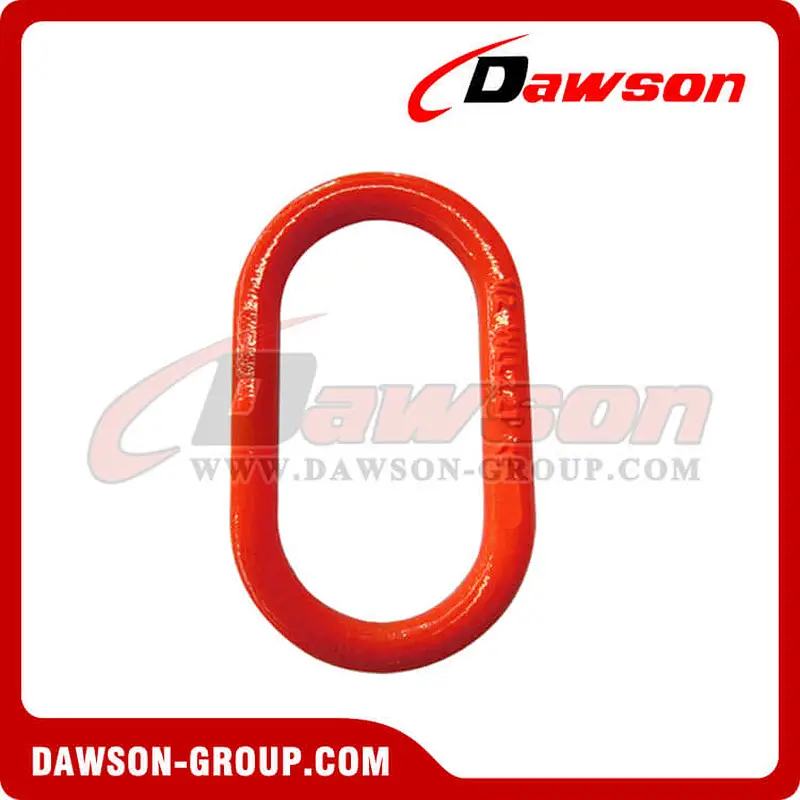

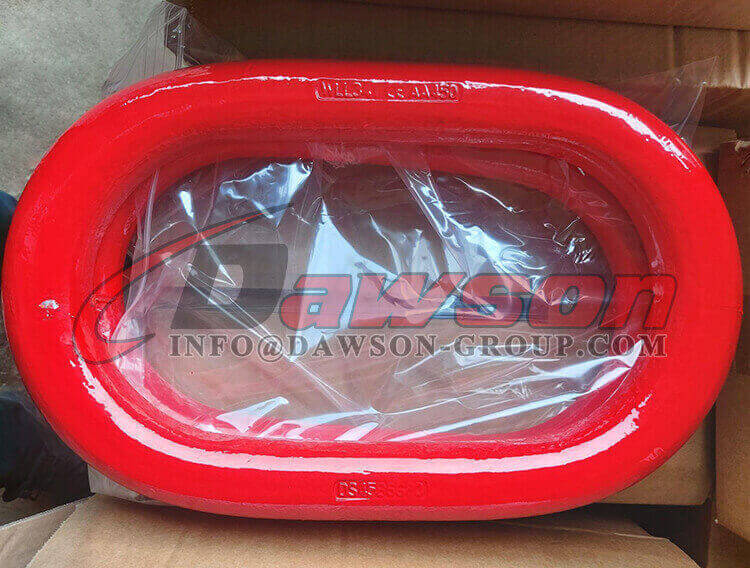

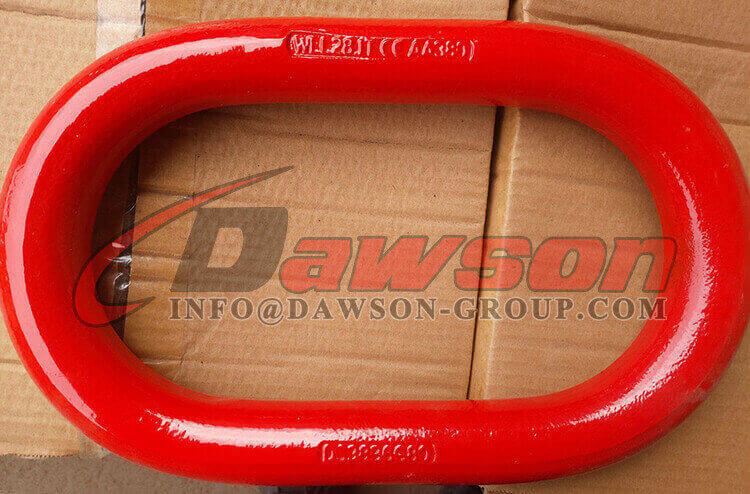

G80 / Grade 80 U.S. Type A-342 Forged Master Link for Chain Lifting Slings / Wire Rope Slings
G80 U.S. Type Forged Master Link For Wire Rope Slings
- Dawson China
Forged super alloy steel-Quenched and Temered.
Individually proof tested at 2.5 times Working Load Limit.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
All sizes are forged.
Red area: WLL

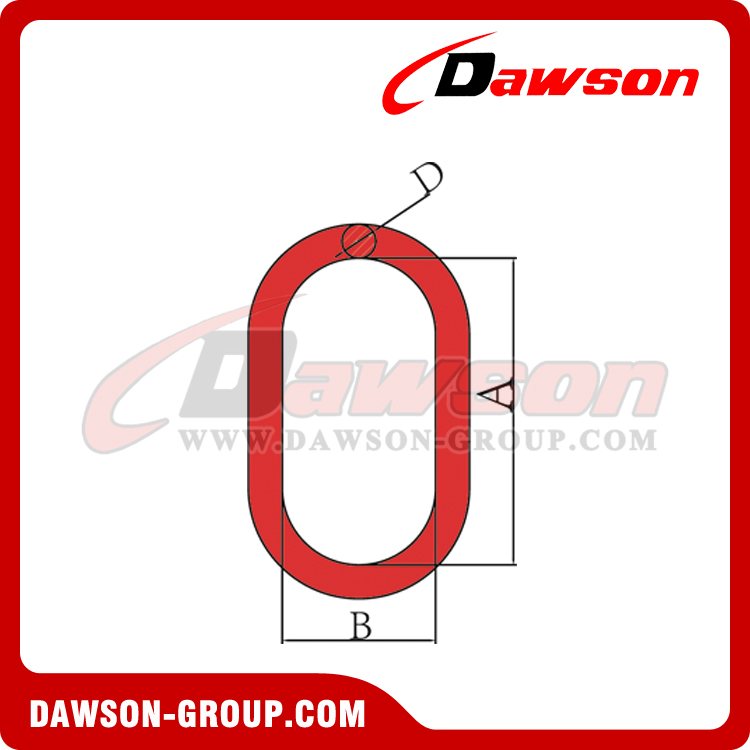

| Item No. | Weight kg | G80 Chain | WLL 1 Leg(T) | WLL 2 leg 0-45°(T) | WLL Rope(T) | A | B | D |
| 8-DS091-1/2 | 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127 | 63.5 | 13 |
| 5/16 | 2 | 2.8 | ||||||
| 8-DS091-5/8 | 0.7 | 5/16 | 2 | 2.8 | 4 | 152 | 76 | 16 |
| 3/8 | 3.15 | - | ||||||
| 8-DS091-3/4 | 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140 | 70 | 19 |
| 8-DS091-7/8 | 1.5 | 3/8 | 3.15 | 4.25 | 6.9 | 160 | 90 | 22 |
| 1/2 | 5.3 | - | ||||||
| 8-DS091-1 | 2.1 | 1/2 | 5.3 | 7.5 | 11.8 | 178 | 89 | 25 |
| 5/8 | 8 | 11.2 | ||||||
| 8-DS091-1-1/4 | 4.24 | 5/8 | 8 | 11.2 | 17.7 | 222 | 111 | 32 |
| 3/4 | 11.2 | 16 | ||||||
| 8-DS091-1-1/2 | 7.17 | 3/4 | 11.2 | 16 | 27.7 | 267 | 135 | 38 |
| 7/8 | 15 | 21.2 | ||||||
| 8-DS091-1-3/4 | 11.55 | 7/8 | 15 | 21.2 | 38.5 | 305 | 152 | 45 |
| 1 | 21.2 | - | ||||||
| 8-DS091-2 | 17.2 | 1 | 21.2 | 30 | 46.5 | 355 | 178 | 51 |
| 1 1/4 | 31.5 | - | ||||||
| 8-DS091-2-1/4 | 24.5 | 1 1/4 | 31.5 | 45 | 64.9 | 406 | 203 | 57 |
| 8-DS091-2-1/2 | 30.9 | - | - | - | 72.6 | 406 | 203 | 63.5 |
| 8-DS091-2-3/4 | 39.5 | - | - | - | 98.4 | 406 | 241 | 70 |
| 8-DS091-3 | 50.34 | - | - | - | 103 | 457 | 228 | 76 |
| 8-DS091-3-1/4 | 65.68 | - | - | - | 119 | 508 | 254 | 82.5 |
| 8-DS091-3-1/2 | 90.24 | - | - | - | 126 | 610 | 305 | 89 |
| 8-DS091-3-3/4 | 89.27 | - | - | - | 152 | 508 | 254 | 95 |
| 8-DS091-4 | 103.43 | - | - | - | 169 | 508 | 254 | 102 |
| 8-DS091-4-1/4 | 137 | - | - | - | 176 | 610 | 305 | 108 |
| 8-DS091-4-1/2 | 178 | - | - | - | 184 | 710 | 355 | 115 |
| 8-DS091-4-3/4 | 196 | - | - | - | 206 | 710 | 355 | 120 |
| 8-DS091-5 | 234 | - | - | - | 226 | 760 | 380 | 127 |
All SIZES: there will be pressing flat only on request.
For chain slings: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON g80 US Type Forged Master Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Hot Tags: Master Link, G80 Master Link, Grade 80 Master Link, US Type Master Link, G80 US Type Master Link, China Master Link for Wire Rope Slings, Grade 80 Welded Master Link, Forged Master Link China Supplier, Forged Master Link Factory China, Low Price A-342 Master Link, Buy Discount Forged Master Link, Cheap Price Forged Master Link, Hot Sale Welded Master Link, Forged Master Link In Stock, Wholesale Forged Master Link, China Forged Master Link Manufacturer, Forged Master Link for Wire Rope Lifting Slings, Forged Steel Master Link

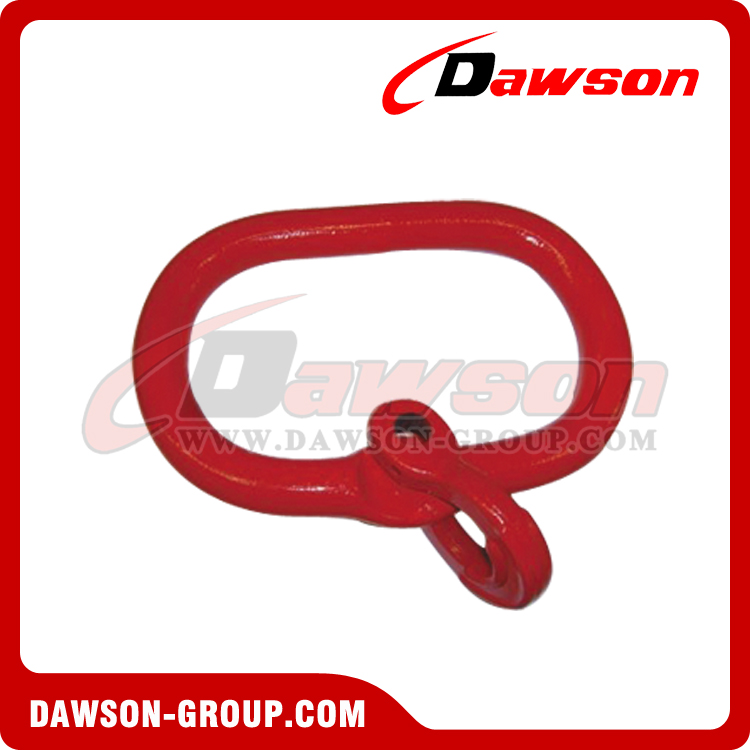

Other related products:

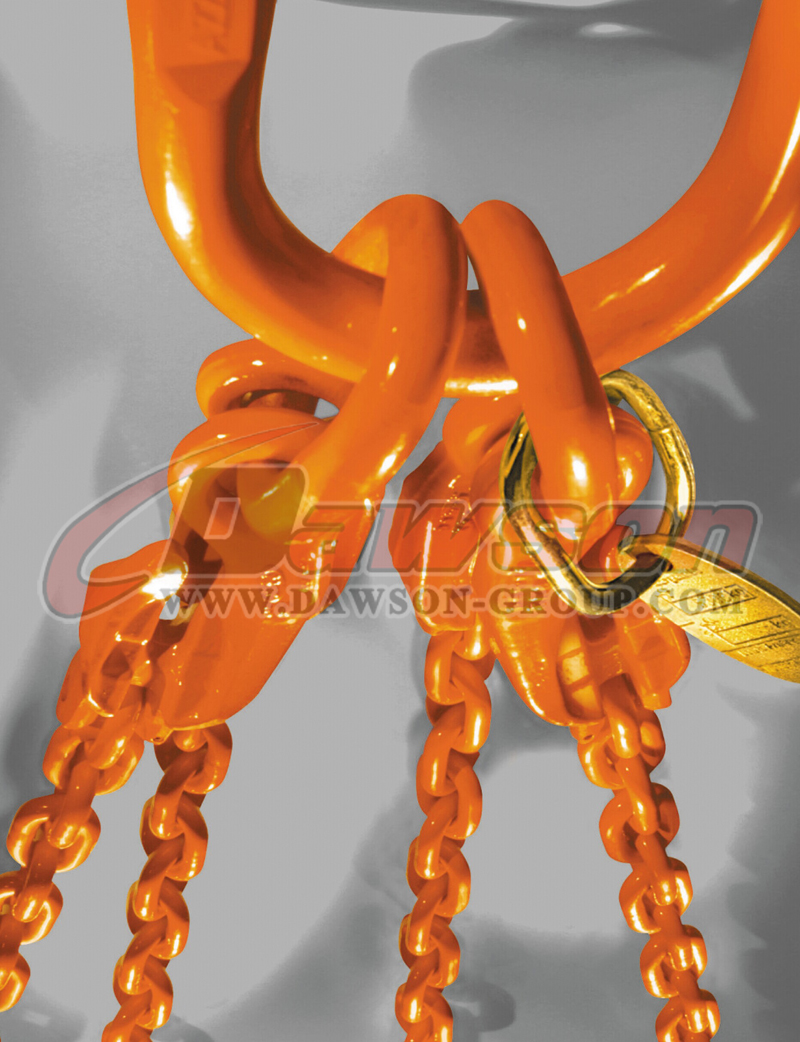

Application of Master Link:

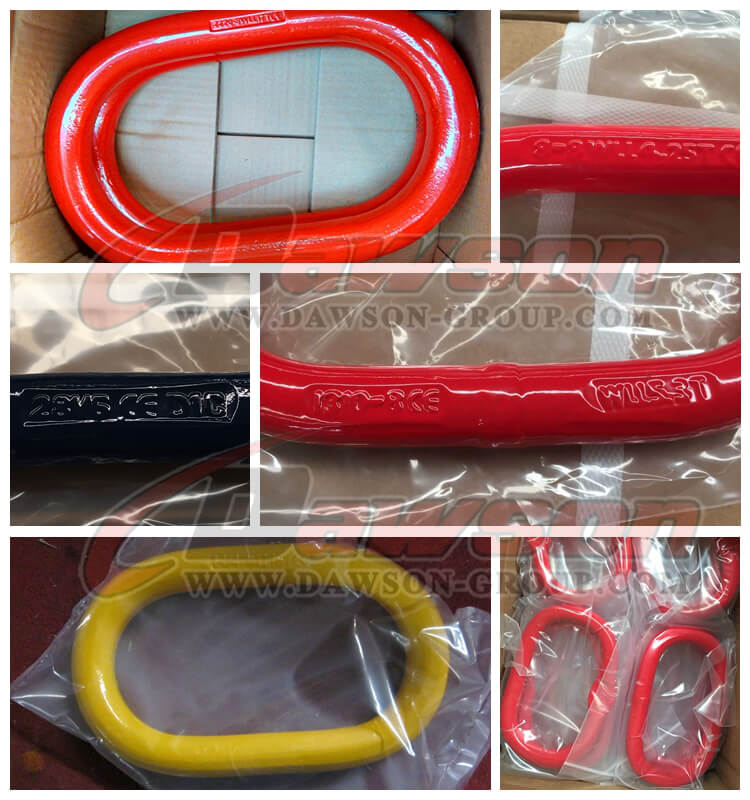

Factory & Packge Show:
