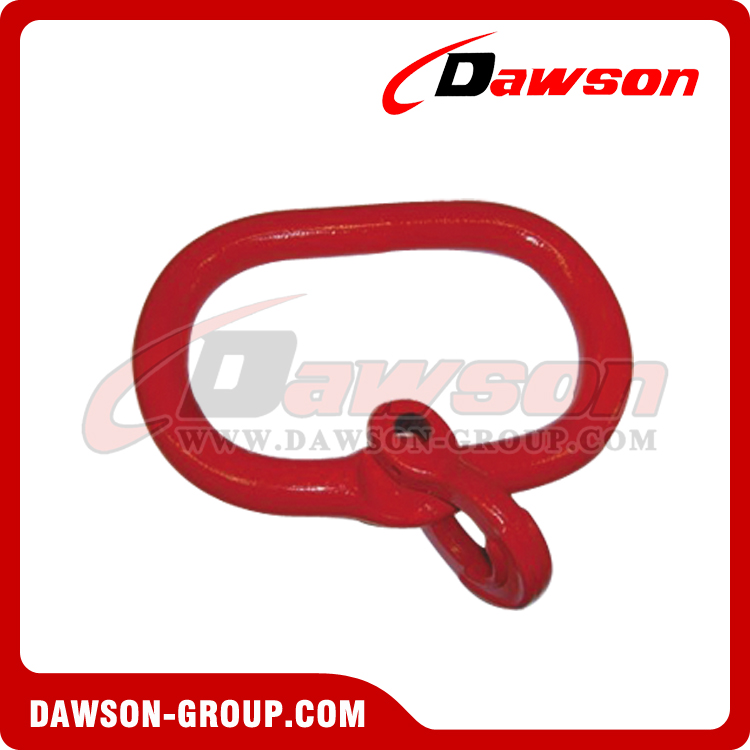

G80 / Grade 80 Welded Master Link With Flat for Chain Lifting Slings / Wire Rope Lifting Slings
G80 Master Link with Flat(Welded)
- Dawson China
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test。
100% Magnaflux Crack Detection.
Surface finish: Power plastified.

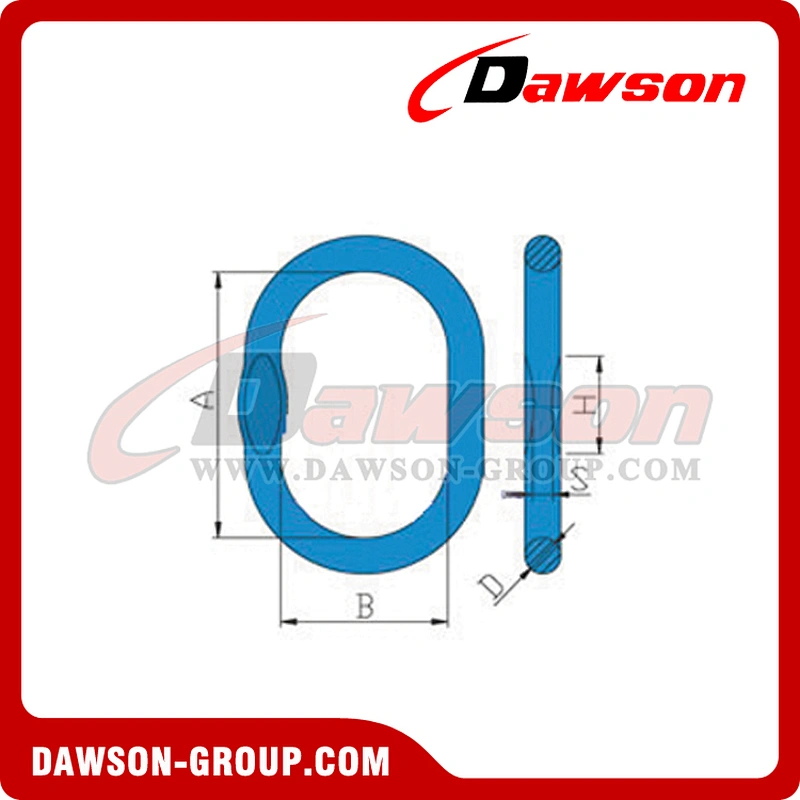

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D | S | H |
| 8-DS095-11B4 | 0.18 | 2.1 | 83±4 | 40±3 | 11±0.5 | 6+0.5 | 40 |
| 8-DS095-13B5 | 0.3 | 2.6 | 95±4 | 51±4 | 13±0.5 | 7+0.5 | 50 |
| 8-DS095-13B6 | 0.35 | 2.4 | 115±5 | 60±4 | 13±0.5 | 7+0.5 | 50 |
| 8-DS095-16B6 | 0.6 | 3.8 | 120±5 | 70±4 | 16±0.5 | 9±0.5 | 70 |
| 8-DS095-16B7 | 0.86 | 2.8 | 190±5 | 100±4 | 16±0.5 | 9±0.5 | 70 |
| 8-DS095-20B6 | 1.1 | 6.4 | 150±5 | 80±4 | 20±0.5 | 11±0.5 | 50 |
| 8-DS095-20B6 B | 1.2 | 6.4 | 160±5 | 90±4 | 20±1 | 11±0.5 | 50 |
| 8-DS095-20B7 | 1.25 | 5.8 | 170±5 | 90±4 | 20±0.5 | 11±0.5 | 70 |
| 8-DS095-20B7 B | 1.25 | 5.8 | 160±5 | 90±4 | 20±1 | 11±0.5 | 70 |
| 8-DS095-22B6 | 1.53 | 7.6 | 170±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| 8-DS095-22B6 B | 1.53 | 7.6 | 160±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| 8-DS095-22B7 | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| 8-DS095-22B7 B | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| 8-DS095-22B8 | 2.32 | 5.8 | 210±6 | 140±5 | 22±1 | 12±0.5 | 70 |
| 8-DS095-25B6 | 2.21 | 10 | 190±5 | 100±5 | 25±1 | 13±0.5 | 80 |
| 8-DS095-25B6 B | 2.21 | 10 | 190±5 | 102±5 | 25±1 | 13±0.5 | 80 |
| 8-DS095-25B7 | 3 | 8 | 270±6 | 140±5 | 25±1 | 13±0.5 | 80 |
| 8-DS095-28B6 | 3.06 | 12.7 | 210±6 | 110±5 | 28±1 | 15±0.5 | 80 |
| 8-DS095-28B7 | 3.81 | 10.5 | 270±6 | 140±5 | 28±1 | 15±0.5 | 70 |
| 8-DS095-32B6 | 5.05 | 15.2 | 270±6 | 140±5 | 32 | 17±0.5 | 70 |
| 8-DS095-38B6 | 7.3 | 25.1 | 270±6 | 140±5 | 38 | 20±0.5 | 70 |
| 8-DS095-38B7 | 10.78 | 17 | 420±10 | 220±6 | 38 | 20±0.5 | 70 |
| 8-DS095-45B6 | 12.2 | 34 | 320±7 | 170±6 | 45 | 24±0.5 | 80 |
| 8-DS095-45B7 | 17.06 | 24.5 | 470±10 | 250±6 | 45 | 24±0.5 | 80 |
| 8-DS095-50B6 | 17.65 | 40 | 380±7 | 200±6 | 50±2 | - | - |
| 8-DS095-50B7 | 20.7 | 40 | 450±10 | 250±6 | 50±2 | - | - |
| 8-DS095-60B6 | 28.85 | 58 | 430±10 | 220±6 | 60±2 | - | - |
| 8-DS095-70B6 | 45.48 | 84 | 500±10 | 250±6 | 70±2 | - | - |
Red Area size: Master Link: Forged
Black Area size: Master Link: Welded
For chain sling: Mininum Ultimate Load is 4 times the Working Load Limit.
For wire rope sling: Mininum Ultimate Load is 5 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON G80 Welded Master Link with Flat from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Hot Tags: Master Link, G80 Master Link, Grade 80 Master Link, Welded Master Link with Flat, China Master Link for Wire Rope Slings, Crane Master Link, Grade 80 Welded Master Link, Welded Master Link with Flat China Supplier, Welded Master Link Factory China, Low Price Master Link, Buy Discount Welded Master Link, Cheap Price Master Link, Hot Sale Welded Master Link, Welded Master Link Assembly In Stock, Wholesale Crane Master Link with Flat, China Welded Master Link Manufacturer, Welded Master Link for Wire Rope Lifting Slings, Welded Alloy Steel Master Link
Other related products:

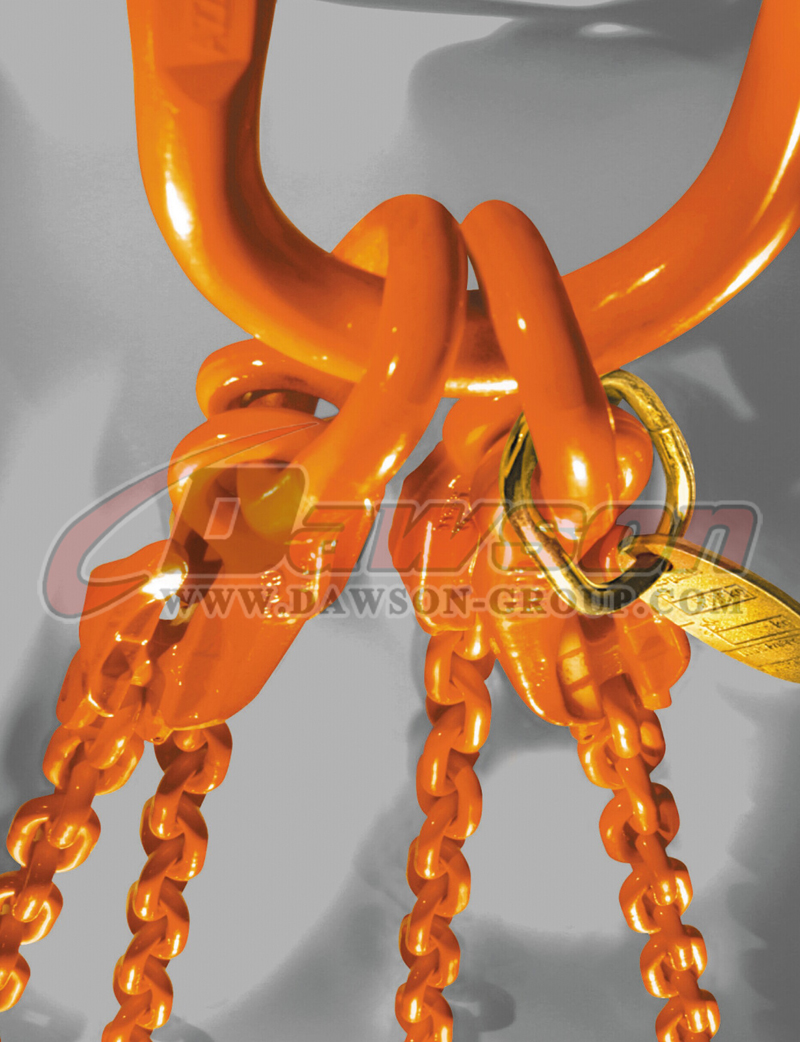

Application of Master Link:

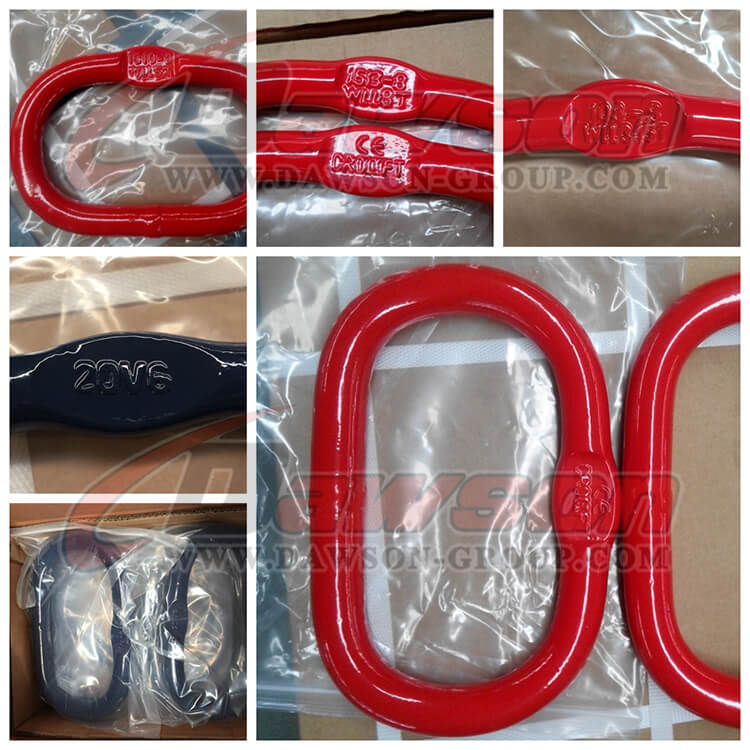

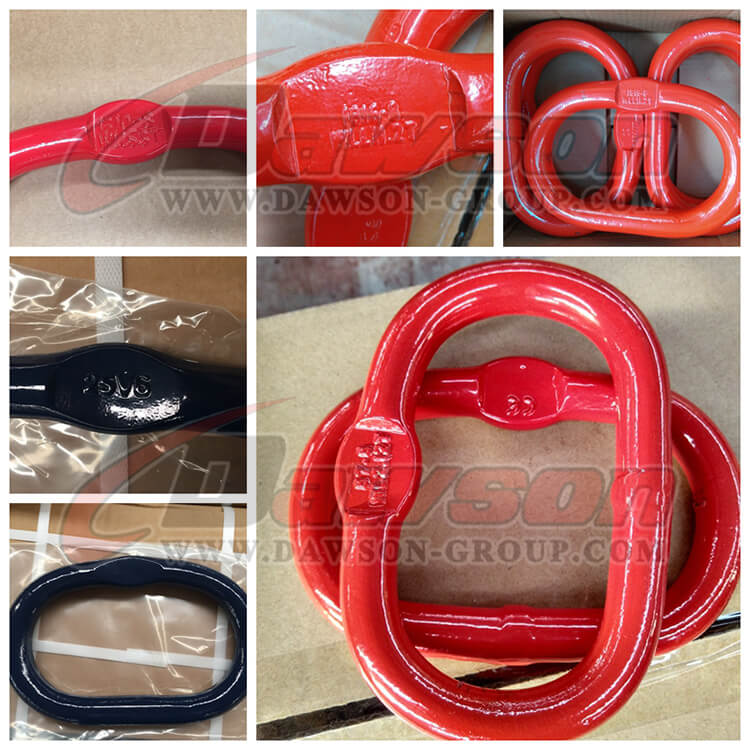

Factory Show & Package:
