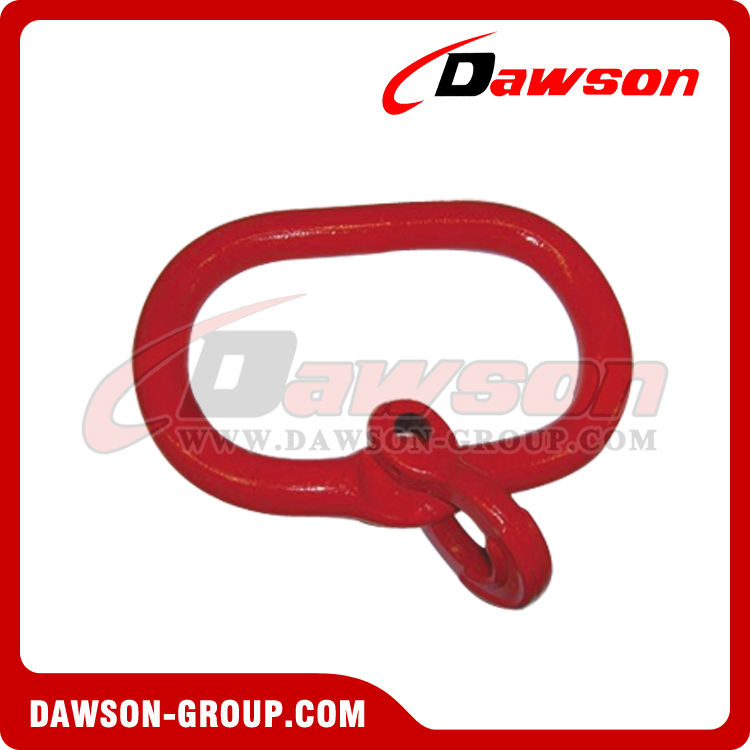

G80 / Grade 80 Welded Master Link Assembly With Flat for Steel Wire Rope Slings / Chain Slings
DS096 G80 Welded Master Link Assembly
- Dawson China
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test。
100% Magnaflux Crack Detection.
Surface finish: Power plastified.

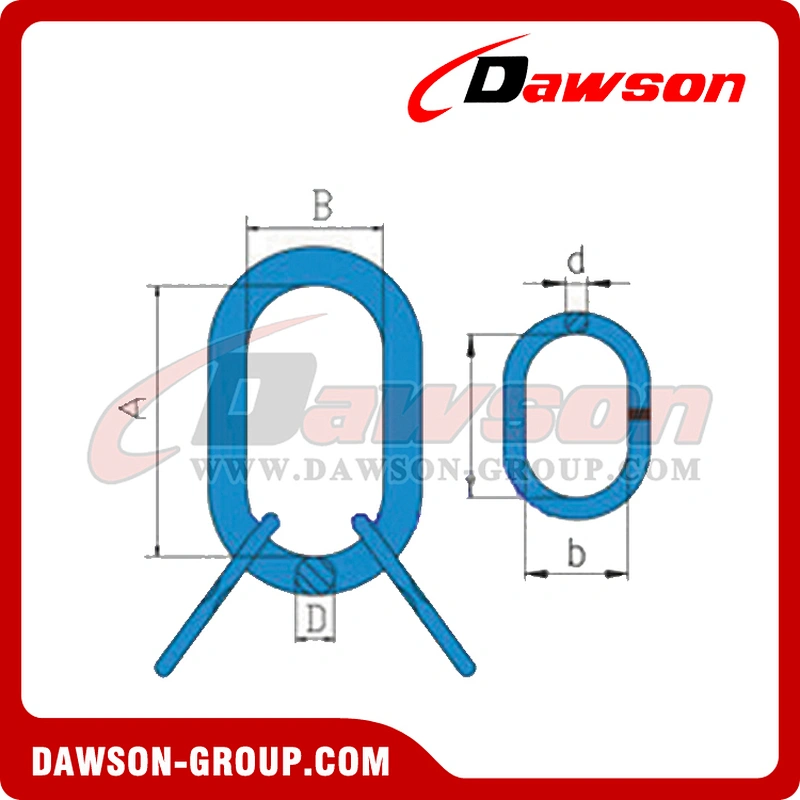

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D | a | b | d | S |
| 8-DS096-MA16 | 1.19 | 3.8 | 120 | 70 | 16 | 95 | 51 | 13 | 7.5±0.5 |
| 8-DS096-MA20 | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| 8-DS096-MA20-B | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| 8-DS096-MA22 | 3.77 | 7.6 | 170 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| 8-DS096-MA22-B | 3.77 | 7.6 | 160 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| 8-DS096-Q23B | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| 8-DS096-Q23B-B | 3.3 | 5.8 | 270 | 140 | 22 | 120 | 70 | 16 | 9±0.5 |
| 8-DS096-Q23B-C | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| 8-DS096-MA25 | 4.45 | 10 | 190 | 100 | 25 | 150 | 80 | 20 | 11±0.5 |
| 8-DS096-MA25-B | 4.45 | 10 | 190 | 102 | 25 | 150 | 80 | 20 | 11±0.5 |
| 8-DS096-Q29B | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| 8-DS096-Q29B-B | 5.9 | 11.8 | 270 | 140 | 28 | 150 | 70 | 20 | 11±0.5 |
| 8-DS096-Q29B-C | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| 8-DS096-MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| 8-DS096-MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| 8-DS096-MA32 | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| 8-DS096-MA32-C | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| 8-DS096-MA38 | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| 8-DS096-MA38-B | 15 | 17 | 420 | 220 | 38 | 180 | 100 | 25 | 17±0.5 |
| 8-DS096-MA38-C | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| 8-DS096-MA45 | 26.76 | 34 | 320 | 170 | 45 | 270 | 140 | 38 | 20±0.5 |
| 8-DS096-MA50 | 33.2 | 40 | 380 | 200 | 50 | 270 | 140 | 38 | - |
| 8-DS096-MA60 | 65 | 58 | 430 | 220 | 60 | 380 | 200 | 50 | - |
| 8-DS096-MA70 | 103 | 84 | 500 | 250 | 70 | 430 | 220 | 60 | - |
Mininum Ultimate Load is 4 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON G80 Welded Master Link Assembly with Flat from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Hot Tags: Master Link Assembly, G80 Master Link Assembly, Grade 80 Master Link Assembly, Welded Master Link Assembly with Flat, China Master Link for Wire Rope Slings, Grade 80 Welded Master Link Assembly, Welded Master Link Assembly China Supplier, Welded Master Link Assembly Factory China, Low Price Master Link Assembly, Buy Discount Welded Master Link Assembly, Cheap Price Master Link Assembly, Hot Sale Welded Master Link Assembly, Welded Master Link Assembly In Stock, Wholesale Crane Master Link Assembly, China Welded Master Link Assembly Manufacturer, Welded Master Link for Wire Rope Lifting Slings, Welded Alloy Steel Master Link Assembly
Other related products:

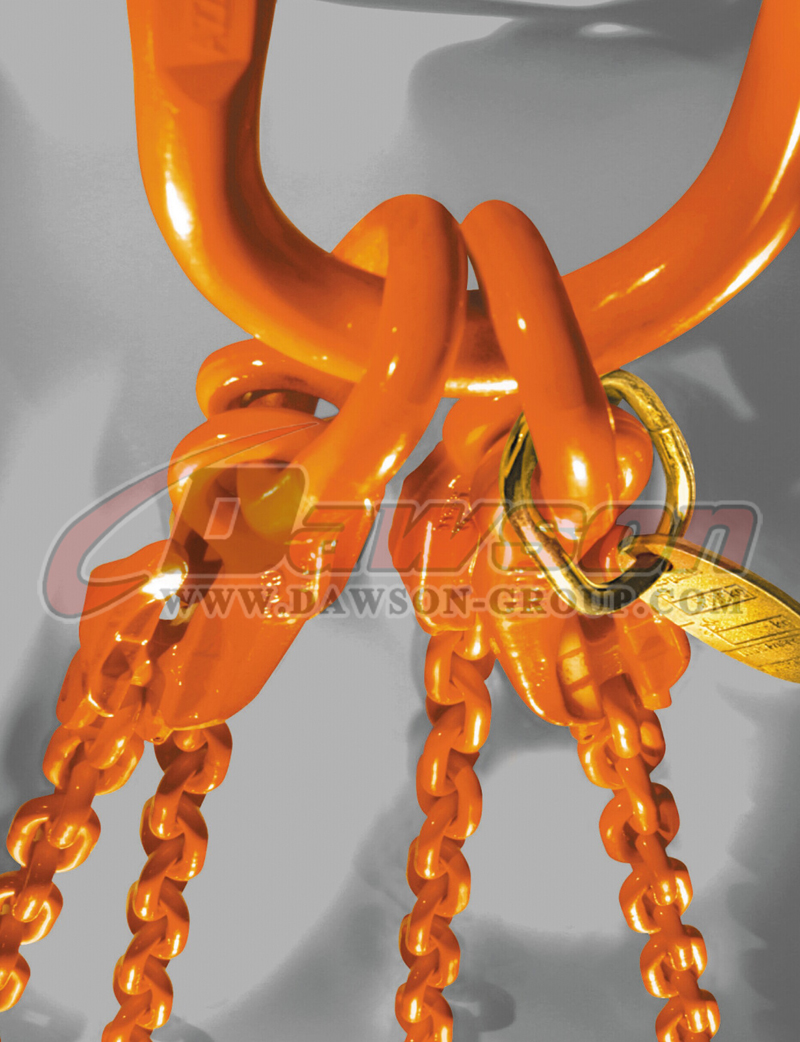

Application of Master Link:

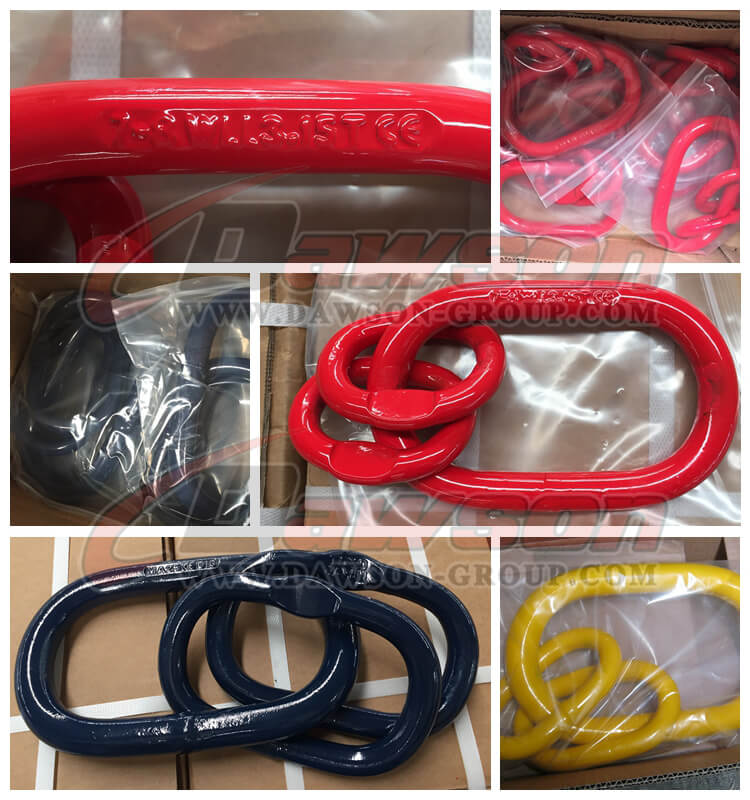

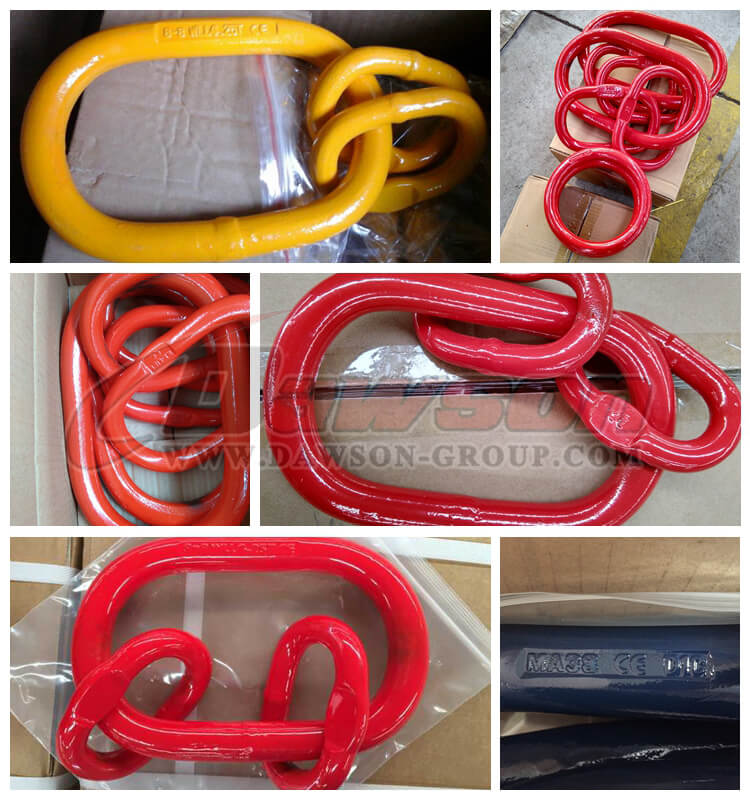

Factory & Package Show:
