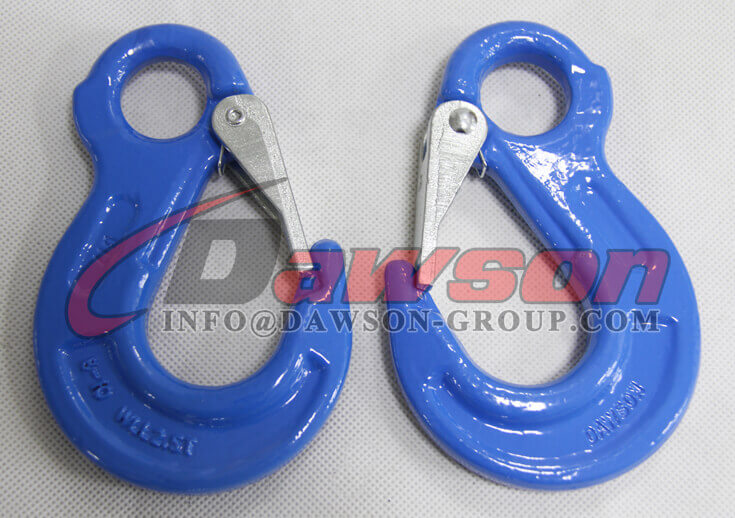

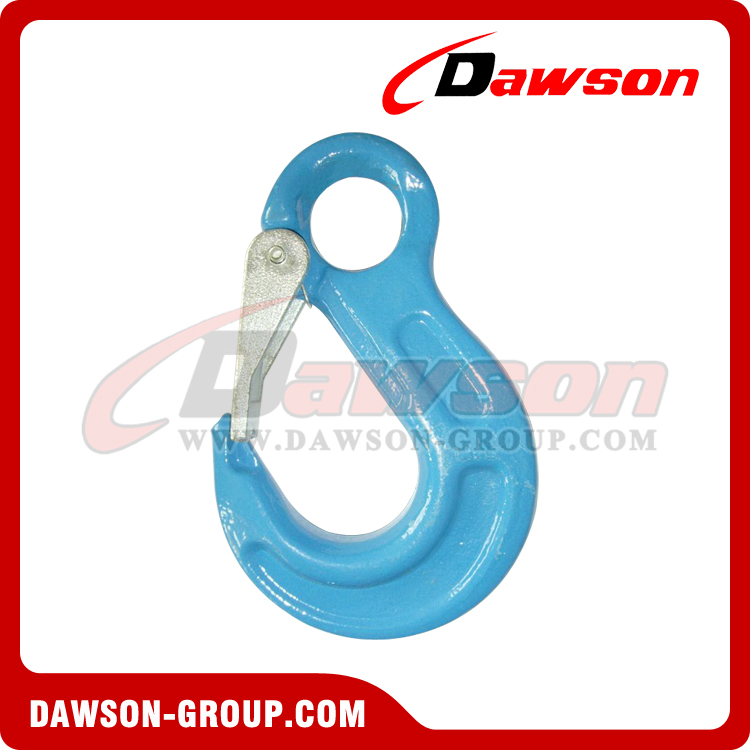

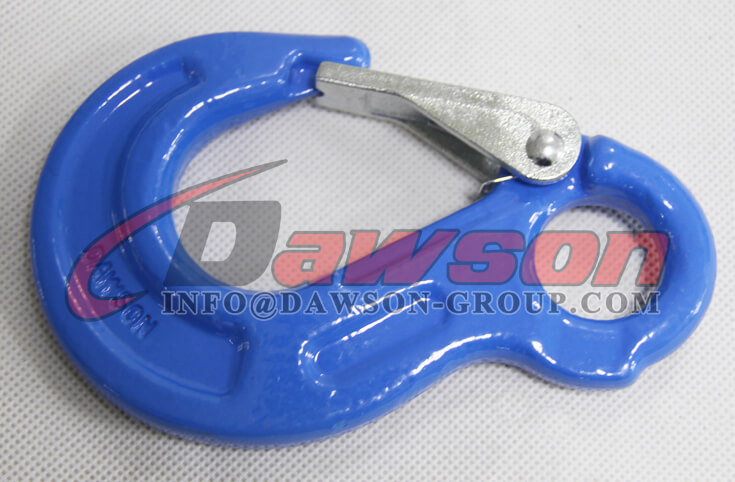

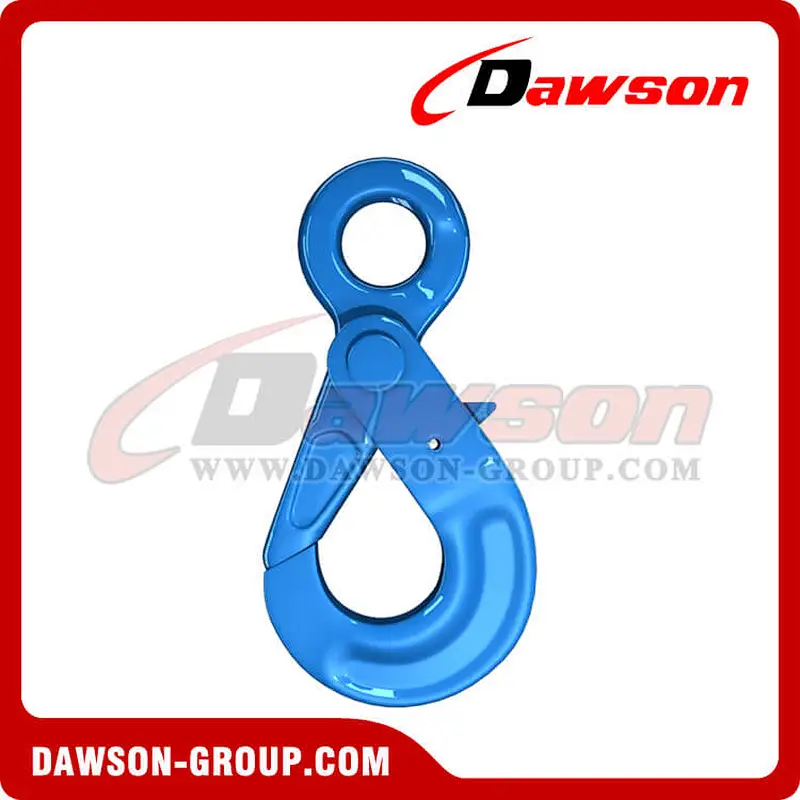

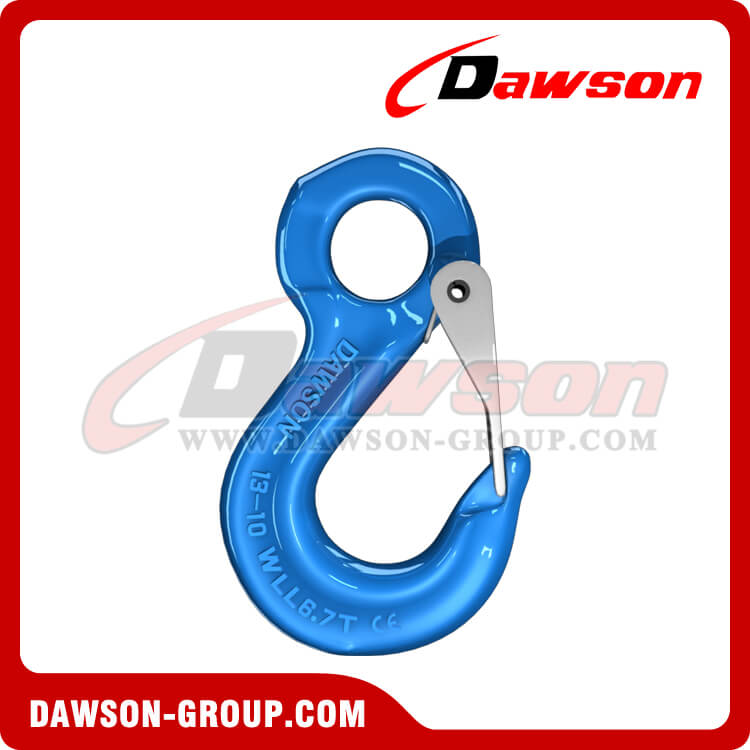

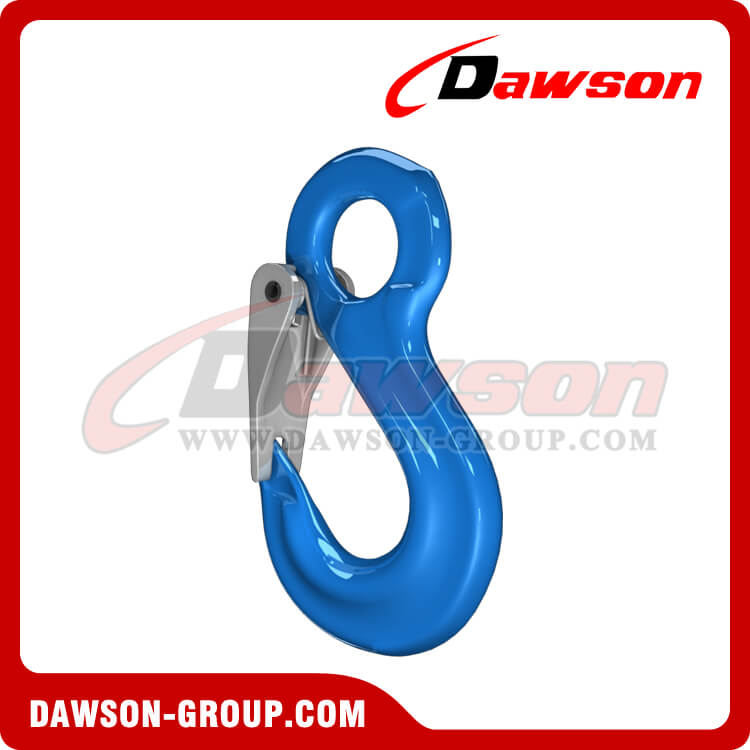

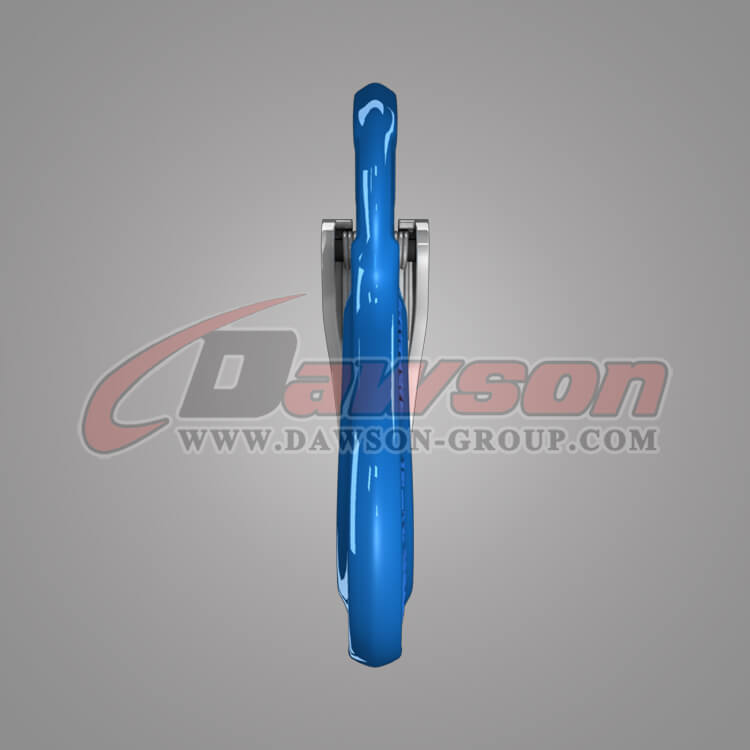

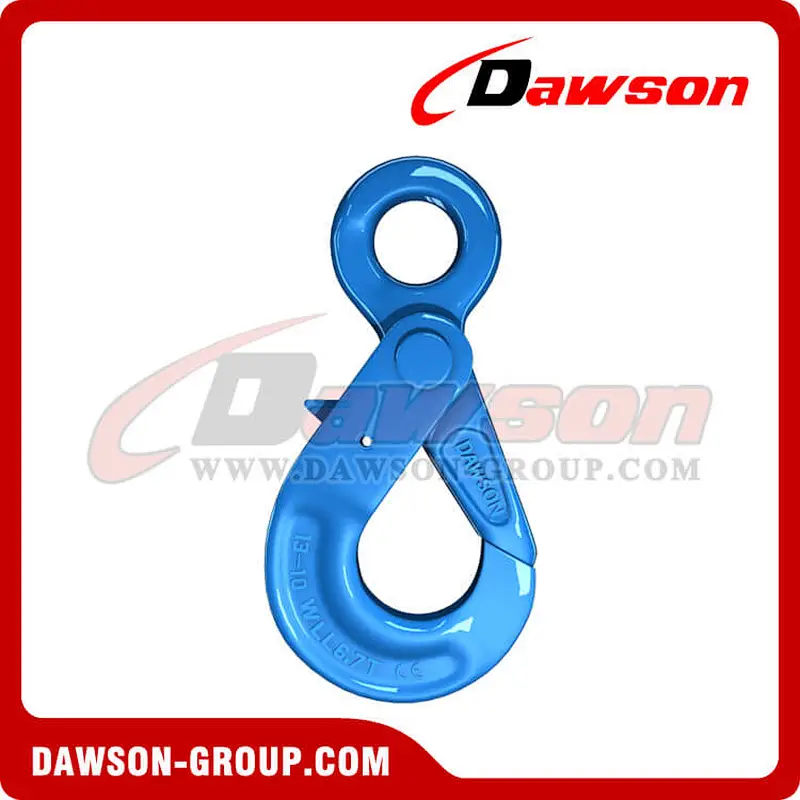

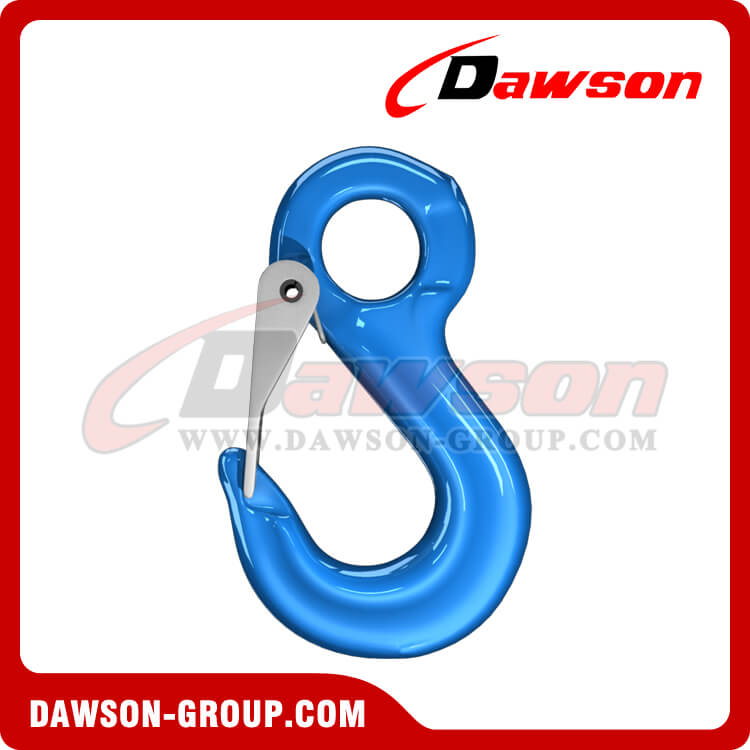

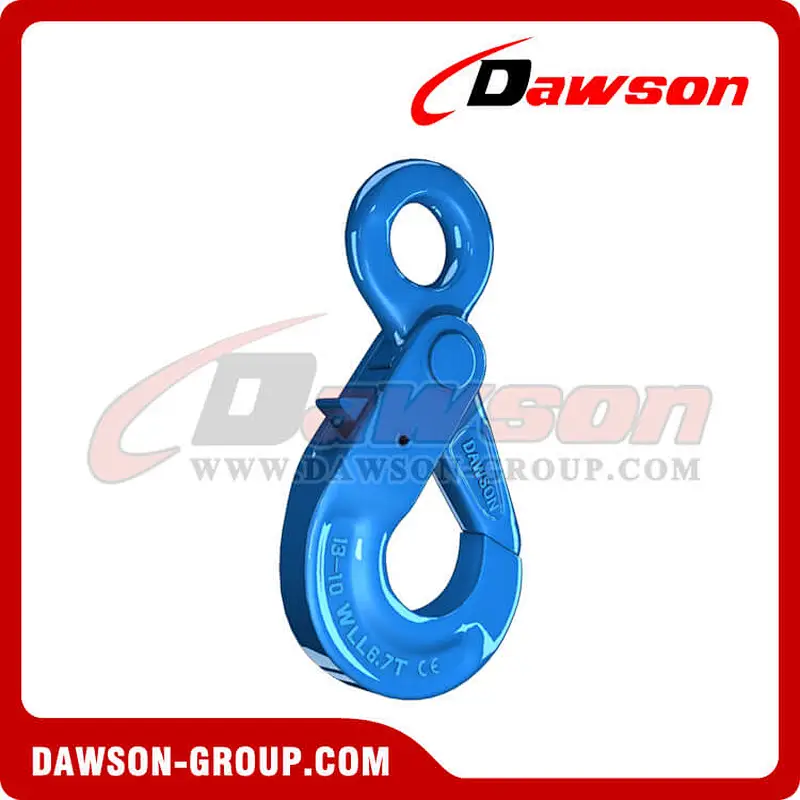

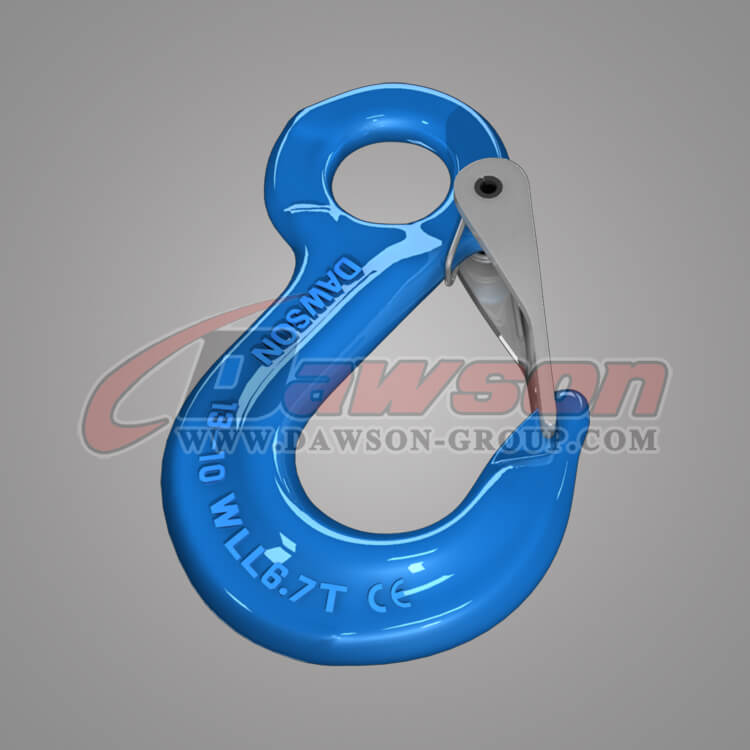

DS1003 G100 / Grade 100 Eye Sling Hook with Latch for Chain Slings
Grade 100 Eye Sling Hook with Latch - Chain Slings Components Assembly

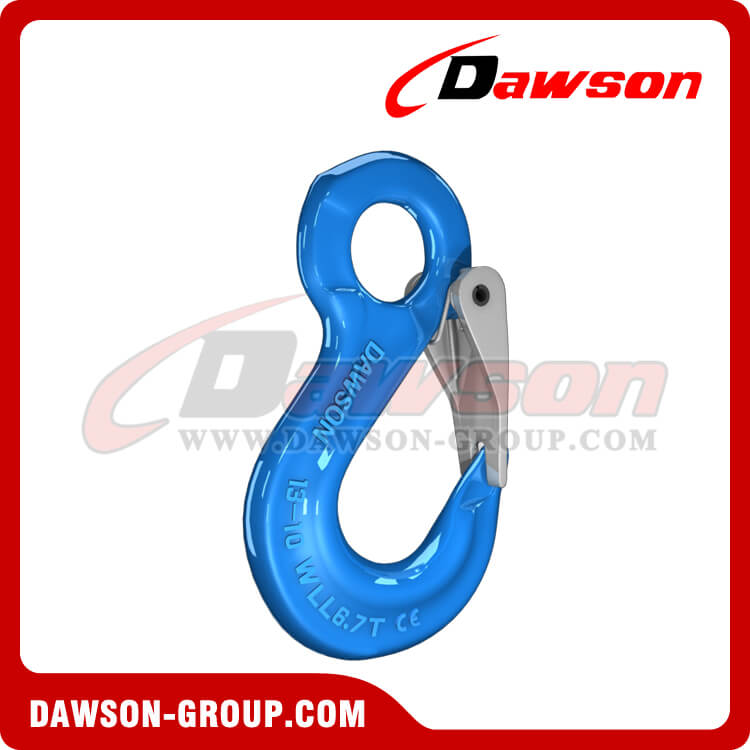

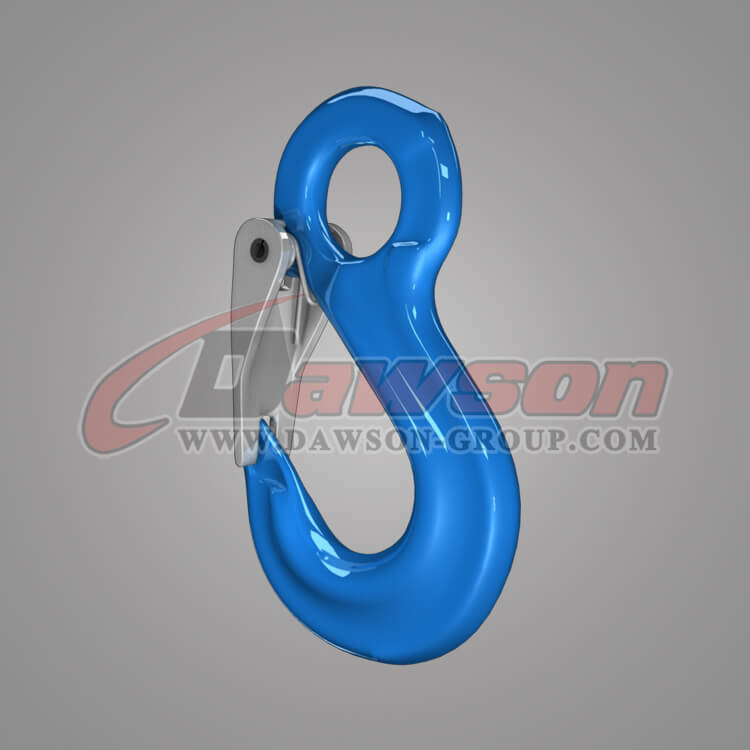

G100 Eye Sling Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.

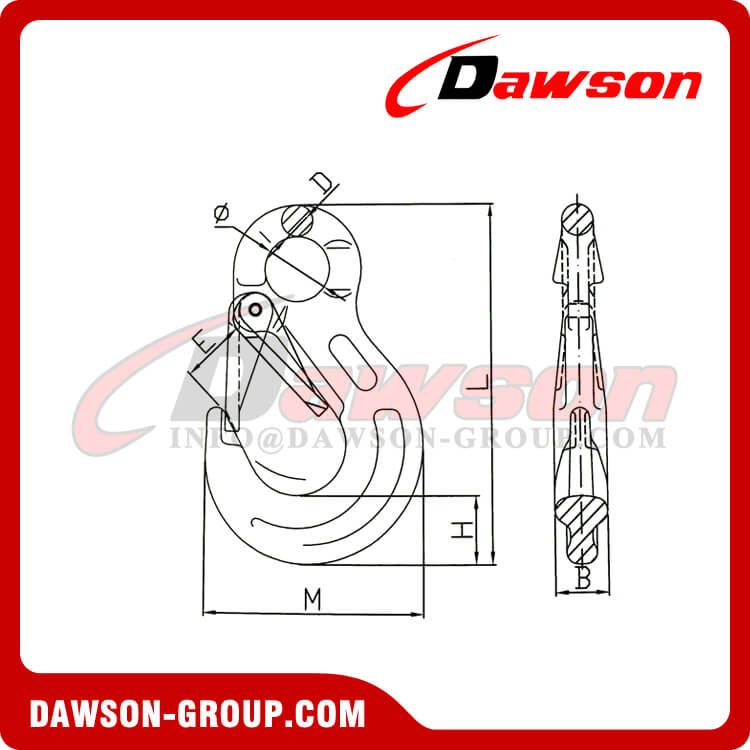

| Item No. | Weight/kg | WLL/T | B.L/T | B±1 | D±1 | E±2 | H±1 | Φ±1 | M±2 | L±2.5 |
| 10-DS1003-06 | 0.32 | 1.4 | 5.6 | 16.5 | 10 | 18.5 | 21 | 20.5 | 68 | 111 |
| 10-DS1003-07 | 0.4 | 1.9 | 7.6 | 15 | 11 | 25.5 | 26 | 25 | 86.9 | 137 |
| 10-DS1003-08 | 0.6 | 2.5 | 10 | 19 | 11 | 25 | 27.5 | 25 | 87.6 | 137 |
| 10-DS1003-10 | 1.2 | 4 | 16 | 26 | 16 | 29.5 | 32 | 35 | 106.4 | 171.5 |
| 10-DS1003-13 | 2.2 | 6.7 | 26.8 | 33 | 19 | 38 | 43.5 | 43 | 134 | 219 |
| 10-DS1003-16 | 3.5 | 10 | 40 | 40 | 24.5 | 46 | 50 | 51 | 158 | 260 |
| 10-DS1003-20 | 6.2 | 16 | 64 | 48 | 27 | 52 | 56 | 55 | 190 | 298 |
| 10-DS1003-22 | 11.5 | 19 | 76 | 50 | 29 | 66 | 62 | 60 | 214 | 330 |
| 10-DS1003-26 | 12.2 | 26.5 | 106 | 60 | 35 | 73 | 75 | 70 | 245 | 376 |
| 10-DS1003-32 | 17.5 | 39.3 | 157.2 | 71 | 39 | 87 | 89 | 81.5 | 270 | 458 |

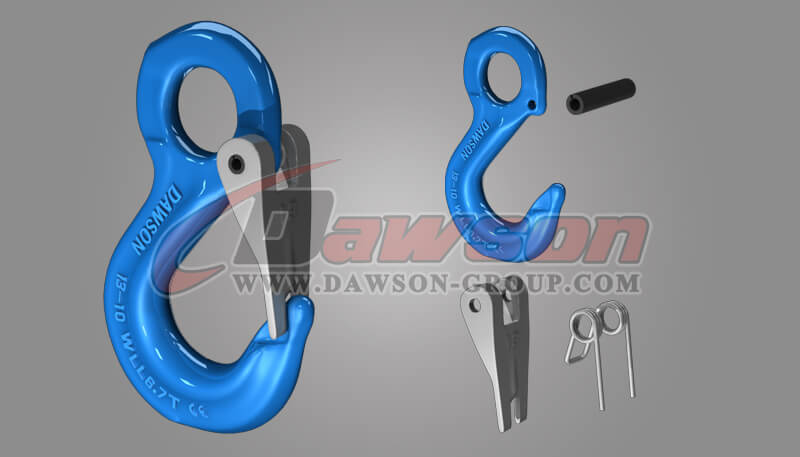

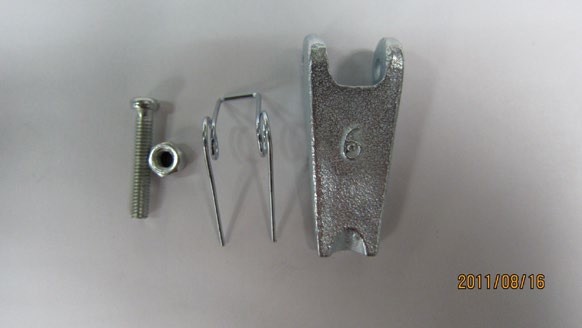

SP-DS1003&DS1004-SPARE PART LATCH KIT FOR DS1003&DS1004
 | Item No. | Size | Item No. | Size |
| SP-DS1003/4-6 | 6-10 | SP-DS1003/4-20 | 20-10 | |
| SP-DS1003/4-8 | 8-10 | SP-DS1003/4-22 | 22-10 | |
| SP-DS1003/4-10 | 10-10 | SP-DS1003/4-26 | 26-10 | |
| SP-DS1003/4-13 | 13-10 | SP-DS1003/4-32 | 32-10 | |
| SP-DS1003/4-16 | 16-10 |
1 SET = GALVANIZED CAST LATCH+GALVANIZED SPRING+GALVANIZED SCREW+GALVANIZED NUT
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON g100 eye sling hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |  DS1019 |  DS1028 |

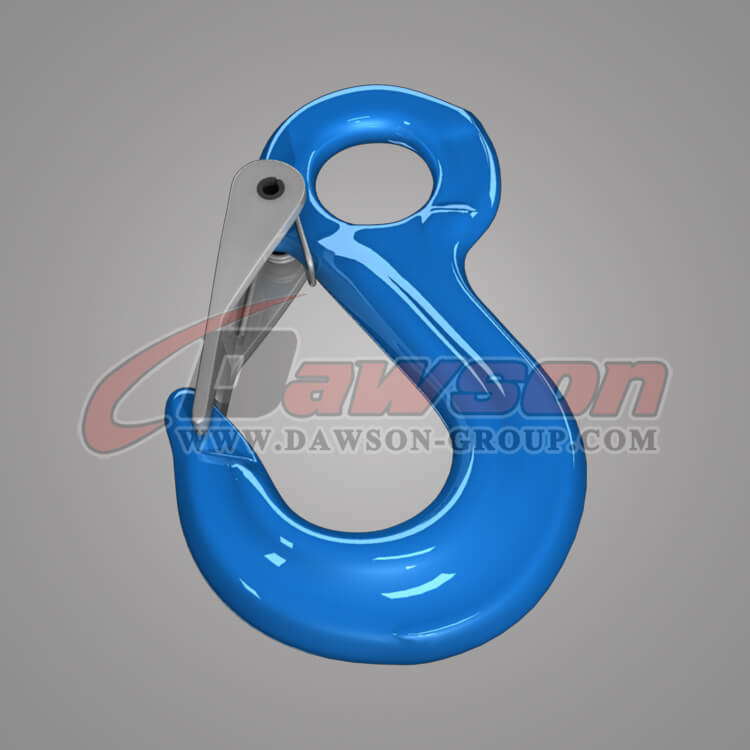

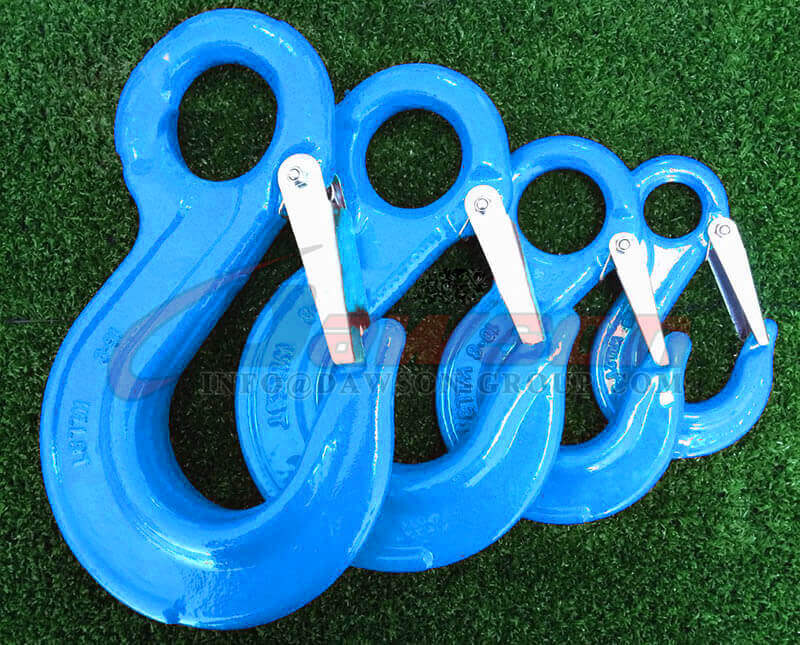

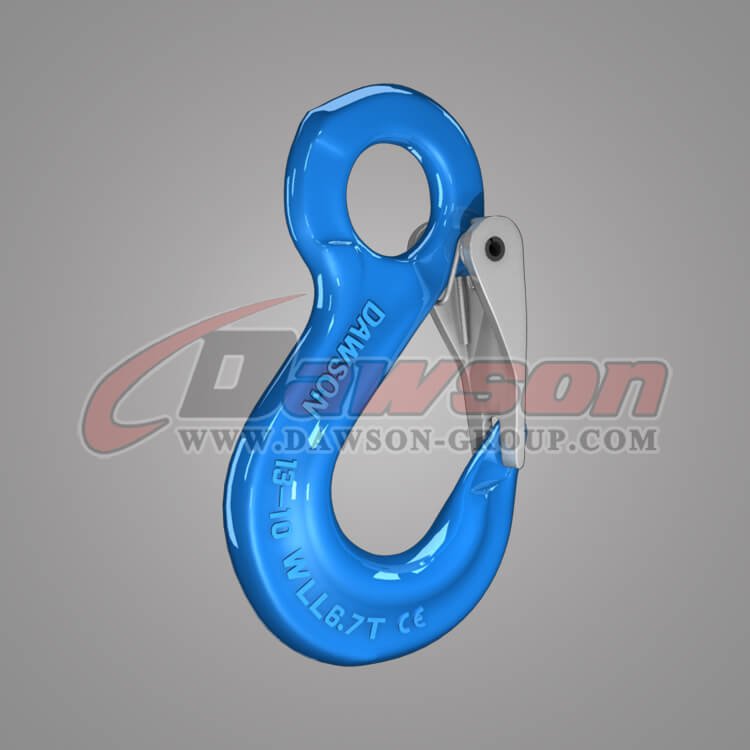

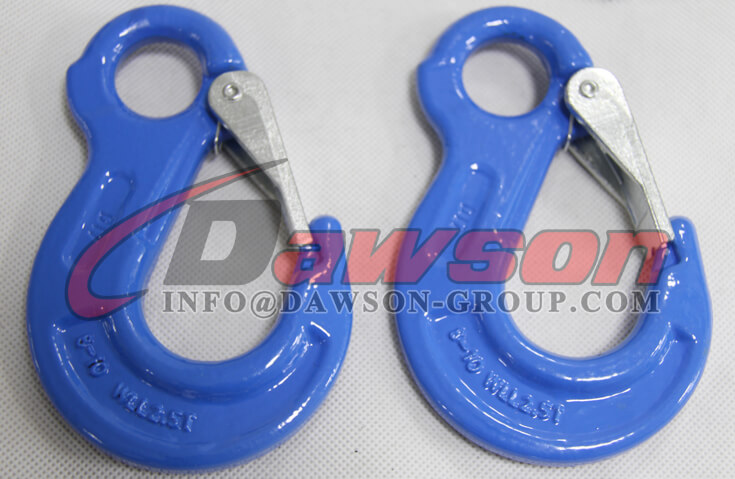

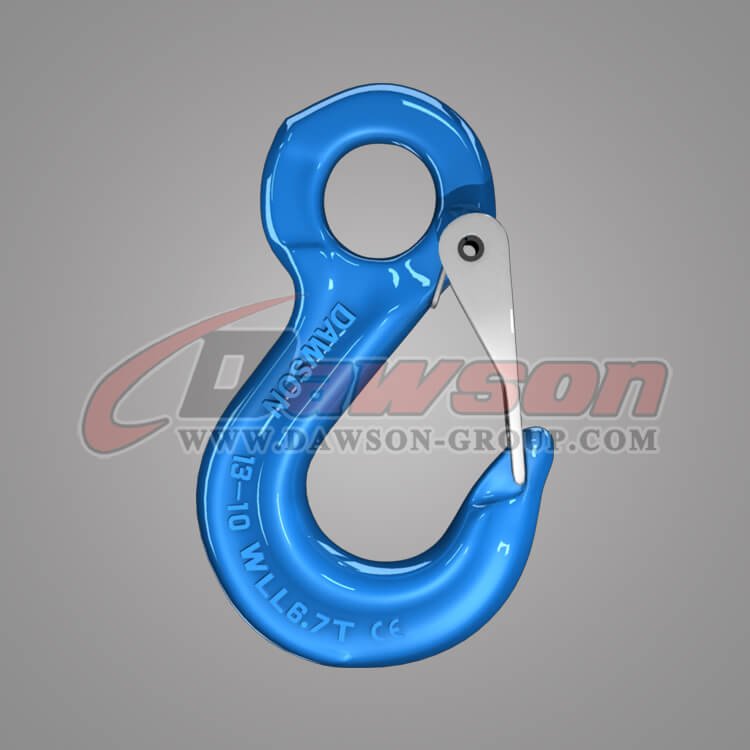

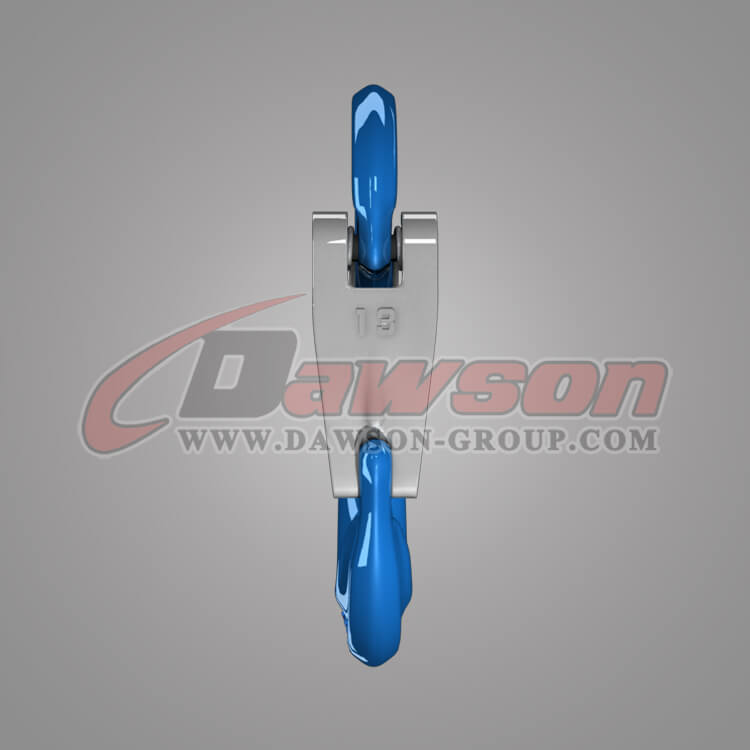

Product Show:
Hot Tags: Eye Sling Hook, Forged Eye Sling Hook, Alloy Steel Eye Sling Hook, G100 Eye Sling Hook China, Grade 100 Eye Sling Hook Supplier, Eye Sling Hook for Chain Slings Manufacturer China, Forged Eye Sling Hook In Stock, G100 Eye Sling Hook OEM, Eye Sling Hook Factory China, Low Price Eye Sling Hook, Hot Sale Eye Sling Hook, Buy Discount Eye Sling Hook, Chain Hardware, G100 Rigging Hardware, Forged Eye Sling Hook Free Sample
Other Related Products Show:

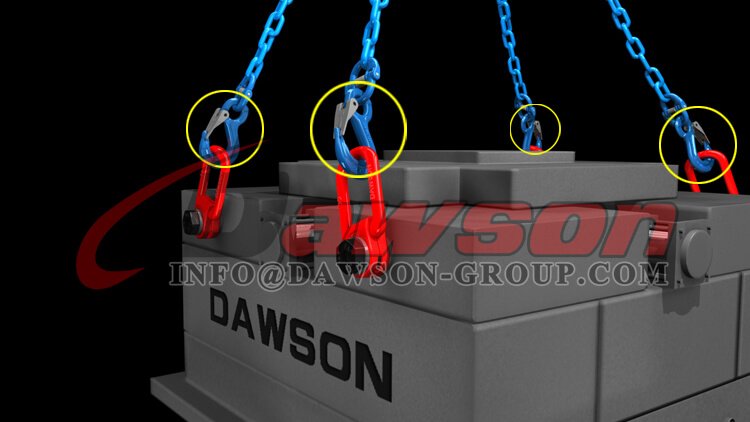

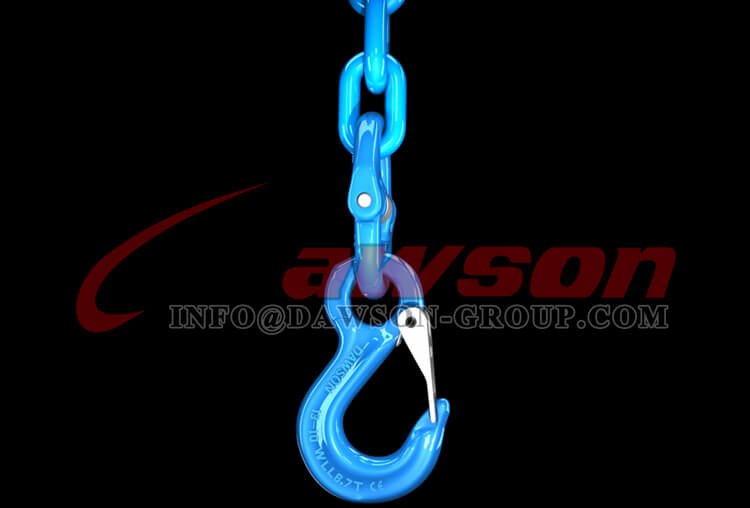

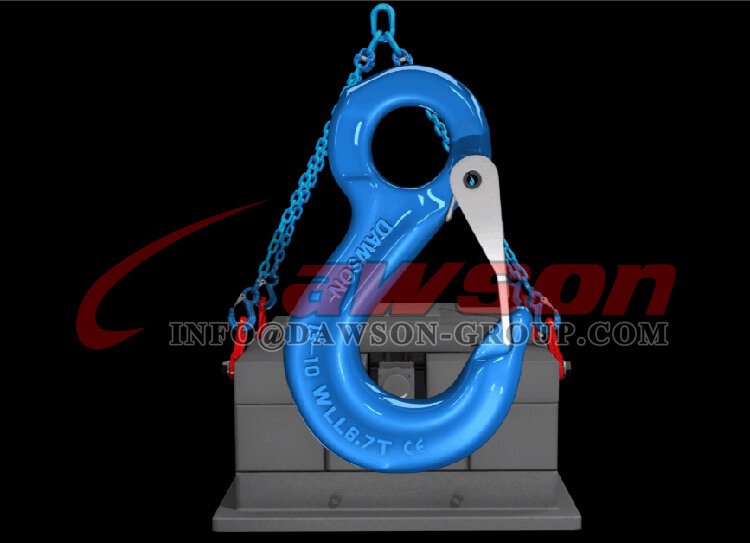

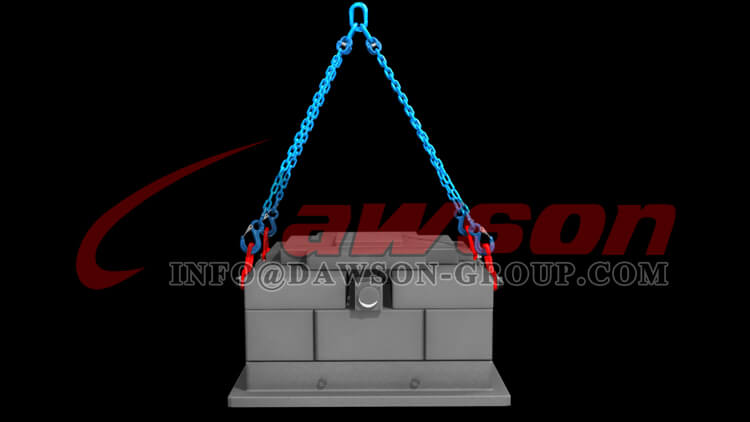

Application of Grade 100 Eye Sling Hook with Latch:
