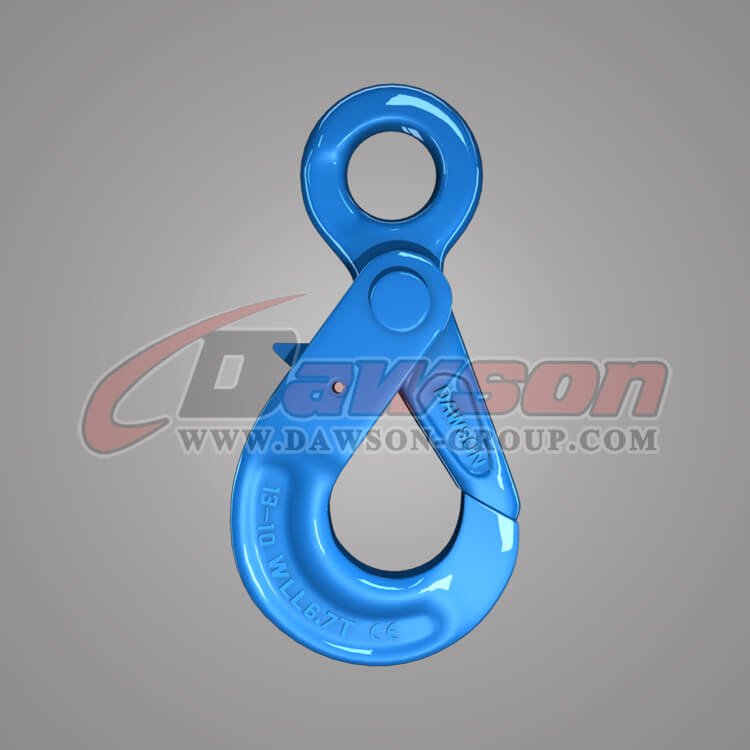

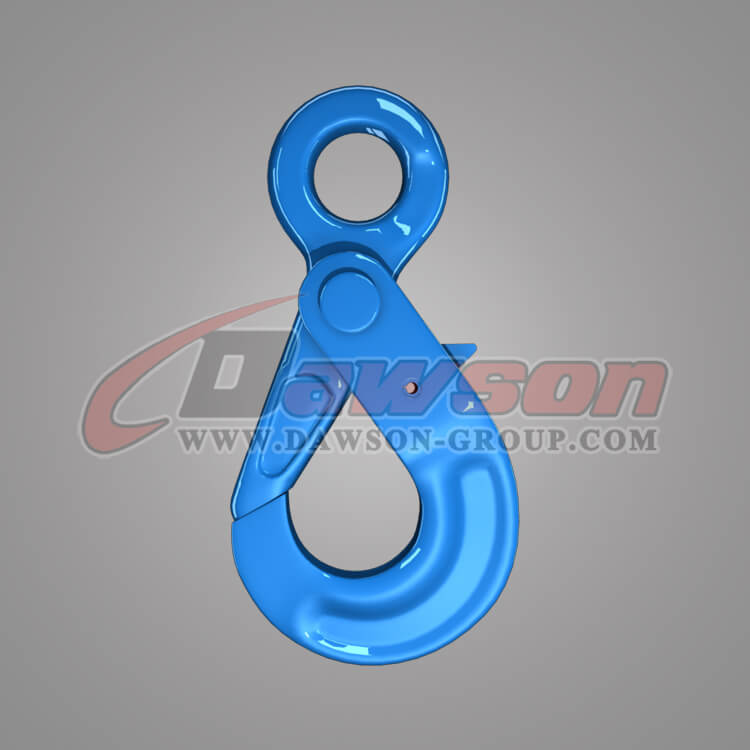

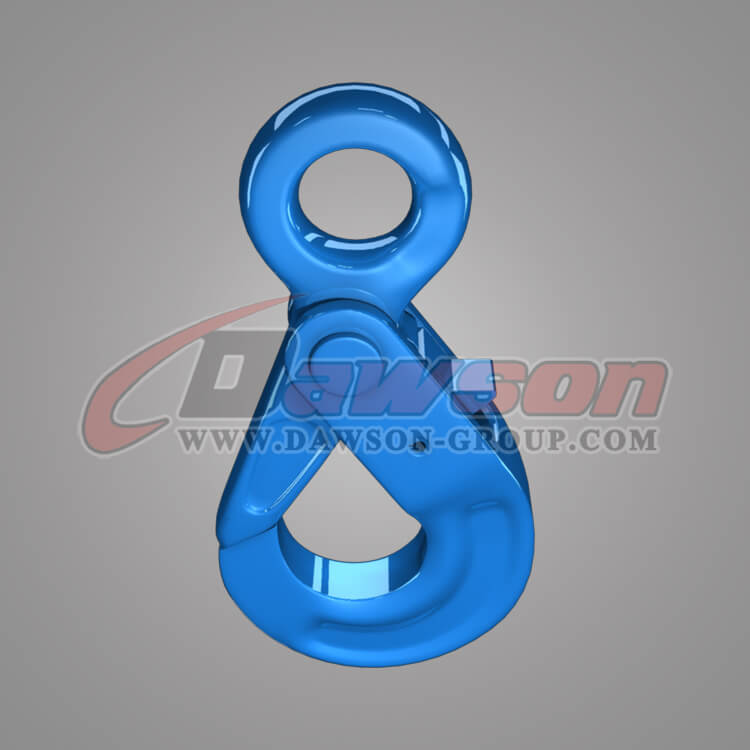

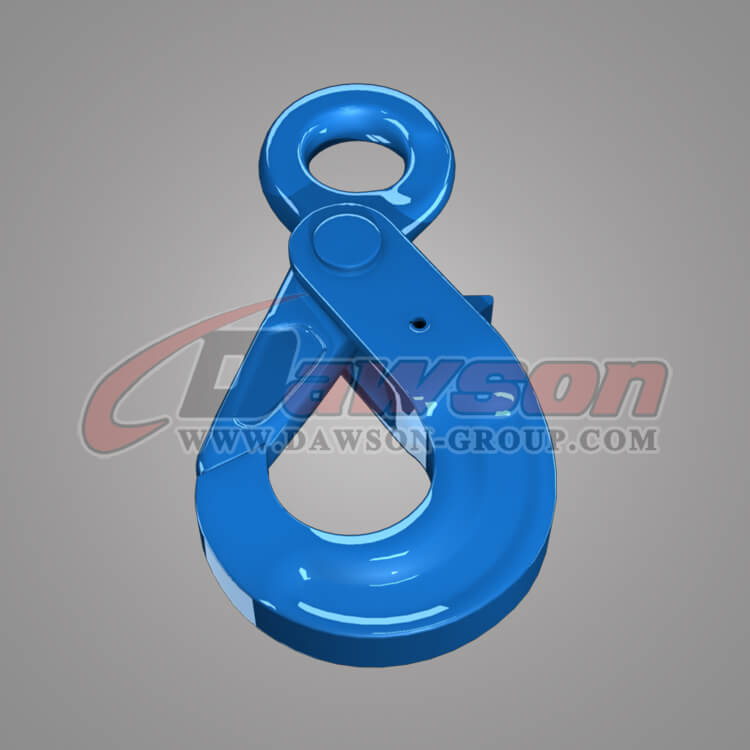

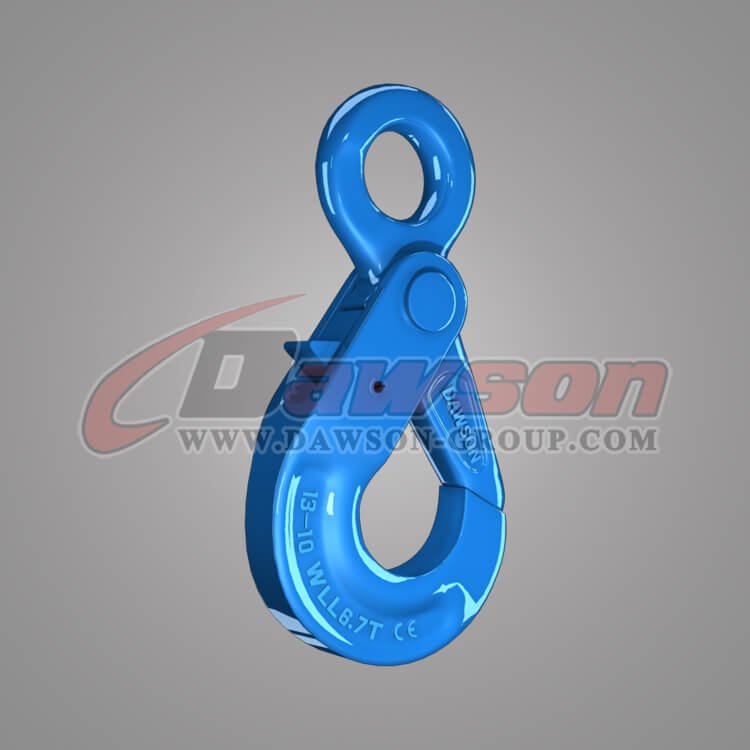

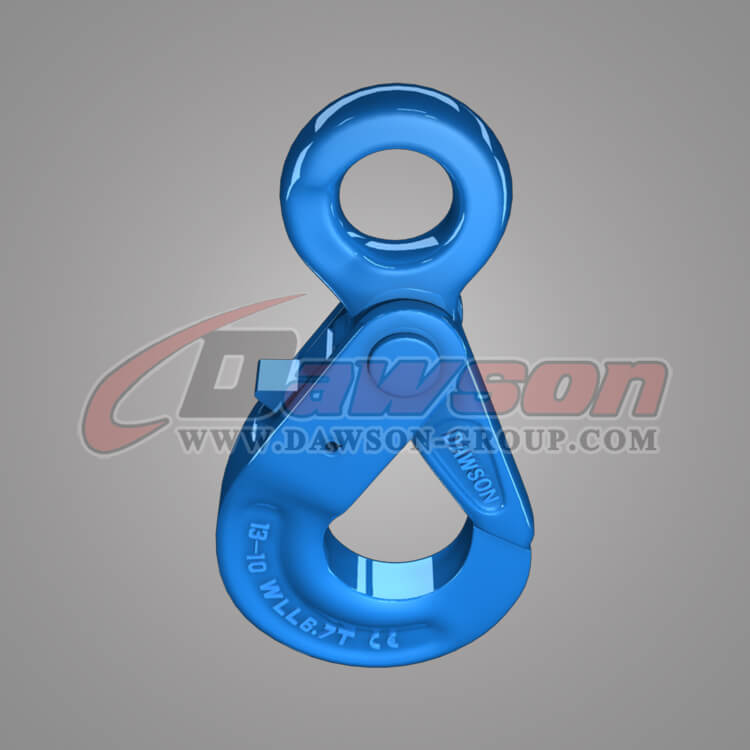

G100 / Grade 100 European Type Eye Self-Locking Hook Lifting Equipment for Crane Lifting Chain Slings

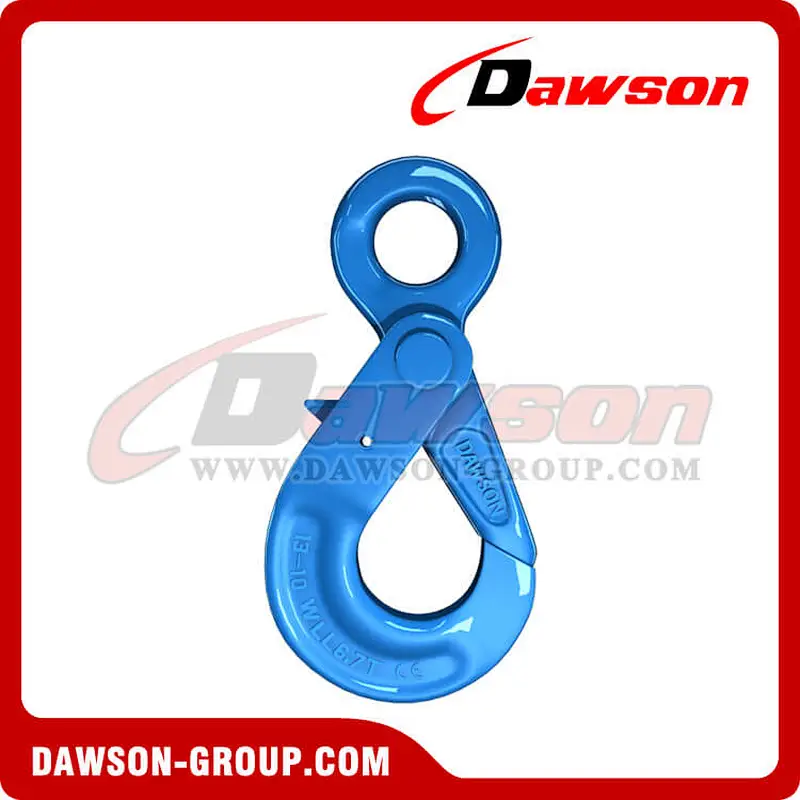

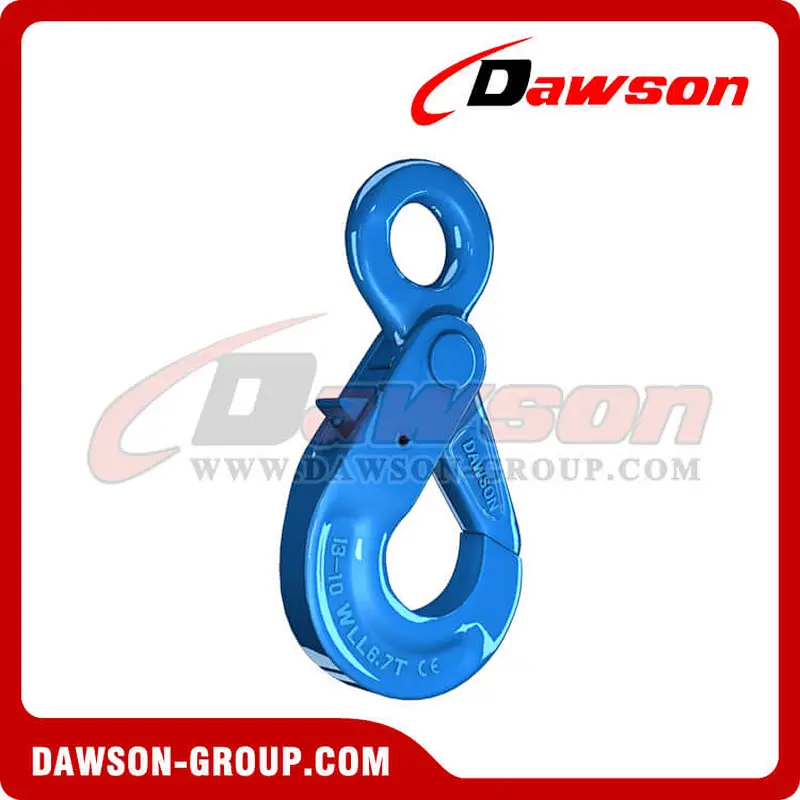

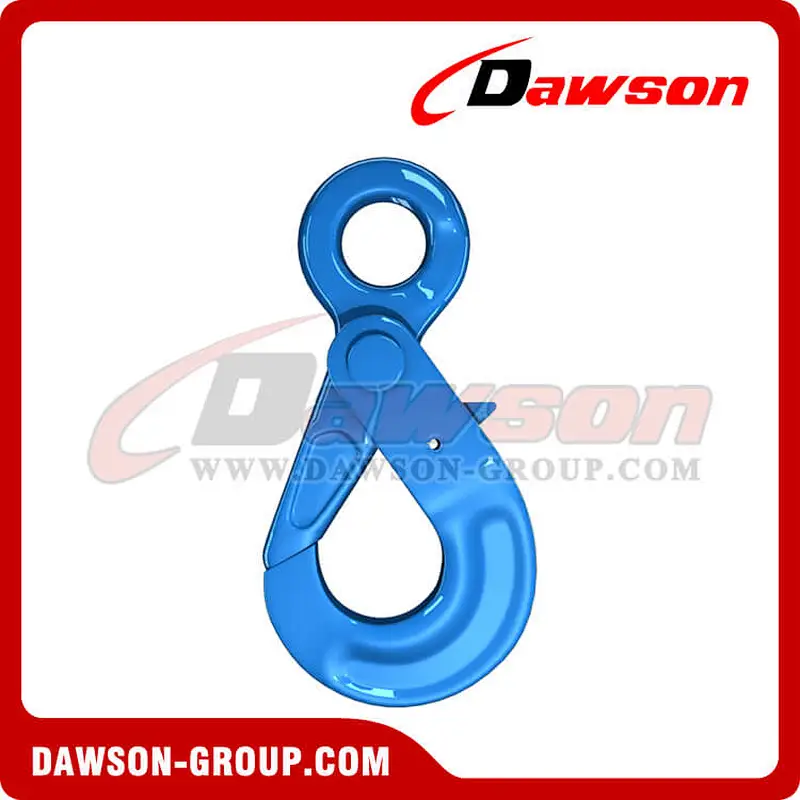

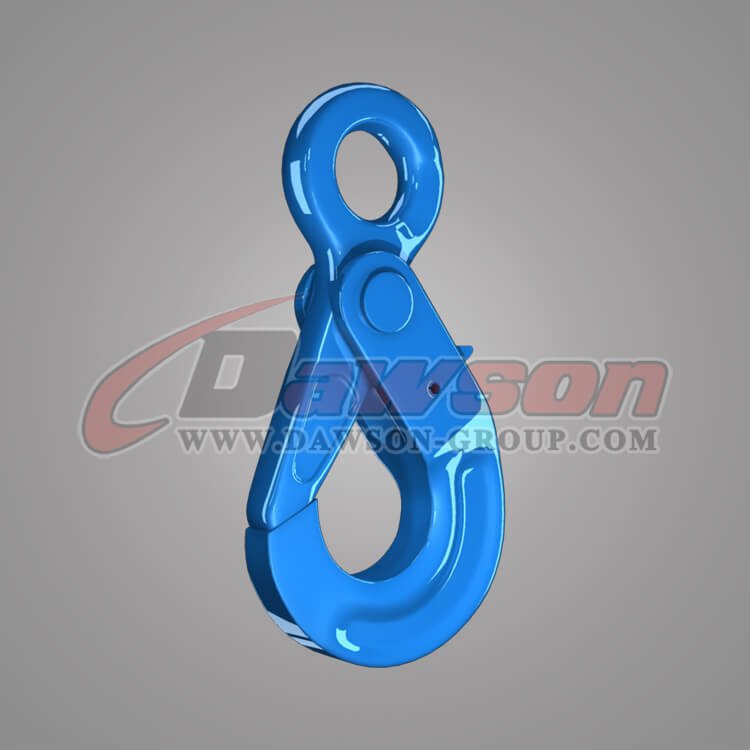

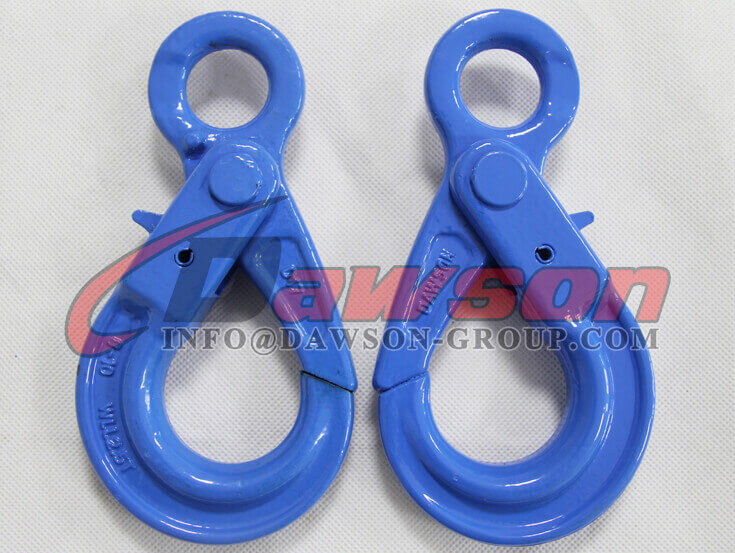

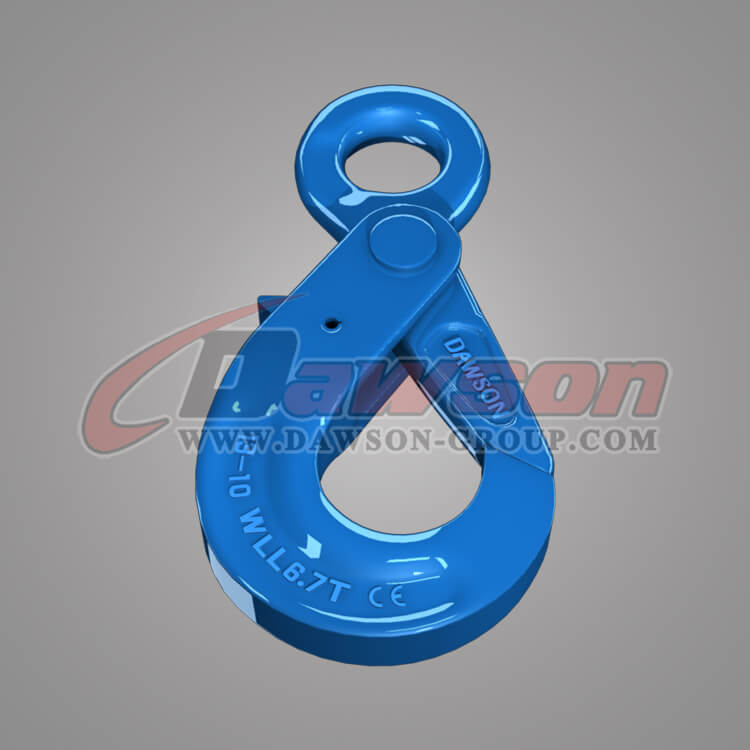

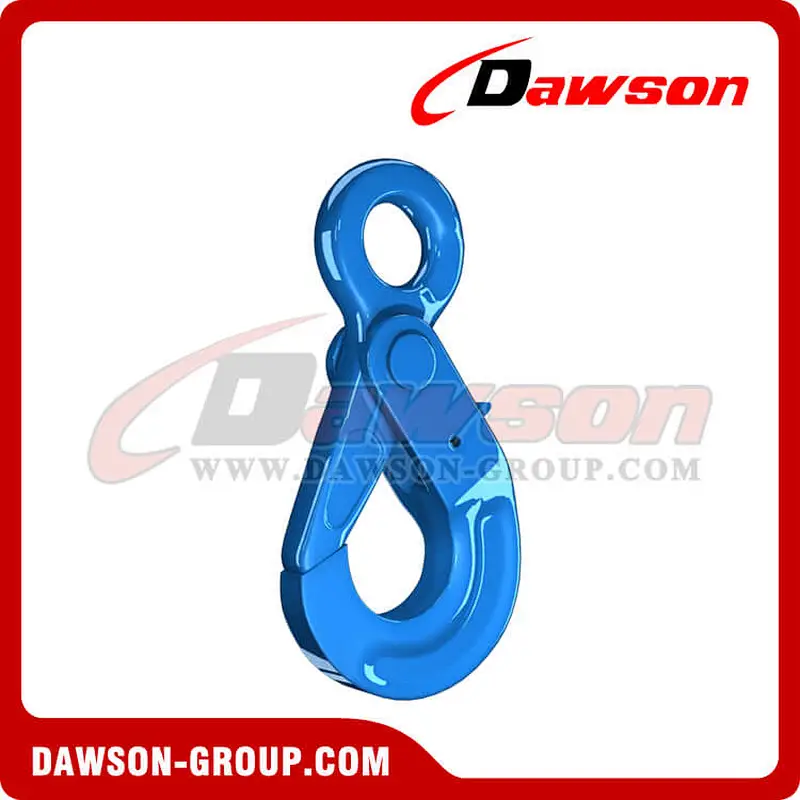

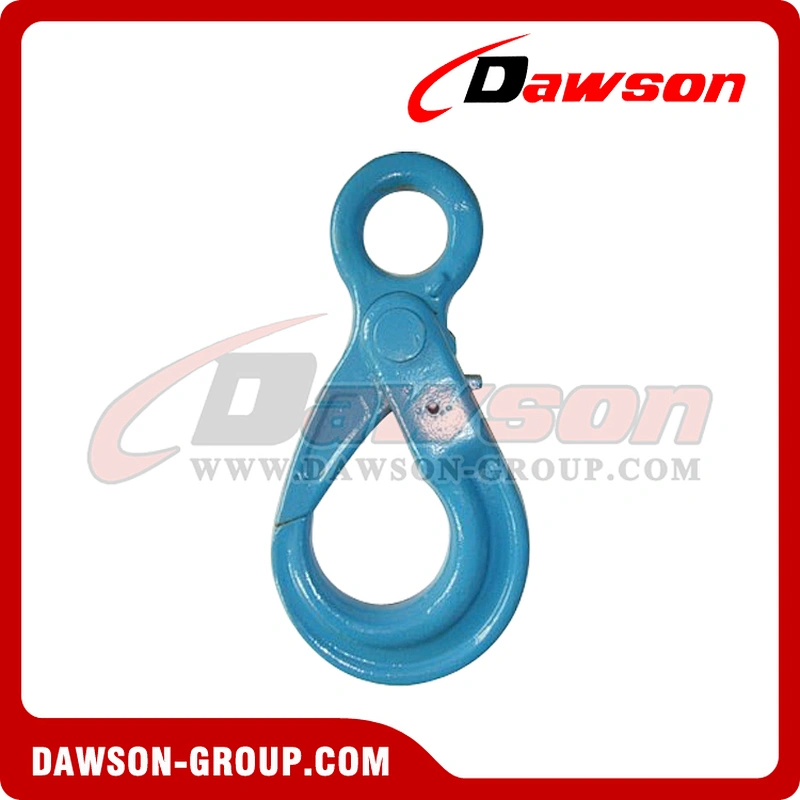

DS1005 G100 European Type Eye Self-Locking Hook
G100 Eye Selflock Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
The alloy steel self locking eye hook has the following features
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.

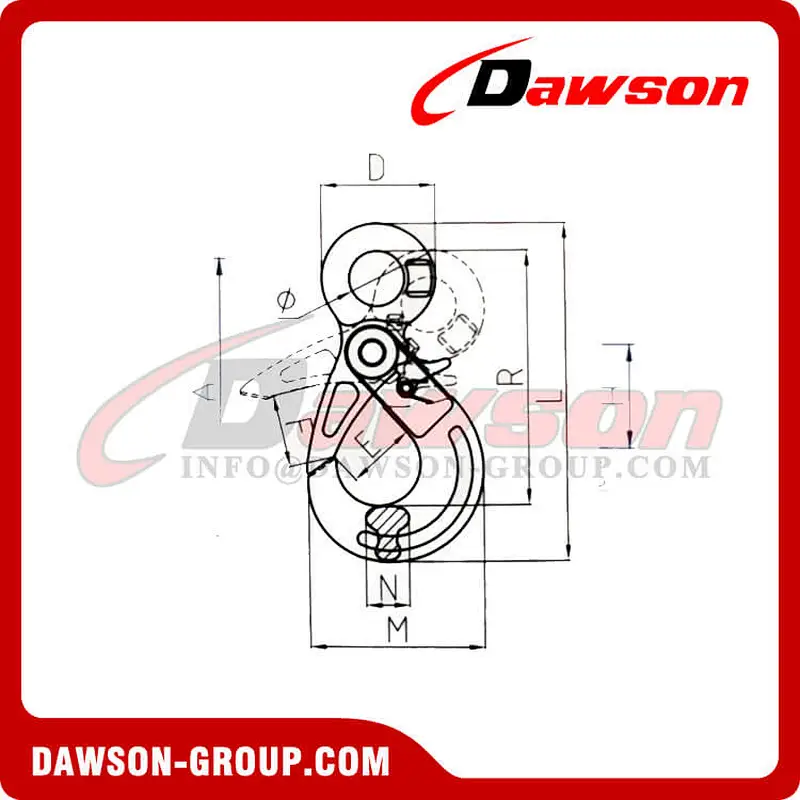

| Item No. | Weight/kg | WLL/T | B.L/T | Φ | D±1 | E±1 | F±1 | R±2 | M±2 | N±1 | L±3 |
| 10-DS1005-06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 31 | 110 | 70 | 15 | 141 |
| 10-DS1005-07 | 0.72 | 1.9 | 7.6 | 27 | 52 | 31 | 34 | 127 | 81 | 12 | 162 |
| 10-DS1005-08 | 0.9 | 2.5 | 10 | 27 | 52 | 36 | 40 | 137 | 90 | 20 | 175 |
| 10-DS1005-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 45 | 50 | 170 | 108 | 26 | 212.5 |
| 10-DS1005-13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.6 | 66 | 209 | 138.5 | 32.5 | 270 |
| 10-DS1005-16 | 5.7 | 10 | 40 | 50 | 104 | 61 | 75 | 256 | 170.5 | 38 | 333 |
| 10-DS1005-20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 80 | 277 | 192.5 | 50 | 369 |
| 10-DS1005-22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 104.6 | 319 | 205 | 52 | 417 |
Welcome to buy the newest and competitive price DAWSON g100 eye self-locking hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

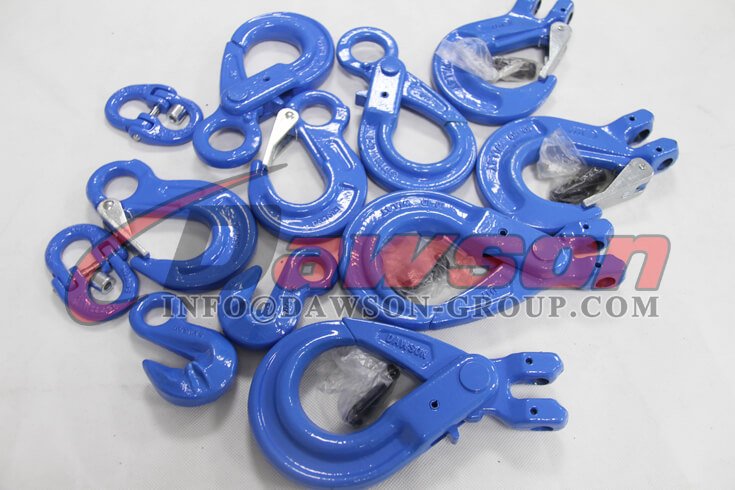

Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com

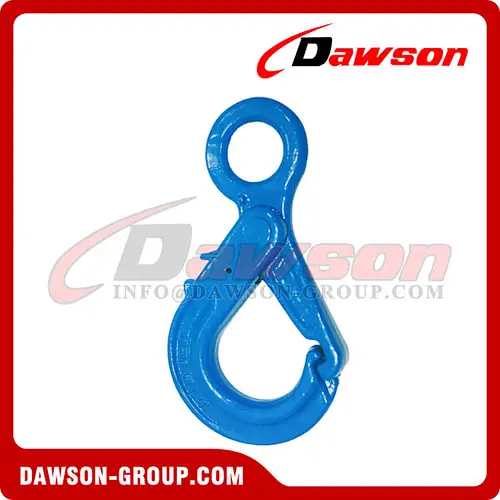

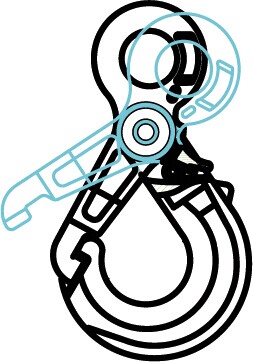

DS1016 |

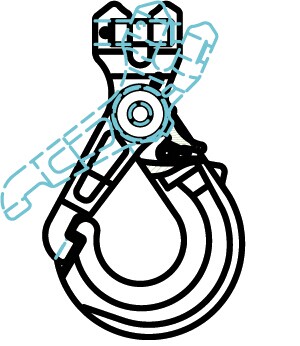

DS1017 |

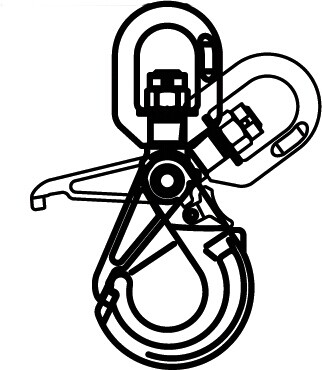

DS1018 |

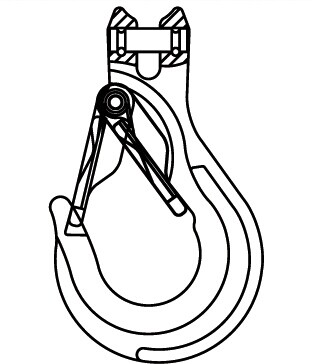

DS1025 |

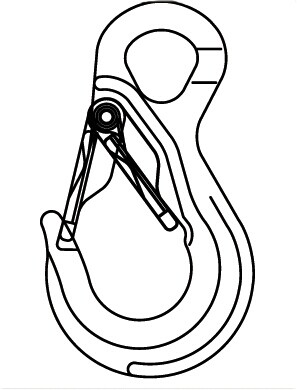

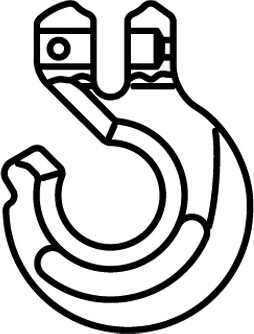

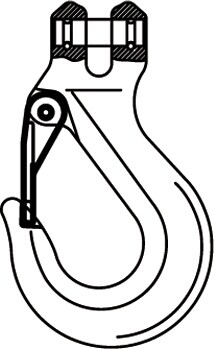

DS1026 |  DS1019 |  DS1028 |

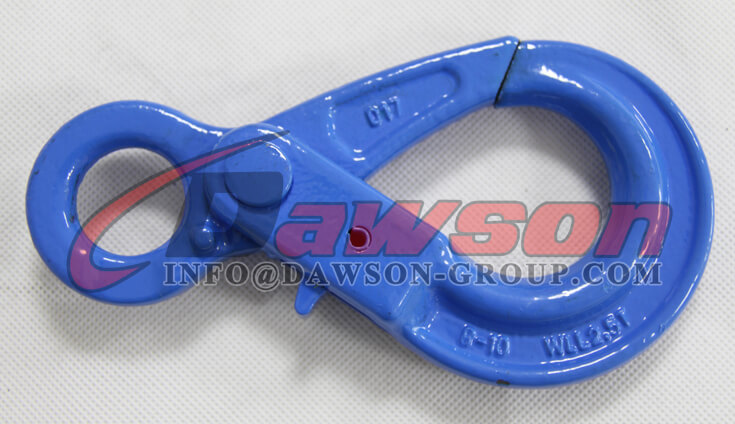

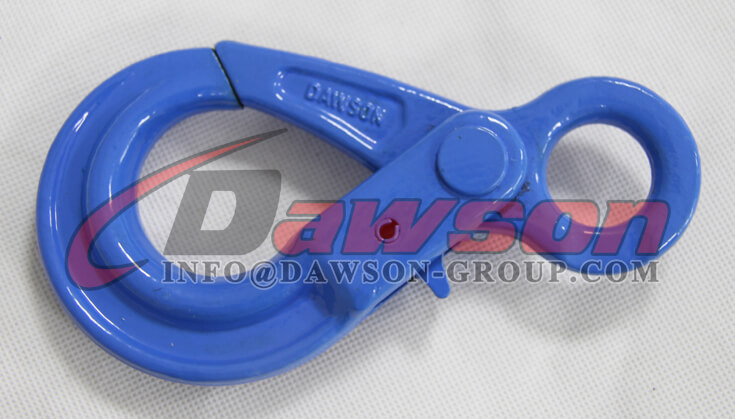

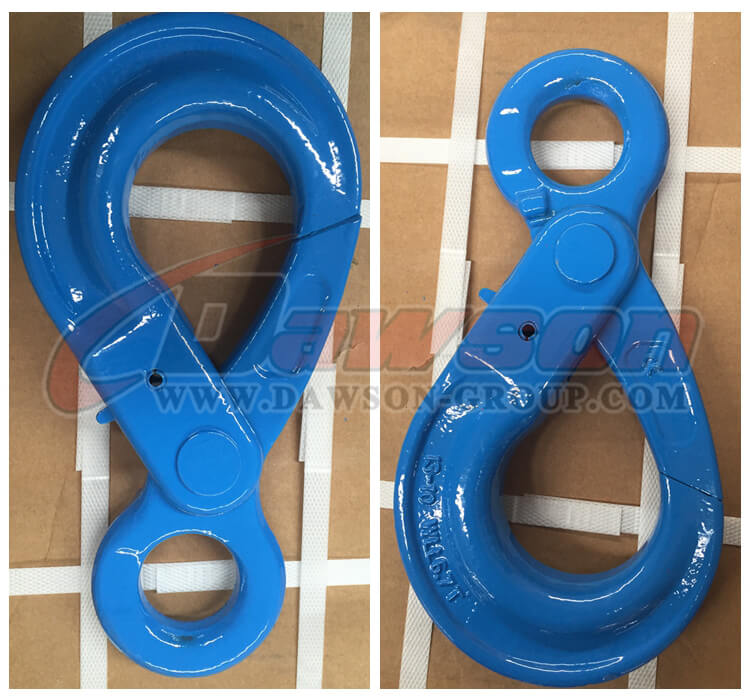

Products Show:
Hot Tags: Eye Self-Locking Hook, G100 Eye Self-locking Hook, Eye Self-locking Hook for Chain Slings, Grade 100 Eye Self-locking Hook for Chain Slings China, Forged Eye Self-Locking Hook Supplier, Alloy Steel Eye Self-Locking Hook Factory, Hot Sale Eye Self-Locking Hook for G100 Chains, Buy Discount Eye Self-Locking Hook, Eye Self-Locking Hook China Exporter, Low Price Eye Self-Locking Safety Hook, Self-Locking Eye Hook, Eye Self-Locking Safety Hook In Stock
Other Related Products:

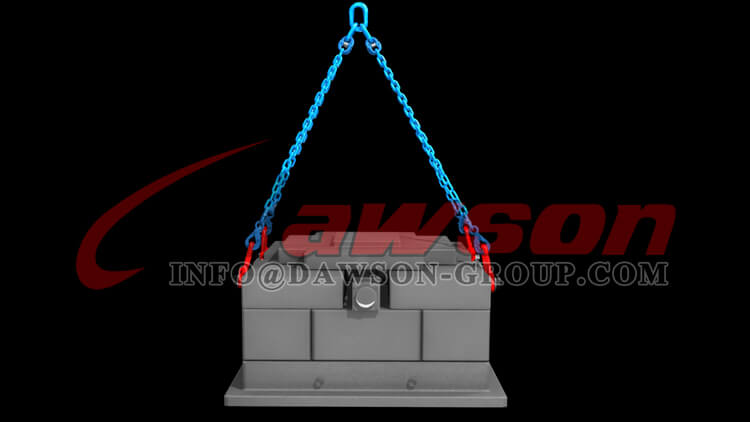

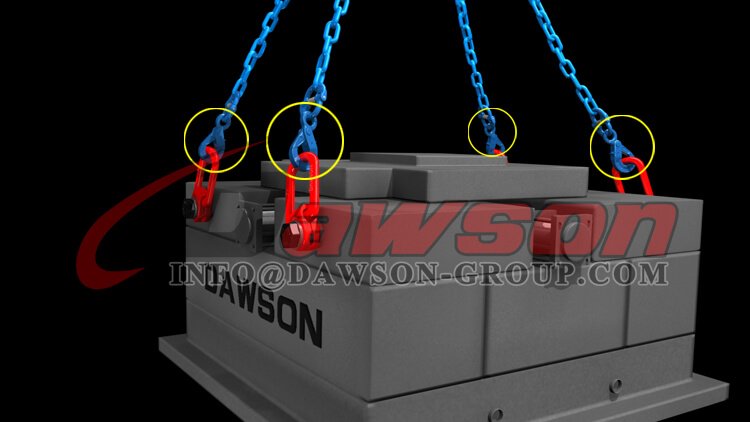

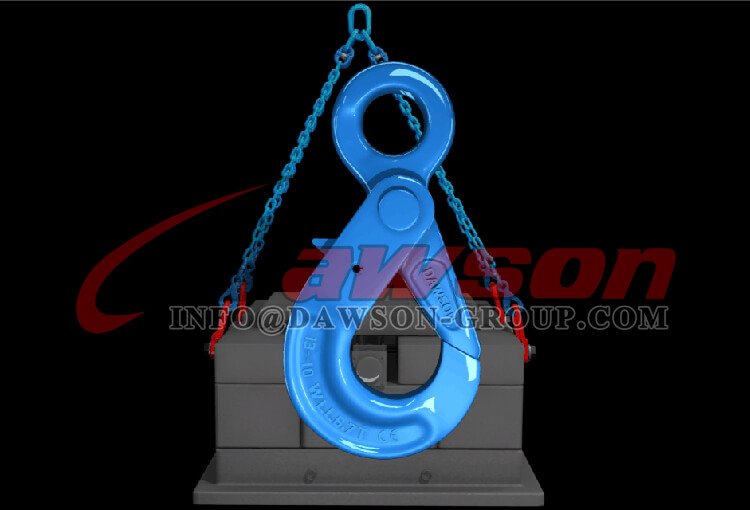

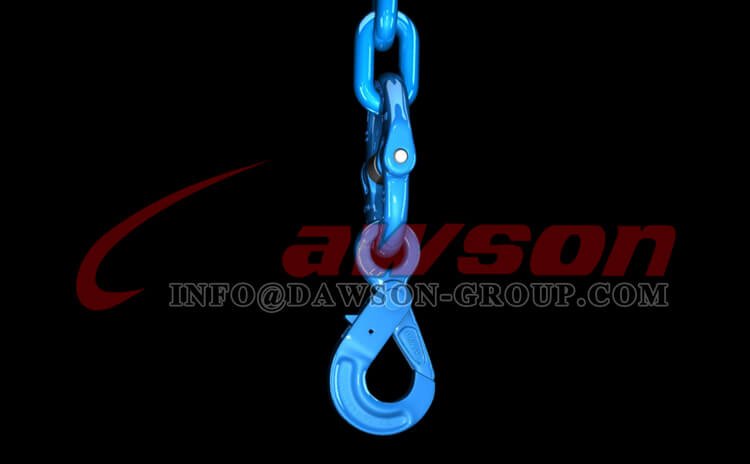

Application of G100 European Type Self-Locking Hook:
