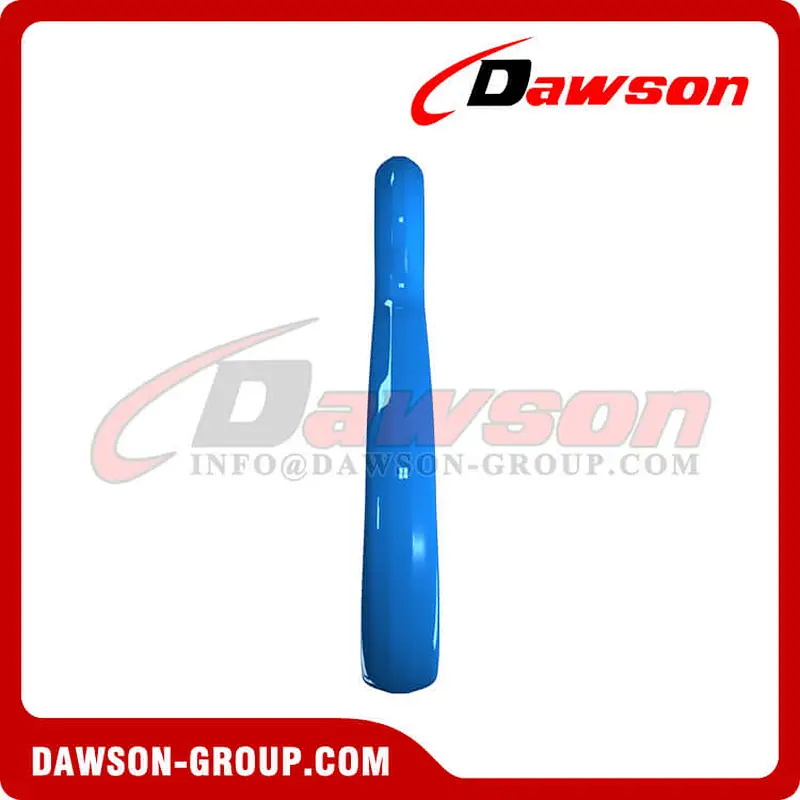

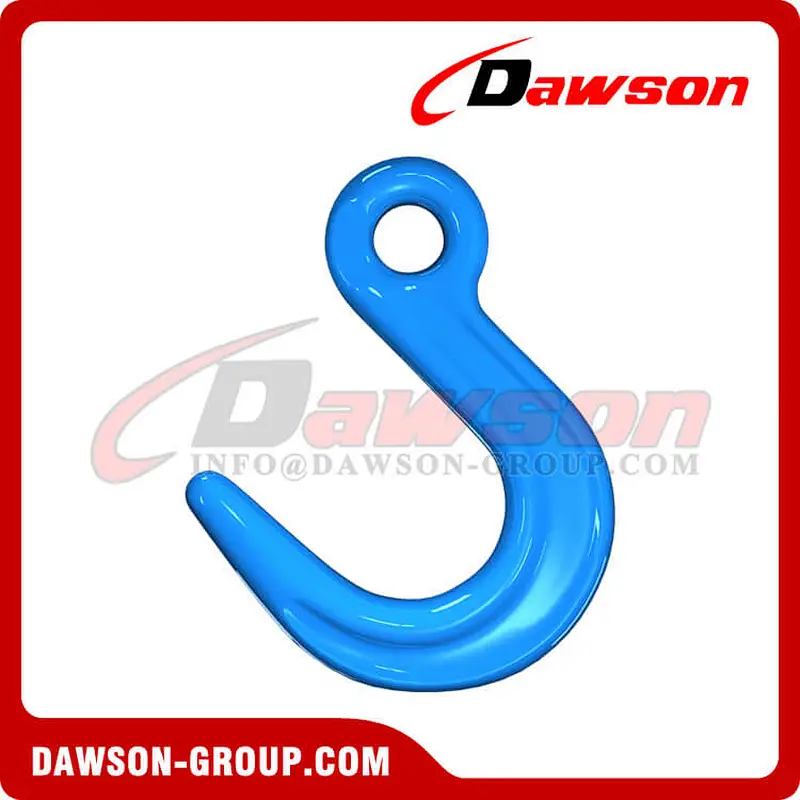

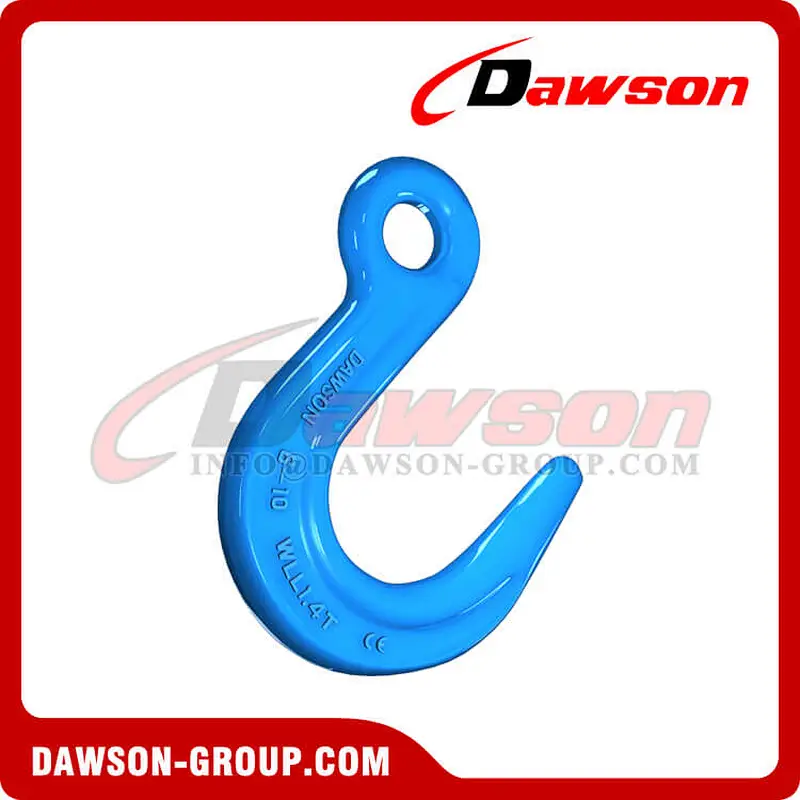

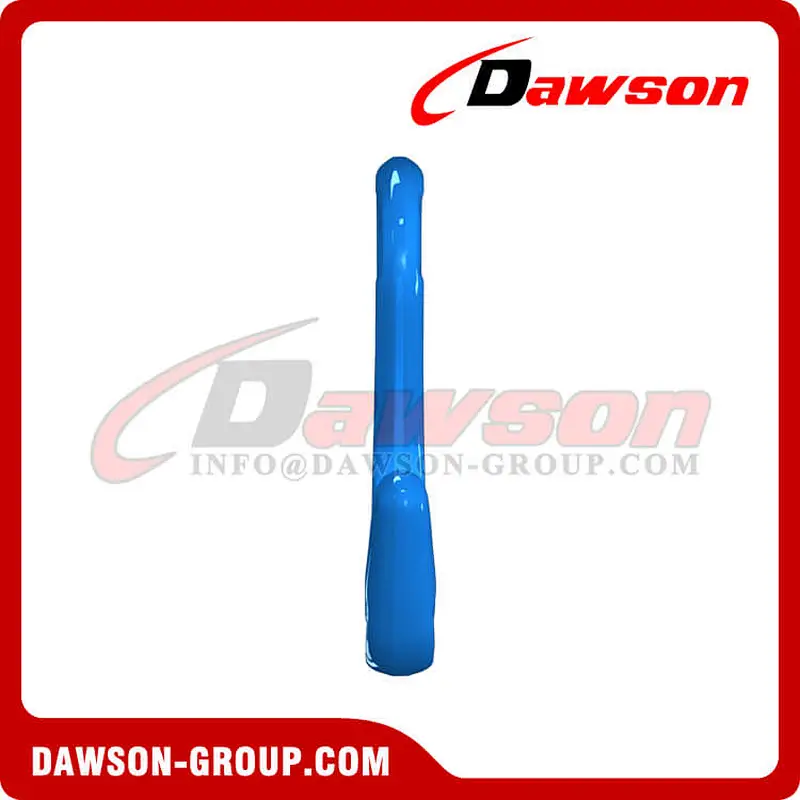

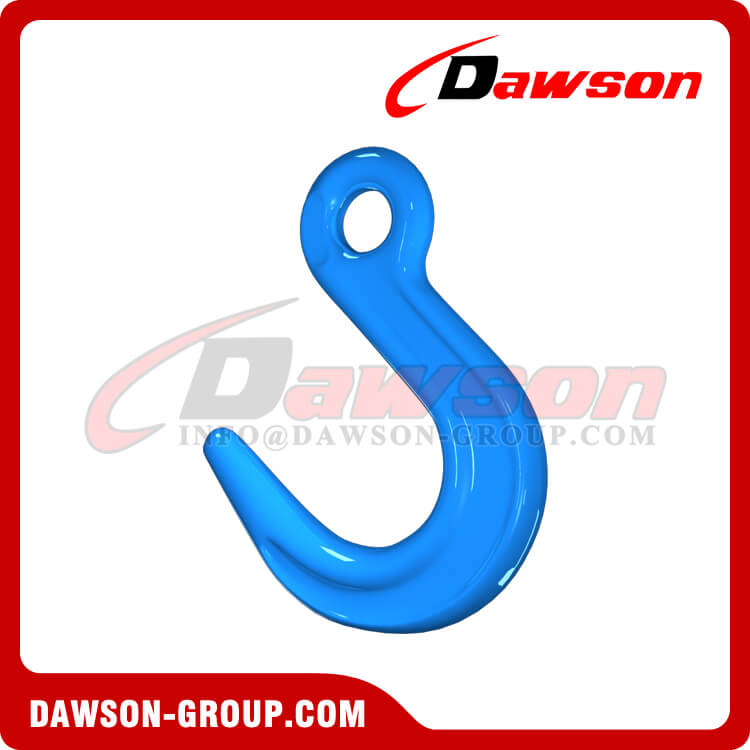

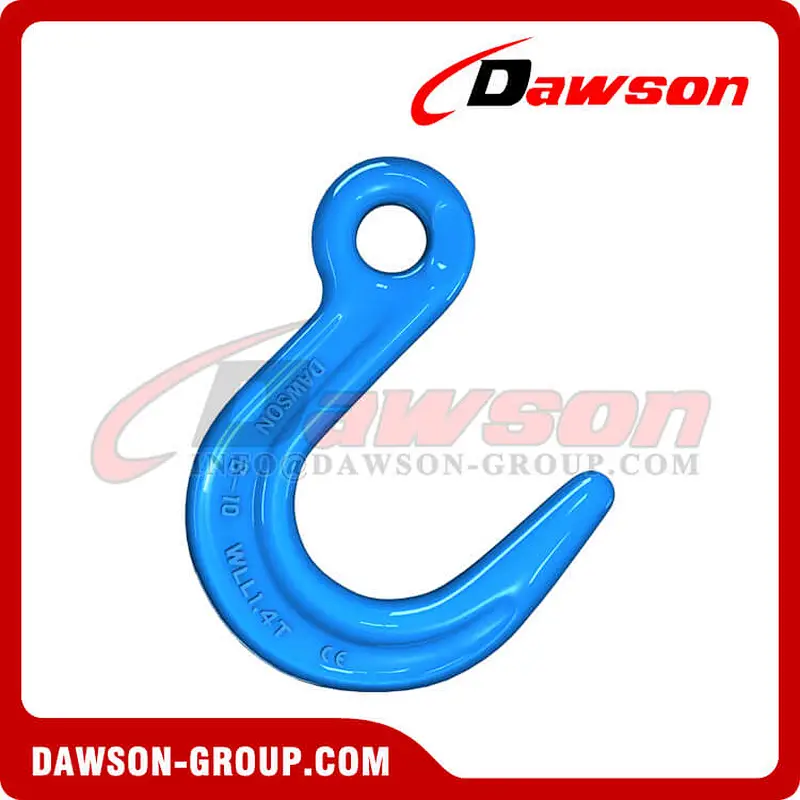

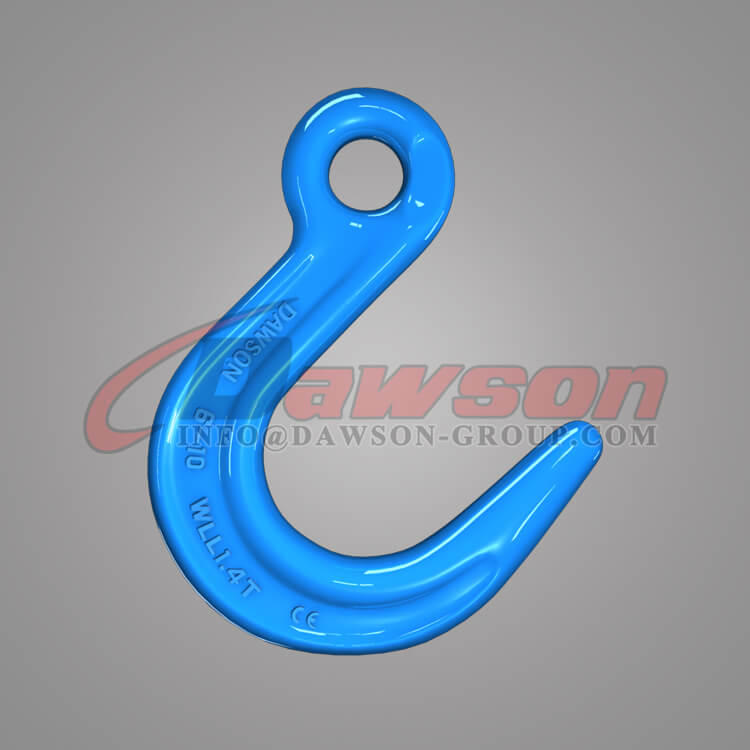

DS1074 G100 / Grade 100 Forged Alloy Steel Eye Foundry Hook, Large Opening Hook
G100 Eye Hook - Chain Slings Components Assembly
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.

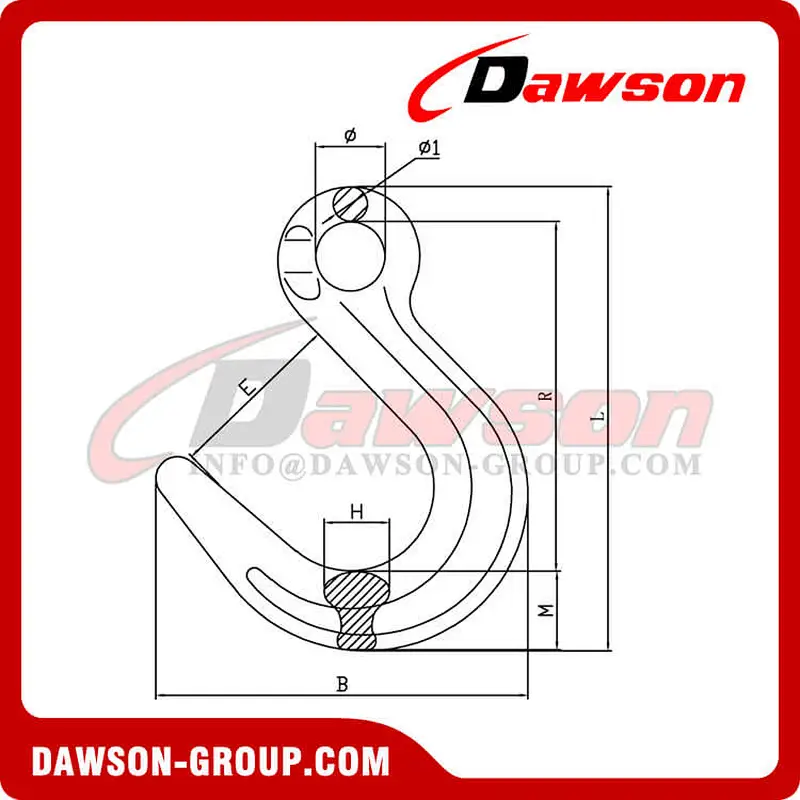

| Item No. | Weight/KG | WLL/T | B.L/T | Φ±1 | L±3 | B±2 | R±2 | E±1 | Φ1±1 | H±2 | M |
| DS-1074-6 | 0.382 | 1.4 | 5.6 | 20.5 | 133 | 100 | 102.7 | 49 | 10 | 17 | 19 |
| DS-1074-8 | 0.72 | 2.4 | 9.6 | 24 | 158.5 | 130 | 120.5 | 62 | 12 | 19 | 27.5 |
| DS-1074-10 | 1.25 | 4 | 16 | 31.5 | 199 | 152.5 | 153.2 | 73 | 15 | 25 | 31 |
| DS-1074-13 | 2.32 | 6.7 | 26.8 | 44 | 241.5 | 186 | 184 | 90 | 19 | 33 | 39.3 |
| DS-1074-16 | 3.45 | 10 | 40 | 49 | 279 | 218 | 216 | 105 | 22 | 37 | 42 |
The eye foundry hook is an excellent choice for rigging and other heavy lifting. Dawson's oversized eye connection allows for the easy insertion of chain or wire rope slings.
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |  DS1019 |  DS1028 |
Hot Tags: Eye Foundry Hook, G100 Eye Foundry Hook, Grade 100 Eye Foundry Hook, Forged Steel Eye Foundry Hook China, Alloy Steel Eye Foundry Hook China Supplier, Eye Foundry Hook for Lifting Manufacturer China, Large Opening Hook In Stock, G100 Large Opening Hook OEM, Forged Large Opening Hook Factory China, Low Price Large Opening Hook, Hot Sale Eye Large Opening Hook, Buy Discount Large Opening Hook, Chain Hardware, G100 Rigging Hardware, Alloy Steel Large Opening Hook Free Sample

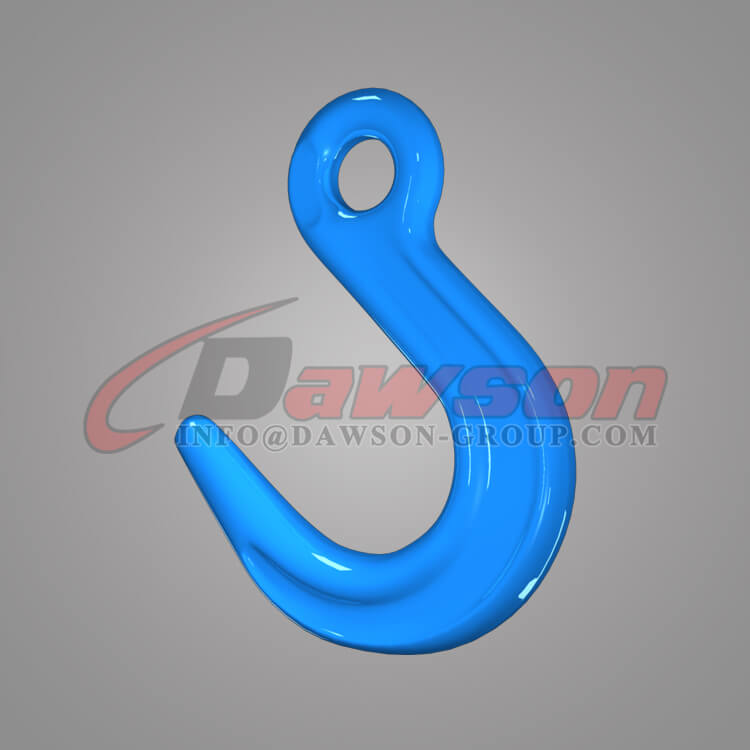

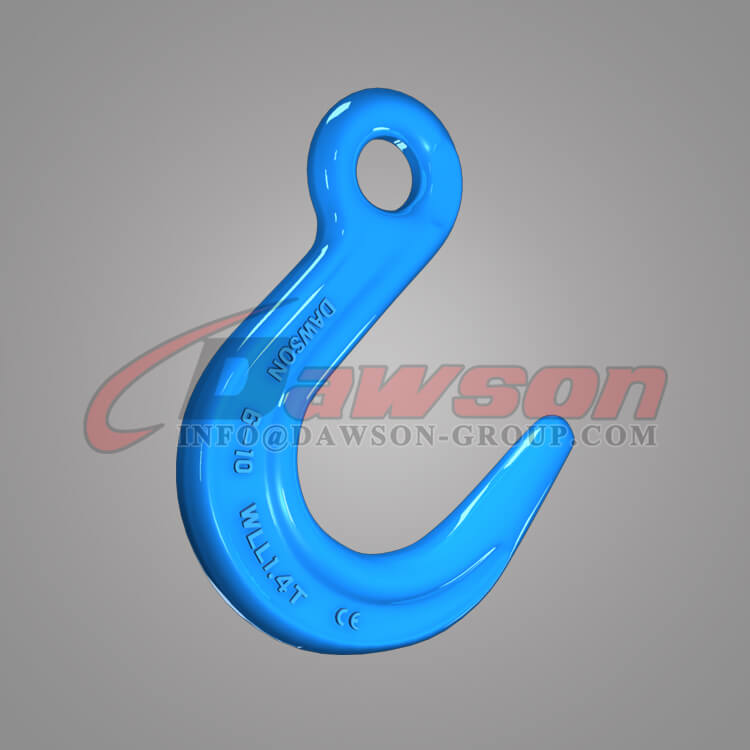

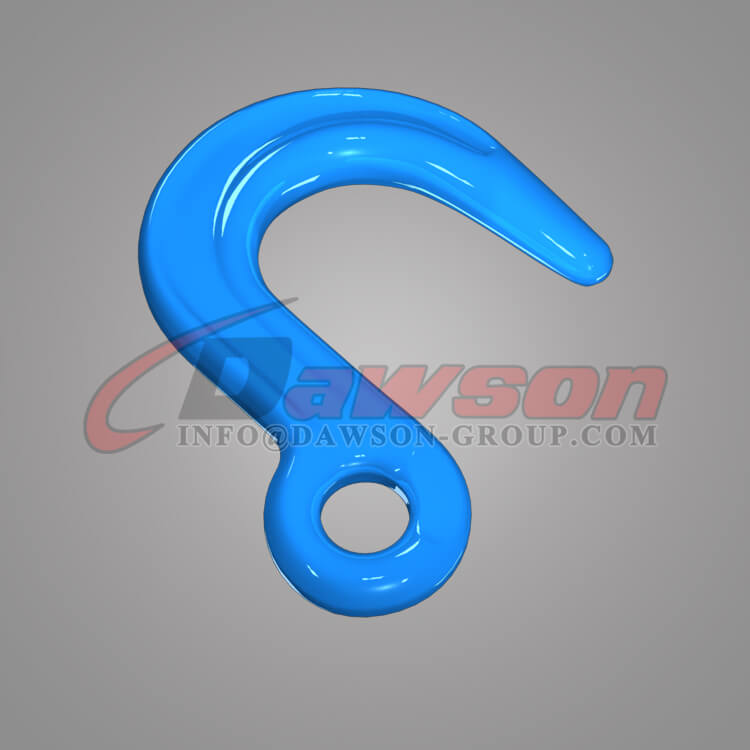

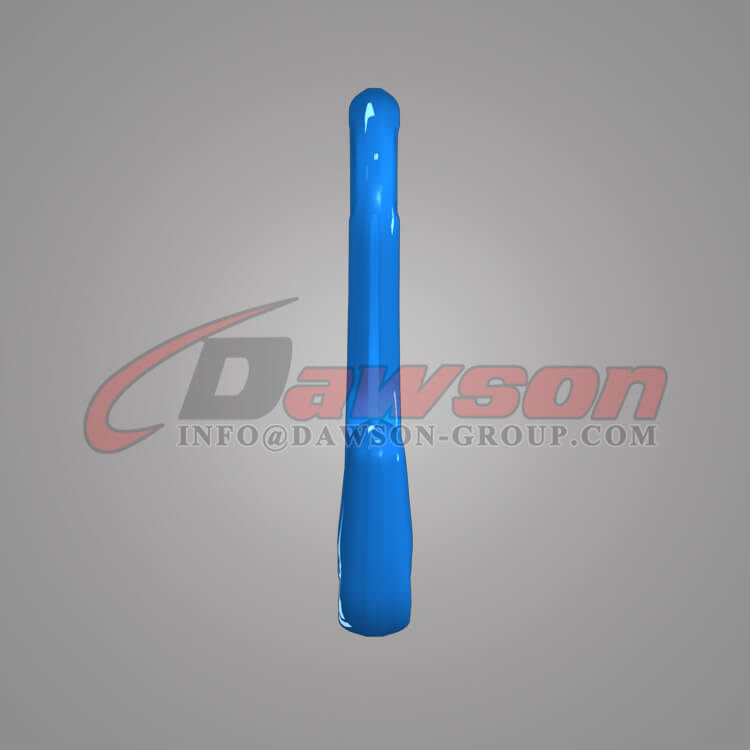

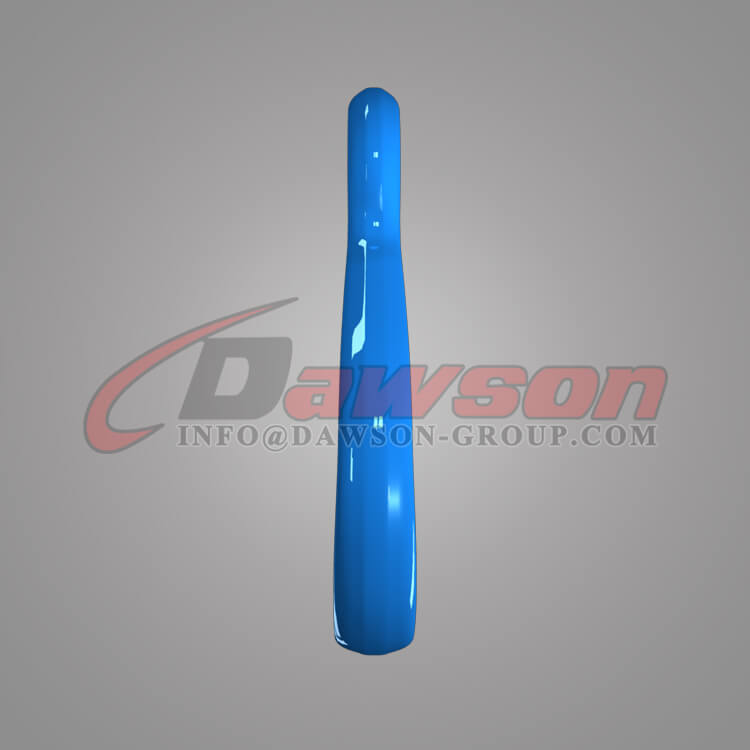

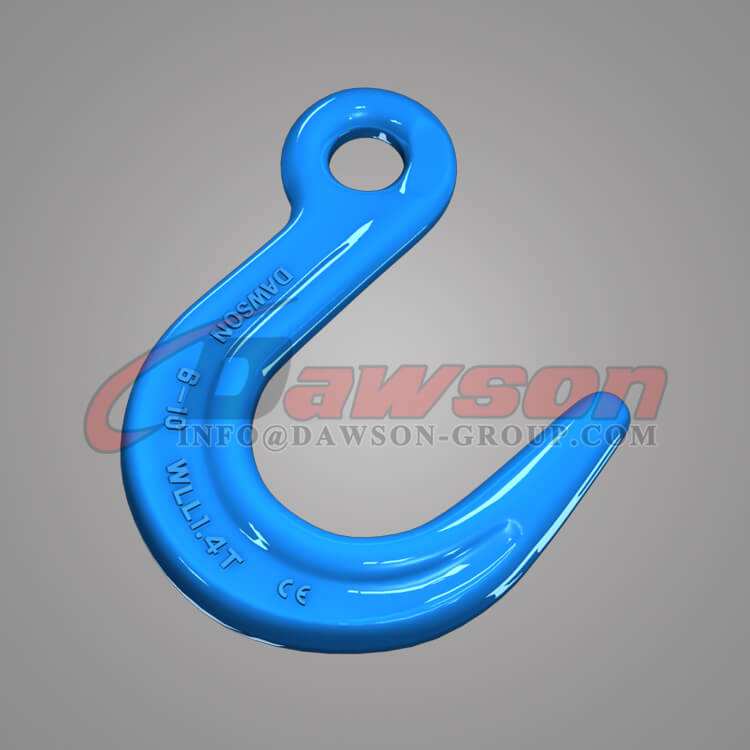

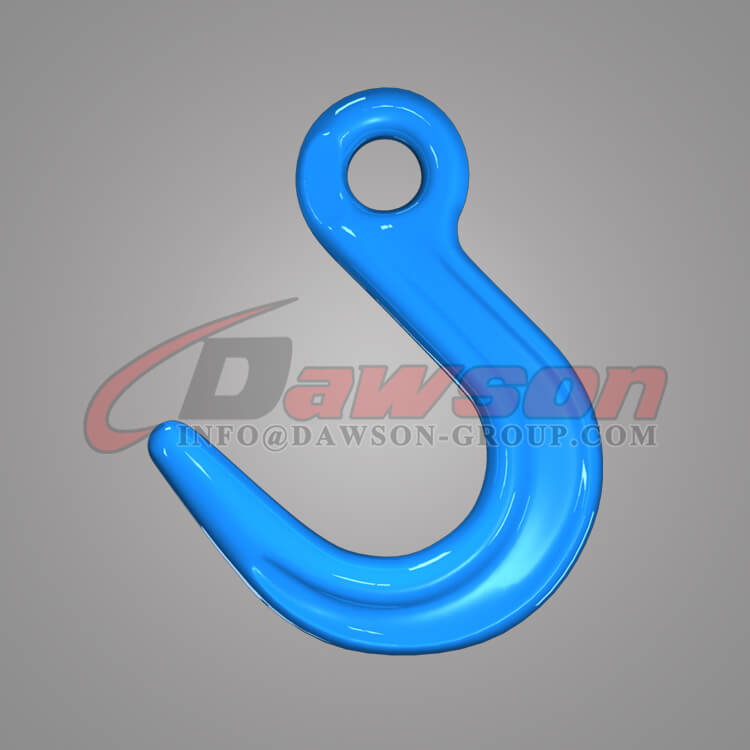

Product Show:
Other Related G100 Products:

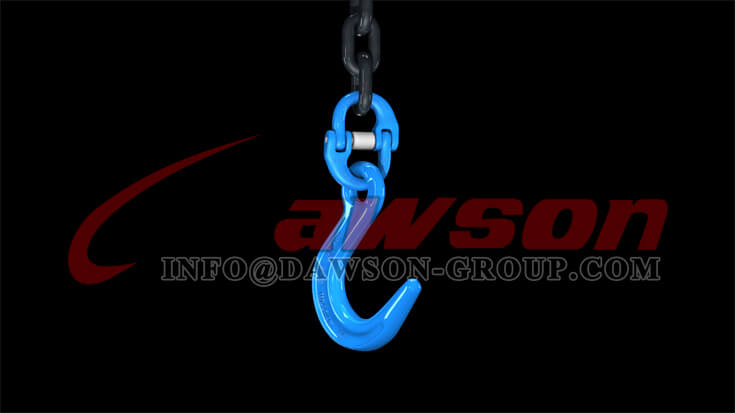

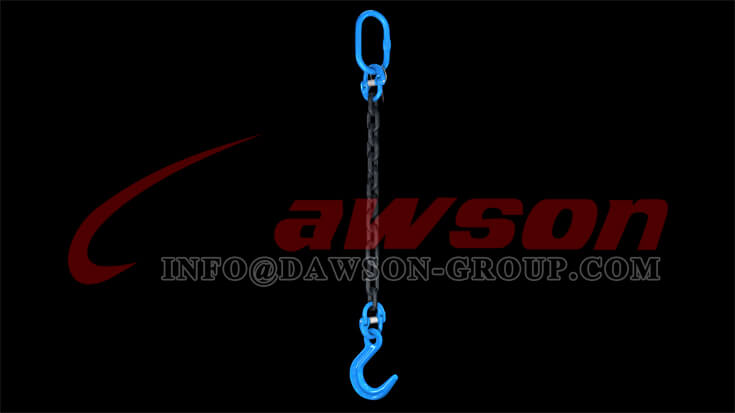

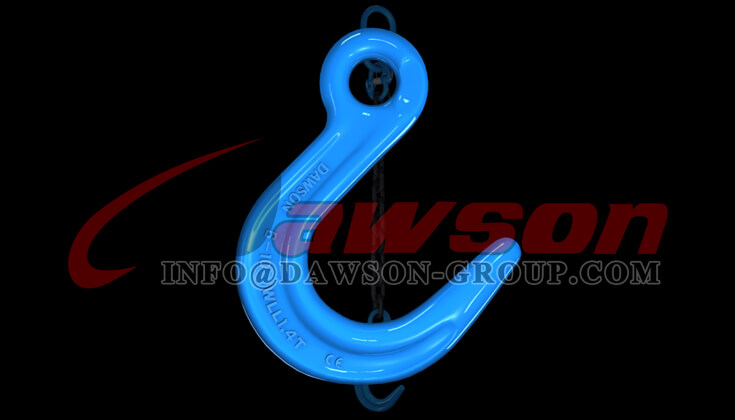

Application of G100 / Grade 100 Forged Alloy Steel Eye Foundry Hook, Large Opening Hook:
G100 Products Catalogues Download:
Factory & Package Show:
