Submersible Buoy Ropes
The range of diameter covers 6-12mm and breaking strength attach to 3T-12T,Ropes can be braided with high quality Kevlar、Dyneema and Vectran. Double braided rope with coating and finishing, whose performance is better than similar products R&D capability and management level guarantee the reliability of all ropes.
Yachting Ropes
The high performance yachting ropes allow them to replace the steel wire and are lighter than steel. They are swift and easy use, buoyant, light ,completely non-absorb water. They are the users favorite ropes who pursuit of speed and flexible, plus a riot of colours color ,they are widely used with the yachting mooring field.

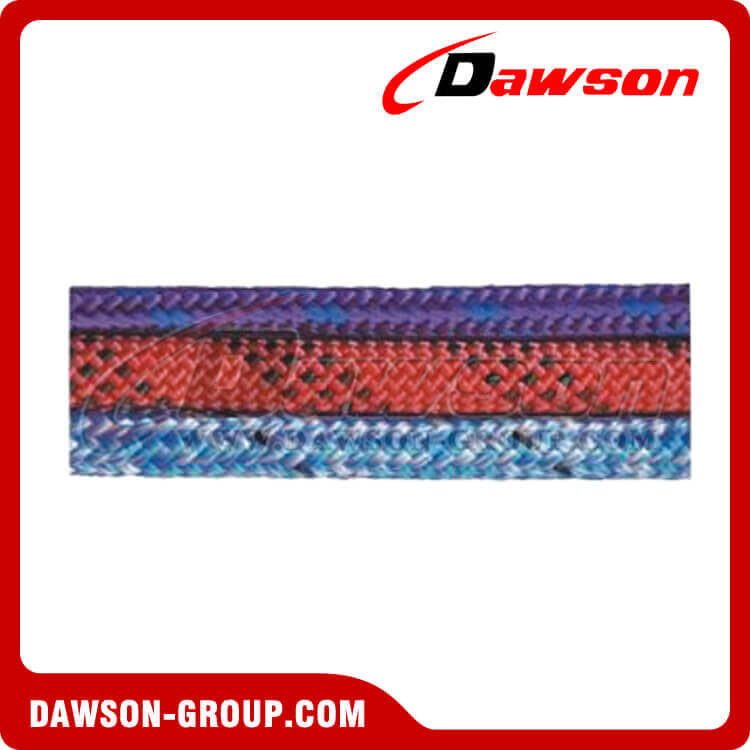

Sailboat Ropes
All ropes are braided with unique design and professional technology. Heat ( or cold) stretching process will be done by customers’ need go get ideal softness, ultra low extension ; Besides, special coating finishment make it more abrasive ,flexible and durable, which could be widely used in yachting moorings, sailing control panels and other fields with all colors.
Traction, Hanging Ropes
In order to meet special needs, we could develop all kinds of ropes with different specifications and performance in hanging pull, traction, and other areas.

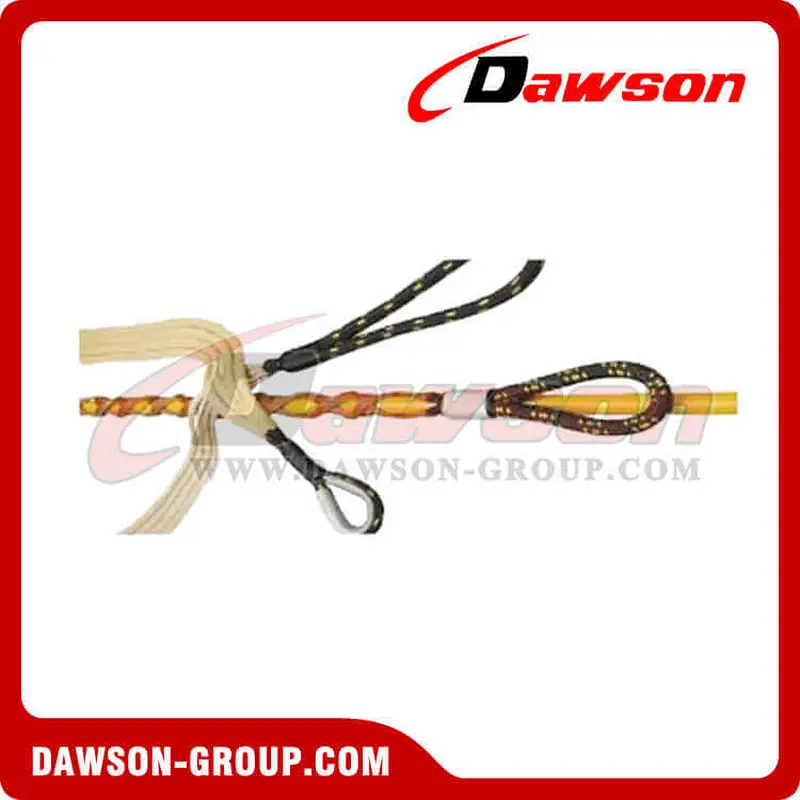

Synthetic Grips
Synthetic Grips are used as pulling and stopping grips for electrical line construction work above and below ground, deployment and retrieval of a variety of cables, as marine stoppers on hawsers, and for temporary or permanent strain relief ,Strain relief. Synthetic Grips are quickly applied over a wide range of cable diameters without specialized tools.
| Number | Material | Color | Working load | Average Break strength | Cable diameter (min ~max) | Leg length | Eye length | |||||
| Ib | kg | Ib | kg | inches | mm | ft | m | inches | mm | |||
| DSH-SZK8 | Kevlar® | Red | 500 | 228 | 5500 | 1137 | 1/8 - 3/8 | 3-9 | 4 | 1.23 | 6 | 152 |
| DSH-SZK10 | Kevlar® | yellow | 1000 | 455 | 5000 | 2273 | 3/16 - 1/2 | 5-13 | 5 | 1.52 | 6 | 152 |
| DSH-SZK12 | Kevlar® | Blue | 2000 | 909 | 10000 | 4545 | 1/4 - 3/4 | 6-19 | 6 | 1.83 | 6 | 152 |
| DSH-SZV8 | Vectran® | red | 600 | 273 | 3000 | 1364 | 1/8 - 3-8 | 3-9 | 4 | 1.23 | 6 | 152 |
| DSH-SZV10 | Vectran® | Yellow | 1200 | 545 | 6000 | 2727 | 3/16 - 1/2 | 5-13 | 5 | 1.52 | 6 | 152 |
| DSH-SZV12 | Vectran® | blue | 2400 | 1094 | 12000 | 5456 | 1/4 - 3/4 | 6-19 | 6 | 1.83 | 6 | 152 |
Select based an anticipated working load ,rather than by cable diameter.

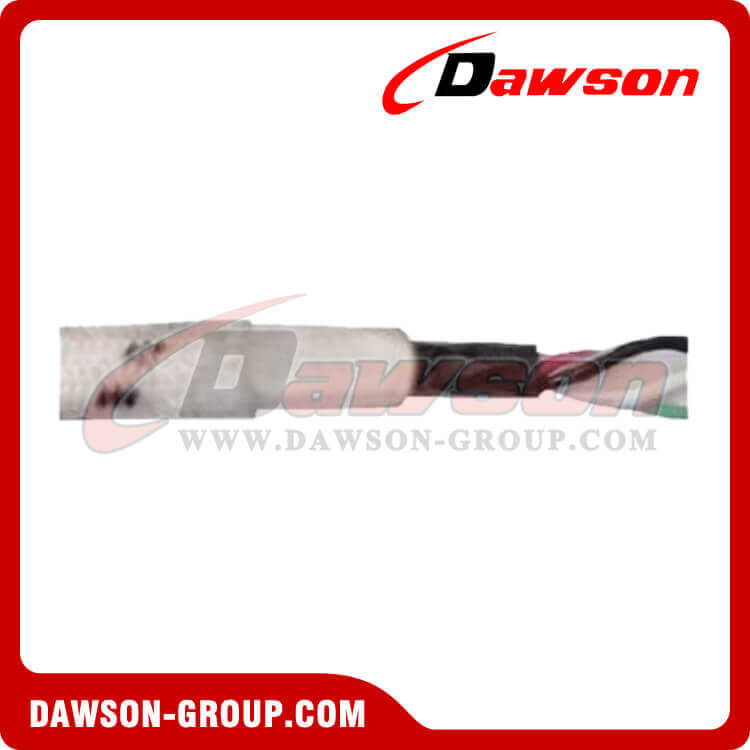

Umbilical Cable
The rope is the key link between underwater instruments and surface tracking ship. It is strengthened by non-metallic materials, New structure with smaller volume and lighter weight improve the flexibility, reaction speed, anti-interference and bending performance of underwater equipments.

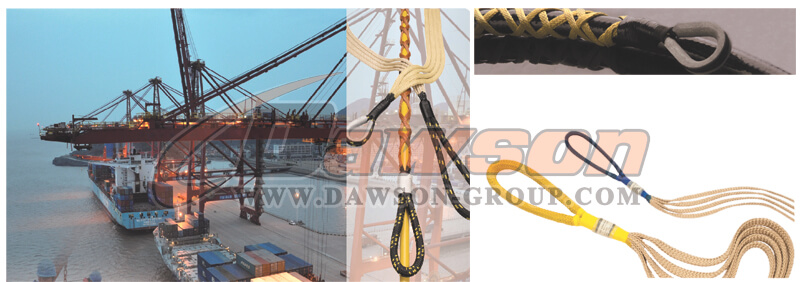

Application of the related products:

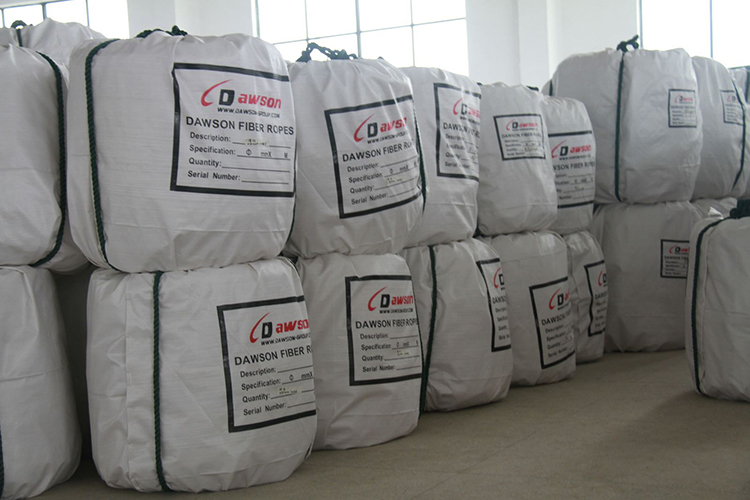

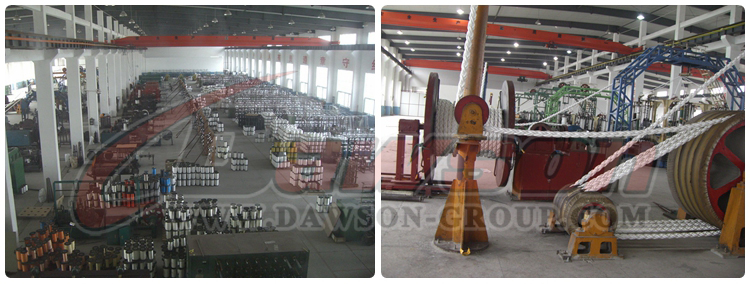

Factory Show & Package:
