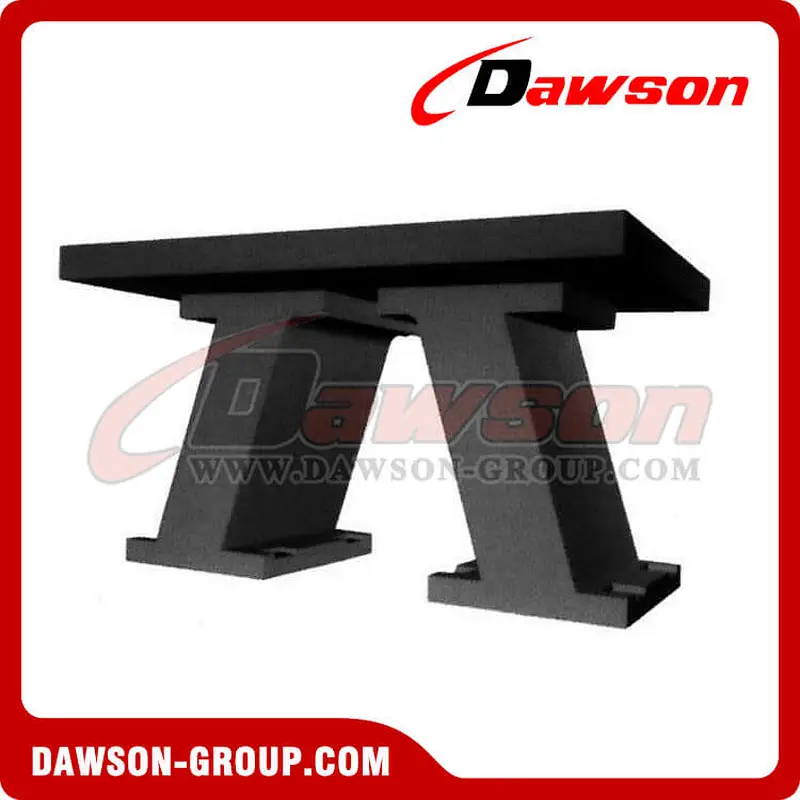

DS-Π Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature
1. DS-Π type rubber fender larger rated compression, higher energy absorb, fender energy absorption raise 10% or so than super arch type rubber fender.
2. Fender installation flexible, it can adopt crosswise, longitudinal, combination etc style. It can meet in the requirement of different docks.
3. Front panel set in front of fender, it can lower the surface pressure of vessel side board.
4. UHMW-PE set in front of panel, it can lower friction factor between vessel and fender, lower the shear strength while vessel berthing, and raise utility of fender life.
5. After fender adopt combination style, slant compression performance changeable very little.
Specifaction

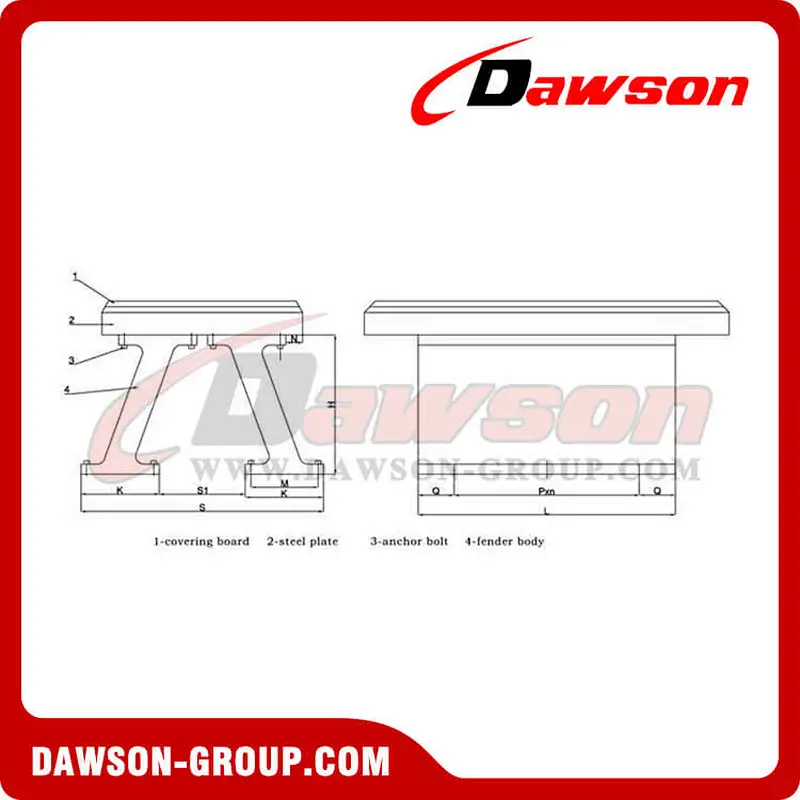

| specification | Sizes | |||||||||
| H | A | W | T | B | L | a | p | n | bolt | |
| Π300 | 300 | 47 | 94 | 15 | 94 | 2000 | 250 | 500 | 4 | M24 |
| Π400 | 400 | 63 | 125 | 17 | 124 | 2000 | 250 | 500 | 4 | M24 |
| Π500 | 500 | 87 | 158 | 20 | 142 | 2000 | 250 | 500 | 4 | M30 |
| Π550 | 550 | 87 | 172 | 20 | 170 | 2000 | 250 | 500 | 4 | M30 |
| Π600 | 600 | 87 | 188 | 20 | 199 | 2000 | 250 | 500 | 4 | M30 |
| Π750 | 750 | 118 | 235 | 26 | 230 | 2000 | 250 | 500 | 4 | M36 |
| Π800 | 800 | 129 | 260 | 26 | 240 | 2000 | 250 | 500 | 4 | M36 |
| Π1000 | 1000 | 162 | 322 | 31 | 320 | 2000 | 250 | 500 | 4 | M42 |
| Π1250 | 1250 | 202 | 401 | 36 | 388 | 2000 | 250 | 500 | 4 | M48 |
| Π1450 | 1450 | 228 | 454 | 41 | 454 | 2000 | 250 | 500 | 4 | M48 |
| Π1600 | 1600 | 257 | 500 | 50 | 480 | 2000 | 250 | 500 | 4 | M56 |
Note
(1)Fender length is 900,1000,1500,2000mm.
(2)Other specification can be manufactured upon users’ request.
Specifaction
| specification | Dynamic performance | |||||
| Rated compression deflection(%) | Reaction force(KN) | Energy absorb(KN-M) | Reaction force(KN) | Energy absorb(KN-M) | Tolerance(%) | |
| Π300 | 57.5 | 110 | 15 | 161 | 22 | ±10 |
| Π400 | 150 | 27 | 214 | 39 | ||
| Π500 | 187 | 43 | 267 | 61 | ||
| Π550 | 206 | 52 | 294 | 75 | ||
| Π600 | 224 | 6 | 320 | 89 | ||
| Π750 | 282 | 96 | 402 | 137 | ||
| Π800 | 299 | 110 | 428 | 157 | ||
| Π1000 | 374 | 172 | 534 | 245 | ||
| Π1250 | 467 | 268 | 667 | 383 | ||
| Π1450 | 543 | 361 | 775 | 516 | ||
| Π1600 | 299 | 440 | 855 | 628 | ||
Note
Fender length is 1000mm.

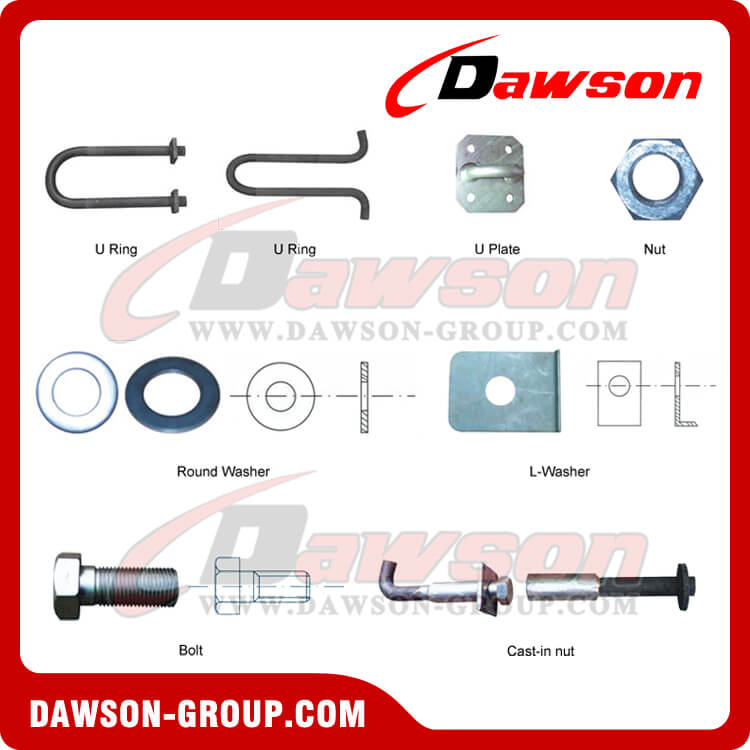

Accessories for Rubber Fenders:

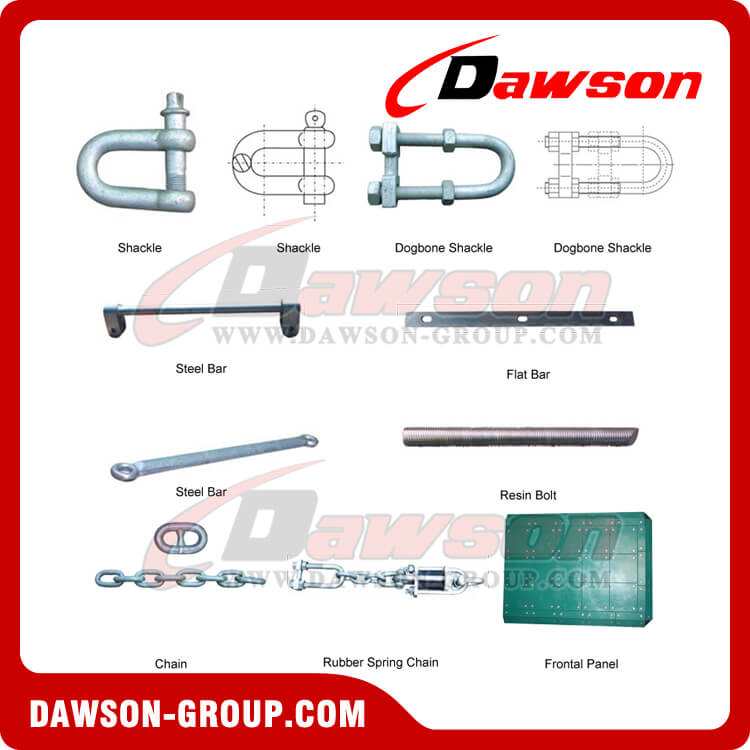

Equipments:

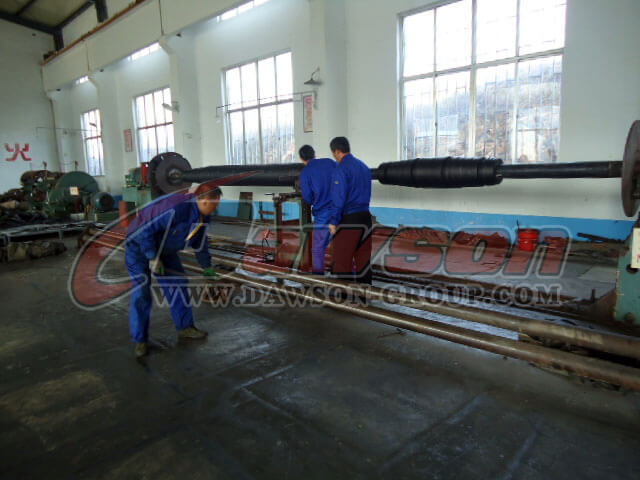

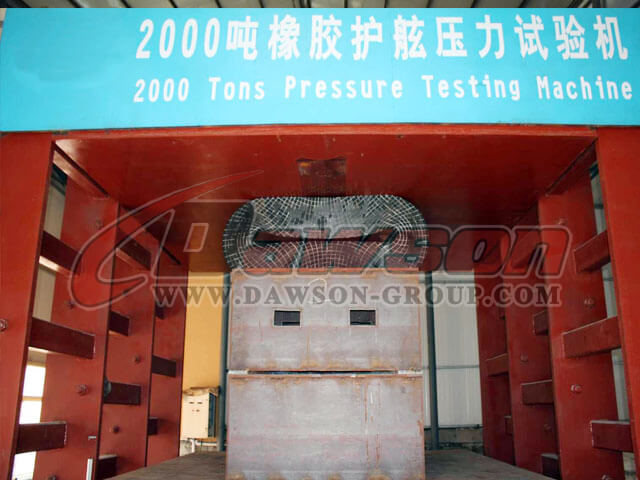

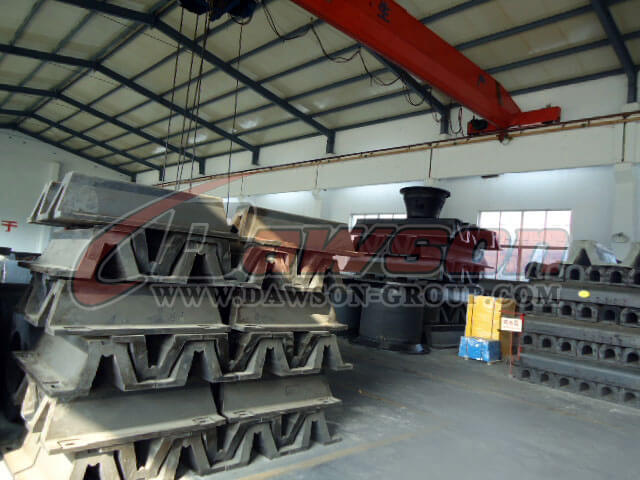

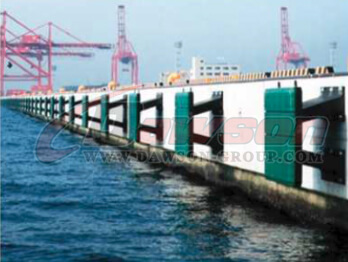

Application of Π Rubber Fender:
