The rope use an outer sleeve to protect core rope for better proof, anti-aging and abrasion resistance performance, which can meet all requests of EN 1891.The resulting rope own high breaking strength and stability as no slippage is happened in this structure .So it’s widely used in climbing, aerial work, training and rescue.
| Number | DSA-DSJ 9 | DSA-DSJ 10.5 | DSA-DSJ 11 | DSA-DSJ 12 |
| Diameter(mm) | 9.1 | 10.5 | 11.1 | 12.0 |
| EN(Norm) | EN1891 | EN1891 | EN1891 | EN1891 |
| Type | A | A | A | A |
| (Breaking load) kgf | 1800 | 2000 | 2200 | 2800 |
| (Number of factors1falls) | 6(100kg) | 8(100kg) | 10(100kg) | 14(100kg) |
| (Peck force factor0.3) | 4kN | 4kN | 4.5kN | 4.5kN |
| Static elongation | 4% | 4% | 3% | 4% |
| Sheath slippage | 0.3% | 0.4% | 0.4% | 0.4% |
| Weight per meter g/m | 55% | 68% | 72% | 75% |
| Sheath percentage | 54% | 38% | 35% | 32% |
| Shrinkage | 4% | 4% | 5% | 5% |
| Material | Nylon | Nylon | Nylon | Nylon |
※(Recommend length)：50m、100m、200m
Application of the related products:

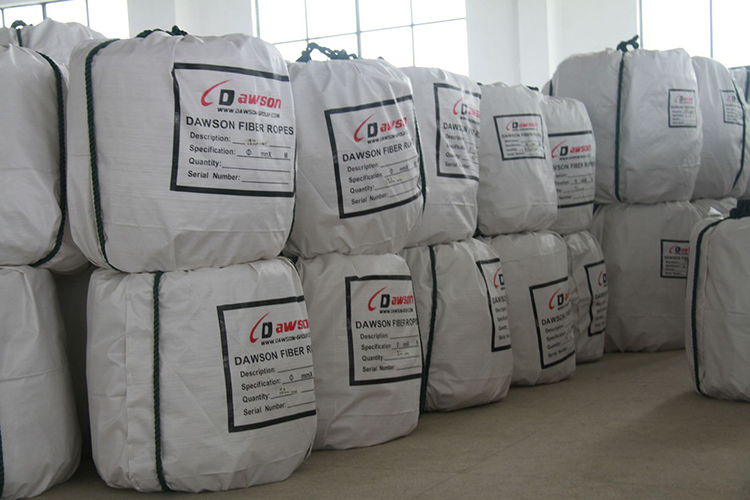

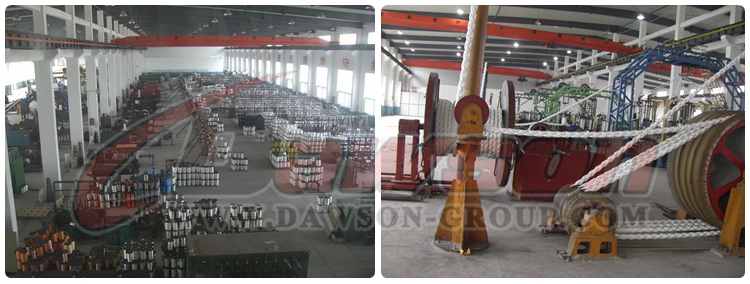

Factory Show & Package:
