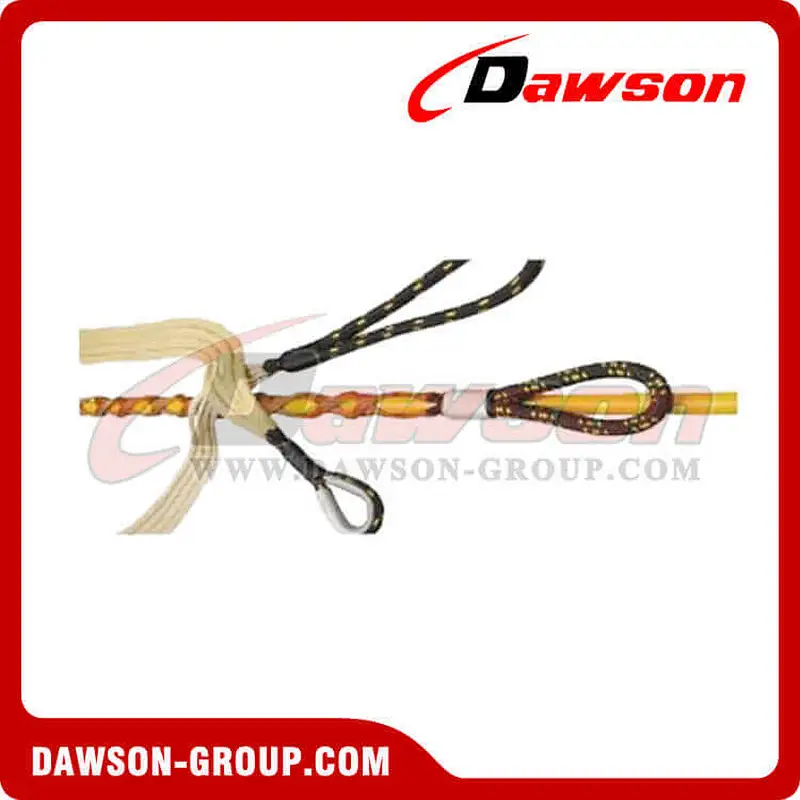

Synthetic Grips - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Number | Material | Color | Working load | Average Break strength | Cable diameter (min ~max) | Leg length | Eye length | |||||
| Ib | kg | Ib | kg | inches | mm | ft | m | inches | mm | |||
| DSH-SZK8 | Kevlar® | Red | 500 | 228 | 5500 | 1137 | 1/8 - 3/8 | 3-9 | 4 | 1.23 | 6 | 152 |
| DSH-SZK10 | Kevlar® | yellow | 1000 | 455 | 5000 | 2273 | 3/16 - 1/2 | 5-13 | 5 | 1.52 | 6 | 152 |
| DSH-SZK12 | Kevlar® | Blue | 2000 | 909 | 10000 | 4545 | 1/4 - 3/4 | 6-19 | 6 | 1.83 | 6 | 152 |
| DSH-SZV8 | Vectran® | red | 600 | 273 | 3000 | 1364 | 1/8 - 3-8 | 3-9 | 4 | 1.23 | 6 | 152 |
| DSH-SZV10 | Vectran® | Yellow | 1200 | 545 | 6000 | 2727 | 3/16 - 1/2 | 5-13 | 5 | 1.52 | 6 | 152 |
| DSH-SZV12 | Vectran® | blue | 2400 | 1094 | 12000 | 5456 | 1/4 - 3/4 | 6-19 | 6 | 1.83 | 6 | 152 |
Select based an anticipated working load ,rather than by cable diameter.

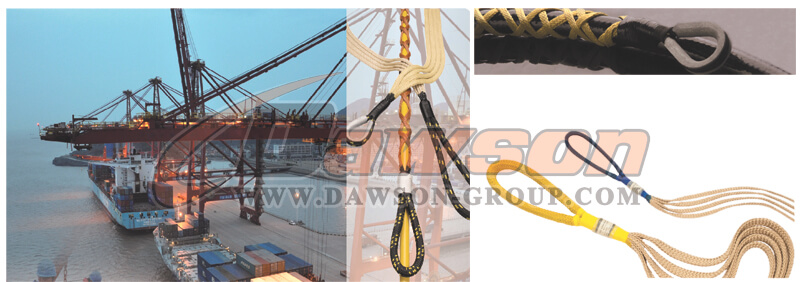

Application of the related products:

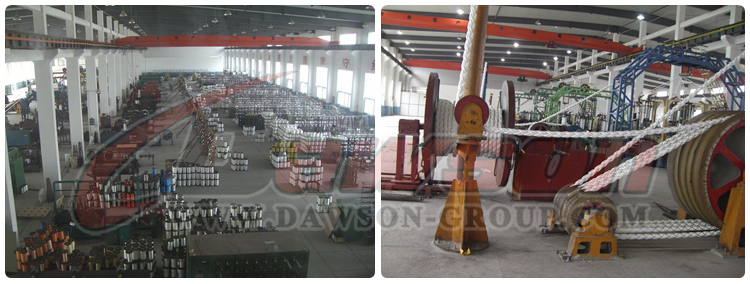

Factory Show & Package:
