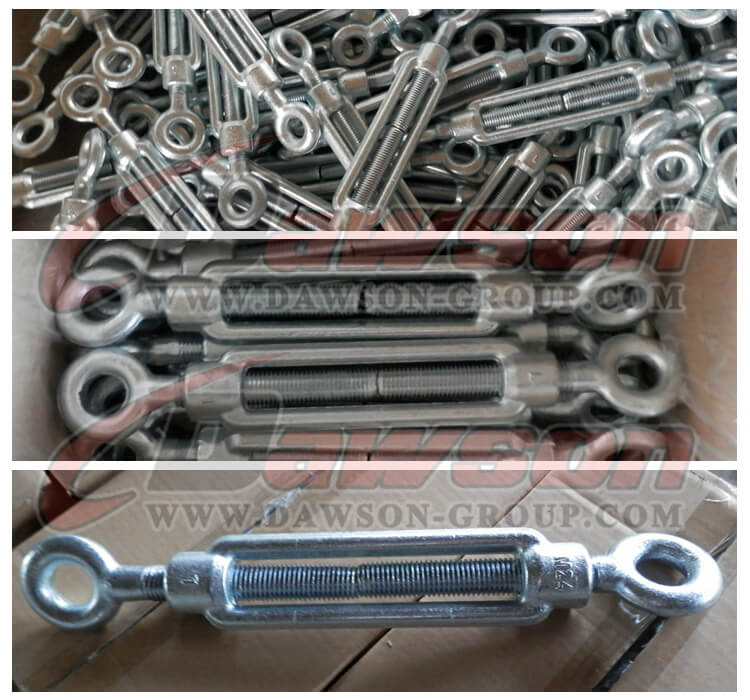

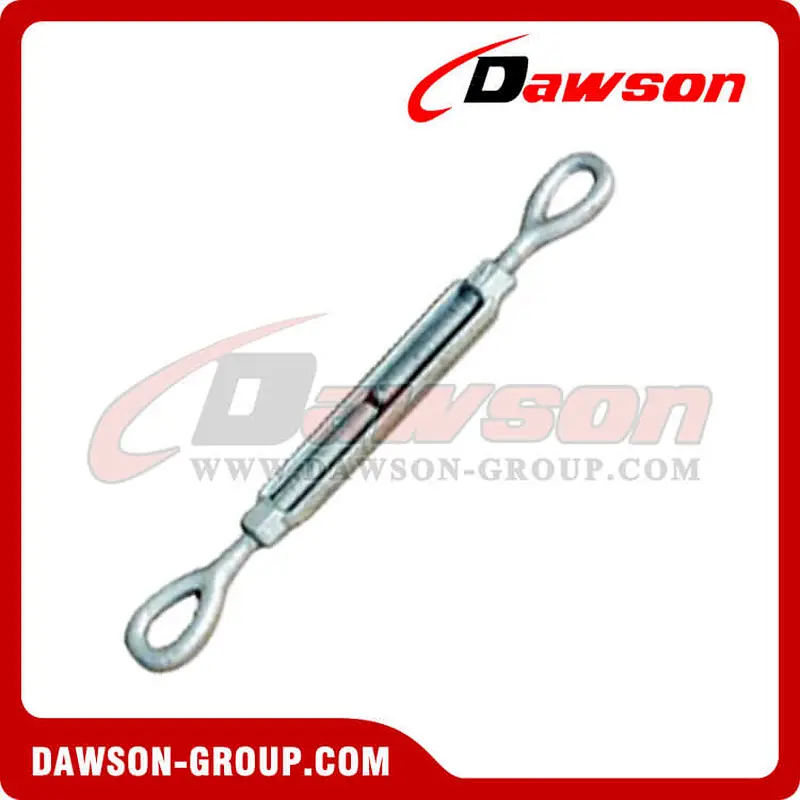

US Type Drop Forged Turnbuckle Eye & Eye
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Conforms To Federal Specification FF-T-791b, Type 1, Form 1 - Class 4
Material: Forged Steel, bodies are normalized. End Fittings are quenched and tempered.
Loading: Proof load is 2.5 times working load limited.
Ultimate load is 5 times working load limited.
Finished: Hot Dipped Galvanized.
| Item No. | Thread Dia. & Take Up | Working Load Limit(lbs) | Weight Each (lbs) | Dimensions (in) | ||||||

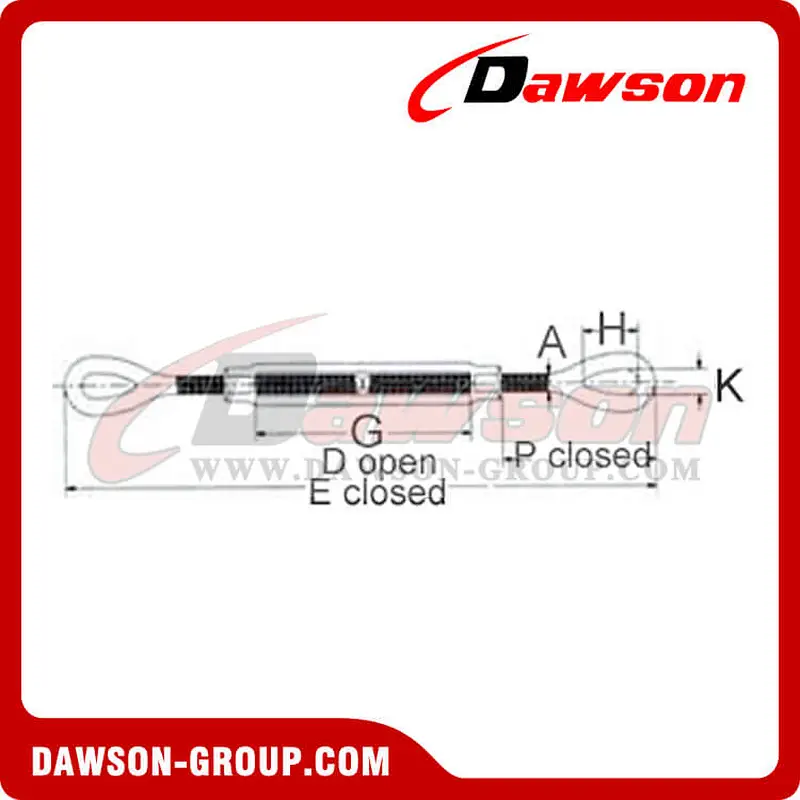

| A | D Open | E Closed | G | H | K | P Closed | ||||
| DS-FTEE0404 | 1/4 x 4 | 500 | 0.30 | 0.25 | 12.25 | 8.25 | 4.00 | 0.78 | 0.34 | 1.75 |
| DS-FTEE0505 | 5/16 x 4 1/2 | 800 | 0.47 | 0.31 | 14.12 | 9.62 | 4.50 | 0.94 | 0.44 | 2.09 |
| DS-FTEE0606 | 3/8 x 6 | 1200 | 0.75 | 0.38 | 18.16 | 12.16 | 6.00 | 1.12 | 0.53 | 2.52 |
| DS-FTEE0806 | 1/2 x 6 | 2200 | 1.60 | 0.50 | 19.96 | 13.96 | 6.00 | 1.44 | 0.72 | 3.23 |
| DS-FTEE0809 | 1/2 x 9 | 2200 | 1.83 | 0.50 | 25.96 | 16.96 | 9.00 | 1.44 | 0.72 | 3.23 |
| DS-FTEE0812 | 1/2 x 12 | 2200 | 2.08 | 0.50 | 31.96 | 19.96 | 12.00 | 1.44 | 0.72 | 3.23 |
| DS-FTEE1006 | 5/8 x 6 | 3500 | 2.75 | 0.63 | 21.68 | 15.68 | 6.00 | 1.75 | 0.88 | 3.90 |
| DS-FTEE1009 | 5/8 x 9 | 3500 | 3.13 | 0.63 | 27.68 | 18.68 | 9.00 | 1.75 | 0.88 | 3.90 |
| DS-FTEE1012 | 5/8 x 12 | 3500 | 3.50 | 0.63 | 33.68 | 21.68 | 12.00 | 1.75 | 0.88 | 3.90 |
| DS-FTEE1206 | 3/4 x 6 | 5200 | 3.89 | 0.75 | 23.62 | 17.62 | 6.00 | 2.09 | 1.00 | 4.69 |
| DS-FTEE1209 | 3/4 x 9 | 5200 | 4.61 | 0.75 | 29.62 | 20.62 | 9.00 | 2.09 | 1.00 | 4.69 |
| DS-FTEE1212 | 3/4 x 12 | 5200 | 5.43 | 0.75 | 35.62 | 23.62 | 12.00 | 2.09 | 1.00 | 4.69 |
| DS-FTEE1218 | 3/4 x 18 | 5200 | 7.25 | 0.75 | 47.62 | 29.62 | 18.00 | 2.09 | 1.00 | 4.69 |
| DS-FTEE1412 | 7/8 x 12 | 7200 | 8.10 | 0.88 | 36.82 | 24.82 | 12.00 | 2.38 | 1.25 | 5.10 |
| DS-FTEE1418 | 7/8 x 18 | 7200 | 9.95 | 0.88 | 48.82 | 30.82 | 18.00 | 2.38 | 1.25 | 5.10 |
| DS-FTEE1606 | 1 x 6 | 10000 | 9.33 | 1.00 | 27.72 | 21.72 | 6.00 | 3.00 | 1.44 | 6.36 |
| DS-FTEE1612 | 1 x 12 | 10000 | 11.93 | 1.00 | 39.97 | 27.72 | 12.00 | 3.00 | 1.44 | 6.36 |
| DS-FTEE1618 | 1 x 18 | 10000 | 14.00 | 1.00 | 51.72 | 33.72 | 18.00 | 3.00 | 1.44 | 6.36 |
| DS-FTEE1624 | 1 x 24 | 10000 | 17.25 | 1.00 | 63.72 | 39.72 | 24.00 | 3.00 | 1.44 | 6.36 |
| DS-FTEE2012 | 1 1/4 x 12 | 15200 | 19.00 | 1.25 | 42.56 | 30.56 | 12.00 | 3.56 | 1.81 | 7.72 |
| DS-FTEE2018 | 1 1/4 x 18 | 15200 | 23.00 | 1.25 | 54.56 | 36.56 | 18.00 | 3.56 | 1.81 | 7.72 |
| DS-FTEE2024 | 1 1/4 x 24 | 15200 | 27.00 | 1.25 | 66.56 | 42.56 | 24.00 | 3.56 | 1.81 | 7.72 |
| DS-FTEE2412 | 1 1/2 x 12 | 21400 | 27.50 | 1.50 | 45.00 | 33.00 | 12.00 | 4.06 | 2.12 | 8.62 |
| DS-FTEE2418 | 1 1/2 x 18 | 21400 | 31.00 | 1.50 | 57.00 | 39.00 | 18.00 | 4.06 | 2.12 | 8.62 |
| DS-FTEE2424 | 1 1/2 x 24 | 21400 | 37.50 | 1.50 | 69.00 | 45.34 | 24.00 | 4.06 | 2.12 | 8.62 |
Welcome to buy the newest and competitive price DAWSON US Type Drop Forged Turnbuckle Eye & Eye from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk H.D.G. turnbuckle, low price drop forged turnbuckle, high quality us type turnbuckle, buy discount lashing turnbuckle, hot sale alloy steel eye & eye turnbuckle, customized forged turnbuckles, cheap price cast steel turnbuckle, steel turnbuckle China supplier, standard marine turnbuckle China manufacturer, H.D.G. turnbuckle China factory, hot dipped Galv. turnbuckle China exporter, hot dipped galvanized turnbuckle in stock, forged turnbuckle free sample, forged turnbuckle dawson brands, forged turnbuckle OEM
