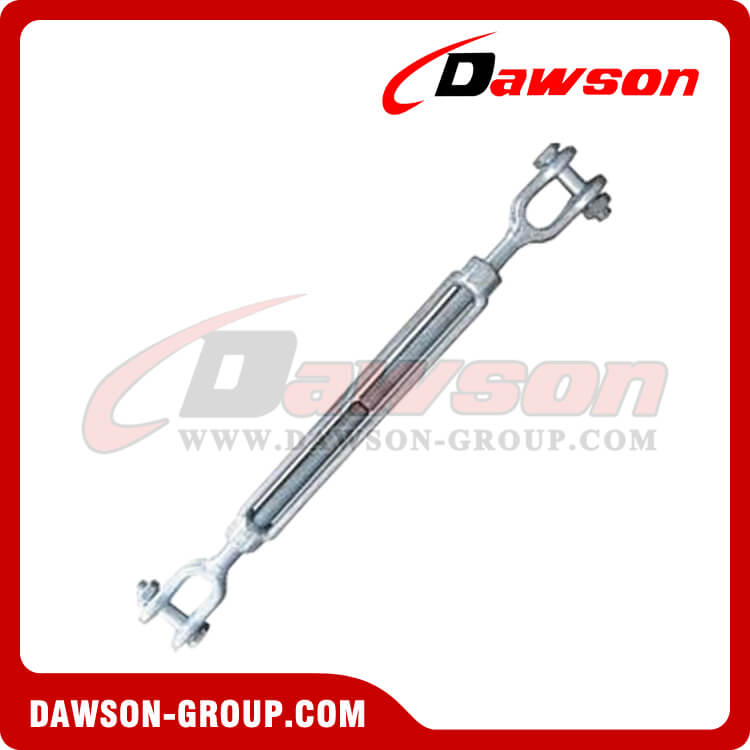

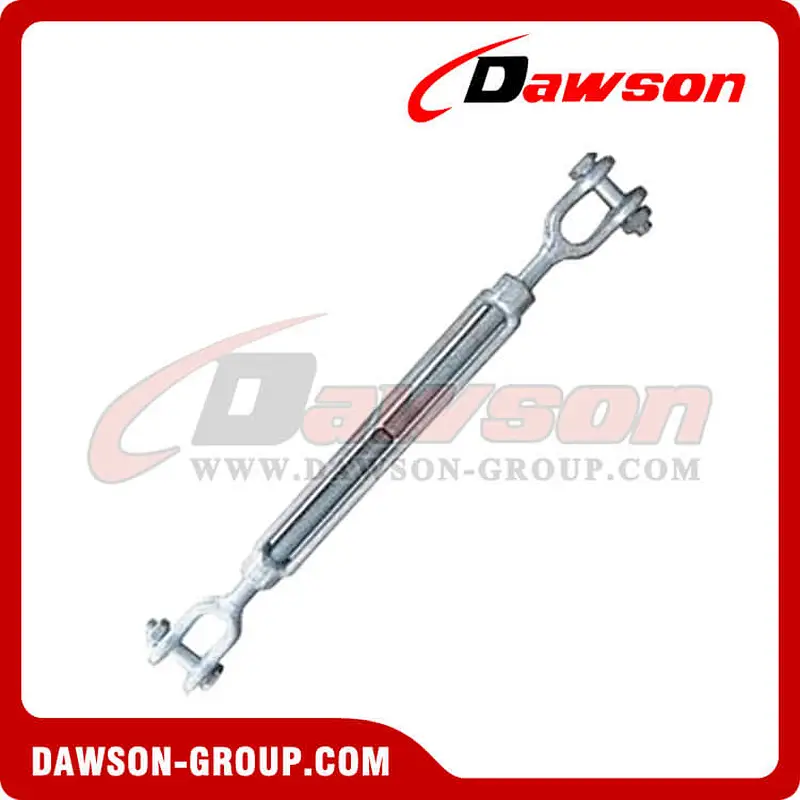

US Type Drop Forged Turnbuckle Jaw & Jaw
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Conforms To Federal Specification FF-T-791b, Type 1, Form 1 - Class 7
Material: Forged Steel, bodies are normalized. End Fittings are quenched and tempered.
Loading: Proof load is 2.5 times working load limited.
Ultimate load is 5 times working load limited.
Finished: Hot Dipped Galvanized.

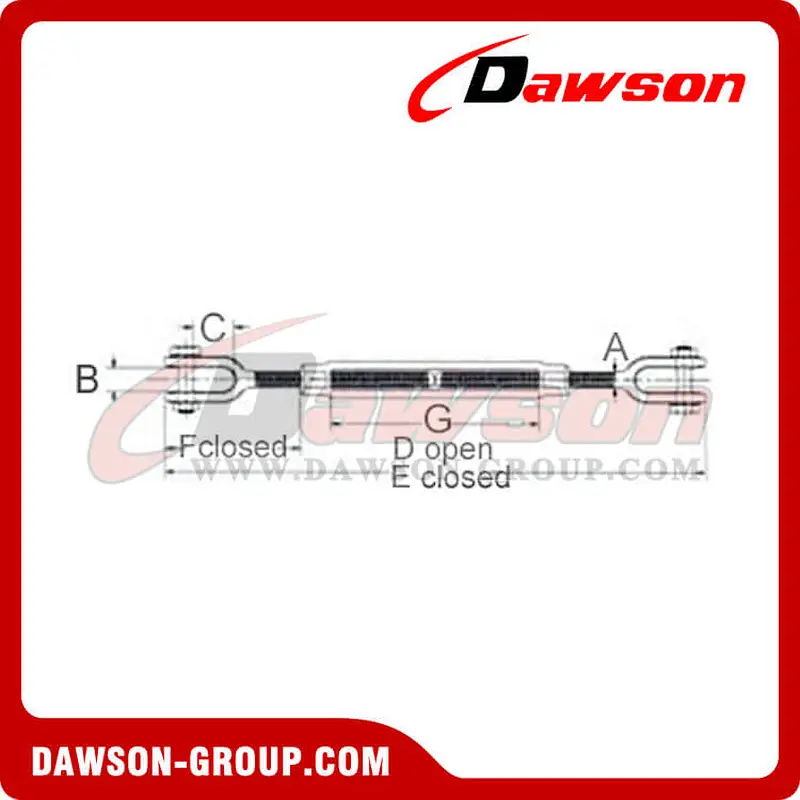

| Item No. | Thread Dia. & Take Up | Working Load Limit(lbs) | Weight Each (lbs) | Dimensions (in) | ||||||
| A | B | C | D Open | E Closed | F Closed | G | ||||
| DS-FTJJ0404 | 1/4 x 4 | 500 | 0.36 | 0.25 | 0.41 | 0.62 | 11.90 | 7.90 | 1.58 | 4.00 |
| DS-FTJJ0505 | 5/16 x 4 1/2 | 800 | 0.52 | 0.31 | 0.47 | 0.87 | 13.90 | 9.40 | 1.98 | 4.50 |
| DS-FTJJ0606 | 3/8 x 6 | 1200 | 0.81 | 0.38 | 0.50 | 0.87 | 17.38 | 11.38 | 2.12 | 6.00 |
| DS-FTJJ0806 | 1/2 x 6 | 2200 | 1.50 | 0.50 | 0.63 | 1.06 | 19.00 | 13.00 | 2.75 | 6.00 |
| DS-FTJJ0809 | 1/2 x 9 | 2200 | 1.74 | 0.50 | 0.63 | 1.06 | 25.00 | 16.00 | 2.75 | 9.00 |
| DS-FTJJ0812 | 1/2 x 12 | 2200 | 2.40 | 0.50 | 0.63 | 1.06 | 31.00 | 19.00 | 2.75 | 12.00 |
| DS-FTJJ1006 | 5/8 x 6 | 3500 | 2.72 | 0.63 | 0.75 | 1.31 | 20.88 | 14.88 | 3.50 | 6.00 |
| DS-FTJJ1009 | 5/8 x 9 | 3500 | 3.24 | 0.63 | 0.75 | 1.31 | 26.88 | 17.88 | 3.50 | 9.00 |
| DS-FTJJ1012 | 5/8 x 12 | 3500 | 3.74 | 0.63 | 0.75 | 1.31 | 32.88 | 20.88 | 3.50 | 12.00 |
| DS-FTJJ1206 | 3/4 x 6 | 5200 | 4.11 | 0.75 | 0.94 | 1.50 | 22.60 | 16.60 | 4.18 | 6.00 |
| DS-FTJJ1209 | 3/4 x 9 | 5200 | 5.10 | 0.75 | 0.94 | 1.50 | 28.60 | 19.60 | 4.18 | 9.00 |
| DS-FTJJ1212 | 3/4 x 12 | 5200 | 1.65 | 0.75 | 0.94 | 1.50 | 34.60 | 22.60 | 4.18 | 12.00 |
| DS-FTJJ1218 | 3/4 x 18 | 5200 | 7.00 | 0.75 | 0.94 | 1.50 | 46.60 | 28.60 | 4.18 | 18.00 |
| DS-FTJJ1412 | 7/8 x 12 | 7200 | 8.17 | 0.88 | 1.13 | 1.75 | 36.32 | 24.32 | 4.85 | 12.00 |
| DS-FTJJ1418 | 7/8 x 18 | 7200 | 9.96 | 0.88 | 1.13 | 1.75 | 48.32 | 30.32 | 4.85 | 18.00 |
| DS-FTJJ1606 | 1 x 6 | 10000 | 8.50 | 1.00 | 1.19 | 2.06 | 26.06 | 20.06 | 5.53 | 6.00 |
| DS-FTJJ1612 | 1 x 12 | 10000 | 12.00 | 1.00 | 1.19 | 2.06 | 38.06 | 26.06 | 5.53 | 12.00 |
| DS-FTJJ1618 | 1 x 18 | 10000 | 14.00 | 1.00 | 1.19 | 2.06 | 50.06 | 32.06 | 5.53 | 18.00 |
| DS-FTJJ1624 | 1 x 24 | 10000 | 17.00 | 1.00 | 1.19 | 2.06 | 62.06 | 38.06 | 5.53 | 24.00 |
| DS-FTJJ2012 | 1 1/4 x 12 | 15200 | 21.50 | 1.25 | 1.75 | 2.81 | 41.54 | 29.54 | 7.21 | 12.00 |
| DS-FTJJ2018 | 1 1/4 x 18 | 15200 | 24.25 | 1.25 | 1.75 | 2.81 | 53.54 | 35.54 | 7.21 | 18.00 |
| DS-FTJJ2024 | 1 1/4 x 24 | 15200 | 28.00 | 1.25 | 1.75 | 2.81 | 65.54 | 41.54 | 7.21 | 24.00 |
| DS-FTJJ2412 | 1 1/2 x 12 | 21400 | 30.50 | 1.50 | 2.06 | 2.81 | 43.50 | 31.50 | 7.88 | 12.00 |
| DS-FTJJ2418 | 1 1/2 x 18 | 21400 | 36.75 | 1.50 | 2.06 | 2.81 | 55.50 | 37.50 | 7.88 | 18.00 |
| DS-FTJJ2424 | 1 1/2 x 24 | 21400 | 40.67 | 1.50 | 2.06 | 2.81 | 67.50 | 43.50 | 7.88 | 24.00 |
Other related products:
Welcome to buy the newest and competitive price DAWSON US Type Drop Forged Turnbuckle Jaw & Jaw from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk forged steel turnbuckle, low price drop forged turnbuckle, high quality us type turnbuckle, lashing turnbuckle China factory, wholesale jaw & jaw turnbuckle, buy discount forged turnbuckles, hot sale commercial type turnbuckle, customized alloy steel turnbuckle, cheap price H.D.G. turnbuckle, hot dipped Galv. turnbuckle China supplier, hot dipped galvanized turnbuckle China manufacturer, lashing turnbuckle China exporter, lashing turnbuckle in stock, lashing turnbuckle free sample, lashing turnbuckle dawson brands, lashing turnbuckle OEM

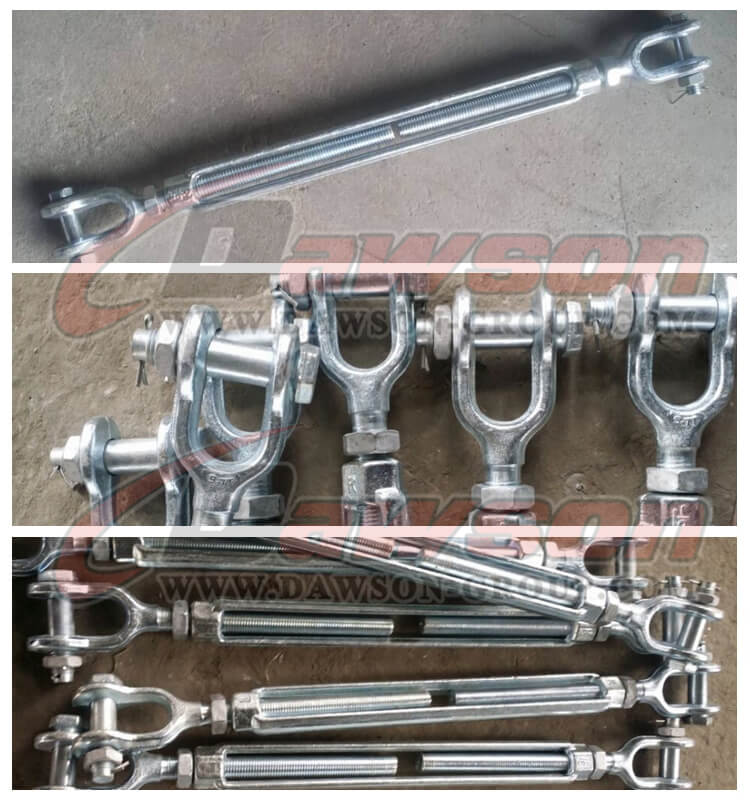

Factory & Package Show:
