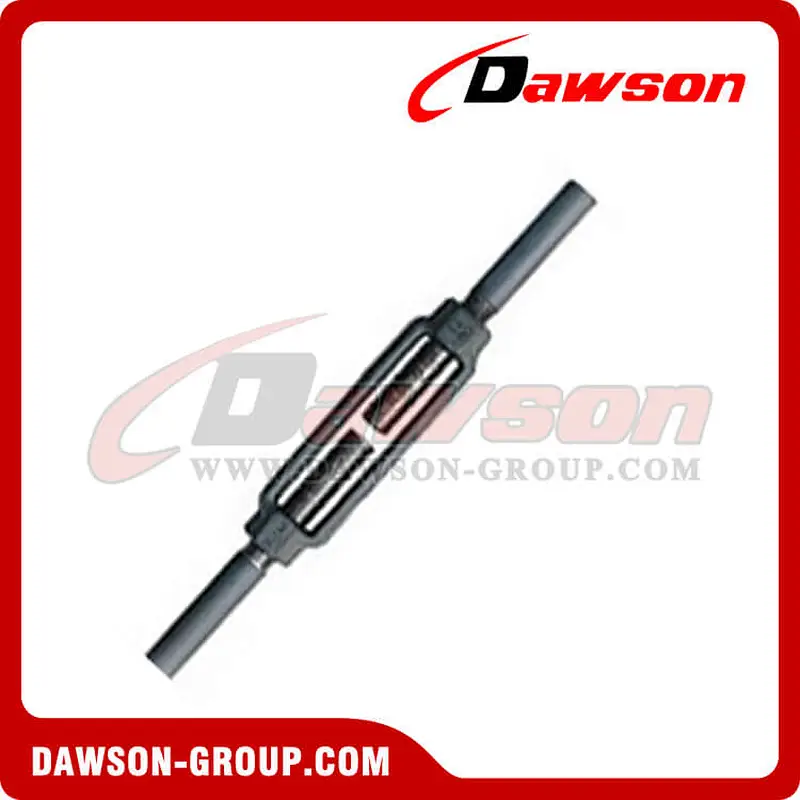

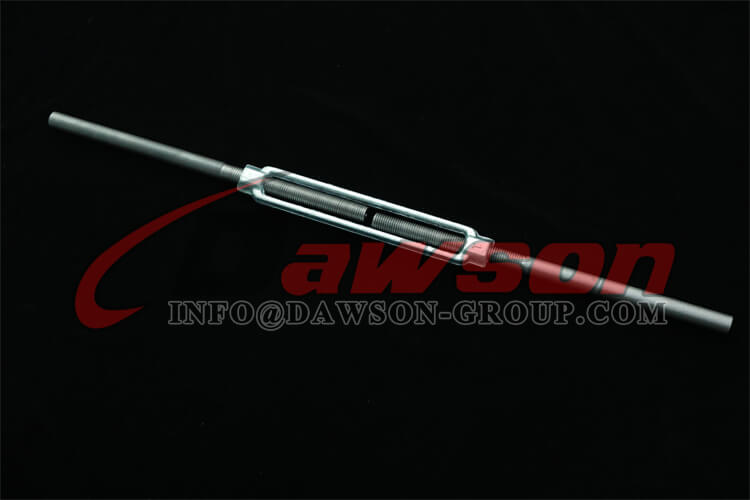

US Type Drop Forged Turnbuckle Stub End
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
conforms to Federal Specification FF-T-791b, Type 1, Form 1 - Class 3

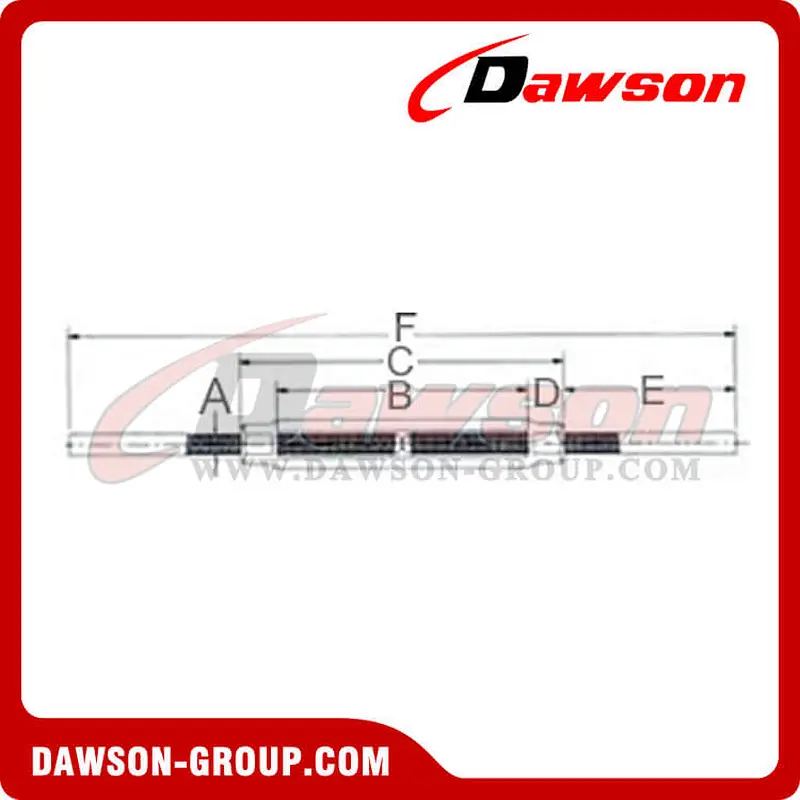

| Item No. | Tread Dia. & Take Up | Working Load Limit (lbs) | Weight Per 100 (lbs) | Dimensions (in) | |||||
| A | B | C | D | E | F | ||||
| DS-FTSE0606 | 3/8 x 6 | 1200 | 0.75 | 0.38 | 6.00 | 7.13 | 0.56 | 4.44 | 16.00 |
| DS-FTSE0806 | 1/2 x 6 | 2200 | 1.25 | 0.50 | 6.00 | 7.50 | 0.75 | 4.25 | 16.00 |
| DS-FTSE1006 | 5/8 x 6 | 3500 | 2.11 | 0.63 | 6.00 | 7.88 | 0.94 | 4.06 | 16.00 |
| DS-FTSE1206 | 3/4 x 6 | 5200 | 3.27 | 0.75 | 6.00 | 8.25 | 1.13 | 4.38 | 17.00 |
| DS-FTSE1406 | 7/8 x 6 | 7200 | 4.78 | 0.88 | 6.00 | 8.63 | 1.31 | 4.69 | 18.00 |
| DS-FTSE1606 | 1 x 6 | 10000 | 6.36 | 1.00 | 6.00 | 9.00 | 1.50 | 5.00 | 19.00 |
| DS-FTSE1612 | 1 x 12 | 10000 | 8.80 | 1.00 | 12.00 | 15.00 | 1.50 | 5.00 | 25.00 |
| DS-FTSE1806 | 1 1/8 x 6 | 12400 | 8.88 | 1.13 | 6.00 | 9.13 | 1.56 | 4.94 | 19.00 |
| DS-FTSE2006 | 1 1/4 x 6 | 15200 | 10.18 | 1.25 | 6.00 | 9.13 | 1.56 | 5.44 | 20.00 |
| DS-FTSE2012 | 1 1/4 x 12 | 15200 | 13.60 | 1.25 | 12.00 | 15.12 | 1.56 | 5.44 | 26.00 |
| DS-FTSE2412 | 1 1/2 x 12 | 21400 | 20.44 | 1.50 | 12.00 | 15.75 | 1.88 | 5.38 | 26.50 |
Welcome to buy the newest and competitive price DAWSON US Type Drop Forged Turnbuckle Stub End from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Products Show:
.
Hot Tags: bulk turnbuckle for lashing, low price drop forged turnbuckle, high quality us type turnbuckles, wholesale lashing turnbuckle, buy discount stub end turnbuckle, hot sale forged steel turnbuckle stub end, customized rigging screw turnbuckle, cheap price turnbuckles malleable, steel turnbuckle China supplier, standard marine turnbuckle China manufacturer, H.D.G. turnbuckleChina factory, hot dipped Galv. turnbuckleChina exporter, hot dipped galvanized turnbuckle in stock, drop forged turnbuckle free sample, lashing turnbuckle dawson brands, drop forged turnbuckle OEM
Factory & Package Show:
