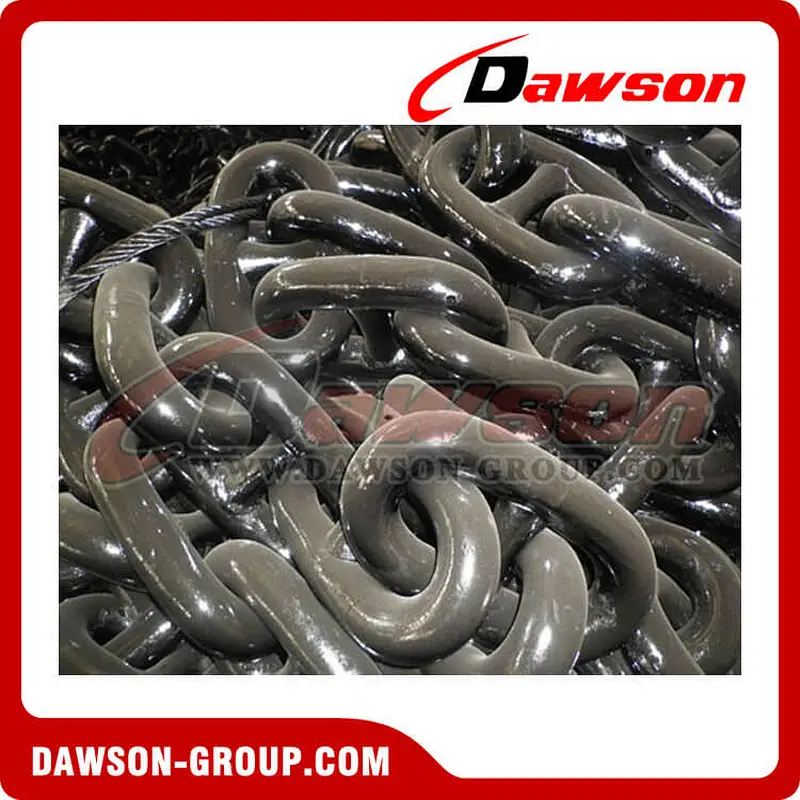

70mm U3 Stud Link Anchor Chain
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
We have been the marine chain supplier since 1996, supplying stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificate are available for our chains. With the advantage of rich source, good quality and after-sale service, we would be your reliable partner in China.
Product Detail
1. Stud Link Anchor Chain
2. Grade: U2/U3
3. Diameter: 12.5mm-140mm
4. ABS, LR, BV, NK, GL, DNV, RS,CCS Certificate
2. Joining Form of Anchor Chain

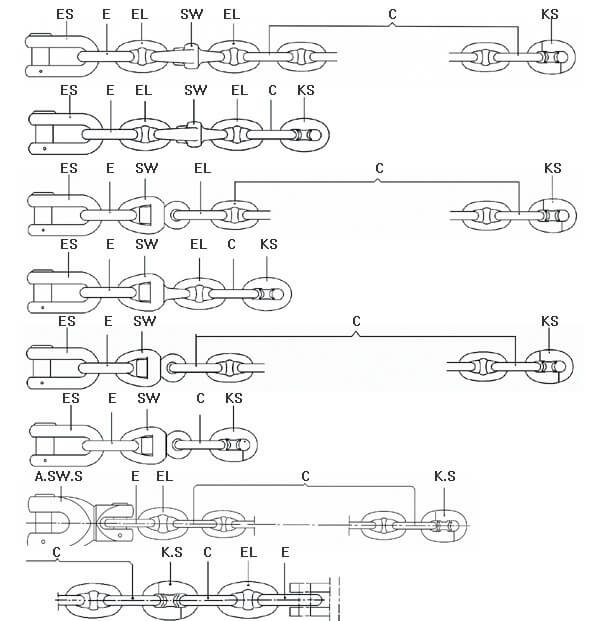

A: Kenter shackle-Chain connection

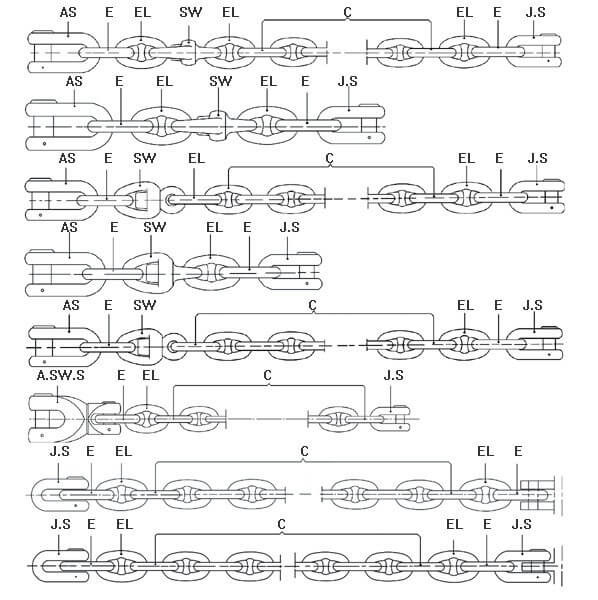

B. 'D' Shackle Connection
3. Testing Load of Stud Link Anchor Chain
| Diameter | CHAIN LINK SIZE | AM2 | AM3 | APPROX. | |||
| U2 STUD LINK CHAIN | U3 STUD LINK CHAIN | WEIGHT | |||||
| OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | 27.5M | |
| LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
| MM | MM | MM | KN | KN | KN | KN | KG |
| 12.5 | 75 | 45 | 66 | 92 | 92 | 132 | 98 |
| 14 | 84 | 50.4 | 82 | 116 | 116 | 165 | 119 |
| 16 | 96 | 57.6 | 107 | 150 | 150 | 216 | 156 |
| 17.5 | 105 | 63 | 127 | 179 | 179 | 256 | 186 |
| 19 | 114 | 68.4 | 150 | 211 | 211 | 301 | 230 |
| 20.5 | 123 | 73.8 | 175 | 244 | 244 | 349 | 260 |
| 22 | 132 | 79.2 | 200 | 280 | 280 | 401 | 300 |
| 24 | 144 | 86.4 | 237 | 332 | 332 | 476 | 370 |
| 26 | 156 | 93.6 | 278 | 389 | 389 | 556 | 431 |
| 28 | 168 | 100.8 | 321 | 449 | 449 | 642 | 496 |
| 30 | 180 | 108 | 368 | 514 | 514 | 735 | 564 |
| 32 | 192 | 115.2 | 417 | 583 | 583 | 833 | 635 |
| 34 | 204 | 122.4 | 468 | 655 | 655 | 937 | 712 |
| 36 | 216 | 129.6 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 228 | 136.8 | 581 | 812 | 812 | 1160 | 887 |
| 40 | 240 | 144 | 640 | 896 | 896 | 1280 | 1032 |
| 42 | 252 | 151.2 | 703 | 981 | 981 | 1400 | 1084 |
| 44 | 264 | 158.4 | 769 | 1080 | 1080 | 1540 | 1197 |
| 46 | 276 | 165.6 | 837 | 1170 | 1170 | 1680 | 1310 |
| 48 | 288 | 172.8 | 908 | 1270 | 1270 | 1810 | 1438 |
| 50 | 300 | 180 | 981 | 1370 | 1370 | 1960 | 1546 |
| 52 | 312 | 187.2 | 1060 | 1480 | 1480 | 2110 | 1661 |
| 54 | 324 | 194.4 | 1140 | 1590 | 1590 | 2270 | 1791 |
| 56 | 336 | 201.6 | 1220 | 1710 | 1710 | 2430 | 1926 |
| 58 | 348 | 208.8 | 1290 | 1810 | 1810 | 2600 | 2086 |
| 60 | 360 | 216 | 1380 | 1940 | 1940 | 2770 | 2249 |
| 62 | 372 | 223.2 | 1470 | 2060 | 2060 | 2940 | 2361 |
| 64 | 384 | 230.4 | 1560 | 2190 | 2190 | 3130 | 2516 |
| 66 | 396 | 237.6 | 1660 | 2310 | 2310 | 3300 | 2676 |
| 68 | 408 | 244.8 | 1750 | 2450 | 2450 | 3500 | 2885 |
| 70 | 420 | 252 | 1840 | 2580 | 2580 | 3690 | 3010 |
If you need other anchor chains or mooring chains, please contact us!!!
Other related products:

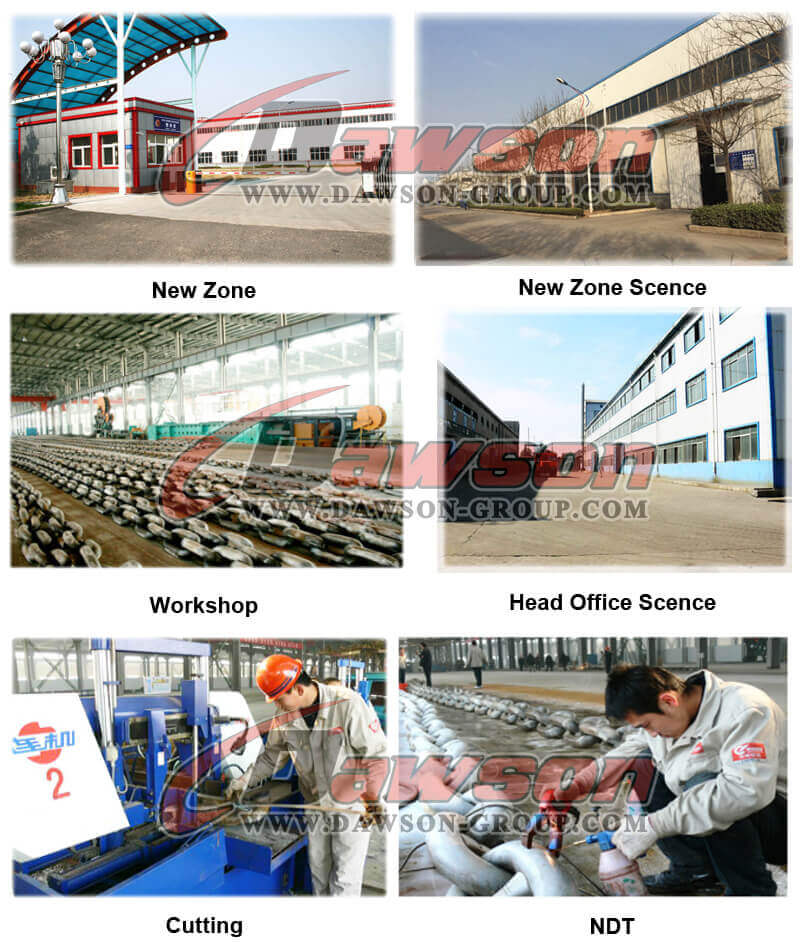

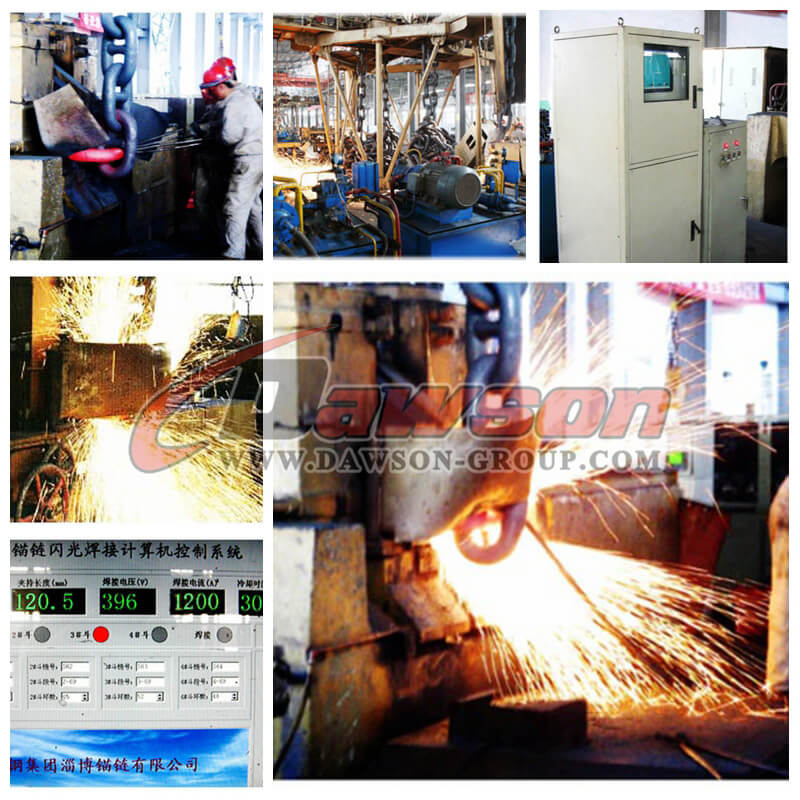

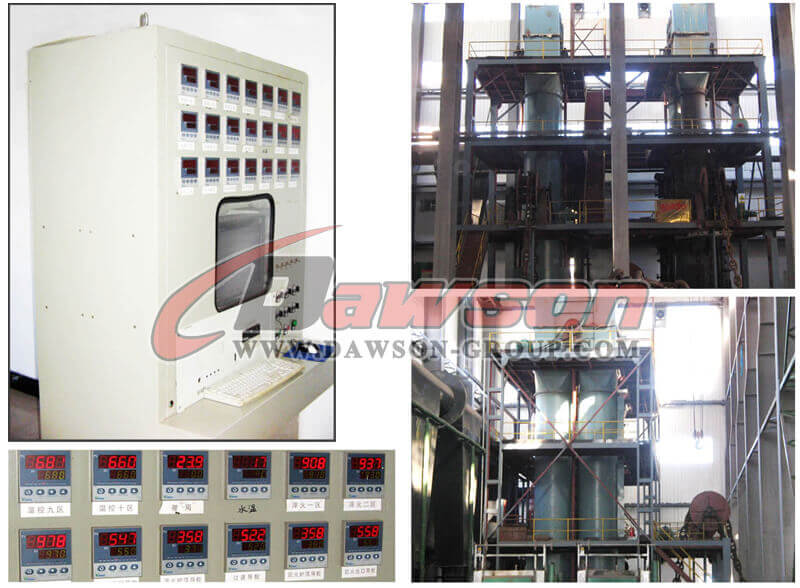

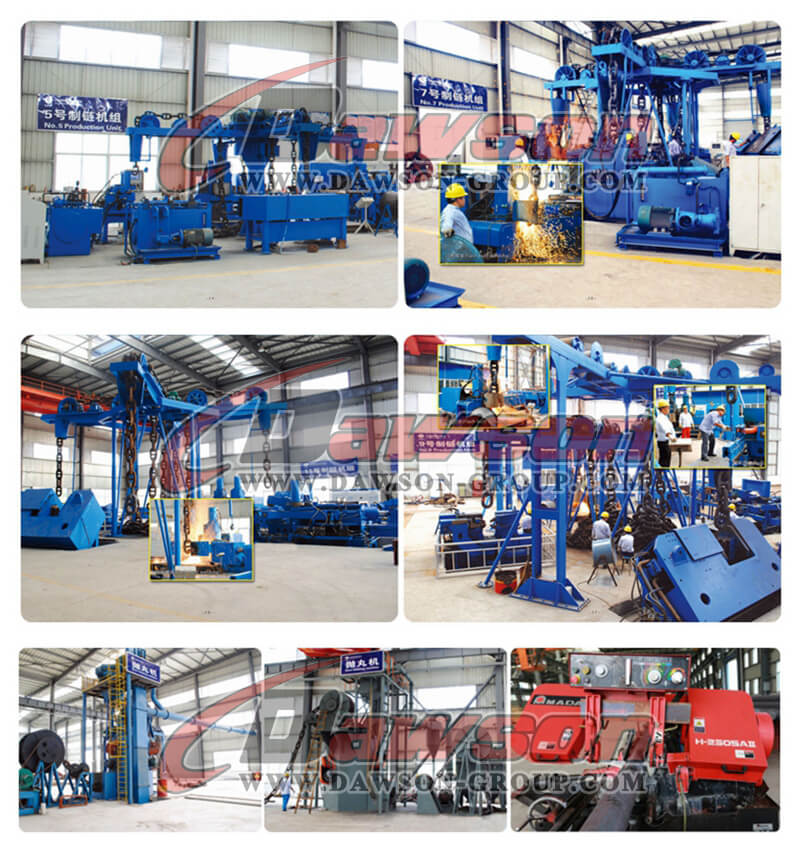

Factory & Test Show:

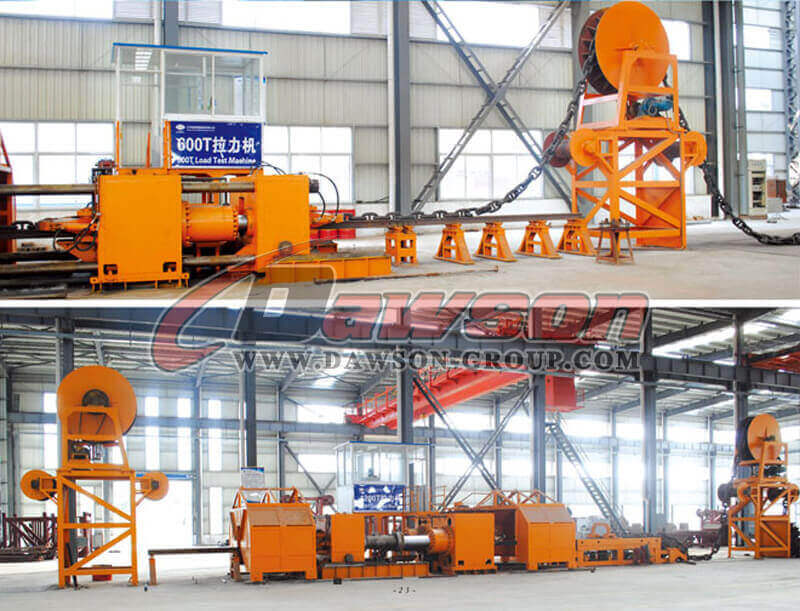

Load Test Machine:

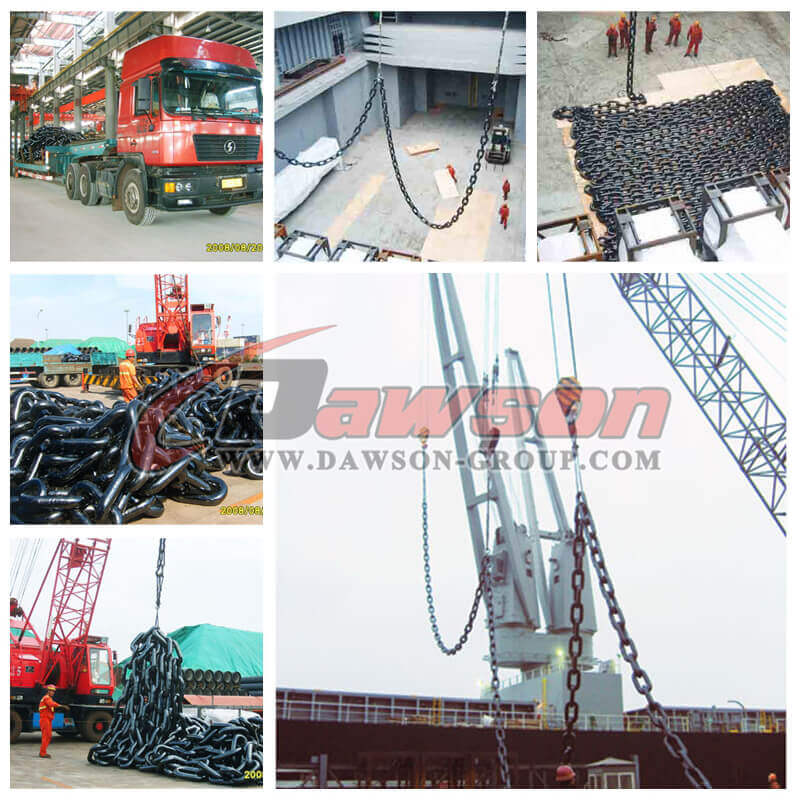

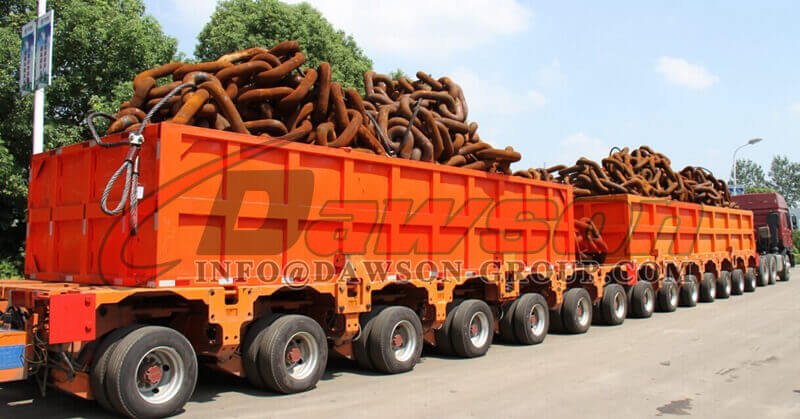

Transport：
