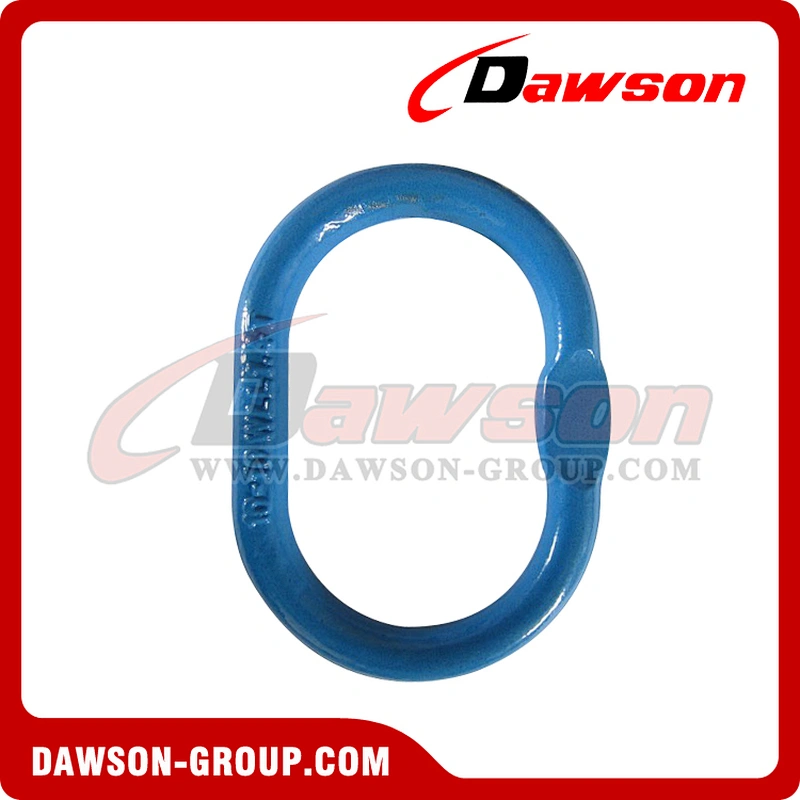

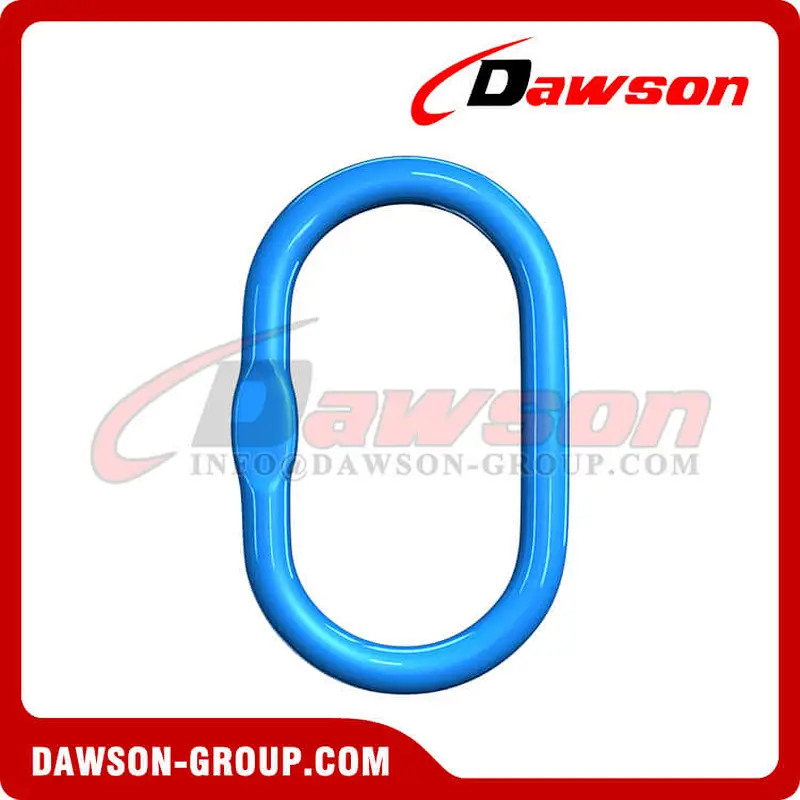

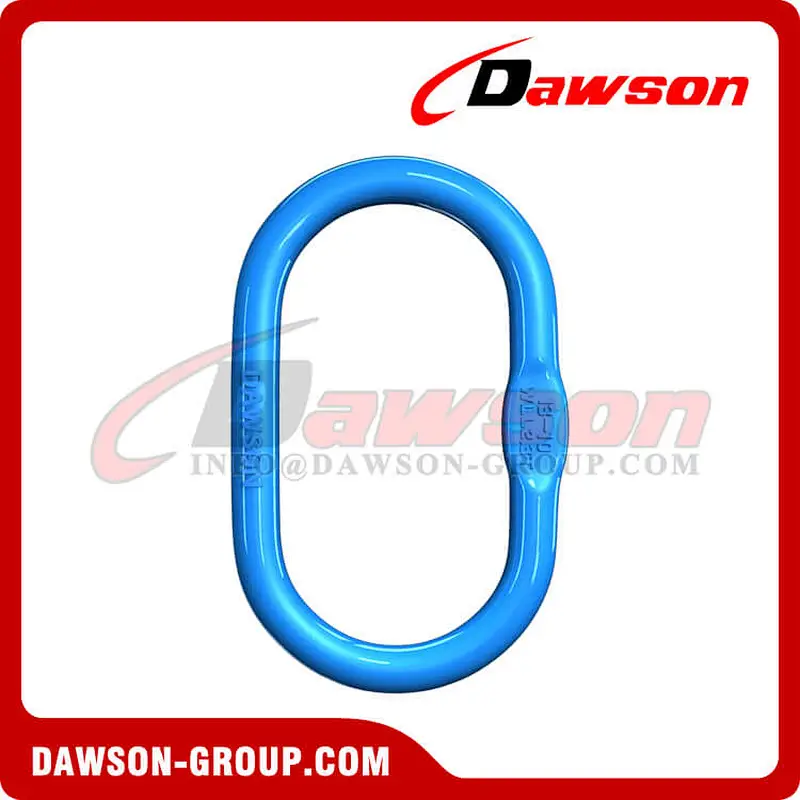

DS1011 G100 Forged Master Link for Wire Rope Lifting Slings

DS1011 G100 Forged Master Link for Wire Rope Lifting Slings

Model NO.: DS1011

Quantity:

Product Description

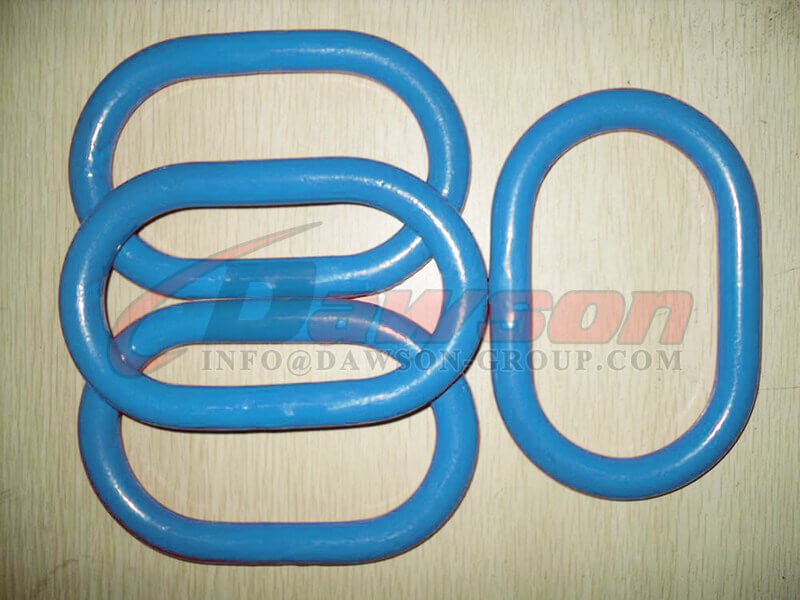

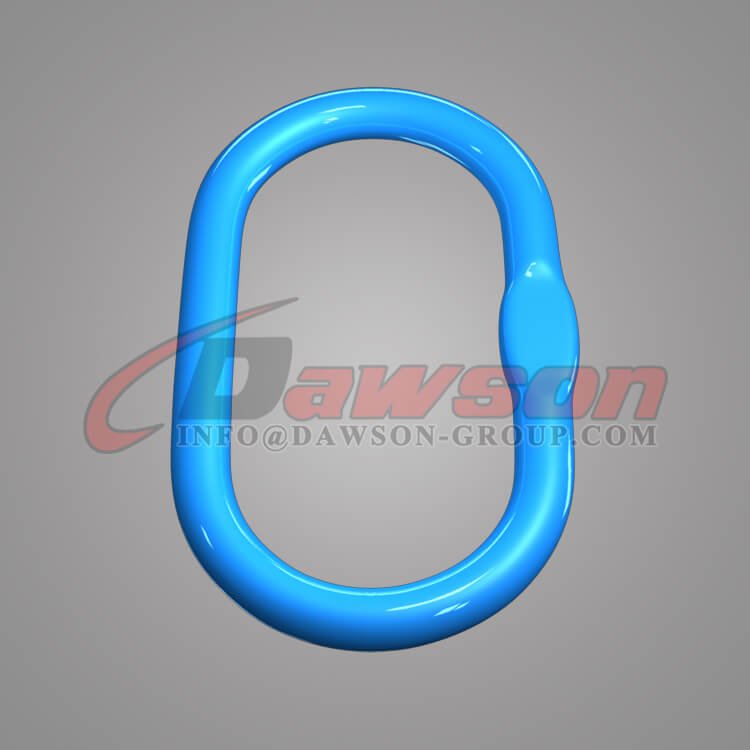

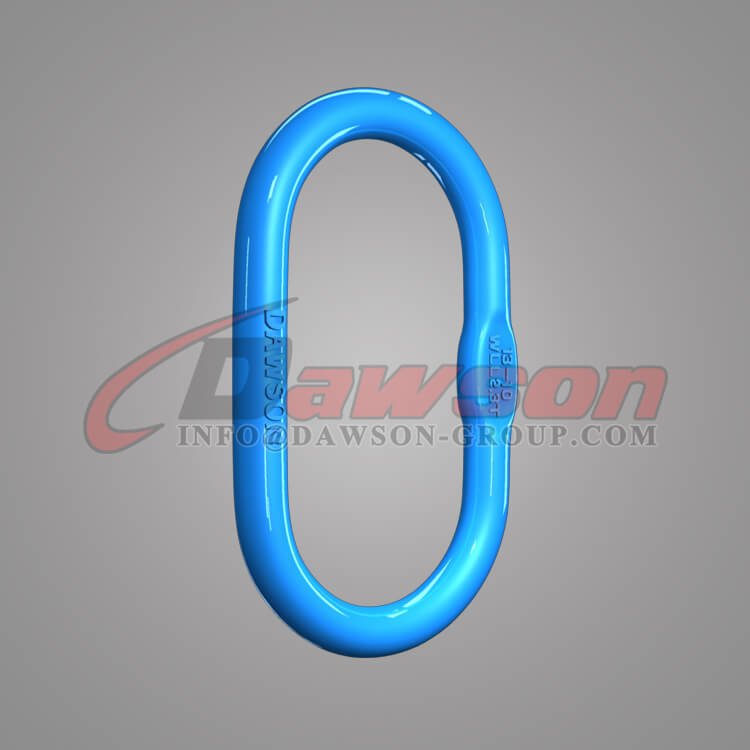

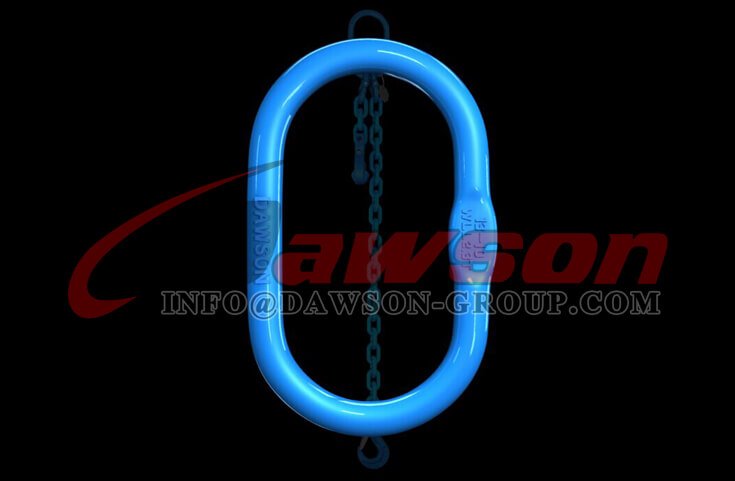

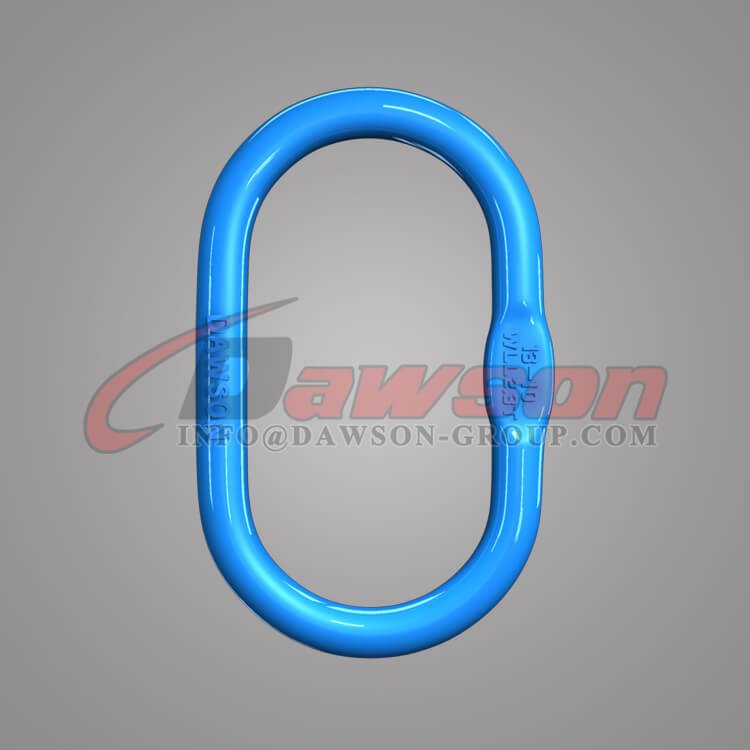

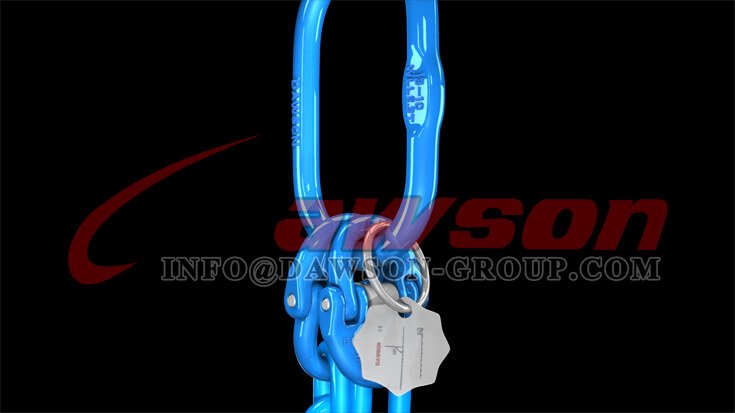

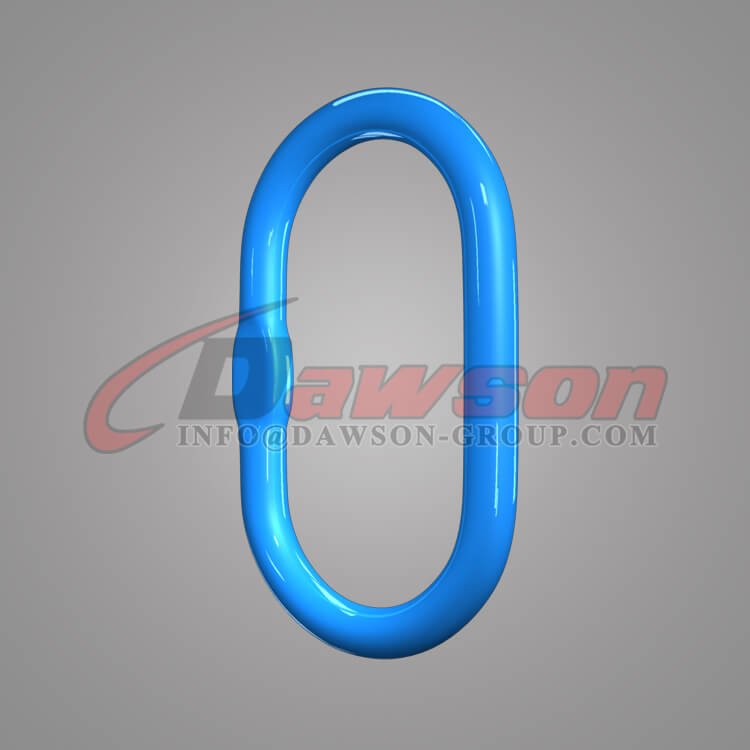

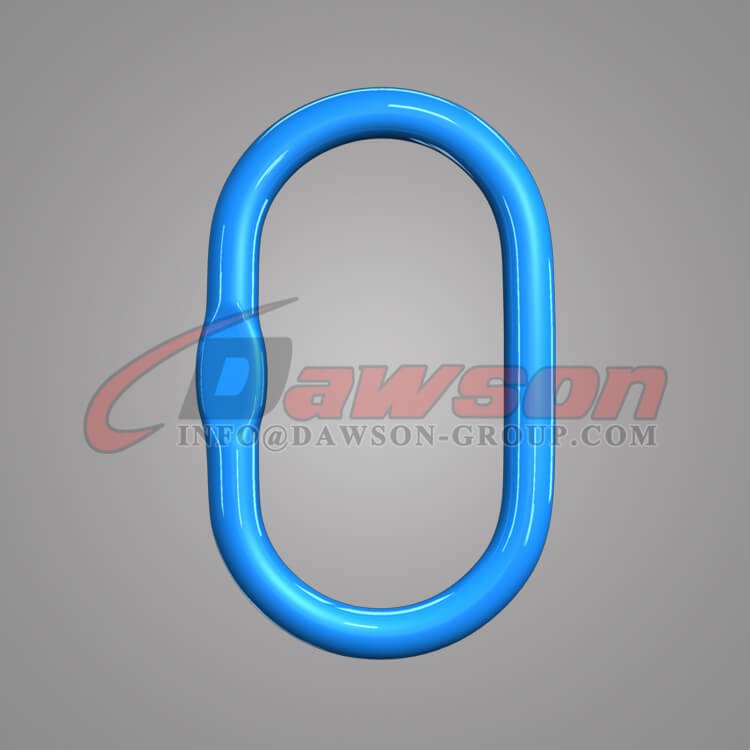

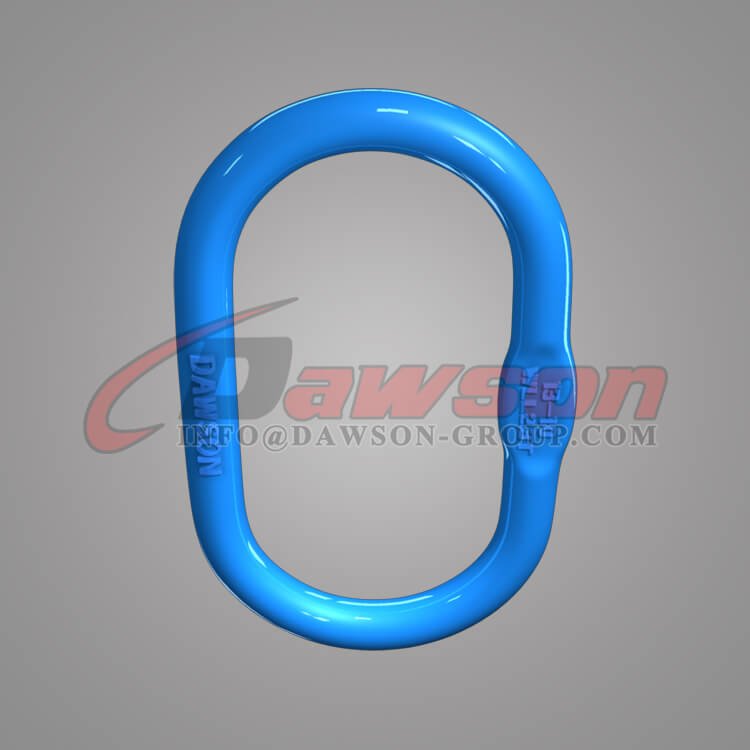

G100 / Grade 100 Forged Master Link for Wire Rope Lifting Slings

DS1011 G100 Forged Master Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Rigging Hardware

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

Features:

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.

● It can be matched with G100 chain.

● The performance is increased by 25% compared with G80 products.

● Each work piece should pass testing at 2.5 times of working load limit.

● We should carry out sampling and 20000 times of fatigue testing.

● We should carry out strict sampling and breakage testing for each batch of products.

● We should carry out 100% magnetic powder flaw detection.

● Surface treatment: plastics spraying.

● Color code: Blue RAL5015.

● All sizes are forged.

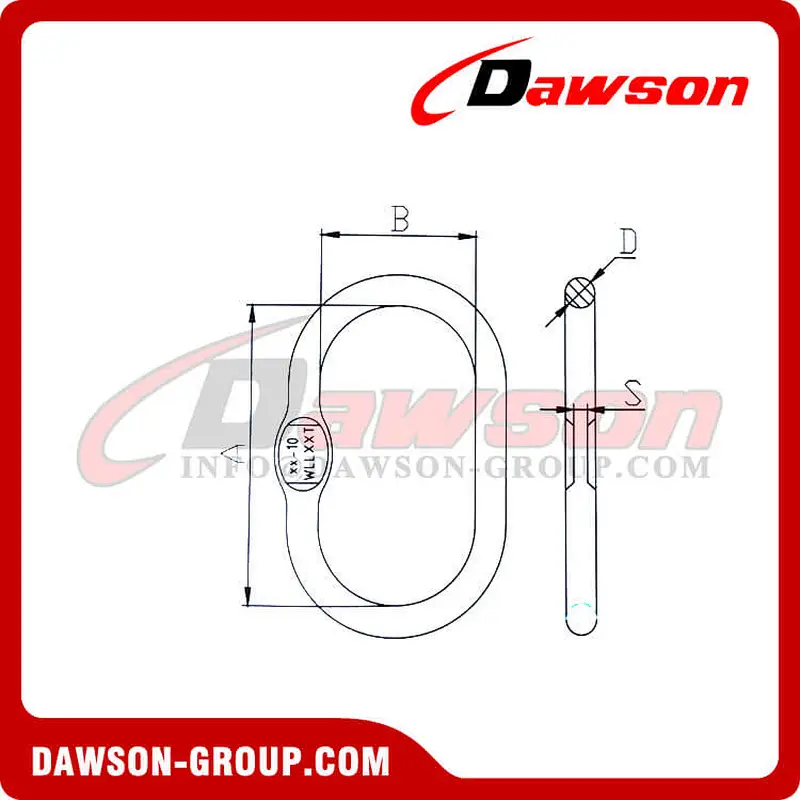

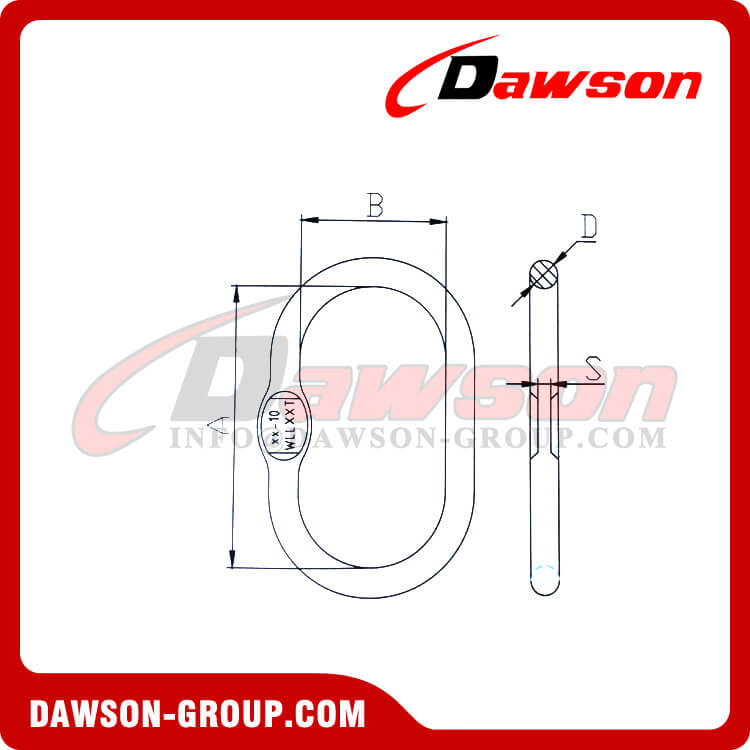

Item No.	Weight/kg	WLL/T	A	B	D	S×H	Φ
Item No.	Weight/kg	WLL/T	A	B	D	S×H	1leg	2legs
10-DS1011-05	0.14	1.4	80	50	10	-	5	5
10-DS1011-76	0.34	2.3	110	60	13	7+0.3×25	6-7	6
10-DS1011-87	0.53	3.5	110	60	16	7+0.5×25	8	7
10-DS1011-108	0.86	5	135	75	18	8+0.5×28	10	8
10-DS1011-1310	1.60	7.6	160	90	23	11±0.5×35	13	10
10-DS1011-1613	2.46	10	180	100	27	13±0.5×43	16	13
10-DS1011-1916	4.14	14	200	110	33	17±0.5×55	19	16
10-DS1011-2219	6.22	25.1	260	140	36	19±0.5×60	22	19
10-DS1011-2622	12.85	30.8	340	180	45	-	26	22
10-DS1011-3226	16.22	40	350	190	50	-	32	26
10-DS1011-0032	27.01	60	400	200	60	-	-	32
10-DS1011-72MM	45	81.5	460	250	70	-	-	-

Ultimate load is 4 times the working load limit.

All sizes are forged.

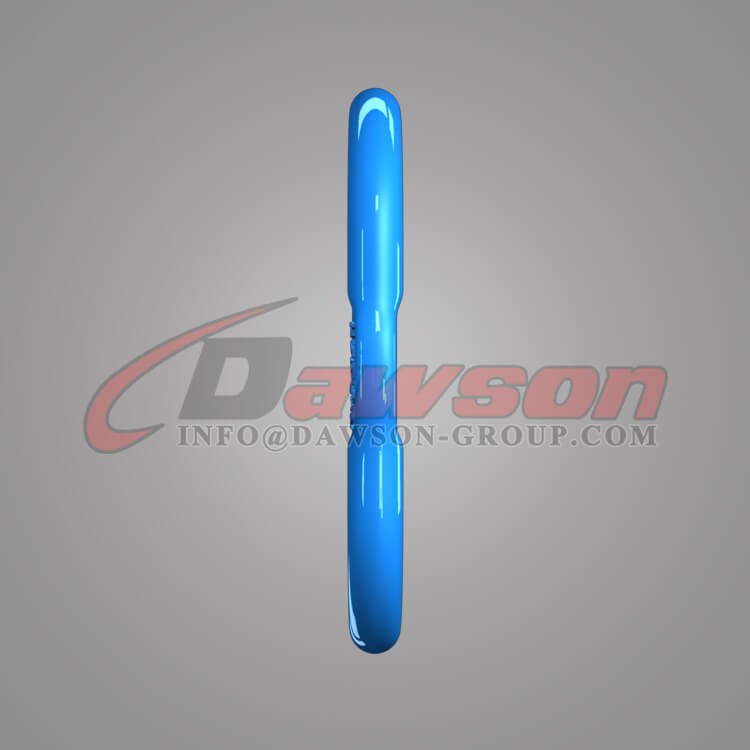

Item 10-DS1011-45 to 10-DS1011-50: there is no pressing flat.

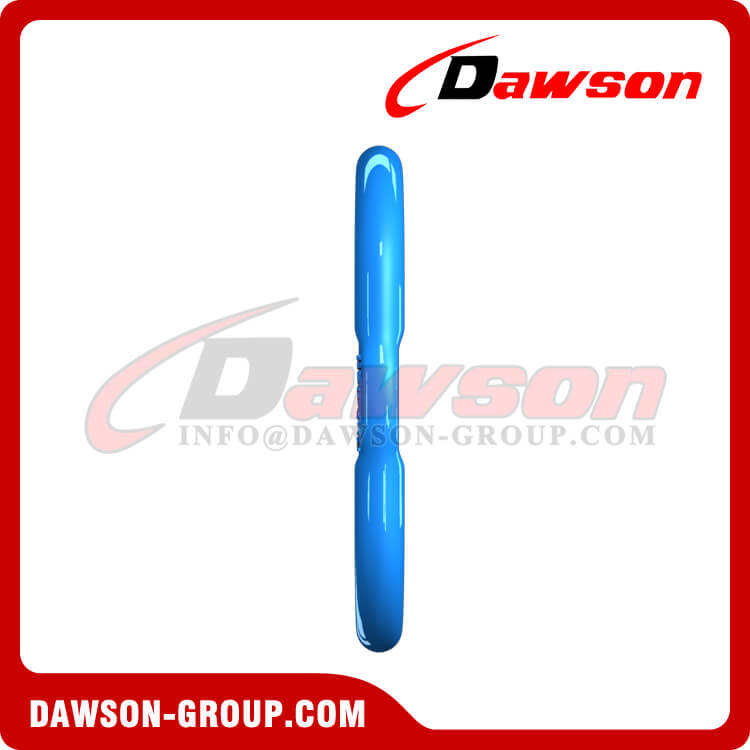

The pressing flat is for use with DS1027-G100 Omega Link

Welcome to buy the newest and competitive price DAWSON g100 master link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Other Related G100 COMPONENTS

Supply only on special request. Not for recommendation.
