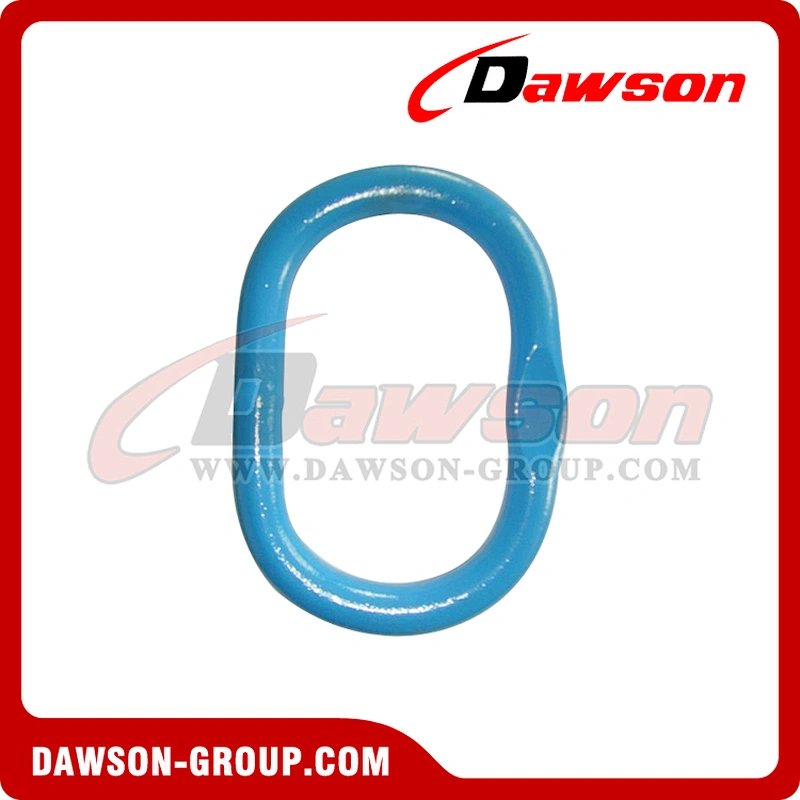

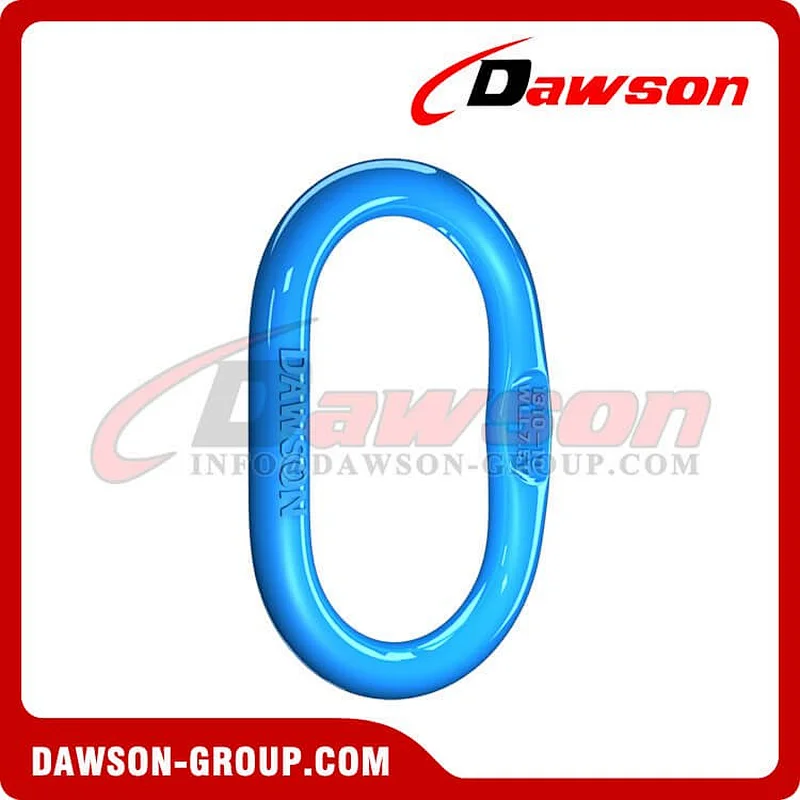

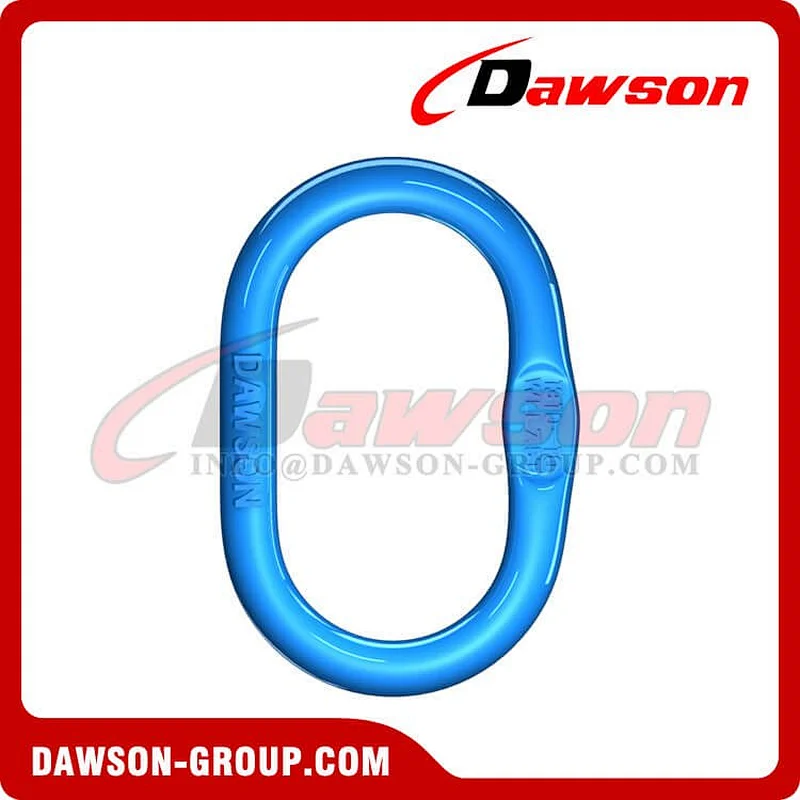

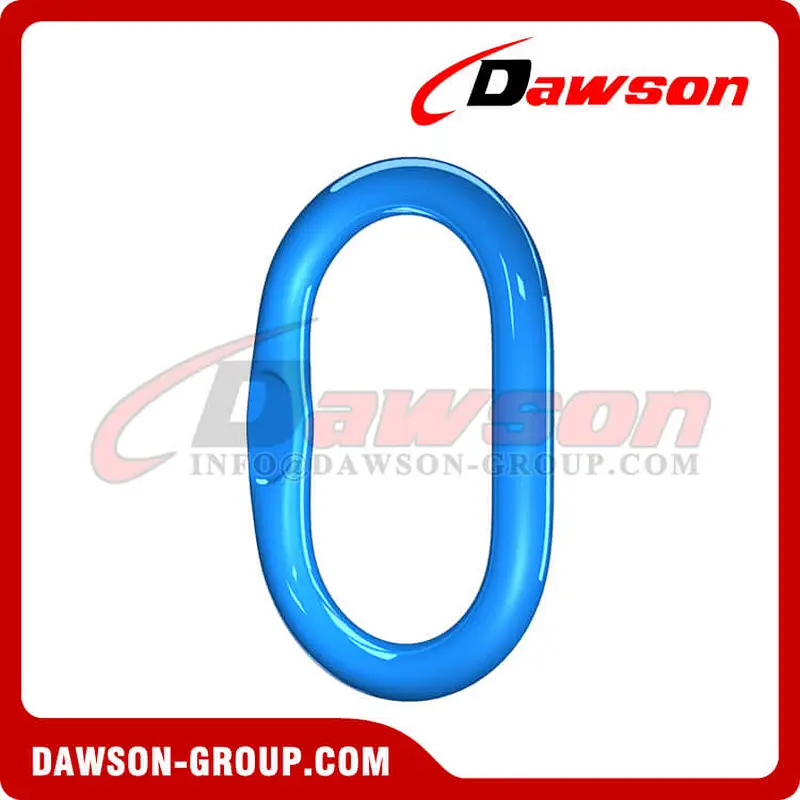

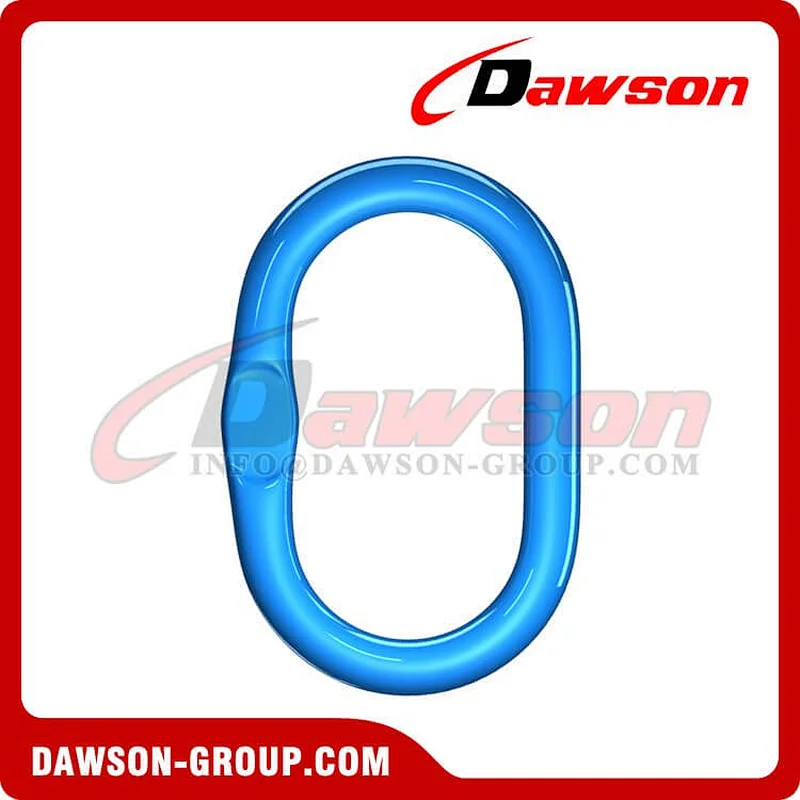

DS1013 G100 Forged Master Link with Flat for Crane Lifting Chain Slings

DS1013 G100 Forged Master Link with Flat for Crane Lifting Chain Slings

Model NO.: DS1013

Quantity:

Product Description

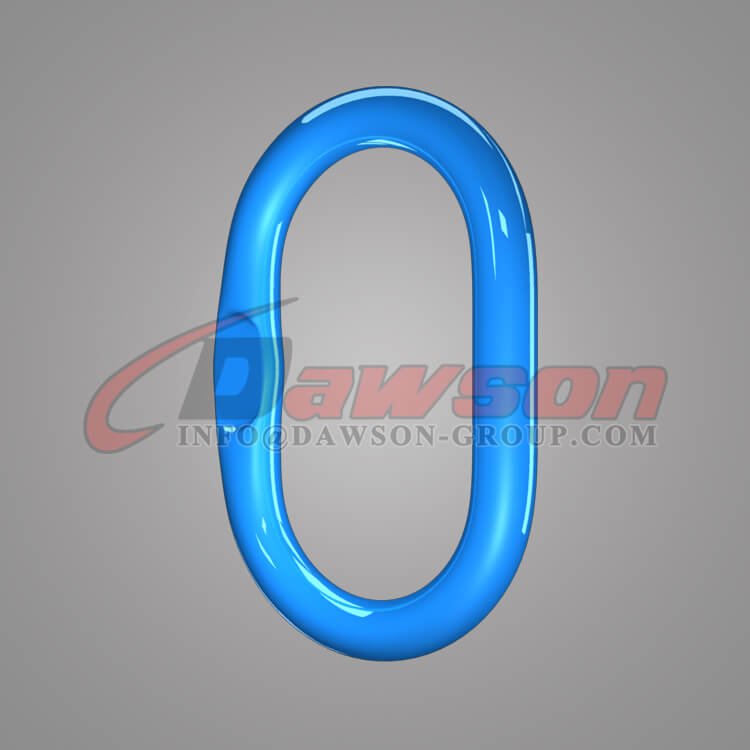

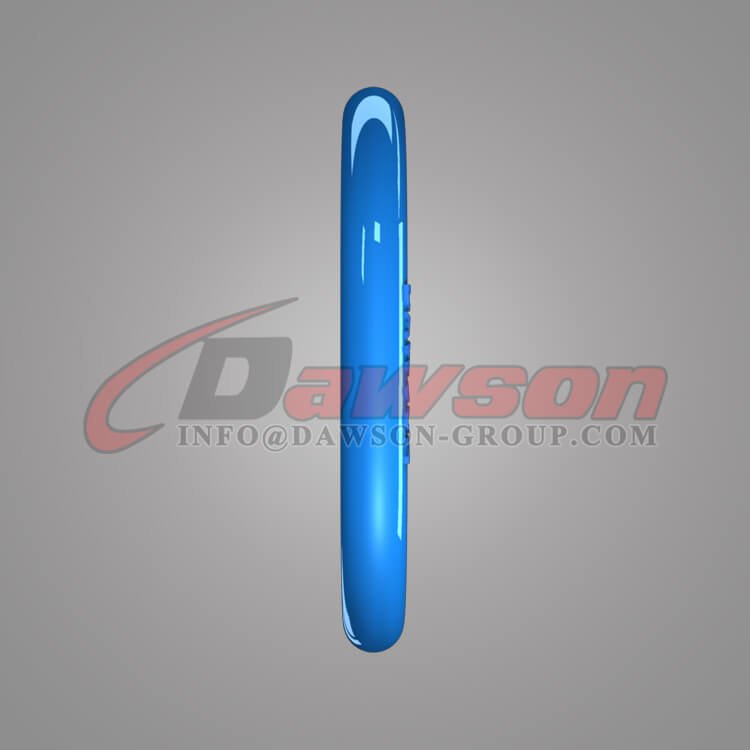

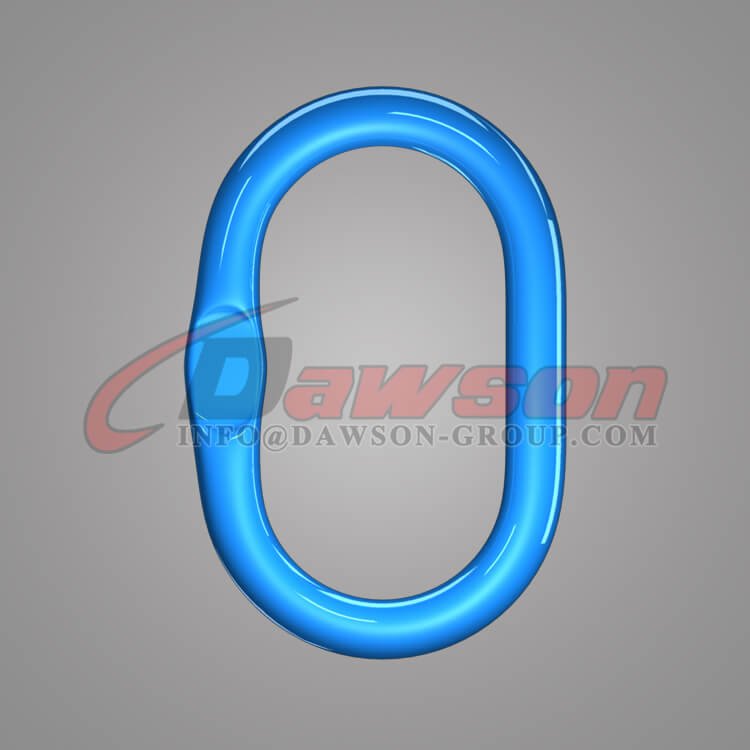

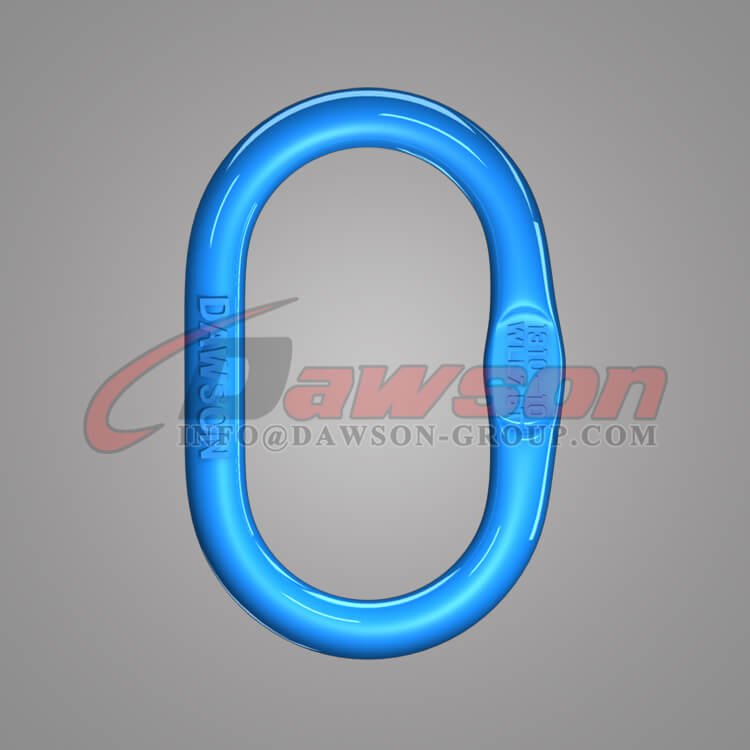

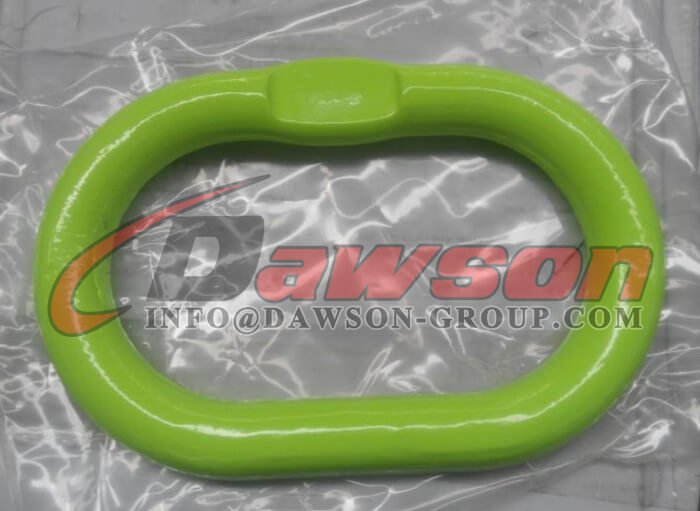

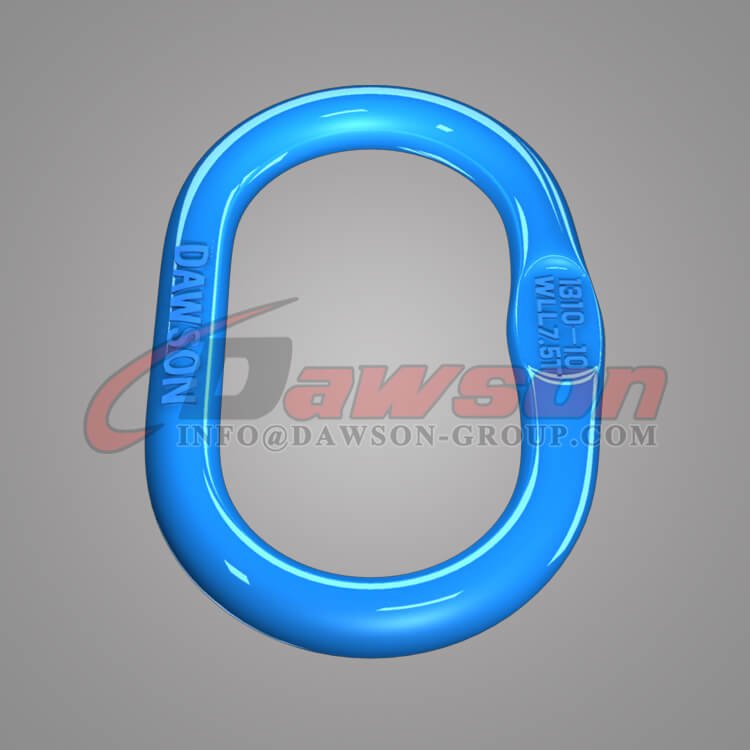

G100 / Grade 100 Forged Master Link with Flat for Crane Lifting Chain Slings

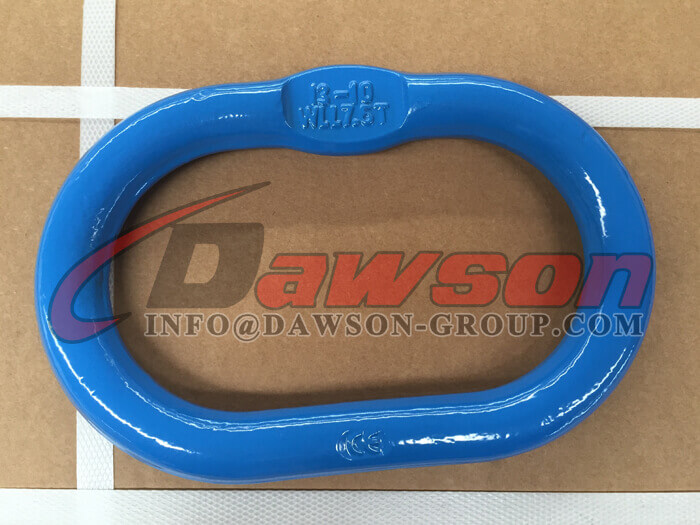

DS1013 G100 Forged Master Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Rigging Hardware

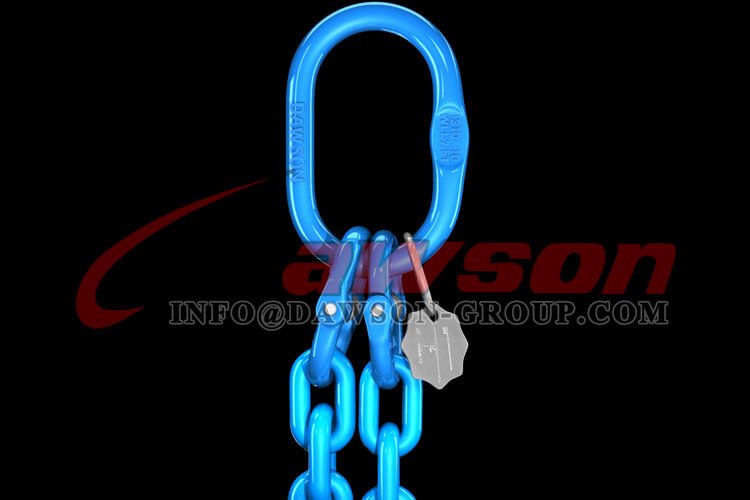

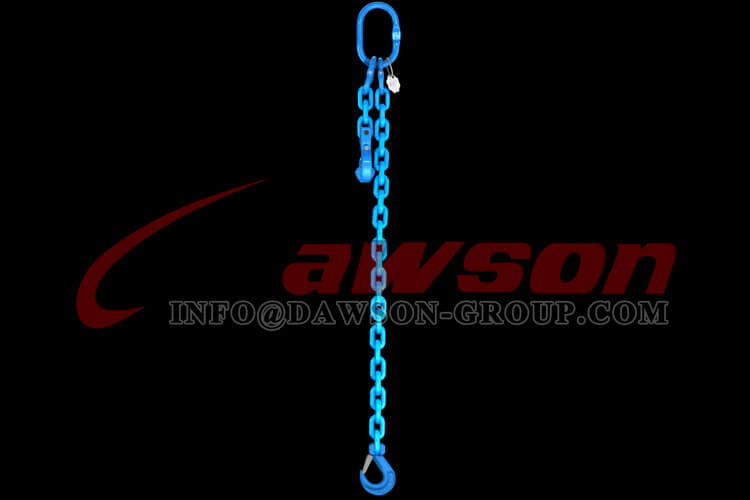

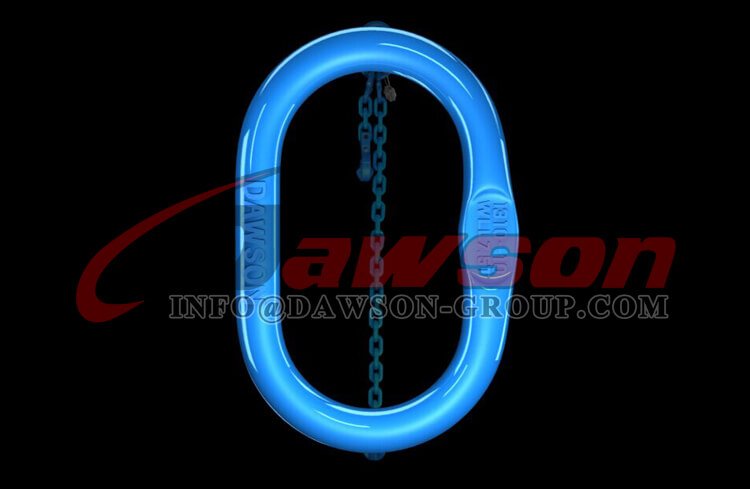

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

Features

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.

● It can be matched with G100 chain.

● The performance is increased by 25% compared with G80 products.

● Each work piece should pass testing at 2.5 times of working load limit.

● We should carry out sampling and 20000 times of fatigue testing.

● We should carry out strict sampling and breakage testing for each batch of products.

● We should carry out 100% magnetic powder flaw detection.

● Surface treatment: plastics spraying.

● Color code: Blue RAL5015.

● All sizes are forged.

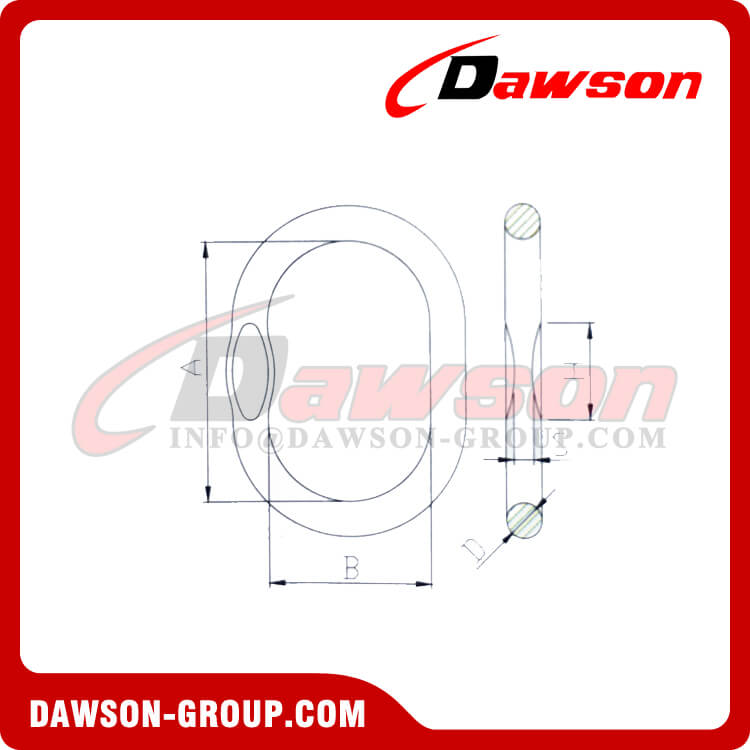

Item No.	Weight/kg	WLL/T	A	B	D	S×H
10-DS1013-06	0.23	1.4	100	60	11±0.5	6+0.5×22
10-DS1013-86	0.4	2.5	120	70	13±1	7+0.5×25
10-DS1013-108	0.7	4	140	80	17±1	8+0.5×28
10-DS1013-1310	1.5	7.5	160	95	22±1	11±0.5×35
10-DS1013-16	2.2	10	190	110	25±1	13±0.5×43
10-DS1013-1613	2.51	12.5	180	100	27+1	14±0.5×46
10-DS1013-2016	5.1	17	240	140	32+1	17±0.5×55
10-DS1013-2220	7.2	25	250	150	38+1-2	21±0.5×65
10-DS1013-2622	8.3	26.5	250	150	41+1-2	23±0.5×73
10-DS1013-3226	11.8	37	300	180	45+1-2	27±0.5×85

Ultimate load is 5 times the working load limit.

All size are forged.

Large inside length.

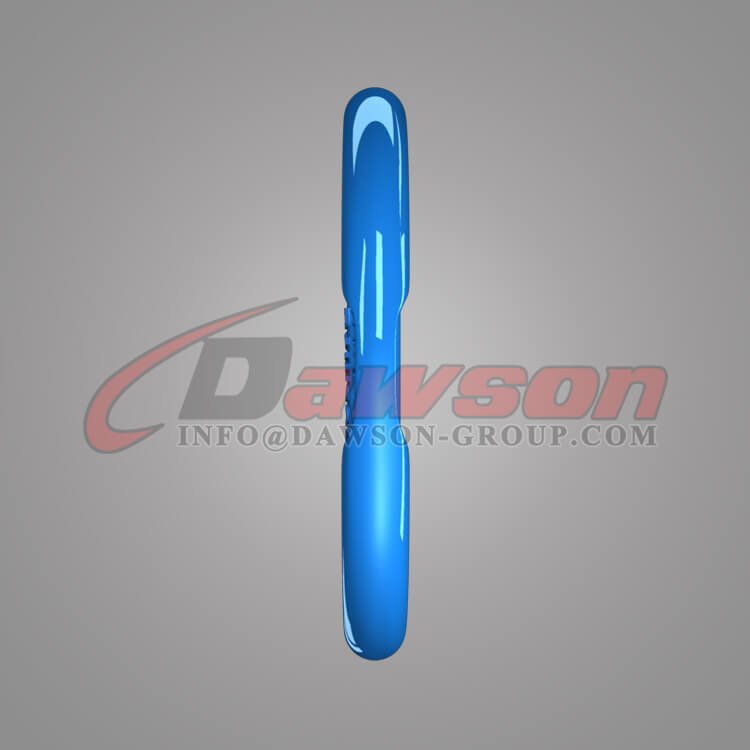

All sizes:there will be pressing flat only on request.

The pressing flat is for use with DS1027-G100 OMEGA LINK.

Welcome to buy the newest and competitive price DAWSON G100 Forged Master Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Other Related G100 COMPONENTS

Supply only on special request. Not for recommendation.

For further information, please contact us. Email:info@dawson-group.com
