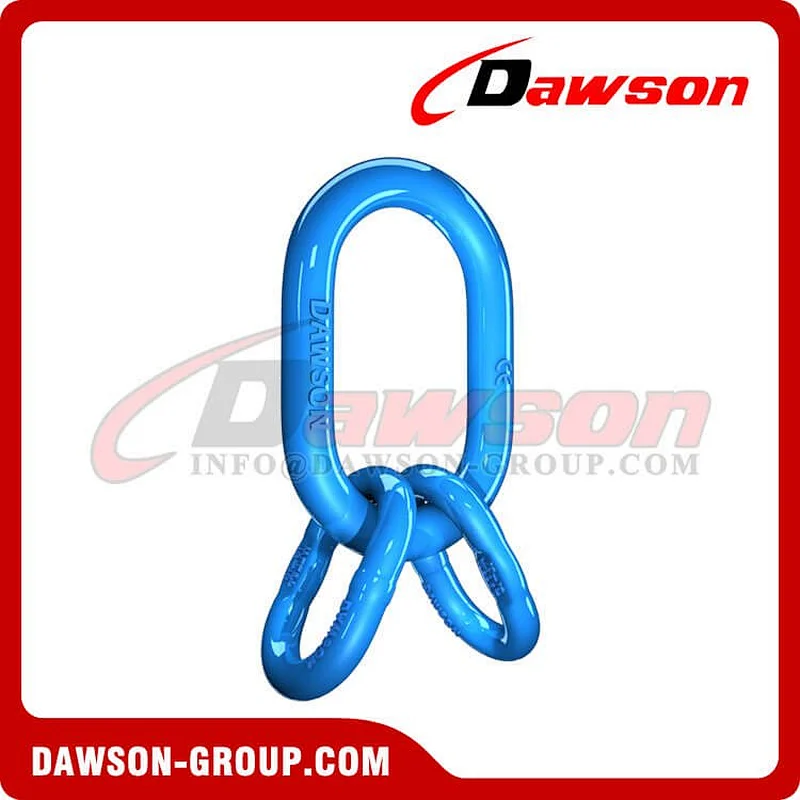

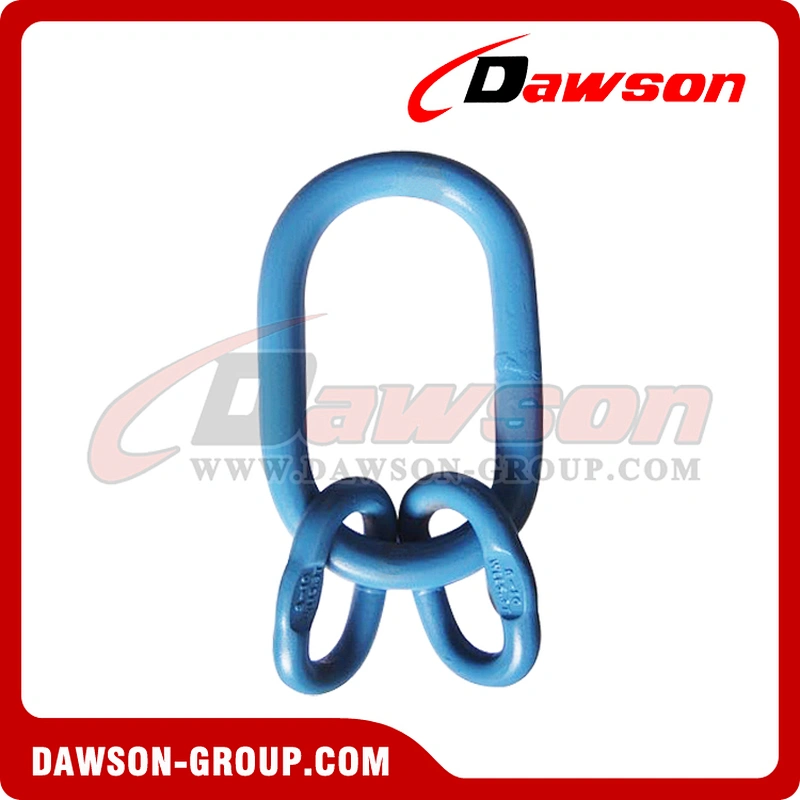

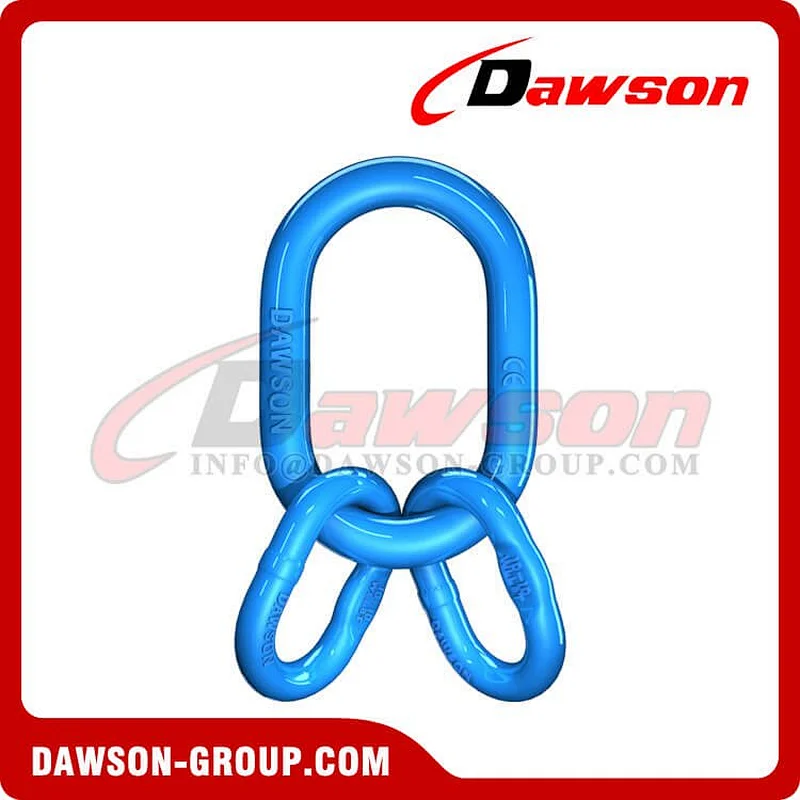

DS1012 G100 Master Link Assembly With Flat for Wire Rope Lifting Slings

DS1012 G100 Master Link Assembly With Flat for Wire Rope Lifting Slings

Model NO.: DS1012

Quantity:

Product Description

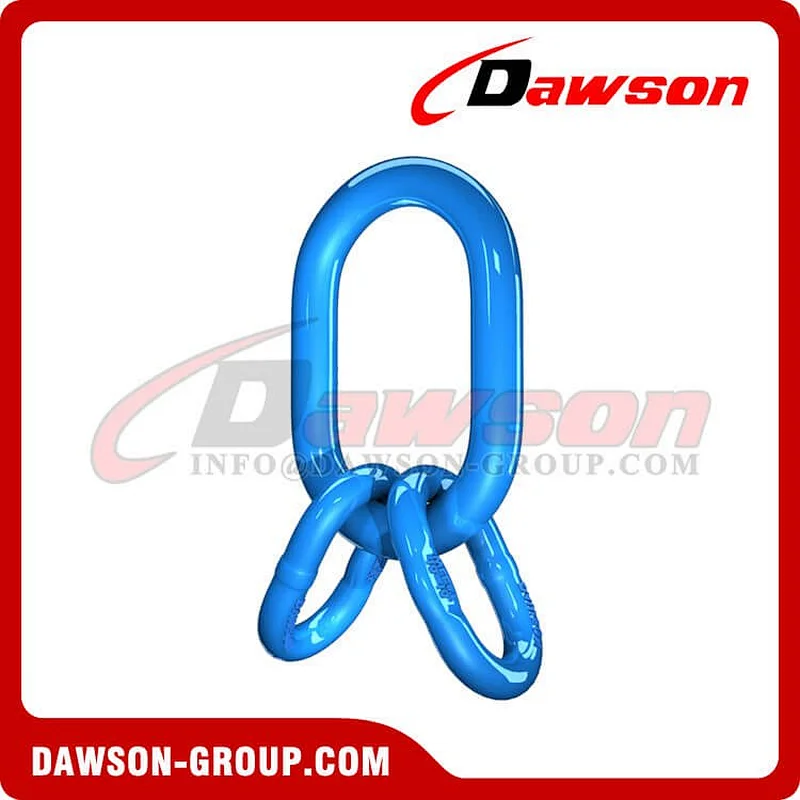

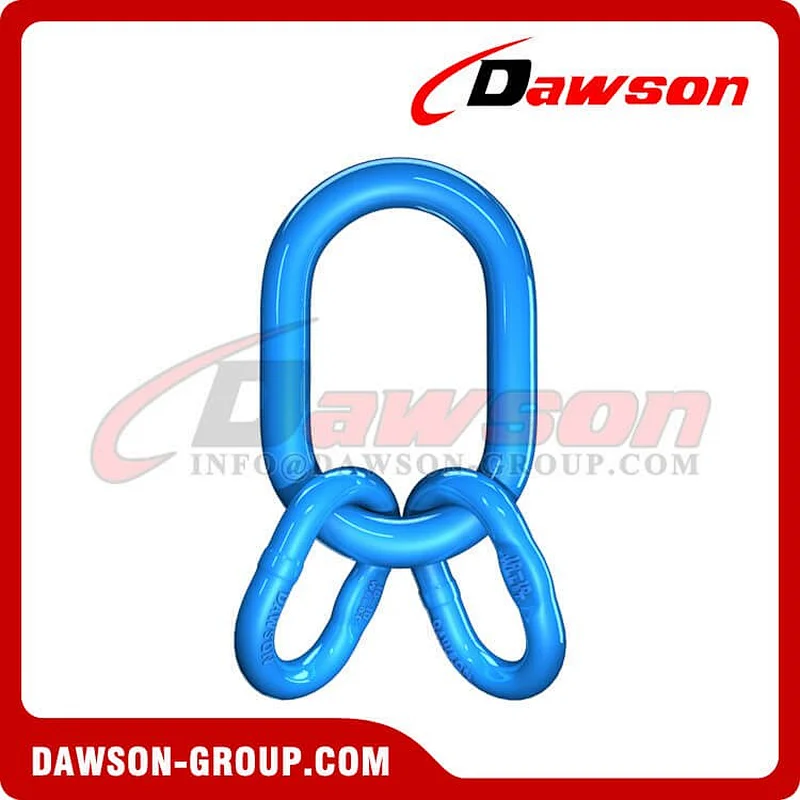

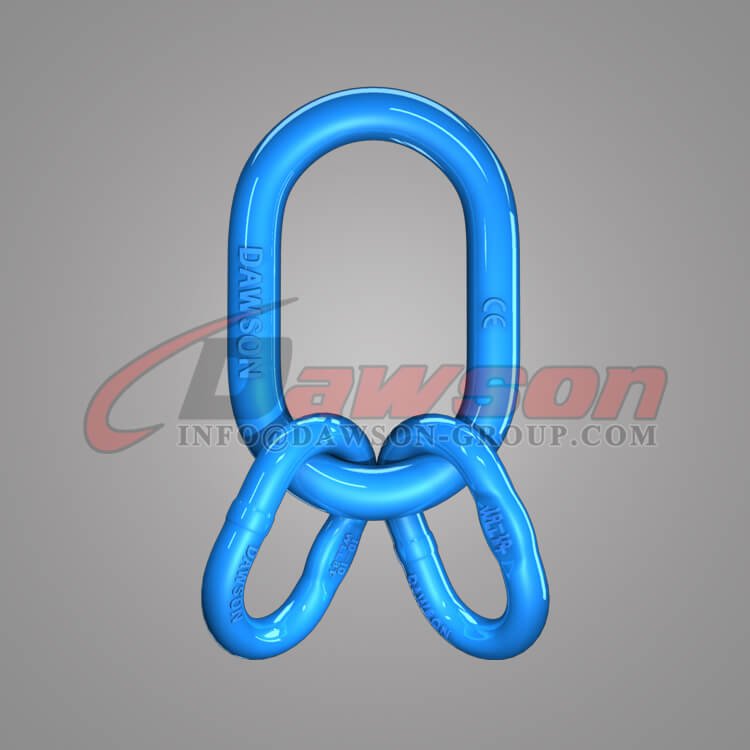

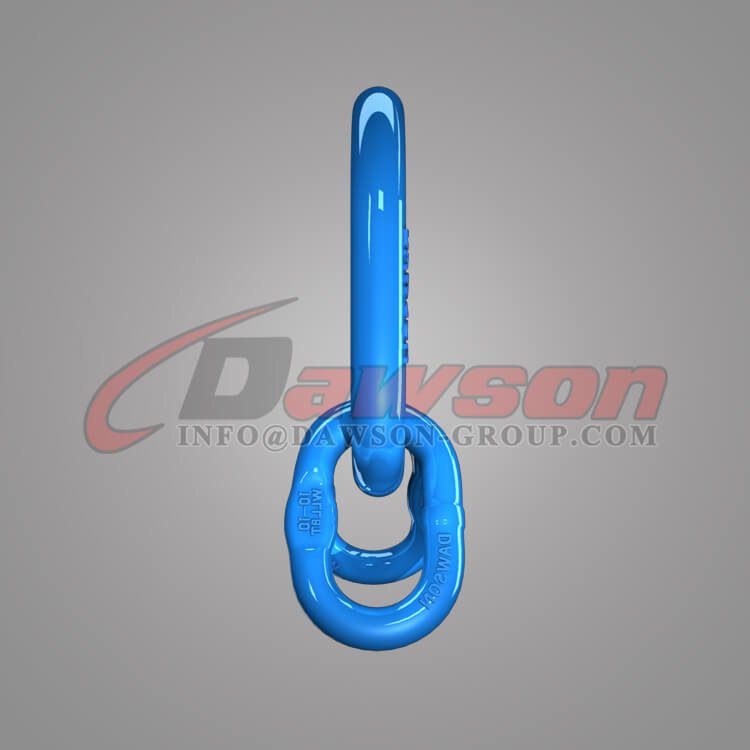

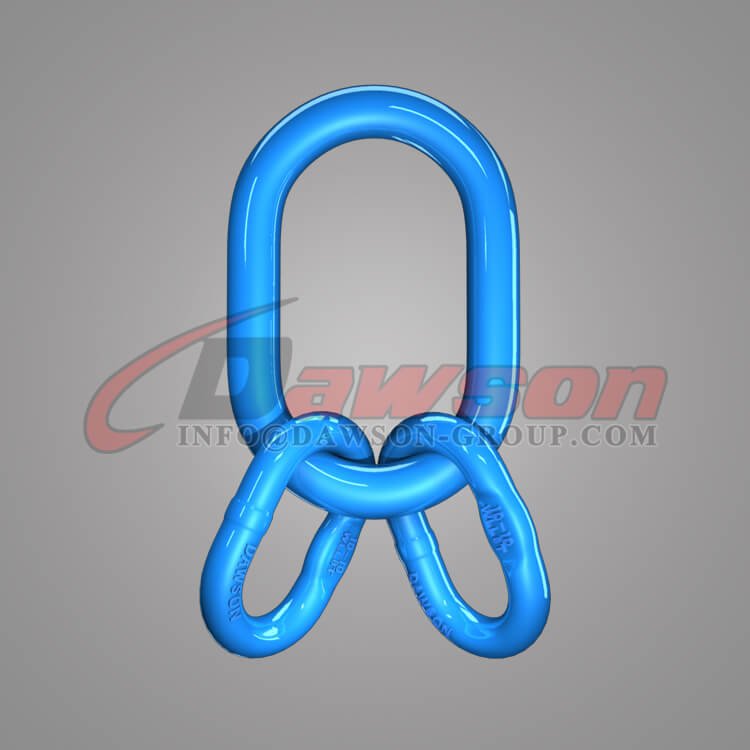

G100 / Grade 100 Master Link Assembly With Flat for Wire Rope Lifting Slings

DS1012 G100 Master Link Assembly
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Rigging Hardware

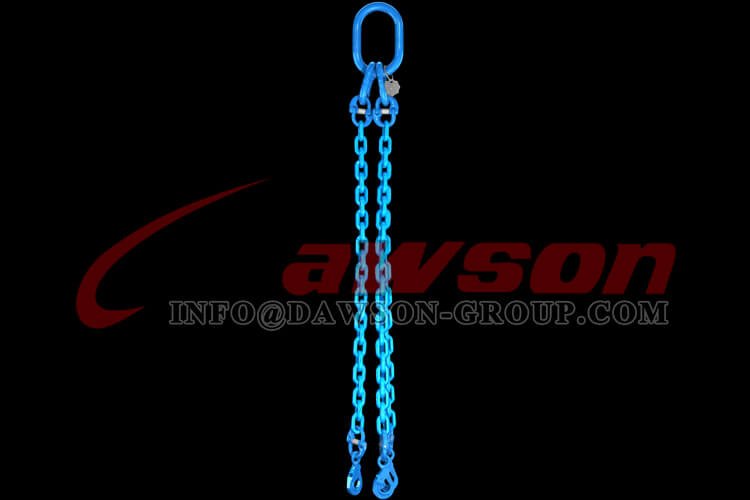

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

Features

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.

● It can be matched with G100 chain.

● The performance is increased by 25% compared with G80 products.

● Each work piece should pass testing at 2.5 times of working load limit.

● We should carry out sampling and 20000 times of fatigue testing.

● We should carry out strict sampling and breakage testing for each batch of products.

● We should carry out 100% magnetic powder flaw detection.

● Surface treatment: plastics spraying.

● Color code: Blue RAL5015.

● All sizes are forged.

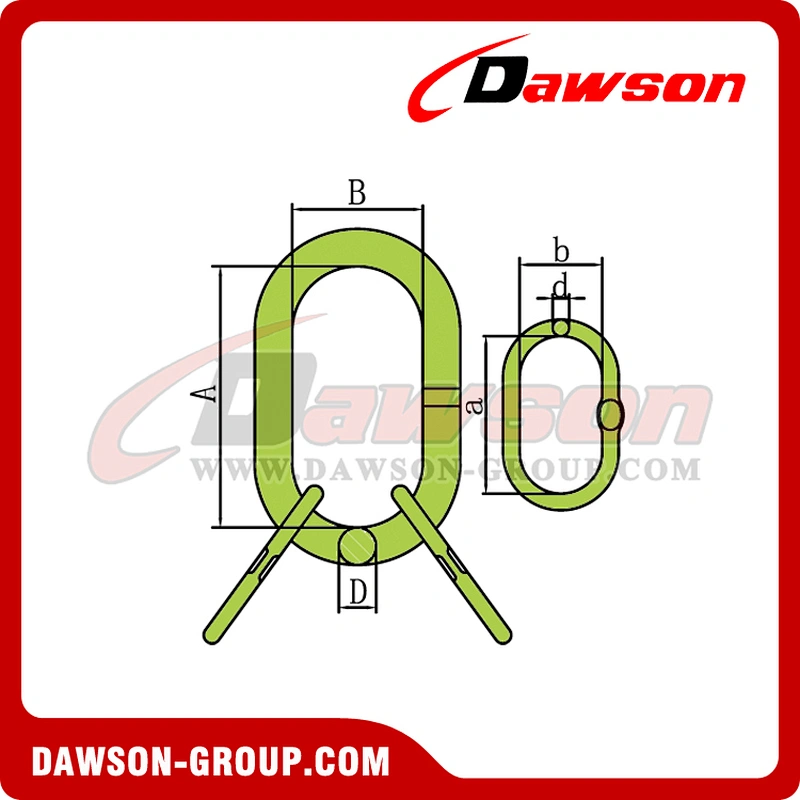

Item No.	G100 Chain for 3/4 Legs Sling	Weight/kg	WLL/T	A	B	D	a	b	d
10-DS1012-6	6MM	1.3	3	135	75	19	54	25	13
10-DS1012-8	8MM	2.33	5.3	160	90	23	70	34	16.5
10-DS1012-10	10MM	3.7	8	180	100	27	85	40	19
10-DS1012-13	13MM	6.5	14	200	110	33	115	50	23
10-DS1012-16	16MM	10.1	21.2	260	140	36	140	65	27
10-DS1012-20	19/20MM	22.8	33.6	350	190	50	180	70	33
10-DS1012-22	22MM	26	33.9	350	190	50	180	100	36

Ultimate load is 5 times the working load limit.

All sizes: Main Link: forged Sub Link:welded

According to EN1677-4.

All sizes:there will be pressing flat only on request.

The pressing flat is for use with DS1027-G100 OMEGA LINK.

Welcome to buy the newest and competitive price DAWSON g100 Master Link Assembly forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Other Related G100 COMPONENTS

Supply only on special request. Not for recommendation.
