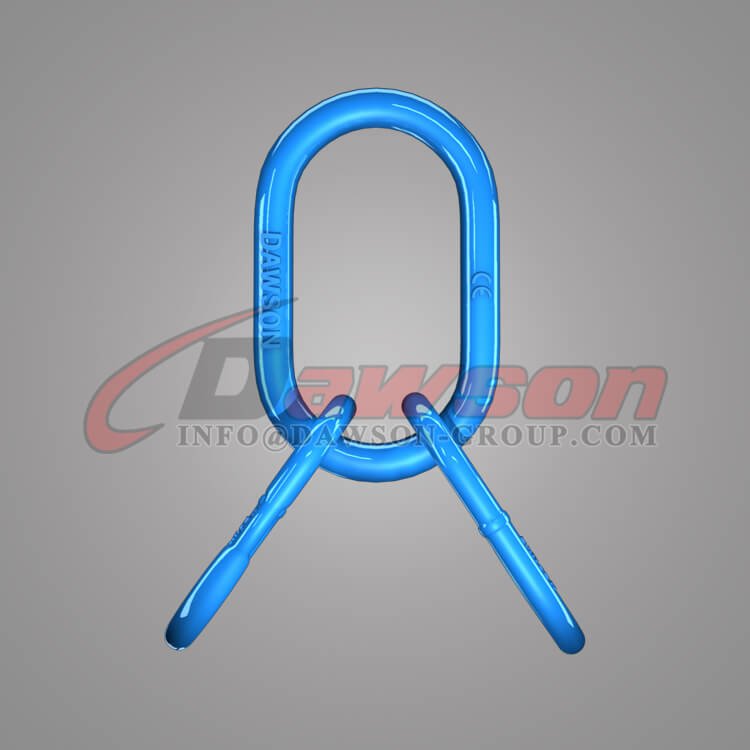

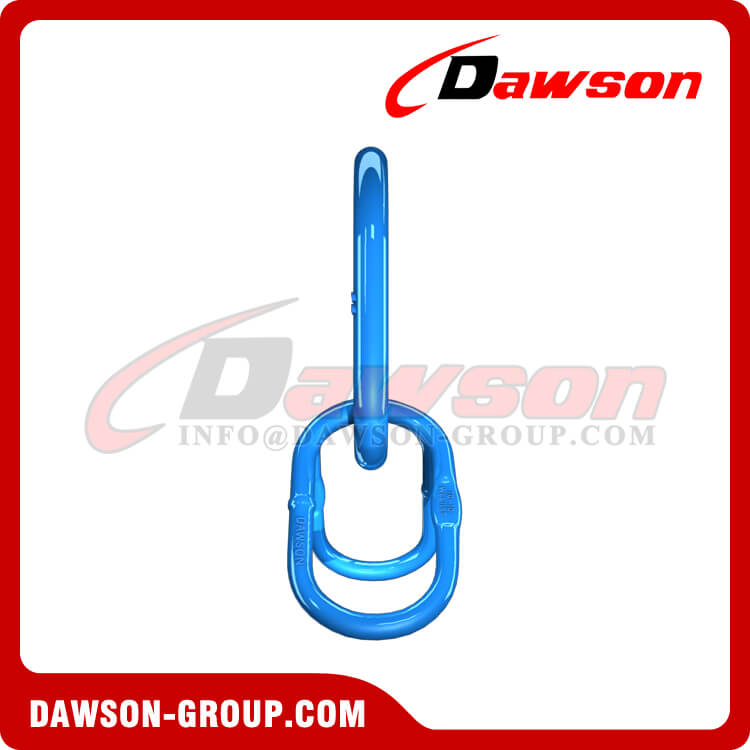

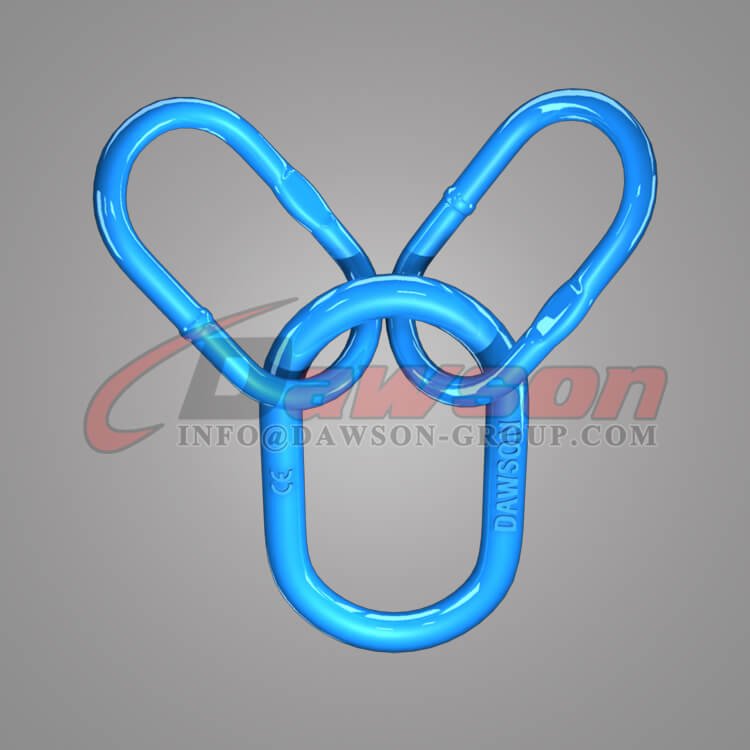

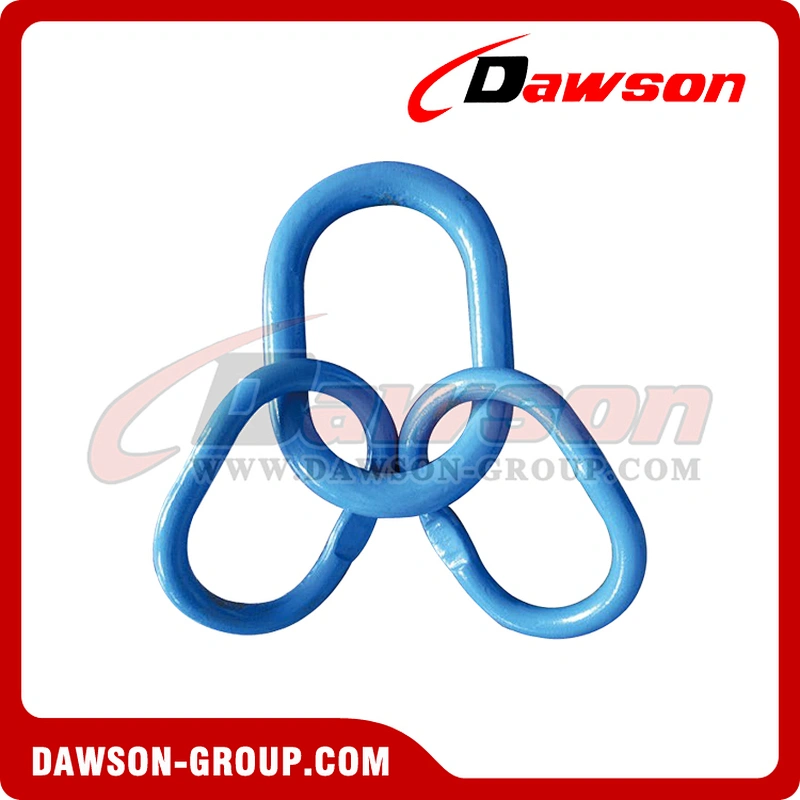

G100 / Grade 100 Master Link Assembly for Lifting Chain Slings

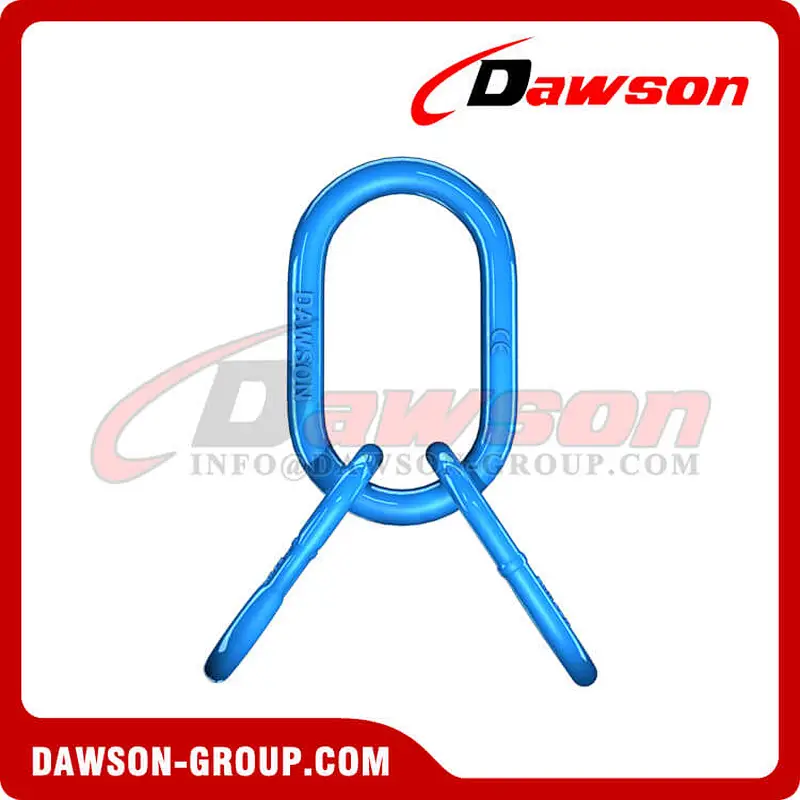

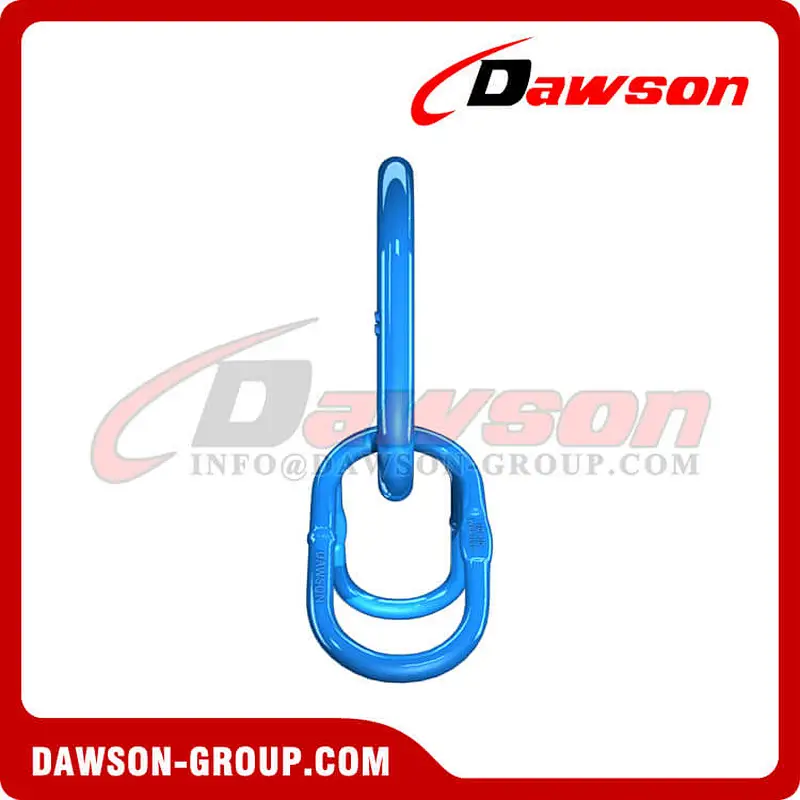

DS1015 G100 Master Link Assembly
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes: Main Link: forged,Sub link: welded

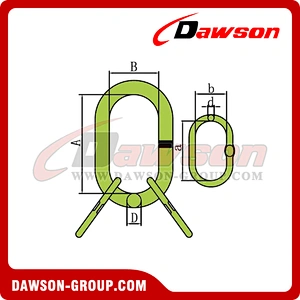

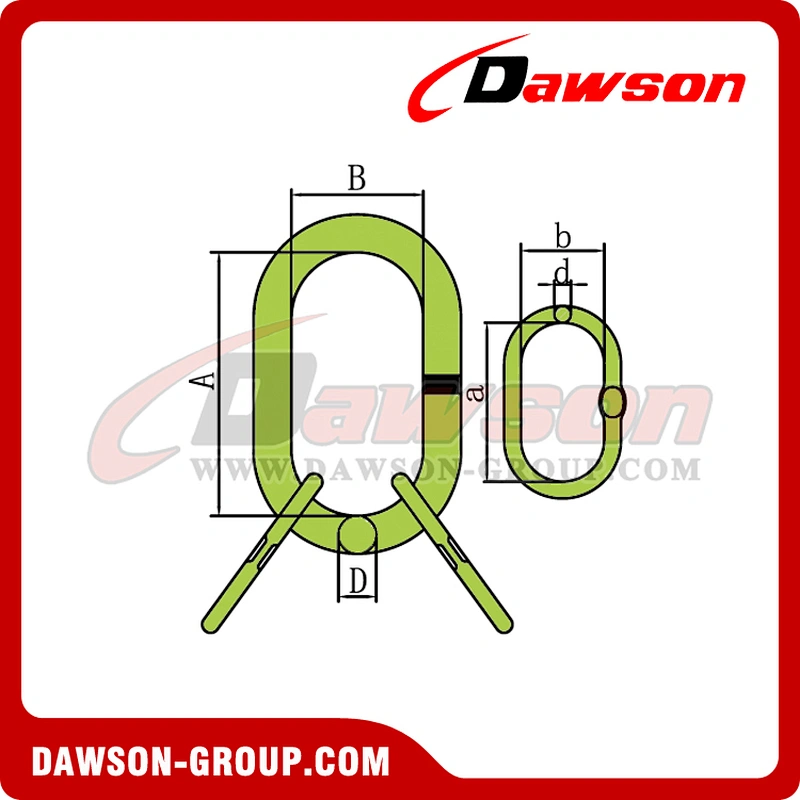

| Item No. | Weight/kg | WLL/T | B.L/T | A | B | D | a | b | d |
| 10-DS1015-06 | 1.8 | 3.5 | 14 | 15±5 | 90±4 | 19±1.5 | 120±5 | 70±4 | 14±1.5 |
| 10-DS1015-08 | 3.0 | 5 | 20 | 160±5 | 95±4 | 22±1.5 | 140±5 | 80±4 | 17±1.5 |
| 10-DS1015-10 | 6.5 | 11.5 | 46 | 200±5 | 120±5 | 30±1.5 | 160±5 | 95±4 | 22±1.5 |
| 10-DS1015-13 | 15 | 17 | 68 | 250±6 | 150±5 | 40±2 | 190±5 | 110±4 | 25±1.5 |
| 10-DS1015-16 | 23 | 28 | 112 | 300±6 | 200±5 | 50±2 | 200±5 | 120±5 | 32±2 |
Ultimate load is 4 times the working load limit.
All sizes:Main Link:forged Sub Link:welded
Bigger sub link.
All sizes:there will be pressing flat only on request.
The pressing flat is for use with DS1027-G100 OMEGA LINK.
Welcome to buy the newest and competitive price DAWSON G100 Master Link Assembly forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |  DS1019 |  DS1028 |
Products Show:
Hot Tags: Master Link Assembly , G100 Master Link Assembly, Grade 100 Master Link Assembly, China Master Link Assembly for Wire Rope Slings, Grade 100 Forged Master Link Assembly, Master Link Assembly China Supplier, Master Link Assembly Factory China, Low Price Master Link Assembly, Buy Discount Master Link Assembly, Cheap Price Master Link Assembly, Hot Sale Master Link Assembly, Master Link Assembly In Stock, Wholesale Master Link Assembly, G100 Rigging Hardware, China Master Link Assembly Manufacturer, Master Link Assembly for Wire Rope Lifting Slings
Other Related Products Show:

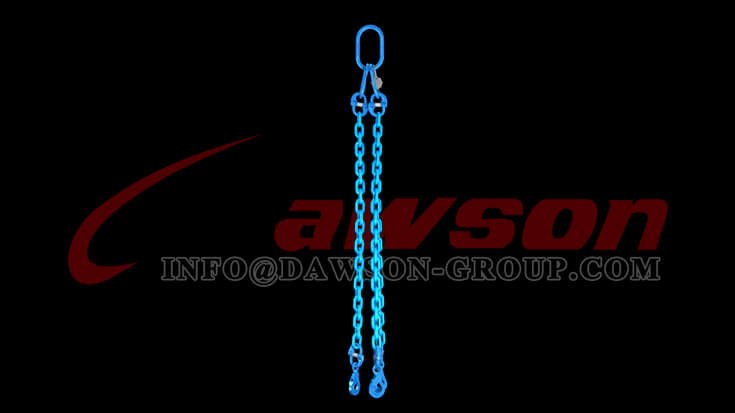

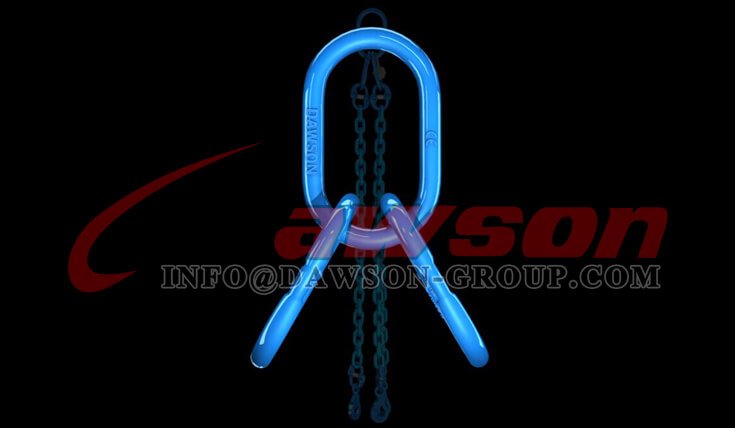

Application of G100 Master Link Assembly:
