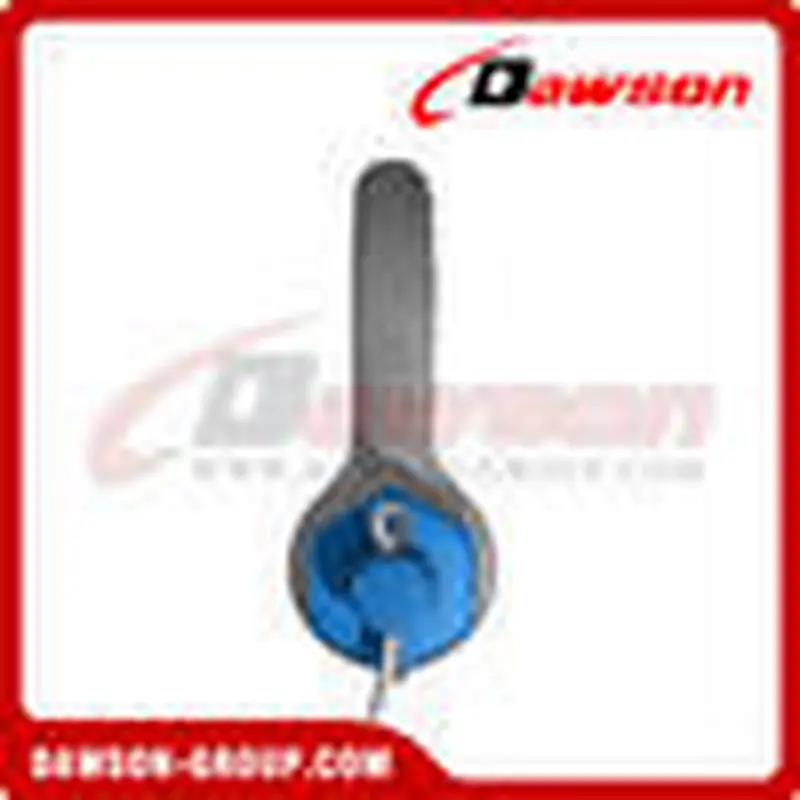

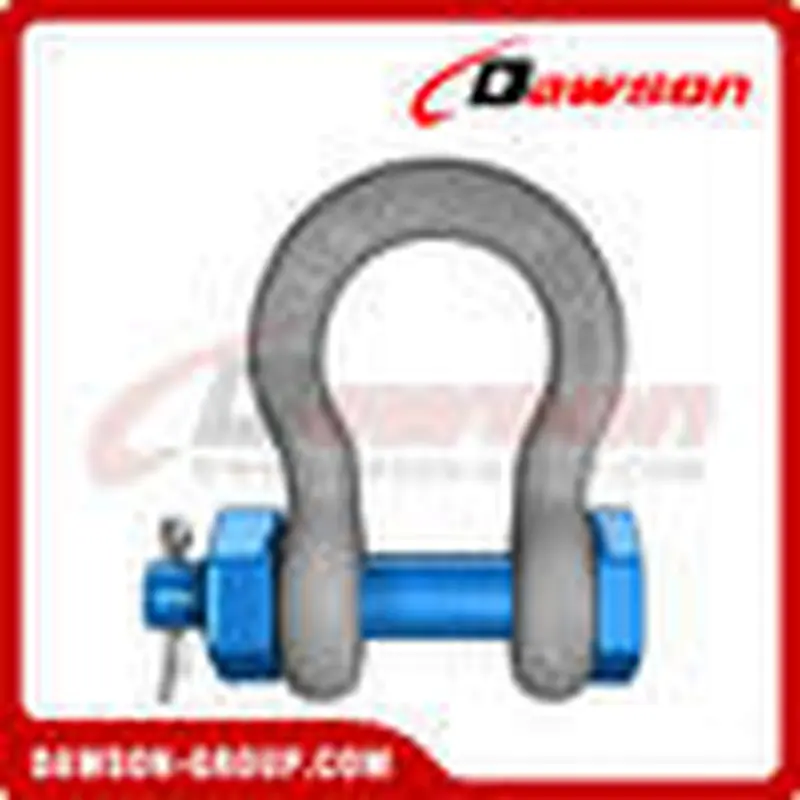

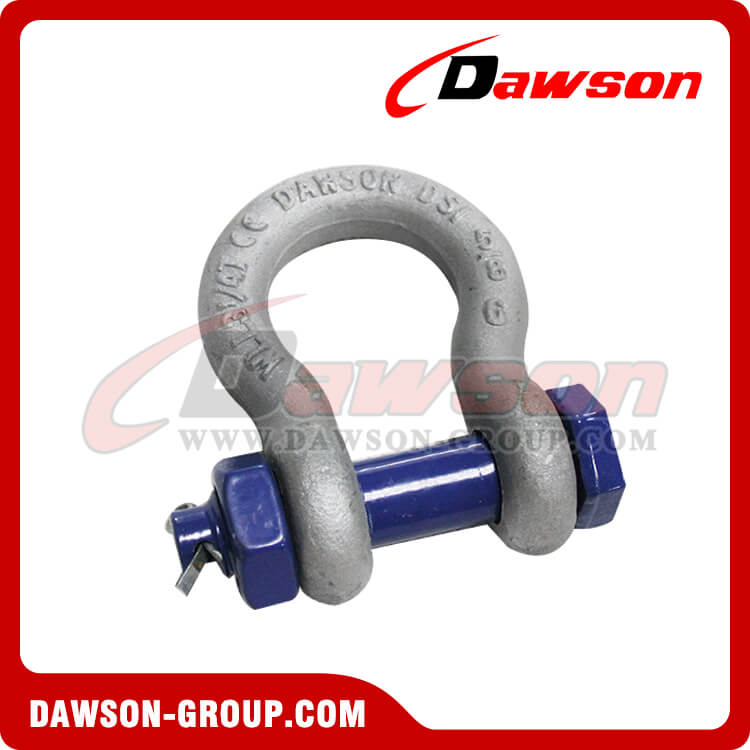

Dawson Brand Hot Dip Galvanized US Type Bow Shackle with Safety Pin, EN 138892003+A12008 Anchor Shackle, S6 Bolt Type Anchor Shackle

Model NO.: DS-BAS0632

Quantity:

Product Description

Dawson Brand Hot Dip Galvanized US Type Bow Shackle with Safety Pin, EN 13889:2003+A1:2008 Anchor Shackle, S6 Bolt Type Anchor Shackle

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

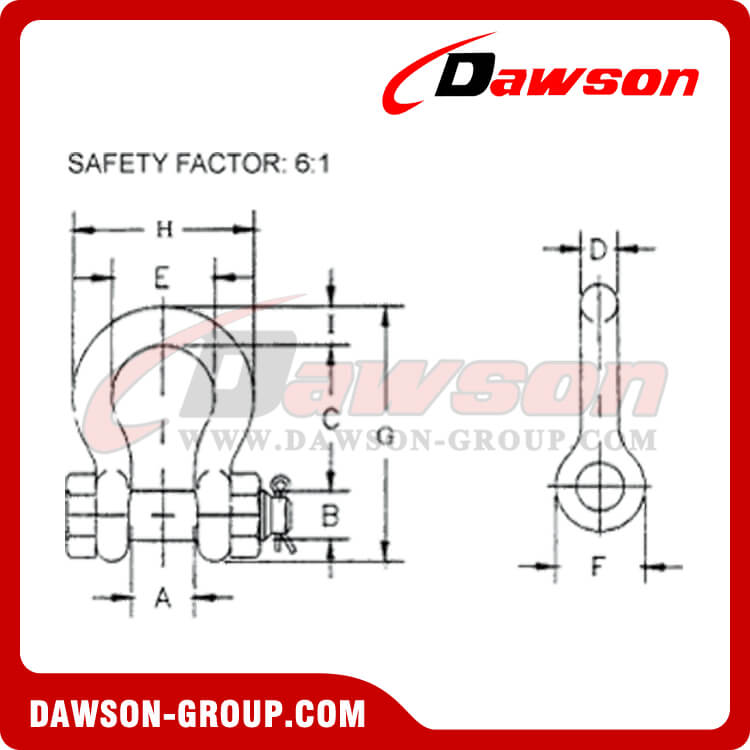

ITEM NO	Nominal Size	Working Load Limit	Dimensions(mm)									Weight Each
ITEM NO	(in.)	(tons)	A	B	C	D	E	F	G	H	I	(kg)
DS-BAS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	37.2	24.9	4.85	0.03
DS-BAS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	0.05
DS-BAS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	53.0	37.3	7.85	0.10
DS-BAS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	63.0	45.2	9.65	0.15
DS-BAS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	74.0	51.5	11.2	0.22
DS-BAS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	83.5	58.5	12.7	0.36
DS-BAS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	106	74.5	17.5	0.76
DS-BAS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	126	89.0	20.6	1.23
DS-BAS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	148	102	24.6	1.79
DS-BAS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	2.57
DS-BAS3632	1-1/8	9-1/2	46.0	31.8	108	28.7	74.0	68.5	190	131	31.8	3.75
DS-BAS4032	1-1/4	12	51.5	35.1	119	31.8	82.5	76.0	210	146	35.1	5.31
DS-BAS4432	1-3/8	13-1/2	57.0	38.1	133	35.1	92.0	84.0	233	162	38.1	7.18
DS-BAS4832	1-1/2	17	60.5	41.4	146	38.1	98.5	92.0	254	175	41.1	9.43
DS-BAS5632	1-3/4	25	73.0	51.0	178	44.5	127	106	313	225	57.0	15.4
DS-BAS6432	2	35	82.5	57.0	197	51.0	146	122	348	253	61.0	23.7
DS-BAS8032	2-1/2	55	105	70.0	267	66.5	184	145	453	327	79.5	44.6
DS-BAS9632	3	85	127	82.5	330	76.0	200	165	546	365	92.0	70
DS-BAS11232	3-1/2	120	133	95.5	372	92.0	229	203	626	419	105	120
DS-BAS12832	4	150	140	108	368	104	254	229	653	468	116	153

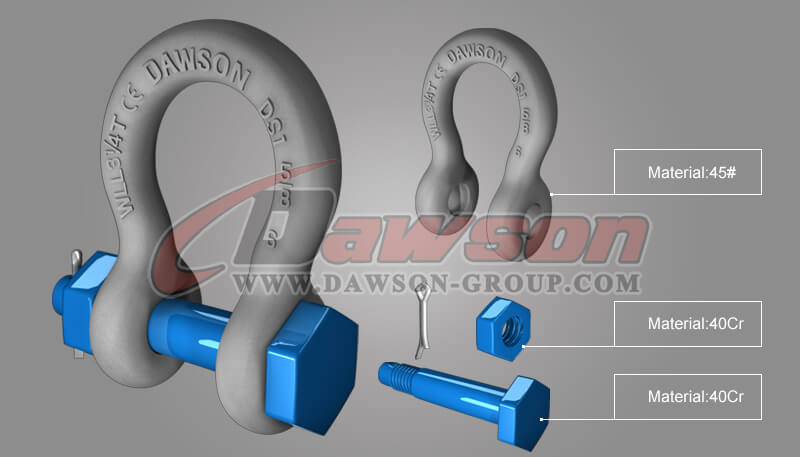

Bolt Type Anchor Shackle with thin head bolt - nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271D Type IVA, EN 13889:2003+A1:2008, Grade A, Class 3, except for those provisions required of the contractor.

*Maximum Proof Load is 2.0 times the Working Load Limit.

*Minimum Ultimate Strength is 6 times the Working Load Limit.

*Individually Proof Tested with certification.

*Furnished in Anchor Style only. Furnished with Round Head Bolts with welded handles

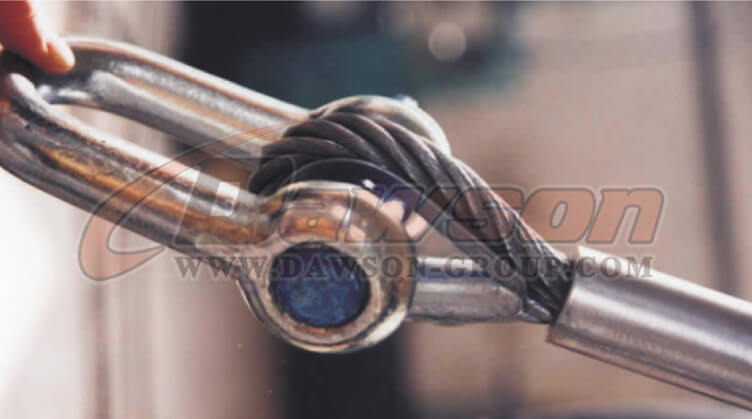

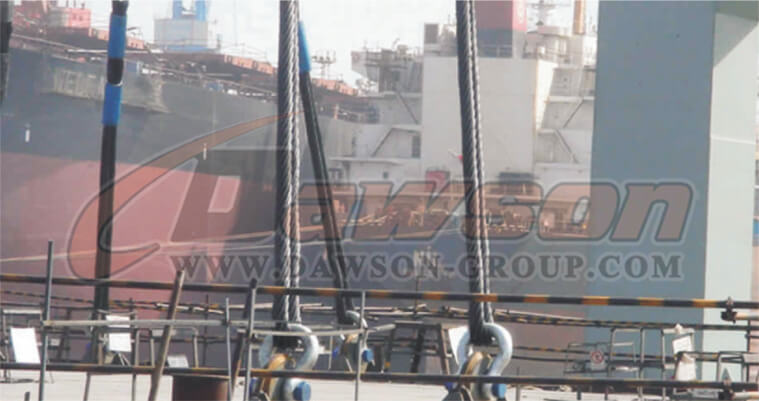

Application: High tensile forged shackle mainly using for lifting purpose or connecting parts being the lifting point and other lifting equipment.

The bow shackle is common produce used in the offshore industry,this shackle can be used in temporary and permanent in the mooring system, finish is hot dip galvanized.

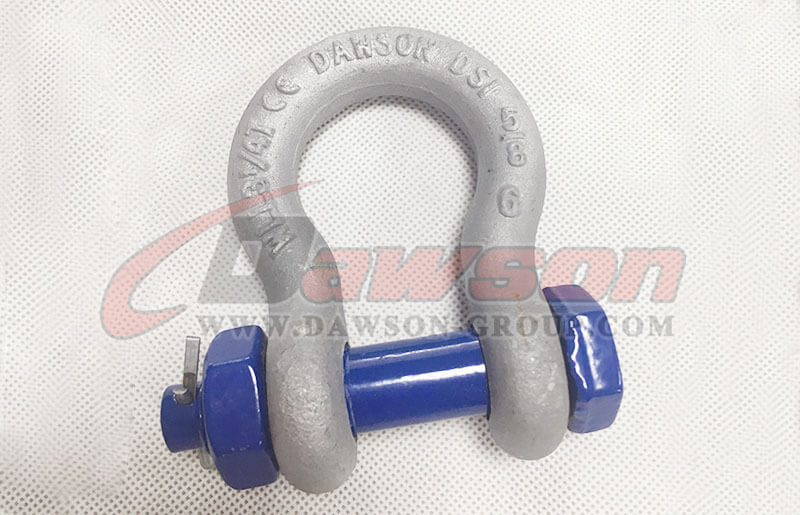

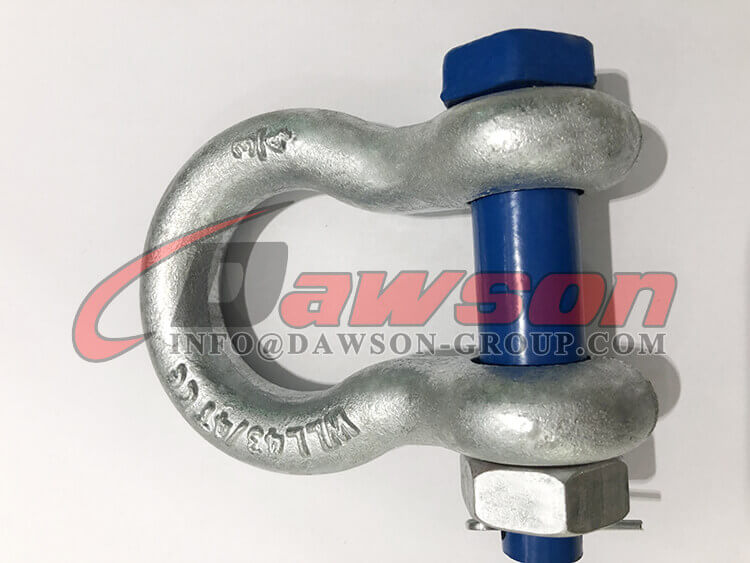

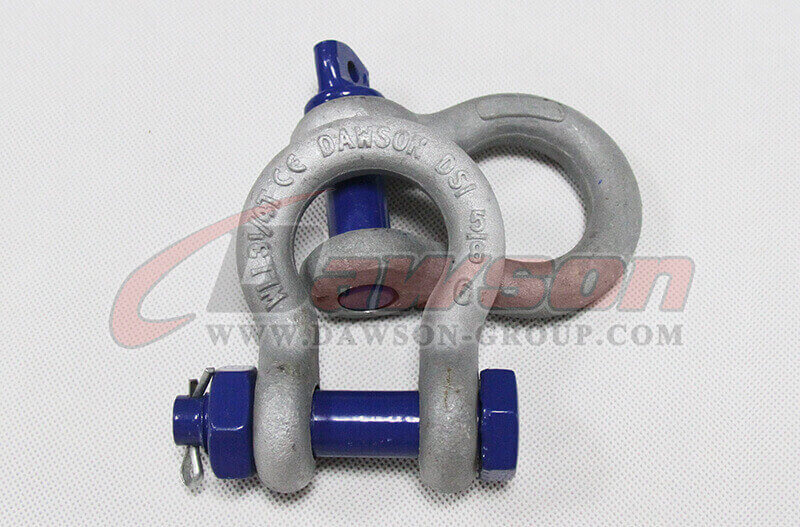

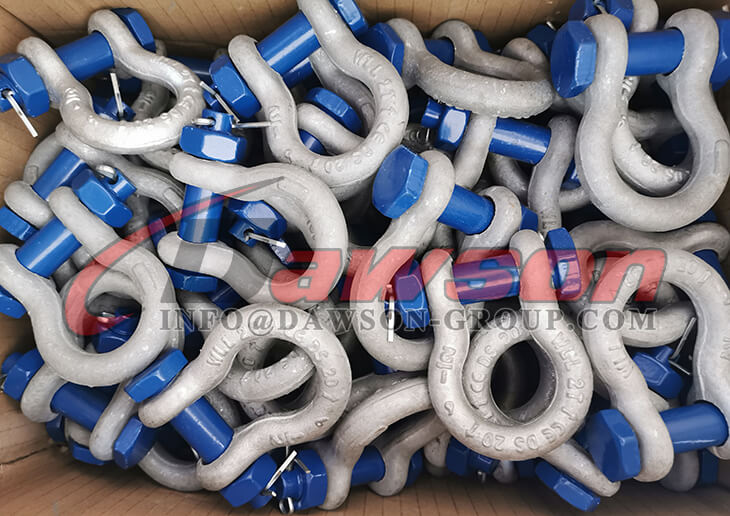

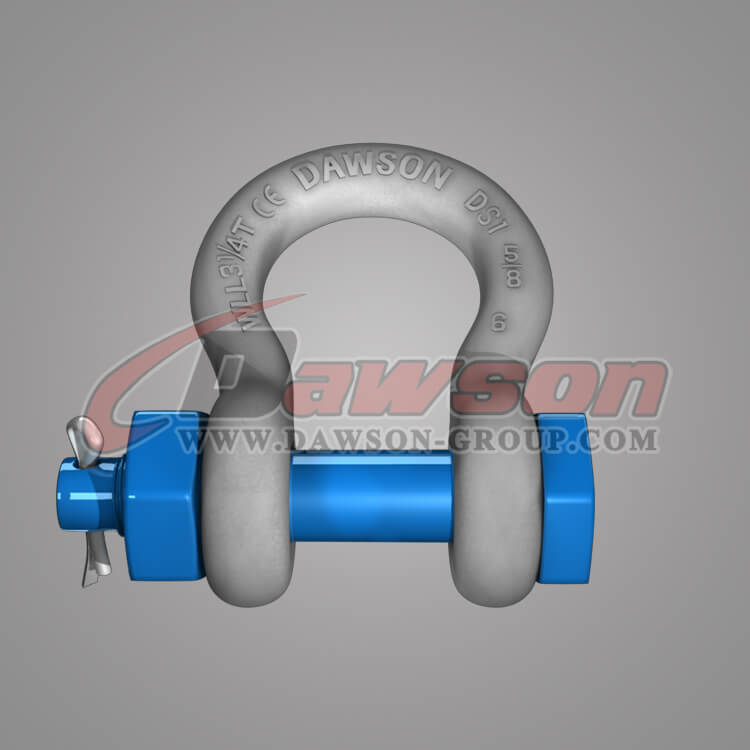

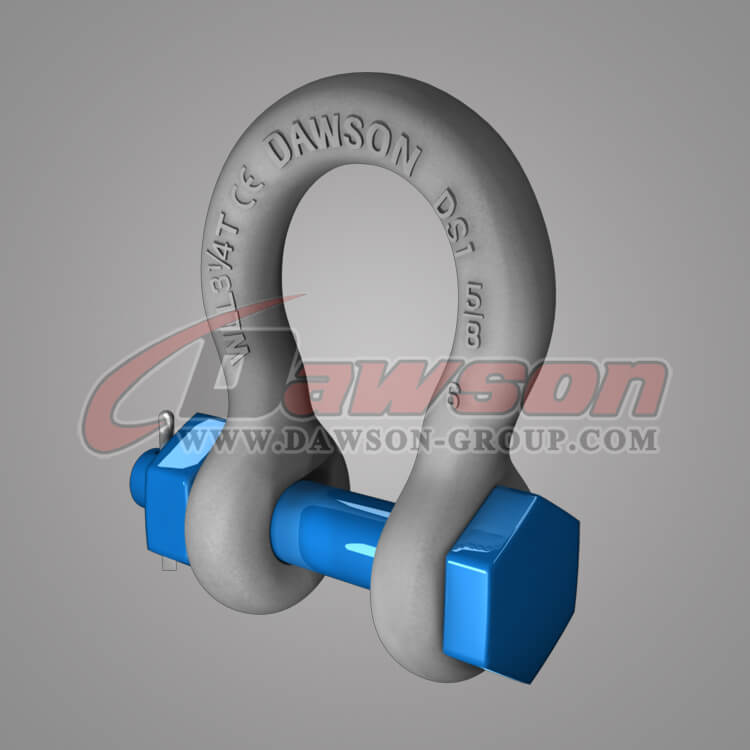

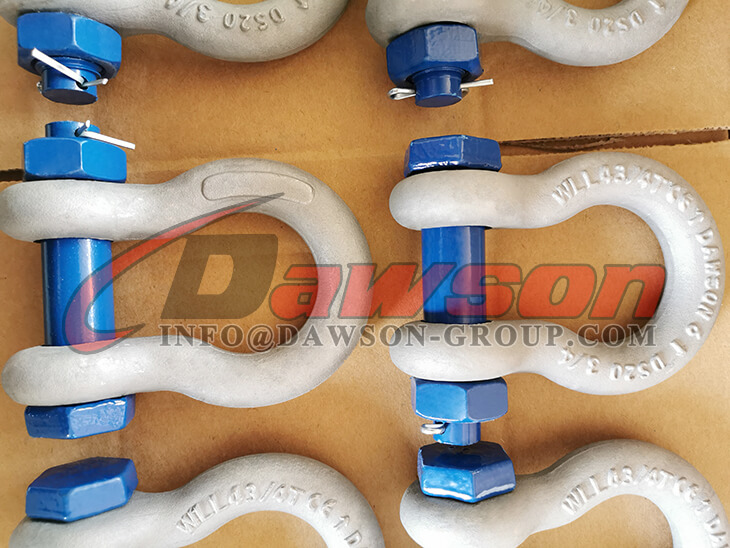

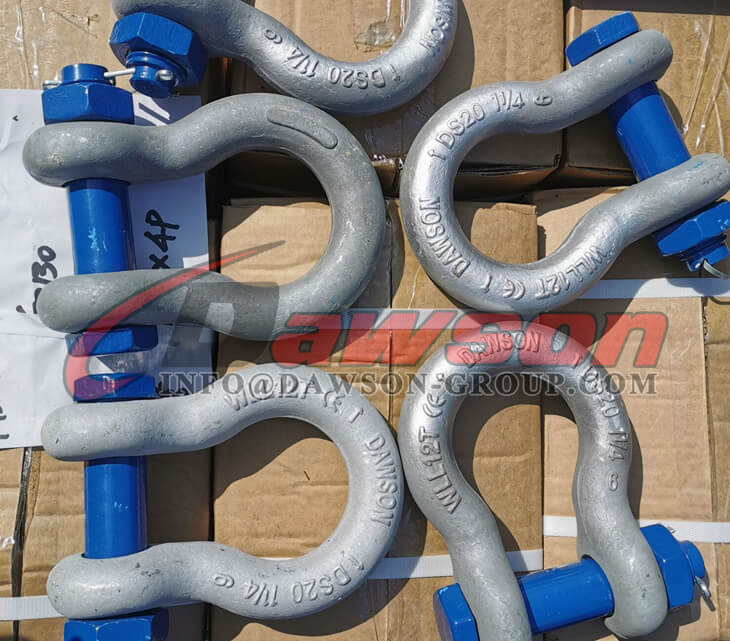

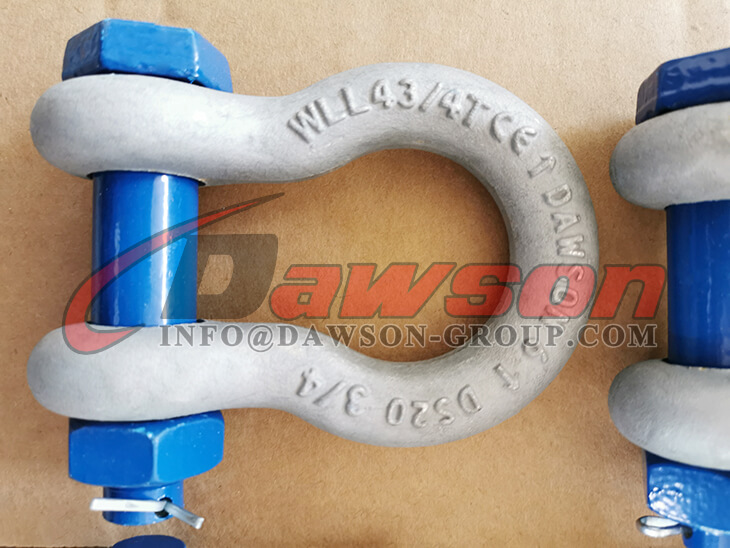

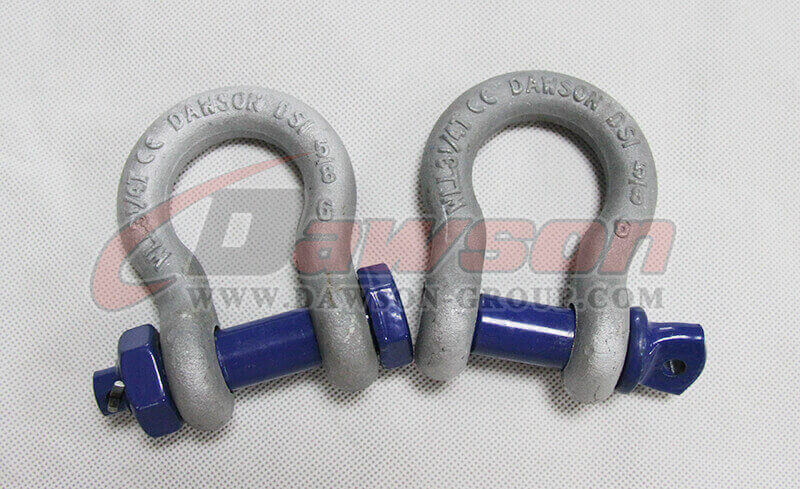

Products Show:
