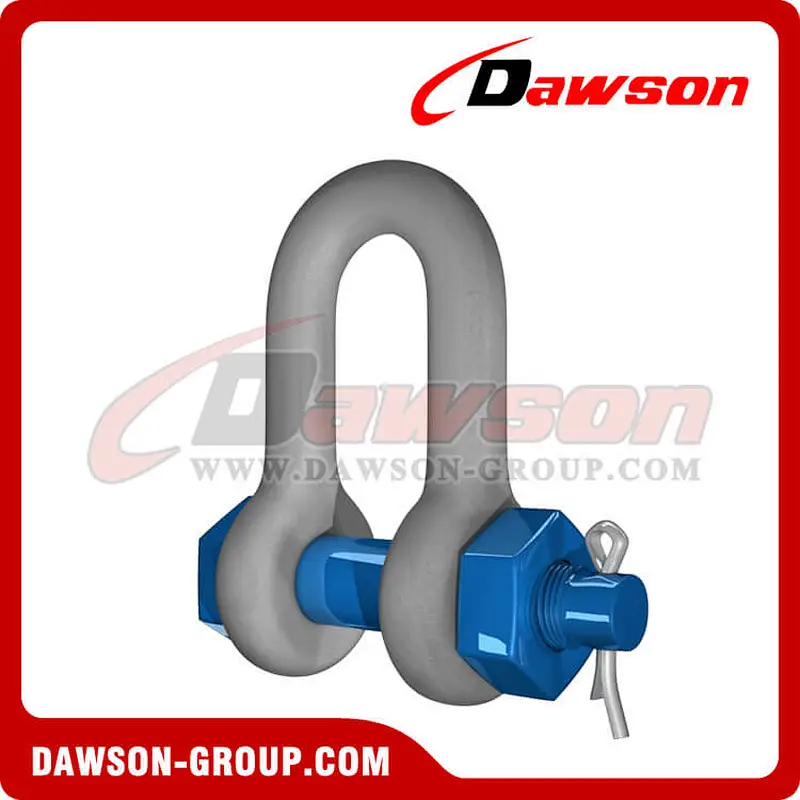

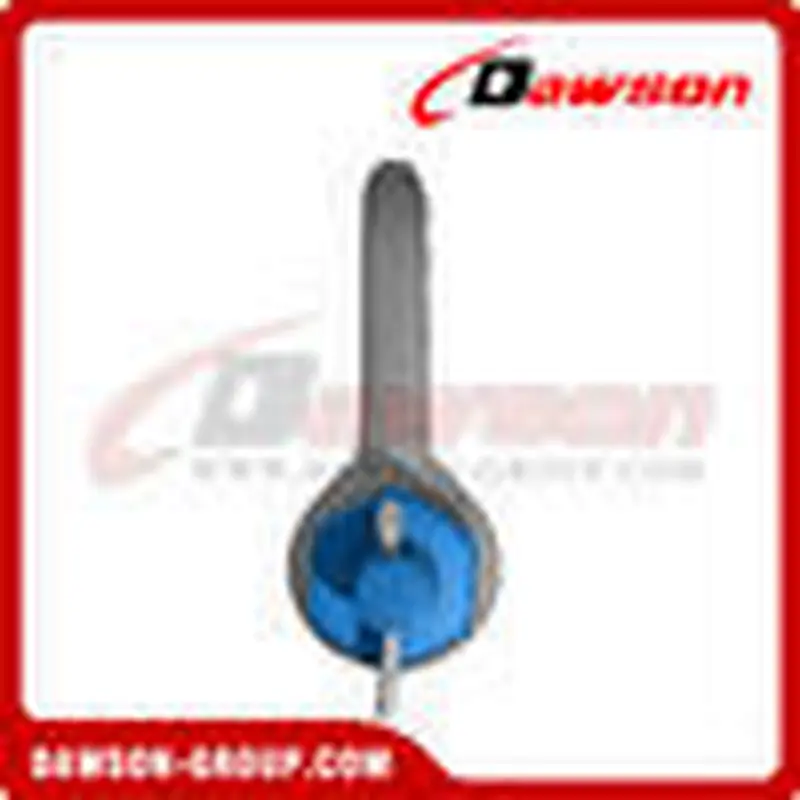

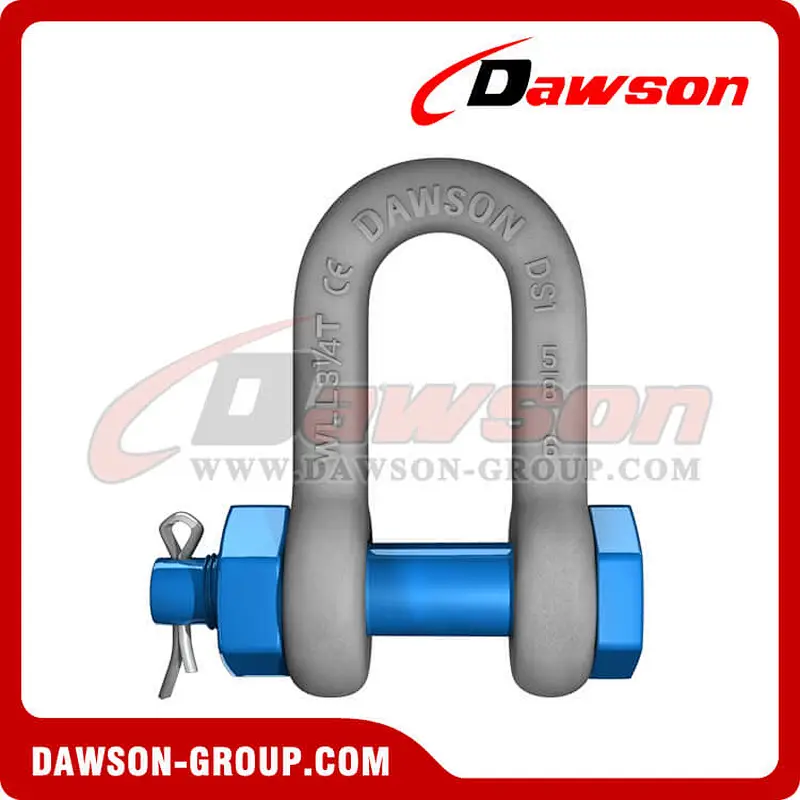

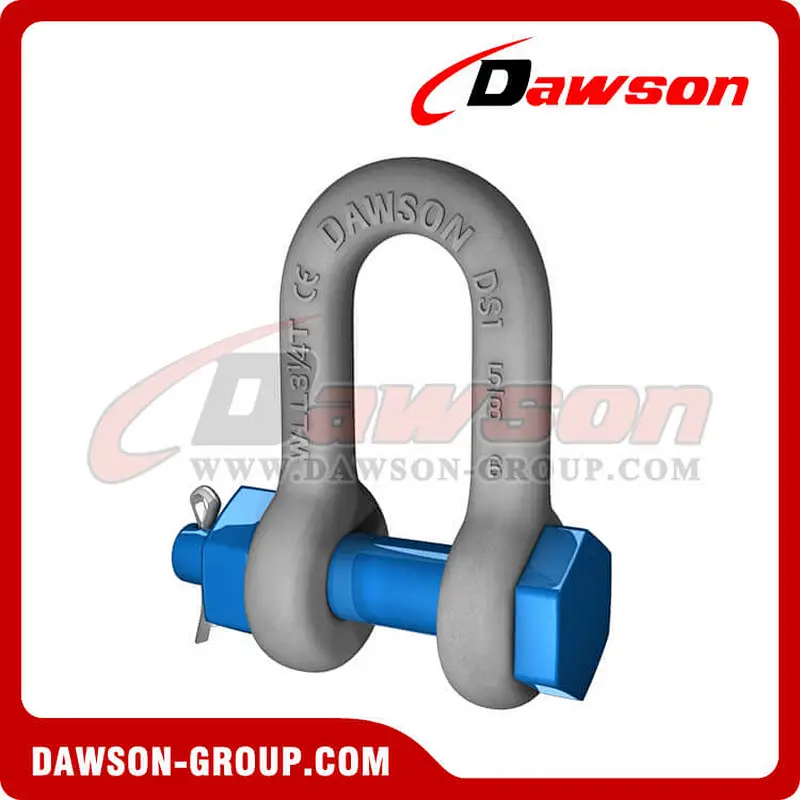

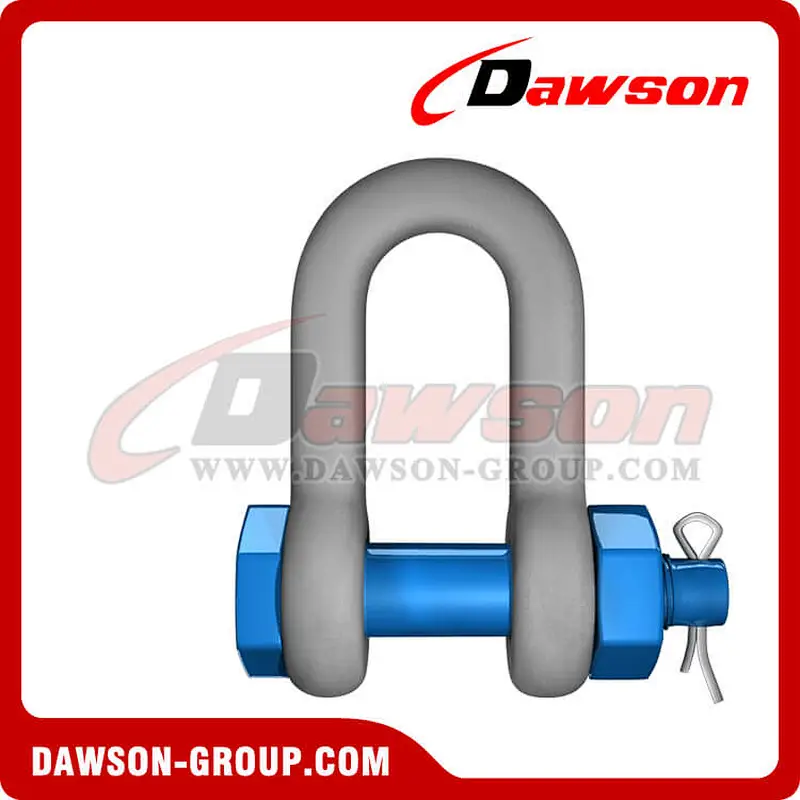

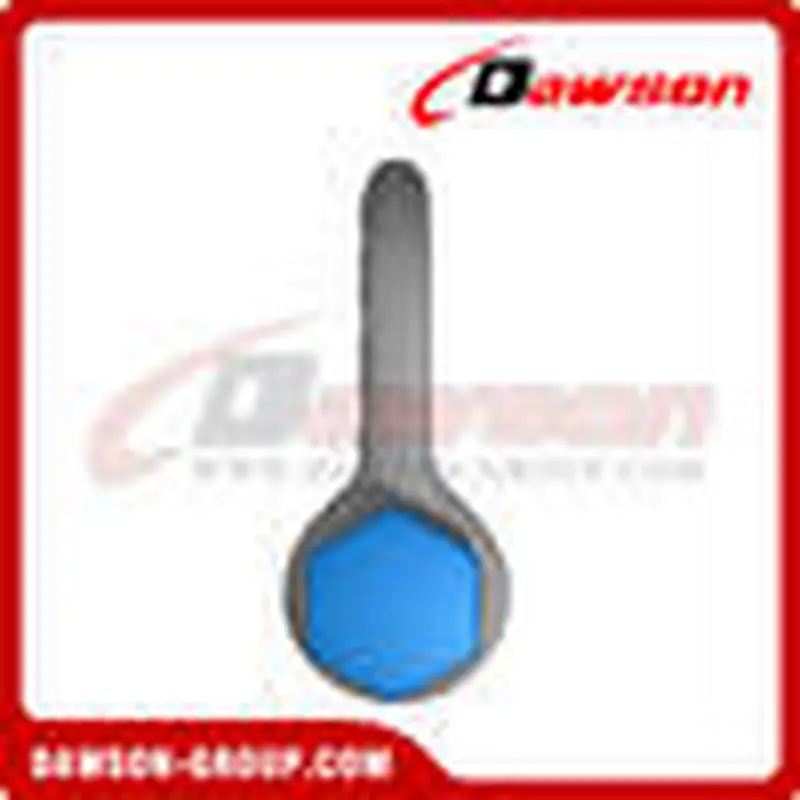

Dawson Brand Hot Dip Galvanized US Type Chain Shackle with Safety Pin, EN 13889:2003+A1:2008 S6 Bolt Type Dee Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Chain Shackle Bolt Type Forge Alloy High Tensile US Federal Specification, EN 13889:2003+A1:2008
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle. Capacities 1/3 thru 150 metrics tons.
Forged - Quenched and Tempered.
Capacities 1/3 thru 85 metric tons.

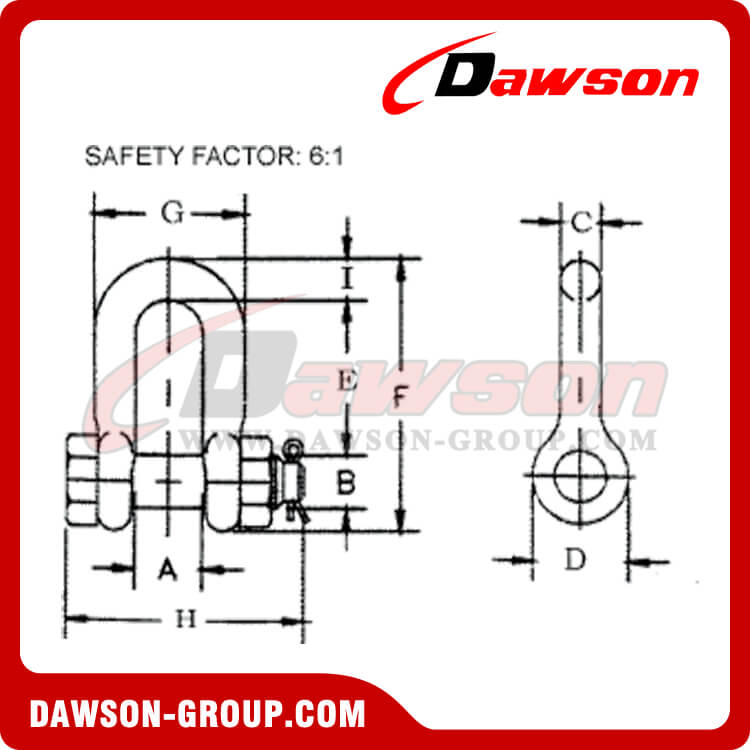

| ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight Each | ||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | (kg) | |
| DS-BCS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 0.06 |
| DS-BCS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 0.10 |
| DS-BCS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31.0 | 58.5 | 35.8 | 55.0 | 9.65 | 0.15 |
| DS-BCS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 0.22 |
| DS-BCS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 30.2 | 41.4 | 77.0 | 46.0 | 71.0 | 12.7 | 0.34 |
| DS-BCS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16.0 | 38.1 | 51.0 | 95.5 | 58.5 | 89.5 | 16.0 | 0.67 |
| DS-BCS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46.0 | 60.5 | 115 | 70.0 | 103 | 20.6 | 1.14 |
| DS-BCS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53.0 | 71.5 | 135 | 81.0 | 120 | 24.6 | 1.74 |
| DS-BCS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 81.0 | 151 | 93.5 | 135 | 25.4 | 2.52 |
| DS-BCS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 28.7 | 68.5 | 91.0 | 172 | 103 | 150 | 31.8 | 3.45 |
| DS-BCS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76.0 | 100 | 191 | 115 | 165 | 35.1 | 4.90 |
| DS-BCS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 35.1 | 84.0 | 111 | 210 | 127 | 183 | 38.1 | 6.24 |
| DS-BCS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92.0 | 122 | 230 | 137 | 196 | 41.1 | 8.39 |
| DS-BCS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54.0 | 14.2 |
| DS-BCS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 122 | 172 | 312 | 184 | 264 | 51.0 | 21.2 |
| DS-BCS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 38.6 |
| DS-BCS9632 | 3 | 85 | 127 | 82.5 | 76.0 | 165 | 216 | 429 | 279 | 419 | 89.0 | 56 |
Welcome to buy the newest and competitive price DAWSON Dawson Brand Hot Dip Galvanized US Type Chain Shackle with Safety Pin, S6 Bolt Type Dee Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Application: Forged high tensile Dee shackle mainly using for lifting purpose of lashing or fishing, the bolt type using for that place with a long time fixed.

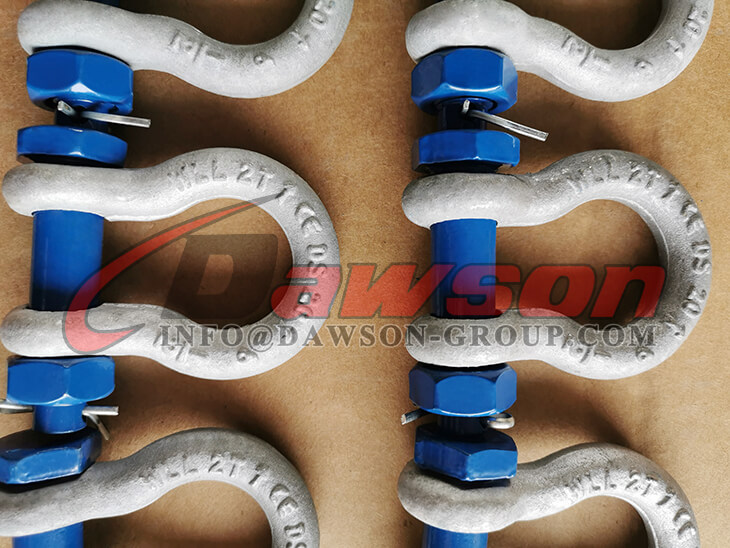

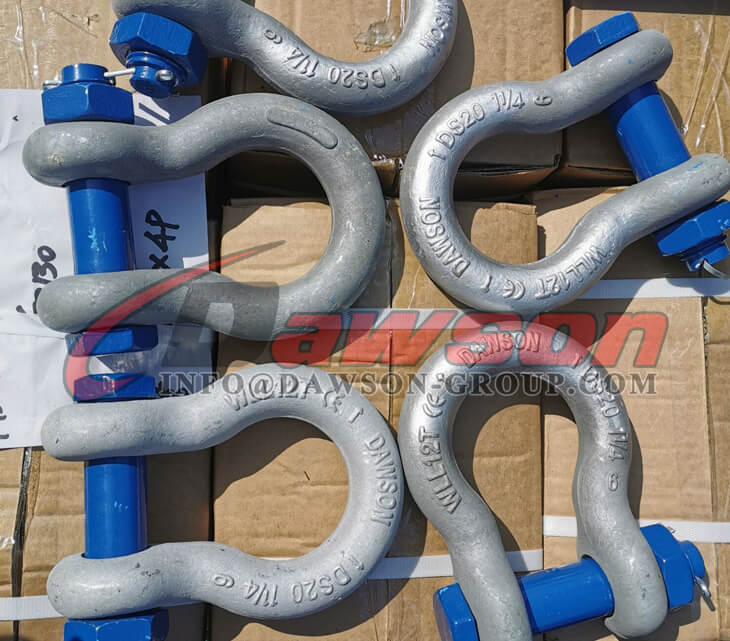

Products Show:
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk chain shackle, low price bolt type chain shackle, high quality chain shackle with safety pin, wholesale S6 safety pin chain shackle, buy discount S6 dee shackle with safety pin, chain shackle China supplier, chain shackle China factory, chain shackle China manufacturer, S6 chain shackle OEM, high tensile shackle dawson brands, hot galvanizing S6 shackle in stock, customized S6 dee shackle, hot sale shackle with safety pin, cheap price S6 shackle with safety pin, shackle with safety pin China exporter, fixed nut shackle free sample
Other Related Products:

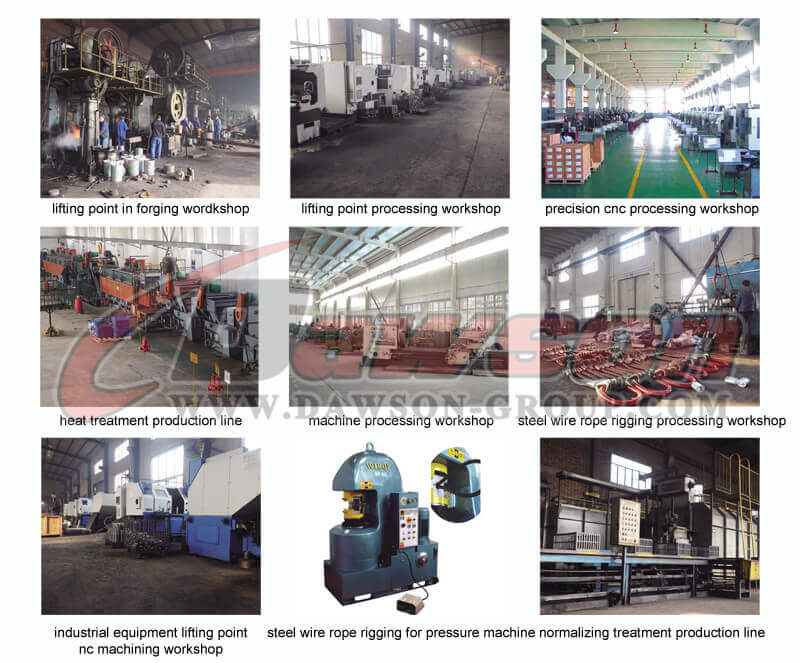

Production Equipment:

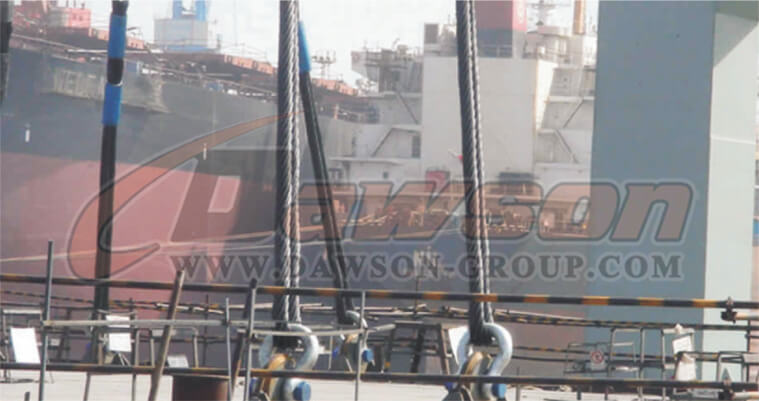

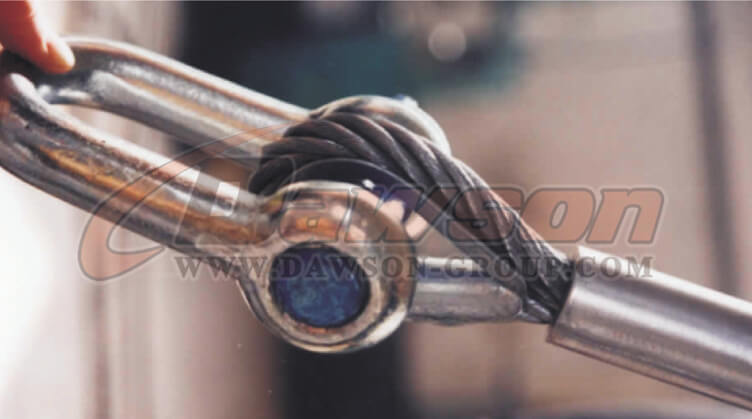

Application of Shackle:

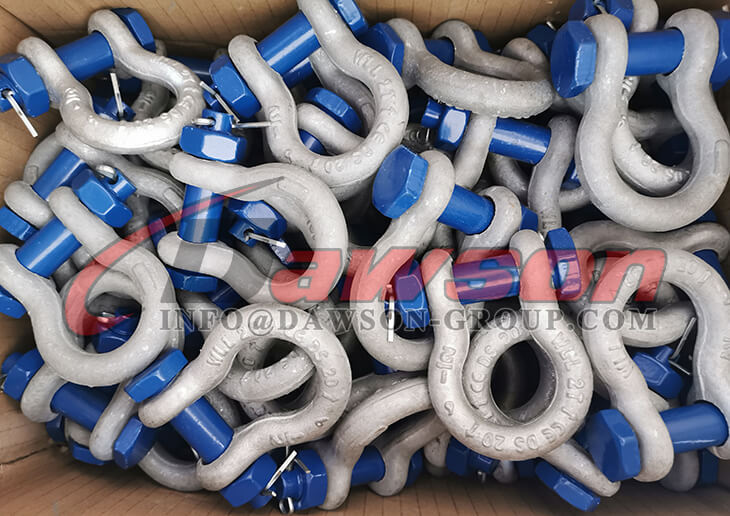

Factory and packing Show:
