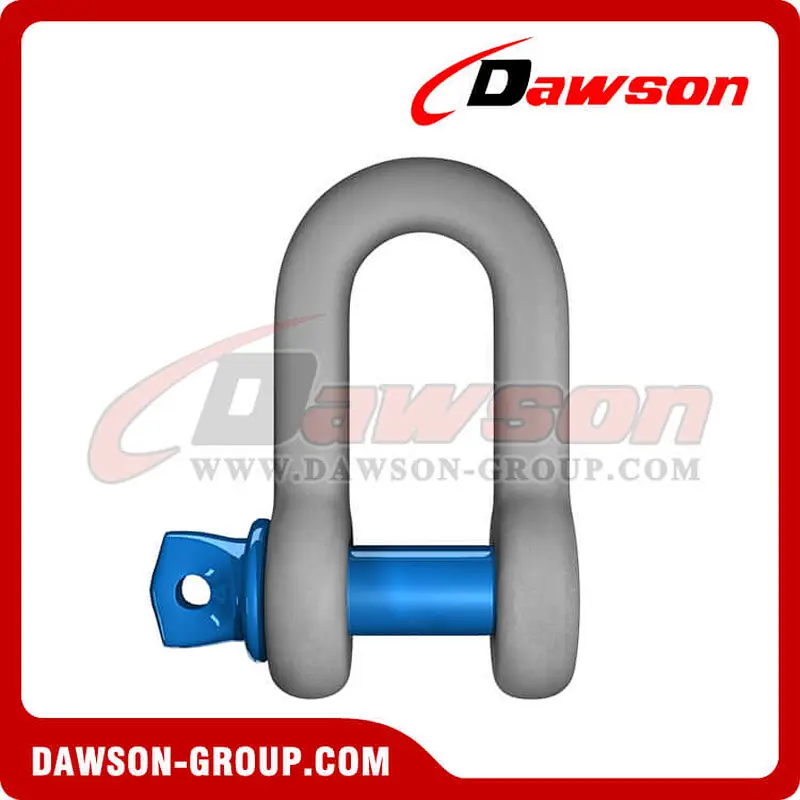

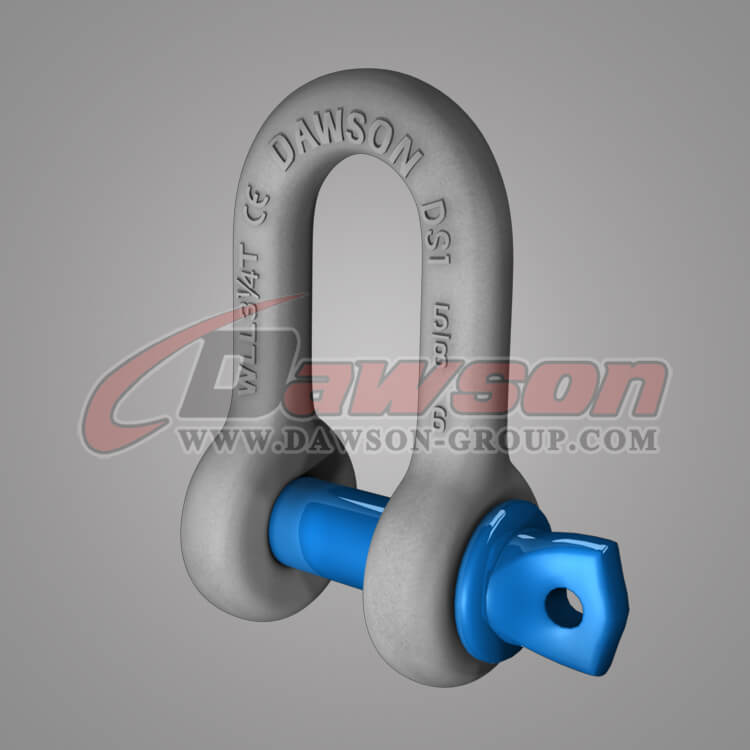

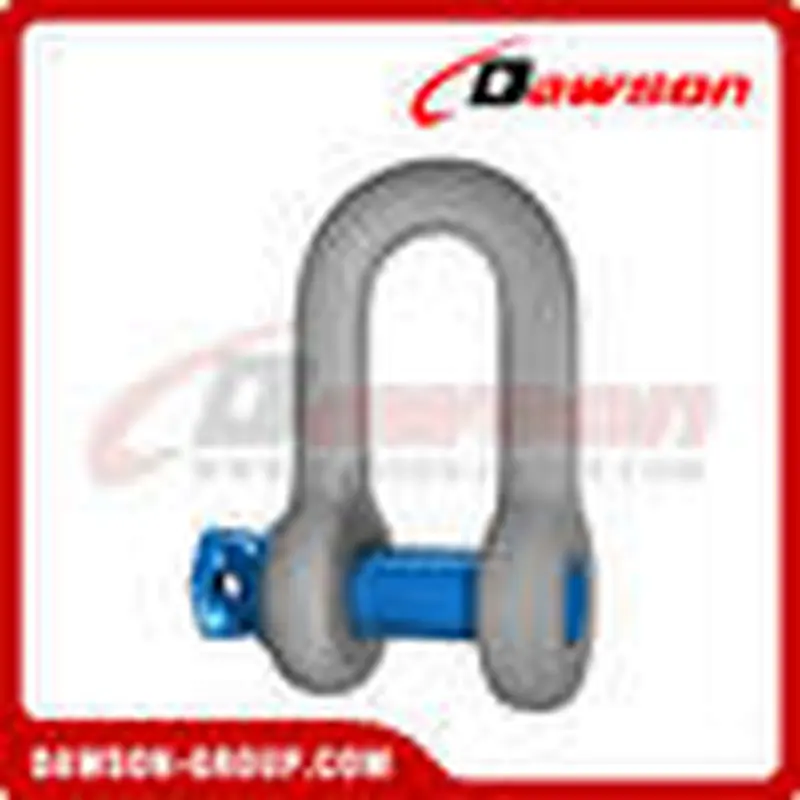

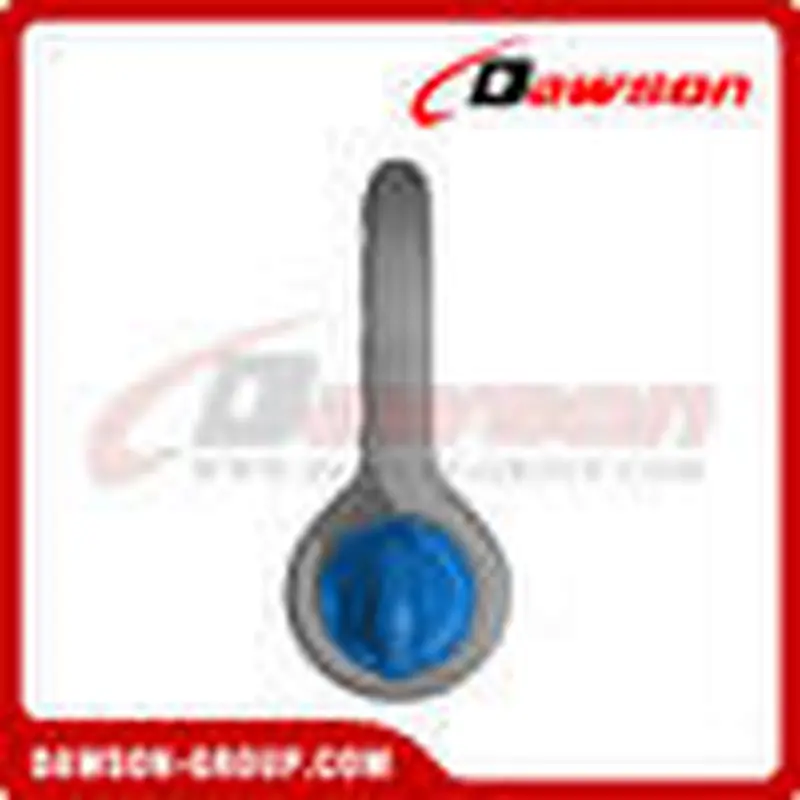

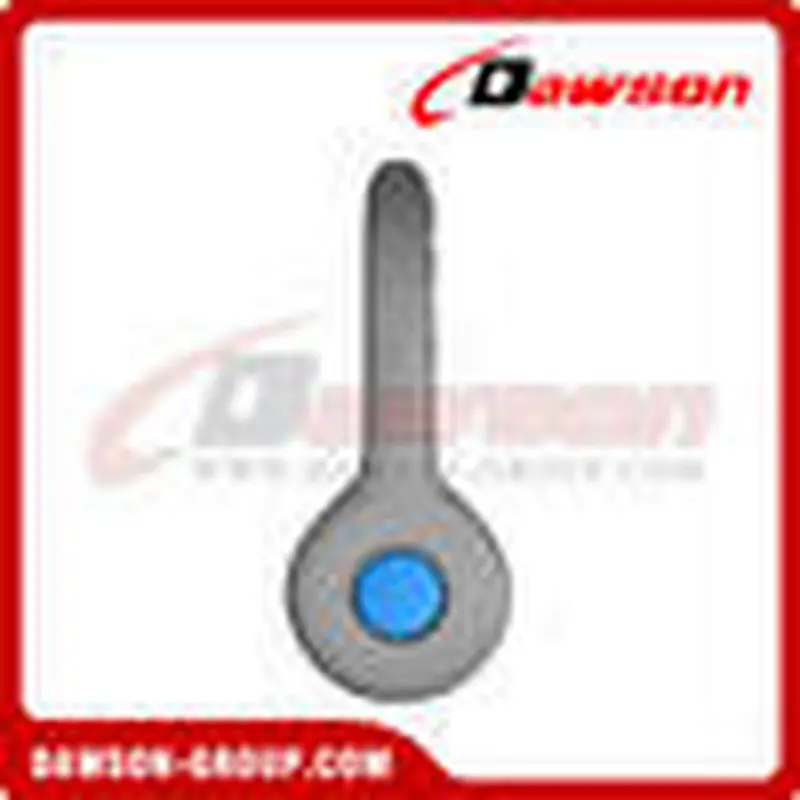

Dawson Brand Hot Dip Galvanized US Type Chain Shackle with Screw Pin, EN 13889:2003+A1:2008 Dee Shackle, High Strength S6 Screw Pin Dee Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

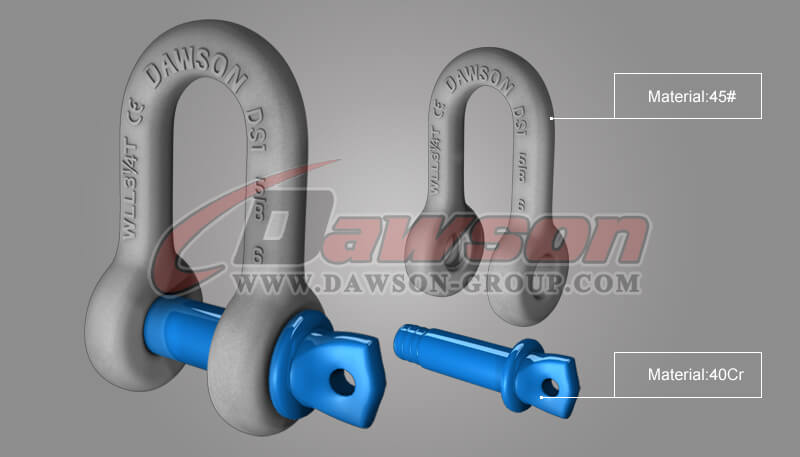

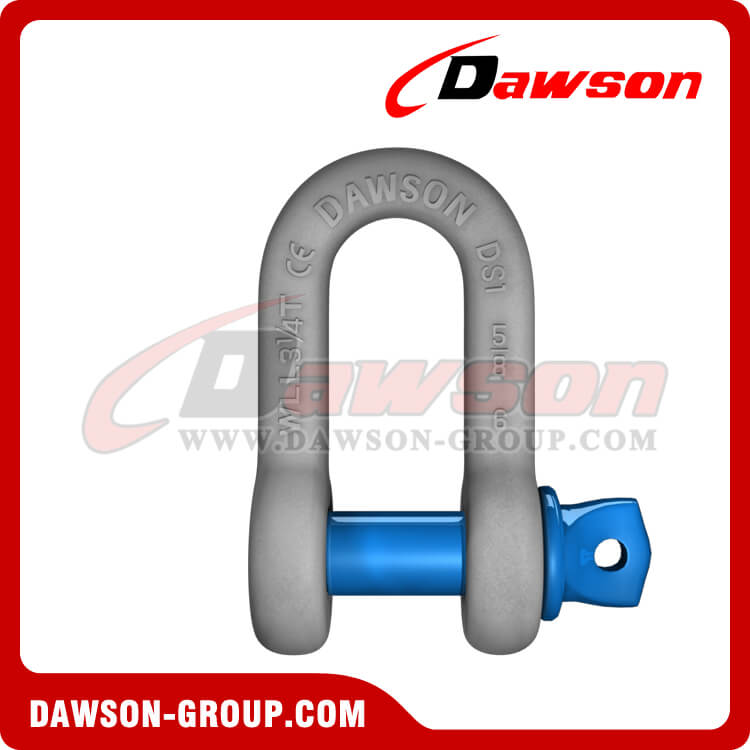

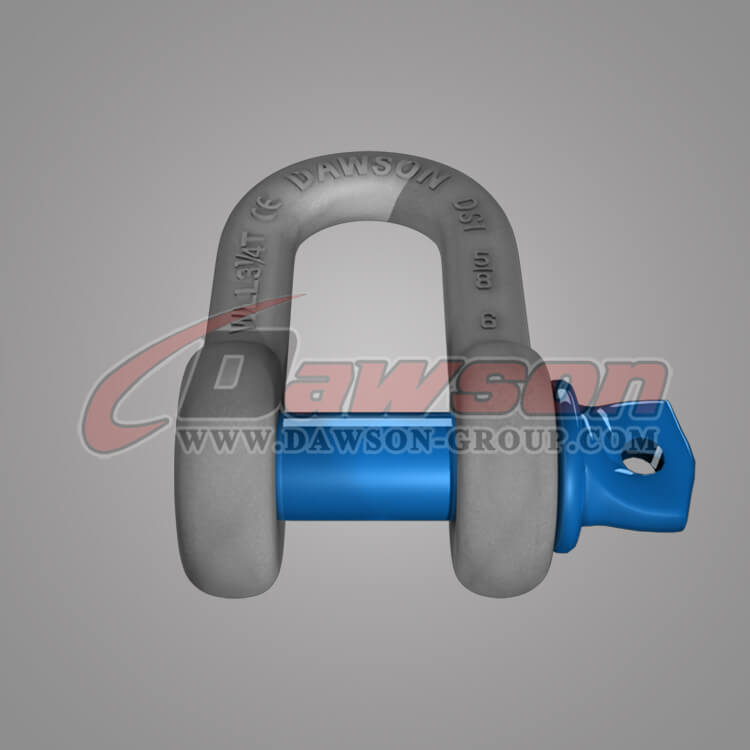

Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification, EN 13889:2003+A1:2008

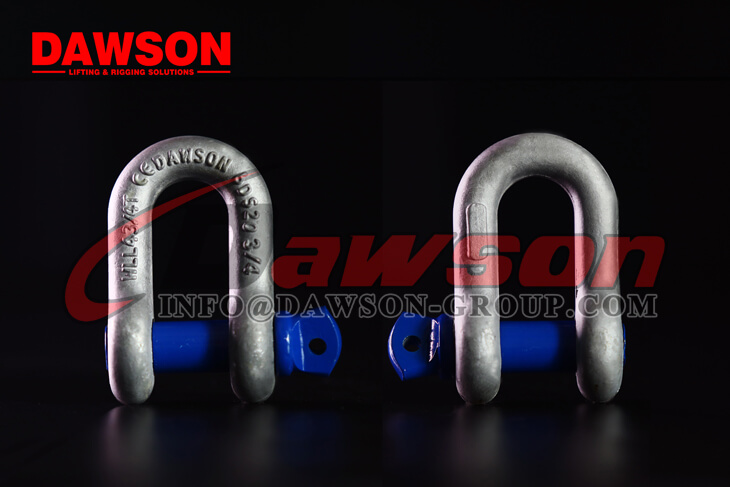

Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle.

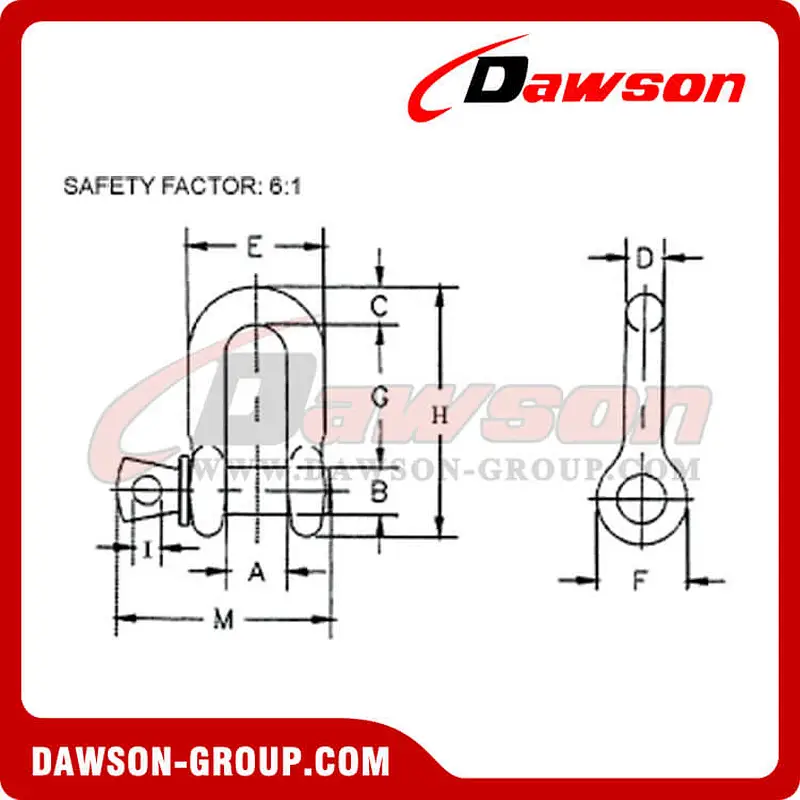

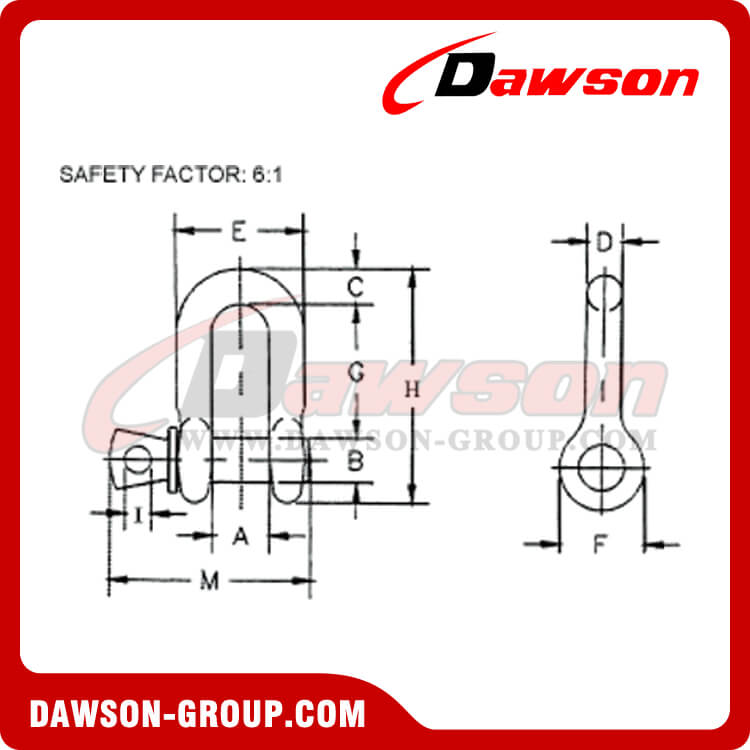

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each | |||||||||
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
| DS-CS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
| DS-CS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 0.08 |
| DS-CS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
| DS-CS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.20 |
| DS-CS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 0.27 |
| DS-CS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 15.7 | 16.0 | 58.5 | 38.1 | 51.0 | 95.5 | 11.2 | 85.0 | 0.57 |
| DS-CS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 1.20 |
| DS-CS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 1.43 |
| DS-CS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 2.15 |
| DS-CS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91.0 | 172 | 16.0 | 142 | 3.06 |
| DS-CS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 4.11 |
| DS-CS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 5.28 |
| DS-CS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 7.23 |
| DS-CS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 54.0 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
| DS-CS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 19.2 |
| DS-CS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
Screw Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, EN 13889:2003+A1:2008, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.0 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification
Forged - Quenched and Tempered.
Capacities 1/3 thru 55 metric tons.
Forged high tensile mainly using for lifting point connecting or fishing connecting or lashing points as the shackle with hot dipped galv. others application is ok when commercial shackle using for light industry.

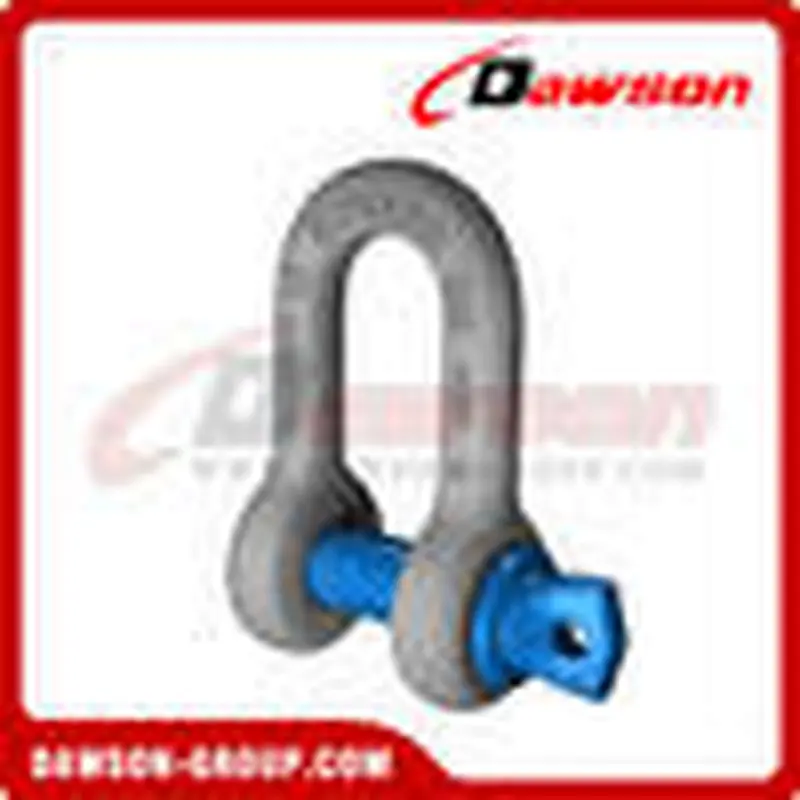

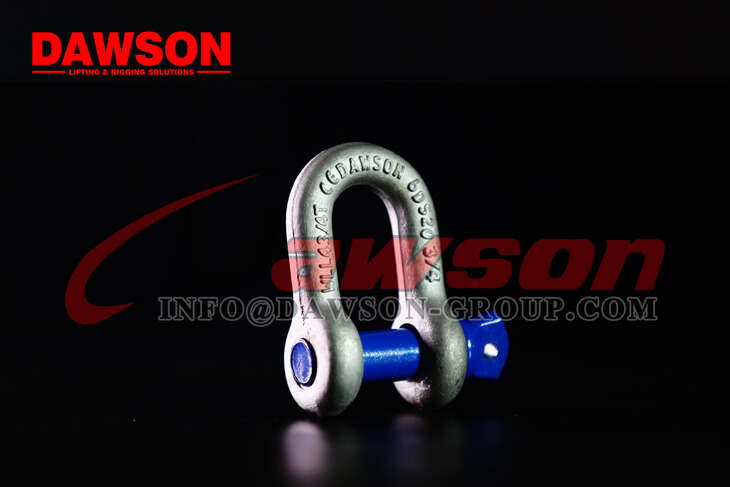

Products Show:
Welcome to buy the newest and competitive price DAWSON Dawson Brand Hot Dip Galvanized US Type Chain Shackle with Screw Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk chain shackle,low price chain shackle with screw pin,high quality screw pin chain shackle,wholesale hot dip galvanized chain shackle,buy discount alloy steel chain shackle,hot sale screw pin dee shackle,chain shackle China supplier,chain shackle China factory,chain shackle China manufacturer,chain shackle in stock,US type chain shackle free sample,customized dee chain shackle,alloy steel shackle dawson brands,drop forged dee shackle OEM,cheap price dee shackle,dee shackle China exporter
Production Equipment：

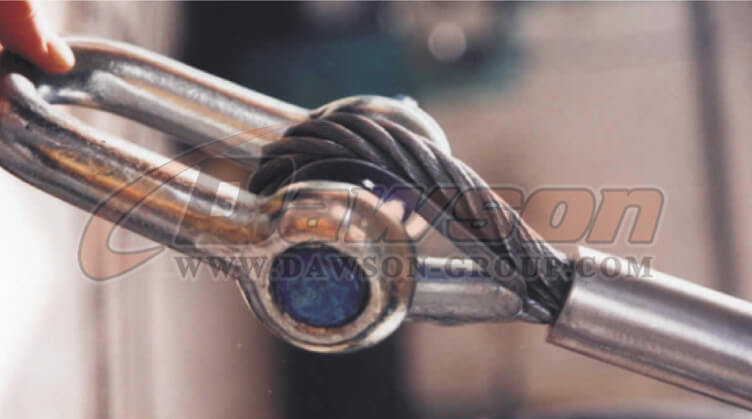

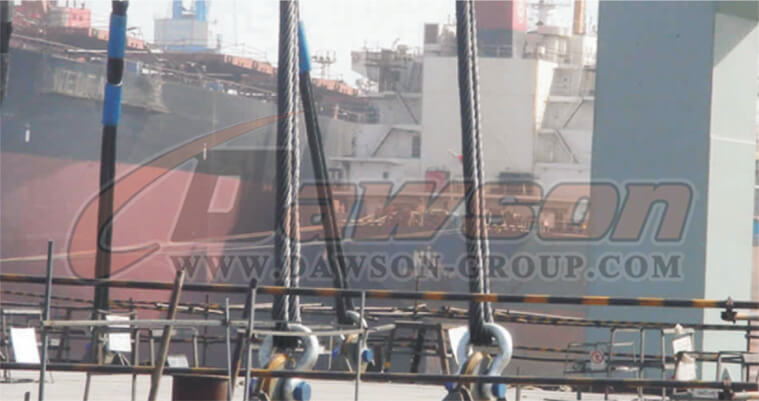

Application of Shackles:
