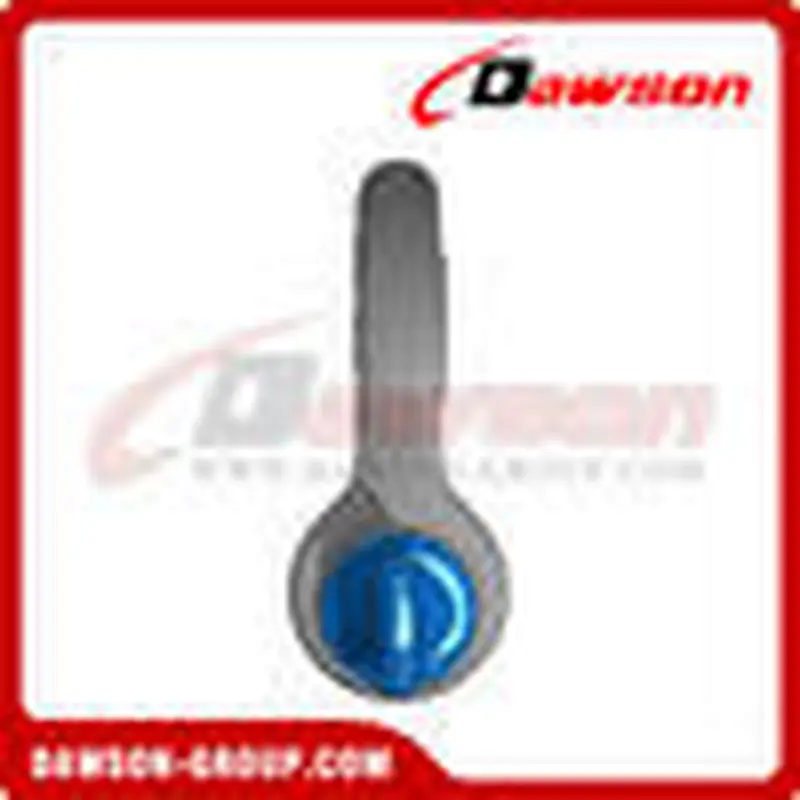

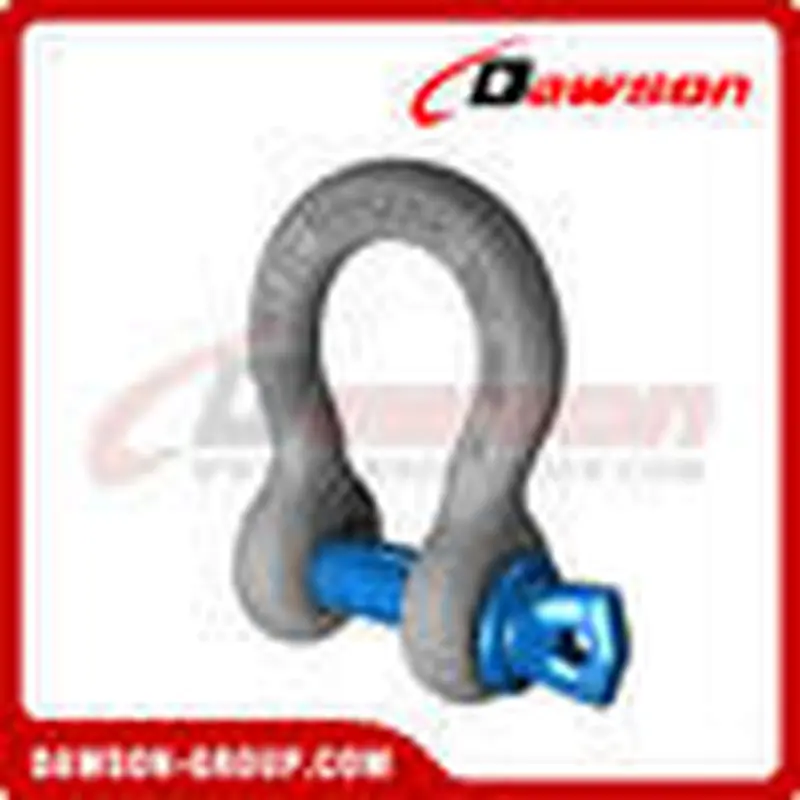

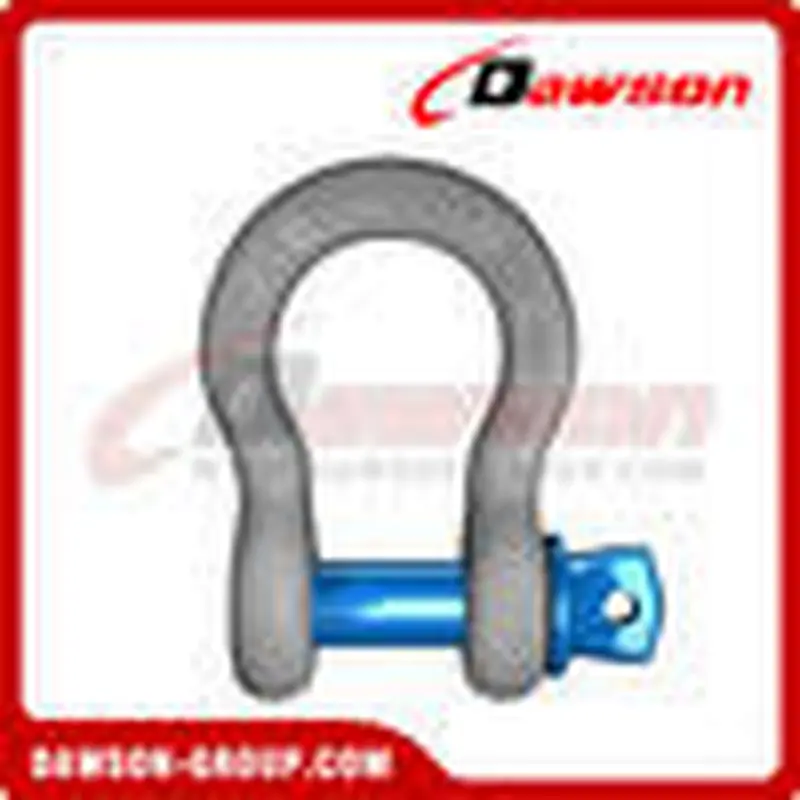

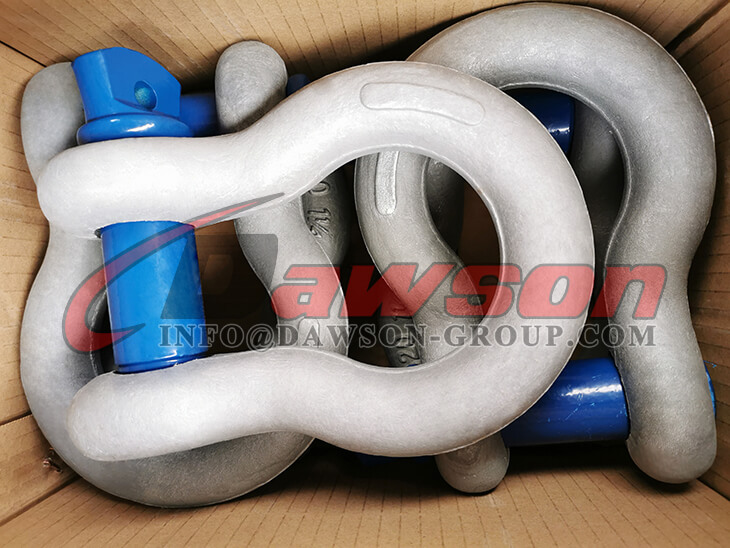

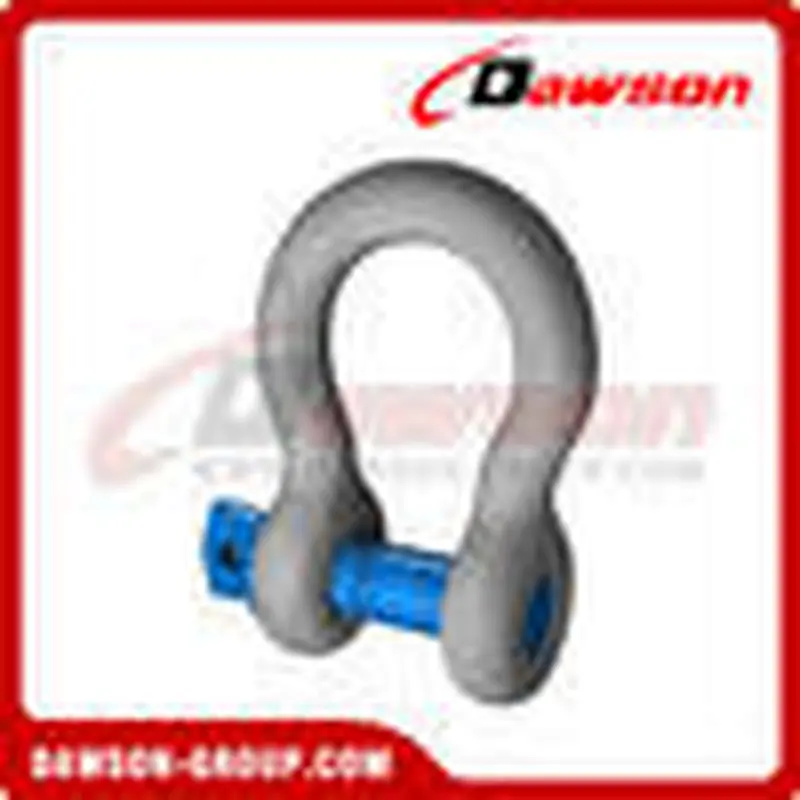

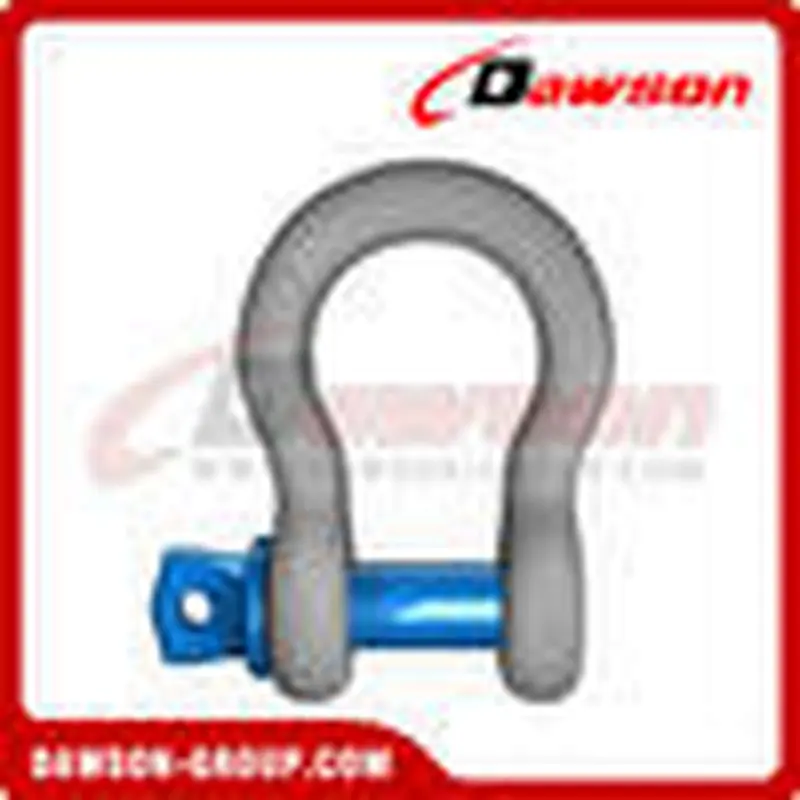

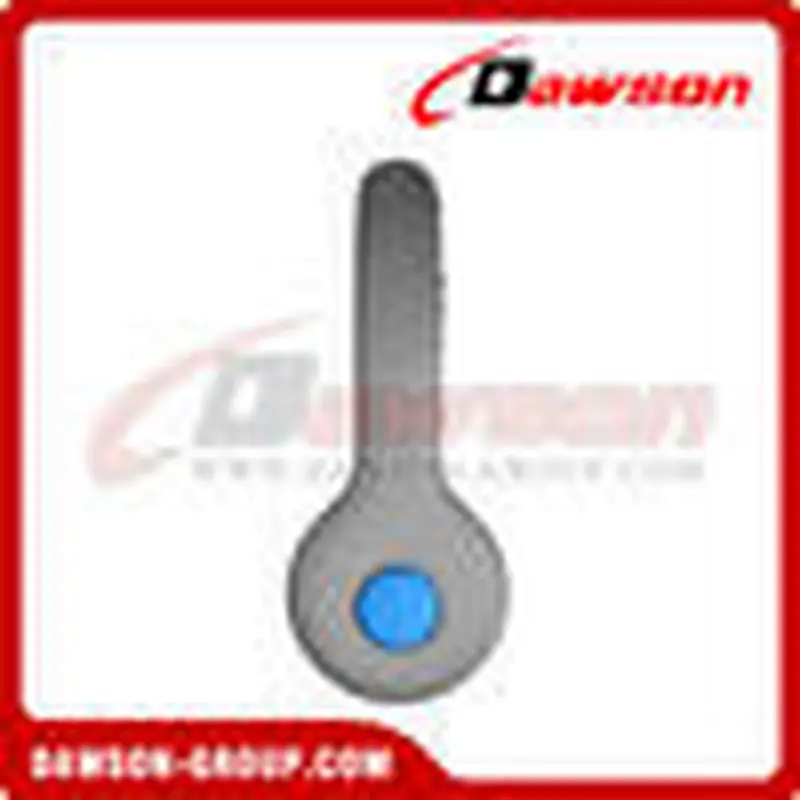

S6 High Strength Screw Pin Anchor Shackle

S6 High Strength Screw Pin Anchor Shackle

Model NO.: DS-AS0632

Quantity:

Product Description

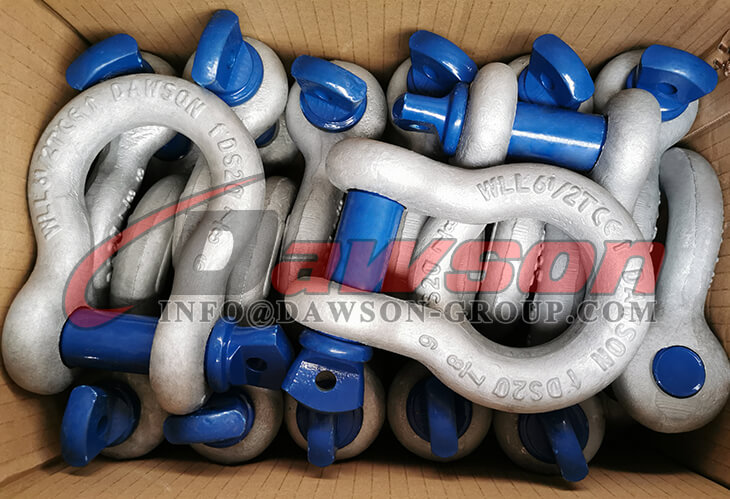

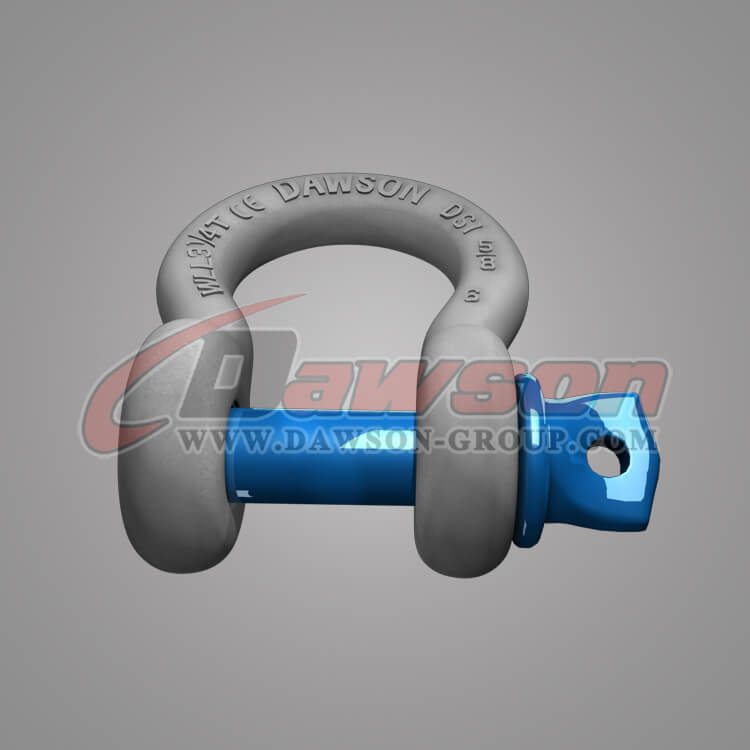

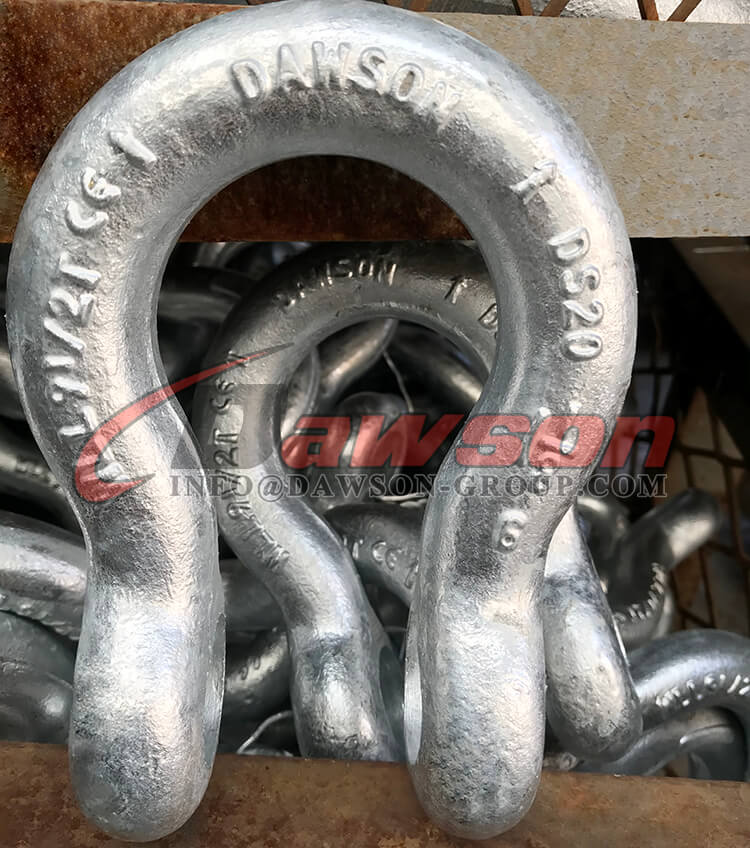

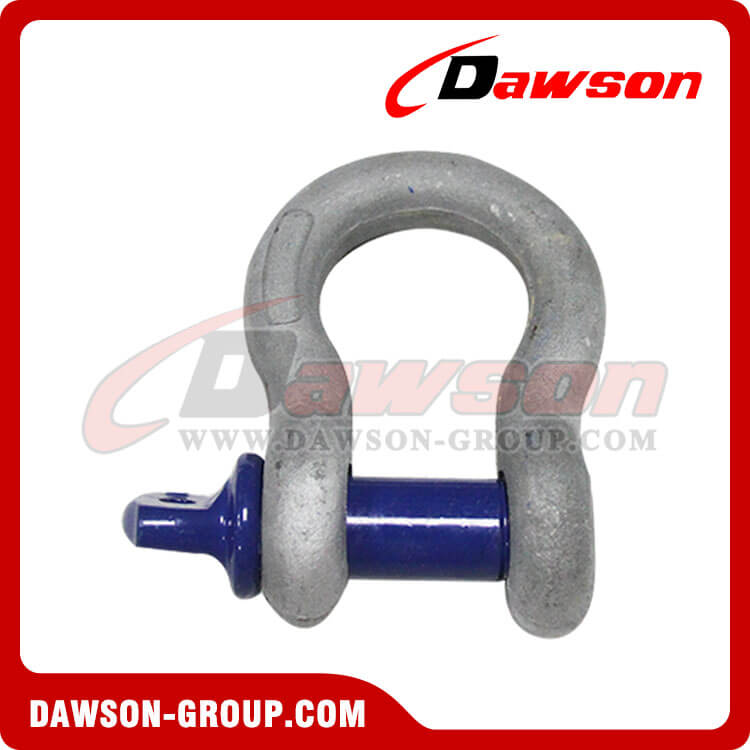

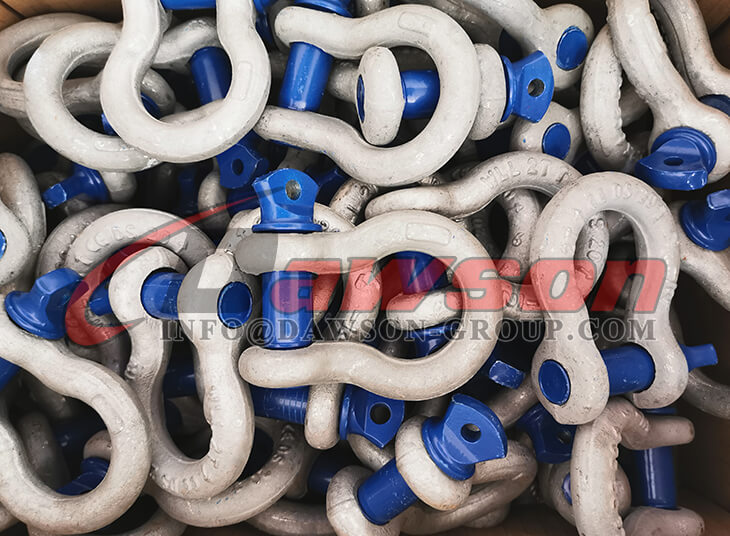

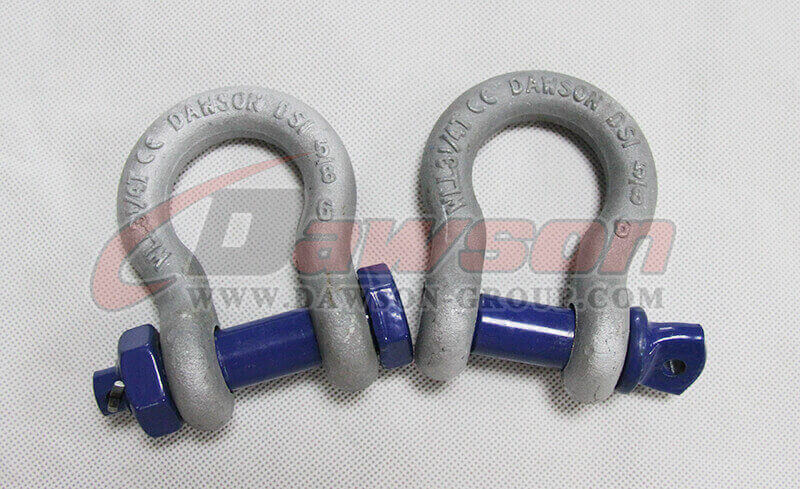

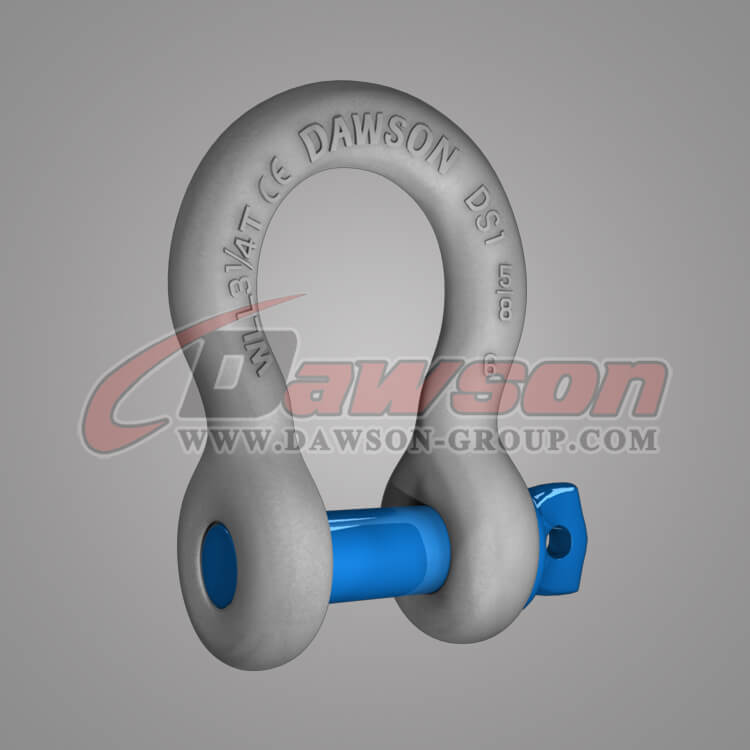

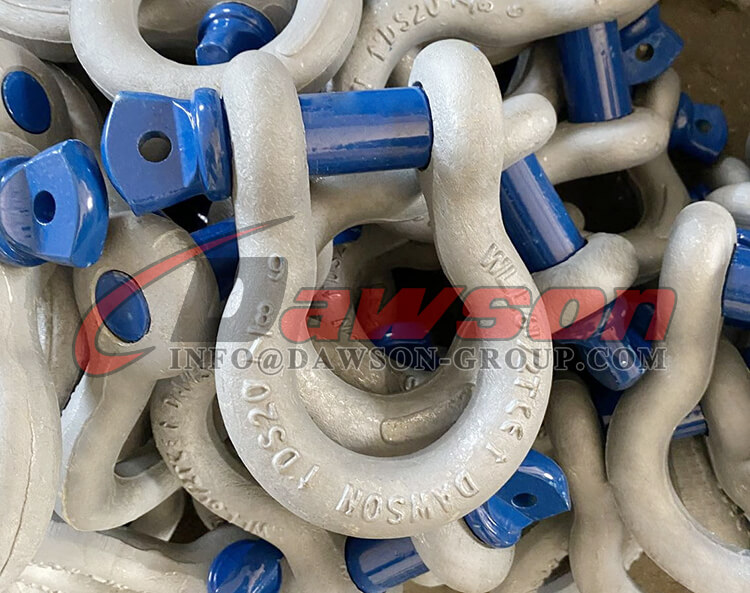

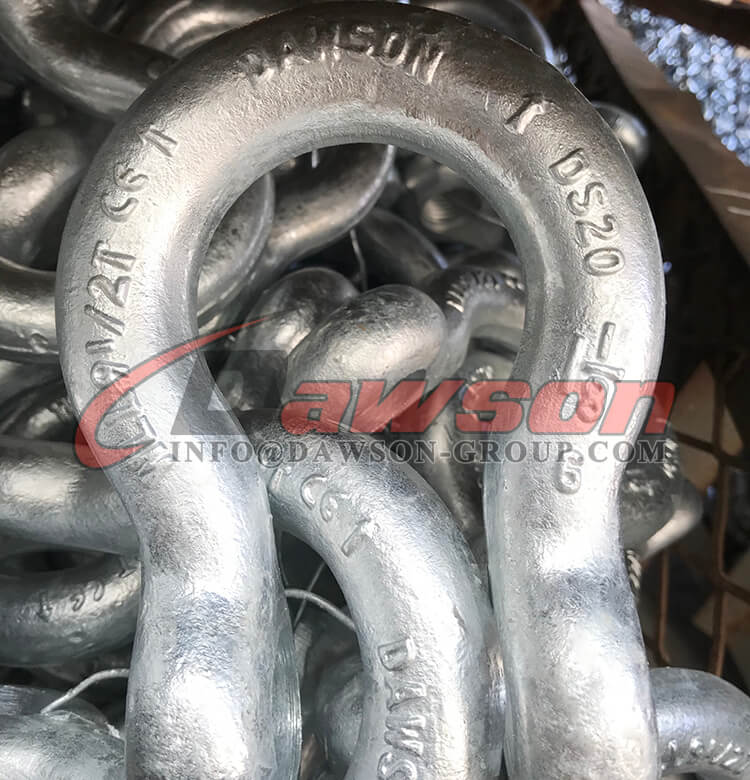

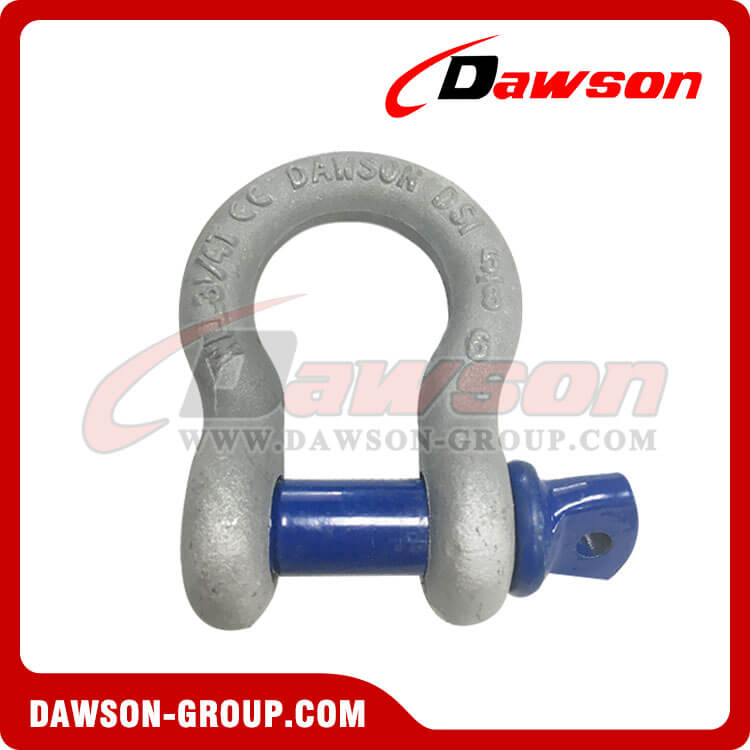

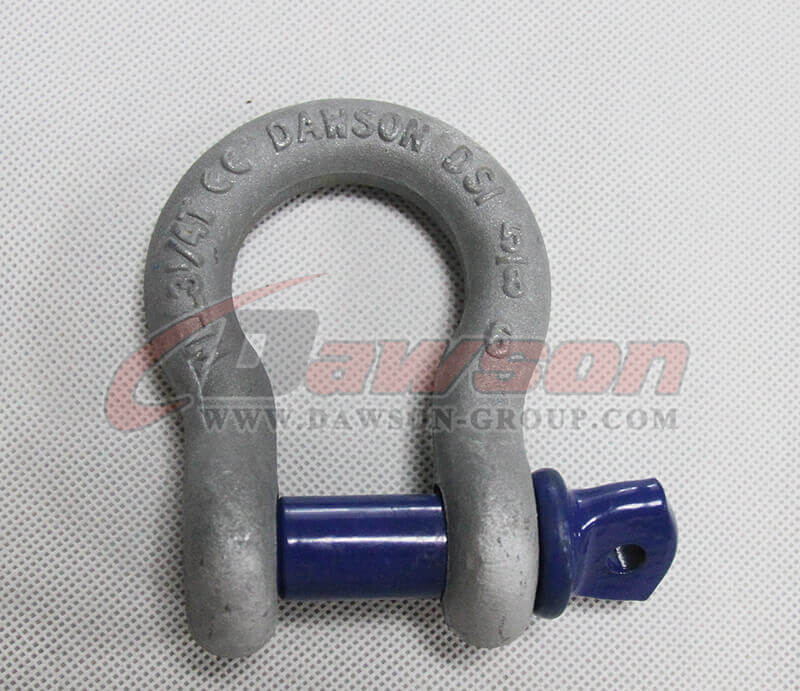

Dawson Brand Hot Dip Galvanized US Type Bow Shackle with Screw Pin, S6 High Strength Screw Pin Anchor Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Anchor Shackles, Screw Collar Pin, Forged Alloy Steel, High Tensile Strength, Meet to US Federal Specification, EN 13889:2003+A1:2008.

Finish: Anchor Shackles are supplied in hot dip galvanized finish or self colored.

Working Load Limit: permanently shown on every Anchor shackle.

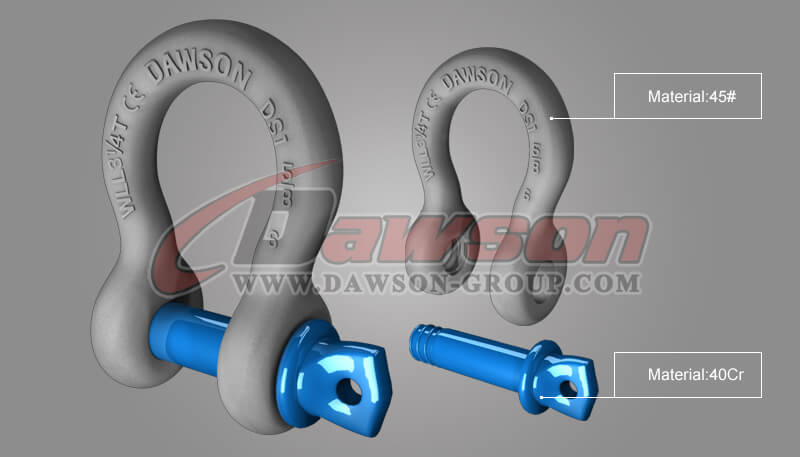

Shackle Material: High tensile steel Forged - Quenched and Tempered.

Shackle Size: Capacities 1/3 thru 120 metric tons. 85ton and 120ton shackle are available.

Fatigue rated

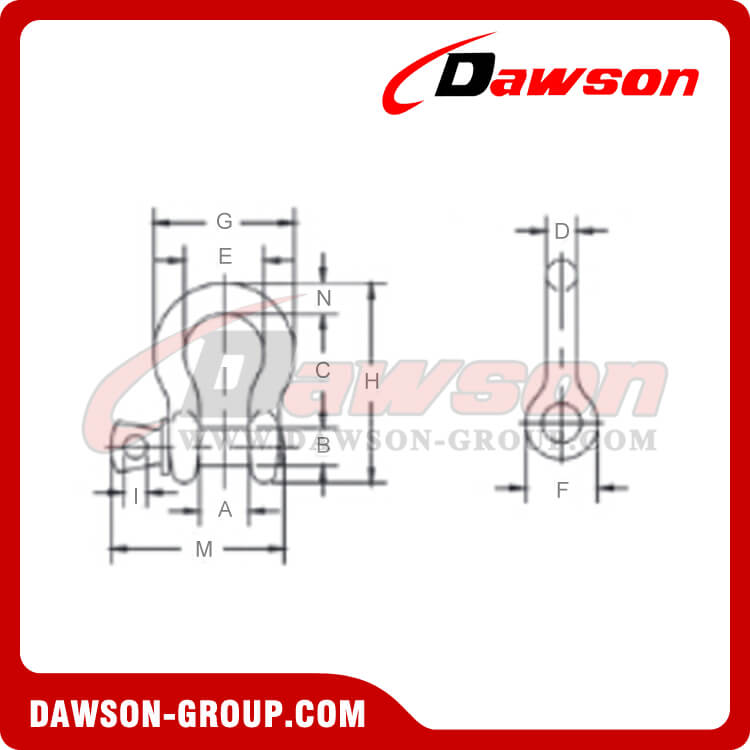

ITEM NO	Nominal Size	Working Load Limit	Dimensions (mm)											Weight each
ITEM NO	(in.)	(tons)	A	B	C	D	E	F	G	H	I	M	N	(kg)
DS-AS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
DS-AS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
DS-AS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	0.09
DS-AS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	51.5	9.65	0.14
DS-AS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74.0	7.85	60.5	11.2	0.17
DS-AS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
DS-AS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	74.5	106	11.2	85.0	17.5	0.62
DS-AS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	89.0	126	12.7	101	20.6	1.07
DS-AS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	102	148	12.7	114	24.6	1.64
DS-AS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
DS-AS3632	1-1/8	9-1/2	46.0	31.8	108	29.5	74.0	68.5	131	190	16.0	142	31.8	3.36
DS-AS4032	1-1/4	12	51.5	35.1	119	32.8	92.5	76.0	146	210	17.5	156	35.1	4.31
DS-AS4432	1-3/8	13-1/2	57.0	38.1	133	36.1	92.0	84.0	162	233	19.1	174	38.1	6.14
DS-AS4832	1-1/2	17	60.5	41.4	146	39.1	98.5	92.0	175	254	20.6	187	41.1	7.80
DS-AS5632	1-3/4	25	73.0	51.0	178	46.7	127	106	225	313	25.4	231	57.0	12.6
DS-AS6432	2	35	82.5	57.0	197	53.0	146	122	253	348	31.0	263	61.0	20.4
DS-AS8032	2-1/2	55	105	70.0	267	69.0	184	145	327	453	35.1	330	79.5	38.9

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor.

* Maximum Proof Load is 2.2 times the Working Load Limit.

* Minimum Ultimate Strength is 6 times the Working Load Limit.

Forged high tensile mainly using for lifting point connecting or fishing connecting or as the main recovery shackle for off-road. Others application is ok when commercial shackle using for light industry.
