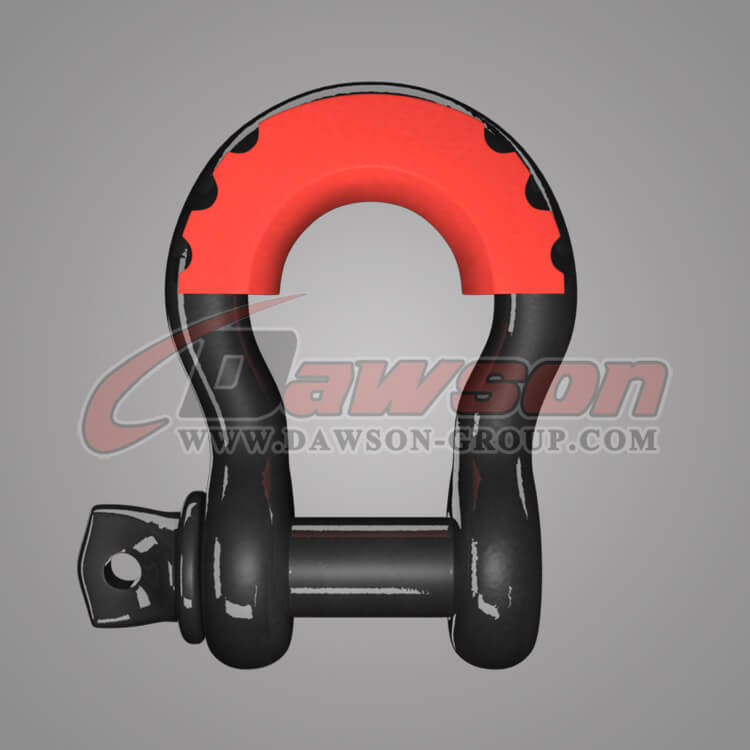

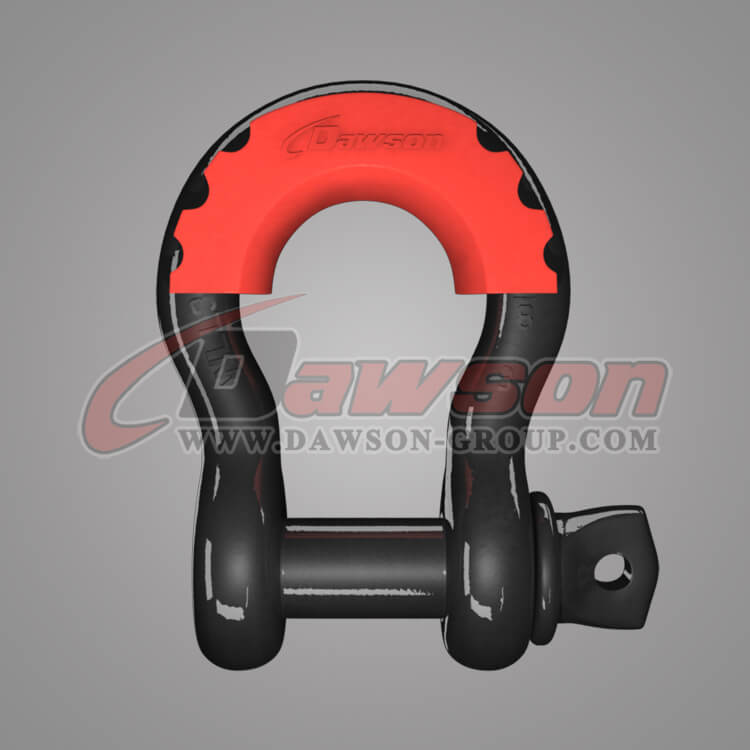

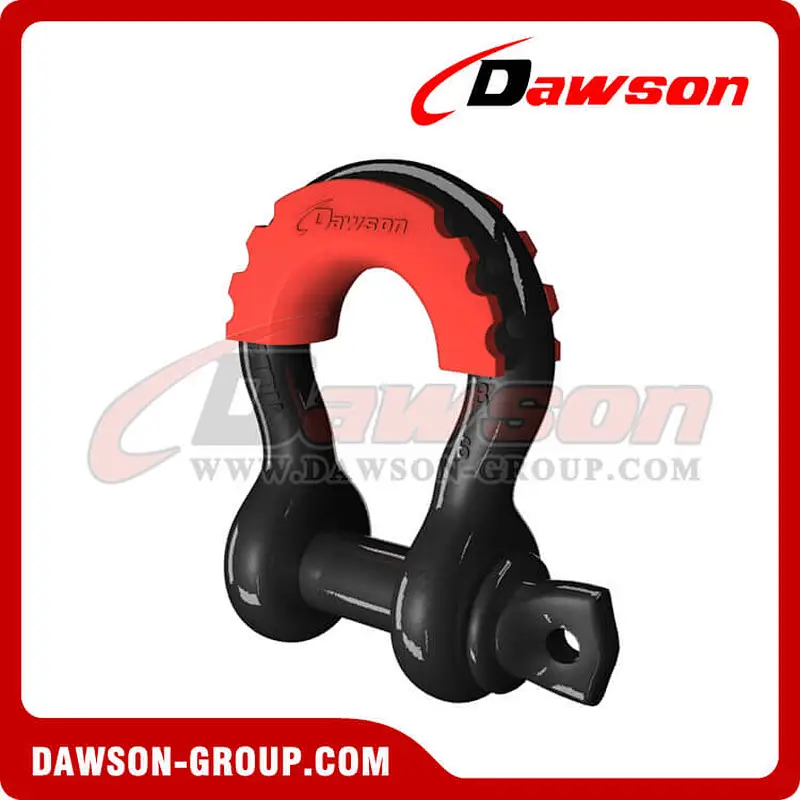

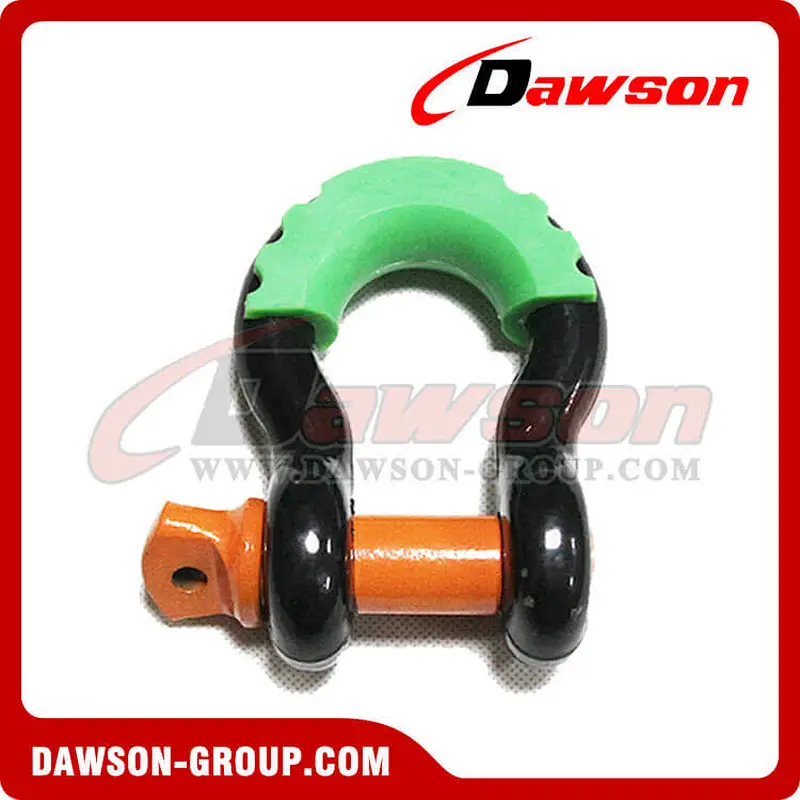

Dawson Drop Forged Bow Shackle with PU Protection for Towing & Recovery Strap, S6 Screw Pin Anchor Shackles

Dawson Drop Forged Bow Shackle with PU Protection for Towing & Recovery Strap, S6 Screw Pin Anchor Shackles

Model NO.: DS-AS0632B

Quantity:

Product Description

Dawson Drop Forged Bow Shackle with PU Protection for Towing & Recovery Strap, S6 Screw Pin Anchor Shackle

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Anchor Shackles, Screw Collar Pin, Forged Alloy Steel, High Tensile Strength, Meet to US Federal Specification, EN 13889:2003+A1:2008.

Finish: Anchor Shackles are supplied in hot dip galvanized finish or self colored.

Working Load Limit: permanently shown on every Anchor shackle.

Shackle Material: High tensile steel Forged - Quenched and Tempered.

Shackle Size: Capacities 1/3 thru 120 metric tons. 85ton and 120ton shackle are available.

Fatigue rated

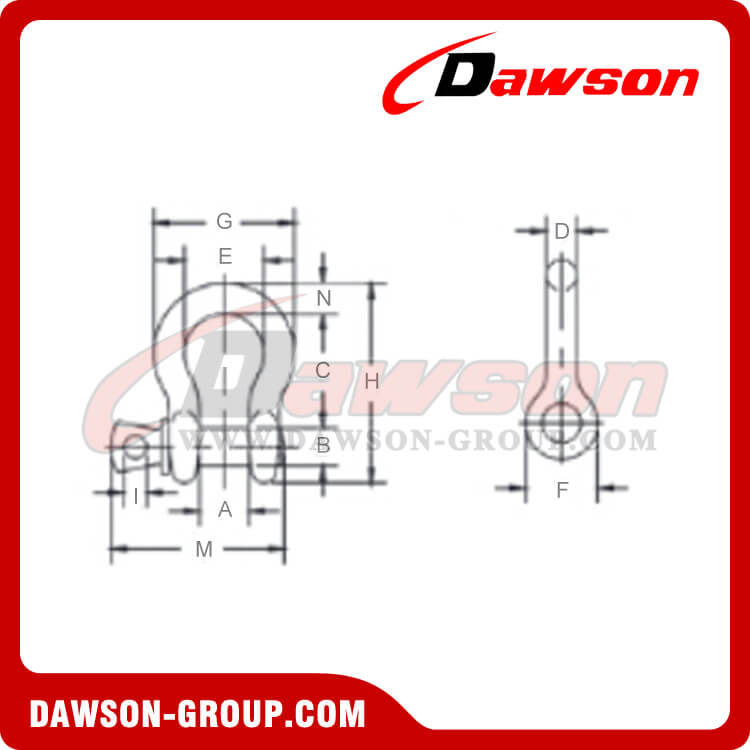

ITEM NO	Nominal Size	Working Load Limit	Dimensions (mm)											Weight each
ITEM NO	(in.)	(tons)	A	B	C	D	E	F	G	H	I	M	N	(kg)
DS-AS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
DS-AS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
DS-AS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	0.09
DS-AS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	51.5	9.65	0.14
DS-AS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74.0	7.85	60.5	11.2	0.17
DS-AS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
DS-AS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	74.5	106	11.2	85.0	17.5	0.62
DS-AS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	89.0	126	12.7	101	20.6	1.07
DS-AS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	102	148	12.7	114	24.6	1.64
DS-AS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
DS-AS3632	1-1/8	9-1/2	46.0	31.8	108	29.5	74.0	68.5	131	190	16.0	142	31.8	3.36
DS-AS4032	1-1/4	12	51.5	35.1	119	32.8	92.5	76.0	146	210	17.5	156	35.1	4.31
DS-AS4432	1-3/8	13-1/2	57.0	38.1	133	36.1	92.0	84.0	162	233	19.1	174	38.1	6.14
DS-AS4832	1-1/2	17	60.5	41.4	146	39.1	98.5	92.0	175	254	20.6	187	41.1	7.80
DS-AS5632	1-3/4	25	73.0	51.0	178	46.7	127	106	225	313	25.4	231	57.0	12.6
DS-AS6432	2	35	82.5	57.0	197	53.0	146	122	253	348	31.0	263	61.0	20.4
DS-AS8032	2-1/2	55	105	70.0	267	69.0	184	145	327	453	35.1	330	79.5	38.9

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor.

* Maximum Proof Load is 2.2 times the Working Load Limit.

* Minimum Ultimate Strength is 6 times the Working Load Limit.

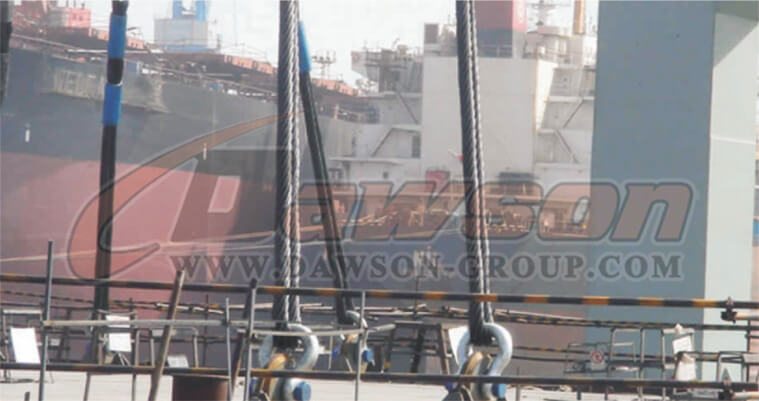

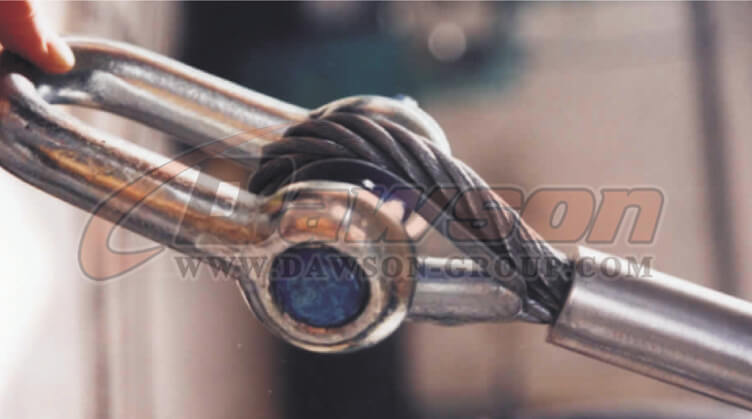

Forged high tensile mainly using for lifting point connecting or fishing connecting or as the main recovery shackle for off-road. Others application is ok when commercial shackle using for light industry.

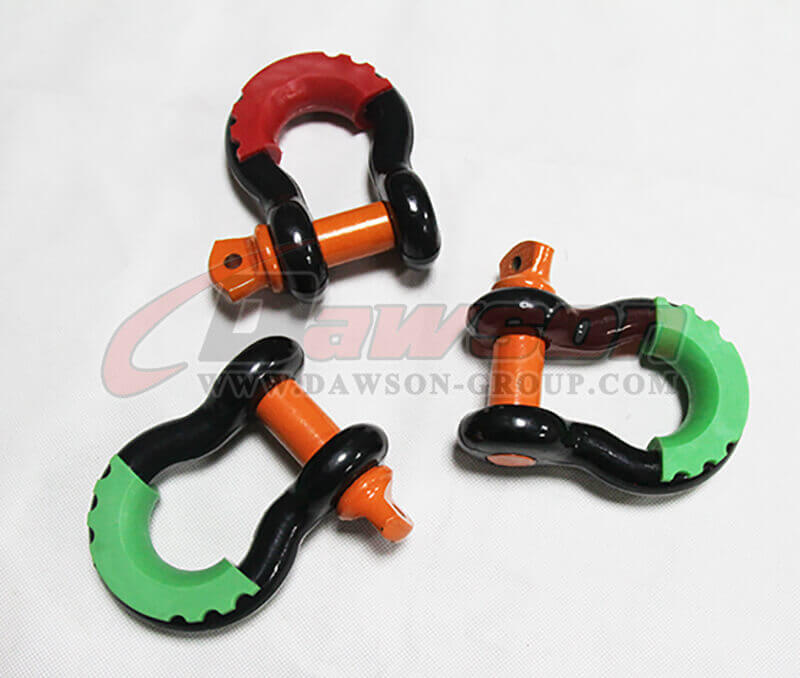

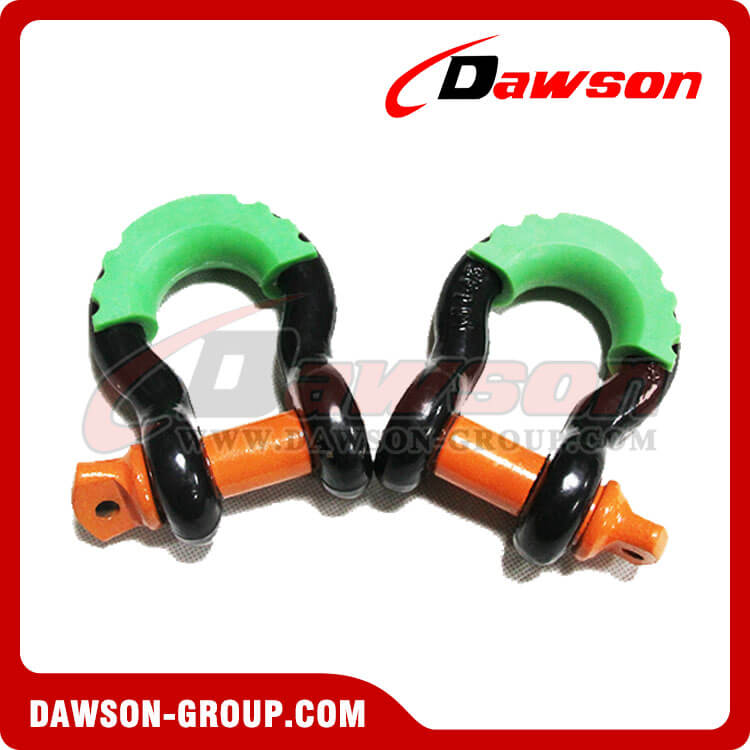

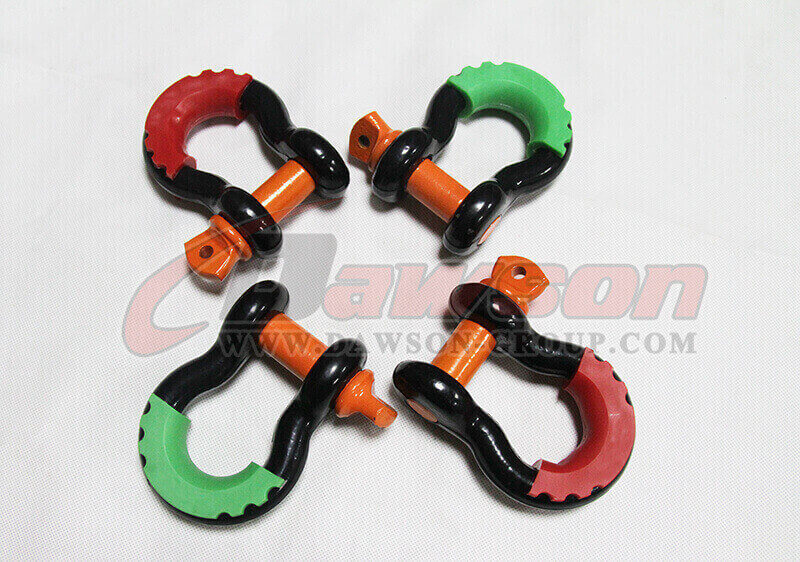

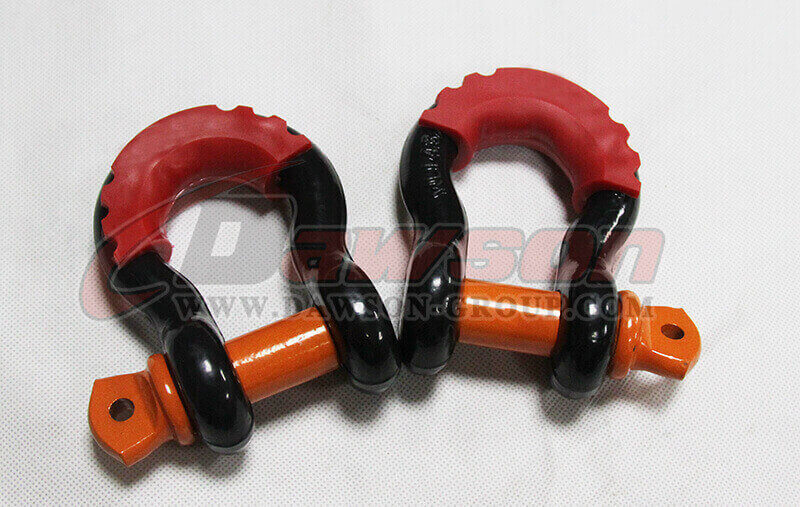

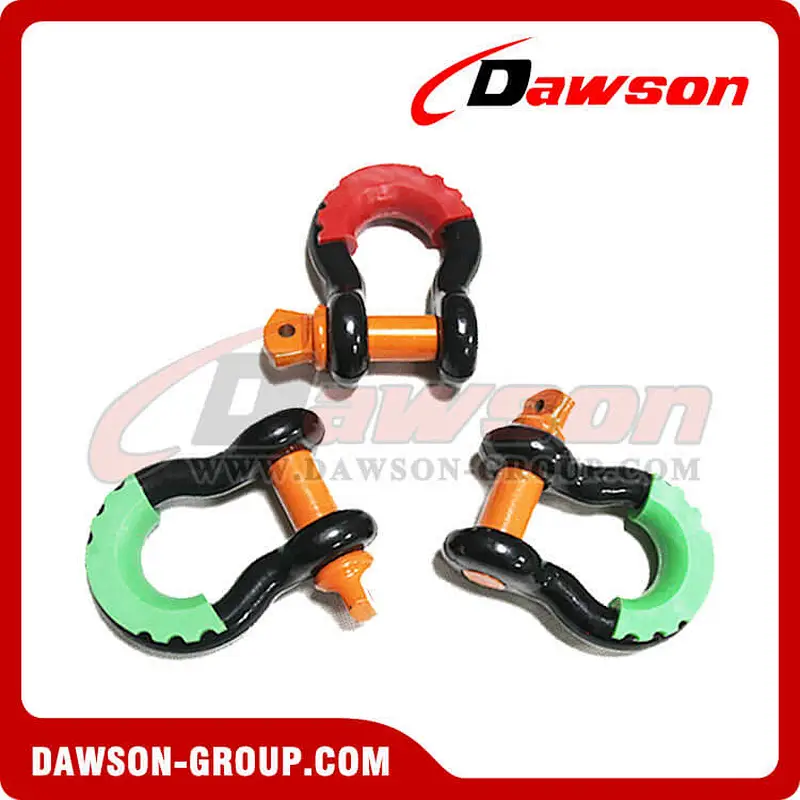

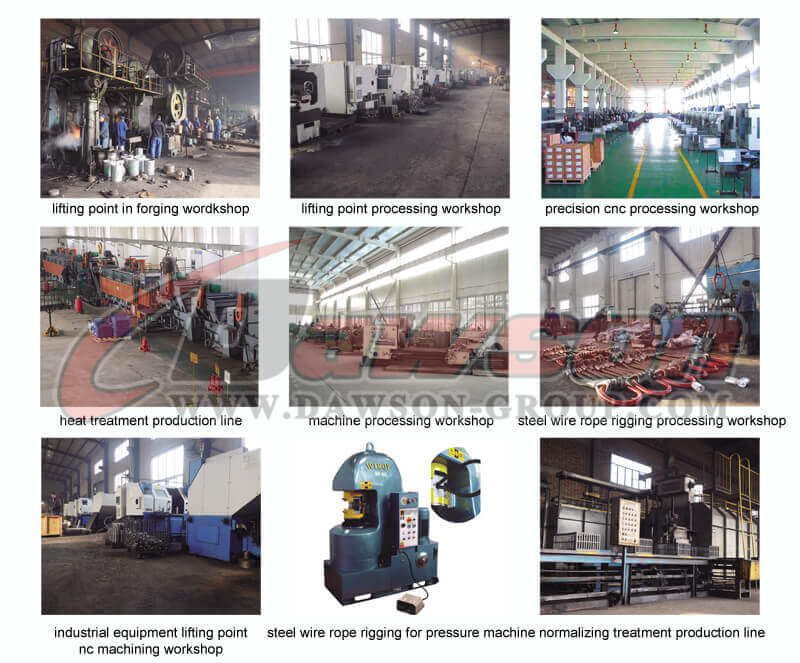

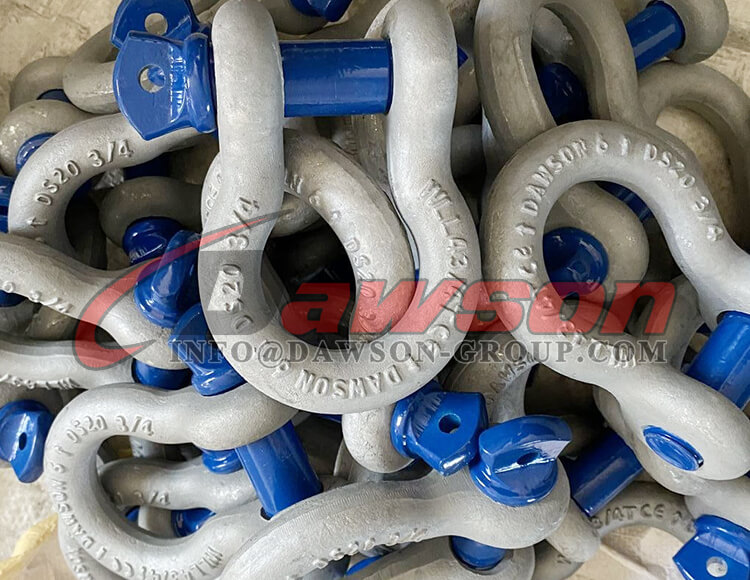

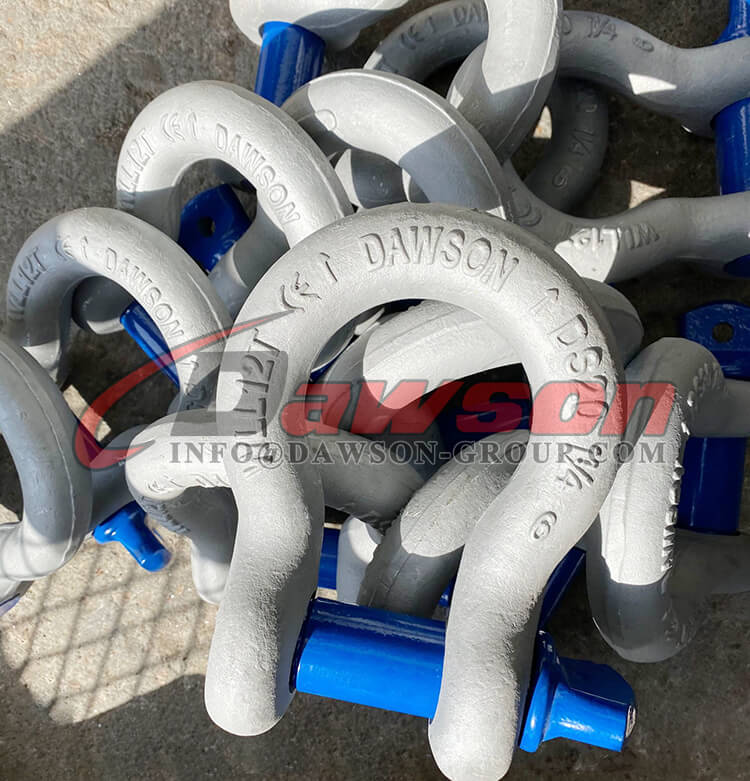

Products Show:

Welcome to buy the newest and competitive price DAWSON Dawson Drop Forged Bow Shackle with PU Protection for Towing & Recovery Strap from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information, please contact us. Email:info@dawson-group.com
