AS2741 Forged Alloy Grade S Bow Shackle, Anchor Shackle With Safety Pins
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

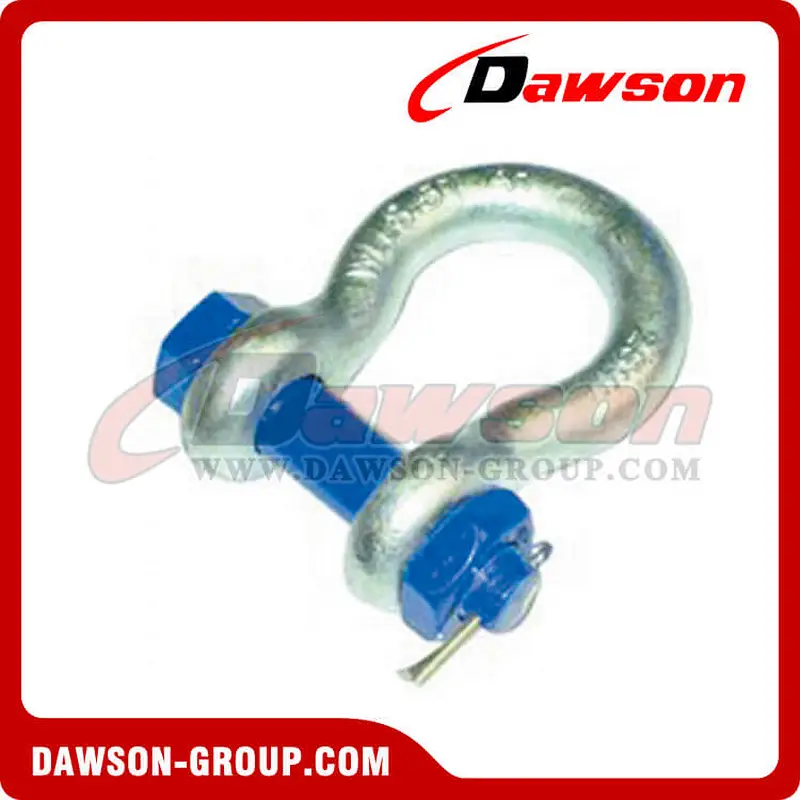

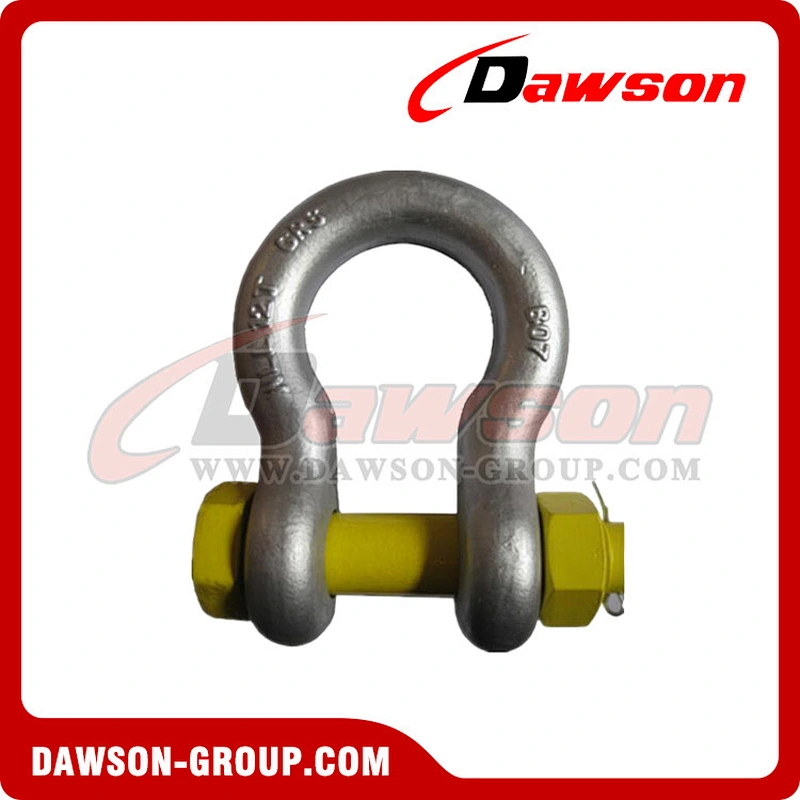

Grade S Bow Shackle With Safety Pins AS2741 Forged Alloy
Hot Dipped Galvanized.
Body Forged Carbon Steel, and Pin Forged Alloy Steel.
Test load is 2.2 times Working Load Limit.
Ultimate Load is 6 times Working Load Limit

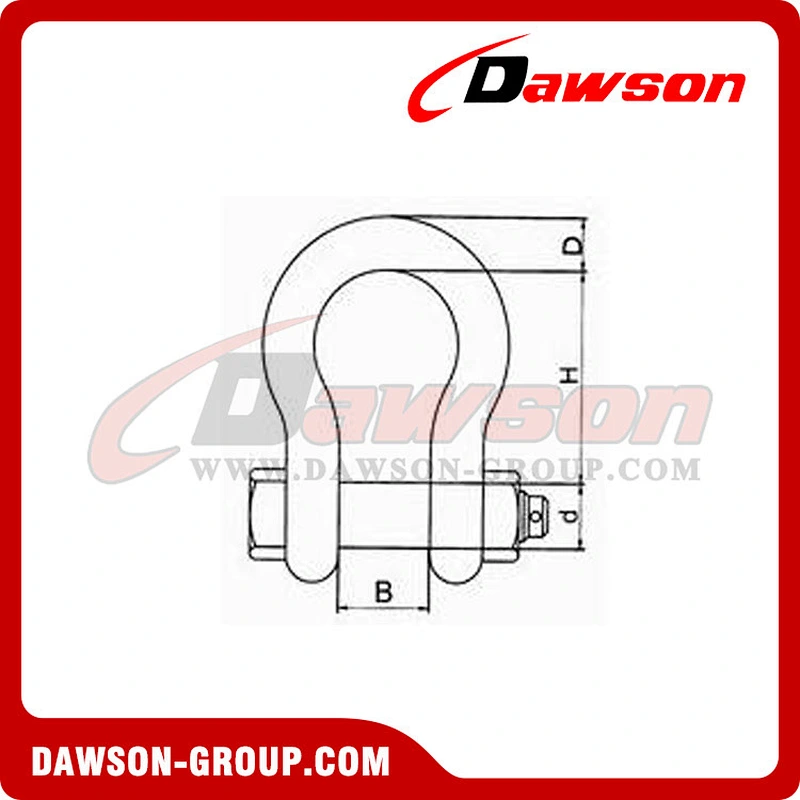

| ITEM NO | SIZE | D | d | B | H | SWL |
| mm | mm | mm | mm | t | ||
| DS-SBSS013 | 13 | 13 | 16 | 21 | 48 | 2.00 |
| DS-SBSS016 | 16 | 16 | 19 | 27 | 61 | 3.20 |
| DS-SBSS019 | 19 | 19 | 22 | 32 | 72 | 4.70 |
| DS-SBSS022 | 22 | 22 | 25 | 37 | 84 | 6.50 |
| DS-SBSS025 | 25 | 25 | 29 | 43 | 95 | 8.50 |
| DS-SBSS029 | 29 | 29 | 32 | 46 | 108 | 9.50 |
| DS-SBSS032 | 32 | 32 | 35 | 52 | 119 | 12.00 |
| DS-SBSS035 | 35 | 35 | 38 | 57 | 133 | 13.50 |
| DS-SBSS038 | 38 | 38 | 41 | 60 | 146 | 17.00 |
| DS-SBSS044 | 44 | 44 | 51 | 73 | 178 | 25.00 |
| DS-SBSS051 | 51 | 51 | 57 | 83 | 197 | 35.00 |
| DS-SBSS063 | 63 | 63 | 70 | 105 | 267 | 55.00 |
High Load Grade S"Bow Bolt Type"Shackles
High load or Grade"S"shackles are tested, rated and stamped with their working load limit (WLL)
These shackles are often used in lifting applications but in the marine industry they are also required by mooring contractors for use on rated mooring systems.
Application: Grade S shackle made by forged high tensile steel with meet the standard of AS2741, mainly using in Australian market and others countries with need a thick nut. Purpose design for lifting , lashing , rigging, marine and others heavy duty industry.
Welcome to buy the newest and competitive price DAWSON AS2741 Forged Alloy Grade S Bow Shackle With Safety Pins from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk bow shackle, low price grade s bow shackle, high quality forged alloy bow shackle, wholesale as2741 bow shackle, buy discount bow shackle with safety pin, customized high tensile bow shackle, hot sale commercial type bow shackle, high tensile shackle China supplier, hot galvanizing shackle China manufacturer, shackle with safety pin dawson brands, cheap price shackle with safety pin, fixed nut shackle China factory, bow shackle China exporter, shackle with safety pin in stock, fixed nut shackle free sample, shackle with safety pin OEM
Production Equipment:

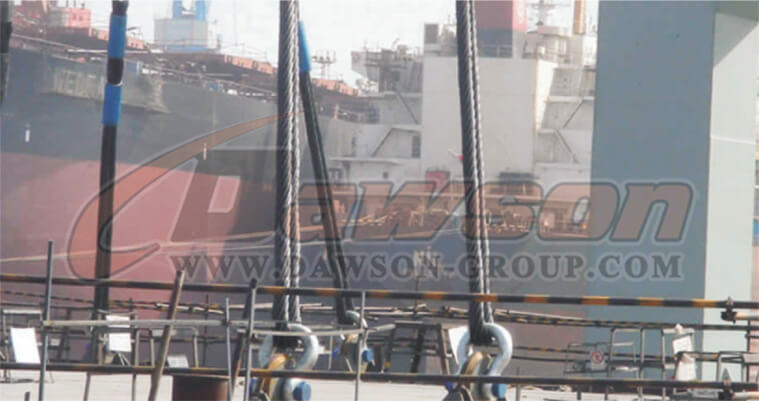

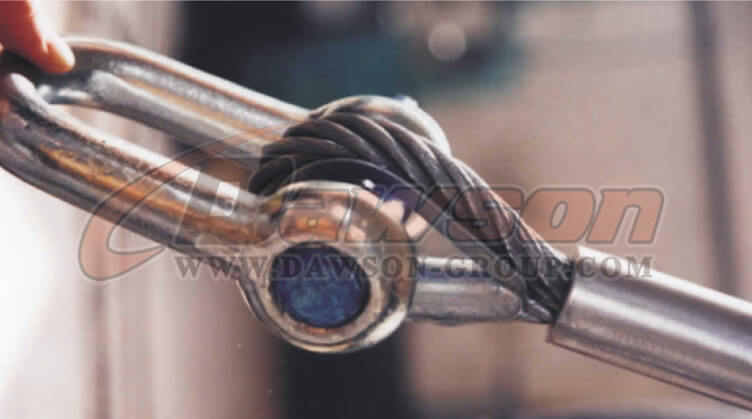

Application of Shackles:
Factory and packing Show:
