AS2741 Forged Alloy Grade S Bow Shackle With Screw Pin

AS2741 Forged Alloy Grade S Bow Shackle With Screw Pin

Model NO.: DS-SBS

Quantity:

Product Description

AS2741 Forged Alloy Grade S Bow Shackle With Screw Pins, Screw Pin Anchor Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

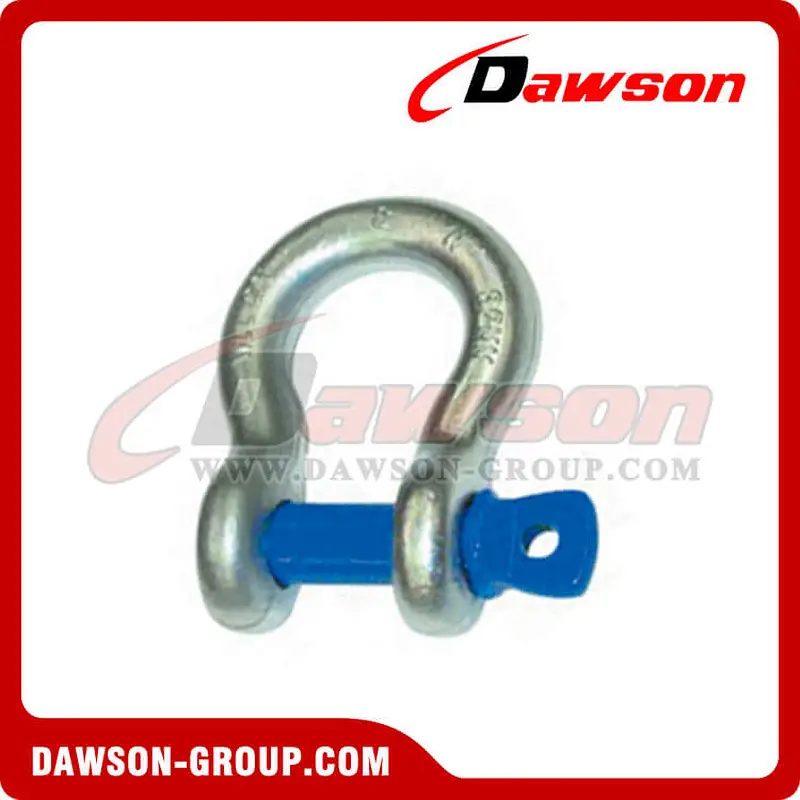

Grade S Bow Shackle With Screw Pin AS2741 Forged Alloy.

Hot Dipped Galvanized.

Body Forged Carbon Steel, and Pin Forged Alloy Steel.

Test load is 2.2 times Working Load Limit.

Ultimate Load is 6 times Working Load Limit

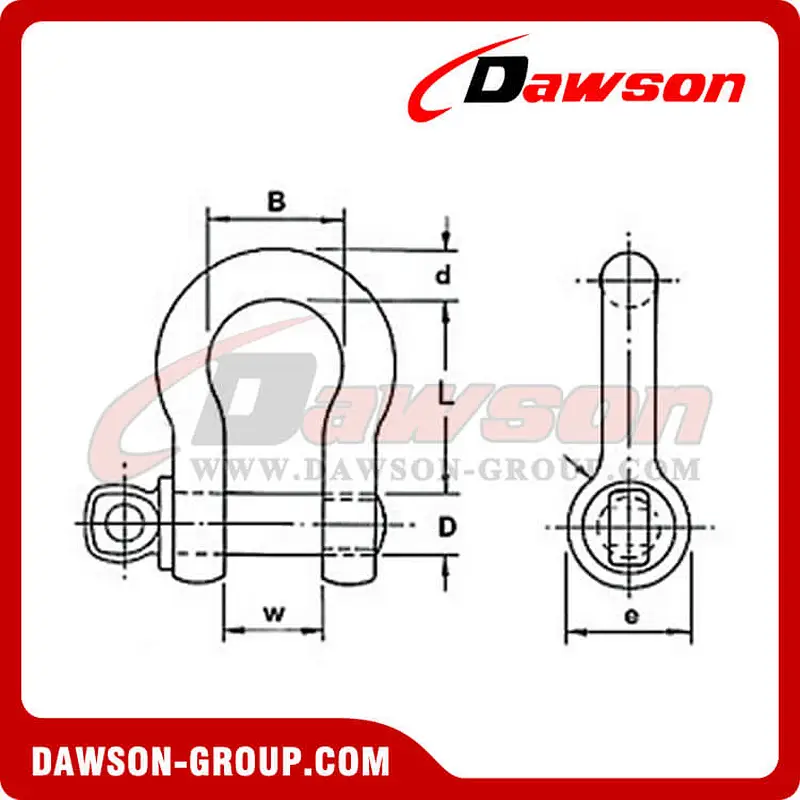

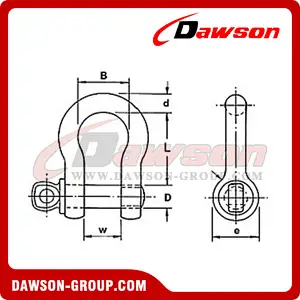

ITEM NO	SIZE	D	d	B	H	SWL
ITEM NO	SIZE	mm	mm	mm	mm	t
DS-SBS006	6	6	8	12	29	0.50
DS-SBS008	8	8	10	13	31	0.75
DS-SBS010	10	10	11	17	37	1.00
DS-SBS011	11	11	13	18	43	1.50
DS-SBS013	13	13	16	21	48	2.00
DS-SBS016	16	16	19	27	61	3.20
DS-SBS019	19	19	22	32	72	4.70
DS-SBS022	22	22	25	37	84	6.50
DS-SBS025	25	25	29	43	95	8.50
DS-SBS029	29	29	32	46	108	9.50
DS-SBS032	32	32	35	52	119	12.00
DS-SBS035	35	35	38	57	133	13.50
DS-SBS038	38	38	41	60	146	17.00
DS-SBS044	44	44	51	73	178	25.00
DS-SBS051	51	51	57	83	197	35.00
DS-SBS063	63	63	70	105	267	55.00

High Load Grade S"Bow"Shackles

High load or Grade"S"shackles are tested, rated and stamped with their working load limit (WLL)

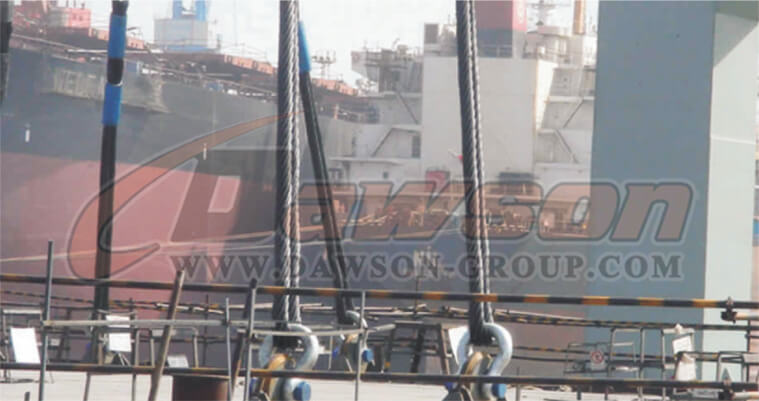

These shackles are often used in lifting applications but in the marine industry they are also required by mooring contractors for use on rated mooring systems.

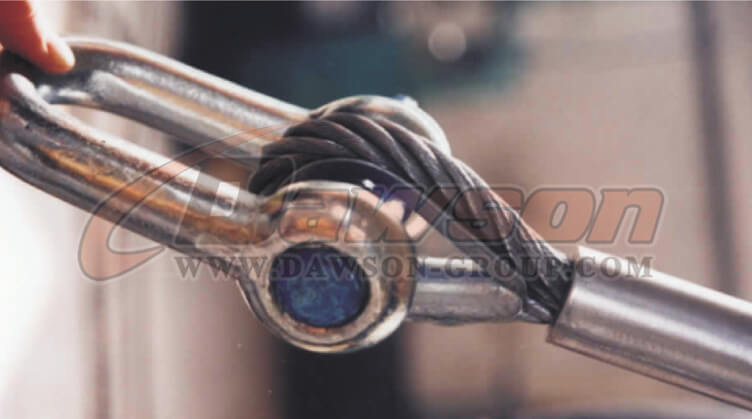

Application: Grade S shackle made by forged high tensile steel with meet the standard of AS2741, mainly using in Australian market and others countries with need a thick nut. Purpose design for lifting , lashing , rigging, marine and others heavy duty industry.

Welcome to buy the newest and competitive price DAWSON AS2741 Forged Alloy Grade S Bow Shackle With Screw Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
